Sony Bravia KDL-40Z5800 Installation instructions manual

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
1/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Table of Contents
Remote and TV Controls/Indicators
(4) Remote and TV controls
(22) Indicators
(24) About the operation guide on the TV screen
Watching TV
(25) Watching TV
(33) Using the Digital Electronic Programme Guide (EPG)
(36) Using the Favourite List
Using Optional Equipment
(40) Connecting Optional Equipment
(47) Viewing Pictures from Connected Equipment
(50) Playing back Photo/Music/Video via USB
(57) Using BRAVIA Sync with Control for HDMI

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
2/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Table of Contents
(59) Operating Optional Equipment using the TV Remote
Using Home Network Features
(74) Connecting to the Network
(76) Enjoying AppliCast
(78) Enjoying Photo/Music/Video Files via the Network
(81) Checking the Network Connection
(83) Adjusting the Server Display Settings
Using Menu Functions
(85) Navigating through TV Home Menu on XMB™
TV Settings Menu
(88) System Update
(89) BRAVIA Tips
(90) Clock/Timers

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
3/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Table of Contents
(91) Eco
(92) Picture
(98) Sound
(102) Screen (for inputs other than a PC)
(104) Screen (for PC input)
(106) Video Settings
(107) Audio Settings
(109) Set-up
(115) Analogue Set-up
(120) Digital Set-up
(126) Network Settings
Additional Information
(128) Troubleshooting

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
4/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls
1 TV (TV standby)
Press to turn the TV on and off from standby
mode.
[L]
• The number 5, , PROG + and AUDIO buttons
on the remote have a tactile dot. Use the tactile
dots as a reference when operating the TV.

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
5/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls

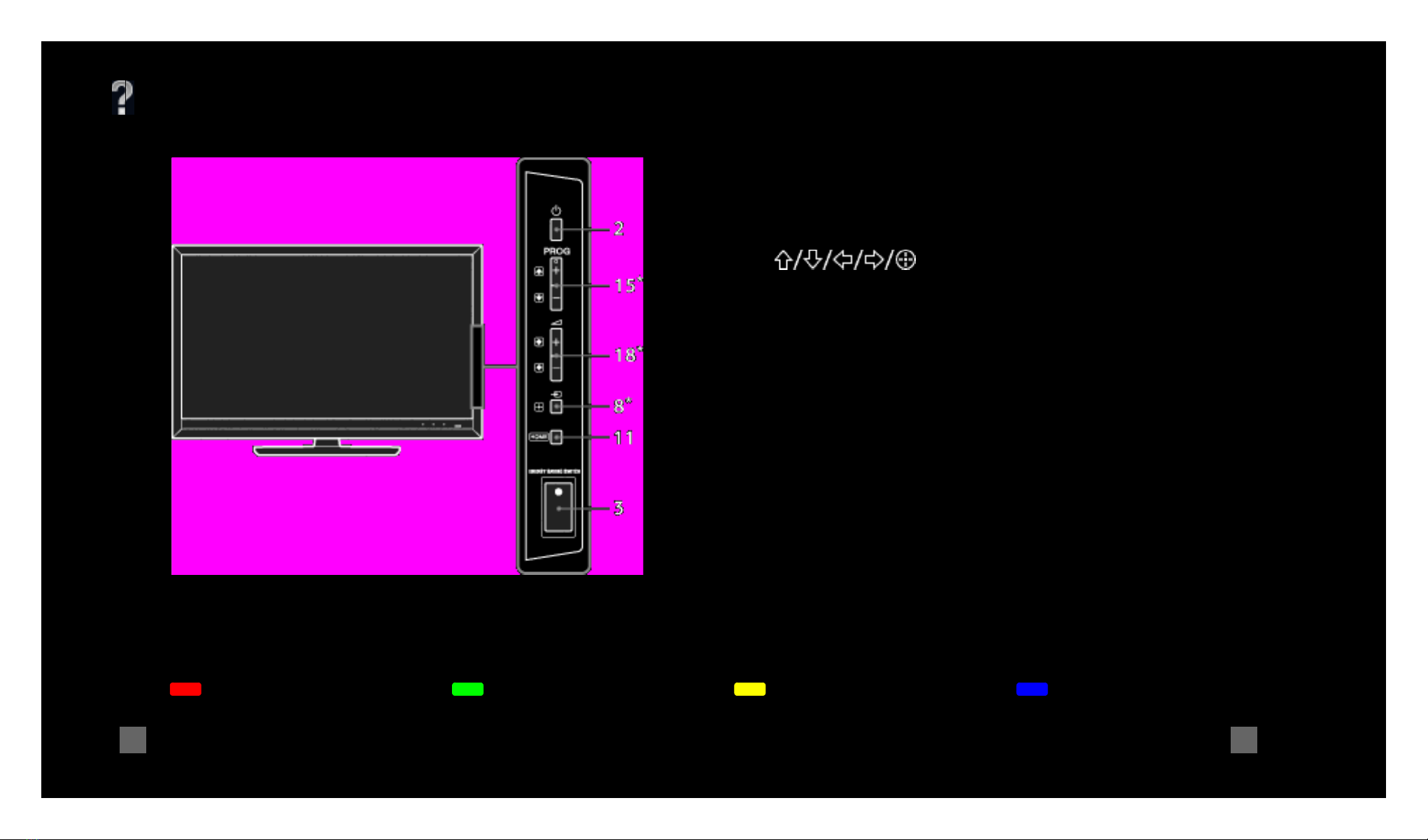

Buttons on the TV will work the same as those on
the remote.
*In the TV menu, these buttons will work as
.

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
6/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls

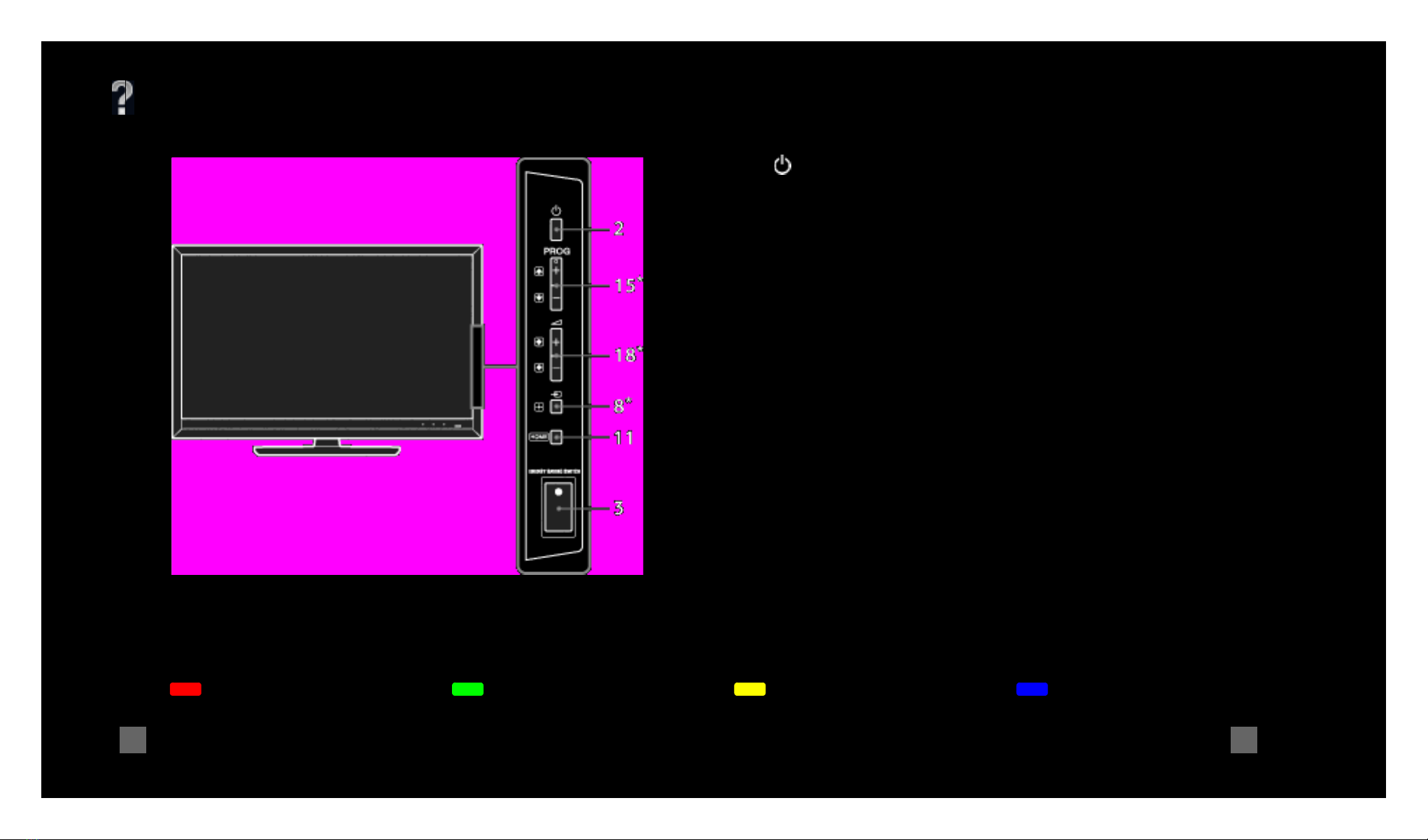

2 (Power)
Press to turn the TV on or off.
[H]
• When ENERGY SAVING SWITCH is off, the TV
cannot be turned on.
• To disconnect the TV, turn off the TV, then
unplug the mains lead/AC power cord from the
mains/AC power.

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
7/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls
3 ENERGY SAVING SWITCH
Press to turn the TV on or off. When ENERGY
SAVING SWITCH is switched off, power
consumption is reduced. If the TV is in standby
mode when ENERGY SAVING SWITCH is switched
off, switching ENERGY SAVING SWITCH on puts
the TV back into standby mode only.
[H]
• When ENERGY SAVING SWITCH is switched off,
you will not be able to perform such functions
as saving clock settings, downloading EPGs, or
updating software.

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
8/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls
4 (Screen mode)
Press to change the screen format (30).
5 AD
Press to set Audio Description to "On" or "Off".
6 EXIT
Exit from the current application and go back to
normal TV mode.

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
9/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls

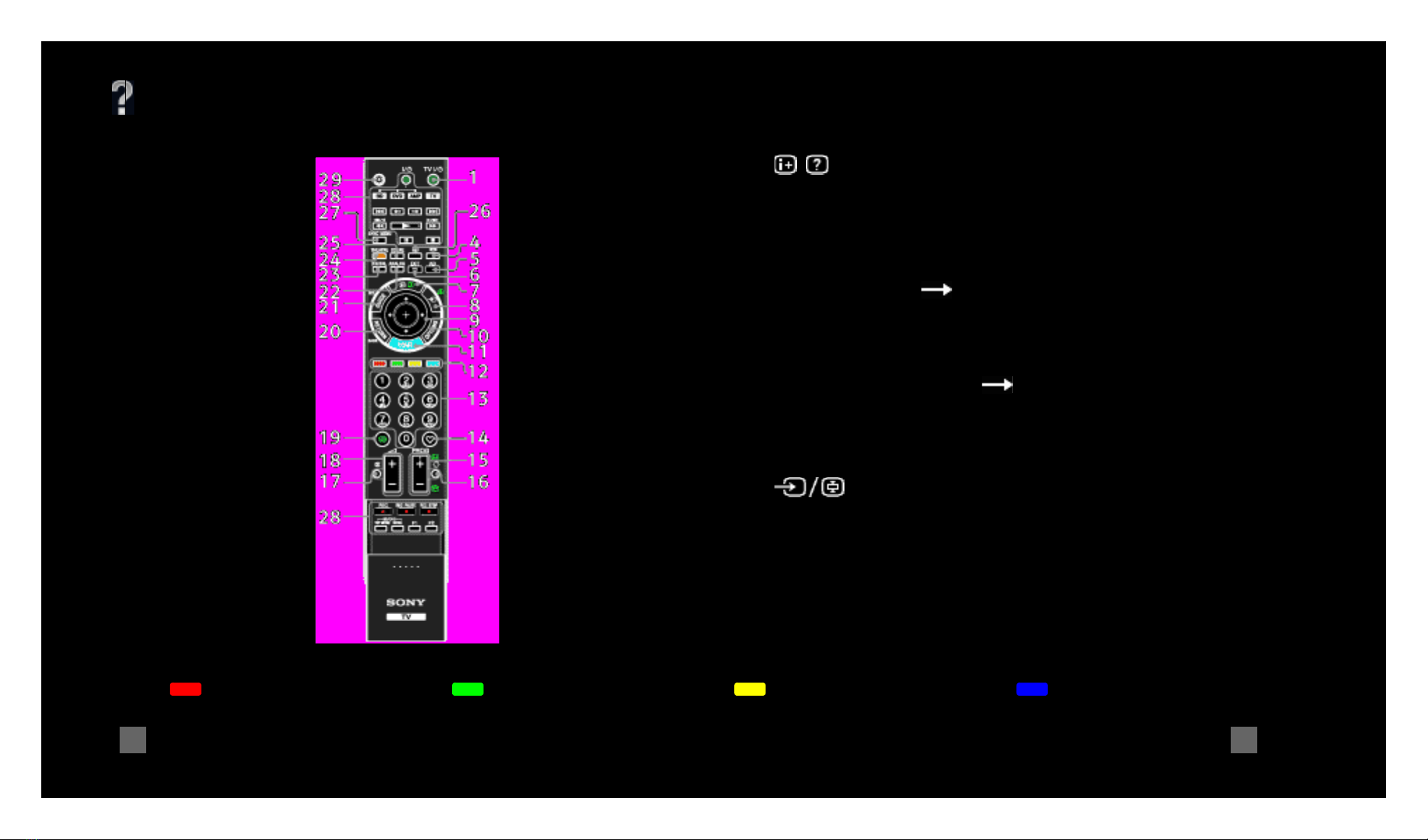

7 / (Info/Text reveal)
Each time you press the button, the display
changes as follows:
• In digital mode: Details of the current
programme Details of the next programme
(only for Sony Guide)
• In analogue mode: Current channel number
and screen mode Clock information
• In Text mode: Reveals hidden information (e.g.
answers to a quiz) (28).
8 (Input select/Text hold)
• In TV mode: Press to display a list of inputs.
• In Text mode: Press to hold the current page.

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
10/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls

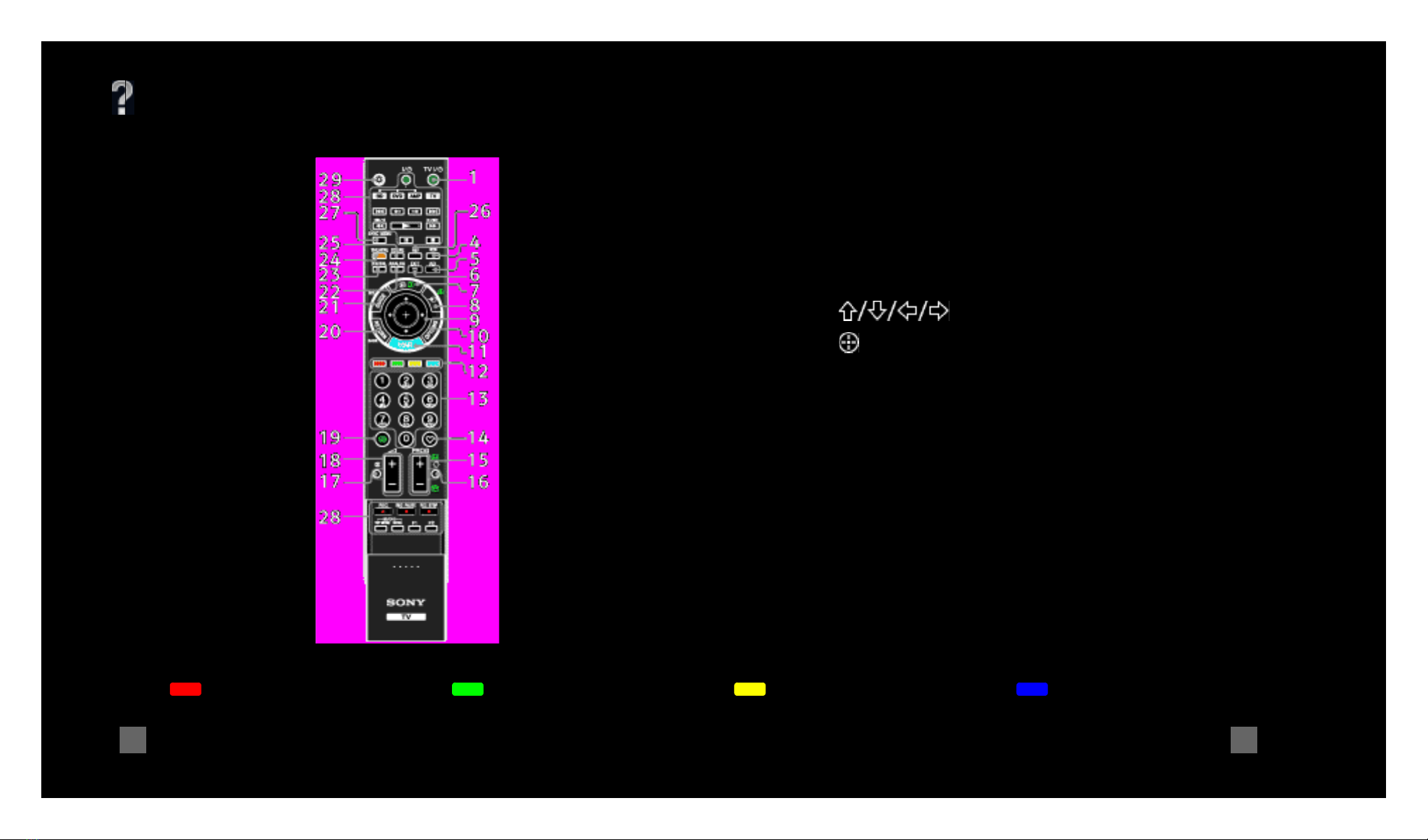

9
Press to move the on-screen cursor.
Press to select/confirm the highlighted item.
• When playing a photo file:
- Press to pause/start a slideshow.
- Press to select the previous file.
- Press to select the next file.
• When playing a music/video file:
- Press to pause/start the playback.
- Press and hold to fast forward/fast
reverse, then release the button at the point
where you want to resume playback.

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
11/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls
- Press to start playback from the beginning
of the current file.
- Press to go to the next file.
10 OPTIONS
Press to display a list that contains “Device
Control” or shortcuts to some setting menus.
Use the “Device Control” menu to operate
equipment that is compatible with Control for
HDMI.
The listed options vary depending on the input
source.
11 HOME
Press to display the TV Home Menu (85).
12 Coloured buttons
When the coloured buttons are available, an
operation guide appears on the screen.

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
12/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls
13 Number buttons
• In TV mode: Press to select channels. For
channel numbers 10 and above, press the next
digit quickly.
• In Text mode: Press to enter a page number.
[H]
• Use alphanumeric buttons when needed.
14 (Favourite)
Press to display the Favourite List that you have
specified (36).

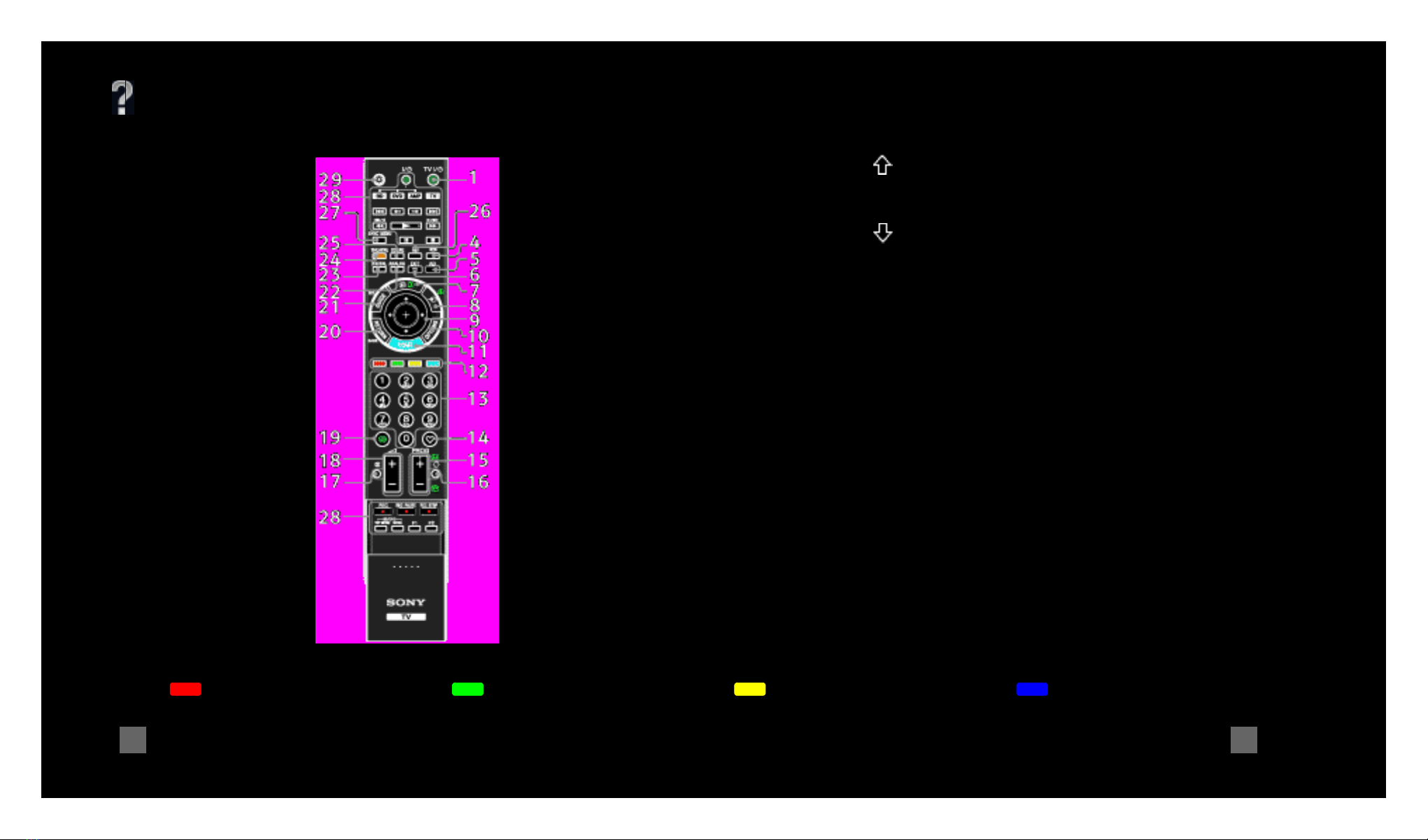

15 PROG +/–/ /
• In TV mode: Press to select the next (+) or
previous (–) channel.

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
13/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls
• In Text mode: Press to select the next ( )or
previous ( ) page.
16 (Previous channel)
Press to return to the channel that was last
viewed (for more than five seconds).
17 (Mute)
Press to mute the sound. Press again to restore
the sound.
[L]
• In standby mode, if you want to turn on the TV
without sound, press this button.
18 +/– (Volume)
Press to adjust the volume.
19 (Text)
Press to display text information (28).

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
14/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls
20 RETURN/BACK
Press to return to the previous screen of the
displayed menu.
When playing a photo/music/video file: Press to
stop the playback. (The display returns to the
file or folder list.)
21 GUIDE (EPG)
Press to display the Digital Electronic
Programme Guide (EPG) (33).
22 ANALOG
Press to display the analogue channel that was
last viewed.
When viewing pictures from connected
equipment: Press to return to normal TV mode.

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
15/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls
23 DIGITAL
Switches from analogue mode to the last
selected digital mode (DVB-S or Antenna/Cable)
Toggles between two digital modes (DVB-S and
Digital (Antenna/Cable)) when the TV set
operates in Digital mode.
When viewing pictures from connected
equipment: Press to return to normal TV mode.
24 THEATRE
You can set Theatre Mode to on or off. When
Theatre Mode is set to on, the optimum sound
quality (if the TV is connected with an audio
system using an HDMI cable) and picture quality
for film-based contents are automatically set.

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
16/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls
[H]
• If you turn the TV off, Theatre Mode is also
turned off.
• When you change the “Scene Select” setting,
Theatre Mode turns off automatically.
• “Control for HDMI” (BRAVIA Sync) is only
available with the connected Sony equipment
that has the BRAVIA Sync or BRAVIA Theatre
Sync logo or is compatible with Control for
HDMI.

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
17/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls
25 SCENE
Press to display the “Scene Select” menu.
When you select the desired scene option, the
optimum sound quality and picture quality for
the selected scene are automatically set.
Press to select the scene option, then
press .
• Cinema: Delivers picture scenes just like those
in a theatre-like atmosphere with dynamic
sound.
• Photo: Delivers picture scenes that
authentically reproduce the texture and colour
of a printed photo.

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
18/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls
• Sports: Delivers picture scenes that let you
experience realistic picture and sound like
those in a stadium.
• Music: Delivers sound effects that let you
experience dynamic and clear sound like that
at a concert.
• Game: Delivers picture scenes that let you
enjoy your game-playing experience to the
fullest with superb picture and sound quality.
• Graphics: Delivers picture scenes that ease
your prolonged monitor viewing experience and
reduce fatigue by displaying clearer detailed
pictures.
• General: Use this setting when you do not
optimise the sound quality and picture quality
for any scene.

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
19/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls
• Auto: The optimum sound quality and picture
quality are automatically set according to the
input source, though there may not be any
effect depending on the connected devices.
[H]
• The options you can adjust vary depending on
the situation.
• Unavailable options are greyed out or not
displayed.
• When you set Theatre Mode (15) to on, the
“Scene Select” setting switches to “Cinema”
automatically.
26 (Subtitle setting)
Press to change the subtitle language (120) (in
digital mode only).

OSIM | Project: EG2L | Resolution-Width: 960 | Resolution-Height: 540 | Language: English UK
20/ 139 | File AQUA_Paprika_OSIM_GBUK_090923.fm | Created at March 19, 2008 | Modified at September 28, 2009 3:17 pm
Previous Next Table of Contents
Select Back
<auto-generated>Remote and TV Controls
27 SYNC MENU
Displays the menu of connected HDMI
equipment. While viewing other input screens or
TV programmes, “HDMI Device Selection” is
displayed when the button is pressed.
[H]
• “Control for HDMI” (BRAVIA Sync) is only
available with the connected Sony equipment
that has the BRAVIA Sync or BRAVIA Theatre
Sync logo or is compatible with Control for
HDMI.
