Sony Multiscan SDM-M51D User manual

SDM-M51D
Multiscan®Computer Display
Technologically advanced
LCD display with unique
digital and analog
combination input provides
superior images with
outstanding onscreen colors
in a sleek space-saving
design.
15.1" Flat Panel - TFT LCD technology is combined with
anti-glare coating for high contrast images.
Advanced Digital FlexRes™technology - Delivers a crisp,
clear, full-screen image for resolutions up to 1024 x 768.
Digital/Analog Combination input - Combination digital
(DVI-I)/analog (HD15) input provides improved
performance and flexibility for computer system
connections.
Stereo speakers - Built unobtrusively into the flat bezel to
deliver exceptional audio.
Advanced Auto ImageSet™technology - Automatically sets
image position, phase and pitch.
Zero Footprint™design - Removable tilt base adjusts to
any angle or can be removed to provide arm or wall
mounting.
M-Series LCD

Power Requirements
 100-240VAC, 50/60Hz
Power Management:
 Normal Operation 22 W max. (w/ AC adapter)
 Active Off  2 W max.
 Power Off  2 W max.
Regulation and Standard Compliance
 Safety Regulations UL1950, CSA C22.2 No.950
   EN60950, PSB (SISAR)
   Hong Kong,CB IEC60950
   EMKO's,
 Human Factor ISO 13406-2, ISO 9241-3,7,8
 CE mark  EN55022/55024
   EN61000-3-2/-3
 EMI  FCC Class B
   IC Class B
   AS/NZS (C-Tick)
 ELF/VLF  MPR-II (TUV Ergonomic Mark)
   TCO 99
 Power Management International Energy Star
 Designed for  PC99,Windows® 95,98,2000
   Macintosh® Compatible
 Plug and Play DDC-1, DDC-2B, DDC-2Bi
Tilt Range   0° to +70°
Front Panel User Controls
 Power Switch,Menu Button
 Brightness,Contrast Button
 Volume
On Screen Display Controls
 Phase, Pitch, Image Center
 Color Temperature, Gamma, Backlight Control
 Option (OSD Position)
 Power Saving Delay
 Multi-Language (Eng., Fre., Spa., Ital., Ger., Jap.)
 Menu Lock, Volume, Reset
Operating Conditions
 Temperature: 41° to 95° F (5° to 35° C)
 Relative Humidity: 10% to 80% (Non-Condensing)
Storage Conditions
 Temperature: -4° to 140°F (-20° to 60°C)
 Relative Humidity: 5% to 95% (Non-Condensing)
Supplied Accessories
 AC adapter, AC Power Cord
 User's Manual (Eng., Fre., Spa., Ital., Ger.)
 Cord Clip
 Windows® Monitor Information Disk/Utility Disk
 Macintosh® Utility Disk
 MAC Adapter
 HD15 ~ DVI-I Video Signal Cable
 Warranty Card
 Audio Cable
Limited Warranty
 Parts and Labor: 3 years
Optional Accessories
 DVI-D ~ DVI-D Video Signal Cable
Sony Electronics Inc.
16765 West Bernardo Drive
San Diego, California 92127
For more information: 1.800.352.SONY
Web address: http://www.sony.com/displays
Computer Interface: The computer industry lacks standards, and therefore, there are a multitude of varying software packages and add-on hardware options. This display is not manufactured to any specific software, and Sony does not
and cannot make any warranty or representation with respect to the performance of this product with any particular software packages and/or non-Sony add-on hardware option except those mentioned in this document. Sony hereby
disclaims any representations or warranty that this product is compatible with any combination of non-Sony products you may choose to connect. While Sony representatives or Sony authorized dealers may be able to assist you and
may make recommendations, they are NOT authorized to vary or waive this disclaimer. Purchasers must determine for themselves the suitability and compatibility of the hardware and software in each and every particular instance.
©2000 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, the Sony logo, DisplayMouse, Trinitron, Multiscan, Digital FlexRes, Auto ImageSet and Zero Footprint
Design™ are trademarks of Sony. Microsoft, the Windows Logo and Windows are registered trademarks of Microsoft Corporation. Mac and Macintosh are trademarks of Apple Inc. All other trademarks are property of their respective
owners. Features and specifications are subject to change without notice. Non-metric weights and measurements are approximate.
This monitor is Energy Star Compliant when used with a computer equipped with VESA Display Power Management Signaling (DPMS). As an International Energy Star Partner, Sony Corporation has determined that this product
meets the International Energy Star Program for energy efficiency. The Energy Star emblem does not represent EPA endorsement of any product or service. Screen images are simulated.

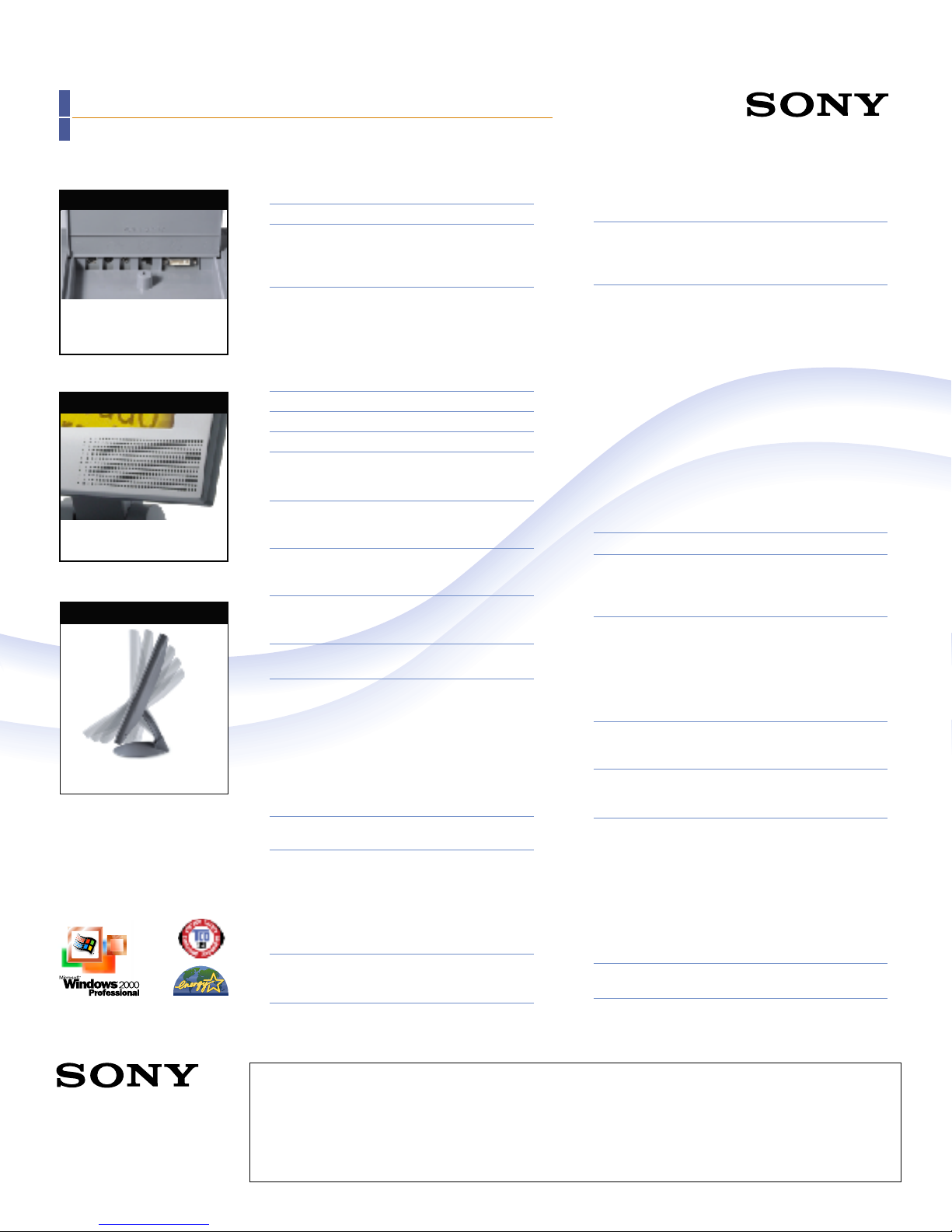

SDM-M51D
Multiscan®Computer Display
Printed in the USA - (04/01/01)
Model  SDM-M51D
Color Two-Tone Gray
Viewable Image Size
Diagonal  15.1”
 Horizontal  12.1”
 Vertical 9.1”

LCD Panel
LCD Type  a-Si TFT Active Matrix
 Native Resolution 1024 x 768
 Color Filters  RGB Vertical Stripes
 Pixel Pitch  0.30 mm
 Screen Treatment Anti-Glare/Hard Coating
 Colors  16.19 Million (approx.)
Maximum Resolution 1024 x 768
Luminance  200 cd/m2
Contrast Ratio  300:1
Viewing Angle
Horizontal 140
 Vertical 120
Scan Range
Horizontal 28kHz - 64kHz
 Vertical 48Hz - 75Hz
Preset Timings
 Factory  13
 User Adj  18

Response Tiime
 Rise Time  20 ms
 Fall Time  30 ms
Color Temperature Presets
 5000, 6500, 9300 (default) Kelvin
Video Signal Inputs
Digital  Follows the DVI standard (rev.1.0)
Analog
 Video Input  Analog RGB 0.7 Vp-p ± 5%,
   Positive, 75 ohms (typ)
 Sync Input  Separate HD/VD
   TTL, Polarity Free
   Polarity free, Ext. Composite
 Sync on Grn  0.3 Vp-p ± 10%, Negative

Input Connectors
DVI-I (accepts both digital and analog signals)
Audio Inputs / Outputs
Input Connector Stereo Minijack
 Headphone Connector Stereo Minijack
 Audio Input 0.5V RMS
 Impedance 47k ohms
 Headphone Output 1W x 1W
 Speaker Output 1W x 1W
Display Dimensions (HxWxD)
 13.6”x 15.2”x 7.1”
 11.7”x 15.2” x 1.9”(w/o stand base)
Display Weight
 10.1 lbs.
• Digital or Analog input flexibility
• Digital signal for optimal
performance
• Multi-media applications
• Internet Content
Stereo Speakers
D213
Digital/Analog Video Input
Zero Footprint Design
• Adjustable and removable tilt base
• Sleek and space saving design
