Sony VPH-G90E User manual

VPH-G90E
VPH-G90M
VPH-G90U
VPH-G90E/VPH-G90M/VPH-G90U
Multiscan Projector
©1998 by Sony Corporation
3-865-265-13 (2)
GB
FR
ES
Operating Instructions
Mode d’emploi
Manuel de instrucciones

2 (GB) Table of Contents
For the customers in Canada
This Class A digital apparatus complies with Canadian ICES-
003.
For the customers in the United Kingdom
WARNING
THIS APPARATUS MUST BE EARTHED
IMPORTANT
This wires in this mains lead are coloured in accordance with
the following code:
Green-and-Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be
connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol Y or coloured green or
green-and-yellow.
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
Voor de klanten in Nederland
• Dit apparaat bevat een Li-ion batterij voor memory back-
up.
• De batterij voor memory back-up van het geheugen is
bevestigd op IC333 van plaat YA.
• Raadpleeg uw leverancier over de verwijdering van de
batterij op het moment dat u het apparaat bij einde
levensduur afdankt.
• Gooi de batterij niet weg, maar lever hem in als KCA.
• Bij dit produkt zijn batterijen geleverd.
Wanneer deze leeg zijn, moet u ze niet
weggooien maar inleveren als KCA.
The socket-outlet should be installed near the equipment
and be easily accessible.
To prevent fire or shock hazard, do not expose
the unit to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified personnel
only.

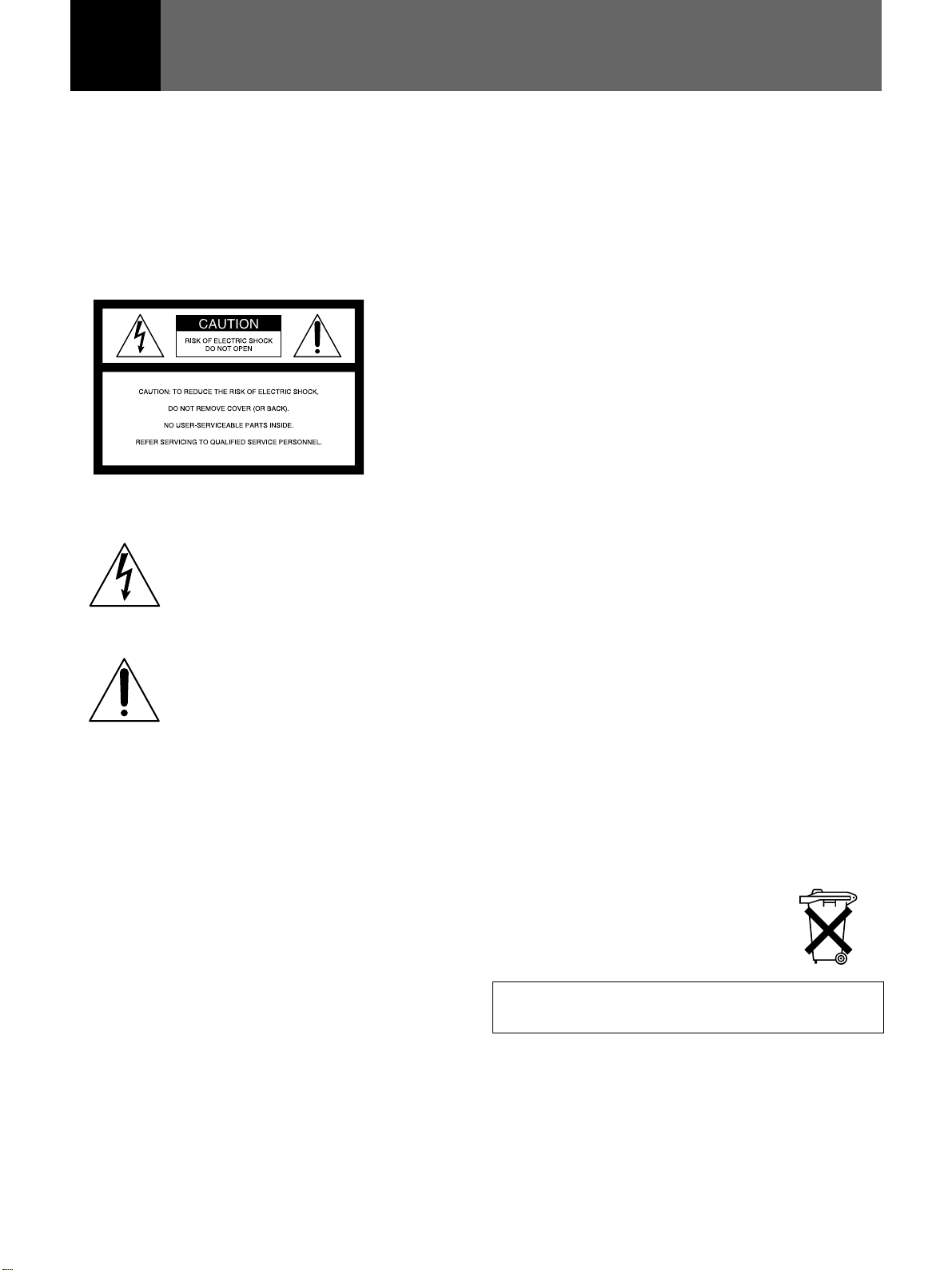

This symbol is intended to alert the user
to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user
to the presence of important operating
and maintenance (servicing) instructions
in the literature accompanying the
appliance.
For the customers in the USA
Note
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
Warning
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
WARNING
English
2 (GB) WARNING

Table of Contents 3 (GB)
Table of Contents
Overview
Precautions ..................................................................5 (GB)
Features........................................................................8 (GB)

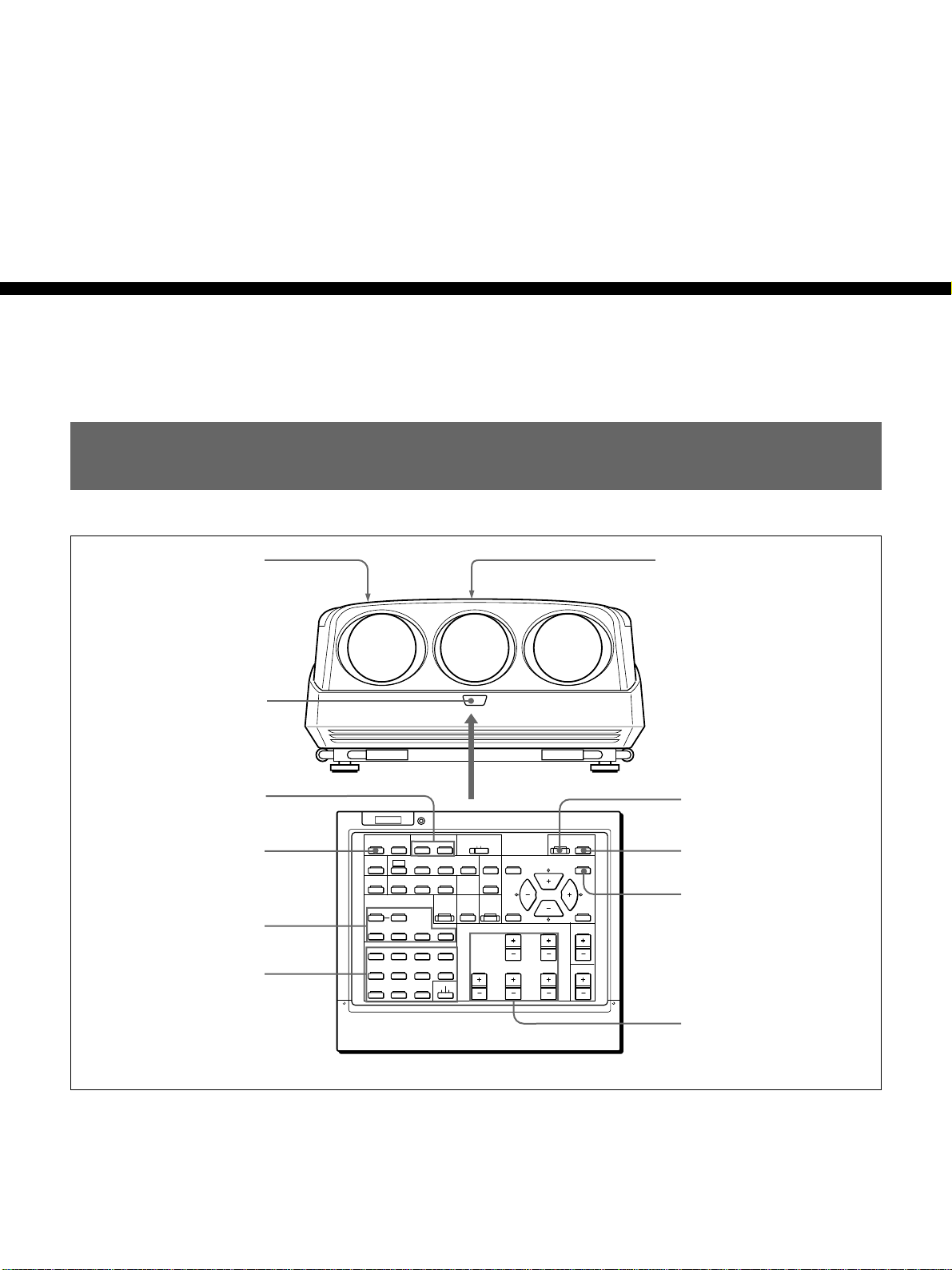

Location and Function of Controls ..........................10(GB)
Front ............................................................................... 10 (GB)

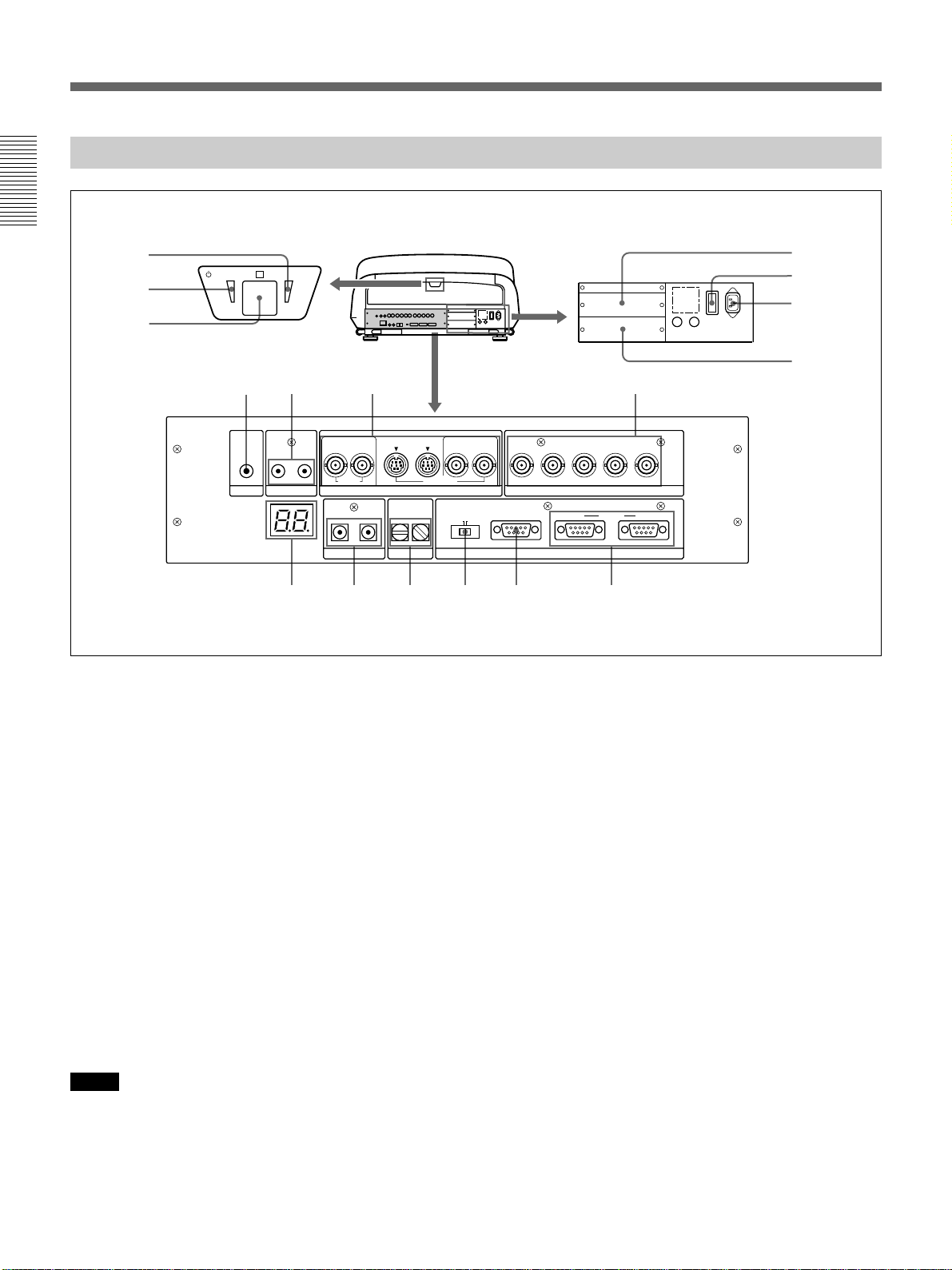

Rear ................................................................................ 12 (GB)

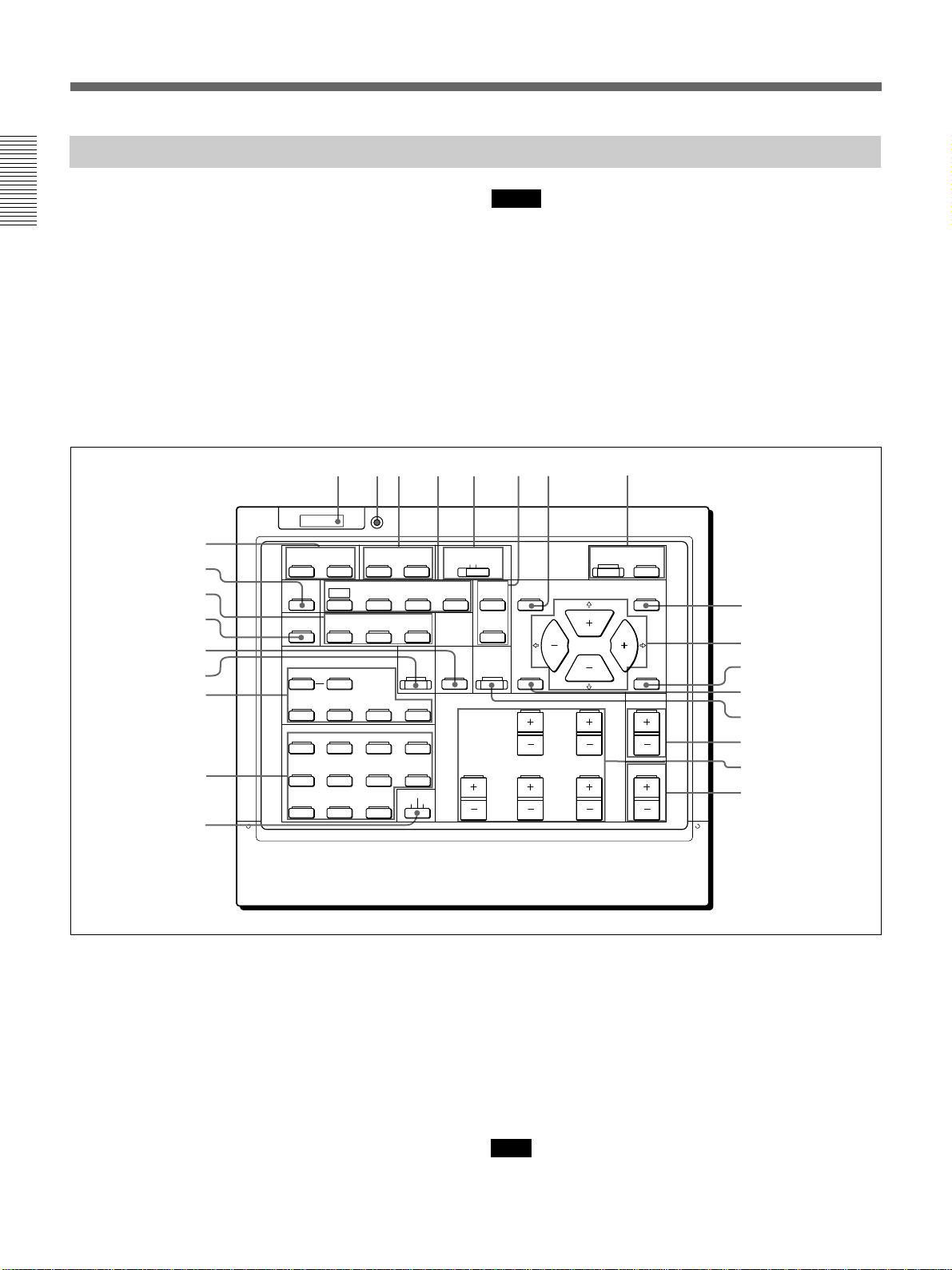

Remote Commander/Control Panel ............................... 14 (GB)
Projecting
Projecting ...................................................................18 (GB)
Adjusting the Picture ................................................21 (GB)
Centering Adjustment ...............................................22 (GB)
Adjusting the Size And Shift of the Picture ............24 (GB)
SIZE adjustment............................................................. 24 (GB)
SHIFT adjustment .......................................................... 24 (GB)
Blanking adjustment ...................................................... 25 (GB)
Adjustments and settings using the menu
Using the Menu..........................................................26 (GB)
Basic Menu Operation ................................................... 26 (GB)
Menu Modes .................................................................. 27 (GB)
The PIC CTRL (Picture Control) Menu .....................29 (GB)
The PIC SETTING 1 (Picture Setting 1) Menu .........31 (GB)
The PIC SETTING 2 (Picture Setting 2) Menu .........32 (GB)
The INPUT SETTING Menu .......................................33 (GB)
The SET SETTING 1 Menu ........................................35 (GB)
The SET SETTING 2 Menu ........................................36 (GB)
The INPUT INFO (Information) Menu .......................38 (GB)
The SET INFO (Information) Menu ...........................39 (GB)
GB
English

4 (GB) Table of Contents
Installation/connection examples
Installation Examples................................................40 (GB)
Installation 1: Floor Installation Using Front Projection
Flat Screen ................................................................ 41 (GB)
Installation 2: Ceiling Installation Using Front Projection
Flat Screen ................................................................ 42 (GB)
Connection Examples ...............................................43 (GB)
Connecting Directly to the Projector ............................. 43 (GB)
Connecting Multiple Projectors ..................................... 44 (GB)
Using the PC-3000 Signal Interface Switcher ............... 46 (GB)
Confirming the System Construction............................. 47 (GB)
Using the PC-1271/1271M Signal Interface Switcher... 48 (GB)
Setting the Index Numbers .......................................49 (GB)
Maintenance / Other
Troubleshooting......................................................... 52 (GB)
Specifications ............................................................53 (GB)
Index ...........................................................................56 (GB)
Table of Contents

Overview 5 (GB)
Overview
Overview
Precautions
On safety
•Check that the operating voltage of your unit is identical with the voltage
of your local power supply. If voltage adaptation is required, consult with
qualified Sony personnel.
•Should any liquid or solid object fall into the cabinet, unplug the unit and
have it checked by qualified personnel before operating it further.
•Unplug the unit from the wall outlet or set the MAIN POWER switch to
OFF if it is not to be used for several days.
•To disconnect the cord, pull it out by the plug. Never pull the cord itself.
•The wall outlet should be near the unit and easily accessible.
•The unit is not disconnected from the AC power source (mains) as long
as it is connected to the wall outlet, even if the unit itself has been turned
off.
On installation
•When the projector is mounted on the ceiling, the Sony PSS-90 Projector
Suspension Support must be used for installation. Read the installation
manual of the PSS-90 carefully, since the ceiling should be reinforced for
safety.
•Allow adequate air circulation to prevent internal heat build-up. Do not
place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains,
draperies) that may block the ventilation holes. Leave space of more than
30 cm (12 inches) between the wall and the projector. Be aware that room
heat rises to the ceiling; check that the temperature near the installation
location is not excessive.
•Do not install the unit in a location near heat sources such as radiators or
air ducts, or in a place subject to direct sunlight, excessive dust or
humidity, mechanical vibration or shock.

6 (GB) Overview
Overview
Precautions
•To avoid moisture condensation, do not install the unit in a location
where the temperature may rise rapidly.
•Fans are installed inside the projector to prevent internal heat build-up.
The fans produce a humming noise when the power is switched on, which
is normal. Should the noise sound abnormal, please consult qualified
Sony personnel.
On illumination
•To obtain the best picture, the front of the screen should not be exposed
to direct lighting or sunlight.
•Ceiling-mounted spot lighting is recommended. Use a cover over
fluorescent lamps to avoid lowering the contrast ratio.
•Cover any windows that face the screen with opaque draperies.
•It is desirable to install the projector in a room where floor and walls are
not of light-reflecting material. If the floor and walls are of reflecting
material, it is recommended that the carpet and wall paper be changed to
a dark color.
On operation
To turn on the projector after the projector has been turned off due to a
brief loss of power, press the ON key on the remote commander, or turn
off the MAIN POWER switch so that the STANDBY indicator turns off
and then turn on the MAIN POWER switch.
On cleaning
•To keep the cabinet looking new, periodically clean it with a soft cloth.
Stubborn stains may be removed with a cloth lightly dampened with a
mild detergent solution. Never use strong solvents, such as thinner,
benzene, or abrasive cleansers, since these will damage the cabinet.
•Avoid touching the lens. To remove dust on the lens, use a soft dry cloth.
Do not use a damp cloth, detergent solution, or thinner.

Overview 7 (GB)
Overview
CRT burns
When a static picture of a computer, etc. is displayed for more than about
an hour, a CRT burn may result. This means that an after-image
impression of the static picture remains on the screen even after the picture
has changed. If it is necessary to display the same static picture for more
than an hour, we recommend that you set the CONTR (contrast) control to
the lowest setting.
Also, when a picture of different size is displayed beyond a certain length
of time, an after-image impression of the frame of the smaller picture may
be burnt on the screen (such as displaying a 16:9 wide size picture on a 4:3
screen). To avoid this, we recommend that you use the same picture size
when possible. However, if it is necessary to use a different picture size,
set the CONTR (contrast) control and the BRT (brightness) control of the
smaller picture to the lowest setting possible. This will minimize the risk
of creating an after-image impression.
If the CRT burns, it must be replaced. In this case, refer to the warranty
provided with this unit. Consult your Sony dealer or Qualified Service
Personnel.
On repacking
Save the original shipping carton and packing material; they will come in
handy if you ever have to ship your unit. For maximum protection, repack
your unit as it was originally packed at the factory.

8 (GB) Overview
Overview
Features
Multiscan projector 1)
This projector accepts and automatically detects horizontal scanning
frequencies between 15 kHz and 150 kHz and vertical scanning
frequencies between 38 Hz and 150 Hz.
In addition to high-resolution pictures from computers, you can also
project pictures from teletext decoders, VCRs and video cameras.
High resolution and brightness
A newly developed 9-inch electromagnetic focus CRT, a hybrid Sony
HACC (High-resolution Aspherical and Color Corrected) lens and a wide-
range cathode/G1 dual-drive video output circuit are incorporated in the
projector to provide a sharp and bright high-quality picture with the high
resolution of 2500 ×2000 pixels and the high light output of 350 lumen.
High contrast
The adoption of the optical coupling technologies, double-focus lens
system and an anti-reflection coating gives a fine-detail and sharp picture
with improved contrast in corners and screen center.
Easy operation—remote control, on-screen display
Adjustments such as input selection, picture control and centering
adjustment can be remotely controlled from both the front and rear of the
projector with the supplied remote commander. You can also use the
commander as a wired remote control by connecting it to the projector
with the supplied remote control cable.
Compatible with various color systems 1)
NTSC, PAL, SECAM, NTSC4.43 2) or PAL-M color system can be selected
automatically or manually.
1) The VPH-G90E model is not equipped with the VIDEO connectors.
To connect video signals, the optional IFB-G90E Video Interface Board is required.
2) NTSC4.43 is the color system used when playing back a video recorded on NTSC on a NTSC4.43 system VCR.
..........................................................................................................................................................................................................

Overview 9 (GB)
Overview
Flexible setup
You can project a 90- to 300-inch picture (120-inch standard) with this
projector. The projector can be set up on the floor or ceiling, for front or
rear projection to suit the installation location, surrounding illumination,
usage, etc.
Illuminated control panel/remote commander keys
The key names on the remote commander and the control panel of the
projector can be illuminated for easy access in a dark place by pressing the
LIGHT button.
DRC (Digital Reality Creation) circuit1)
The DRC is Sony’s unique double-scan technology which creates a 4-
times density image from the NTSC signal. A normal NTSC signal (525
scanning lines) is converted into a high density signal (1050 scanning
lines) using digital mapping tecnology. Compared with the conventional
double-scan, the DRC creates a highly realistic moving picture without
blurs.
1) The VPH-G90E model is not equipped with the VIDEO connectors.
To connect video signals, the optional IFB-G90E Video Interface Board is required.
..........................................................................................................................................................................................................

10 (GB) Overview
Overview
Location and Function of Controls
Front
1Blue lens
2Green lens
3Red lens
4Control panel cover
The control keys are inside the cover.
The locations and functions of the control keys are the
same as those of the remote commander.
For details, see “Remote Commander/Control Panel” on
page 14 (GB).
5Handles
Used for carrying the projector. The handles are
located on the front, rear, left and right sides.
6Front remote control detector
7Adjusters
Used to keep the projector level if it is installed on an
uneven surface (equipped with four adjusters).
To raise To lower
123 4
567
Supplied tool Supplied tool
How to use the adjusters
Using the supplied tool, turn the adjusters to adjust the
height so that the projector becomes level.
Notes
•The supplied tool can rotate the screw in one
direction only. To rotate the screw in the reverse
direction, turn the tool upside down.
•Do not turn the tool forcibly when the screw has fully
rotated. Otherwise, the tool may slip out and injure
your hand.

Overview 11 (GB)
Overview

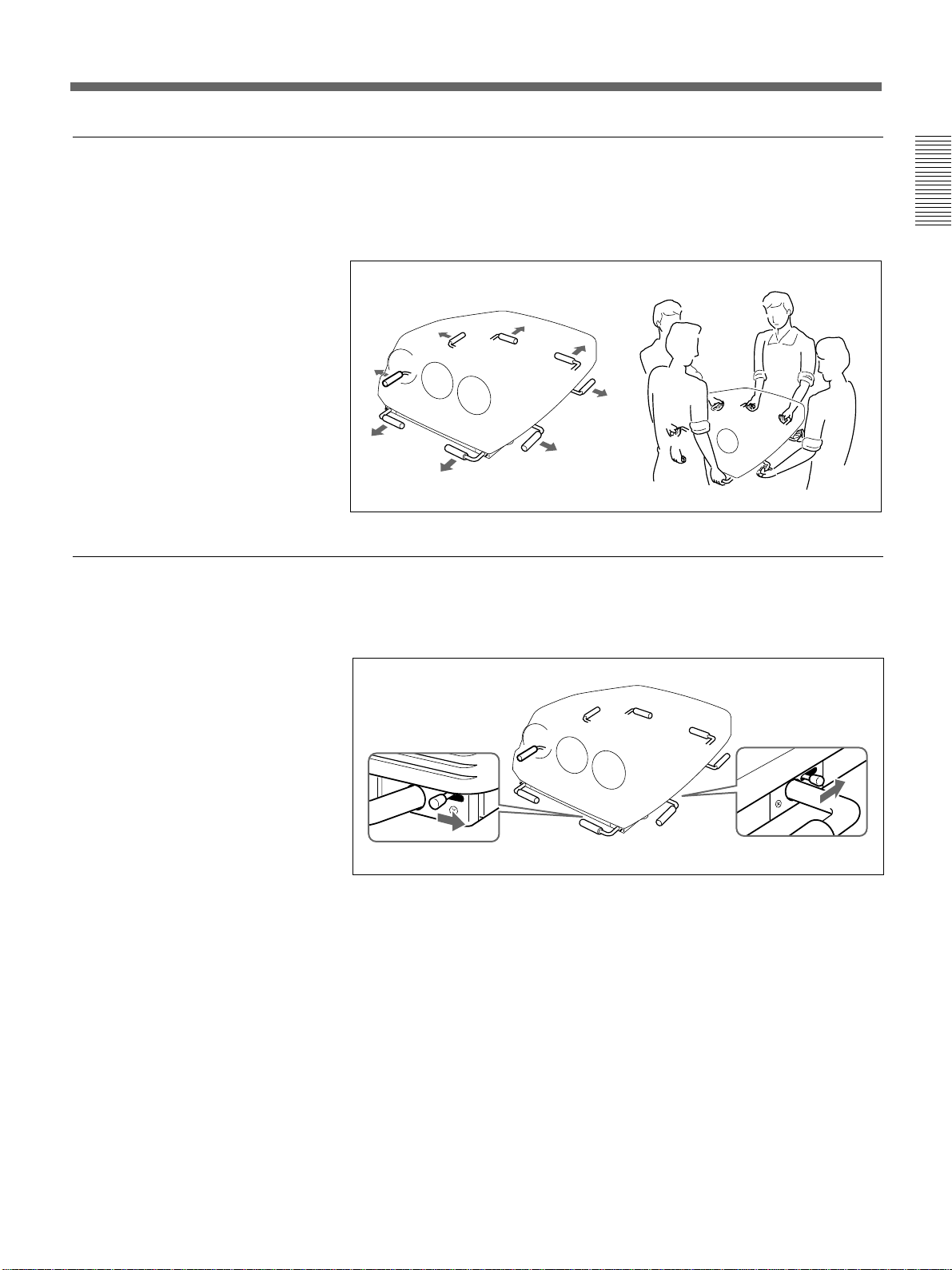

Using the handles
Carry the projector with four persons or more by using the front, rear and
side (right and left) handles.
Pull out the front and rear handles or the side handles.
Putting away the handles
Push the handle release lever under each handle. The handle is
automatically retracted.

12 (GB) Overview
Overview
Location and Function of Controls
Rear
TRIGGER
LINK
S VIDEO
OUT IN
C IN
Y IN
VIDEO
VIDEO
R-Y/P R
RB-Y/P
B
G B SYNC/HD VD
INPUT A
Y
CONTROL S
PLUG IN POWER
DEVICE INDEX
IN OUT
IN OUT
IN OUT
REMOTE
RS-232C/422A
RS-232C RS-422A
IN OUTPJ COM
STANDBY ONR
5

6

7
1
2
3

4

!¡ !º 9 8
!™ !£ !¢ !∞ !§ !¶

5ON indicator
When the projector is turned on, this indicator lights in
green.
6uSTANDBY indicator
When the MAIN POWER switch on the projector is
turned ON, this indicator lights in orange, indicating
that the projector can be turned on/off using the remote
commander.
7Rear remote control detector
8INPUT A connectors (BNC type)
R/R-Y/PR, G/Y, B/B-Y/PB, SYNC/HD, VD
connectors: Connect to the outputs of a computer or a
video camera. According to the connected
equipment, the RGB (R, G, B), component (R-Y,
Y, B-Y) or HDTV (PR, Y, PB) signal is selected.
1Signal interface board attachment part (INPUT
B)
An optional signal interface board such as IFB-12/12A
and IFB-40 can be attached to this section.
When the IFB-12/12A is attached, the signal input to
the INPUT A connectors can be output from the IFB-
12/12A by setting it to output mode.
2MAIN POWER switch
3AC IN socket
Connect the supplied AC power cord.
4Signal interface board attachment part (INPUT
C)
An optional signal interface board can be attached to
this section.
Notes
• The IFB-40 cannot be attached to INPUT C.
•When the IFB-12/12A is attached, the IFB-12/12A
cannot be set to output mode.

Overview 13 (GB)
Overview
Note
When using this jack, the remote control detector on
the projector does not function.
!¢ DEVICE INDEX switches
When multiple projectors are connected, set the device
index number of each projector.
To display the device index number on the screen,
press the NORMAL key, and the ENTER key on the
remote commander.
Note
Do not set the device index number to “00.” If you
do, the projector will not operate with the remote
commander.
You can operate the projector with the keys on the
control panel of the projector but the connected
equipment cannot be operated with the keys on the
control panel.
!∞ RS-232C/RS-422A selector
Selects the function of the RS-232C/RS-422A
connector.
!§ RS-232C/422A REMOTE connector (D-sub 9-
pin)
Used to expand the system connections using the RS-
232C/422A interface.
!¶ PJ COM (projector communication) IN/OUT
connectors (D-sub 9-pin)
These are the connectors conforming to the RS-485
standards, especially designed to expand the system
using Sony projectors.
Use these connectors to connect the PJ COM system of
the PC-3000 Signal Interface Switcher, or to activate
the linked picture orbiting function.
When the cable is connected to the IN connector only,
attach the supplied terminator to the OUT connector.
To connect multiple projectors, connect the IN
connector to the OUT connector of another projector
in cascade, and attach the supplied terminator to the
OUT connector of the last projector.
For details on the specifications of the connector, refer to
the Protocol Manual prepared by Sony.
9VIDEO connectors*
VIDEO IN connector (BNC type): Connects to the
composite video output of the video equipment.
VIDEO OUT connector (BNC type): Connects to the
composite video input of a color monitor.
S VIDEO IN/OUT connectors (4-pin, mini-DIN
type): Connects to the S video output or input of the
video equipment.
Y IN, C IN connectors (BNC type): Connects to the
Y and C video outputs of the video equipment.
Note
The S VIDEO IN connector is disconnected when a
cable is connected to the Y IN/C IN connectors.
* Note on the VPH-G90E model
The optional IFB-G90E Video Interface Board is
required for using the VIDEO connectors.
!º LINK IN/OUT jacks (stereo minijack)
When connecting multiple projectors, connect the
LINK OUT jack to the LINK IN jack on another
projector. Then the link functions (ABL LINK, PIC
ORBITING LINK and SCAN LINE SHIFT LINK) can
be used.
!¡ TRIGGER connector (minijack)
When the projector is turned on, 12 V is output. When
it is turned off, 0 V is output. However, the connector
cannot be used as the power source.
!™ LED display window
Self-diagnosis results and PJ COM communication
conditions, etc. are displayed using two-digit numbers
and alphabets.
Self-diagnosis codes are displayed in red or orange,
and the warning and communication conditions in
green.
!£ CONTROL S jacks
IN/PLUG IN POWER jack (stereo minijack):
Connects to the CONTROL S OUT jack of other
Sony equipment. Also connects to the CONTROL
S OUT jack of the supplied remote commander
with the supplied remote control cable (stereo
cable) to be used as a wired remote control. In this
case, this jack supplies the power to the remote
commander to save the battery power.
OUT jack (stereo minijack): Connects to the
CONTROL S IN jack of other Sony equipment.

14 (GB) Overview
Overview
SELECT
VIDEO MEMORY
SWITCHER INDEX
PIC ONAUDIO OFF
PATTERN FOCUS
ZOOM SHIFT
NORMAL
MUTING STATUS
LCD LENS CONTROL
ON
COMMAND
OFF
SIZE
DOT PHASE
APA SHIFT
RGB
R
B
CENT
ONSTANDBY
MEMORY
MENU
VIDEO
INPUT SELECT
ADBC
BLKG
SYS SET RESET FUNCTION
1423
5867
9
10/0(ALL)
SW NO/
OFF/GROUP
SWITCHER/VIDEO MEMORY/INDEX
ENTER
POSITION BRIGHT CONTR
PICTURE CONTROL
HUE COLOR
SHARP VOL
VIDEO/S VIDEO
LIGHT
0
43215
678
9
!¡
!™
!§
@º
@¡
@™
!•
!¶
!£
!¢
!∞
!ª
@£
@¢
@∞
Remote Commander/Control Panel
The locations and functions of the keys on the remote
commander are the same as those on the control panel
of the projector. (Only the remote commander is
equipped with the transmission indicator and the
COMMAND ON/OFF switch.)
The remote commander may be used as a wired or
wireless remote control.
1LIGHT button
Illuminates the key indicators when the COMMAND
switch 5is set to ON. If the COMMAND switch is
set to OFF, only the COMMAND switch is
illuminated.
The key indicators turn off if you press the LIGHT
button again.
If you do not press any key for more than 30 seconds,
the indicators also turn off automatically.
When the remote commander is connected to the
CONTROL S IN/PLUG IN POWER jack of the
projector via the remote control cable, the power is
supplied to the remote commander from the projector.
2Transmission indicator (only for the remote
commander)
Lights each time you press a key. If it does not light,
replace the batteries with new ones.
3STATUS ON/OFF keys
Press OFF to eliminate the on-screen display.
Press ON to restore the on-screen display.
Note
The menus and warning messages appear even if the
OFF key is pressed.
Notes
•The RGB APA/DOT PHASE 4, VOL +/– !§,
INPUT SELECT D !ª, LCD LENS CONTROL @£
and AUDIO MUTING @∞ keys do not function with
this projector.
•The RGB SIZE/SHIFT 4, CENT R/B 6and BLKG
@¡ keys function only in the pro-user mode.
•The keys on the control panel are basically effective
for this projector only. Only the commands from the
SYS SET key and the switcher select commands are
transmitted to the connected equipment via the PJ
COM connector.
Location and Function of Controls

Overview 15 (GB)
Overview
4RGB keys
Adjust the picture.
APA: This key does not function with this projector.
DOT PHASE: This key does not function with this
projector.
SIZE: Enters the size adjustment mode for the input
signal in the pro-user mode. Next adjust the size of
the picture using the four arrow keys. Each time
you press this key, the COARSE and FINE modes
are switched alternately.
B: to reduce horizontal size
b: to expand horizontal size
V: to expand vertical size
v: to reduce vertical size
SHIFT: Enters the shift adjustment mode for the input
signal in the pro-user mode. Next adjust the
position of the picture using the four arrow keys.
The picture shifts in the direction of the arrow on
the pressed key. Each time you press this key, the
COARSE and FINE modes are switched
alternately.
5COMMAND ON/OFF switch (only for the
remote commander)
No keys on the remote commander except the LIGHT
button 1function when this switch is set to OFF.
This saves battery power when a button is pressed
inadvertently.
6CENT R/B keys
Enter the centering adjustment mode of the red and
blue in the pro-user mode.
R: Press to enter the red centering adjustment mode.
B: Press to enter the blue centering adjustment mode.
Perform the centering adjustment using the four arrow
keys.
7MEMORY key
Stores various adjusted data into memory.
8ON/SYANDBY keys
Turn on and off the projector when the MAIN
POWER switch on the projector is set to ON.
9MENU key
Displays the main menu. Press it again to turn off the
menu.
0Arrow keys
Adjust the value or select the item in the menu.
!¡ ENTER key
Stores the settings in the menu, or selects and displays
the index number.
!™ FUNCTION key
Press to use the extended functions.
!£ RESET key
Resets the adjusted levels to the factory preset or
service adjusted levels.
!¢ POSITION +/– keys
Select the position to be adjusted on the screen in
focus, registration or blanking adjustment mode.
Also, set V SHIFT to WIDE or NARROW in RGB or
HDTV input signal’s SHIFT adjustment mode.
!∞ PICTURE CONTROL keys
Adjust the picture conditions: CONTR (contrast),
BRIGHT (brightness), COLOR, HUE and SHARP
(sharpness).
!§ VOL (volume) +/– keys
These keys do not function with this projector.
!¶ SWITCHER/VIDEO MEMORY/INDEX select
switch
Selects the function of the SWITCHER/VIDEO
MEMORY/INDEX keys.
SWITCHER: to select the input from the PC-3000 or
the PC-1271/1271M Signal Interface Switcher.
VIDEO MEMORY: to select the set and adjusted
video memory data.
INDEX: to select a projector by its index number
when multiple projectors are used.
!• SWITCHER/VIDEO MEMORY/INDEX keys
When the SWITCHER/VIDEO MEMORY/
INDEX select switch is set to SWITCHER
When the PC-3000 or the PC-1271/1271M Switcher
is connected to the projector, press a number key (1 to
8) to select the input from the switcher. Number key
9 and the 10/0 (ALL) key do not function.
To select an input when multiple switchers are
connected, set the SWITCHER/VIDEO MEMORY/
INDEX select switch to SWITCHER, then press the
SW NO/OFF/GROUP key. Next press the switcher
number (1 to 8) and the input number (1 to 8) in
sequence. Be sure to press the keys one after another
within 2 seconds.
e.g. To select input 4 of switcher 2, press the keys as
follows:
SW NO n2 n4.

16 (GB) Overview
Overview
!ª INPUT SELECT keys
Select the input signal.
VIDEO: Video or S video signal input from the
VIDEO connectors of the projector (VPH-G90U/
G90M) or the IFB-G90E Video Interface Board
(VPH-G90E).
SELECT VIDEO/S VIDEO: Selects video or S
video signal input from the VIDEO connectors
after pressing the VIDEO key.
A: The RGB, component or HDTV signal input from
the INPUT A connectors of the projector
B: The signal input from the INPUT B section when
the optional interface board other than the IFB-40
is installed
C: The signal input from the INPUT C section when
the optional interface board is installed.
D: This key does not function with this projector.
Note
To switch the input signal from the INPUT A, INPUT
B or INPUT C section to the S VIDEO IN (or Y IN/C
IN) connectors, first press the VIDEO key, then press
the SELECT VIDEO/S VIDEO key.
@º SYS SET (system set) key
When the PC-3000 Signal Interface Switcher is used
in the system, press the key to confirm the status of the
system, the settings of the interface board, and so on.
@¡ BLKG (blanking) key
Enters the blanking adjustment mode in the pro-user
mode.
You can adjust the blanking with the four arrow keys.
For details, see “Blanking Adjustment” on page 25 (GB).
@™ PATTERN key
Displays the internal test patterns of the projector.
Each press of the key advances the test pattern
sequentially.
@£ LCD LENS CONTROL keys
These keys do not function with this projector.
@¢ NORMAL key
Erases the test pattern or cancels the various
adjustment modes.
@∞ MUTING keys
PIC (Picture): Cuts off the picture. To restore the
picture, press the key again.
AUDIO: This key does not funcion with this
projector.
When the SWITCHER/VIDEO MEMORY/INDEX
select switch is set to VIDEO MEMORY
Select the number of the VIDEO MEMORY. To select
the data set and adjusted in INPUT MEMORY, press
the SW NO/OFF/GROUP key to set VIDEO
MEMORY to OFF.
Note
The 10/0 (ALL) key can be used as “10” key only
when the select switch is set to VIDEO MEMORY.
When the SWITCHER/VIDEO MEMORY/INDEX
select switch is set to INDEX
When multiple projectors are connected, select the
device index number of the projector to be adjusted.
Press the device index number (1 to 99) and press the
ENTER key. Be sure to press the keys one after
another within 2 seconds.
e.g. To select 1, press the keys as follows:
0 n1 nENTER, or 1 nENTER.
To select 12, press the keys as follows:
1 n2 nENTER.
When adjusting all the projectors simultaneously, press
the 10/0 (ALL) key and ENTER key.
Note
Depending on the projector, pressing “0,” “0” and
“ENTER” is not effective.
To select the projector to be adjusted when the
projectors are divided into multiple groups
First select the group index number and then the
projector’s device index number.
To select a group, press the SW NO/OFF/GROUP
key, the group index number (1 to 99) and the ENTER
key in sequence. When the group index has a double-
digit number, be sure to press the SW NO/OFF/
GROUP key before pressing each number key.
Then press the device index number of the projector (1
to 99) and finally press the ENTER key.
e.g. To select the index number 52 projector in group
91, press the keys as follows:
GROUP n9 nGROUP n1 nENTER n5
n2 nENTER.
Location and Function of Controls

Overview 17 (GB)
Overview
Rear of the projector
CONTROL
S OUT
Be sure to install
the battery from
the ’side.
CONTROL S IN
Remote control cable (supplied)
Notes on wireless remote control operation
•Be sure that there is nothing to obstruct the infrared
beam between the remote commander and the
projector.
•The operation range is limited. The shorter the
distance between the remote commander and the
projector, the wider the angle within which the
remote commander can control the projector.
•The remote control detectors on the projector do not
operate when the remote commander is being used as
a wired remote control. If you wish to use the remote
commander as a wireless remote control, be sure to
remove the connecting cable from both the remote
commander and the projector.

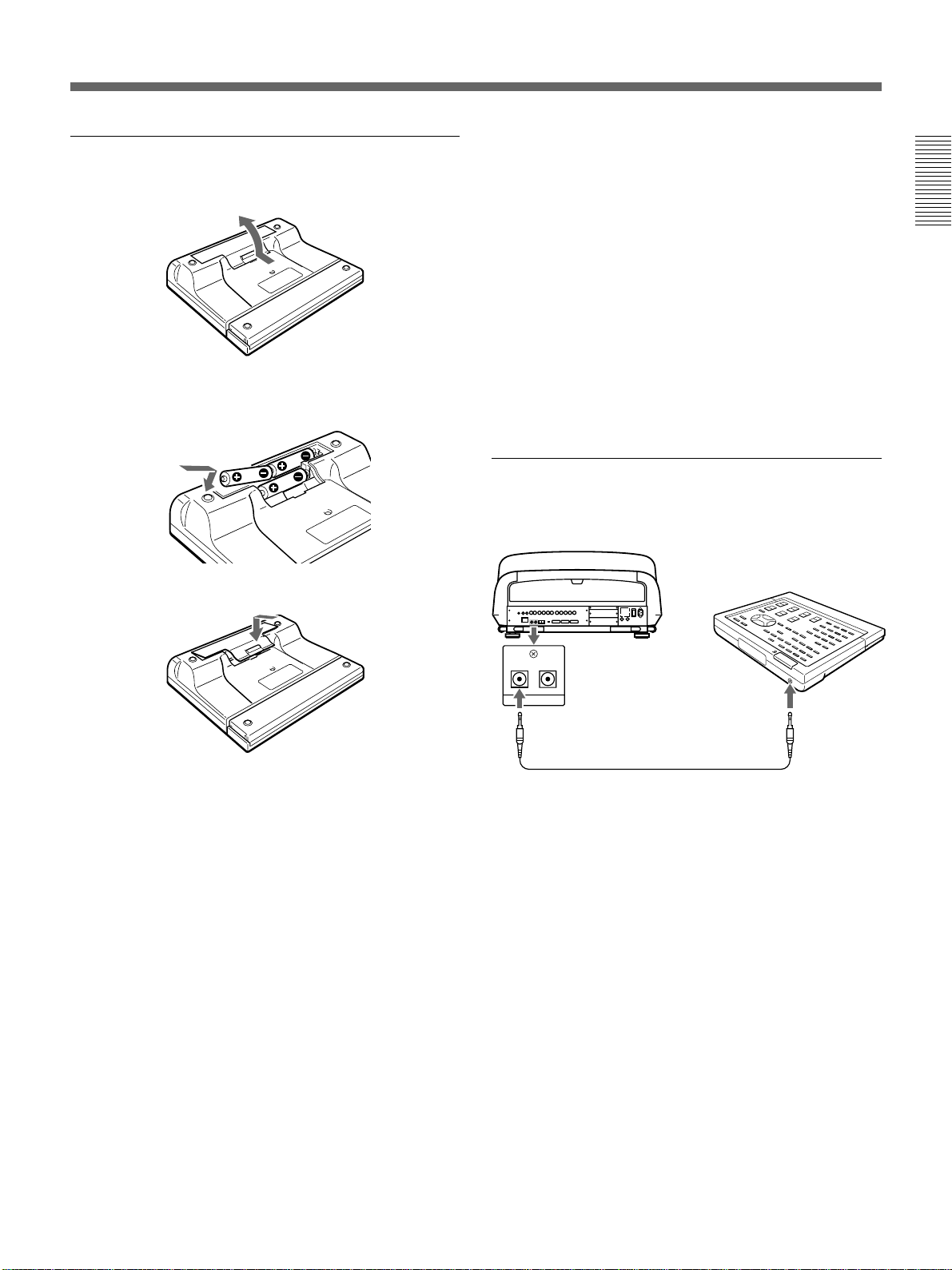

Connecting the remote commander to the
projector
CONTROL S
PLUG IN POWER
IN OUT
Battery installation
1Push to open the lid.
2Install the three R6 (size AA) batteries (supplied)
with the correct polarity.
3Replace the lid.
Notes on batteries
•Be careful that the battery orientation is correct when
inserting batteries.
•Do not mix old battery with new one, or different
types of batteries.
•If you do not intend to use the remote commander for
a long time, remove the batteries to avoid damage
from battery leakage. If a battery has leaked, remove
the batteries, wipe the battery compartment dry and
replace the batteries with new ones.

Projecting
18 (GB) Projecting
SELECT
VIDEO MEMORY
SWITCHER INDEX
PIC ONAUDIO OFF
PATTERN FOCUS
ZOOM SHIFT
NORMAL
MUTING STATUS
LCD LENS CONTROL
ON
COMMAND
OFF
SIZE
DOT PHASE
APA SHIFT
RGB R
B
CENT
ONSTANDBY
MEMORY
MENU
VIDEO
INPUT SELECT
ADBC
BLKG
SYS SET RESET FUNCTION
1423
5867
9
10/0(ALL)
SW NO/
OFF/GROUP
SWITCHER/VIDEO MEMORY/INDEX
ENTER
POSITION BRIGHT CONTR
PICTURE CONTROL
HUE COLOR
SHARP VOL
VIDEO/S VIDEO
LIGHT
Projecting
Projecting
1Press the MAIN POWER switch on the rear of the projector.
The uSTANDBY indicator lights in orange and the projector goes
into the standby mode.
1, 6
2
6
5
Front remote control detector
MENU key
SWITCHER/VIDEO MEMORY/
INDEX select switch and
number keys
STATUS ON/OFF keys
MUTING PIC key
4
ON indicator/uSTANDBY indicator/
Rear remote control detector (rear)
Control panel (inside the cover on the
top)

Projecting
Projecting 19 (GB)
2Press the ON key on the remote commander or the control panel.
The ON indicator on the rear of the projector lights in green.
A white screen with the message shown below (warming up screen)
appears on the screen. For getting a stable picture, make sure to allow
the projector to warm up for 20 minutes after turning it on.
The message disappears temporarily in about 35 seconds, and will
appear subsequently for 5 seconds every 30 seconds.

For optimum
performance,
white screen will
remain for
20min
For immediate use
push [MENU] key.
Press the MENU key to cancel the warming up screen and see the
picture immediately after the projector is turned on if, for example, the
adjustment has been finished and warming up is not needed.
3Turn on the power of the connected equipment.
4Select the input signal to be projected with the INPUT SELECT keys.
VIDEO and SELECT: To project the signal input from the
equipment connected to the VIDEO IN or S VIDEO IN (or Y IN/C IN)
connectors.1) Press the VIDEO key, then select VIDEO or S VIDEO
by pressing the SELECT key.
A: To project the RGB, component or HDTV signal input from the
equipment connected to the INPUT A connectors.
B: To project the signal input from the equipment connected to the
optional interface board other than the IFB-40 installed to the
INPUT B section.
C: To project the signal input from the equipment connected to the
optional interface board installed to the INPUT C section.
When the PC-3000 or PC-1271/1271M Signal Interface Switcher is
connected: Set the SWITCHER/VIDEO MEMORY/INDEX select
switch to SWITCHER and then select the input with the number
keys 1 to 8.
Note
When you select the input signal connected to the INPUT A, INPUT B or
INPUT C section, be sure to select the correct signal in the SET SETTING
1 menu. If an incorrect signal is selected, picture may be distorted.
For details, see “The SET SETTING 1 Menu” on page 35 (GB).
1) For the VPH-G90E model, the optional IFB-G90E Video Interface Board is required for using the VIDEO connectors.
..........................................................................................................................................................................................................

Projecting
20 (GB) Projecting
5Adjust the picture.
For details, see “Adjusting the picture” on page 21 (GB).
6To turn the power off, press the STANDBY key on the remote
commander or on the control panel of the projector, then set the MAIN
POWER switch on the projector to OFF.
To Press
turn off the on-screen display the STATUS OFF key.
The menus and warning messages appear
even if the STANDBY key is pressed.
To restore the on-screen display, press the
STATUS ON key.
cut off the picture the MUTING PIC key.
To restore the picture, press the MUTING
PIC key.
Projecting
