VPL-F Series
Solid Installation Projector
VPL-FX37
VPL-FX35
VPL-FX30

2
Installation Flexibility and Hassle-free Maintenance
with a Stylish Unobtrusive Design
The VPL-FX37,VPL-FX35 and VPL-FX30 offer amazing installation
flexibility and hassle-free maintenance, along with a stylish yet
inconspicuous design that blend into any decor.
These projectors are equipped with an excellent lens shift function
and a standard 1.6x zoom lens, making image adjustment easy.
They are also compatible with the optional lenses designed for
Sony’s VPL-F40 Series, extending the range of installation choices. The
maintenance cycles of the lamp and cleaning filters are synchronized
and exceptionally long, which cuts maintenance time and cost. In
addition,VPL-FX37,VPL-FX35 and VPL-FX30 are designed to deliver
a low total cost of ownership, and include energy-efficient features,
thanks to its long-lasting lamp and low power consumption.
Packing the most advanced projector technologies into a low-profile
design, the VPL-FX37,VPL-FX35 and VPL-FX30 are an excellent choice,
delivering a dramatic brightness and high-quality images with XGA
resolution.
FEATURES
“Blend-in” Design
The VPL-FX37,VPL-FX35 and VPL-FX30 showcases a newly
designed low-profile chassis, so the projector appears to
blend into the ceiling or wall on which it is mounted. The
connector panel is located on the front of the unit so its
cables cannot be seen by the audience.
High Picture Quality
Brilliant Color Performance
The VPL-FX37,VPL-FX35, and VPL-FX30 combine a new-generation
optical system, which uses Sony BrightEra with Long Lasting
Optics™ technology*, and a 3LCD projection system to
achieve high picture quality in XGA (1024 x 768) resolution
and high brightness (6,000, 5,000, and 4,200 lumens,
respectively).
* BrightEra with Long Lasting Optics is the Sony brand name for a new
generation of optical system, which uses a more advanced version of
Sony’s original BrightEra technology. In addition to adopting LCD panels
that have pixels with large aperture ratios and inorganic alignment layers,
BrightEra with Long Lasting Optics technology also uses an inorganic layer
for polarization plates to greatly enhance reliability.
3LCD Projection Offers Brilliant
Color Performance
The VPL-FX37,VPL-FX35 and
VPL-FX30 adopt a 3LCD projection
system incorporating three LCD
panels. This system enables the
projector to present bright and
natural images.
High Resolution Lens
The VPL-FX37,VPL-FX35 and VPL-FX30 incorporate a high-
resolution lens known as the All Range Crisp Focus (ARC-F)
lens. Its large diameter and fine pitch ensure crisp pictures.
12-bit 3D Gamma Correction
The VPL-FX37,VPL-FX35 and VPL-FX30 incorporate 12-bit 3D
Gamma Correction circuitry to perform highly accurate gamma
correction, achieving smoother gradations and richer gray scale.
I/P Conversion and Film Mode
The video signal processing technology that Sony has
incorporated in the VPL-FX37,VPL-FX35 and VPL-FX30 offer I/P
conversion and 2-3 pull-down to generate high-quality images
with outstanding clarity.
ARC-F lens Normal lens
simulated image
simulated image

3
Cost-efficient, Energy-efficient Design
Long-lasting Lamp
By incorporating a newly developed high-performance lamp
and advanced lamp-control technology, the VPL-FX30 offers a
recommended lamp replacement time of approximately 5,000
hours.*
*Based on lowest wattage setting.Values are approximate
and may vary due to environmental conditions and usage.
Low Power Consumption
The VPL-FX30 offers remarkably low power consumption, which
can help users save on their electricity expenses.
ECO MODE Key
With a single push of the ECO MODE key on either the
projector or the supplied Remote Commander®unit, user
can select an energy-saving setting from the ECO Mode menu.
Convenient, Simple Projector Replacement
The standard 1.6x zoom lens enables installation flexibility
when replacing an existing projector with the VPL-FX37,VPL-FX35
and VPL-FX30 – there’s no need to change ceiling mount
positions. For applications where more than a standard lens is
needed, the VPL-FX37,VPL-FX35 and VPL-FX30 are compatible
with the optional VPLL-Z1024 and VPLL-Z1032 accessory lenses
designed for Sony’s current VPL-FX40 Series.
Centered Lens Design
The centered lens provides symmetry for a balanced
installation, and makes setup very simple.
Conventional 1
Shorter throw ratio
VPL-FX37
VPL-FX35
VPL-FX30
Conventional 2
Longer throw ratio
ECO MODE key
Installation Advantages
Lens Shift Function
The VPL-FX37,VPL-FX35 and VPL-FX30 have Lens Shift function
which is controlled from the projector control panel or the
supplied Remote Commander unit. Using this function, the
position of the projected image can be moved vertically by up
to 51% and horizontally from -33% through to +33%. Images can
be easily adjusted to the desired settings during installation.
Broad throw ratio simplifies projector replacement
VPL-FX30
Conventional
model
5000 hours
Recommended lamp replacement time*2
3000 hours
VPL-FX40
VPL-FX35: 4,000 hours / VPL-FX37: 3,500 hours (In standard mode)
VPL-FX30
4,200 lm
+200 lm
Brightness up
VPL-FX40
4,000 lm
Conventional
model
Lower Power
Consumption
Power consumption
Approx. 18% down
Balanced and symmetrical installation

4
Fine mesh lters
Normal mesh lters
Hybrid element
Air ow direction
Traditional lter
systems requiring
frequent cleaning
VPL-FX37
VPL-FX35
VPL-FX30
Maintenance
too often
Unsynchronized lamp and short life lter
Time
One time
Synchronized lamp and lter
Lamp Lamp
Filter Filter
Maintenance cycle comparison image
Quad Filter System
Hassle-free Maintenance
Lamp and Filter Synchronized Maintenance
When the air filter must be cleaned, a timely message is
displayed on screen. The lamp and the filter are accessible
from the same side, so their maintenance can be performed
without uninstalling the projector. With typical usage, the
filters have an approximate 15000-hour cleaning cycle. This
is achieved by a Quad Filter system which means the filters
only need to be cleaned when the lamp is changed, even in
harsh conditions, saving maintenance time and cost.
Presentation Functions
Freeze Function
Freezes the projected image
Digital Zoom Function
Enlarges a section of the image
Picture/Audio Muting
Mutes the image/audio
Other Features
Closed Captioning
Official teletext broadcasting, developed by the NCI, USA
Security Pack
Security lock (password and mechanical), security bar, panel
key lock, and security label
Test Pattern Key
For easy screen adjustment
ID Mode
For individual control of multiple projectors
Audio Monitor Function
Allows audio to be selected based on input selection
Smart APA
Auto pixel alignment
Direct Power On/Off
Direct power control using the circuit breaker on the switch
board
High Altitude Mode
For projector operation at high altitude
Network and Control
Controls and monitors projector status
Compatible with various control systems

5
OPTIONAL ACCESSORIES
LMP-F272
Replacement Lamp for VPL-FX30 LMP-F230 Replacement Lamp for VPL-FX35
PAM-600
Projector Suspension Support VPLL-Z1024 Projector Lens
LMP-F331
Replacement Lamp for VPL-FX37
VPLL-Z1032
Projector Lens
PK-F30LA1
Projector Lens Adapter
OPTIONAL LENSES
Projection lens VPLL-Z1024 VPLL-Z1032
Throw ratio 2.38 to 3.26 3.24 to 4.95
Zoom / Focus Manual / Manual Manual / Manual
Lens shift Vertical: Upward 51% to Downward 0%
Horizontal: Right 33% to Left 33%
Vertical: Upward 51% to Downward 0%
Horizontal: Right 33% to Left 33%
Aperture f/2.00 to 2.30 f/2.00 to 2.40
Screen size* 40” to 600” 40” to 600”
Dimensions W 3 13/16 x H 3 7/16 x D 7 3/32 in (W 97 x H 87 x D 180 mm) W 3 13/16 x H 3 7/16 x D 6 31/32 in (W 97 x H 87 x D 177 mm)
Weight 2 lb 7 oz / 1.1 kg 2 lb 7 oz / 1.1 kg
Required projection lens adapter PK-F30LA1 PK-F30LA1
* Viewable area, measured diagonally.

6
INSTALLATION DIAGRAM
Projection Distance Unit: m (inches)
Projection image size Projection distance L
Diagonal Width × Height Standard lens VPLL-Z1024 VPLL-Z1032
80-inch
(2.03 m)
1.63 x 1.22
(64 x 48)
2.31 – 3.69
(91 – 145)
3.85 – 5.28
(152 – 207)
5.24 – 8.01
(207 – 315)
100-inch
(2.54 m)
2.03 x 1.52
(80 x 60)
2.89 – 4.62
(114 – 182)
4.84 – 6.62
(191 – 260)
6.59 – 10.05
(260 – 395)
120-inch
(3.05 m)
2.44 x 1.83
(96 x 72)
3.48 – 5.56
(137 – 218)
5.83 – 7.97
(230 – 313)
7.94 – 12.09
(313 – 476)
150-inch
(3.81 m)
3.05 x 2.29
(120 x 90)
4.36 – 6.96
(172 – 274)
7.31 – 9.98
(288 – 393)
9.95 – 15.14
(392 – 596)
200-inch
(5.08 m)
4.06 x 3.05
(160 x 120)
5.83 – 9.29
(230 – 366)
9.77 – 13.34
(385 – 525)
13.32 – 20.24
(525 – 797)
Front of the lens
Projection distance L
Projected image
Computer Signal
Resolution fH [kHz]/
fV [Hz]
Input connector
RGB*1DVI-D*2
640 x 350 31.5/70
37.9/85
640 x 400 31.5/70
37.9/85
640 x 480
31.5/60
35.0/67
37.9/73
37.5/75
43.3/85
800 x 600
35.2/56
37.9/60
48.1/72
46.9/75
53.7/85
832 x 624 49.7/75
1024 x 768
48.4/60
56.5/70
60.0/75
68.7/85
1152 × 864
64.0/70
67.5/75
77.5/85
1152 x 900 61.8/66
1280 x 960 60.0/60
75.0/75
1280 x 1024
64.0/60
80.0/75
91.1/85
1400 x 1050 65.3/60
1600 x 1200 75.0/60
1280 x 768 47.8/60
1280 x 720 45.0/60
1920 x 1080 67.5/60
1366 x 768 47.7/60
1440 x 900 55.9/60
1680 x 1050 65.3/60
1280 x 800 49.7/60
1920 x 1200 74.0/60 *4*4
PRESET SIGNAL CHART
Digital TV Signal
Signal fV [Hz] Input connector
RGB/YPBPR*3DVI-D*2
480i 60
576i 50
480p 60
576p 50
1080i 60
1080i 50
720p 60 *5
720p 50
1080p 60 *5
1080p 50
Analog TV Signal
Signal fV [Hz] Input connector
VIDEO/S VIDEO
NTSC 60
PAL/SECAM 50
*1: INPUT A, INPUT B
*2: INPUT C
*3: INPUT A
*4: Available for VESA Reduced Blanking signals only.
*5: Determine as a computer signal.
• When a signal other than the signals listed in the table is input, the picture
may not be displayed properly.
• An input signal meant for a screen resolution different to that of the panel
will not be displayed in its original resolution. Text and lines may be uneven.
• Some actual values may differ slightly from the design values given in the
table.

7
18 7
/32 (4 63)
Ø23/32 (18) Ø23/32 (18)
1 31/32 (50)1 31/32 (50)
4 13/16 (122)
19/32 (15)
Center of the lens 5 9
/32 (134)
7 11/16 (195)
3 7
/32 (81.5)3 7 /32 (81.5)
5 9
/32 (134)
10 23/32 (272.6) 3 3/8(86)
14 7
/32 (361)
Front Bottom
15 11/32 (390)
3 3/16 (81)
7 11/16 (195)
5 9/32 (134)
5 13/16 (148)
Center of the lens

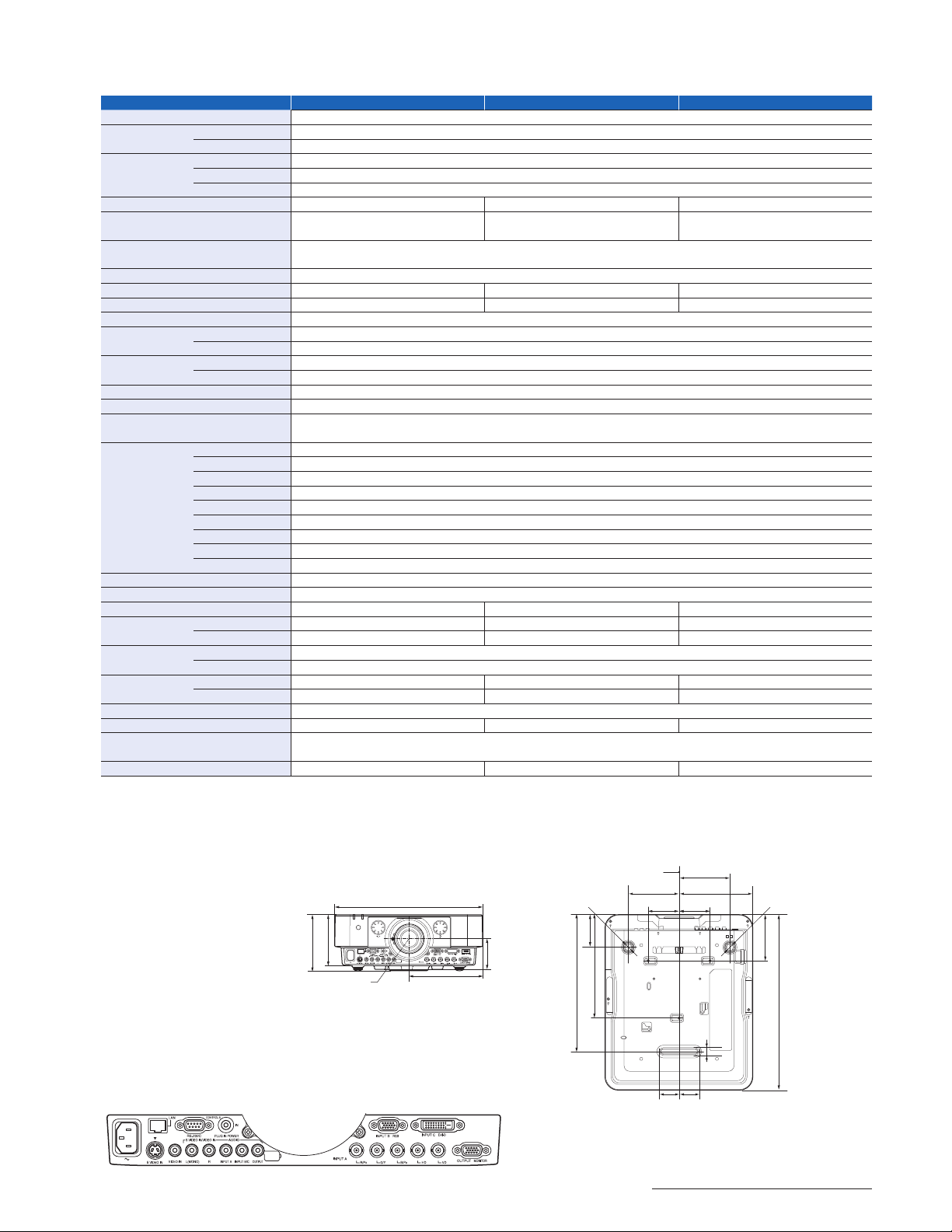

SPECIFICATIONS
DIMENSIONS
CONNECTOR PANEL
VPL-FX37 VPL-FX35 VPL-FX30
Display system 3 LCD system
Display device Size 0.79” (20.1 mm) x 3,Aspect ratio: 4:3
Number of pixels 2,359,296 (1024 x 768 x 3) pixels
Projection lens Zoom Manual (Approx. 1.6 x)
Focus Manual
Lens shift Manual,Vertical: Upward 51% to Downward 0%, Horizontal: Right 33% to Left 33%
Light source High-pressure mercury lamp 330 W type High-pressure mercury lamp 275 W type High-pressure mercury lamp 230 W type
Recommended lamp replacement time*12500 H (Lamp mode: High)
3500 H (Lamp mode: Standard)
3000 H (Lamp mode: High)
4000 H (Lamp mode: Standard)
4000 H (Lamp mode: High)
5000 H (Lamp mode: Standard)
Filter cleaning cycle Max.15000 H*1
Same time as the lamp replacement is recommended
Screen size 40” to 600” (1.02 m to 15.24 m)
Light output 6000 lm (Lamp mode: High) 5000 lm (Lamp mode: High) 4200 lm (Lamp mode: High)
Color light output 6000 lm (Lamp mode: High) 5000 lm (Lamp mode: High) 4200 lm (Lamp mode: High)
Contrast ratio (full white / full black)*22000:1
Displayable scanning
frequency
Horizontal 14 kHz to 93 kHz
Vertical 47 Hz to 93 Hz
Display resolution Computer signal input Maximum display resolution:1920 x 1200 dots*3
Video signal input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p
Color system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Keystone correction Vertical: Max. +/- 30 degrees*4
OSD language 20-languages (English, Dutch, French, Italian, German, Spanish, Portuguese,Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified
Chinese,Traditional Chinese, Korean,Thai,Vietnamese, Arabic, Farsi)
INPUT OUTPUT
(Computer / Video /
Control)
INPUT A RGB / Y PBPRinput connector:5BNC,Audio input connector: Stereo mini jack
INPUT B RGB input connector: Mini D-sub 15-pin,Audio input connector: Stereo mini jack (shared with INPUT C)
INPUT C DVI-D input connector: DVI-D 24-pin (Single link), supported HDCP,Audio input connector:Stereo mini jack (shared with INPUT B)
S VIDEO IN S video input connector: Mini DIN 4-pin,Audio input connector: Pin jack (x2) (shared with VIDEO IN)
VIDEO IN Video input connector: Pin jack,Audio input connector: Pin jack (x2) (shared with S VIDEO IN)
OUTPUT Monitor output connector*5: Mini D-sub 15-pin,Audio output connector*6:Stereo mini jack (variable out)
REMOTE RS-232C connector: D-sub 9-pin (female)
LAN LAN connector: RJ45, 10BASE-T/100BASE-TX
CONTROL S Control S input connector: Stereo mini jack, Plug in power DC5V
Operating temperature / Operating humidity 32°F to 104°F (0°C to 40°C) / 35% to 85 % (no condensation)
Storage temperature / Storage humidity -4°F to +140°F (-20°C to +60°C) / 10% to 90 % (no condensation)
Power requirements AC 100 V to 240 V, 4.5 A to 1.8 A, 50/60 Hz AC 100 V to 240 V, 3.8 A to 1.6 A, 50/60 Hz AC 100 V to 240 V,3.3 A to 1.3 A, 50/60 Hz
Power consumption AC 100 V to 120 V 450 W 380 W 330 W
AC 220 V to 240 V 430 W 360 W 310 W
Standby mode power
consumption
AC 100 V to 120 V 11 W (Standby mode: Standard) / 0.15 W (Standby mode: Low)
AC 220 V to 240 V 12 W (Standby mode: Standard) / 0.3 W (Standby mode: Low)
Heat dissipation AC 100 V to 120 V 1536 BTU 1297 BTU 1126 BTU
AC 220 V to 240 V 1467 BTU 1228 BTU 1058 BTU
Outside dimensions W 15 11/32 x H 5 9/32 x D 18 7/32 in (W 390 x H 134 x D463 mm) (without protrusions)
Weight 17 lb 14 oz / 8.1 kg 17 lb 10 oz / 8.0 kg 17 lb 7 oz / 7.9 kg
Supplied accessories RM-PJ19 Remote Commander (1), Size AA (R6) batteries (2),AC power cord (1),Cable ties (2), Quick Reference Manual (1),Security Label (1),
Operating Instructions (1)
Replacement lamp LMP-F331 LMP-F272 LMP-F230
*1 The figures are the expected maintenance time and not guaranteed. They will depend on the environment or how the projector is used. *2 The value is
average. *3 Available for VESA Reduced Blanking signal. *4 Depends on resolution. This projector tilt angle is up to +/- 15 degrees. *5 From INPUT A and INPUT B.
*6 Works as an audio switcher function. Output from a selected channel; not available in standby.
Unit: inches (mm)

Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/projectors
DI-0271 (MK10693V4)
©2012 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
Sony, BrightEra with Long Lasting Optics, BrightEra, Remote Commander; and
Sony make.believe and BrightEra with Long Lasting Optics logos are trademarks of Sony.
Trademark PJLink is a trademark applied for trademark rights in Japan,
the United States of America and other countries and areas.
All other trademarks are trademarks of their respective owners.
Printed in USA (6/12)
