Sony CA-550 User manual

CAMERA ADAPTOR
CA-550/550P
MAINTENANCE MANUAL
1st Edition
Serial No. 50001 and Higher

!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden.Um die
Gefahr eines elektrischen Schlages, Feuergefahr undVerletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.

1 (E)
CA-550
CA-550P
Table of Contents
1. Installation
1-1. Supplied Accessories ............................................................................1-1 (E)
1-2. Connectors and Cables..........................................................................1-1 (E)
1-2-1. Connector Input/Output Signals...........................................1-1 (E)
1-2-2. Connection Connector..........................................................1-5 (E)
1-2-3. Removal of CCZ Connector.................................................1-5 (E)
1-2-4. Wiring Diagrams for Cables ................................................1-6 (E)
1-3. Installaton of COAX Connector............................................................1-7 (E)
1-4. Function of Internal Switches ...............................................................1-8 (E)
1-5. Instance of Sytem Configuration ........................................................1-10 (E)
2. Service Overview
2-1. Removal of Cabinet...............................................................................2-1 (E)
2-2. Location of Printed Circuit Boards .......................................................2-1 (E)
2-3. Circuit Description ................................................................................2-2 (E)
2-4. Self-Diagnosis .......................................................................................2-2 (E)
2-5. Extension Boards ..................................................................................2-3 (E)
2-6. Disconnecting/Connecting Flexible Card Wire ....................................2-3 (E)
2-7. Replacement of Board...........................................................................2-4 (E)
2-7-1. Replacement of FL-180 Board.............................................2-4 (E)
2-7-2. Replacement of CN-1190 Board ..........................................2-5 (E)
2-7-3. Adjustment After Replacement of Board.............................2-6 (E)
2-8. Replacement of AC.DC/DC Converter.................................................2-6 (E)
2-9. Replacement of Multiplex (MPX) Filter...............................................2-7 (E)
2-10. Periodic Replacement Part ....................................................................2-8 (E)
2-11. Notes on Service ...................................................................................2-8 (E)
2-11-1. Description of EEPROM Data .............................................2-8 (E)
2-11-2. Notes on Repair Parts...........................................................2-9 (E)
3. Electrical Alignment
3-1. Preparation ............................................................................................3-1 (E)
3-1-1. Equipment Required.............................................................3-1 (E)
3-1-2. Notes on Adjustment............................................................3-1 (E)
3-1-3. Connection ...........................................................................3-2 (E)
3-1-4. Initial Settings ......................................................................3-3 (E)
3-2. AU-211 Board Adjustment ...................................................................3-3 (E)
3-2-1. BATTERY ALARM SET Adjustment ................................3-3 (E)

2 (E) CA-550
CA-550P
3-3. TR-90 Board Adjustment ......................................................................3-4 (E)
3-3-1. MIC 1 RF Adjustment ..........................................................3-4 (E)
3-3-2. MIC 2 RF Adjustment ..........................................................3-4 (E)
3-3-3. MIC 1 DEVIATION Adjustment.........................................3-4 (E)
3-3-4. MIC 2 DEVIATION Adjustment.........................................3-5 (E)
3-3-5. INCOM RF Adjustment .......................................................3-5 (E)
3-3-6. INCOM DEVIATION Adjustment ......................................3-6 (E)
3-3-7. DATA RF Adjustment .........................................................3-6 (E)
3-3-8. INCOM Demodulation Adjustment .....................................3-7 (E)
3-3-9. PGM Demodulation Adjustment..........................................3-8 (E)
3-3-10. DATA Demodulation Circuit Adjustment ...........................3-9 (E)
3-3-11. H CONT Demodulation Circuit Adjustment .......................3-9 (E)
3-4. MD-103 Board Adjustment.................................................................3-10 (E)
3-4-1. VCO 45 MHz Adjustment .................................................3-10 (E)
3-4-2. Y Level Adjustment ...........................................................3-10 (E)
3-4-3. Y SYNC Cancel Adjustment .............................................3-11 (E)
3-4-4. Y/SKIN DC Balance Adjustment ......................................3-11 (E)
3-4-5. Y/SKIN 90°Adjustment ....................................................3-12 (E)
3-4-6. R-Y Level Adjustment .......................................................3-12 (E)
3-4-7. B-Y Level Adjustment .......................................................3-13 (E)
3-4-8. R-Y/B-Y Carrier Balance Adjustment ...............................3-13 (E)
3-4-9. R-Y/B-Y DC Balance Adjustment .....................................3-14 (E)
3-4-10. R-Y/B-Y 90°Adjustment...................................................3-14 (E)
3-4-11. 67.5 MHz TRAP Adjustment.............................................3-15 (E)
3-5. DM-98 Board Adjustment...................................................................3-16 (E)
3-5-1. RETURN VIDEO Demodulation Adjustment ...................3-16 (E)
3-5-2. VBS/MONITOR Level Adjustment ..................................3-17 (E)
3-5-3. RETURN VIDEO Level Adjustment.................................3-17 (E)
4. Spare Parts
4-1. Notes on Repair Parts ..................................................................................4-1
4-2. Exploded Views ..........................................................................................4-2
RIGHT/TOP PANELS AND BOARDS...................................................4-2
LEFT SIDE PANELS AND BOARDS ....................................................4-3
TRIAX AND FUNCTION SWITCHES/CONTROLS ............................4-4
POWER BLOCK ......................................................................................4-5
REAR PANEL BLOCK ...........................................................................4-6
SCREWS AND WASHERS.....................................................................4-7
4-3. Electrical Parts List .....................................................................................4-8
4-4. Supplied Accessories ................................................................................4-27
4-5. Optional Fixtures.......................................................................................4-27

3 (E)
CA-550
CA-550P
5. Semiconductor Pin Assignments
6. Block Diagrams
OVERALL BLOCK....................................................................................6-1
AU-211 BOARD.........................................................................................6-2
TR-90 BOARD ...........................................................................................6-3
MD-103 BOARD ........................................................................................6-4
DM-98 BOARD ..........................................................................................6-5
7. Schematic Diagrams
LOCATION OF PRINTED CIRCUIT BOARDS ......................................7-1
AU-211 BOARD.........................................................................................7-2
TR-90 BOARD ...........................................................................................7-6
MD-103 BOARD ........................................................................................7-8
DM-98 BOARD ........................................................................................7-10
FRAME WIRING .....................................................................................7-12
8. Board Layouts
AU-211 BOARD.........................................................................................8-1
TR-90 BOARD ...........................................................................................8-3
MD-103 BOARD ........................................................................................8-5
DM-98 BOARD ..........................................................................................8-7
MB-605 BOARD ........................................................................................8-9
http://getMANUAL.com

1-1 (E)
CA-550
CA-550P
Section 1
Installation
1-1. Supplied Accessories
Accessory Sony P/N Qt’y
Shoulder Belt A-6772-374-A 1
Battery Spacer (for DC-300) 3-694-183-01 1
Cable Holders 3-692-186-01 2
Cable Holder Fixing Screws 7-682-547-09 4
COAX connector*1-955-388-11 1
Operation Manual 1
Maintenance Manual 1
* Refer to Section 1-3 for installation procedures of
COAX connector.
1-2. Connectors and Cables
1-2-1. Connector Input/Output Signals
•GENLOCK IN*1/PROMPT OUT*2
BNC 75 Ω1.0 Vp-p
*1: In connection with VTR
*2: In connection with CCU
•TRIAX
King type (for CA-550)
Fischer type (for CA-550P)
•RET OUT
BNC 75 Ω1.0 Vp-p
* Refer to Section 1-4. “Function of Internal Switches,
DM-98 Board” for details.
REMOTE (8P FEMALE)
(EXTERNAL VIEW)
No.
1
2
3
4
5
6
7
8
SIGNAL
TX (+)
TX (–)
RX (+)
RX (–)
TX GND
POWER (+) OUT
POWER (–) OUT
NC
CHASSIS GND
SPECIFICATIONS
BVP SERIAL DATA
CCU/MSU/RCP/CNU/VCS
SERIAL DATA
GND for TX
+26 V, 200 mA (MAX)
GND for +26 V
No connection
CHASSIS GND
RET CONT (6P FEMALE)
(EXTERNAL VIEW)
No. SIGNAL SPECIFICATIONS
1 INCOM 1 Zi ≥10 kΩ
MIC ON/OFF IN ON:GND
OFF:OPEN
2 INCOM 2 Zi ≥10 kΩ
MIC ON/OFF IN ON:GND
OFF:OPEN
3 GND
4 RET 3 ON/OFF IN Zi ≥10 kΩ
ON:GND
OFF:OPEN
5 RET 1 ON/OFF IN Zi ≥10 kΩ
ON:GND
OFF:OPEN
6 RET 2 ON/OFF IN Zi ≥10 kΩ
ON:GND
OFF:OPEN
INCOM (5P FEMALE)
(EXTERNAL VIEW)
)
No.
1
2
3
4
5
SIGNAL
INCOM MIC
IN (Y)
INCOM MIC
IN (X)
GND (PGM)
INCOM
RECEIVE OUT
PGM 1/2 OUT
SPECIFICATIONS
–20 dBu
(CARBON MIC)
–60 dBu
(DYNAMIC MIC)
–20 dBu
(with INCOM level control
set to mechanical center)
–20 dBu
(with PGM level control set
to mechanical center)
(0 dBu=0.775 Vrms)

1-2 (E) CA-550
CA-550P
MIC IN (3P FEMALE)
(EXTERNAL VIEW)
No.
1
2
3
SIGNAL
MIC IN (G)
MIC IN (X)
MIC IN (Y)
SPECIFICATIONS
–60 dBu High impedance
balanced
(0 dBu=0.775 Vrms)
DC IN (4P MALE)
No. SIGNAL SPECIFICATIONS
1 GND GND for DC (+)
2 NC No connection
3 NC No connection
4 DC (+) IN DC 10.5 V to 17 V
DC OUT (4P FEMALE)
No. SIGNAL SPECIFICATIONS
1 GND GND for UNREG
2 NC No connection
3 NC No connection
4 UNREG +12 V OUT +12 V dc 200 mA max

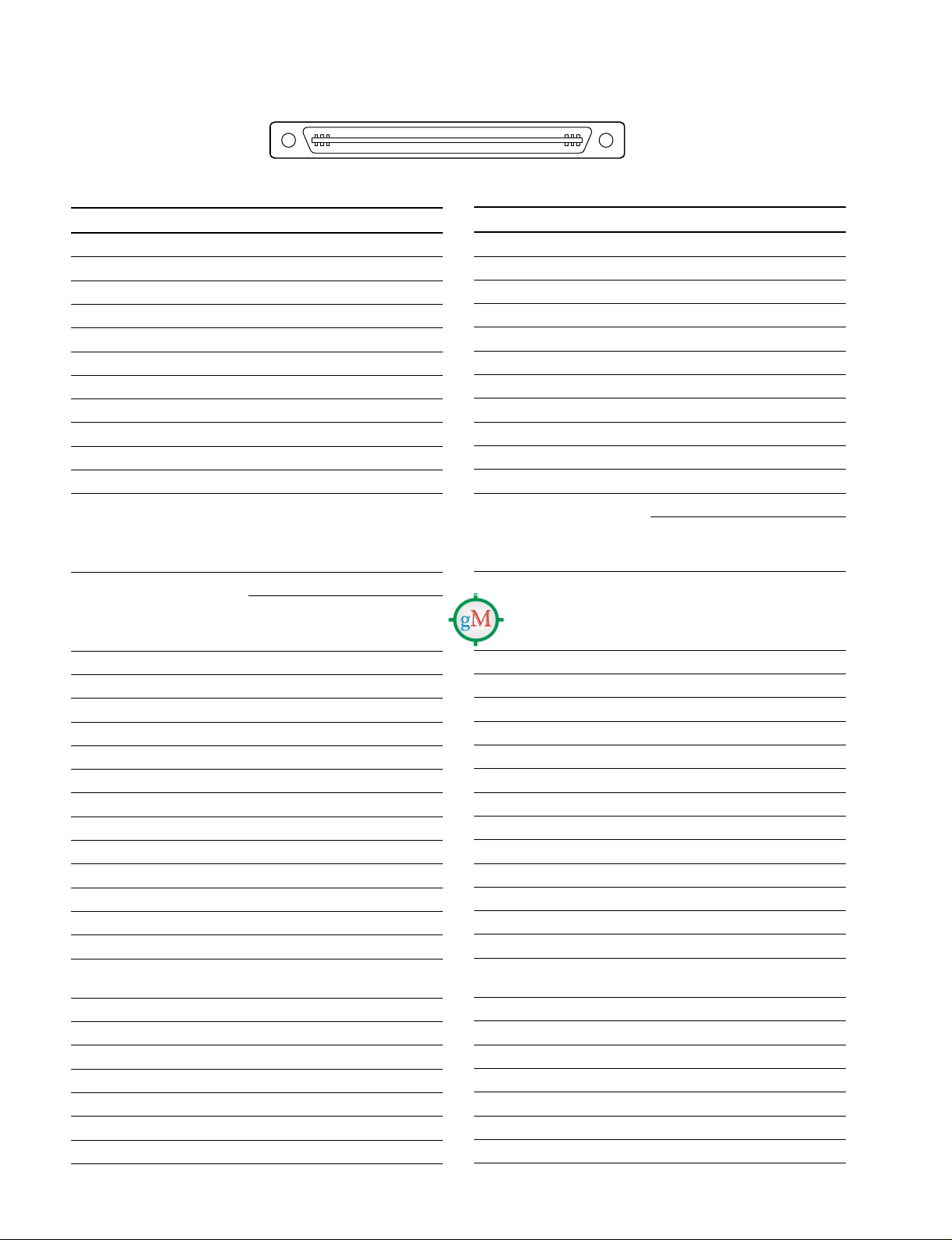

VTR (26P MALE)
(EXTERNAL VIEW)
No.
A
B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
SIGNAL
POWER (+) IN
POWER (–) IN
VBS OUT (X)
VBS OUT (G)
Y VIDEO OUT (G)
Y VIDEO OUT (X)
R-Y VIDEO OUT (X)
R-Y VIDEO OUT (G)
B-Y VIDEO OUT (X)
B-Y VIDEO OUT (G)
MIC OUT (X)
MIC OUT (Y)
MIC OUT (G)
VTR START/STOP
OUT
BATT IND IN
NC
REC ALARM IN
NC
GND (SHIELD)
PB VIDEO IN (X)
PB VIDEO IN (G)
AUDIO MONITOR IN/
VTR SAVE OUT
NC
CF OUT
NC
NC
SPECIFICATIONS
UNREG 10.6 V to 17 V, 3A
VBS 1.0 Vp-p, Zo=75 Ω
VS 1.0 Vp-p, Zo=75 Ω
Zo=75 Ω
756 mVp-p (J)
700 mVp-p (UC)
525 mVp-p (CE)
Zo ≤600 Ω,
–60 dBu balanced
START:5±1 Vdc,
STOP:0 +0.2 Vdc, Zo ≤10 kΩ
–0.1
Zi=300 Ω*Note 1
No connection
Zi ≥20 kΩ*Note 2
No connection
Camera GND
VS 1 Vp-p, Zi=75 Ω
SAVE: +4.5±0.5 V
STANDBY:+9.0
+1
V , Zo= ≤10 kΩ
–0.5
MONITOR: Zi=750 Ω
No connection
Color Framing
No connection
No connection
(0 dBu=0.775 Vrms)
n
VTR connector is disabled when the CCU is connected.
1-2. Connectors and Cables
(EXTERNAL VIEW)
(EXTERNAL VIEW)




1-3 (E)
CA-550
CA-550P
Note1: Specifications of BATT IND Signal
VTR has a battery voltage detection and waring signal generation circuits and it sends the signal shown
below to the camera.
Battery Terminal 
Voltage 
(VTR internal battery) 12.0—11.1 Vdc 11.1—10.8 Vdc 10.8 Vdc —
2—3 Vdc 
across 300 Ω
0 V
Input Signal at 
Pin 13
LED on Viewfinder
1.0 ± 0.2 Hz 
duty 50 ± 10 %
Stays out Blinks at 1 Hz Lights up
Note2: Specifications of REC ALARM Signal
Input Signal at
Pin 15
5.0
REC ALARM
signal
1.0 ± 0.2 Hz
duty 50 ± 10 % REC RESET signal
10—100 msec
VTR Action
Power
OFF Power ON When VTR changes from POWER SAVE
to REC START mode,
or when the servo is
lost
When VTR
changes from
STANDBY to
REC START
mode, or in
REC mode
At the end of
tape or When
VTR is put
into STOP
mode by itself
(REC RESET
signal does
not appear
when VTR is
put into STOP
mode by
operating the
camera)
STOP
mode
+1
-0.5 Vdc
2.5 ± 0.5 Vdc
0 ± 0.3 Vdc
1-2. Connectors and Cables

1-4 (E) CA-550
CA-550P
CAMERA (68P MALE)
No. SIGNAL SPECIFICATIONS
35 UNREG GND GND for UNREG
36 UNREG GND GND for UNREG
37 VF UNREG GND GND for VF UNREG
38 LENS UNREG GND GND for LENS UNREG
39 UNREG OUT 10.5 V to 17 V
40 UNREG OUT 10.5 V to 17 V
41 VF UNREG OUT 10.5 V to 17 V
42 LENS UNREG OUT 10.5 V to 17 V
43 G IN (X) 700 mVp-p ±2%,DC 0 ±200 mV, Zi ≥10 kΩ
44 R/G/B GND GND for R/G/B VIDEO
45 VBS IN (X) 1.0 Vp-p ±10%, Zi = 75 Ω
46 R-Y IN (X) 700 mVp-p, with sync 350 mV*
756 mVp-p (J)
700 mVp-p (UC) **
525 mVp-p (CE)
47 Y/R-Y/B-Y GND GND for Y/R-Y/B-Y
48 NC No connection
49 C IN (G) GND for C
50 VBS GENLOCK OUT (G) GND for GENLOCK
51 RET VIDEO OUT (X) 1.0 Vp-p, Zo = 75 Ω
52 MONITOR VIDEO IN (G) GND for MONITOR VIDEO
53 VTR START/STOP IN Zi ≤10 kΩ
54 NC No connection
55 MIC 1 IN (G) GND for CAM MIC
56 MIC 1 IN (X) Zi ≥600 Ω, –60 dBu balanced
57 NC No connection
58 NC No connection
59 AUDIO LEVEL OUT No connection
60 NC No connection
61 V RESET OUT/CF IN V Reset;0 V to +5 V,
CF; 0 V to –5 V
62 REC TALLY OUT ON; +5 V, OFF; +2.5 V or 0 V, Zo ≥20 kΩ
63 VTR SAVE IN SAVE; +4.5 V, STANDBY; 0 V, Zi ≤10 kΩ
64 GND
65 SD IN/OUT Serial data for camera control
66 COM DATA IN 5 Vp-p
67 IIC DATA IN/OUT (CA) 5 Vp-p, 4700 Ω, Pull up
68 IIC DATA IN/OUT (ST) 5 Vp-p, 4700 Ω, Pull up
*:In connection with CCU **:In connection with VTR
No. SIGNAL SPECIFICATIONS
1 UNREG GND GND for UNREG
2 UNREG GND GND for UNREG
3 VF UNREG GND GND for VF UNREG
4 LENS UNREG GND GND for LENS UNREG
5 UNREG OUT 10.5 V to 17 V
6 UNREG OUT 10.5 V to 17 V
7 VF UNREG OUT 10.5 V to 17 V
8 LENS UNREG OUT 10.5 V to 17 V
9 R IN (X) 700 mVp-p±2%, DC 0 ±200 mV, Zi ≥10 kΩ
10 B IN (X) 700 mVp-p±2%, DC 0 ±200 mV, Zi ≥10 kΩ
11 VBS IN (G) GND for VBS VIDEO
12 Y IN (X) VS 1.0 Vp-p, Zi = 1 kΩ
13 B-Y IN (X) 700 mVp-p, with sample 350 mV*
756 mVp-p (J)
700 mVp-p (UC) **
525 mVp-p (CE)
14 NC No connection
15 C IN (X) SC for S connector
16 VBS GENLOCK OUT (X) 1.0 Vp-p±6 dB, Zo = 75 Ω
17 RET VIDEO OUT (G) GND for RET VIDEO
18 MONITOR VIDEO IN (X) VS 1 Vp-p, Zi = 1 kΩ
19 BATTERY ALARM OUT Zo = 300 Ω
20 NC No connection
21 AUDIO CH1 CONT IN 0 V (0 dB) to 7 V (–50 dB or less)
22 MIC 1 IN (Y) Zi ≥600 Ω, –60 dBu balanced
23 NC No connection
24 SKIN TONE GATE IN 1.0 Vp-p
25 TAPE REM OUT No connection
26 VTR SYNC IN +5.0 Vp-p Negative pulse, Zi ≤100 Ω
27 RET EN IN ENABLE; 0 V,
DISABLE; +5 V or OPEN
28 PB REF OUT PB; +4.5 V, CAM; 0 V or OPEN
29 H CONT OUT 0 V to 5 V, Analog
30 ANALOG GND
31 DIGITAL HD IN 3 Vp-p for Digital
32 COM CONT OUT 5 Vp-p
33 IIC CLOCK IN (CA) 5 Vp-p
34 IIC CLOCK IN (ST) 5 Vp-p
1-2. Connectors and Cables
1
35
34
68
(EXTERNAL VIEW)






(0 dBu=0.775 Vrms)

1-5 (E)
CA-550
CA-550P
1-2-2. Connection Connector
Connection made with the connector panels during instal-
lation or service, should be made with the connectors/
complete cable assemblies specified in the following list,
or equivalent parts.
Connector Name
GENLOCK/
PROMPT(BNC)
RET OUT
RET CONT
(6P FEMALE)
REMOTE
(8P FEMALE)
INCOM
(5P FEMALE)
MIC IN
(3P FEMALE)
DC IN
(4P MALE)
DC OUT
(4P FEMALE)
VTR
(26P MALE)
Connection Connectors/Cables
1-560-069-11 Plug, BNC or
B-B Cable assembly
(cable length 1.5 m, option)
1-560-078-00 Plug, 6P Male or
HIROSE HR10-7PA-6P equivalent
1-766-848-11 Plug, 8P Male or
CCA cable assembly (option)
CCA-5-10 (10m)/ CCA-5-3 (3m)
1-508-370-11 XLR, 5P Male or
CANNON XLR-5-12C equivalent
1-508-084-00 XLR, 3P Male or
CANNON XLR-3-12C equivalent
1-508-362-00 XLR, 4P Female or
CANNON XLR-4-11C equivalent or
Cable assembly (supplied with AC-550)
1-551-577-00 Cable with XLR plugs
1-566-425-11 Plug, 4P Male or
HIROSE HR10A-7P-4P equivalent
1-564-184-00 Plug, 26P Female or
CCZ cable assembly (option)
CCZ-2 (2m)/CCZ-10 (10m)
1-2-3. Removal of CCZ Connector
1. Remove the two screws and three setscrews.
2. Connect the plug to the VTR or camera.
3. Loosen the plug counterclockwise by pliers.
4. Disassemble as illustrated and unsolder.
↓
1-2. Connectors and Cables

1-6 (E) CA-550
CA-550P
1-2-4. Wiring Diagrams for Cables
CCA-5 Cable
CCZ Cable
1-2. Connectors and Cables

1-7 (E)
CA-550
CA-550P
1-3. Installation of COAX Connector
1-3. Installaton of COAX Connector
To connect between the CA-550/550P and CCU-700/700P
with a coaxial cable, instead of a triaxial cable, the TRIAX
connector of the CA-550/550P can replace the supplied
COAX connector. Proceed as follows.
1. Remove the six screws to remove the MIC connector
panel. Disconnect CN1 on the FL-180 board.
3. Install the COAX connector to the connector box with
the screws that were removed in Step 2. Connect the
cable to CN3 on the FL-180 board. Insert until it
clicks.
4. Remove the right side panel, referring to Section 2-1.
Unplug the cable from CN4 on the FL-180 board and
reconnect it to CN5. Insert until it clicks.
COAX connector
CN3
CN5
CN4
Right side panel
5. Reinstall the top and right side panels.
2. Remove the four screws and carefully pull out the
TRIAX connector. Remove the top panel, referring to
Section 2-1.
B3 X6 B3 X6
B3 X6
B3 X6
Top panel
TRIAX connector
FL-180
MIC connector
panel
CN1 Precision
P2.6 X8
Precision
P2.6 X5
Precision
P2.6 X8
Precision
P2.6 X5

1-8 (E) CA-550
CA-550P
1-4. Function of Internal Switches
SW1 : INCOM MIC select switch
Select according to a microphone of the headset to be
connected to INCOM connector.
C : Carbon microphone
D : Dynamic microphone
Factory-set position : C
SW2 : INCOM CONTROL MODE select switch
(SW2-1 to 2-8)
SW2-1 : INCOM MIX switch
Turn on to add the intercom audio to the program audio.
Factory-set position : OFF
SW2-2 : INCOM/PGM MIX switch
Turn on to mix the program audio and the intercom audio
in front of IC5 (EVR).
Factory-set position : OFF
SW2-3 : PGM MIX switch
Turn on to add the program audio to the intercom audio.
Factory-setting : OFF
SW2-4 : PGM/INCOM level control mode select switch
ON : INCOM level control enables to adjust the levels of
the intercom and program audios simultaneously, and
PGM level control to adjust a mix ratio between the
intercom and program audios.
OFF : Normal mode. INCOM level control adjusts the intercom
audio level, and PGM level control adjusts program audio level.
Factory-set position : OFF
SW2-5 : SIDE TONE ON/OFF switch
Turn on to mix the side tone signal. (Mixing level: –26 dB)
RV3/AU-211 board adjusts the side tone level.
Factory-set position: ON
SW2-6 : Not used
Factory-set position : OFF
SW2-7 : PGM ON/OFF switch
Turn on to output the program audio to EARPHONE jack.
Factory-set position : OFF
SW2-8 : PB AUDIO ON/OFF switch
Turn on to output the playback audio to EARPHONE jack
while VTR is playing back. RV1/AU-211 board adjusts the
playback audio level.
Factory-set position : OFF
SW-3 : BACK TALLY CONTROL switch (SW3-1, 3-2)
SW3-1 : BATTERY ALARM ON/OFF switch
Turn on to output a battery alarm signal to BACK TALLY
lamp.
Factory-set position : OFF
SW3-2 : POWER SAVE switch
Always set to ON.
SW4 : MIC POWER ON/OFF switch
Turn on to use a microphone which operates with an
external power supply system.
When set to ON, check the setting of SW5/AU-211 board.
Factory-set position : OFF
SW5 : AB/PHANTOM MIC select switch
Select according to an microphone which operates with an
external power supply system to be used.
AB : AB POWERING +12 V microphone
PHANTOM : PHANTOM +48 V microphone
Factry-set position : PHANTOM
SW6 : MIC LINE select switch
Selects a signal to be transmitted to MIC1 line.
MIC1 : MIC signal input at MIC IN connector of BVP-
550/550P
MIC2 : MIC signal input at MIC IN connector of CA-550/
550P
Factory-set position : MIC 1
AU-211 Board
A
1234
B
C
D
E
F
G
SW2
SW3
SW1
SW6
SW4
SW5
AU
MIC PW
ON
OFF
MIC
D
C
1-4. Function of Internal Switches

1-9 (E)
CA-550
CA-550P
MD-103 Board
S3 : VBS GENLOCK IN/PROMPTER OUT select
switch
Selects an input/output signal at GENLOCK/PROMPT
connector (BNC).
n
To output PROMPTER video signal, the teleprompter unit
BKP-5971 (available separately) is required.
GENLOCK : In connection of VTR
PROMPT : In connection of CCU
Factory-set position: GENLOCK
DM-98 Board
MD
PROMPT
GENLOCK
A
1
234
B
C
D
E
F
G
S3
A1
2
3
4
5
6
B
C
D
E
F
S1
S1 : RET OUT select switch (S1-1 to S1-4)
S1-1 to S1-4 select an input/output signal at RET OUT connector (BNC).
S1-1 :
Disables automatically switching between PB VIDEO and
RET VIDEO.
Factory-set position : OFF
S1-2 :
Disables automatically switching between VBS/MONI-
TOR and PB/RET.
Factory-set position : OFF
S1-3 :
Selects VBS or MONITOR.
Factory-set position : OFF
S1-4 :
Inhibits RET CONT signal with S1-4 set to OFF.
Factory-set position : ON
The following signals are available in combination of the
switch positions of S1-1 to S1-4, or depending on whether the
RET CONT signal is on or off, as listed in the table below.
X: Don’t care
S1-1 S1-2 S1-3 S1-4 RET CONT Input/Output signal
signal at RET OUT connector
OFF OFF X X X RET VIDEO OUT
(in connection with CCU)
PB VIDEO OUT
(in connection with VTR)
ON OFF X X X PB VIDEO OUT
X ON OFF OFF X VBS IN
X ON ON OFF X MONITOR OUT
OFF ON OFF ON ON RET VIDEO OUT
(in connection with CCU)
PB VIDEO OUT
(in connection with VTR)
OFF VBS IN
OFF ON ON ON ON RET VIDEO OUT
(in connection with CCU)
PB VIDEO OUT
(in connection with VTR)
OFF MONITOR OUT
1-4. Function of Internal Switches
http://getMANUAL.com

1-10 (E) CA-550
CA-550P
1-5. Instance of Sytem Configuration
OTHER OPTIONAL ACCESSORIES
For BVP-500/500P STANDALONE UNIT
BKP-5910/5910P
SCRIPT HOLDER
BKP-7911/7912
For BVP-550/550P ELECTRET CONDENSER MICROPHONE
ECM-MS5
MICROPHONE
C-74 (Sony P/N 1-542-099-11)
CRADLE SUSPENSION
CRS-3P
CARRYING CASE
LC-303SFT
For CA-550/550P TELEPROMPTER UNIT
BKP-5971
1-5. Instance of Sytem Configuration
CCD UNIT
OHB-450/450P
OHB-451/451P
OHB-550/550P
OHB-550WS/550WSP
ENG/EFP LENS
1.5" VF(BVF-10/10CE)
COLOR VIDEO CAMERA
BVP-550/550P ELECTRONIC
VIEWFINDER
BVF-55/55CE
CAMERA ADAPTOR
CA-550/550P
CCD UNIT
OHB-400/400P
OHB-500/500P
OHB-500WS/500WSP
STUDIO ZOOM LENS
ELECTRONIC
VIEWFINDER
BVF-77/77CE
TRIAX CABLE (*2)
or COAX CABLE
TRIAX CABLE (*2)
COLOR VIDEO CAMERA
BVP-500/500P

1-11 (E)
CA-550
CA-550P
*2: TRIAX CABLE LENGTH
Diameter Maximum length
8.5 mm 1000 m (500m*)
14.5 mm 2000 m (1000m*)
*When BKP-5971 is installed
1-5. Instance of Sytem Configuration
REMOTE CONTROL
PANEL
RCP-700 RCP-701
CCA-5 CABLE
(*1)
CCA-5 CABLE
(*1)
CCA-5 CABLE
(*1)
CCA-5 CABLE
(max. 200m)
REMOTE CONTROL PANEL
RCP-720 RCP-721 RCP-740 RCP-741
CCA-5 CABLE
(*1)
CCA-5 CABLE
(max. 200m)
CCA-5 CABLE
(*1)
CAMERA COMMAND
NETWORK UNIT
CNU-700/500
MASTER SETUP UNIT
MSU-700
CAMERA CONTROL UNIT
CCU-700/700P
VIDEO SELECTOR
VCS-700
PIX
WF
PIX 2
PIX 2
WF 2
WF 2
CAMERA CONTROL UNIT
CCU-700/700P
RCP-700/701 RCP CNU CCU
CCA-5 CCA-5 CCA-5
( )
*1: CCA-5 CABLE LENGTH
Total length 200m or less

1-12 (E) CA-550
CA-550P
CCD UNIT
OHB-450/450P
OHB-451/451P
OHB-550/550P
OHB-550W/550WP
ENG/EFP LENS
1.5" VF(BVF-10/10CE)
COLOR VIDEO CAMERA
BVP-550/550P
CAMERA ADAPTOR
CA-550/550P
CCZ CABLE
DIGITAL VIDEO CASSETTE
RECORDER
DVW-250/250P
AC ADAPTOR
AC-550/550P
CCA-5 CABLE
(max. 50m)
RETURN VIDEO
SELECTOR
CAC-6
REMOTE
CONTROL
PANEL
RCP-700
RCP-701
RCP-720
RCP-721
RCP-740
RCP-741
VIDEO CASSETTE
RECORDER
BVV-5/5PS
CCZ CABLE
VTR
CAMERA
ADAPTOR
CAMERA ADAPTOR
CA-3A
BETACAM
ADAPTOR
CA-553
REMOTE
CONTROL
UNIT
RM-P9
MASTER
SETUP
UNIT
MSU-700
CA-57A/57AP
CA-55A/55AP
CA-50A/50AP
CAMERA
CONTROL
UNIT
CCU-370/370P
CCU-355/355P
CCU-350/350P
1-5. Instance of Sytem Configuration

2-1 (E)
CA-550
CA-550P
Section 2
Service Overview
c
The power block inside the CA-550/550P will go very hot during operation. If you remove the side panel
and touch the power block, there is some danger to get burned. When you would open the side panel for
check or adjustment, please allow for at least 10 minutes after powering off until the inside cools off.
2-1. Removal of Cabinet
n
• In installing the left side panel, take care not to pinch the
harness between the unit and panel.
2-2. Location of Printed Circuit Boards
MB-605
MPX Filter
DM-98
CN-1190
MD-103AU-211
LP-87
SW-784
SW-750
CN-1164
FL-180
PS-434
PS-435
TR-90
DM-99(option)
To remove the both side panels
Loosen the four screws respectively.
To remove the top panel
Remove the four screws.

2-2 (E) CA-550
CA-550P
2-3. Circuit Description
The CA-550/550P mainly consists of the following boards.
MD-103 board
The MD-103 board modulates the luminance signal Y, the
color difference signals R-Y and B-Y. And it selects a
signal to be input/output at GENLOCK IN/PROMPT OUT
connector. And also it quadrature-modulates the Y signal
and SKIN GATE signals with the carrier of 22.5 MHz and
the R-Y and B-Y signals with the carrier of 45 MHz. The
resultant signal is sent to the CCU.
AU-211 board
The CHU/RCP data is input/output from/to the AU-211
board. And processings for the audio signal such as the
INCOM mode switching and gain control are performed.
The received data from the RCP goes through the photo-
coupler and is then send as the RX DATA to control the
camera (CHU), via the 68P I/F connector to the CHU. If
the CCU is connected to the unit, the RX DATA is auto-
matically send to the CCU. As for how to select the
INCOM mode, refer to Section 1-4 “Function of Internal
Switches — AU-211 board”.
TR-90 board
The TR-90 board modulates/demodulates the audio signals
such as the MIC, INCOM and PGM. It also demodulates
the H CONT signal and modulates/demodulates the CHU/
CCU DATA. And it also generates the TONE signal,
piggybacks it on to the CHU DATA and ther modulates
the resultant signal.
DM-98 board
The DM-98 board demodulates the RET VIDEO signal
and also selects an output signal at the RET OUT connec-
tor. The relationships between the switch setting and
output signal are given in Section 1-4 “Function of Internal
Switches — DM-98 board”.
Communication with CCU
The CA-550/550P is not provided with the microcomputer,
so it communicates with the CCU through the camera.
A IIC bus line is equipped for the communication between
the camera and camera adaptor. The IIC bus line is also
used for the interface with the CCU.
2-4. Self-Diagnosis
The CA-550/550P has a diagnosis mode used for self-
diagnosis of every plug-in board. The diagnosis page is
displayed on the viewfinder screen of the camera.
• Equipment required
Color Video Camera BVP-550/550P
CCD Unit OHB-450/550 series
Supply power from a camera control unit CCU-700/
700P, AC adaptor AC-550/550CE or VTR.
• Switches and Button
2-3. Circuit Description
2-4. Self-Diagnosis
• Operation
1. Set POWER switch to CCU/EXT position. (If the
VTR is connected, set to VTR position.)
2. Set DISP switch to MENU position. Operation menu
will be displayed.
3. Rotate MENU SEL switch to display “Diagnosis”
page and then press MENU SEL switch.
4. The menu page is returned to the previous page every
time CANCEL button is pressed.
5. To exit Setup menu, set DISP switch to OFF.
CANCEL
CANCEL button
MENU
OFF
ON
DISP
DISP switch
MIC
LEVEL
MENU SEL switch
<FRONT VIEW>
