Sony SNCEM602R User manual

Outdoor IR Ruggedized 720p/30fps Camera
Powered by IPELA ENGINE™ EX Technology
nMaximum resolution of 1280 x 1024 pixels with
the Exmor®CMOS sensor
nExtremely Wide Dynamic Range to 130dB achieved with
View-DR®technology
nMinimum illumination of 0 lx in B/W (IR illuminator: ON) and
0.05 lx in Color (50 IRE @1/30 sec)
nPicture mode to help optimize picture quality in various applications
nH.264 (High/Main/Baseline Profile)/JPEG video codecs
nOperating temperature ranging from -40°F to +122°F (-40°C to +50°C)
nIK10-rated vandal-resistant and IP66-rated water-resistant/
dust-tight features
nImage Stabilizer to help minimize the effect of camera shake or
vibration to achieve less blurry images
•IPELA ENGINE™ EX signal processing system developed based
on Sony’s unique signal processing and
intelligent video analytics technologies to
provide unique features such as View-DR®,
XDNR®, and DEPA™ Advanced technologies
•Built-in IR (infrared) illuminators to assist capturing objects in
the dark even under 0 lx, up to 98 feet (30 m,) (50 IRE) away
•View-DR – Sony’s innovative wide dynamic range technology to
capture objects clearly and adaptively even under very harsh,
severe backlight or highlight conditions
•Advanced IR technology to provide high-quality IR images
without overexposure by using View-DR technology
•Visibility Enhancer (VE) to optimize the brightness and color
reproduction of an image dynamically on a pixel-by-pixel basis
while continuously adapting to the scene within the given
dynamic range
•DEPA Advanced Intelligent Video Analytics to
trigger an alarm based on user-defined rules
•XDNR (eXcellent Dynamic Noise Reduction) technology for
clear images with virtually no motion blur under low illumination
•IK10-rated vandal-resistant feature to help protect the camera
from destructive behaviors
•IP66-rated water-resistant and dust-tight feature for outdoor
surveillance and indoor where water ingress may pose an issue
•Picture mode selectable from a range of camera scenes in the
setting menu to optimize picture quality in various applications
•True D/N (Day/Night) function to switch to Day or Night mode
depending on the light level
•VBR (variable bitrate) or CBR (constant bitrate) compression
mode selectable to correspond with various network conditions
•Image Stabilizer to help minimize the effect of camera shake or
vibration to achieve less blurry images
•Easy Focus - allows installer/user to focus the camera remotely
using a PC or locally
•Easy Zoom - allows installer/user to change field of view locally
or remotely using a PC
•Easy initial network settings with supplied SNC Easy IP Setup
Guide application
•Powered by IEEE 802.3af/IEEE 802.3at-compliant (PoE/PoE+) for
easy installation
•Built-in HTML viewer compatible with most Smartphones
•ONVIF™ (Open Network Video Interface Forum)
Profile S conformance software that ensures
greater interoperability and more flexibility in
building multiple-vendor systems
KEY FEATURES
ON
OFF
Actual Images
Actual Images
OFF
ON
SNC-EM602R
Network Mini Dome HD Camera – E Series

©2013 Sony Electronics Inc.All rights reserved.
Reproduction in whole or in part without permission is prohibited.
Features and specifications are subject to change without notice.
Weights and measurements are approximate.
Sony, IPELA, IPELA ENGINE, Exmor, DEPA, ONVIF and
the Sony make.believe logo are trademarks of Sony.
All other trademarks are the trademarks of their respective owners.

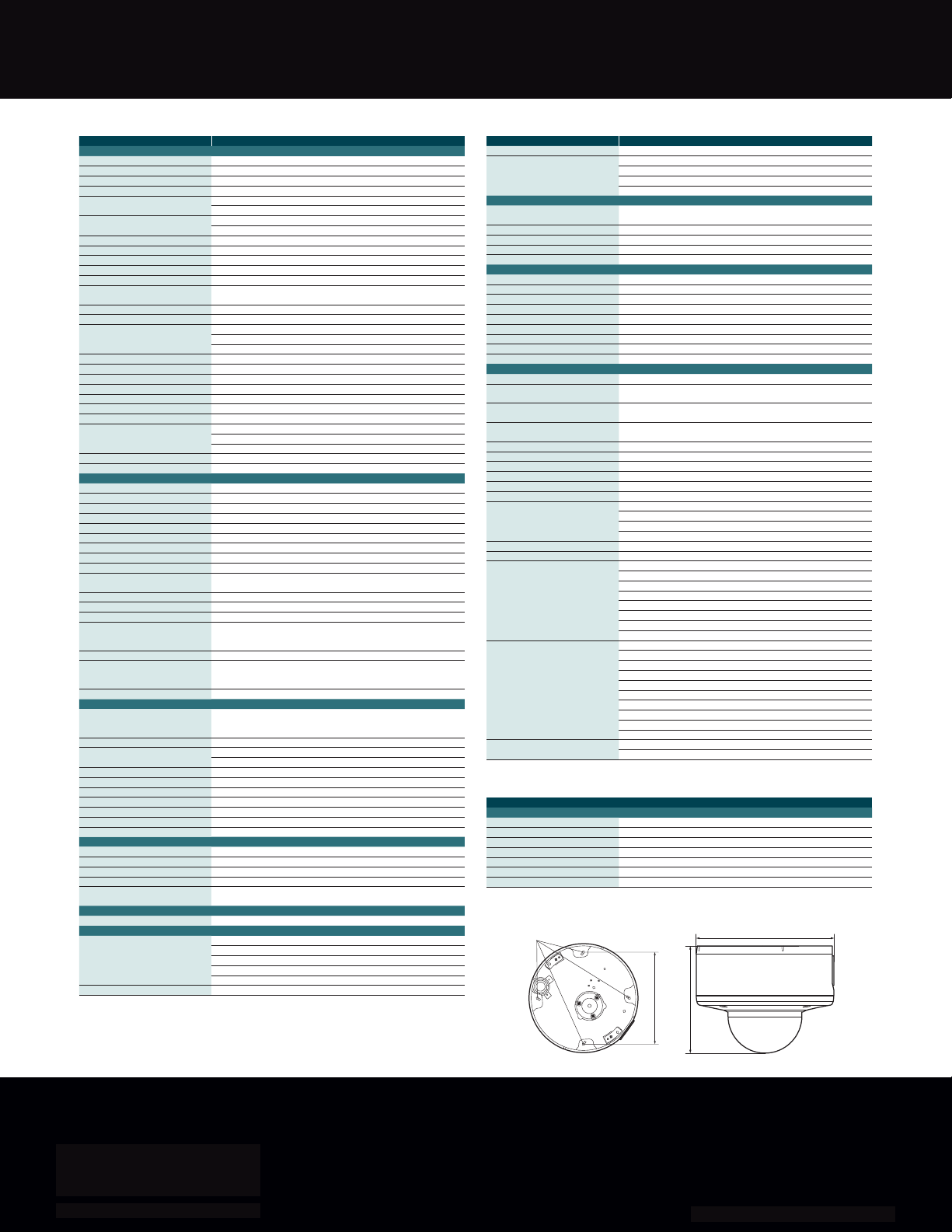

SPECIFICATIONS
4-M 4 hole
4 3/4 (140)
5 1/8 (128)
ø6 5/8 (ø166)
Unit: inches (mm)
DIMENSIONS
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/security
S-IP2176 (MK11067V1) Printed in USA (9/13)
Optional Mounts and Accessories
Model
UNI-MDB3 GOOSENECK WALL MOUNT (includes Pendant Cap)
UNI-MDB4 GOOSENECK WALL MOUNT (without pendant cap)
UNI-WMBB1 CONDUIT BOX
UNI-CMA1 CORNER ADAPTER
UNI-PMA1 POLE ADAPTER
UNI-MDPDH180 PENDANT CAP
YT-ICB140/YT-ICB600 RECESSED BRACKET-FLUSH MOUNT
*1: SSM (Source Specific Multimedia) is supported.
*2: If the camera is installed in high-temperature environments and subjected to direct sunlight,
it is highly recommended to use the optional SNCA-WP602 Weather Protector.
SNC-EM602R
Camera
Image Sensor 1/3-type progressive scan Exmor CMOS
Number of Effective Pixels Approx. 1.37 Megapixels
Signal System NTSC
Sync System Internal synchronization
Minimum Illumination (50 IRE) Color: 0.05 lx (F1.2,View-DR OFF, VE OFF,AGC ON, 1/30 s, 30 fps)
B/W: 0 lx (IR illuminator ON)
Minimum Illumination (30 IRE) Color: 0.03 lx (F1.2,View-DR OFF, VE OFF,AGC ON 1/30 s,30 fps)
B/W: 0 lx (IR illuminator ON)
Dynamic Range Equivalent to 130 dB with View-DR technology
S/N Ratio More than 50 dB (Gain 0 dB)
Gain Auto
Shutter Speed 1/1 s to 1/10,000 s
Exposure Control Exposure compensation,AGC, Shutter speed, Iris
White Balance ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour
lamp, Metal halide lamp,White LED, One push WB, Manual
Lens Built-in varifocal lens
Easy Zoom Yes
Zoom Ratio Optical zoom 3x
Digital zoom 4x
Total zoom 12x
Easy Focus for Setup Yes
Horizontal Viewing Angle 93.0° to 31.6°
Vertical Viewing Angle 50.6° to 17.8°
Viewing Tilt Angle 121.5°
Focal Length f = 3.0 mm to 9.0 mm
F-Number F1.2 (Wide) to F2.1 (Tele)
Minimum Object Distance 300 mm
Pan/Tilt/Rotation Angle
(Manual)
Pan: ±192°
Tilt: -7° to +75°
Rotation: ±99°
IR Illuminator Yes (Wave length: 850 nm [typical], IR LED 20 pieces)
IR Working Distance 30 m (50 IRE)
Camera Features
Day/Night True D/N
e-Flip Yes
Wide-D View-DR
Tone Correction Visibility Enhancer (VE)
Noise Reduction XDNR
Image Stabilizer Ye s
Picture Mode Yes
Privacy Masking (number) 20
Privacy Masking (shape) Quadrangle formed by any four corner points
Privacy Masking (color/effect) Opaque: 14 colors (Black,White, Red, Green, Blue, Cyan,Yellow,
Magenta, Gray (6 scales)), Mosaic
Edge Storage No
Vandal Resistant IK10
Ingress Protection IP66
Superimpose Number 3 independent positions for characters (Codec, Date & Time,
Event,Text (max. 64 characters)), 1 independent position for logo
marks
Superimpose Language English
Menu Language English, Japanese, Chinese (simplified), Chinese (traditional),
French, Spanish, German, Italian, Korean, Portuguese, Russian,
Arabic, Hindi,Vietnamese, Thai
Smartphone viewer Yes
Video
Resolution 1280 x 1024, 1280 x 960, 1024 x 768, 1280 x 720, 800 x 600,
720 x 576, 720 x 480, 704 x 576, 640 x 480, 352 x 288, 320 x 240
(H.264, JPEG)
Compression Format H.264 (High/Main/Baseline Profile), JPEG
Maximum Frame Rate H.264: 30 fps (1280 x 1024)
JPEG: 30 fps (1280 x 1024)
Bitrate Compression Mode CBR/VBR (selectable)
Range of Bitrate Setting 64 Kbps to 32 Mbps
Solid PTZ Yes
Adaptive Rate Control H.264
Bandwidth Control JPEG
Multi Streaming Capability Triple streaming
Number of Clients 20
Intelligent Video Analytics
Analytics Architecture DEPA Advanced
Intelligent Motion Detection Yes
Face Detection Yes
Tamper Alarm Yes
Scene Analytics Passing, Intrusion, Left Object Detection, Removed Object
Detection
Audio
Compression Format N/A
System Requirements
Operating System Windows®XP™ (32 bit) Professional Edition
Windows®Vista™ (32 bit) Ultimate, Business Edition
Windows®7 (32/64 bit) Ultimate, Professional Edition
Windows®8 Pro (32/64 bit)
Microsoft®DirectX 9.0c or higher
Processor Intel Corei7 2.8 GHz or higher
SNC-EM602R
Memory 2 GB or more
Web Browser Microsoft®Internet Explorer Ver. 7.0, Ver. 8.0,Ver. 9.0,Ver. 10.0
Firefox Ver. 19.02 (plug-in free viewer only)
Safari Ver. 5.1 (plug-in free viewer only)
Google Chrome™ Ver. 25.0 (plug-in free viewer only)
Network
Protocols IPv4,TCP, UDP,ARP, ICMP, IGMP*1, HTTP, DHCP, DNS, NTP, RTP/RTCP,
RTSP over TCP, SMTP over HTTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL
QoS DSCP
Multicast Streaming Support Yes
ONVIF Conformance Profile S
Authentication IEEE 802.1X
Interface
Analog Video Output No
Analog Monitor Output for Setup Phono jack x1
Line Input No
Line Output No
Network Port 10BASE-T/100BASE-TX (RJ-45)
Alarm Input (Sensor Input) No
Alarm Output No
Card Slots No
Confirmed SD Card Type No
General
Power Requirements IEEE802.3at compliant (PoE/PoE+ system)
Power Consumption Max. 17 W (IEEE802.3at (PoE+), heater enabled)
Max. 11 W (IEEE802.3af/at (PoE/PoE+), heater disabled)
Operating Temperature*2-40°F to +122°F (-40°C to +50°C) (heater enabled)
14°F to 122°F (-10°C to +50°C) (heater disabled)
Cold Start Temperature -22°F (-30°C) (heater enabled)
+32°F (0°C) (heater disabled)
Storage Temperature -4°F to +140°F (-20°C to +60°C)
Operating Humidity 20% to 90% (no condensation)
Storage Humidity 20% to 95% (no condensation)
Built-in Heater Yes
Dimensions (W x H x D) ø6 5/8 inches x 5 1/8 inches (ø166 mm x 128 mm)
Weight 3 lb 7.7 oz (1580 g)
External Material Upper case:AL Diecast
Lower case: AL Diecast
Dome cover: PC
Cap: PC
External Color White
Fire Retardant UL2044
Safety Regulations JATE Technical Standard (LAN)
UL2044, IEC60950-1 (CB)
VCCI (Class A), FCC (Class A), IC (Class A)
Emission: EN55022 (Class A) + EN50130-4
Immunity: EN55022 (Class A) + EN55024
Emission: AS/NZS CISPR22 (Class A)
KCC
EMC-TR
Supplied Accessories CD-ROM (supplied programs) (1)
Bracket (1)
Template (1)
Wire rope (1)
Wrench (1)
Camera unit mounting screws (4)
Screw M4 × 8 (2)
Installation Manual (1 set)
Safety Regulations (1 set)
Cable holder (for conduit) (1)
Optional Accessories YT-ICB45 (In-ceiling Bracket)
SNCA-WP602 (Weather Protector)
