HIGH RESOLUTION
VANDAL DOME WDRCAMERA
OPERATION MANUAL
Thank you for choosing our high quality camera.
Before attempting to connect operate this unit, please read and follow these instructions.
M115-VDW200-002

CONTENTS
1. CAUTIONS
2. FEATURES
3. COMPONENTS
4. NAME AND FUNCTION
5. INSTALLATION
6. DIMENSIONS
7. SPECIFICATION
8. OSD MENU STRUCTURE
3

4
1. CAUTIONS
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.”
WARNING
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Caution
Any changes or modications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
1. A regulated DC12V 1A power supply is recommended for use with this camera
for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera.
When unregulated power supply is applied, product warranty will be out of subject.
2. It is recommended that the camera is used with a monitor that has a CCTV quality
75 video impedance level.
If your monitor is switched to high impedance then please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the internal componets.
Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reective light, which may
cause smear on the picture and possible damage to the CCD.
5. Do not remove the serial sticker for the warranty service.
6. Do not expose the camera to rain or other types of liquid.
7. The apparatus must be connected to a mains socket-outlet with a protective earthing
connection.

1. CAUTIONS
5

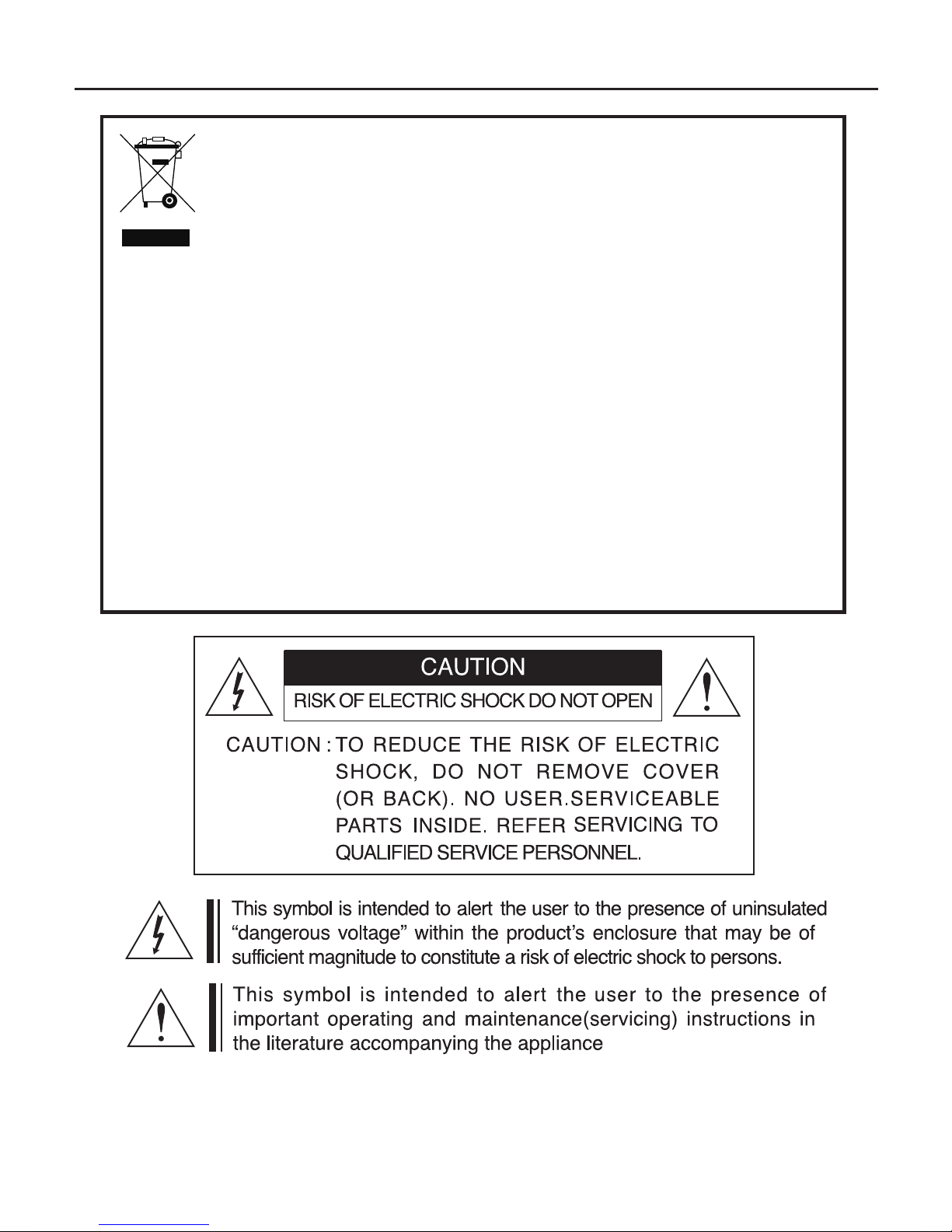

Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with
separate collection systems)
This marking shown on the product or its literature, indicate that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
This product should not be mixed with other commercial wastes purchased this
product, or their local government ofce, for details of where and how they can
take item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract.
Household users should contact either the retailer where they for disposal.

2. FEATURES
• 1/3960H SONY Double Scan Super HAD CCD II
• High Resolution of 750TV Lines
• WDR (Wide Dynamic Range)
• OSD Function
• Multi Language
(English / Chinese / Russian / Spanish / German)
• Digital slow shutter
• 3D DNR
• Privacy Zone 15Zone
• 3x Digital Zoom
• Motion Detect
• DC12V, DC12V / AC24V Dual Voltage

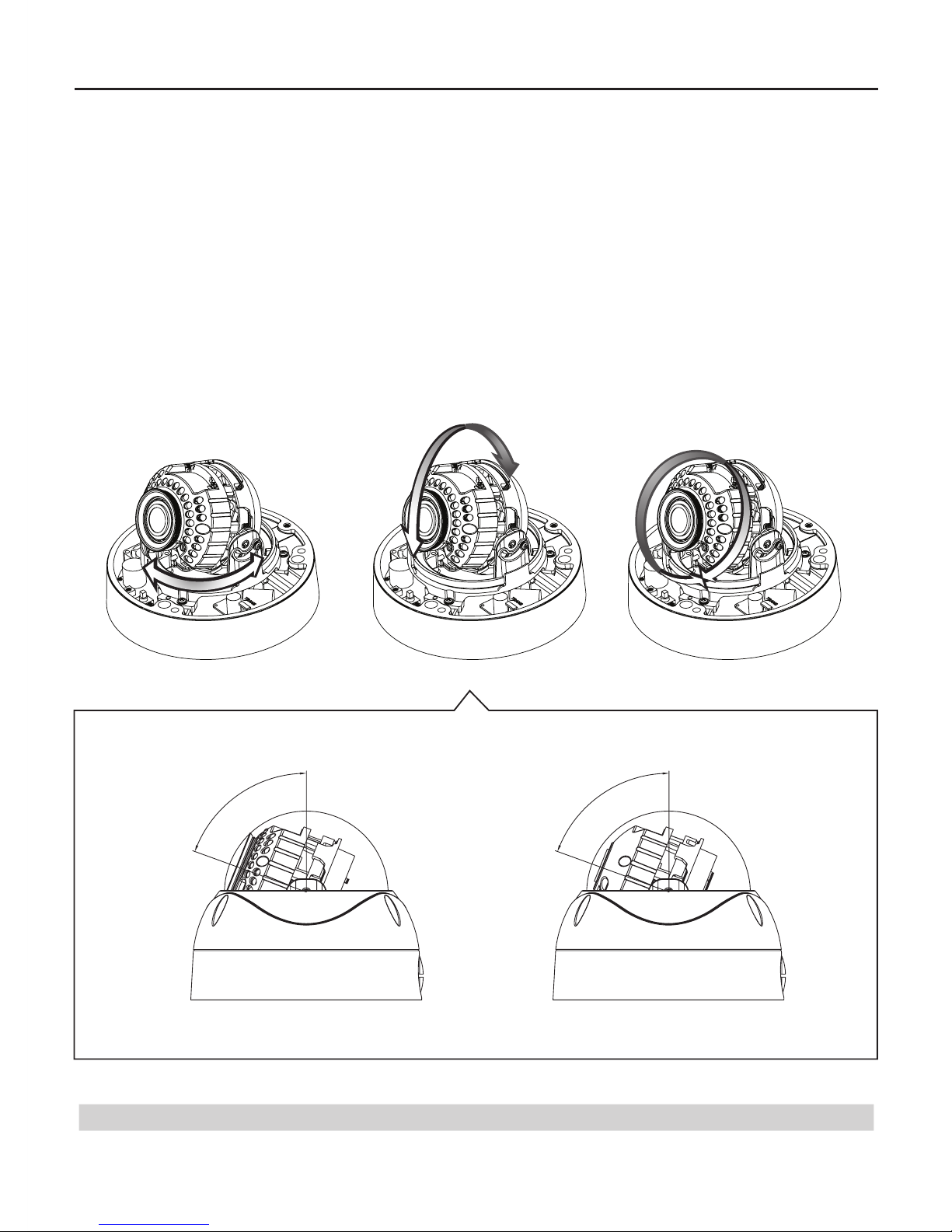

• 3-Axis Gimbal
CAUTION Panning the bracket in excess of 3 rotations in one direction maycause damage to the cable.
6
Pan Rotation Tilt Rotation Horizontal Rotation
Tilting angle
70
˚70
˚
LED Type Standard Type

7
3. COMPONENTS
Camera
Template Manual
Screws / Plastic anchors / Wrench Service Video Output Test Cable
When using
Wall Mount Bracket

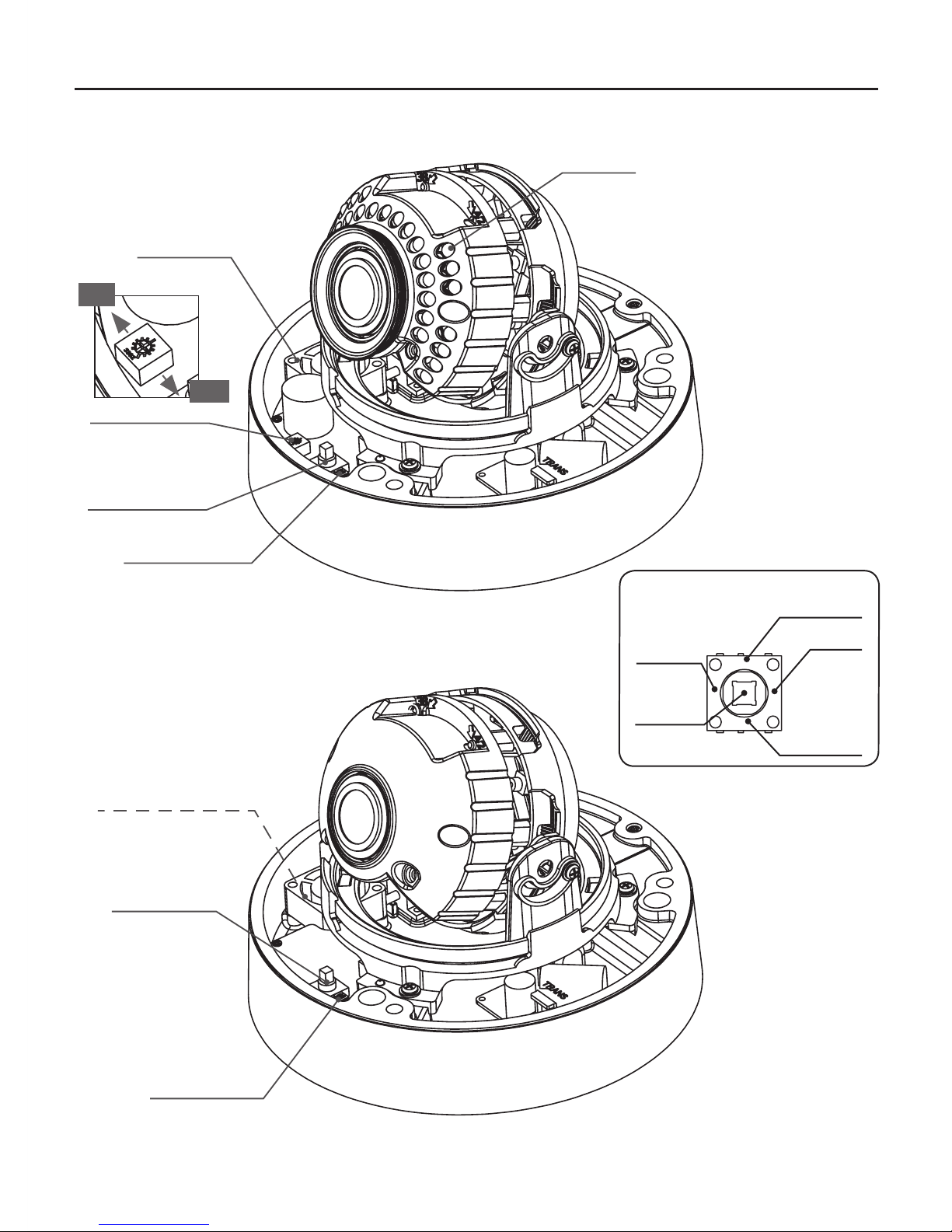

4. NAME AND FUNCTION
• LED Type
• Standard Type
8
IR LED
Service Video
Connector
IR LED Volume
MAX
MIN
• CONTROL FUNCTION
(OSD JOYSTICK)
LEFT
UP
RIGHT
DOWN
MENU
Cooling Fan
OSD Joystick
OSD Joystick
Cooling Fan(Option)
Service Video
Connector

9

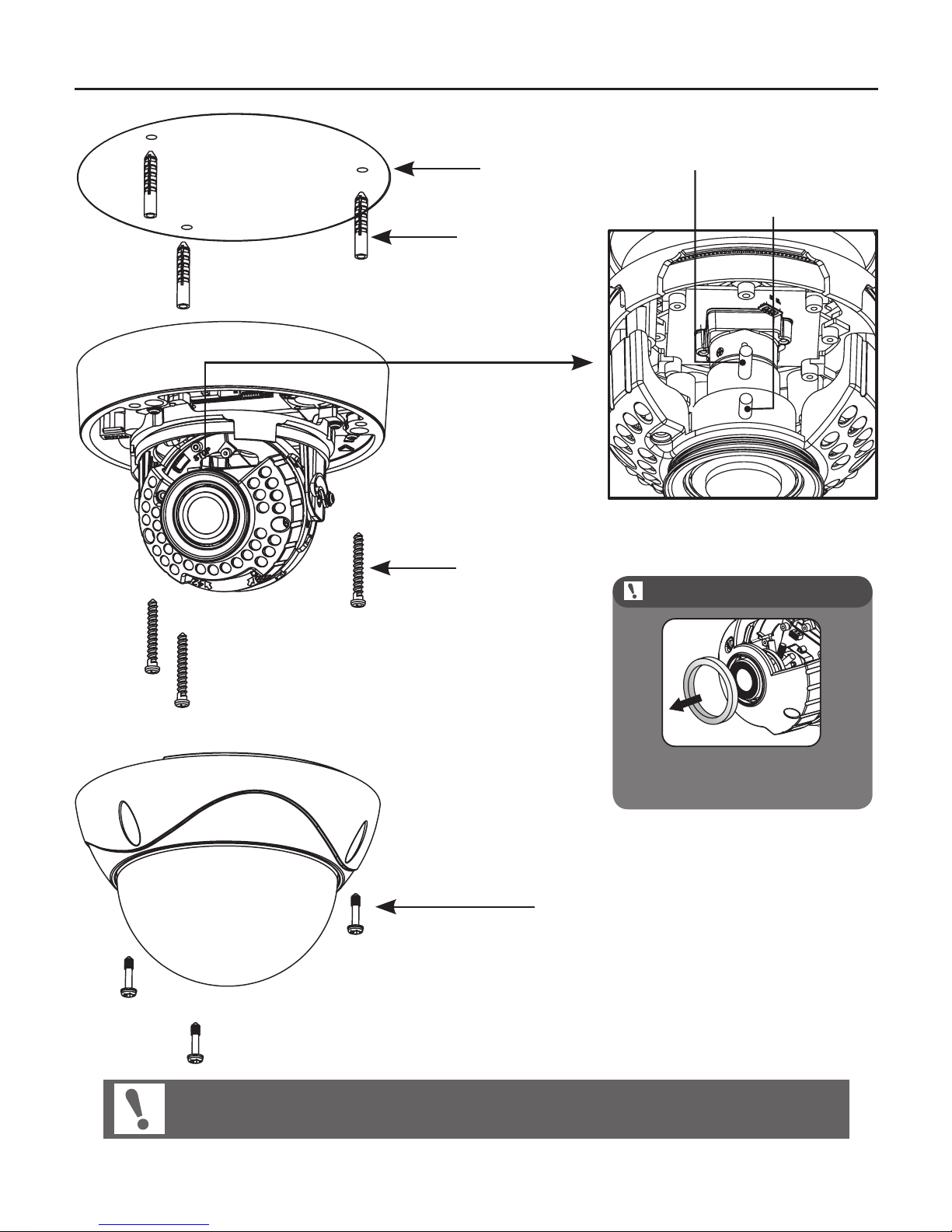

5. INSTALLATION
When you x the focus around 22.0mm in f9.0-22.0mm Varifocal lens, please
set short distance focus approximately 3M and do not set long distance focus
Cover Screws(3ea):
are “captive and will
normally be retained in
cover. They are shown
here for illustration
purposes.
Screws(3ea)
Plastic Anchors
(3ea)
Template Lens Zoom Knob
Lens Focus Knob
When using the camera
without LED take off the rubber.
NOTE

10

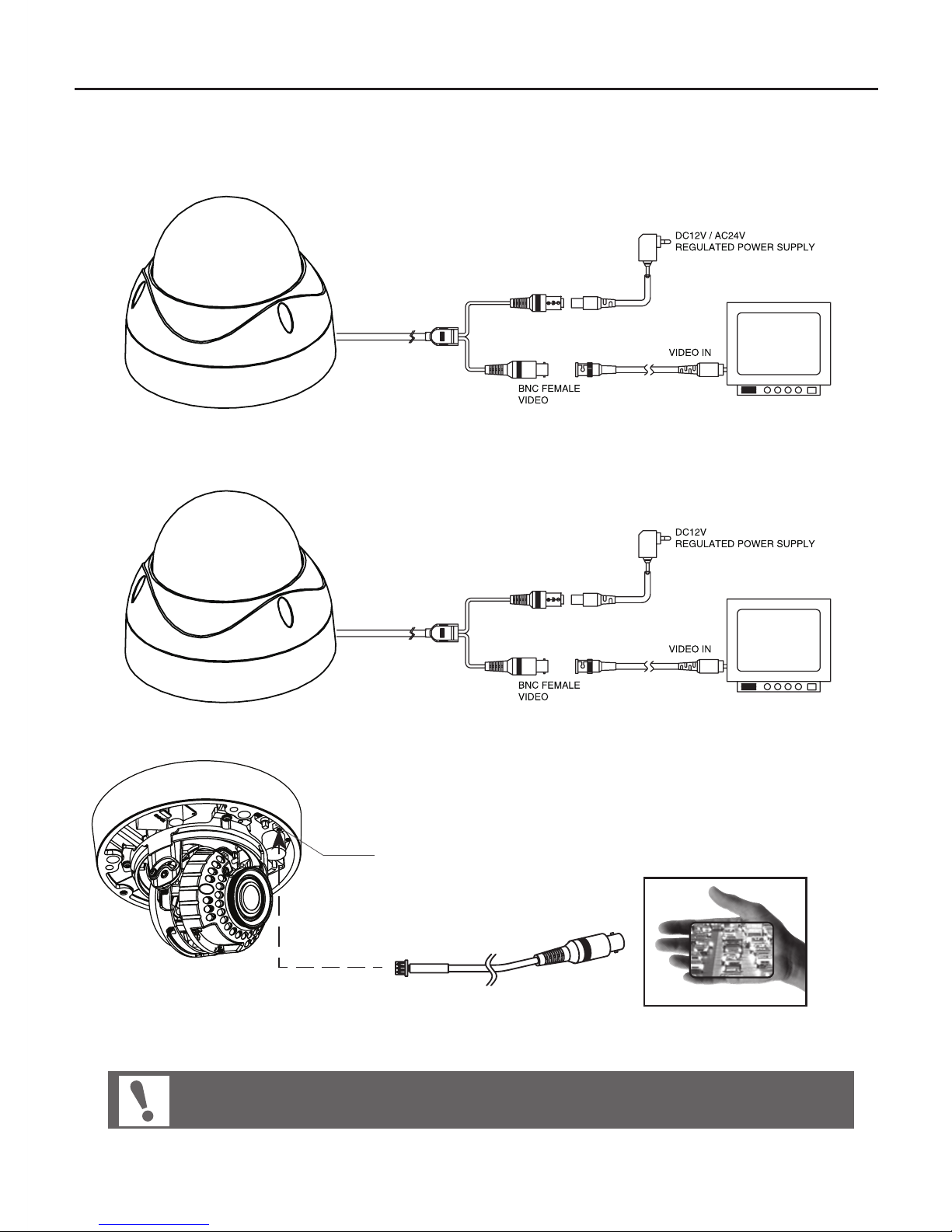

5. INSTALLATION
• MONITOR CONNECTION
• DUAL(DC 12V/AC24V)
• DC 12V
• Service Video connector
When you install the camera, please glue up the end of cable to
keep it stable in order to protect the camera from the humidity problems.
VIDEO IN
HANDHELD
MONITOR
Service
Video
Connector
OPEN
COVER
TEST CABLE

11
6. DIMENSIONS
Unit(mm)
Ø112.8
Ø151
Ø107
123.4
71.5
Ø124

12
7. SPECIFICATION
Signal Format NTSC PAL
Image Device 1/3” 960H SONY Double Scan Super HAD CCD II
Scanning System 2:1 Interlace
H.Resolution 750TV Lines
Scanning Frequency H:15.734KHz, V:59.94Hz H:15.625KHz, V:50Hz
Total Pixels 1028(H) X 508(V) 1028(H) X 596(V)
Effective Pixels 976(H) X 494(V) 976(H) X 582(V)
Electronic Shutter Speed 1/60 sec 1/50 sec
S/N Ratio More than 50dB(3DNR ON)
Gamma r=0.45
Min. Illumination 0.08Lux(Color) / 0.04Lux(BW) (30IRE, AGC:HIGH)
Sync System Internal
Video Output 1.0 Vp-p Composite(75Ω)
OSD Built in
Digital Zoom Ratio 3x
Digital Slow Shutter OFF, 2 ~ 128 Field
Flickerless ON / OFF
WDR ON / OFF (Level adjustable)
BLC ON / OFF (Level adjustment, Area selection)
White Balance ATW / PUSH / PUSH LOCK / MANUAL(R Gain, B Gain)
3D DNR ON / OFF (Level adjustable)
AGC LOW / MIDDLE / HIGH
Image Function Image reverse(NORMAL/H / V / HV), Freeze
Sharpness Level adjustable
Privacy Masking 15 Zones (Area adjustment)
Face Detection ON / OFF (Level adjustable, Area adjustment)
Motion Detection ON / OFF (Level adjustable, Area adjustment)
Language English / Chinese / Russian / Spanish / German
IP Rating IP66 (Weatherproof)
Power
Consumption
DC12V DC 12V (±10%) Max.165mA
Dual DC 12V (±10%) Max. 250mA , AC 24V (±10%) Max. 3.6W
Operating Temperature 14°F~122°F(-10°C~+50°C)
Storage Temperature -4°F~140°F(-20°C~+60°C)
Operating Humidity Less than 80%
Options Dual Power, Fan, Heater
Dimension(mm) 151(Φ) x 123.4(mm)
Weight 900g
LED TYPE
Power
Consumption
DC12V DC 12V (±10%) Max. 660mA
Dual DC 12V (±10%) Max 790mA , AC 24V (±10%) Max. 18.1W
Min. Illumination 0 Lux (IR LED ON)
IR LED 850nm, 30ea
IR Beam Range Up to 30M
IR LED Operation On : 1 Lux, Off : 3 Lux

13
8. OSD MANUAL
GENERAL STRUCTURE
SETUP
>EXPOSURE [-]
WHITE BALANCE [-]
WDR/BLC [-]
DAY&NIGHT [-]
IMAGE [-]
SPECIAL [-]
FACTORY DEFAULT
EXIT
EXPOSURE
>BRIGHTNESS ... 7
SHUTTER ... 1/60
FLICKERLESS ... OFF
AGC ... MID
DSS ... 10x
INITIAL
RETURN
WHITE BALANCE
>WB MODE ... ATW
RED CONT ... ----
BLUE CONT ... ----
PUSH CONT ... ----
INITIAL
RETURN
WDR/BLC
>WDR MODE ... OFF
WDR LEVEL ... 08
BLC ... OFF
BLC ZONE ... CENTER
BLC LEVEL ... 04
INITIAL
RETURN
DAY & NIGHT
>D&N MODE ... COLOR
DWELL TIME ... ----
D -> N LEVEL ... ----
N -> D LEVEL ... ----
INITIAL
RETURN
*LED type is not the menu.

14
8. OSD MANUAL
MOTION DET
>MOTION MODE ... ON
LEVEL ... 08
FACE MODE ... ON
LEVEL ... 07
V START ... 01
V END ... 06
H START ... 01
H END ... 10
INITIAL
RETURN
PRIVACY
>ZONE NO ... 0
MASK ... OFF
V START ... 07
V END ... 12
H START ... 10
H END ... 19
TOP ANGLE ... 00
BOTTOM ANGLE ... 00
INITIAL
RETURN
>REVERSE ... NORMAL
DNR ... OFF
DNR LEVEL ... 4
SHARPNESS ... 10
FREEZE ... OFF
D-ZOOM .. 1,0x
INITIAL
RETURN
SPECIAL
>CAM TITLE ... [-]
LANGUAGE ... ENGLISH
PRIVACY ... [-]
MOTION DETECT ... [-]
DISPLAY ... [-]
INITIAL
RETURN
CAM TITLE
0123456789ABCDEFGHIJKLMN
OPQRSTUVWXYZ!?*#$%()<>{}
SPACE >> <<BACK
LOCATION ... [┛]
RETURN
DISPLAY
>CAM TITLE ... OFF
MOTION DETECT ... OFF
FACE DETECT ... OFF
INITIAL
RETURN
[TITLE LOCATION]
TITLE
[U][D][L][R] [M] +

15
8. OSD MANUAL

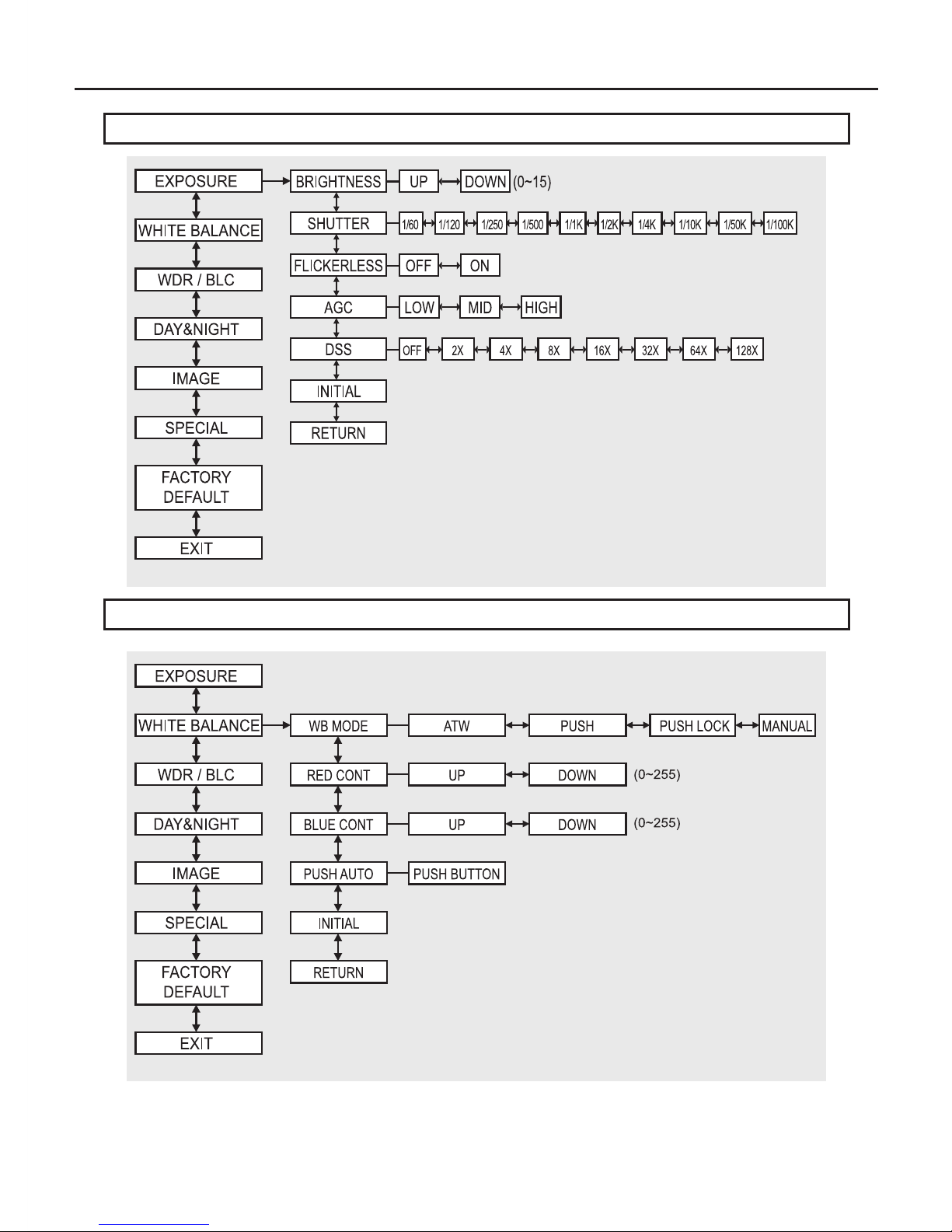

EXPOSURE MENU STRUCTURE
WHITE BALANCE MENU STRUCTURE

16
8. OSD MANUAL
WDR / BLC MENU STRUCTURE
DAY & NIGHT MENU STRUCTURE (*LED type is not the menu.)

17
8. OSD MANUAL
IMAGE MENU STRUCTURE
SPECIAL-CAM TITLE

18
8. OSD MANUAL
SPECIAL-LANGUAGE
SPECIAL-PRIVACY

19
8. OSD MANUAL

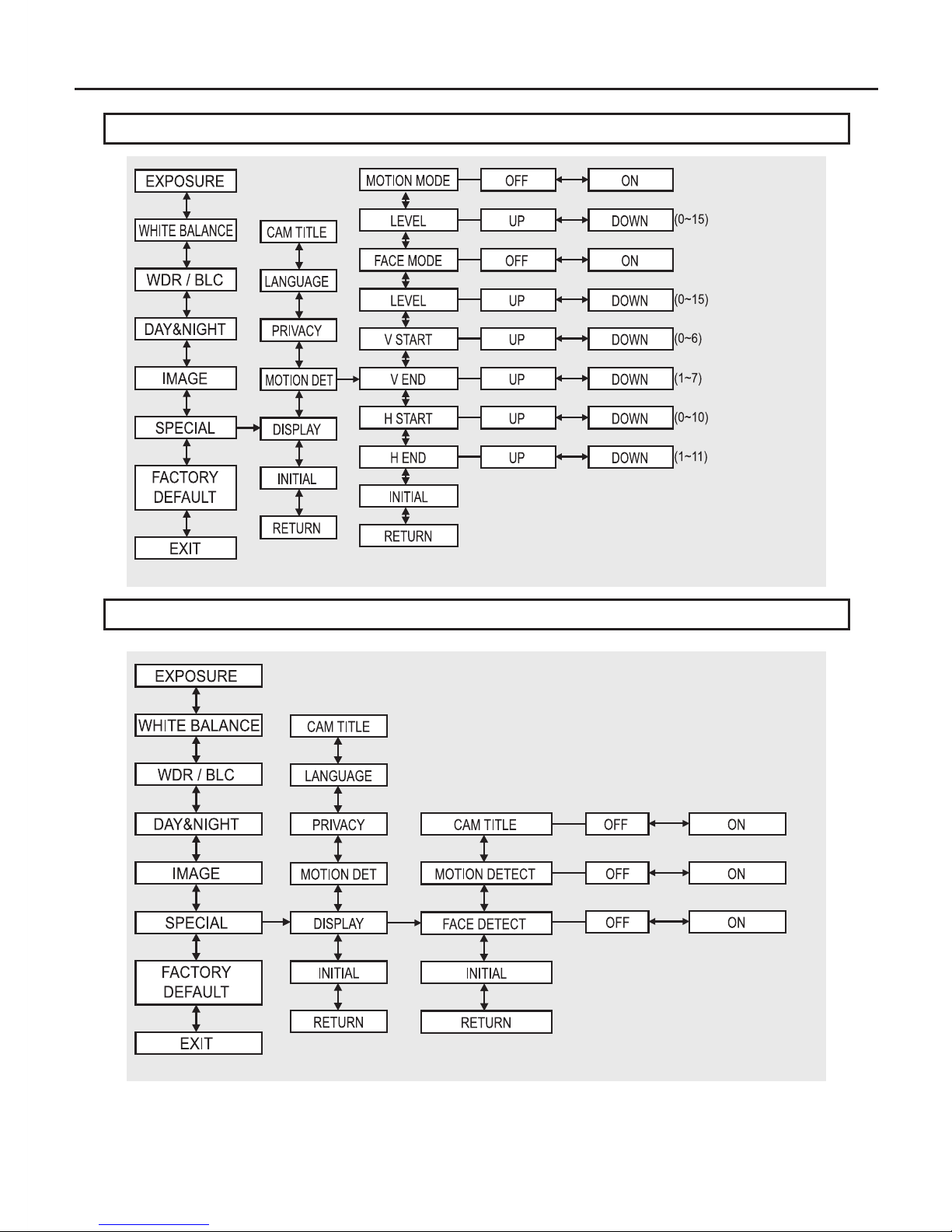

SPECIAL-MOTION DET
SPECIAL-DISPLAY

20
8. OSD MANUAL
OSD FUNCTION DESCRIPTION
1. EXPOSURE
: Enable user to set up the function of BRIGHTNESS, SHUTTER, FLICKERLESS, AGC, DSS.
Set up using LEFT, RIGHT KEY at each menu.
- BRIGHTNESS
: Enable user to select the level for Brightness of
image(0~15).
- SHUTTER
: Enable user to set up the Shutter Speed
-> 1/60(50), 1/100(120), 1/250, 1/500, 1/1K, 1/2K,
1/4K, 1/6K, 1/10K, 1/50K, 1/100K *() is for PAL TYPE
- FLICKERLESS
: Enable user to set up the FLICKERLESS ON/OFF.
- AGC: Enable user to make image bright to amplify the Gain. -> LOW, MID, HIGH
- DSS(Digital Slow Shutter)
: Enable user to enhance video quality in extreme low-light condition to slow down
the shutter speed and collect over multiple elds based on the shutter limit setting.
-> OFF, 2X, 4X, 8X, 16X, 32X, 64X, 128X
- INITIAL
: Enable user to initialize the Exposure menu set up.
2. WHITE BALANCE
: Enable user to represent the accurate white color by controlling the R,G,B level.
Setting up LEFT, RIGHT KEY on each menu.
- WB MODE
① ATW : Enable user to trace the White Balance
automatically in the range of 2,300K~10,000K.
② PUSH : Enable user to search for White Balance
automatically. In this mode, color temperature
range is broader than ATW.
③ PUSH LOCK : Enable user to x the White
Balance according to the color temperature in
the certain environment.
④MANUAL : Enable user to sets the White Balance
according to the circumstance.
- RED CONT :
In the USER setting of WB MODE, enable user to set the RED GAIN.
- BLUE CONT :
In the USER setting of WB MODE, enable user to set the BLUE GAIN.
- PUSH AUTO :
In the PUSH LOCK setting of WB MODE, enable user to x the White Balance in
camera setting.
- INITIAL : Enable user to reset the WHITE BALANCE menu setting.
EXPOSURE
>BRIGHTNESS ... 7
SHUTTER ... 1/60
FLICKERLESS ... OFF
AGC ... MID
DSS ... 10x
INITIAL
RETURN
WHITE BALANCE
> WB MODE ... ATW
RED CONT ... ----
BLUE CONT ... ----
PUSH CONT ... ----
INITIAL
RETURN
