On this “First Step Guide”
Software's on-line help
Picture Motion Browser features
Chapter 1: Setting up for the first time
Preparation flow
Step 1: Installing software
Step 2: Connecting with a USB cable
Chapter 2: Creating a disc with One Touch
Types of discs you can use
Saving videos and still images on a disc with One Touch (One Touch Disc Burn)
Chapter 3: Importing/viewing videos and still images on a computer
Importing entire videos and still images on a computer (Easy PC Back-up)
Importing selected videos and still images on a computer (Media File Import)
Importing images from the DVD drive/Memory Stick slot of a computer
Viewing videos and still images imported to a computer
Chapter 4: Editing the imported videos and still images
Editing videos
Editing still images
Chapter 5: Creating and copying a disc
Creating a disc with HD (High Definition) picture quality
Creating a disc with SD (Standard Definition) picture quality
Creating a disc with saved images from the Playlist on your camcorder (Playlist Disc Creation)
Copying a disc
Types of discs you can use
Chapter 6: Viewing an AVCHD format disc on a computer
Playing an AVCHD format disc with Player for AVCHD
Chapter 7: Exporting videos to your camcorder
Exporting AVCHD 1080i format videos saved on a computer to your camcorder
Chapter 8: Manipulating videos and still images
Saving videos after converting format
Manipulating still images
Troubleshooting
Symptoms
Cause and/or corrective actions
Additional information
System requirements
Trademarks and regulations
(C) 2006 Sony Corporation

On this “First Step Guide”
This “First Step Guide” describes the connections and settings required to use your camcorder with
a computer, and the basic operation of the software on the CD-ROM.
The CD-ROM contains the Picture Motion Browser application for the Windows OS.
You cannot use Picture Motion Browser on a Macintosh computer.
Notes
zThe screenshots in this “First Step Guide” are from Windows XP. The screens may vary depending on the operating
system of the computer.
zBoth a 12 cm and an 8 cm DVDs are described as a “disc” in this “First Step Guide.”
Read this first
Top Next

Software's on-line help
The help provides detailed operating instructions for Picture Motion Browser.

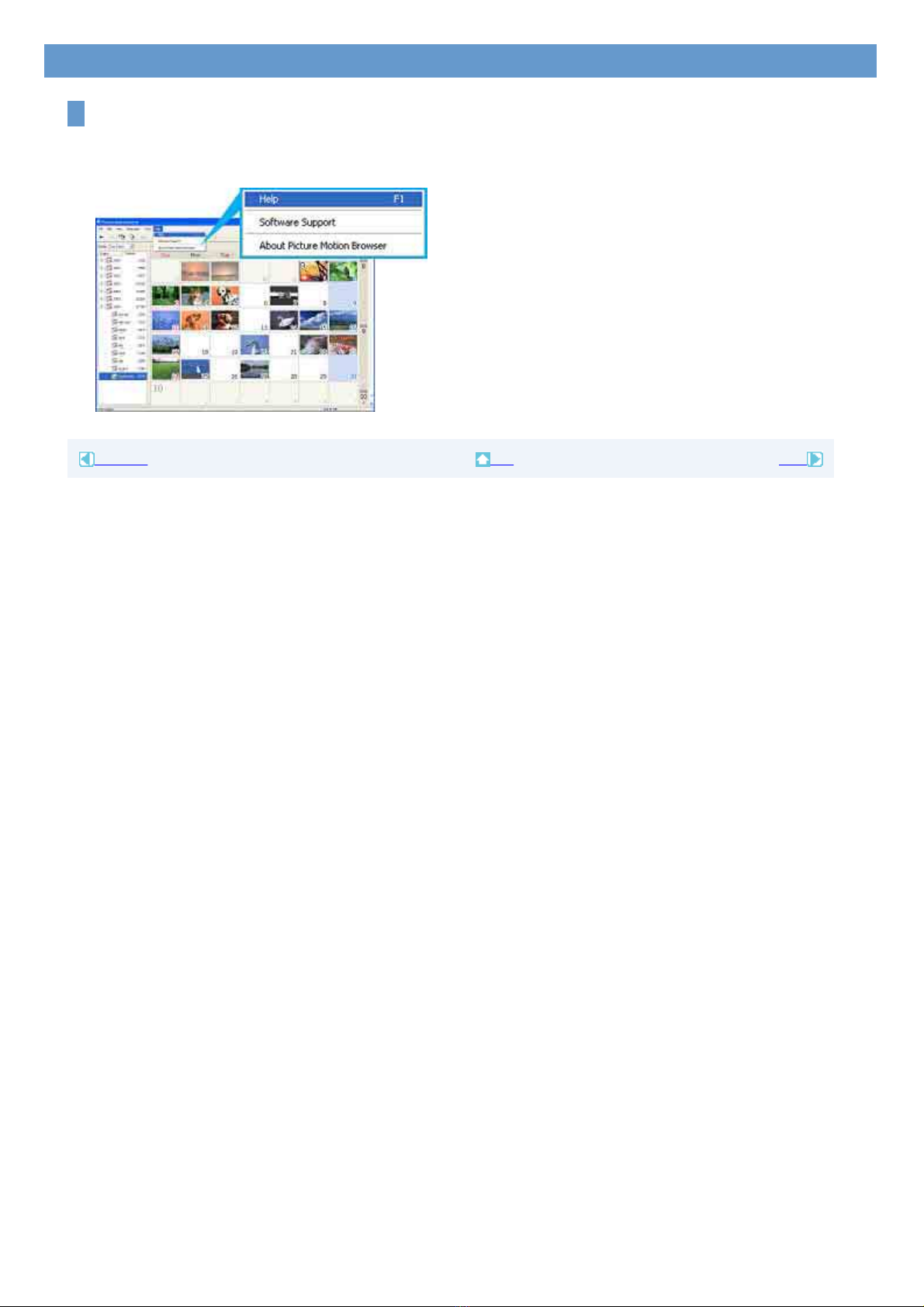

Select [Help] in the [Help] menu of the software to start up the on-line help.
Read this first
Previous Top Next

Picture Motion Browser features
Picture Motion Browser is a set of Windows applications with the following features.

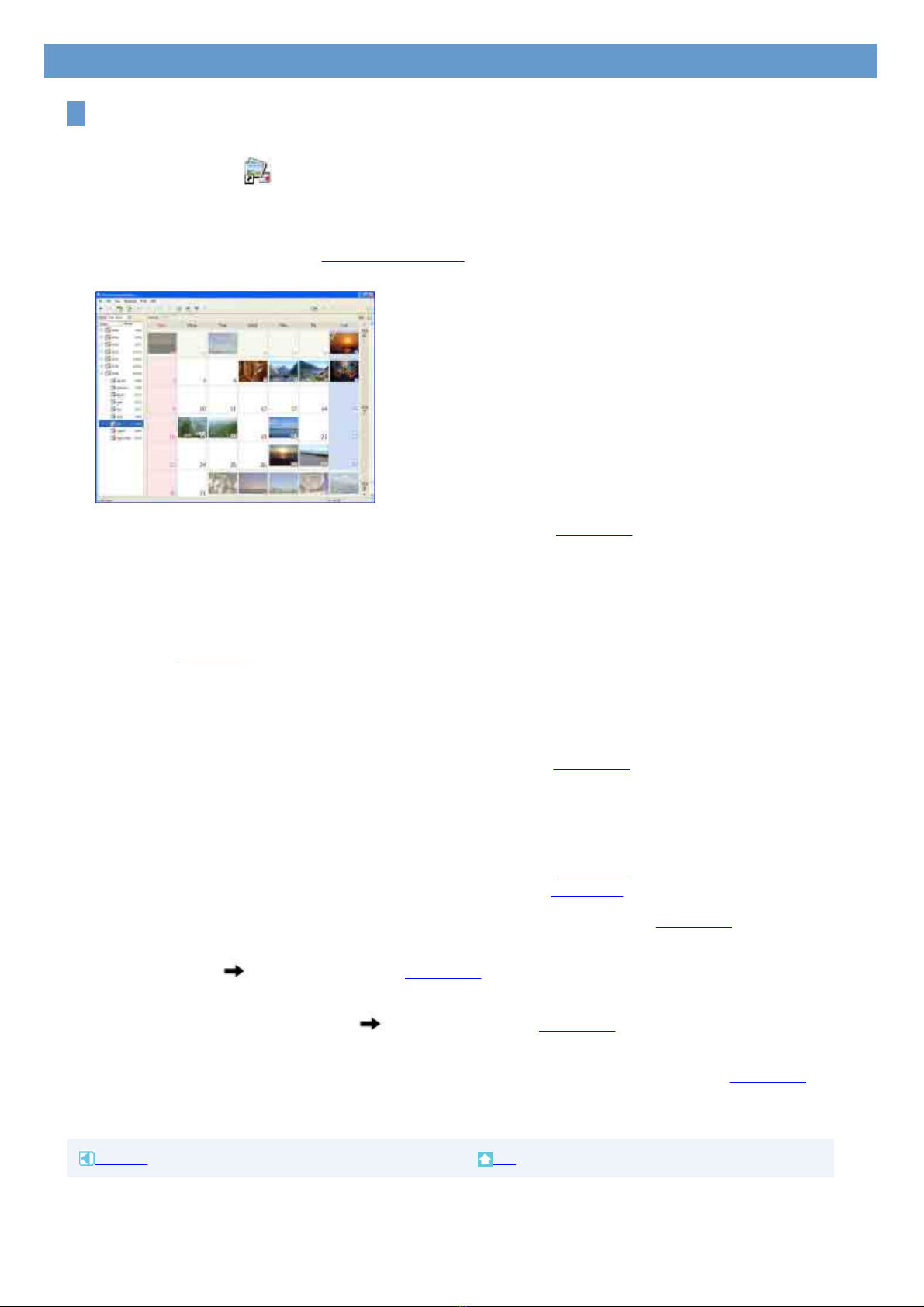

If you double-click the [ ] (Picture Motion Browser) icon on the desktop, [Picture Motion Browser]
starts up.
Notes
zThe picture may not play back smoothly, depending on specifications of your computer. For details about the
recommended specifications, see “System requirements.”
zYou cannot use Picture Motion Browser on a Macintosh computer.
Creating a disc using the One Touch Disc Burn function <Details>
You can save videos and still images recorded on the hard disk of your camcorder on a disc by
pressing the DISC BURN button on your camcorder (One Touch Disc Burn function).
It is an simple operation to save videos and images to a disc.
Videos recorded in HD (High Definition) format are written on a disc with the same picture quality.
Importing videos and still images recorded on the hard disk of your camcorder to a
computer <Details>
You can import videos and still images recorded on the hard disk of your camcorder with a simple
operation.
Videos recorded in HD (High Definition) format are imported to the computer with their original
picture quality.
Viewing videos and still images imported to a computer <Details>
You can manage videos and still images recorded on the hard disk of your camcorder by date, and
select videos or still images you want to view as thumbnails.
These thumbnails can be enlarged and played in a slide show.
Creating a disc with edited videos and still images
You can edit videos and still images imported to a computer. <Details>
You can create a disc with selected videos and still images. <Details>
Creating a disc with videos included in a Playlist on your camcorder <Details>
You can save videos included in a Playlist on your camcorder on a disc with a simple operation.
Copying a disc Video Disc Copier <Details>
You can copy a disc you created as it is.
Playing a disc in AVCHD format Player for AVCHD <Details>
You can play back the disc you just made in AVCHD format on a DVD drive of your computer.
Exporting HD (High Definition) videos from your computer to your camcorder <Details>
You can export HD (High Definition) videos that have been imported to a computer from your
camcorder, back to your camcorder.
Read this first
Previous Top

Preparation flow

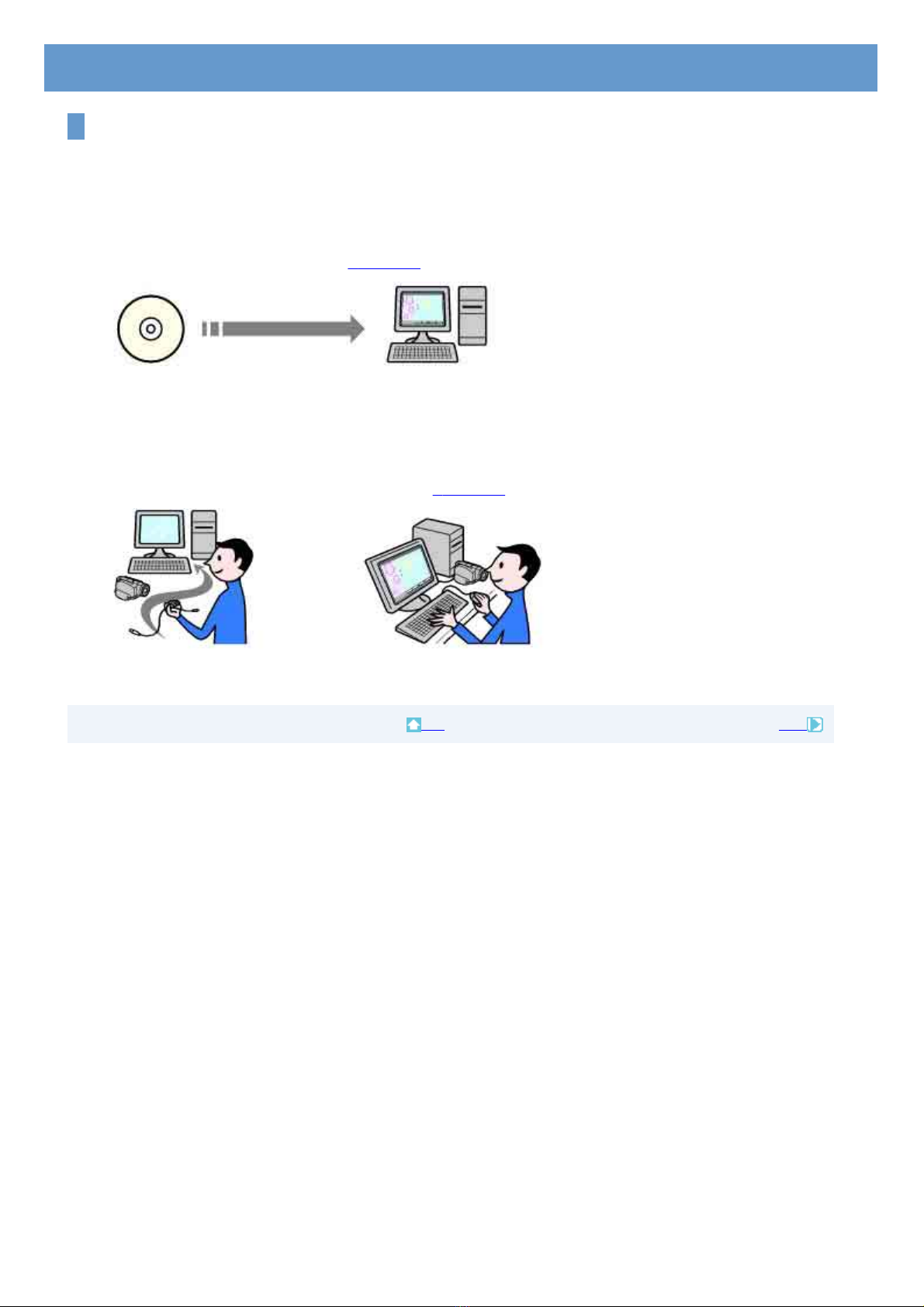

This gives you an overview of the preparation necessary for the first time you use your camcorder with
a Windows computer.
1If you have not installed the supplied software, install it on your computer.
See “Step 1: Installing software.” <Details>
If you already installed the software according to the Operating Guide supplied with your camcorder,
you do not need to install the software again.
2Make your computer recognize your camcorder by making a first USB connection.
See “Step 2: Connecting with a USB cable.” <Details>
From hereon when you actually use your camcorder with your computer.
Chapter 1: Setting up for the first time
Top Next

Step 1: Installing software
You need to install the software to your Windows computer to enjoy editing your recorded videos
and still images. The installation is required only for the first time.
1Confirm that your camcorder is not connected to the computer.
2Turn on the computer.
Log on as Administrators for installation.
Close all applications running on the computer before installing the software.

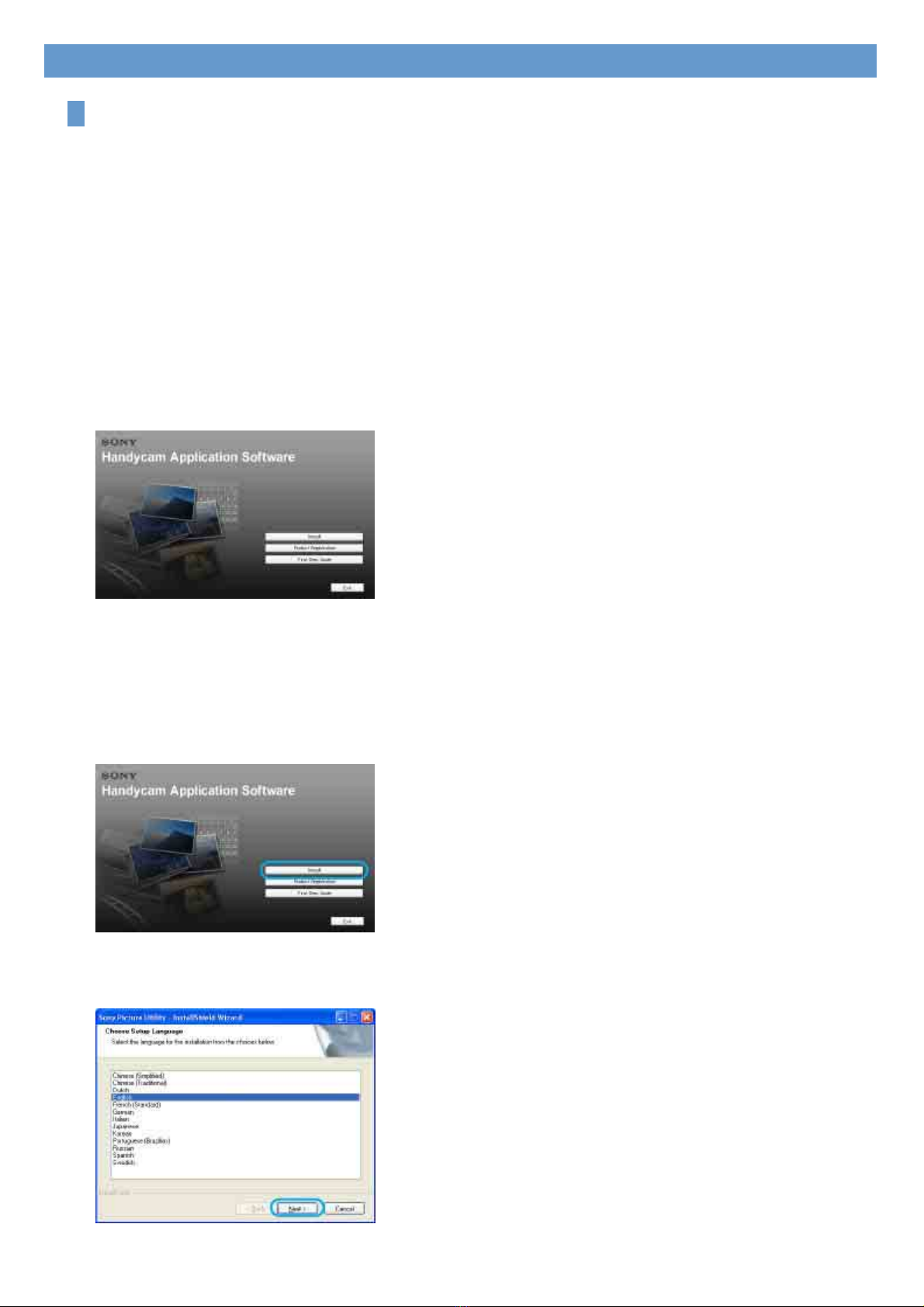

3Place the CD-ROM in the disc drive of your computer.
The installation screen appears.
If the screen does not appear
1Click [Start], then click [My Computer]. (For Windows 2000, double-click [My Computer]. )
2Double-click [SONYPICTUTIL (E:)] (disc drive)*.
* Drive names (such as (E:)) may vary depending on the computer.
4Click [Install].
5Select the language for the application to be installed, then click [Next].
Chapter 1: Setting up for the first time

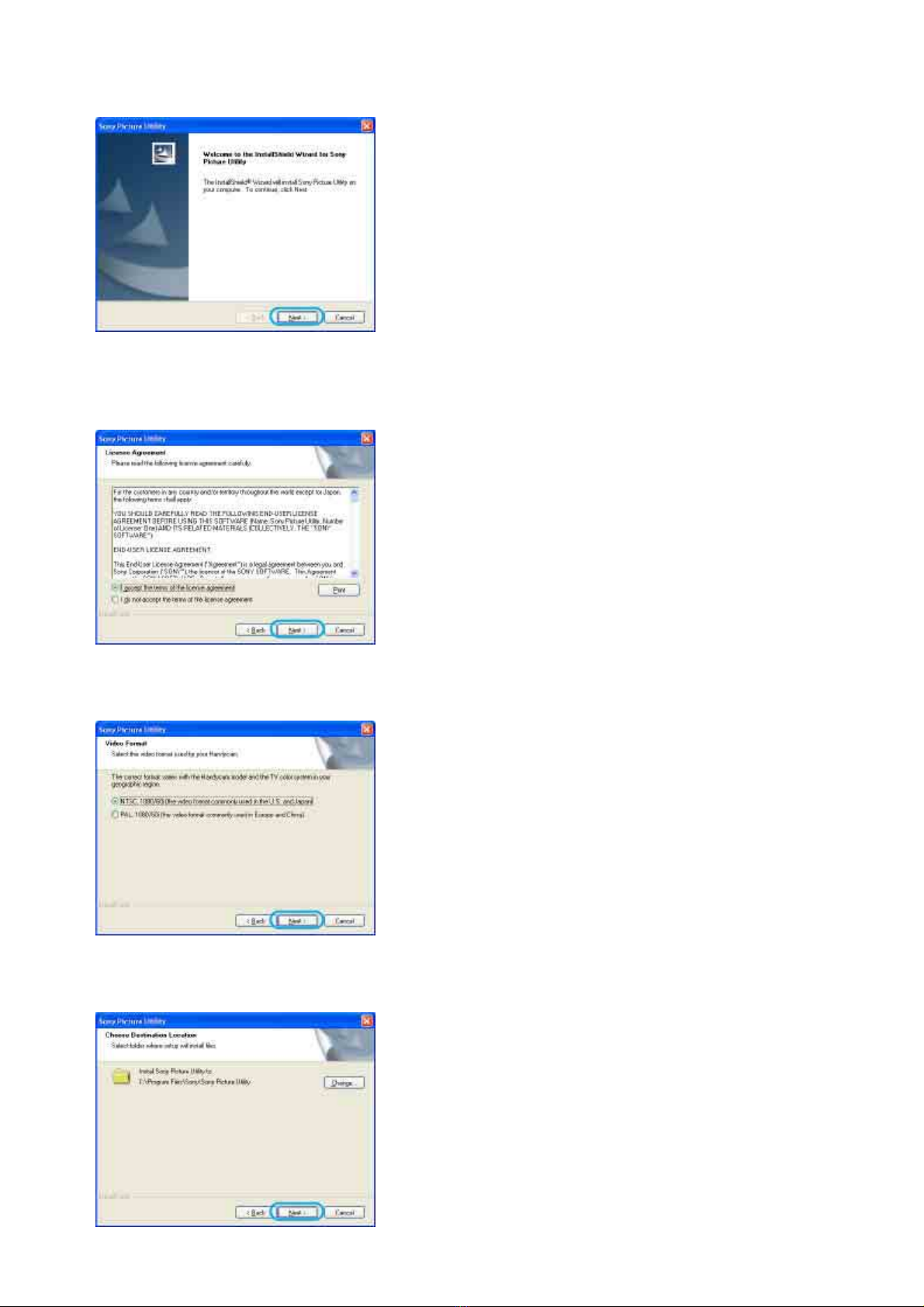

6Click [Next].
7Read [License Agreement], select [I accept the terms of the license agreement] when
you agree, then click [Next].
8Select your camcorder video system, then click [Next].
9Select where to save the software, then click [Next].

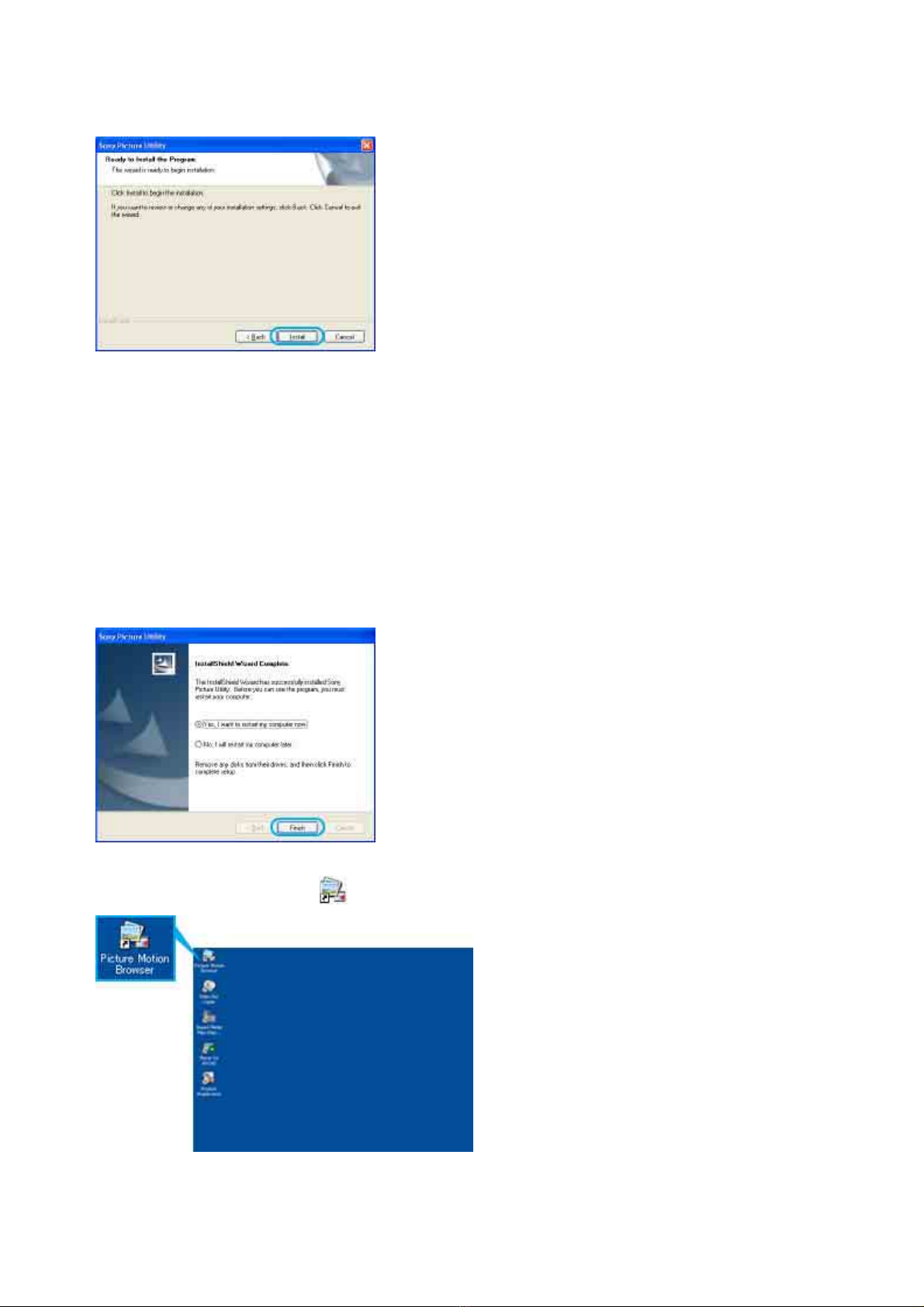

10 Click [Install] on the [Ready to Install the Program] screen.
The installation of Picture Motion Browser starts.
11 The following installation screens may be displayed, depending on your operating
environment. In this case, follow the instructions on the screen to install the
software.
zSonic UDF Reader --- Software required to recognize AVCHD format discs
zWindows Media Format 9 Series Runtime (Windows 2000 only) --- Software required to create
DVD video discs
zMicrosoft .NET Framework 1.1 --- Software required to create AVCHD format discs
zMicrosoft DirectX 9.0c --- Software required for handling video
12 Make sure [Yes, I want to restart my computer now.] is selected, then click [Finish].
The computer restarts automatically.
The short-cut icons, such as [ ] (Picture Motion Browser), appear on the desktop.
13 Remove the CD-ROM from the disc drive of your computer.
zFor the information about Picture Motion Browser, visit the following URL:

http://www.sony.net/support-disoft/
Previous Top Next

Step 2: Connecting with a USB cable
The following section describes how to connect your camcorder to a computer using a USB cable and
make the computer recognize your camcorder.

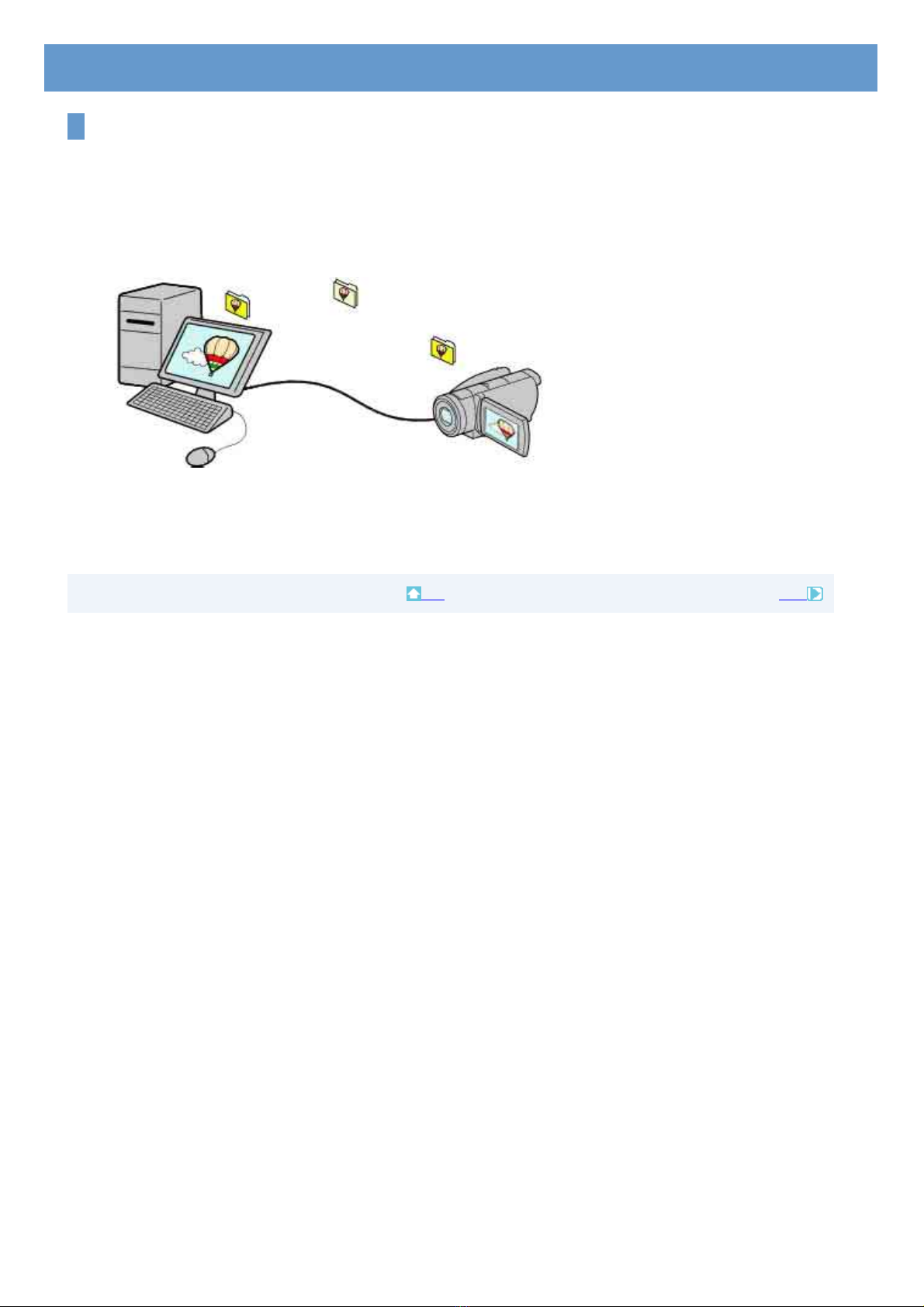

Connection image (USB cable and USB jack)
Before performing the following procedure, make sure you have installed Picture Motion Browser on
your computer. <Details>
Note that if you do not turn on the power and make the connections in the order described in the
following steps, your computer may not recognize your camcorder.
Note
zWhen connecting your camcorder to a computer, make sure you insert the connector in the correct direction. Do not insert
the connector forcibly as it may damage the cable or your camcorder.
Tip
zYour camcorder is compatible with Hi-Speed USB (USB 2.0). You can transfer data at a faster rate using a computer
compatible with Hi-Speed USB (USB 2.0). When you connect a USB interface not compatible with Hi-Speed USB (USB
2.0), the data transfer ratio will be that of USB 1.1 (USB Full-Speed).
1Turn on the computer.
If any software starts on the computer automatically, close it.
2Connect your camcorder to a power source, and turn on your camcorder.
Use the AC Adaptor as the power source.
For operating the POWER switch, refer to the Operating Guide supplied with your camcorder.
3To use still images saved in a “Memory Stick Duo”, insert the “Memory Stick Duo”
into your camcorder.
4Connect the USB cable to the USB jack on the camcorder firmly.
For the location of the USB jack, refer to the Operating Guide supplied with your camcorder.
5Connect the other end of the USB cable to the USB port on your computer.
The [USB SELECT] screen is displayed on the LCD screen of your camcorder.
Tip
zWhen the screen is not displayed, select the item from the menu. For selecting the menu, refer to the operating
instructions supplied with your camcorder.
6To use videos and still images recorded on the hard disk of your camcorder, select [
COMPUTER
]
.
Chapter 1: Setting up for the first time

To use still images in a “Memory Stick Duo”, select [ COMPUTER].
When you select [ COMPUTER]
The first time you connect your camcorder to a computer and select [ COMPUTER], it takes some
time until the computer recognizes your camcorder. When the computer recognizes your camcorder,
the connection is completed and [HDD Handycam Utility] window is displayed automatically.
Note
zDepending on the status of the computer, a window that urges you to restart the computer may be displayed. In this case,
follow the instructions on the screen to restart the computer.
Recommended USB cable connection
Connect your camcorder as shown in the following illustration.
zConnect the USB cable from your camcorder to the USB port on the computer and make sure no
other USB devices are connected.
zIf your computer has a USB keyboard and a USB mouse as standard equipment, leave them
connected and connect the camcorder to an available USB jack with the USB cable.
Notes
zOperation is not guaranteed if you connect multiple USB devices to the computer.
zOperation is not guaranteed if you connect the USB cable to the USB port on a keyboard or USB hub.
zMake sure to connect the cable to the USB port on the computer.
zOperation is not guaranteed on all the system requirement.
To disconnect the USB cable
1Click the [Unplug or eject hardware] icon on the task tray.
2Click [Safely remove USB Mass Storage Device].
3Click [OK].
4Touch [END] on the [ COMPUTER] or [ COMPUTER] screen on the LCD screen of your camcorder.
5Touch [YES] on the LCD screen of your camcorder.
6Disconnect the USB cable from the computer.

Notes
zDo not disconnect the USB cable while the access lamp is lit.
zBefore turning off your camcorder, disconnect the USB cable following the proper procedures described above.
zDisconnect the USB cable using the proper procedures described above. Otherwise, files stored on the hard disk of your
camcorder or in a “Memory Stick Duo” may not be updated correctly. Also, disconnecting the USB cable improperly may
cause a malfunction of the hard disk of your camcorder or of the “Memory Stick Duo.”
To switch the media (hard disk/“Memory Stick Duo”)
Touch the button of medium you want to switch to ([ COMPUTER] or [ COMPUTER]) in step
5 of “To disconnect the USB cable.” Your camcorder switch to the selected media.
Previous Top

Types of discs you can use
The kinds of disc that you can use with the supplied software are as listed below. The discs you can
use differ, depending on the computer you use. For details on the discs compatible with your computer,
refer to the operations manual supplied with your computer. You may not be able to play back some
types of discs, depending on the device you have. Refer to the specifications of your playback
equipment for additional compatibility information.
Discs compatible with the supplied software
zWhen saving data on a DVD+RW, the data is recorded in VIDEO format. You cannot add more data
on the DVD+RW.
zUse a disc produced by a reliable manufacturer. You may not save images correctly when using a
low quality disc.
Chapter 2: Creating a disc with One Touch
Disc types Characteristics
DVD-R
zUnrewritable
zFairly inexpensive. Mainly used for saving data
zCompatible with most DVD players
DVD+R zUnrewritable
DVD+R DL zUsing the dual layer DVD+R system containing more recordable capacity
zUnrewritable
DVD-RW zRewritable and reusable
DVD+RW zRewritable and reusable
Top Next

Saving videos and still images on a disc with One Touch (One Touch Disc
Burn)
You can save videos and still images recorded on the hard disk of your camcorder on a disc in your
computer by pressing the DISC BURN button on your camcorder (One Touch Disc Burn function)
without any complex operations on your computer. Videos and still images that have not yet been
saved on a disc with One Touch Disc Burn can automatically be saved on a disc with their recorded
picture quality. Videos in HD (High Definition) picture quality and videos in SD (Standard Definition)
picture quality will saved on different discs separately .
Tips
zYou can select the data type for videos or still images to be saved on a disc with the One Touch Disc Burn function using
the menu on your camcorder. Select the option on the [DISC BURN SET] menu. The options are [ALL], [ and ] and
[ and ]. The default setting is [ALL], allowing you to save videos and still images of all data type on a disc. This
setting is also effective when activating the One Touch Disc Burn function from the HDD Handycam Utility.
zVideo and image data previously saved on a disc in this operation cannot be saved again with the same operation. To
save data on a disc again after it has been saved previously, import the videos and images to a computer. <Details>
Then, save the data on a disc, following the instructions in “Chapter 5: Creating and copying a disc.” <Details>
zThe history of each saved video or image is recorded according to the user account. If you use a different user account,
the video or image that has already been saved to a disc is written to the disc again.
zIf you cannot save all your video and still image data on a disc, the data is automatically saved on more than one disc.
The required number of discs is displayed in step 6 on the screen.
zStill images are recorded first on a disc. When you save images on several discs, the still images are recorded on the first
disc.
zThe sound quality remains as it is when you save a movie recorded in 5.1ch surround sound on a disc.
Notes
zPlayer for AVCHD or equipment that is compatible with the AVCHD format is needed to play back AVCHD format discs
you have created.
zAVCHD format discs cannot be played back with a DVD player or DVD recorder since DVD players and DVD recorders
are not compatible with the AVCHD format.
zDo not insert AVCHD format discs into a DVD player or DVD recorder.
AVCHD format discs may not be ejected properly from a DVD player or a DVD recorder.
zStill images on a disc created with One Touch Disc Burn function cannot be played back on a DVD player. Play them
back on a computer.
1Confirm that your camcorder is not connected to the computer.
2Turn on the computer.
3Place the recordable disc to be saved in the disc drive of your computer.
Tips
z8 cm discs are not supported.
zIt is recommended that you use a new recordable disc.
zIf any software starts on the computer automatically, close it.
4Connect your camcorder to a power source, and turn on your camcorder.
Use the AC Adaptor as the power source.
For operating the POWER switch, refer to the Operating Guide.
Tip
zYou can perform this operation, whichever position of the / is lit.
5Press DISC BURN button of the camcorder.
For operating the DISC BURN button, refer to the Operating Guide.
6Connect the camcorder with a computer using the USB cable. <Details>
The disc recognition window is displayed on the screen of the computer.
Chapter 2: Creating a disc with One Touch

When the disc type is recognized, disc creation begins.
Current status of all disc creation
Current status per disc
Number of discs required
Number of discs being created
When the disc creation is completed, the disc tray opens automatically.
Notes
zDuring disc creation, do not apply vibration to the camcorder. The disc creation may be terminated.
zMake sure no other USB devices are connected to your computer.
Tips
zWhen you insert a burned DVD-RW/DVD+RW in the disc drive in step 3, a message appears, asking if you want to delete
data saved on a DVD.
zWhen you cannot store all the recordable data on a disc, follow the on-screen instructions, then insert a new disc onto the
disc drive.
7Once the completion dialog for disc creation appears, click [Close].
To create another disc, click [Copy].
Tips
zYou can also create a disc by selecting [Disc Burn] on the [USB SELECT] screen of your camcorder. <Details>
zYou can also create a disc by selecting [One Touch Disc Burn] in the [HDD Handycam Utility] window displayed on the
screen of the computer. <Details>
To disconnect the USB cable <Details>
After creating a disc
zAfter creating a disc, check that the disc can be played back properly on a computer with the supplied software if the disc
is HD (High Definition) picture quality, or a DVD player if the disc is SD (Standard Definition) picture quality. <Details>
When you cannot play back the disc properly, import the videos and still images to the computer. <Details>
Then, save the data on a disc, following the instructions in “Chapter 5: Creating and copying a disc.” <Details>
zIf you check that the disc can be played back properly, it is recommended that you delete the videos and still images from
the camcorder using the functions on the camcorder by following the steps in the supplied Operating Guide. In this way,
you can increase the free hard disk space of your camcorder.
zTo copy a created disc, use the supplied disc copy software. <Details>
zYou cannot save the videos and still images on the hard disk of your computer in this operation.
zYou cannot delete the videos and still images on the hard disk of the camcorder in this operation.
zYou cannot edit the videos and still images on the created disc with a computer. When you want to edit the videos and
still images with the computer, import the images onto the computer first. <Details>
zIf the disc creation operation ends unexpectedly, the last correctly saved file is completed. When you create a disc with
One Touch Disc Burn function next time, an image data file that has not yet been saved on the disc will be the first one to
be saved.
zA disc menu is not created for a disc with HD (High Definition) picture quality.
zWhen a disc created with HD (High Definition) picture quality is played back, there may be a pause for a few seconds at
the end of each video, depending on the player.
zVideos and still images that have been imported to a computer using Easy PC Back-up, can be saved on a disc with the
One Touch Disc Burn function.
To select the [Disc Burn] option from the [USB SELECT] screen of your camcorder
1Turn on the computer.
2Place the recordable disc to be saved in the disc drive of your computer.
3Connect your camcorder to a power source, and turn on your camcorder.
Use the AC Adaptor as the power source.
For operating the POWER switch, refer to the Operating Guide.

4Connect the camcorder with a computer using the USB cable. <Details>
The [USB SELECT] screen is displayed on the LCD screen of your camcorder.
5Select [Disc Burn] on the LCD screen of your camcorder.
The disc recognition window is displayed on the screen of the computer. When the disc type is recognized, the disc
creation begins.
To select [One Touch Disc Burn] option from the HDD Handycam Utility of a computer
1Turn on the computer.
2Place the recordable disc to be saved in the disc drive of your computer.
3Connect your camcorder to a power source, and turn on your camcorder.
Use the AC Adaptor as the power source.
For operating the POWER switch, refer to the Operating Guide.
4Connect the camcorder with a computer using the USB cable. <Details>
The [USB SELECT] screen is displayed on the LCD screen of your camcorder.
5Select [ COMPUTER] on the LCD screen of your camcorder.
The [HDD Handycam Utility] window is displayed on the screen of the computer.
6Click [One Touch Disc Burn] in the [HDD Handycam Utility] window.
7Click [Start].
The disc recognition window is displayed on the screen of the computer. When the disc type is recognized, the disc
creation begins.

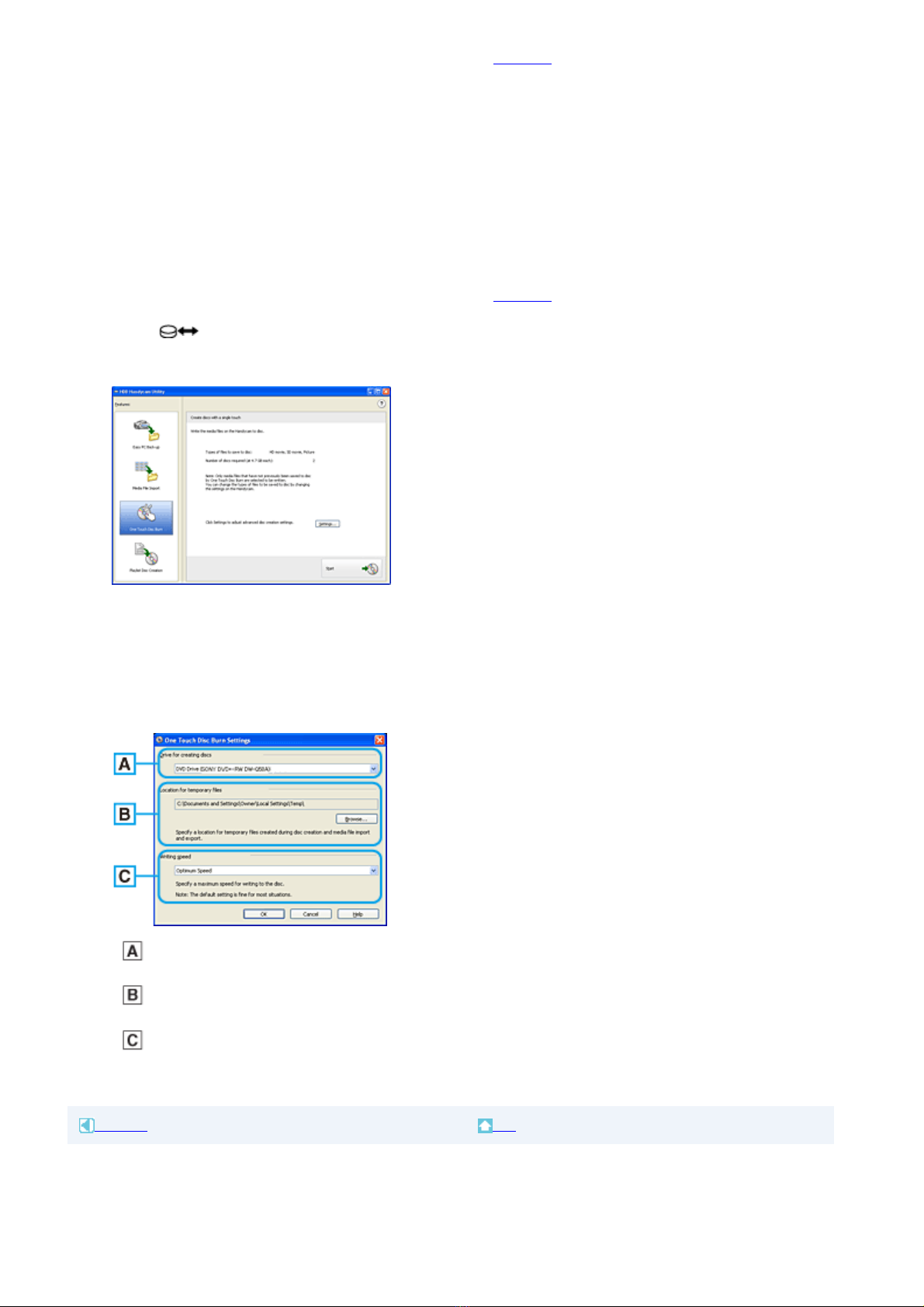

To customize the settings of the DVD drive used for creating a disc
1Click [Settings...] in step 6 in “To select [One Touch Disc Burn] option from the HDD Handycam Utility of a computer.”
Drive settings
Select the drive you want to use to create a disc.
Location for temporary files
Specify a folder to be used to save temporary files in the window displayed when [Browse] is clicked.
Writing speed
Select [Optimum Speed] for normal usage. If disc creation failure persists, select lower speed.
2Click [OK] when the setting is completed.
Previous Top

Importing entire videos and still images on a computer (Easy PC Back-up)
You can import videos and still images recorded on the hard disk of your camcorder to a computer with
a simple operation using the Easy PC Back-up function of the HDD Handycam Utility. Videos and still
images recorded on the hard disk of your camcorder that have not yet been imported to a computer can
automatically be imported to your computer.
1Turn on the computer.
2Connect your camcorder to a power source, and turn on your camcorder.
Use the AC Adaptor as the power source.
For operating the POWER switch, refer to the Operating Guide.
3Connect the camcorder with a computer using the USB cable. <Details>
The [USB SELECT] screen is displayed on the LCD screen of your camcorder.
4Select [ COMPUTER] on the LCD screen of your camcorder.
The [HDD Handycam Utility] window is displayed on the screen of the computer.
5Click [Easy PC Back-up] in the [HDD Handycam Utility] window.
In default setting, [Easy PC Back-up] is selected.
6Put a checkmark in the checkbox to select a video (movie) based on its quality level,
or a still-image picture and then select the folder to which the files are to be imported.
Importing videos or still images
Select the type of video, based on its quality level, or a still-image picture, from HD movie, SD movie and Picture. The
default setting allows you to import all videos and still images regardless of their format.
The destination folder
To change the location where you want to save the imported videos and still images, click [Settings]. The default
Chapter 3: Importing/viewing videos and still images on a computer

location is set as the [My Pictures] folder.
7Click [Import].
Videos and images that have not been imported to a computer are automatically imported to your
computer.
When the import of the data is completed, [Picture Motion Browser] starts up automatically and the
imported videos and images are displayed in the window.
Tip
zWhile importing videos and images, do not apply vibration on the camcorder. The importing may be terminated.
Top Next

Importing selected videos and still images to a computer (Media File
Import)
You can select the desired videos and still images recorded on the hard disk of your camcorder and
import them to a computer.
1Turn on the computer.
2Connect your camcorder to a power source, and turn on your camcorder.
Use the AC Adaptor as the power source.
For operating the POWER switch, refer to the Operating Guide.
3Connect the camcorder with a computer using the USB cable. <Details>
The [USB SELECT] screen is displayed on the LCD screen of your camcorder.
4Select [ COMPUTER] on the LCD screen of your camcorder.
The [HDD Handycam Utility] window is displayed on the screen of the computer.
5Click [Media File Import] in the [HDD Handycam Utility] window.

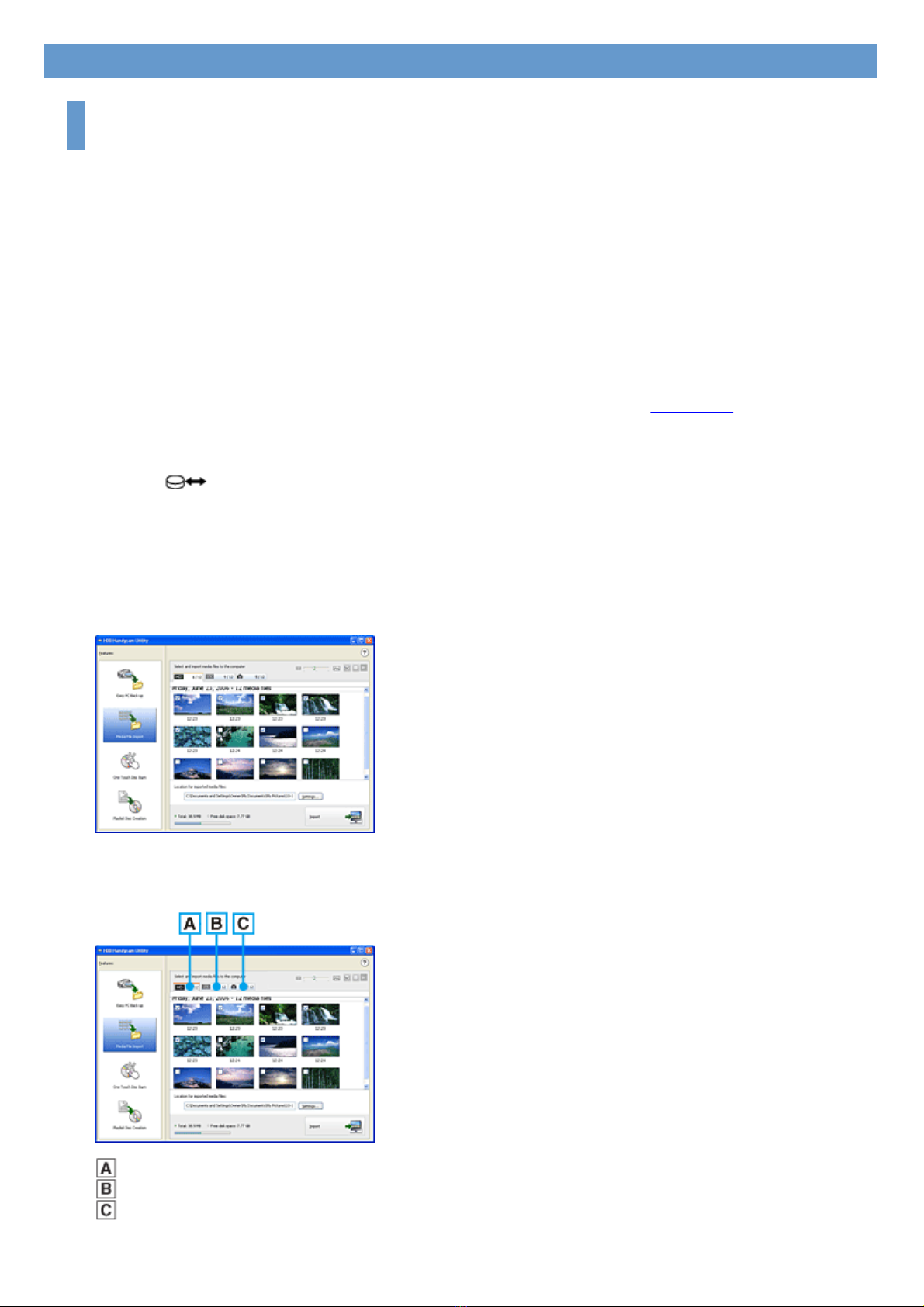

A list of videos or still images recorded on the hard disk of your camcorder is displayed as thumbnail
images on each format tab.
6Click the tab to select the type of video or still-image picture.
HD (High Definition) picture quality videos (AVCHD 1080i format videos)
SD (Standard Definition) picture quality videos
Still images
Chapter 3: Importing/viewing videos and still images on a computer

7Select the videos and still images you want to import.
Click the check box at the top left on the thumbnail images of videos and still images you want to
import. If you want to import all the scenes on selected tab, click [Select All].
Tips
zBy switching the tabs, you can select both videos and still images at the same time.
zTo change the destination, click [Settings], then select the desired folder. The default location for the destination folder is
set as [My Pictures]. You can change the destination where imported files will be saved by selecting a folder from among
those registered as [Viewed folder] in the window that is displayed when you click [Change].
8Click [Import].
The import of selected videos and still images starts.
Previous Top Next
