Sony STR-DA1500ES User manual

SONY:
FM Stereo
FM/AM Receiver
Operating Instructions
STR-DA 1500ES
©2009 Sony Corporation
4-129-743-11(1)

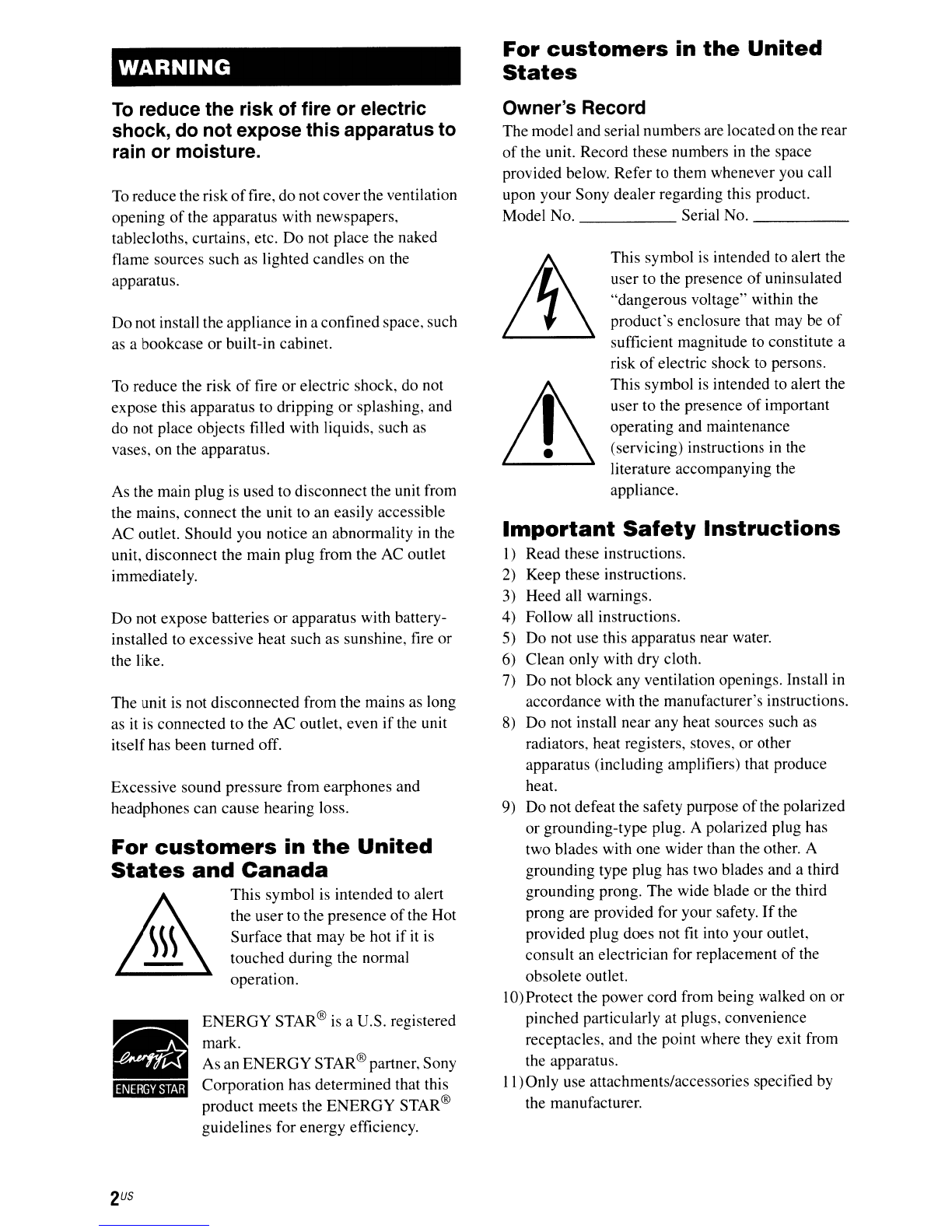

WARNING
For customers in the United
States
Do not install the appliance in aconfined space, such
as abookcase
or built-in cabinet.
Excessive sound pressure from earphones and
headphones can cause hearing loss.
Owner's Record
The model and serial numbers are locatedon the rear
of the unit. Record these numbers in the space
provided below. Refer to them whenever you call
upon your Sony dealer regarding this product.
Model No. Serial No. _
This symbol is intended to alert the
user to the presence
of uninsulated
"dangerous voltage" within the
product's enclosure that may be
of
sufficient magnitude to constitute a
risk
of electric shock to persons.
This symbol
is intended to alert the
user to the presence
of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
Important Safety Instructions
I) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5)
Do not use this apparatus near water.
6) Clean only with dry cloth.
7)
Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8)
Do not install near any heat sources such as
radiators, heat registers, stoves,
or other
apparatus (including amplifiers) that produce
heat.
9)
Do not defeat the safety purpose of the polarized
or grounding-type plug. Apolarized plug has
two blades with
one wider than the other. A
grounding type plug has two blades and athird
grounding prong. The wide blade
or the third
prong are provided for your safety.
If the
provided plug does not fit into your outlet,
consult an electrician for replacement
of the
obsolete outlet.
10)Protect the power cord from being walked on
or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
II )Only use attachments/accessories specified by
the manufacturer.
ENERGY STAR® is aU.S. registered
mark.
As an
ENERGY STAR® partner, Sony
Corporation has determined that this
product meets the
ENERGY STAR®
guidelines for energy efficiency.
Do not expose batteries or apparatus with battery-
installed to excessive heat such as sunshine, fire
or
the like.
As the main plug is used to disconnect the unit from
the mains, connect the unit to an easily accessible
AC outlet. Should you notice an abnormality in the
unit, disconnect the main plug from the AC outlet
immediately.
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To reduce the risk of fire or electric shock, do not
expose this apparatus to dripping
or splashing, and
do not place objects filled with liquids, such as
vases, on the apparatus.
To reduce the risk
of fire, do not cover the ventilation
opening
of the apparatus with newspapers,
tablecloths, curtains, etc.
Do not place the naked
flame sources such as lighted candles on the
apparatus.
The unit is not disconnected from the mains as long
as it
is connected to the AC outlet, even if the unit
itself has been turned off.
For customers in the United
States and Canada
&
This symbol is intended to alert
the user to the presence
of the Hot
\ \ \ Surface that may be hot
if it is
_touched during the normal
operation.
•
li§li;14
it
4;'

12)Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When acart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13)Unplug this apparatus during lightning storms or
when unused for long periods of time.
14 )Referall servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
The following FCC statement
applies only to the version of
this model manufactured for
sale in the U.S.A. Other
versions may not comply with
FCC technical regulations.
NOTE:
This equipment has been tested and found to comply
with the limits for aClass Bdigital device, pursuant
to Part IS of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in aresidential installation.
Thisequipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in aparticular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment
and receiver.
-Connect the equipment into an outlet on acircuit
different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
You are cautioned that any changes or modifications
not expressly approved in this manual could void
your authority to operate this equipment.
To reduce the risk of electric shock, the speakercord
should be connected to the apparatus and the
speakers in accordance with the following
instructions.
1) Disconnect the AC powercord from the MAINS.
2) Strip 10 to IS mm of the wire insulation of the
speaker cord.
3) Connect the speaker cord to the apparatus and
the speakers carefully so as not to touch the core
of speaker cord by hand. Also disconnect the AC
power cord from the MAINS before
disconnecting the speaker cord from the
apparatus and the speakers.

About This Manual
•The instructions in this manual are for model
STR-DA1500ES. Check your model number by
looking at the lower right
comer of the front panel.
In this manual, models
of area code UC is used for
illustration purposes unless stated otherwise. Any
difference in operation
is clearly indicated in the
text, for example, "Models
of area code DC only".
•
The instructions in this manual describe the
controls on the supplied remote. You can also use
the controls on the receiver if they have the same
or similar names as those on the remote.
About area codes
The area code of the receiver you purchased is
shown on the lower right portion of the rear panel
(see the illustration below).
C:=::I"r'I""" 4-XXX-XXX-XX AA
====,~----r '-r'
Area code
Any differences in operation, according to the area
code, are clearly indicated
in the text, for example,
"Models
of area code AA only".
On Copyrights,
SIRIUS, XM and all related marks and logos are
trademarks
of Sirius XM Radio Inc. and its
subsidiaries. All rights reserved.

Table of Contents
Description and location of parts 6
Getting Started
1: Installing the speakers 13
2: Connecting the speakers 13
3a: Connecting the audio components 14
3b: Connecting the video components 15
4: Connecting the antennas (aerials) 19
5: Preparing the receiver and the remote 19
6: Selecting the speaker system 21
Playback
Enjoying sound/images from the component
connected to the receiver. 22
Amplifier Operations
Navigating through menus 24
Adjusting the level (LEVEL menu) 26
Adjusting the equalizer (EQ menu) 26
Settings for the tuner (TUNER menu)
27
Settings for the system (SYSTEM menu) 28
Tuner Operations
Listening to FM/AM radio 29
Presetting radio stations
31
Listening to Satellite Radio 33
Connecting asatellite radio tuner.. 34
Preparing to listen to asatellite radio 34
Selecting achannel
of the satellite radio 37
Presetting satellite radio channels 38
Restricting access to specific channels
(Parental Lock) (SIRIUS only) 40
Other Operations
Enjoying the DIGITAL MEDIA PORT
(DMPORT) 44
Changing the display 46
Using the Sleep Timer. 47
Recording using the receiver.. 47
Using multi-zone features 48
Using the Remote
Changing button assignments 51
Additional Information
Precautions 52
Troubleshooting 53
Specifications 56
Index 58
5
US

Description and location of parts
Front panel
About the indicators on the display
~
8
SPA
SPB
'·····1
...-----1. .
Ej
........
21

Name Function Name Function
[I]
1/(9
Press to turn the receiver on
MJ
FM MODE Press to select the FM
(on/standby) or off (page 20, 30). monaural or stereo reception
~
SPEAKERS Switch to OFF, A, B, A+B of
(page 29).
(OFF/AlB/ the front speakers (page 21).
[§]
FM/AM Press to select FM or AM
A+B) station.
lliJ
TONE MODE Adjust the bass and treble
l111
PHONES jack Connects to headphones
TONE +/-
level of the speakers. Press (page 53).
TONE MODE repeatedly to
lIm
SP AlSP BLights up according to the
select bass ortreble, then turn
TONE
+/- to adjust the level speaker system used (page
(page 25). 21). However, these
indicators do not light up if
@]
TUNING Press to operate atuner (FM! the speaker output is turned
MODE AM) and satellite radio (XM/ offor
if headphones are
TUNING +/-
SIRIUS) (page 29, 36, 37). connected.
[j]] SLEEP Lights
up when the sleep
[§]
Remote Receives signalsfrom remote timer is activated.
sensor commander.
~
ZONE 2Lights up when operation in
[ID
Display The current status of the
window selected component or alist zone 2
is being enabled.
of selectable items appears
[g1J
Tuning Lights up when the receiver
here (page 6). indicators tunes in radio stations, or
[I]
DISPLAY Press repeatedly to select satellite radio stations.
information displayed on the CAT Lights up when the category
display (page 46). mode
is set to "ONE CAT"
lID
MUTING Press to turn off the sound during the satellite radio
temporarily. operation.
Press MUTING again to SAT Lights up when the satellite
restore the sound (page 23). radio is connected and
"XM
RADIO" or "SIRIUS" is
[ID
MASTER
Tum to adjust the volume selected.
VOLUME level of all speakers at the MEMORY Lights up when amemory
same time (page 22). function, such as Preset
nm
INPUT
Tum to select the input Memory (page 31), etc., is
SELECTOR source to play back (page 22, activated.
23,46,47,48).
MONO Monaural broadcast
[1]
DIMMER Press repeatedly to adjust the
ST
Stereo broadcast
brightness
of the display.
r1
,Apreset station number
~
LJ ,appears when the preset radio
SLEEP Press to activate the sleep station
is selected.
timer function and the Note
duration which the receiver The preset station number
turns offautomatically (page will change accordingly to
47). the preset station you select.
[j]] TONE ON/OFF Press to turn the bass and For details on presetting
treble on or off. radio station, see page 31.
!Hl
MEMORY/ Press to store astation or
ENTER enter the selection when
selecting the settings (page
20,31,39).

Rearp~lIel
0J Control jacks for Sony equipment
and other external components
IR REMOTE Connect an IR
IN/OUT jacks repeater (page 48).
[II ANTENNA section
FM
ANTENNA
jack
AM
ANTENNA
jack
XMjack
Connects to the
supplied
FM wire
antenna (aerial)
(page 19).
Connects to the
supplied
AM loop
antenna (aerial)
(page 19).
Connectsto the
XM
Mini- Tuner and
Home Dock (not
supplied) (page 34).
@
@
TRIGGER
OUT jack
Connects to an
interlock on/off
of
the powersupply of
other 12V
TRIGGER
compliant
components,
or the
amplifier/receiver
of zone 2(page 28).
~ SPEAKERS section
lID AUDIO INPUT/OUTPUT section
Connects to the
speakers (page 13).
Connects to atape
deck
or MD deck,
etc. (page 14).
AUDIO IN/
OUT jacks
t@white(L)
t@Red(R)
Connects to a
SiriusConnect
Home tuner (not
supplied)
(page 34).
Connects to a
DIGITAL MEDIA
PORT adapter
(page 45).
SIRIUS
jack
DMPORT
jack
lliJ RS232C port
I1J DMPORT
Used for
maintenance and
service.
BUS

[l] VIDEO/AUDIO INPUT/OUTPUT
section
*You can watch the selected input image when you
connect the MONITOR OUT
jack to aTV (page
16-18).
8'elllotecommander
...
RM-AAU056
You can use the supplied RM-AAU056
Remote Commander to operate the receiver
and to control the Sony audio/video
components that the remote
is assigned to
operate (page 51).
Connects to aVCR,
DVD player, etc.
(page 16-18).
Connects to the
component in zone
2(page 49).
AUDIO IN/
OUT jacks
VIDEO IN/
OUT* jacks
AUDIO OUT
jacks
VIDEO OUT
jack
®White(L)
®Red(R)
®veliOW
continued----
gus

@] TONE ON/OFF Press to turn the bass and
treble on or off.
~ Input buttons Press one of the buttons to
select the component you
want to use. When you press
any of the input buttons, the
receiver turns on. The buttons
are factory assigned to control
Sony components.
You can change the button
assignments following the
steps in "Changing button
assignments" on page 5I.
Name
ITJ TV 1/6
(on/standby)
AVI/6
(on/standby)
[gJ 1/6
(on/standby)
[[] DIMMER
10
US
Function
Press TV 1/6 and TV <IN]) at
the same time to turn the TV
on or off.
Press to turn on or off the
Sony audio/videocomponents
that the remote is assigned to
operate (page 51).
If you press 1/6 ([g]) at the
same time, it will turn off the
receiver and other Sony
components (SYSTEM
STANDBY).
Note
The function of the AV 1/6
switch changes automatically
each time,..1,ou press the input
buttons (@J).
Press to turn the receiver on or
off.
If zone 2is selected, only the
main receiver is turned on or
off with this button. To turn
off all components including
an amplifier in zone 2, press
1/6 and AV 1/6 ([1]) at the
same time (SYSTEM
STANDBY).
Saving the power in standby
mode.
When "RS232C" (page 28) is
set to "OFF'.
Press repeatedly to adjust the
brightness of the display.
Name
[ID BD/DVD
MENU
rn DISC SKIP
[ID D.TUNING
[ID ENTER
MEMORY
[IQ] AMP MENU
[D] TOOLS/
OPTIONS
[g] MUTING
MASTER
VOL +a)/_
l.HJ MENU/HOME
Function
Press to display the menu of
the DVD or Blu-ray disc on
the TV screen. Then. use +. +,
., •and e <lI§)) to perform
menu operations.
Press to skip adisc when
using amulti-disc changer.
Press to enter direct tuning
mode.
Press to enter the value after
selecting achannel, disc or
track using the numeric
buttons of the TV, VCR, CD
player, DVD player, DVD
recorder or satellite tuner.
Press to store astation during
tuner operation.
Press to display the menu of
the receiver. Then, use +, +,
., •and e([j]]) to perform
menu operations.
Press to display and select the
options of the DVD player or
Blu-ray disc player.
Press TOOLS/OPTIONS and
TV <IN]) at the same time to
display the options applicable
to the Sony TV.
Press to turn off the sound
temporari Iy.
Press MUTING again to
restore the sound.
Press MUTING and TV (I1§])
at the same time to activate
the TV's muting function.
Press TV VOL +/- and TV
<IN]) at the same time to adjust
the volume level of the TV.
Press to adjust the volume
level of all speakers at the
same time.
Press to display the menu of
the VCR, DVD player,
satellite tuner or BIu-ray disc
player on the TV screen.
Press MENU/HOME and TV
(I1§]) at the same time to
display the TV's menu.
Then, use +, +,.,.and e
([j])) to perform menu
operations.

Name Function Name
Ml ..... /~b)
Press to skip atrack of the CD [1§] TV
player, DVD player, DVD
recorder, MD deck, tape deck
or Blu-ray disc player.
[j]
RETURNI
REPLAY ...
·I Press to replay the previous EXIT
0-'
ADVANCE· .. scene or fast forward the
current scene of the VCR,
DVD player or Blu-ray disc
player.
~/~b)
Press to
-search tracks in the forward/
reverse direction of the
DVD player.
-start fast forward/rewind of
the VCR, CD player, DVD
recorder, MD deck, tape
deck or Blu-ray disc player.
[>8)b)
Press to start playback of the
[j]]
8
VCR, CD player, DVD
+/+/+/.
player, DVD recorder, MD
deck or Blu-ray disc player.
lib)
Press to pause playback or
recording of the VCR, CD
player, DVD player, DVD
recorder, MD deck, tape deck
or Blu-ray disc player. (Also
starts recording with
components in recording
standby.)
.b)
Press to stop playback of the
VCR, CD player, DVD
~ DISPLAY
player, DVD recorder, MD
deck, tape deck or Blu-ray
disc player.
TV CH +1- Press TV CH +/- and TV ([1§])
at the same time to select
preset TV channels.
CATEGORY Press to select acategory for
+1- satellite tuner (page 37).
PRESET +1- Press to select
-preset stations.
-preset channels of the VCR
or satellite tuner.
TUNING +1- Press to scan astation.
CATEGORY Press to select the category
MODE mode for satellite tuner (page
37).
FM MODE Press to select the FM
monaural or stereo reception.
Function
Press TV and the button with
orange printing at the same
time to enable TV operation.
Press to
-return to the previous menu.
-exit the menu while the
menu or on-screen guide of
the DVD recorder, DVD
player, satellite tuner or Blu-
ray disc player is displayed
on the TV screen.
Press RETURNIEXIT 0-'
and TV ([1§]) at the same time
to return to the previous menu
or exit the TV's menu while
the menu is displayed on the
TV screen.
After pressing BDIDVD
MENU ([ID), AMP MENU
([j]j), or MENU/HOME (fHl),
press +, +, + or •to select the
settings. Then, press eto
enter the selection if you have
pressed BDIDVD MENU or
MENU/HOME previously.
Press ealso to enter the
selection of the receiver,
VCR, satellite tuner, CD
player, DVD player, DVD
recorder or Blu-ray disc
player.
Press to select information
displayed on the TV screen of
the VCR, satellite tuner, CD
player, DVD player, DVD
recorder, MD deck or Blu-ray
disc player.
Press DISPLAY and TV ([1§])
at the same time to display
TV's information on the TV
screen.
continued----
11
US

Name
~ -1--
>10/·
CLEAR
12] Numeric
buttons
(number Sa)
~ SLEEP
~ TV INPUT
~ ZONE I/C)
Function
Press to select the channel
entry mode, either one or two
digit of the VCR, satellite
tuner, etc.
Press -1-- and TV ([1§]) at the
same time to select the
channel entry mode, either
one or two digits of the TV.
Press to select
-track numbers over 10 of the
VCR, satellite tuner, MD
deck or CD player.
-channel numbers of the
Digital CATV terminal.
Press to clear amistake when
you press the incolTect
numeric button.
Press to
-preset/tune to preset
stations.
-select track numbers of the
CD player, DVD player,
DVD recorder, MD deck or
Blu-ray disc player. Press
0110 to select track number
10.
-select channel numbers of
the VCR or satellite tuner.
Press the numeric buttons and
TV ([1§]) at the same time to
select the TV channels.
Press to activate the Sleep
Timer function and the
duration which the receiver
turns off automatically.
Press TV INPUT and TV c[1§])
at the same time to select the
input signal (TV input or
video input).
Press ZONE I/C) to turn the
zone 2on or off.
a)The number 5, MASTER VOL +. TV VOL +, and
C>- buttons have tactile dots. Use the tactile dots
as references when operating the receiver.
b)This button is also available for DIGITAL MEDIA
PORT adapter operation. For details on the
function of the button, refer to the operating
instructions supplied with the DIGITAL MEDIA
PORT adapter.
Notes
•Some functions explained in this section may not
work depending on the model.
•The above explanation is intended to serve as an
example only. Therefore, depending on the
component, the above operation may not be
possible or may operate differently than described.
ZONE INPUT Press ZONE INPUT
repeatedly to select the input
source for zone 2.
12
US

Getting Started
1: Installing the speakers
This receiver allows you to use a2.0 channel
system.
2: Connecting the
speakers
Before connecting the cords, be sure to
disconnect the AC power cord (mains lead).
Right speaker Left speaker
•
Example of the speaker system
configuration
Left speaker Right speaker
o Speaker cords (not supplied)
* If you have an additional front speaker system,
connect them to the SPEAKERS
IE) terminals.
You can select the front speakers you want to use
with SPEAKERS (OFF/AIB/A+B) on the front
panel (page 21).
13
US

...
Super Audio
010 CD player,
LCD player
MD deck,
Tape deck
COlnecti Super Au
player, Cayer, MD
Tape deck or Turntable
3a: Connecting the audio
components
The following illustration shows how to
connect aSuper Audio CD player, CD player,
MD deck, tape deck or turntable.
Before connecting the cords, be sure to
disconnect the AC power cord (mains lead).
After connecting your audio component,
proceed to "3b: Connecting the video
components"(page 15).
GAudio cord (not supplied)
Note
If your turntable has aground (earth) wire. connect
it to the (rh) SIGNAL GND terminal.
14
US

3b: Connecting the video
components
How to connect your
components
This section describes how to connect your
video components to this receiver. Before you
begin, refer to "Component to be connected"
below for the pages which describe how to
connect each component.
Before connecting the cords, be sure to
disconnect the AC power cord (mains lead).
After connecting all your components,
proceed to "4: Connecting the antennas
(aerials)" (page 19).
Component to be connected Page
Blu-ray disc player, DVD player 16
Satellite tuner, Set-top box 17
DVD recorder, VCR 18
15
US
•

Co;nnect,inga Blu .. ray'disc
play~rf a"Oplayer
The following illustration shows how to
connect aBlu-ray disc player
or aDVD player.
Connect audio and video cords according to
the jacks
of your components.
If you connect aDVD player
•Be sure to change the factory setting of the
BDfDVD input button on the remote so that
you can use the button to control your DVD
player.
For details, see "Changing button
assignments" (page 51).
•
You can also rename the BDfDVD input so
that it can be displayed on the receiver's
display. For details, see "Naming inputs"
(page 23).
Blu-ray disc player, DVD player TV
Audio signals Video signals Video signals
oAudio cord (not supplied)
eVideo cord (not supplied)
16
US

Cannectigg •. I"satellite tuner,
~et·tQP_Qx
The following illustration shows how to
connect asatellite tuner or aSet-top box.
Connect audio and video cords according to
the jacks
of your components.
Satellite tuner, Set-top box TV
•
Audio signals Video signals Video signals
oAudio cord (not supplied)
QVideo cord (not supplied)
17
US

Conne'cting cORlponents with.
an"logvid'eo ancl'a~dioj.Ck
~ ,~ c ., -: ;- : c; -, - - ' -~.< ,
The following illustration shows how to
connect acomponent which has analog jacks
such
as aDVD recorder, VCR, etc.
Connect audio and video cords according
to
the jacks of your components.
DVD recorder, VCR TV
Audio signals
..
AUDIO AUDIO
Video signals Video signals
oAudio cord (not supplied)
0Video cord (not supplied)
Notes
•Be sure to change the factory setting of the
VIDEO input button on the remote so that you can
use the button to control your DVD recorder. For
details, see "Changing button assignments" (page
51).
18
US
•You can also rename the VIDEO input so that it
can be displayed on the receiver's display. For
details, see "Naming inputs" (page 23).

4: Connecting the
antennas (aerials)
Connect the supplied AM loop antenna
(aerial) and FM wire antenna (aerial).
Before connecting the antennas (aerials), be
sure to disconnect the AC power cord (mains
lead).
r FM wire antenna (aerial) (supplied)
5: Preparing the receiver
and the remote
cting the AC power cord
d)
Connect the supplied AC power cord (mains
lead) to the
AC INLET terminal on the
receiver, then connect the AC power cord
(mains lead) to awall outlet.
•
*The shape of the connector varies depending on
the area code
of this receiver.
AC power cord
(mains lead)
(supplied)
AC INLET terminal
-----+
To the wall outlet
Notes
•Before connecting the AC power cord (mains
lead), make sure that metallic wires
of the speaker
cords are not touching each other between the
SPEAKERS terminals.
•Connect the AC power cord (mains lead) firmly.
AM loop antenna
(aerial) (supplied)
*
Notes
• To prevent noise pickup, keep the AM loop
antenna (aerial) away from the receiver and other
components.
•Be sure to fully extend the FM wire antenna
(aerial).
•After connecting the FM wire antenna (aerial),
keep it as horizontal
as possible.
Aseveral space is left between the plug and the
rear panel even when the power cord (mains
lead) is inserted firmly. The cord is supposed
be connected this way. This is not malfunction.

Pirfonn:ingJnitial:s.tup·
operations',' .
Before using the receiver for the first time,
initialize the receiver by performing the
following procedure. This procedure can also
be used
to return settings you have made to
their factory defaults.
Be sure to use the buttons on the receiver for
this operation.
1/6
MEMORY/ENTER
1Press 1/(9 to turn off the
receiver.
2Hold down 1/(9 for 5seconds.
"CLR ALL" and "PUSH ENT" appears
on the display alternately.
3Press MEMORY/ENTER.
After "CLEARING" appears on the
display for awhile, "CLEARED"
appears.
All the settings you have changed or
adjusted are reset to the initial settings.
20
US
Iitsettilll,batteri .. iftt~,ttte
remote····
Insert two R6 (size-AA) batteries in the
RM-AAU056 Remote Commander.
Observe the correct polarity when installing
batteries.
Notes
• Do not leave the remote in an extremely hot or
humid place.
• Do not use anew battery with old ones.
• Do not mix manganese batteries and other kinds of
batteries.
• Do not expose the remote sensor to direct sunlight
or lighting apparatuses. Doing so may cause a
malfunction.
• If you do not intend to use the remote for an
extended period of time, remove the batteries to
avoid possible damage from battery leakage and
corrOSiOn.
•When you replace the batteries, the remote buttons
may be reset to their factory settings. If this
happens, reassign the buttons again (page 51 ).
•When the remote no longer operates the receiver,
replace all the batteries with new ones.
