SA-WX900
SERVICE MANUAL
SPECIFICATIONS
US Model
Canadian Model
AEP Model
UK Model
9-961-097-03
2005G02-1
© 2005.07
Sony Corporation
Home Audio Group
Published by Sony Engineering Corporation
ACTIVE SUBWOOFER
Ver. 1.2 2005.07
AUDIO POWER SPECIFICATIONS
For the U.S.A. model
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
With 4 ohm loads, from 20 – 200 Hz; rated 800 watts, minimum RMS
power, with no more than 0.8 % total harmonic distortion from 250
milliwatts to rated output.
System
Type
Active Subwoofer, magnetically shielded (closed cabinet)
Speaker units
Woofer : 30 cm dia. (12 in.), cone type x 2
Continuous RMS output
North American model
(4 ohms/100Hz, 0.8%) : 1,000 W
European model (DIN 4 ohms/100Hz, 0.8%) : 1,000 W
Reproduction frequency range
20 Hz – 200 Hz
High frequency cut-off frequency
50 Hz – 200 Hz
Phase selector
NORMAL, REVERSE
Mode selector
MOVIE, MUSIC
BASS-BOOST OFF, 1, 2
Inputs
Input jacks
LINE IN: input pin jack
SPEAKER IN: input terminals
Output jacks
LINE OUT: output pin jack
SPEAKER OUT: output terminals
General
Power requirements
North American model : 120 V AC, 60 Hz
European model : 220 – 240 V AC, 50 Hz
Other models : 220 – 240 V AC, 50 Hz
Power consumption
220 W
less than 0.5 W (Standby mode)
Dimensions
Approx. 440 x 550 x 620 mm
(17 3/8x 21 7/8x 24 1/2in.) (w/h/d)
Mass
48 kg (105lb 14oz)
Supplied accessories
Audio connecting cord
(1 phono plug – 1 phono plug) (1)
Speaker cords (2)
Spike
Design and specifications are subject to change without notice.

2
SA-WX900
Specifications ........................................................................... 1
1. GENERAL ...................................................................... 3
2. DIAGRAMS
2-1. Circuit Boards Location ............................................. 4
2-2. Schematic Diagram – Filter Section – ........................ 5
2-3. Printed Wiring Board – Filter Section – ..................... 6
2-4. Schematic Diagram – Power Section – ...................... 7
2-5. Printed Wiring Board – Power Section – .................... 8

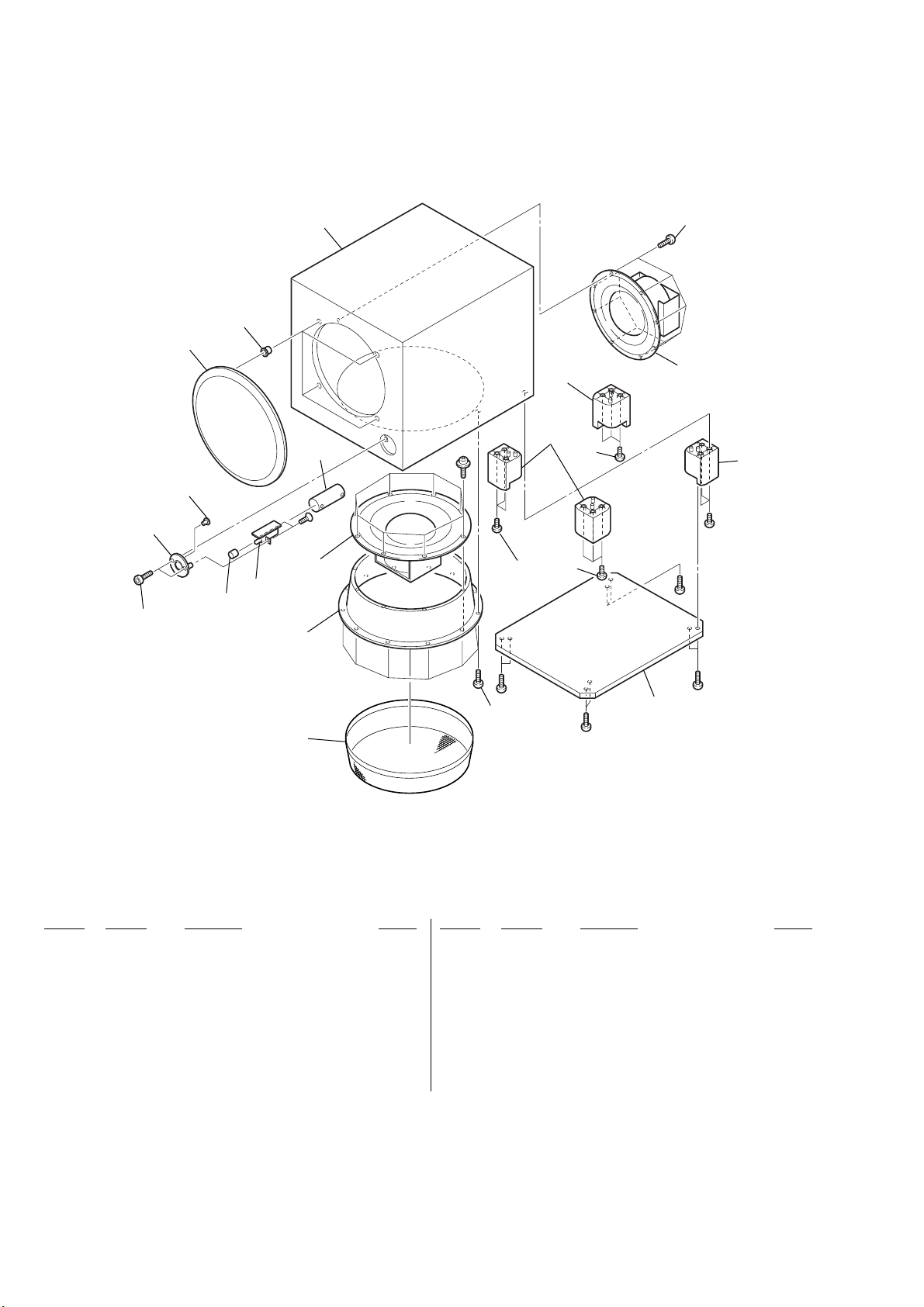

3. EXPLODED VIEWS
3-1. Amp Section ............................................................... 9
3-2. Cabinet Section ......................................................... 10
4. ELECTRICAL PARTS LIST .................................... 11
TABLE OF CONTENTS
SAFETY CHECK-OUT
After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage. Check
leakage as described below.
LEAKAGE
The AC leakage from any exposed metal part to earth Ground
and from all exposed metal parts to any exposed metal part
having a return to chassis, must not exceed 0.5 mA (500
microampers). Leakage current can be measured by any one of
three methods.
1. A commercial leakage tester, such as the Simpson 229 or
RCA WT-540A. Follow the manufacturers’ instructions to
use these instruments.
2. A battery-operated AC milliammeter. The Data Precision
245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit”
indication is 0.75 V, so analog meters must have an accurate
low-voltage scale. The Simpson 250 and Sanwa SH-63Trd
are examples of a passive VOM that is suitable. Nearly all
battery operated digital multimeters that have a 2V AC range
are suitable. (See Fig. A)

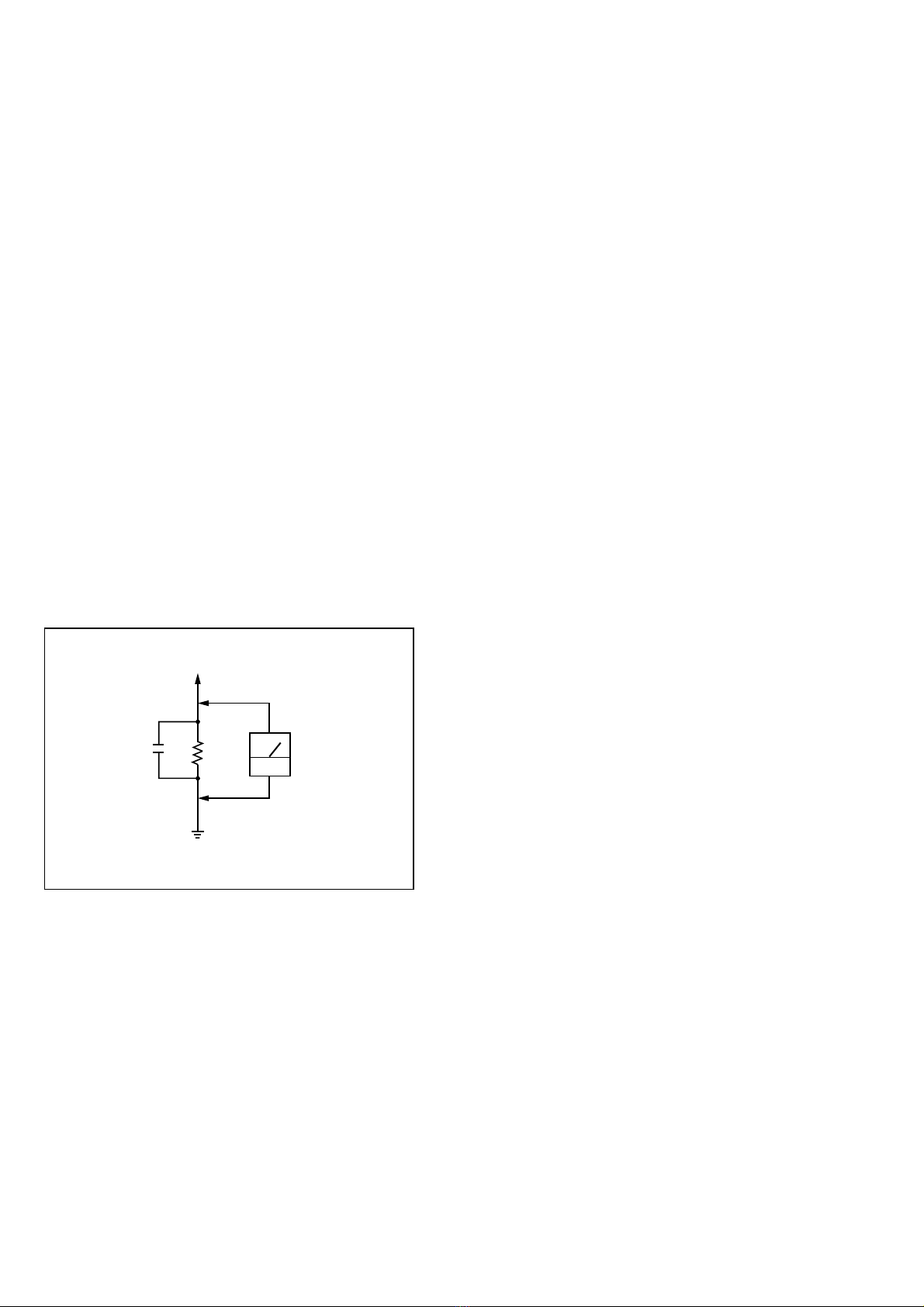

Fig. A. Using an AC voltmeter to check AC leakage.
0.15µF
To Exposed Metal
Parts on Set
1.5kΩ
AC
voltmeter
(0.75V)
Earth Ground
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED
LINE WITH MARK 0ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR
LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES
PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE
FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS
QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT
DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS
PUBLIÉS PAR SONY.

3
SA-WX900
SECTION 1
GENERAL
This section is extracted from
instruction manual.

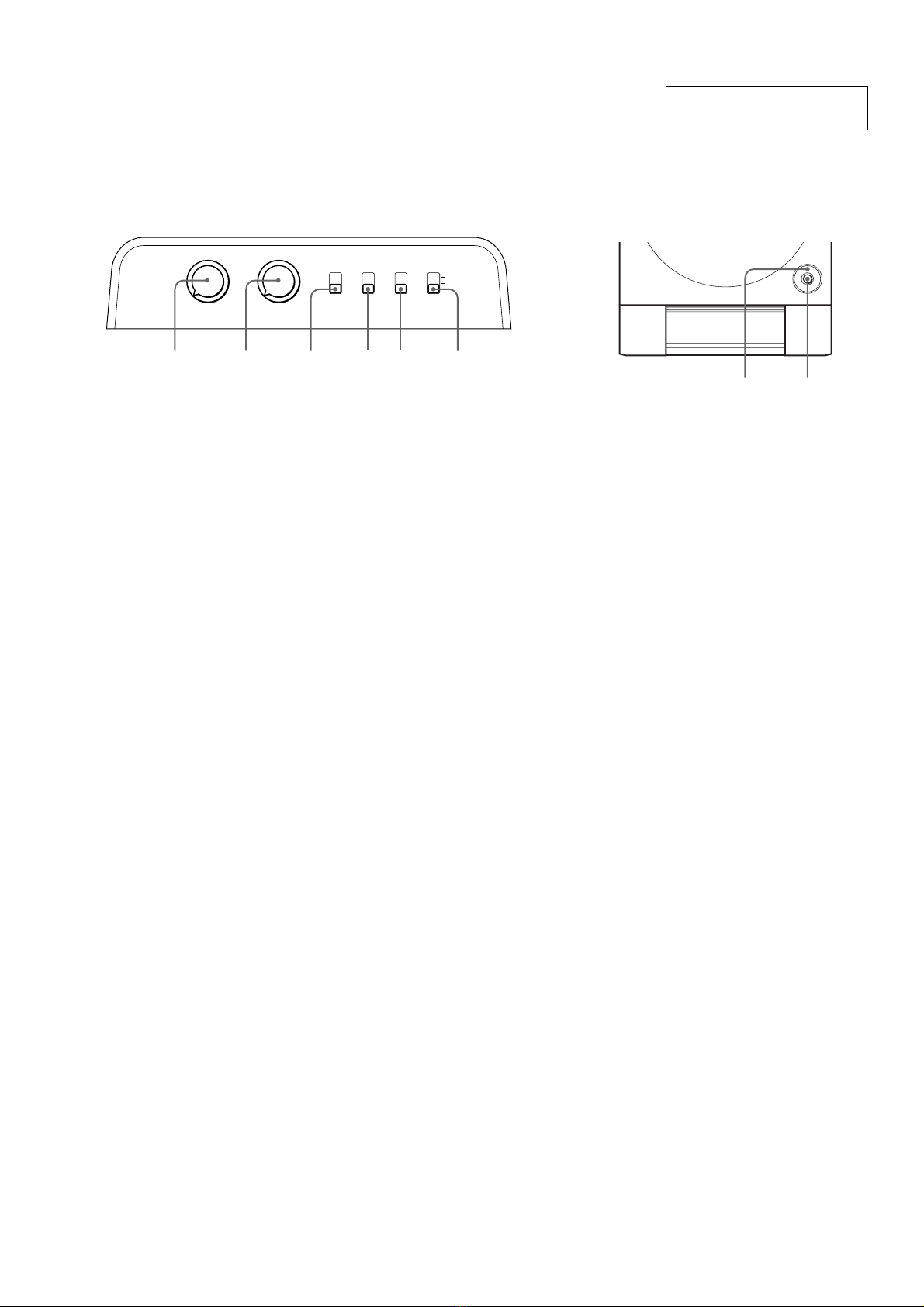

• Location of controls
LEVEL PHASE
CUT OFF
FREQUENCY
NORM
PHASE MODECUT OFF FREQUENCYLEVEL
OFF
POWER SAVE
BOOST
REVERSE200Hz50HzMAXMIN AUTO
MUSIC
MOVIE
OFF
1
2
POWER
SAVE
BOOST
MODE
POWER
POWER indicator
ON/STANDBY
POWER

4
SA-WX900 SECTION 2
DIAGRAMS
For Schematic Diagrams.
Note:
•All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or
less are not indicated except for electrolytics and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise specified.
•C: panel designation.
THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
•A: B+ Line.
•B: B– Line.
•Voltages are dc with respect to ground under no-signal conditions.
•no mark : Power on
•Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production tolerances.
•Signal path.
F: AUDIO
•Abbreviation
CND : Canadian model
Note:
The components identi-
fied by mark 0or dotted
line with mark 0are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
2-1. CIRCUIT BOARDS LOCATION
For printed wiring boards.
Note:
•X: parts extracted from the component side.
•: Pattern from the side which enables seeing.
•Abbreviation
CND : Canadian model
FILTER board
CONTROL board
SWITCH board
INPUT board
PROTECT board
AUTO POWER boar
d
POWER SW board
ICE250-SW
SWITCHING
REGULATOR
LINE FILTER board

55
SA-WX900
2-2. SCHEMATIC DIAGRAM –FILTER SECTION –
IC203(1/2)
IC205(1/2)
IC205(2/2)
C237
C238
C235
C236 CN202
C240 C239
Q204
Q203
R248
R247
R244
C220
R246
R245
D203
D202 R249
D201
R242
C219
R240
R241
R256
IC207
R232
R231
D204
R255
R254
C223
R253
R251
R250
C222
C221
R252
CN201
CN101 R201
R202
R203
C201
R204
R205
R208
R207
R206
C202 IC203(2/2)
R220
C211
R210
C209
R223
C210
R221
R222
Q202
R224
C203
IC201(2/2)
R110
C103
D101
D102
C101
D104
D103
R109
C102
R108
R104
R103
R102
R107
R105
R106
R101
TM101
L101
R112
C105
D106
C104 R114
C106
C110
C108
C111 C109
D105
CN204
CN301
R218
C206
Q201
C207
R216
R217 R219 R214 R215
R213
C208
C204
R211
C205
R209
R225
C212 C214
R226
C215
C213
R234 R229
C218
C216
R233
C241 C242
C232
C230
C231 C234
D205
CN206
CN302
R301 R302
CN205
CN401
R403 R404
R402
R401
R230
IC202(1/2)
IC201(1/2)
IC206(1/2)
IC206(2/2)
IC101(1/2)
IC202(2/2)
SW302 SW301 SW303 SW304
RV401
RV402
CN203
R111
IC101(2/2)
J101
C243
IC204(2/2) IC204(1/2)
KIA4558P
KIA4558P
KIA4558P
0.1
0.1
10
50V
10
50V
XH5P
0.1 0.1
KTC3199
KTA1267
47k
47k
100k
10
50V
10k
10k
1SS133
1SS133 22k
1SS133
150
0.0015
10k
10k
12k
BU4066
47k
47k
1SS133
47k
47k
10
50V
4.7k
22k
15k
0.01
0.01
33k
5P 10k
10k
6.8k
100p
10k
10k
10k
47k
47k
10
50V
KIA4558P
6.8k
0.001
10
1
1k
1
680
100k
KTC3199
10k
10
50V
KIA4558P
2.2k
220p
1SS133
1SS133
220p
1SS133
1SS133
2.2k
220p
22k
47k
47k
4.7k
1/2W
22k
22k
22k
4.7k
1/2W
1k
10
50V
1SS133
220p 100k
47p
0.1 10
50V
0.1 10
50V
1SS133
5P
5P
1k
0.47
KTC3199
0.47
1k
68k 10k 3.3k 10
4.7k
0.001
1
10k
1
10k
4.7k
0.18 0.15
5.6k
0.68
0.33
2.2k 1k
0.001
0.022
15k
0.1 0.1
0.1
10
50V
10
50V
0.1
7
1SS133
4P
4P
22k 22k
7P
7P
47k 47k
2.2k
2.2k
47k
KIA4558P
BUFFER
KIA4558P
BA4558
BPF
BA4558
BA4558
KIA4558P
20kB
20kB
4P
1k
BA4558
0.1
KIA4558P KIA4558P
L
-
+
R
-
+
L
-
+
R
-
+
OUT
IN
OUT
IN
LINE
SPEAKER
7
Ver 1.1

66
SA-WX900

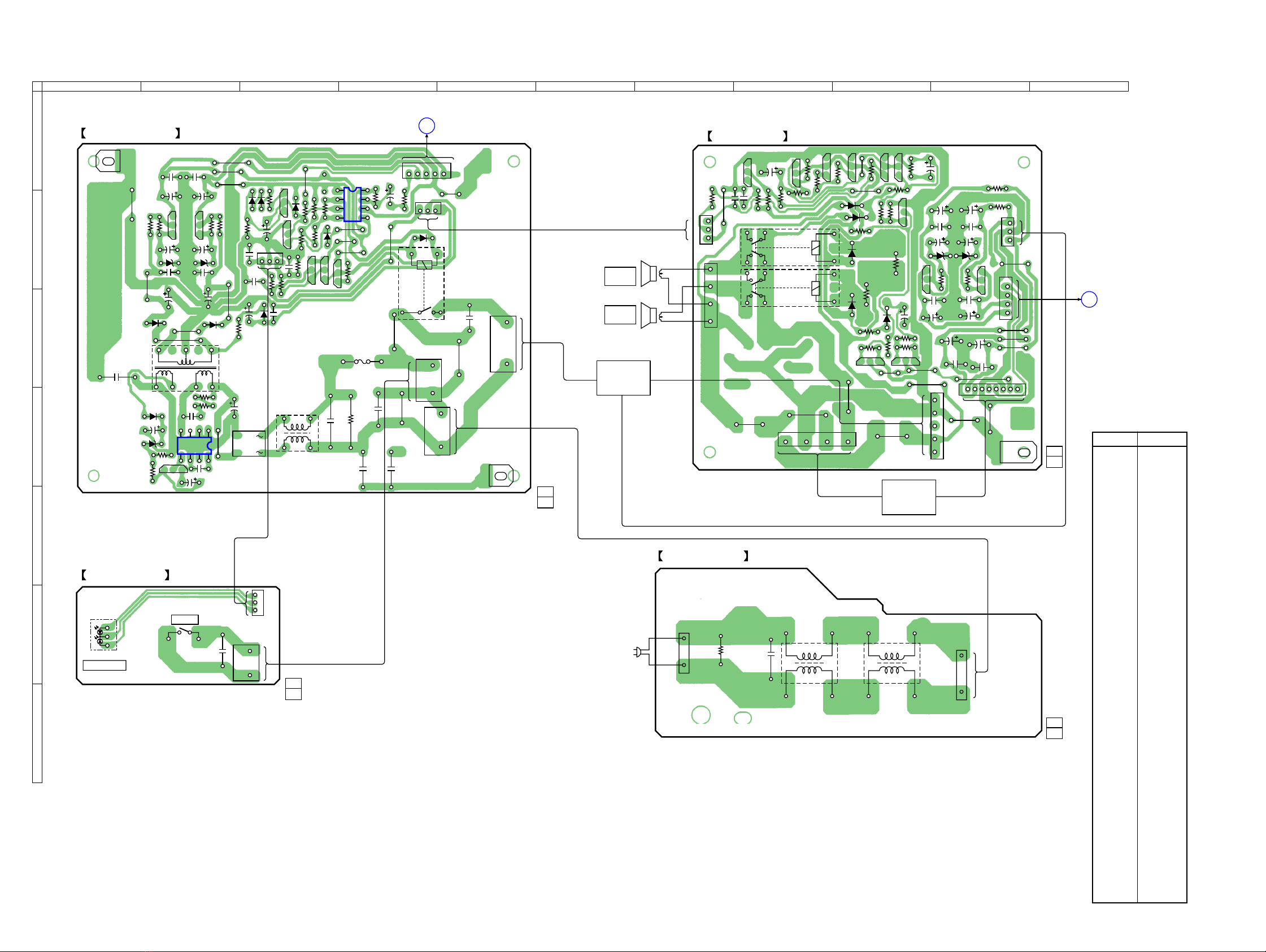

2-3. Printed Wiring Board – FILTER SECTION – • See page 4 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D101 F-3
D102 F-4
D103 F-3
D104 F-4
D105 F-3
D106 F-2
D201 B-1
D202 A-2
D203 A-2
D204 A-4
D205 A-2
IC101 F-3
IC201 C-1
IC202 B-2
IC203 B-3
IC204 B-5
IC205 B-6
IC206 C-2
IC207 A-2
Q201 B-4
Q202 B-2
Q203 B-1
Q204 A-1
R232
R258R241
R201
R202 R242
R240
R244
R224
R247
R221
R210
R203
R204
R255
R206
R207
R233
R229
R231
R230
R214
R215
R217
R203
R252
R254
R253
FB12
FB13
R250
R251
R222
R220
R208
R245
R248
R249
R723
R216
R213
R234
R226
R225
R211
R209
R219
R218
C211C209
C243
C201
C221 C222
C202
C203
C223
C219
C220
C206
C207
C216
C218
C231
C234
C230
C232
C208
C240
C239
C236
C241
C210
C242
C235
C237
C238
C215
C213
C212
C205
C204
C214
R110
R107
R102
R114 R105 R101
TM101
R106
R108
R109
R112
R111
R104
R103
C103
C105
C106
C104
C110
C108
C111
C109
C102
C101
D201
D102
D104
D101
D105
D106
D103
D205
D203 D202 D204
IC205
1
5
8
4
IC204
1
5
8
4
IC203
IC207
1
1
5
8
814
7
4
IC201
1
5
8
4
IC206
1
5
8
4
IC202
1
5
8
4
1
1
1
1
1
CN101
CN201
CN202
CN205
1
CN206
CN204
7
4
1
CN203
4
5
5
5
5
B C E
Q201
B C E
Q202
E
C
B
Q203
R248
E
C
B
Q204
IC101
1
5
8
4
L101
R401 R403
R404
R402
1
CN401
CN301 CN302
7
CUT OFF
LEVEL
FREQUENCY
RV401
RV402
R302 R301
1
1
1
OFF
2
SW304
4
5
BOOST
MOVIE
MODE
MUSIC
SW303
AUTO
SAVE
OFF
SW302
POWER
REVERSE
PHASE
NORM
SW301
t
t
t
tt
SWITCH BOARD
CONTROL BOARD
FILTER BOARD
INPUT BOARD
11
(11)
1-860-441-
11
(11)
1-860-442-
11
(11)
1-860-440-
11
(11)
1-860-439-
OUT
SPEAKER
IN
LR
+
+––
J101
OUTIN
L NE
A
AUTO POWER
BOARD
(Page 8)
B
PROTECT
BOARD
(Page 8)
23 4 5 6 7 89
A
1
B
C
D
E
F
G
Ver 1.1

77
SA-WX900
2-4. SCHEMATIC DIAGRAM –POWER SECTION –
C912
C910
C911 C913
Q907
R913
C908
C909
R914
C907
C905
R912
C906
C904
R911
D906
D907
C920
C922
C923
C921
CN906
JW904
EP901
JW905
CN905
Q901
R906
R910
C902
R905
Q902
R925
Q911
R926
R908 C903
R907
D905
D903
R927 R909
RY901
RY902
CN901
CN902
CN903
JW901 L901
D908
R921
R920
C924
Q909
Q910
R919
Q908 R922
R923
R903
R902
C925
C926
CN501 CN605
C627 C626
C625 C624
R622
R620
R621
Q607
Q608
Q606
R619
IC602(2/2)
R618
R615
R617
R616 R614
D612
D611
R613
C622
Q605
Q604 IC602(1/2)
R611
D609
D610
EP602
C623
D613
R623
D606
T601
JW903
JW902
C619
C620
C618
C617
Q603
D607
D608
R608
C615
R606
C613
C611
D605
C612 C614
C616
R609
R607
C609
R603
R602
C607
D604
D603
R604
R605
C610
C630
Q601
C608
IC601
D601
L601
C606
D602
RY601
C605
EP601
C601
L701
CN701
CN801
C801
SW801
D501
CN604
D904
D902
R904
R924
Q903
R612
Q905
Q904
Q602
Q906
FB602
0µH
C602
C628
C629
CN601
CN702
L702
C701
R601
CN602
CN603
R915
R916
CN907
C621
R610
FB601
CN606
CN904
R928
C603
F601
R701
0.1
100
16V
100
16V 0.1
KTA1266
1k
10
50V
10
50V
1k
0.1
100
16V
10
0.1
100
16V
10
MTZJ10B
MTZJ10B
220
25V 0.1
0.1
220
25V
SAN8P
SCN3P
KTC3206
22k
10k
100
50V
10k
KTC3206
1k
KTC3206
1k
2.7k 100
35V
220k
1SR139-400
1SS133
6.8k
2W
6.8k
2W
5P
VL4P
NV4P
1SR139-400
10k
47k
2.2
50V
KTC3199
KTC3199
100k
KTC3206 47k
10k
180k
220k
0.1
0.1
3P 3P
0.1 0.1
0.1
0µH0.1
2.2k
820
2.2k
DTA124ES
DTA124ES
DTC124ES
22k
KIA4558P
1M
22k
100k
22k 47k
1SS133
1SS133
100k
330
16V
KTA1267
DTC124ES KIA4558P
470k
1SS133
1SS133
4.7
50V
1SS133
2.2k
1SS133
0.1
0.1
220
25V
220
25V
KTA1266
MTZJ13B
MTZJ13B
2.2k
10
50V
10
0.1
470
25V
1SS133
470
25V 0.1
10
50V
2.2k
10
47p
2kV
10
1.2k
10
400V
1SS133
MTZJ6.8C
220
1.8k
10
50V
2.2
50V
KTC3198
0.1
MIP0253SPSCF
DBD10G
ELF11M020E
0.1
275V
1SS133
0.0047
250V
0.01
250V
2P
2P
0.01
250V
SML1216W
XH5P
1SR139-400
1SS133
47k
100k
KTC3206
1k
DTC124ES
DTC124ES
KTC3198
KTC3198
0.001
250V
2P
2P
3.3M
1/2W
2P
2P
1k
1k
4P
22
25V
1k
3P
3P
2.2k
100p
250V
T0.5AL
250V
3.3M
1/2W
*2
*2
*1
+12V REGULATOR
-12V REGULATOR
COMPARATOR
AUTO POWER LEVEL Q604,605
INPUT SIGNAL
LEVEL AMP INPUT SIGNAL DETECT
(AUTO POWER DETECT)
RELAY DRIVER
Q607,608
LED DRIVER
REGULATOR
SWITCHING
FEEDBACK AMP
MUTE DRIVE
Q909,910
PROTECT
PROTECT PROTECT
POWER AMP LEVEL
AUTO OFF
Q901,908
AC IN
DRIVER
Q902,903,911
RELAY
-9V REGULATOR
+9V REGULATOR
AEP,UK
US,CND
*2 C628,629
1000p/250V
470p/250V
AEP,UK
US,CND
*1 C701
0.47/275V
0.22/275V
SPEAKER
SPEAKER
FRONT
BOTTOM
REGULATOR
SWITCHING
AC IN
SP901
SP902
ICE1000A-IC

88
SA-WX900
2-5. Printed Wiring Board – POWER SECTION – • See page 4 for Circuit Boards Location.
• Semiconductor
Location
D501 F-1
D601 D-3
D602 B-4
D603 D-2
D604 D-2
D605 C-2
D606 C-2
D607 B-2
D608 B-2
D609 B-3
D610 B-3
D611 B-3
D612 B-3
D613 C-3
D902 B-9
D903 C-9
D904 B-9
D905 B-9
D906 B-10
D907 B-10
D908 C-9
IC601 D-2
IC602 B-4
Q601 D-2
Q602 B-2
Q603 B-2
Q604 B-3
Q605 B-3
Q606 B-3
Q607 B-3
Q608 B-3
Q901 A-8
Q902 A-8
Q903 A-8
Q904 A-9
Q905 A-9
Q906 B-10
Q907 B-9
Q908 B-9
Q909 C-9
Q910 C-9
Q911 A-9
Ref. No. Location
LINE FILTER BOARD
11
(11)
1-861-094-
PROTECT BOARD
11
(11)
1-860-445-
AUTO POWER BOARD
11
(11)
1-860-444-
POWER SW BOARD
11
(11)
1-868-443-
R602
R603
R604
R605
R623
T601
R614
R611
R610
FB601
R617
R612
R608 R606
R608 R607
FB602
R615
R618
R616
R613
R621
C621
C626
C801
F601
C605
C625
C623
C624
C613
C627
C614
C612
C611
C616
R622
C619C620
C617
C618
C615
C622
R620
C610
C608
C630
C609 C607
C628
C629
C601
C606
L601
C603
R619
R601
R902
R903
R910
R925 R905
R908
R914 R913
R915 R916
R922 R920
R921
R911
R912
R923
R924
R927
R909
R906
R926
R907
R919
R904
R928
C925 C926
FB901
C902
C905
C907
C909
C904
C903
C906
C908
C924
C913 C912
C911 C910
C921 C920
C922
C923
FB102
R701 C701
1
2
CN701
1
2
CN702
L702
L701
AC IN
1
1
5
8
CN906
CN901
JW901
JW902
JW903
CN902
1
1
ICE1000A-IC
SWITCHING
REGULATOR
4
4
CN907
1
4
CN903
1
3
CN905
1
3
CN904
1
3
CN501
13
CN605
13
CN606
CN603
CN602
1
5
CN604
1
1
2
2
CN601
1
2
CN801
1
2
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
Q907
Q908
Q905Q904Q911Q903
Q902Q901
Q906
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
Q607
Q604
Q606
Q605
Q602
Q603
Q608
D604
D603
D605D606
D612 D611
D610
D609 D602
D607
D608
D613
B C E
Q601
IC602
1
4
5
8
EP602
EP601
D601
+
–
IC601
1
4
58
D501
ON/STANDBY
SW801
POWER
D906
D907
D903
D902
D904
D905
D908
RY901
RY902
EP901
SP901
FRONT
SPEAKER
SP902
BOTTOM
SPEAKER
RY601
A
FILTER
BOARD
(Page 6)
B
FILTER
BOARD
(Page 6 )
B C E
Q910
B C E
Q909
23 4 5 6 7 89 10 11
A
1
B
C
D
E
F
G

9
SA-WX900
SECTION 3
EXPLODED VIEWS
NOTE :
•-XX, -X mean standardized parts, so they
may have some difference from the original
one.
•Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) … (RED)
↑↑
Parts color Cabinet's color
•Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
•The mechanical parts with no reference number in the
exploded views are not supplied.
•Hardware (# mark) list and accessories and packing
materials are given in the last of this parts list.
• Abbreviation
CND : Canadian model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
3-1. AMP SECTION
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
1
25
6
7
15 14
13
13
13
8
9
10
11
4
3
13
12
F601
supplied with
RV401,402
#2
#2
#2
#3
#1
#4
#2
#2
#5
#2
#2
#2
#2
#5
#5
#9
not
supplied
cabinet section
not
supplied
not
supplied
not
supplied
011-468-800-11 REGULATOR, SW (AEP,UK)
011-468-801-11 REGULATOR, SW (US,CND)
21-860-440-11 FILTER BOARD
31-860-442-11 CONTROL BOARD
41-860-441-11 SWITCH BOARD
54-228-138-01 KNOB (VOL)
64-246-152-11 PANEL, CONTROL
71-860-439-11 INPUT BOARD
081-696-570-21 CORD, POWER (UK)
081-769-744-52 CORD, POWER (AEP)
081-783-531-11 CORD, POWER (US,CND)
91-860-445-11 PROTECT BOARD
10 1-860-444-11 AUTO POWER BOARD
11 1-805-531-11 ICE1000A-IC, MODULE (HYBRID IC)
12 1-861-094-11 LINE FILTER BOARD
*13 3-703-150-11 CLAMP
14 3-703-244-00 BUSHING (2104), CORD
15 4-238-408-11 SCREW (1) (4X25), +BV TAPPING
0F601 1-532-389-32 FUSE (T0.5AL/250V)
#1 7-685-872-09 SCREW +BVTT 3X8 (S)
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-874-09 SCREW +BVTT 3X12 (S)
#4 7-685-876-09 SCREW +BVTT 3X16 (S)
#5 7-685-884-09 SCREW +BVTT 4X14 (S)
#9 7-682-554-09 SCREW +B 3X25
Ver. 1.2

10
SA-WX900
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
3-2. CABINET SECTION
SP902
#6
#8
#8
#8
#8
#7
not supplied
not supplied
not
supplied
SP901
51
53
61
52
56
56
59
59 59
59
58
56
54
55
not supplied not supplied
not supplied
57
51 4-246-147-01 KNOB, PUSH
52 1-860-443-11 POWER SW BOARD
53 4-246-155-01 PANEL, SWITCH
54 X-4955-983-1 FRAME ASSY, GRILLE (BLACK) (US,CND,AEP)
54 X-4956-055-1 FRAME ASSY, GRILLE (MAPLE) (AEP,UK)
55 4-210-830-01 CATCHER
56 4-250-937-01 FOOT
57 4-250-898-01 GRILLE
58 4-250-897-01 BASE, UNIT
59 4-238-408-11 SCREW (1) (4X25), +BV TAPPING
61 4-235-903-01 SCREW (3.5X20)
SP901 1-825-374-11 SPEAKER (30cm) (FRONT)
SP902 1-825-374-11 SPEAKER (30cm) (BOTTOM)
#6 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#7 7-682-576-09 SCREW +P 5X12
#8 7-682-566-09 SCREW +B 4X20
Ver 1.1

11
SA-WX900
SECTION 4
ELECTRICAL PARTS LIST
NOTE :
•Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
•-XX, -X mean standardized parts, so they
may have some difference from the original
one.
•RESISTORS
All resistors are in ohms
METAL : Metal-film resistor
METAL OXIDE :Metal oxide-film resistor
F : nonflammable
•Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
•SEMICONDUCTORS
In each case, u : µ, for example :
uA.... : µA.... , uPA.... : µPA....
uPB.... : µPB.... , uPC.... : µPC....
uPD.... : µPD....
•CAPACITORS
uF : µF
•COILS
uH : µH
When indicating parts by reference num-
ber, please include the board.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
• Abbreviation
CND : Canadian model
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
1-860-444-11 AUTO POWER BOARD
****************
1-533-233-11 FUSE HOLDER
< CAPACITOR >
0C601 1-113-916-11 CERAMIC 0.01uF 20% 250V
0C603 1-119-884-51 CERAMIC 100PF 10% 250V
0C605 1-113-924-11 CERAMIC 0.0047uF 20% 250V
0C606 1-117-915-11 FILM 0.1uF 10% 275V
0C607 1-107-670-11 ELECT 10uF 20% 400V
0C608 1-164-159-21 CERAMIC 0.1uF 50V
0C609 1-107-974-41 CERAMIC 47PF 5% 2KV
0C610 1-126-964-11 ELECT 10uF 20% 50V
C611 1-126-941-11 ELECT 470uF 20% 25V
C612 1-126-941-11 ELECT 470uF 20% 25V
C613 1-164-159-21 CERAMIC 0.1uF 50V
C614 1-164-159-21 CERAMIC 0.1uF 50V
C615 1-126-964-11 ELECT 10uF 20% 50V
C616 1-126-964-11 ELECT 10uF 20% 50V
C617 1-104-666-11 ELECT 220uF 20% 25V
C618 1-104-666-11 ELECT 220uF 20% 25V
C619 1-164-159-21 CERAMIC 0.1uF 50V
C620 1-164-159-21 CERAMIC 0.1uF 50V
C621 1-126-233-11 ELECT 22uF 20% 50V
C622 1-126-940-11 ELECT 330uF 20% 16V
C623 1-126-963-11 ELECT 4.7uF 20% 50V
C624 1-164-159-21 CERAMIC 0.1uF 50V
C625 1-164-159-21 CERAMIC 0.1uF 50V
C626 1-164-159-21 CERAMIC 0.1uF 50V
C627 1-164-159-21 CERAMIC 0.1uF 50V
0C628 1-119-886-51 CERAMIC 470PF 10% 250V
(AEP,UK)
0C628 1-119-887-51 CERAMIC 0.01uF 20% 250V
(US,CND)
0C629 1-119-886-51 CERAMIC 470PF 10% 250V
(AEP,UK)
0C629 1-119-887-51 CERAMIC 0.01uF 20% 250V
(US,CND)
C630 1-126-961-11 ELECT 2.2uF 20% 50V
< CONNECTOR >
CN601 1-818-216-11 PIN, CONNECTOR 2P
*CN602 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P
CN603 1-793-873-11 PIN, CONNECTOR (B02(12.4)P-VL)
*CN605 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P
CN606 1-564-506-11 PLUG, CONNECTOR 3P
< DIODE >
0D601 6-500-675-01 DIODE DBD10G
D602 8-719-991-33 DIODE 1SS133T-77
0D603 8-719-109-97 DIODE RD6.8ESB2
0D604 8-719-991-33 DIODE 1SS133T-77
D605 8-719-991-33 DIODE 1SS133T-77
D606 8-719-991-33 DIODE 1SS133T-77
D607 8-719-921-88 DIODE MTZJ-13B
D608 8-719-921-88 DIODE MTZJ-13B
D609 8-719-991-33 DIODE 1SS133T-77
D610 8-719-991-33 DIODE 1SS133T-77
D611 8-719-991-33 DIODE 1SS133T-77
D612 8-719-991-33 DIODE 1SS133T-77
D613 8-719-991-33 DIODE 1SS133T-77
< GROUND TERMINAL >
EP601 1-537-770-21 TERMINAL BOARD, GROUND
EP602 1-537-770-21 TERMINAL BOARD, GROUND
< FUSE >
0F601 1-532-389-32 FUSE (T0.5AL/250V)
< FERRITE BEAD >
FB601 1-412-473-21 INDUCTOR 0uH
FB602 1-412-473-21 INDUCTOR 0uH
< IC >
0IC601 6-704-363-01 IC MIP0253SPSCF
IC602 8-759-076-15 IC KIA4558P
< COIL >
0L601 1-456-589-11 COIL, LINE FILTER
< TRANSISTOR >
0Q601 8-729-036-89 TRANSISTOR KTC3198GR-A
Q602 8-729-036-89 TRANSISTOR KTC3198GR-A
Q603 8-729-037-03 TRANSISTOR KTA1266GR-AT
Q604 8-729-029-86 TRANSISTOR DTC124ESA
Q605 6-550-640-01 TRANSISTOR KTA1267
Q606 8-729-029-86 TRANSISTOR DTC124ESA
Q607 8-729-029-40 TRANSISTOR DTA124ESA
Q608 8-729-029-40 TRANSISTOR DTA124ESA
< RESISTOR >
0R601 1-219-237-11 SOLID 3.3M 20% 1/2W
AUTO POWER

12
SA-WX900
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
R602 1-249-418-11 CARBON 1.2K 5% 1/4W F
R603 1-249-393-11 CARBON 10 5% 1/4W F
0R604 1-249-409-11 CARBON 220 5% 1/4W F
0R605 1-249-420-11 CARBON 1.8K 5% 1/4W F
R606 1-249-393-11 CARBON 10 5% 1/4W F
R607 1-249-393-11 CARBON 10 5% 1/4W F
R608 1-249-421-11 CARBON 2.2K 5% 1/4W F
R609 1-249-421-11 CARBON 2.2K 5% 1/4W F
R610 1-249-417-11 CARBON 1K 5% 1/4W F
R611 1-247-895-91 CARBON 470K 5% 1/4W
R612 1-249-417-11 CARBON 1K 5% 1/4W F
R613 1-249-441-11 CARBON 100K 5% 1/4W
R614 1-249-437-11 CARBON 47K 5% 1/4W
R615 1-249-433-11 CARBON 22K 5% 1/4W
R616 1-249-433-11 CARBON 22K 5% 1/4W
R617 1-249-441-11 CARBON 100K 5% 1/4W
R618 1-247-903-00 CARBON 1M 5% 1/4W
R619 1-249-433-11 CARBON 22K 5% 1/4W
R620 1-249-416-11 CARBON 820 5% 1/4W F
R621 1-249-421-11 CARBON 2.2K 5% 1/4W F
R622 1-249-421-11 CARBON 2.2K 5% 1/4W F
R623 1-249-421-11 CARBON 2.2K 5% 1/4W F
< RELAY >
0RY601 1-755-513-11 RELAY
< TRANSFORMER >
0T601 1-439-873-11 TRANSFORMER, DC CONVERTER
******************************************************
1-860-442-11 CONTROL BOARD
*************
< CONNECTOR >
CN401 1-564-723-11 PIN, CONNECTOR (SMALL TYPE) 7P
< RESISTOR >
R401 1-249-421-11 CARBON 2.2K 5% 1/4W F
R402 1-249-421-11 CARBON 2.2K 5% 1/4W F
R403 1-249-437-11 CARBON 47K 5% 1/4W
R404 1-249-437-11 CARBON 47K 5% 1/4W
< VARIABLE RESISTOR >
RV401 1-227-588-11 RES, VAR (LEVEL)
RV402 1-227-605-11 RES, VAR 20K/20K (CUT OFF FREQUENCY)
******************************************************
1-860-440-11 FILTER BOARD
************
< CAPACITOR >
C201 1-164-070-11 CERAMIC 100PF 5% 50V
C202 1-126-964-11 ELECT 10uF 20% 50V
C203 1-126-964-11 ELECT 10uF 20% 50V
C204 1-136-177-00 MYLAR 1uF 5% 50V
C205 1-136-177-00 MYLAR 1uF 5% 50V
C206 1-136-173-00 MYLAR 0.47uF 5% 50V
C207 1-136-173-00 MYLAR 0.47uF 5% 50V
C208 1-162-294-31 CERAMIC 0.001uF 10% 50V
C209 1-136-177-00 MYLAR 1uF 5% 50V
C210 1-136-177-00 MYLAR 1uF 5% 50V
C211 1-162-294-31 CERAMIC 0.001uF 10% 50V
C212 1-136-168-00 MYLAR 0.18uF 5% 50V
C213 1-136-171-00 MYLAR 0.33uF 5% 50V
C214 1-136-167-00 MYLAR 0.15uF 5% 50V
C215 1-136-175-00 MYLAR 0.68uF 5% 50V
C216 1-136-157-00 MYLAR 0.022uF 5% 50V
C218 1-136-250-11 FILM 0.001uF 5% 100V
C219 1-136-252-00 FILM 0.0015uF 5% 100V
C220 1-126-964-11 ELECT 10uF 20% 50V
C221 1-136-153-00 FILM 0.01uF 5% 50V
C222 1-136-153-00 FILM 0.01uF 5% 50V
C223 1-126-964-11 ELECT 10uF 20% 50V
C230 1-126-964-11 ELECT 10uF 20% 50V
C231 1-126-964-11 ELECT 10uF 20% 50V
C232 1-164-159-21 CERAMIC 0.1uF 50V
C234 1-164-159-21 CERAMIC 0.1uF 50V
C235 1-126-964-11 ELECT 10uF 20% 50V
C236 1-126-964-11 ELECT 10uF 20% 50V
C237 1-164-159-21 CERAMIC 0.1uF 50V
C238 1-164-159-21 CERAMIC 0.1uF 50V
C239 1-164-159-21 CERAMIC 0.1uF 50V
C240 1-164-159-21 CERAMIC 0.1uF 50V
C241 1-164-159-21 CERAMIC 0.1uF 50V
C242 1-164-159-21 CERAMIC 0.1uF 50V
C243 1-164-159-21 CERAMIC 0.1uF 50V
< CONNECTOR >
*CN201 1-564-508-11 PLUG, CONNECTOR 5P
*CN203 1-506-946-11 PIN, CONNECTOR 4P
CN204 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P
*CN205 1-564-709-11 PIN, CONNECTOR (SMALL TYPE) 7P
*CN206 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P
< DIODE >
D201 8-719-991-33 DIODE 1SS133T-77
D202 8-719-991-33 DIODE 1SS133T-77
D203 8-719-991-33 DIODE 1SS133T-77
D204 8-719-991-33 DIODE 1SS133T-77
D205 8-719-991-33 DIODE 1SS133T-77
< IC >
IC201 8-759-076-15 IC KIA4558P
IC202 8-759-076-15 IC KIA4558P
IC203 8-759-076-15 IC KIA4558P
IC204 8-759-076-15 IC KIA4558P
IC205 8-759-076-15 IC KIA4558P
IC206 8-759-145-58 IC BA4558
IC207 8-759-932-33 IC BU4066BC
< TRANSISTOR >
Q201 8-729-016-42 TRANSISTOR KTC3199GR-TP
Q202 8-729-016-42 TRANSISTOR KTC3199GR-TP
Q203 6-550-640-01 TRANSISTOR KTA1267
Q204 8-729-016-42 TRANSISTOR KTC3199GR-TP
< RESISTOR >
R201 1-249-429-11 CARBON 10K 5% 1/4W
CONTROL FILTERAUTO POWER

13
SA-WX900
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R202 1-249-429-11 CARBON 10K 5% 1/4W
R203 1-249-427-11 CARBON 6.8K 5% 1/4W F
R204 1-249-429-11 CARBON 10K 5% 1/4W
R205 1-249-429-11 CARBON 10K 5% 1/4W
R206 1-249-437-11 CARBON 47K 5% 1/4W
R207 1-249-437-11 CARBON 47K 5% 1/4W
R208 1-249-429-11 CARBON 10K 5% 1/4W
R209 1-249-429-11 CARBON 10K 5% 1/4W
R210 1-249-393-11 CARBON 10 5% 1/4W F
R211 1-249-429-11 CARBON 10K 5% 1/4W
R213 1-249-425-11 CARBON 4.7K 5% 1/4W F
R214 1-247-843-11 CARBON 3.3K 5% 1/4W
R215 1-249-393-11 CARBON 10 5% 1/4W F
R216 1-249-417-11 CARBON 1K 5% 1/4W F
R217 1-249-439-11 CARBON 68K 5% 1/4W
R218 1-249-417-11 CARBON 1K 5% 1/4W F
R219 1-249-429-11 CARBON 10K 5% 1/4W
R220 1-249-427-11 CARBON 6.8K 5% 1/4W F
R221 1-249-415-11 CARBON 680 5% 1/4W F
R222 1-249-441-11 CARBON 100K 5% 1/4W
R223 1-249-417-11 CARBON 1K 5% 1/4W F
R224 1-249-429-11 CARBON 10K 5% 1/4W
R225 1-249-425-11 CARBON 4.7K 5% 1/4W F
R226 1-249-426-11 CARBON 5.6K 5% 1/4W
R229 1-249-417-11 CARBON 1K 5% 1/4W F
R230 1-249-437-11 CARBON 47K 5% 1/4W
R231 1-249-437-11 CARBON 47K 5% 1/4W
R232 1-249-437-11 CARBON 47K 5% 1/4W
R233 1-249-431-11 CARBON 15K 5% 1/4W
R234 1-249-421-11 CARBON 2.2K 5% 1/4W F
R240 1-249-429-11 CARBON 10K 5% 1/4W
R241 1-249-429-11 CARBON 10K 5% 1/4W
R242 1-249-407-11 CARBON 150 5% 1/4W F
R244 1-249-441-11 CARBON 100K 5% 1/4W
R245 1-249-429-11 CARBON 10K 5% 1/4W
R246 1-249-429-11 CARBON 10K 5% 1/4W
R247 1-249-437-11 CARBON 47K 5% 1/4W
R248 1-249-437-11 CARBON 47K 5% 1/4W
R249 1-249-433-11 CARBON 22K 5% 1/4W
R250 1-249-431-11 CARBON 15K 5% 1/4W
R251 1-249-433-11 CARBON 22K 5% 1/4W
R252 1-249-435-11 CARBON 33K 5% 1/4W
R253 1-249-425-11 CARBON 4.7K 5% 1/4W F
R254 1-249-437-11 CARBON 47K 5% 1/4W
R255 1-249-437-11 CARBON 47K 5% 1/4W
R256 1-249-430-11 CARBON 12K 5% 1/4W
******************************************************
1-860-439-11 INPUT BOARD
***********
< CAPACITOR >
C101 1-162-286-31 CERAMIC 220PF 10% 50V
C102 1-162-286-31 CERAMIC 220PF 10% 50V
C103 1-162-286-31 CERAMIC 220PF 10% 50V
C104 1-162-286-31 CERAMIC 220PF 10% 50V
C105 1-126-964-11 ELECT 10uF 20% 50V
C106 1-164-035-11 CERAMIC 47PF 5% 50V
C108 1-126-964-11 ELECT 10uF 20% 50V
C109 1-126-964-11 ELECT 10uF 20% 50V
C110 1-164-159-21 CERAMIC 0.1uF 50V
C111 1-164-159-21 CERAMIC 0.1uF 50V
< DIODE >
D101 8-719-991-33 DIODE 1SS133T-77
D102 8-719-991-33 DIODE 1SS133T-77
D103 8-719-991-33 DIODE 1SS133T-77
D104 8-719-991-33 DIODE 1SS133T-77
D105 8-719-991-33 DIODE 1SS133T-77
D106 8-719-991-33 DIODE 1SS133T-77
< IC >
IC101 8-759-145-58 IC BA4558
< JACK >
J101 1-815-749-11 JACK, PIN 2P (LINE)
< COIL >
L101 1-424-102-11 COIL, LINE FILTER
< RESISTOR >
R101 1-260-107-11 CARBON 4.7K 5% 1/2W
R102 1-260-107-11 CARBON 4.7K 5% 1/2W
R103 1-249-437-11 CARBON 47K 5% 1/4W
R104 1-249-437-11 CARBON 47K 5% 1/4W
R105 1-249-433-11 CARBON 22K 5% 1/4W
R106 1-249-433-11 CARBON 22K 5% 1/4W
R107 1-249-433-11 CARBON 22K 5% 1/4W
R108 1-249-433-11 CARBON 22K 5% 1/4W
R109 1-249-421-11 CARBON 2.2K 5% 1/4W F
R110 1-249-421-11 CARBON 2.2K 5% 1/4W F
R111 1-249-417-11 CARBON 1K 5% 1/4W F
R112 1-249-417-11 CARBON 1K 5% 1/4W F
R114 1-249-441-11 CARBON 100K 5% 1/4W
< TERMINAL >
TM101 1-537-737-11 TERMINAL BOARD (SPEAKER)
******************************************************
1-861-094-11 LINE FILTER BOARD
**************
< CAPACITOR >
0C701 1-125-935-51 FILM 0.47uF 10% 275V
(US,CND)
0C701 1-117-916-51 FILM 0.22uF 10% 275V
(AEP,UK)
< CONNECTOR >
CN701 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH)2P
CN702 1-818-216-11 PIN, CONNECTOR 2P
< COIL >
0L701 1-456-759-11 COIL, LINE FILTER (US,CND)
0L701 1-456-760-11 COIL, LINE FILTER (AEP,UK)
0L702 1-456-759-11 COIL, LINE FILTER (US,CND)
0L702 1-456-760-11 COIL, LINE FILTER (AEP,UK)
< RESISTOR >
0R701 1-219-237-11 SOLID 3.3M 20% 1/2W
******************************************************
FILTER INPUT LINE FILTER
Ver 1.1

14
SA-WX900
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
1-860-443-11 POWER SW BOARD
**************
< CAPACITOR >
0C801 1-113-916-11 CERAMIC 0.01uF 20% 250V
< CONNECTOR >
*CN501 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P
*CN801 1-568-226-11 PIN, CONNECTOR(3.96mm PITCH) 2P
< DIODE >
D501 8-719-025-62 DIODE SML1216W (ON/STANDBY)
< SWITCH >
0SW801 1-554-920-61 SWITCH, PUSH (AC POWER)(1 KEY) (POWER)
******************************************************
1-860-445-11 PROTECT BOARD
*************
< CAPACITOR >
C902 1-126-968-11 ELECT 100uF 20% 50V
C903 1-126-968-11 ELECT 100uF 20% 35V
C904 1-104-665-11 ELECT 100uF 20% 16V
C905 1-104-665-11 ELECT 100uF 20% 16V
C906 1-164-159-21 CERAMIC 0.1uF 50V
C907 1-164-159-21 CERAMIC 0.1uF 50V
C908 1-126-964-11 ELECT 10uF 20% 50V
C909 1-126-964-11 ELECT 10uF 20% 50V
C910 1-104-665-11 ELECT 100uF 20% 16V
C911 1-104-665-11 ELECT 100uF 20% 16V
C912 1-164-159-21 CERAMIC 0.1uF 50V
C913 1-164-159-21 CERAMIC 0.1uF 50V
C920 1-104-666-11 ELECT 220uF 20% 25V
C921 1-104-666-11 ELECT 220uF 20% 25V
C922 1-164-159-21 CERAMIC 0.1uF 50V
C923 1-164-159-21 CERAMIC 0.1uF 50V
C924 1-126-961-11 ELECT 2.2uF 20% 50V
C925 1-164-159-21 CERAMIC 0.1uF 50V
C926 1-164-159-21 CERAMIC 0.1uF 50V
< CONNECTOR >
*CN901 1-564-242-00 PIN, CONNECTOR(3.96mm PITCH) 5P
CN902 1-818-081-11 PIN, CONNECTOR
CN903 1-818-082-11 PIN, CONNECTOR
CN904 1-564-506-11 PLUG, CONNECTOR 3P
*CN907 1-506-946-11 PIN, CONNECTOR 4P
< DIODE >
D902 8-719-991-33 DIODE 1SS133T-77
D903 8-719-991-33 DIODE 1SS133T-77
D904 8-719-970-02 DIODE 1SR139-400
D905 8-719-970-02 DIODE 1SR139-400
D906 8-719-921-75 DIODE MTZN-10B
D907 8-719-921-75 DIODE MTZN-10B
D908 8-719-970-02 DIODE 1SR139-400
< GROUND TERMINAL >
EP901 1-537-770-21 TERMINAL BOARD, GROUND
< TRANSISTOR >
Q901 6-550-660-01 TRANSISTOR KTC3206-O
Q902 6-550-660-01 TRANSISTOR KTC3206-O
Q903 6-550-660-01 TRANSISTOR KTC3206-O
Q904 8-729-029-86 TRANSISTOR DTC124ESA
Q905 8-729-029-86 TRANSISTOR DTC124ESA
Q906 8-729-036-89 TRANSISTOR KTC3198GR-A
Q907 8-729-037-03 TRANSISTOR KTA1266GR-AT
Q908 6-550-660-01 TRANSISTOR KTC3206-O
Q909 8-729-016-42 TRANSISTOR KTC3199GR-TP
Q910 8-729-016-42 TRANSISTOR KTC3199GR-TP
Q911 6-550-660-01 TRANSISTOR KTC3206-O
< RESISTOR >
R902 1-247-887-00 CARBON 220K 5% 1/4W
R903 1-247-885-00 CARBON 180K 5% 1/4W
R904 1-249-437-11 CARBON 47K 5% 1/4W
R905 1-249-429-11 CARBON 10K 5% 1/4W
R906 1-249-433-11 CARBON 22K 5% 1/4W
R907 1-247-887-00 CARBON 220K 5% 1/4W
R908 1-249-422-11 CARBON 2.7K 5% 1/4W F
R909 1-215-897-21 METAL OXIDE 6.8K 5% 2W
R910 1-249-429-11 CARBON 10K 5% 1/4W
R911 1-249-393-11 CARBON 10 5% 1/4W F
R912 1-249-393-11 CARBON 10 5% 1/4W F
R913 1-249-417-11 CARBON 1K 5% 1/4W F
R914 1-249-417-11 CARBON 1K 5% 1/4W F
R915 1-249-417-11 CARBON 1K 5% 1/4W F
R916 1-249-417-11 CARBON 1K 5% 1/4W F
R919 1-249-441-11 CARBON 100K 5% 1/4W F
R920 1-249-437-11 CARBON 47K 5% 1/4W
R921 1-249-429-11 CARBON 10K 5% 1/4W
R922 1-249-437-11 CARBON 47K 5% 1/4W
R923 1-249-429-11 CARBON 10K 5% 1/4W
R924 1-249-441-11 CARBON 100K 5% 1/4W F
R925 1-249-417-11 CARBON 1K 5% 1/4W F
R926 1-249-417-11 CARBON 1K 5% 1/4W F
R927 1-215-897-21 METAL OXIDE 6.8K 5% 2W
R928 1-249-421-11 CARBON 2.2K 5% 1/4W
< RELAY >
RY901 1-755-512-11 RELAY
RY902 1-755-512-11 RELAY
******************************************************
1-860-441-11 SWITCH BOARD
************
< CONNECTOR >
CN301 1-564-721-11 PIN, CONNECTOR (SMALL TYPE) 5P
*CN302 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P
< RESISTOR >
R301 1-249-433-11 CARBON 22K 5% 1/4W
R302 1-249-433-11 CARBON 22K 5% 1/4W
POWER SW PROTECT SWITCH

15
SA-WX900
< SWITCH >
SW301 1-554-481-00 SWITCH, SLIDE (PHASE)
SW302 1-554-481-00 SWITCH, SLIDE (POWER SAVE)
SW303 1-554-481-00 SWITCH, SLIDE (MODE)
SW304 1-571-908-11 SWITCH, SLIDE (BASS-BOOST)
******************************************************
MISCELLANEOUS
*************
011-468-800-11 REGULATOR, SW (AEP,UK)
011-468-801-11 REGULATOR, SW (US,CND)
081-696-570-21 CORD, POWER (UK)
081-769-744-52 CORD, POWER (AEP)
081-783-531-11 CORD, POWER (US,CND)
11 1-805-531-11 ICE1000A-IC, MODULE (HYBRID IC)
0F601 1-532-389-32 FUSE (T0.5AL/250V)
SP901 1-825-374-11 SPEAKER (30cm) (FRONT)
SP902 1-825-374-11 SPEAKER (30cm) (BOTTOM)
******************************************************
ACCESSORIES
***********
1-751-598-43 CORD, CONNECTION (PIN-PIN)
1-791-467-21 CORD, SPEAKER
4-250-083-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
4-250-083-21 MANUAL, INSTRUCTION (SPANISH)
(US,CND,AEP)
4-250-083-31 MANUAL, INSTRUCTION (GERMAN, DUTCH)
(AEP)
4-250-083-41 MANUAL, INSTRUCTION (ITALIAN, SWEDISH)
(AEP)
4-250-083-51 MANUAL, INSTRUCTION (POLISH, RUSSIAN)
(AEP)
4-251-304-01 SPIKE
Ref. No. Part No. Description Remark
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
SWITCH

SA-WX900
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.0 2003.10 New
1.1 2004.05 Change of the electrical parts.
Addition of the electrical parts. (ENG-04002)
Change of the supply classification of the screw. (ENG-04003)
1.2 2005.07 Change of the part No. of Ref. No. 6. (SPM-05048)
