Sony Bravia kdl-40xbr9 User manual

KDL-52XBR9

KDL-46XBR9

KDL-40XBR9

SonyBRAVIA - Reference Guide Book- Welcome file:///C:/Documents%20and%20Settings/noriko/Desktop/Working_Onli...

1 of 1 6/1/2009 9:13 A

Welcome to the Sony Online Reference Book

This manual is a part of Sony’s eco-friendly initiatives to help reduce the consumption of natural resources. Use the printed Operating Instructions, the Quick Setup

Guide, and this online Reference Book to fully enjoy your TV.

For the best online experience, use the latest version of Firefox or Internet Explorer.

This Online Reference Book will be updated periodically.

Introduction file:///C:/Documents%20and%20Settings/noriko/Desktop/Working_Onli...

1 of 1 6/1/2009 9:13 A

Getting Started

zInstalling the TV

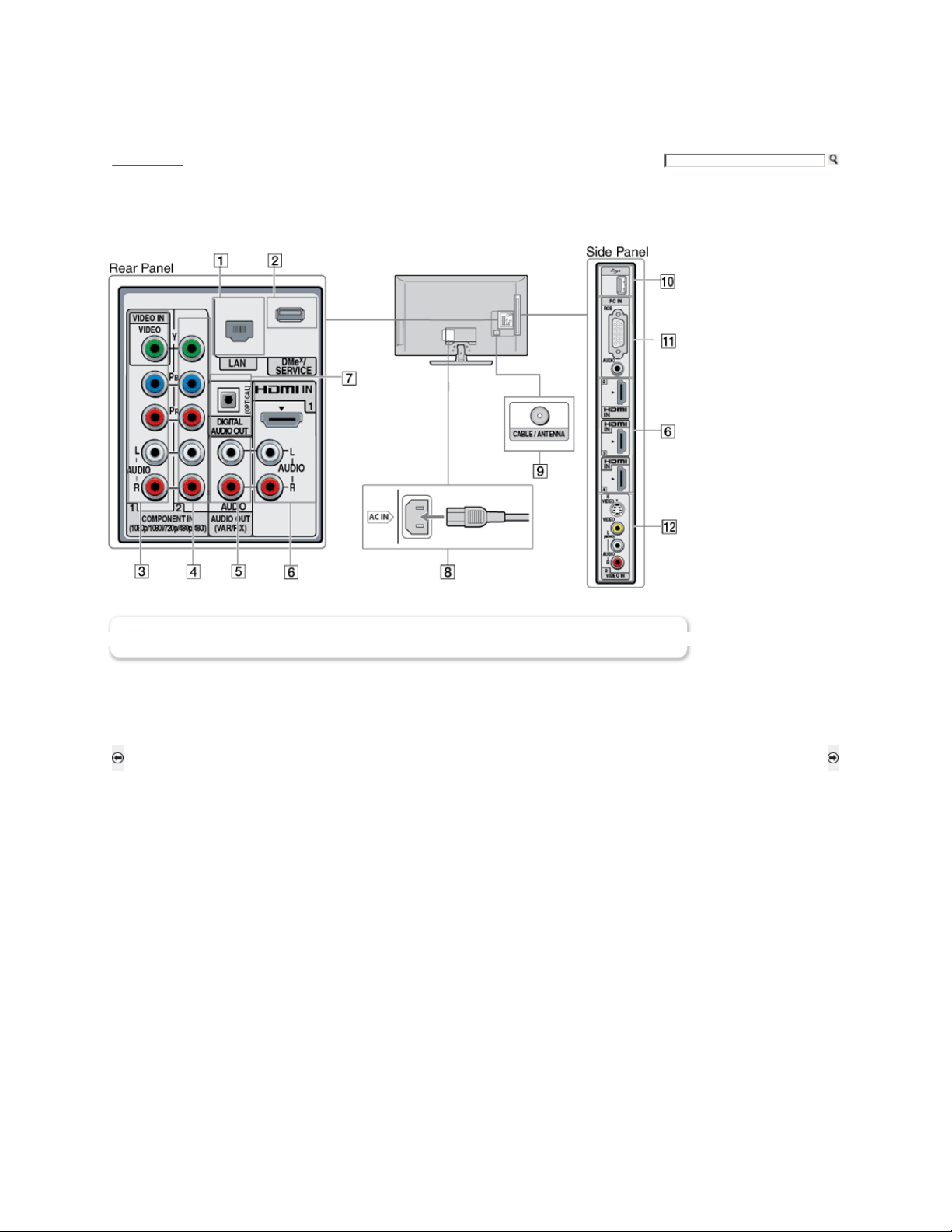

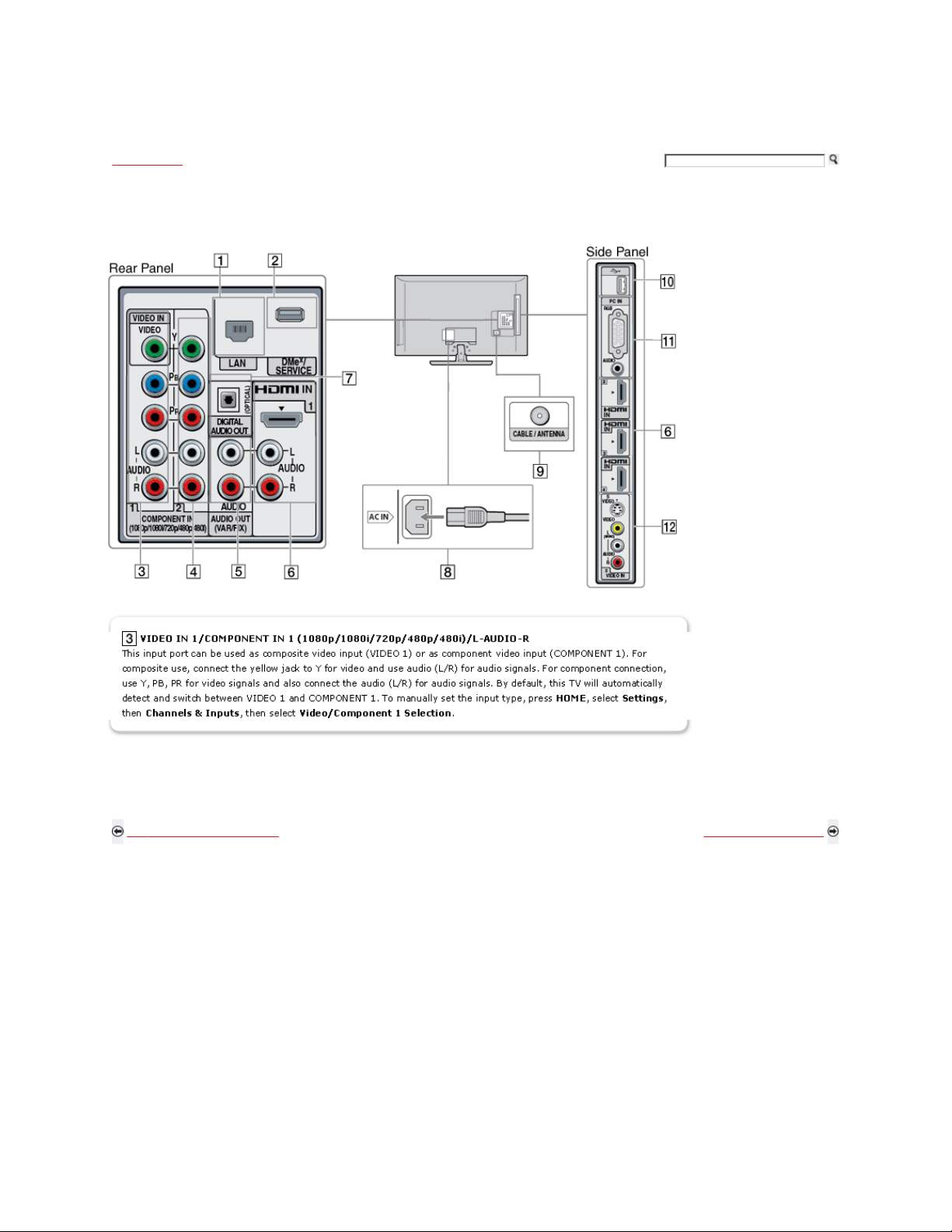

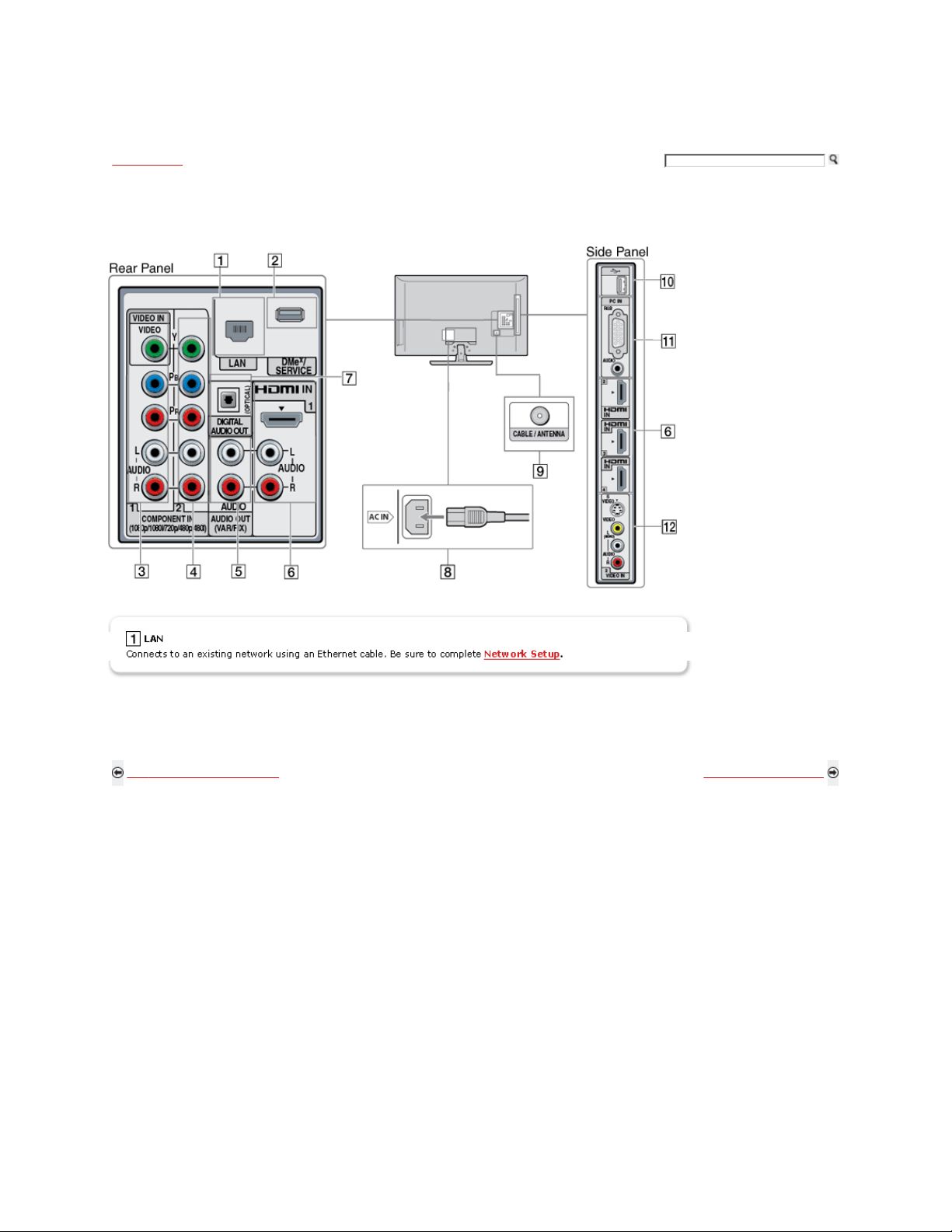

zLocating Inputs and Outputs

zConnecting the TV

zSetting Up the Channel List-Initial Setup

zNetwork Setup

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Installing the TV

Installing the TV

This TV can be mounted on a wall using a Wall-Mount Bracket or placed on a TV stand (each sold separately). This section explains:

zHow to carry the TV

zPreparation for a Table-Top stand

zUsing a Wall-Mount Bracket

zInstalling the Wall-Mount Bracket

zInstallation against a wall or enclosed area

zBundling the connecting cables

zSecuring the TV

Back to Getting Started Next to How to carry the TV

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Installing the TV > How to Carry the TV

How to Carry the TV

Some TV models are packaged with a detached Table-Top Stand so you can mount your TV to a wall right

away. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. You will need

a Phillips screwdriver and the supplied screws to complete the task. Look for the attachment instructions

provided with the TV.

Be sure to consider the following while setting up your TV:

zDisconnect all cables when carrying the TV.

zCarry the TV with the adequate number of people; larger size TVs require two or more people.

zCorrect hand placement while carrying the TV is very important for safety and to avoid damage.

zEnsure your TV has adequate ventilation.

zFor best picture quality, do not expose the screen to direct illumination or sunlight.

zAvoid installing the TV in a room with reflective wall and floor materials.

zAvoid moving the TV from a cold area to a warm area. Sudden room temperature changes may

cause moisture condensation. This may cause the TV to show poor picture and/or poor color.

Should this occur, allow moisture to evaporate completely before powering the TV on.

zBe sure to hold the bottom of the panel, and not the transparent part, speaker, or speaker grill

area. Do not compress the panel's speaker grill area.

zDo not lift the TV from the bottom center.

Back to Installing the TV Next to Preparation for Table-Top Stand

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Installing the TV > Preparation for a Table-Top Stand

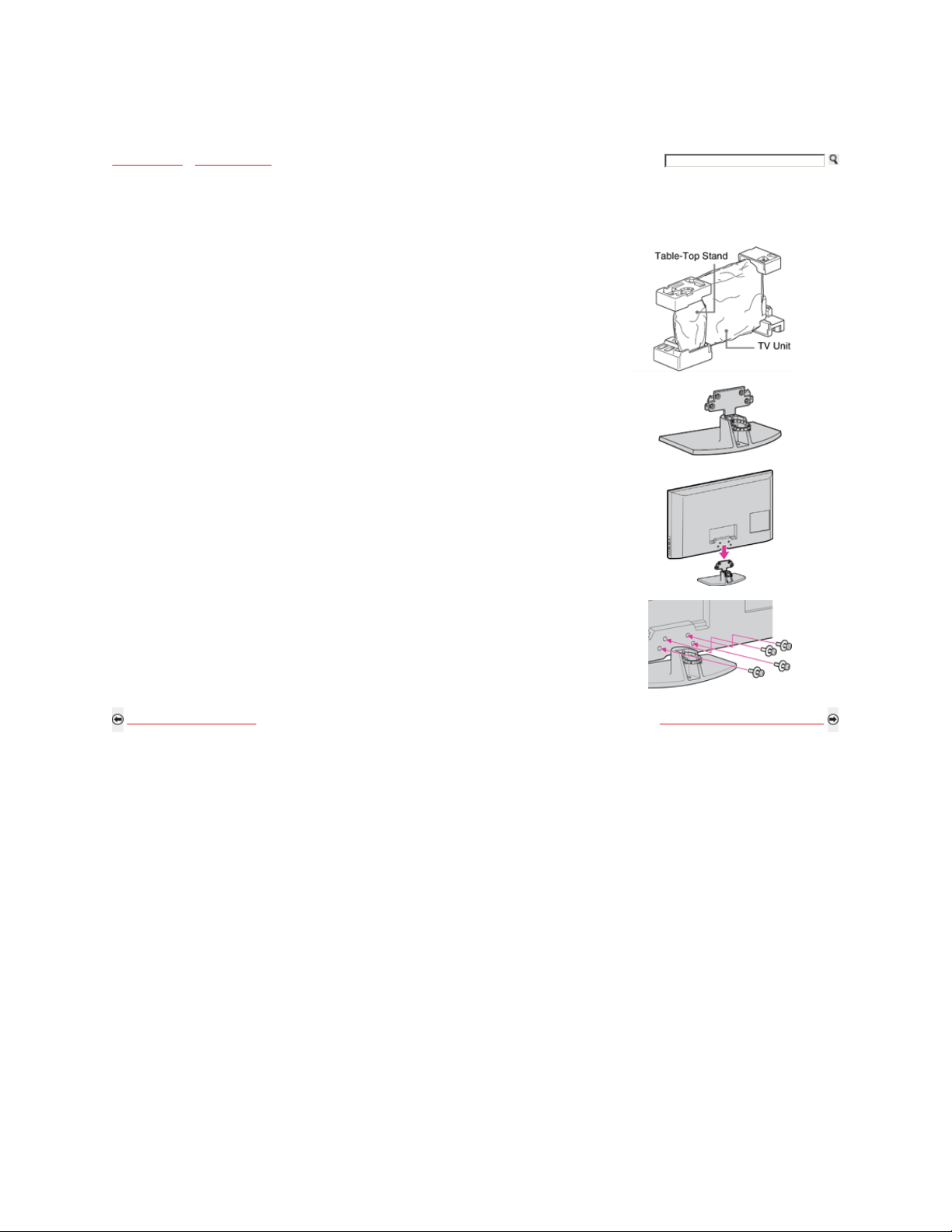

Preparation for a Table-Top Stand

Follow the assembling steps required to place on a TV stand.

1) Remove the Table-Top Stand. For product protection and safety reasons, Sony strongly recommends

that you use the screws provided with the TV.

2) Place the Table-Top Stand on a level and stable surface.

The screws are attached to the Table-Top Stand.

3) Gently slide the TV unit onto the neck of the Table-Top Stand and align the screw holes.



Do not put stress on the LCD panel or the frame around the screen.



Be careful to not pinch your hands or the AC power cord when you install the TV unit to the Table-

Top Stand.

4) Use the supplied screws to attach the TV unit to the Table-Top Stand (refer to the “Attaching the Table-

Top Stand” flyer found inside the carton). If an electric screwdriver is used, set the torque to tighten at

approximately 1.5 N·m, 15 Kgf·cm.

Back to How to Carry the TV Next to Using a Wall-Mount Bracket

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Installing the TV > Using a Wall-Mount Bracket

Using a Wall-Mount Bracket

Your TV can be mounted to a wall using the Wall-Mount Bracket (not supplied) out of the box as packaged.

Prepare the TV for the Wall-Mount Bracket before making cable connections.

Sony strongly recommends that you use the Wall-Mount Bracket model designed for your TV and that wall-mounting of your TV should be

performed by a Sony dealer or licensed contractor.

For details on how to use the Wall-Mount Bracket compatible with your model, visit www.sony.com/accessories or

call 1-800-488-7669 (United States) 1-877-899-7669 (Canada)

Follow the simple steps below to remove the Table-Top Stand:

zFollow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient

expertise is required in installing this TV, especially to determine the strength of the wall for

withstanding the TV’s weight.

zBe sure to use the screws supplied with the Wall-Mount Bracket when attaching the mounting

hooks to the TV set. (Do not use the screws that are intended for the Table-Top Stand attachment.)

The supplied M6 screws are designed so that they are 8 mm to 12 mm in length when measured

from the attaching surface of the mounting hook. Use of screws other than those supplied with the

bracket may result in internal damage to the TV set or cause it to fall, etc.

zBe sure to store the unused screws and Table-Top Stand in a safe place until you are ready to

attach the Table-Top Stand. Keep the screws away from small children.

1) Unplug the AC power cord and disconnect all the cables from the TV.

2) Secure the Mounting Hook to the rear of the TV.

3) Adjust the angle of the Mounting Hook.

4) Remove the screws on the rear of the TV (see illustration in the next column). Do not remove any other screws from the

TV.

5) When screws are removed, lift the TV off the stand. Make sure that you carry out this task with at least two or three

people. Do not attempt to lift the TV by yourself.

Back to Preparation for a Table-Top Stand Next to Installing the Wall-Mount Bracket

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Installing the TV >Installing the Wall-Mount Bracket

Installin

the Wall-Mount Bracket(Page 1 of 3)

To Customers

To Sony Dealers and Licensed Contractors

Your TV can be wall-mounted using a Wall-Mount Bracket (sold separately).

Use your TV with the Sony Wall-Mount Bracket Model number: SU-WL500

For product protection and safety, Sony strongly recommends that you use the Wall-Mount Bracket designed for your TV (SU-WL500) and wall-mounting is

performed by a Sony dealer or a licensed contractor. Do not attempt to install it yourself. Sony is not liable for any damage or injury caused by mishandling or

improper installation.

Please provide your licensed contractor with this installation information section as well as instructions supplied with the Wall-Mount Bracket.

To avoid injury and property damage, read these instructions carefully. Periodic inspection and maintenance is highly recommended to ensure that the TV is

securely mounted.

Back to Using a Wall-Mount Bracket Next to Installing the Wall-Mount Bracket (Page 2 fo 3)

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Installing the TV > Installing the Wall-Mount Bracket

Installin

the Wall-Mount Bracket(Page 2 of 3)

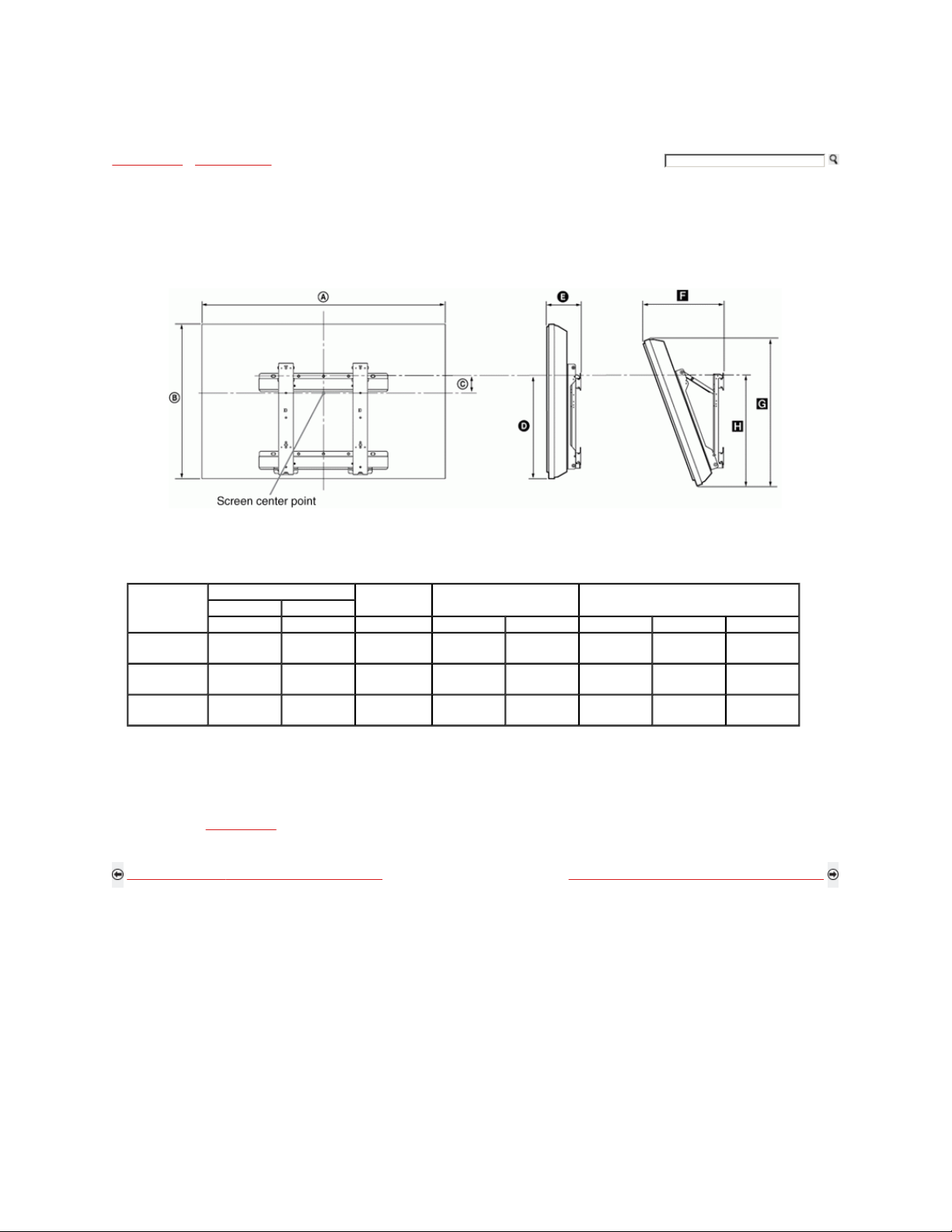

Installing the Wall-Mount Bracket and Mounting Hooks

1) Open the Wall-Mount Bracket package and check for all the required parts along with the Instructions.

2) Decide where you want to install your TV. Refer to the TV installation dimensions table.

Dimensions Table

Unit: inches (mm)

Model Name

Display Dimension Screen

center Length of Mounting

at 0 degree Length of Mounting

at 20 degree angle

width height

ABCDEFGH

KDL-40XBR9 37 3/8

(961) 22 7/8

(580) 5

(126) 16 5/8

(421) 5 3/8

(134) 12 3/8

(313) 21 5/8

(547) 17 7/8

(451)

KDL-46XBR9 43 1/8

(1,094) 25 7/8

(657) 3 1/2

(87) 16 5/8

(422) 5 3/8

(134) 13 3/8

(339) 24 3/8

(619) 17 7/8

(451)

KDL-52XBR9 49

(1,243) 29 3/8

(745) 1 13/16

(46) 16 5/8

(422) 5 3/8

(134) 14 5/8

(369) 27 7/8

(705) 17 7/8

(452)



Figures in the above table may differ slightly depending on the installation.



The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of the TV. Refer to your TV’s operating

instructions or the Specifications section of this online Reference Book for its weight.

Back to Installing the Wall-Mount Bracket (Page 1 of 3) Next to Installing the Wall-Mount Bracket (Page 3 of 3)

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Installing the TV > Installing the Wall-Mount Bracket

Installin

the Wall-Mount Bracket(Page 3 of 3)

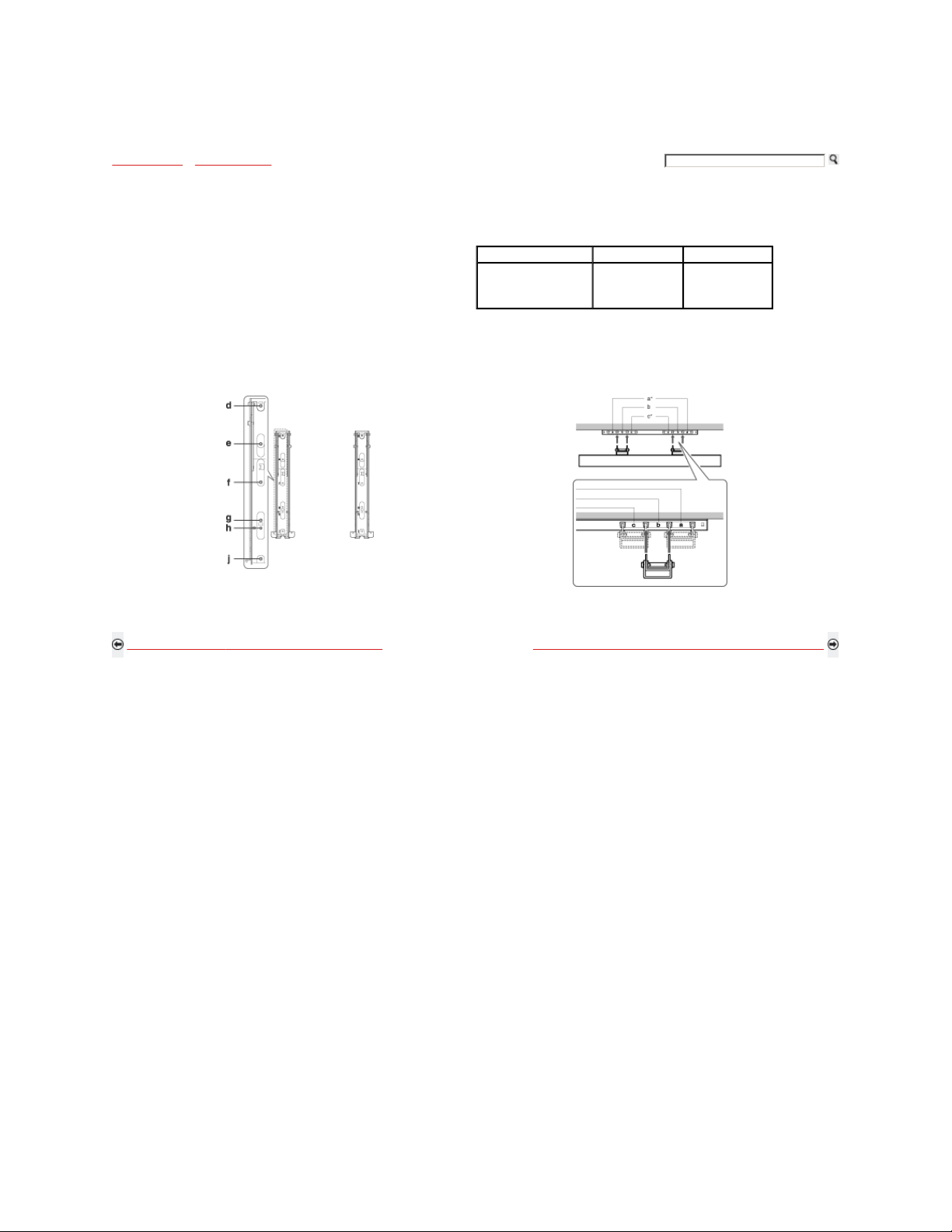

Installing the Wall-Mount Bracket and Mounting Hooks (continued)

4) Disconnect all cables and remove the Table-Top Stand. Model Name Screw Locations Hook Location

KDL-40XBR9

KDL-46XBR9

KDL-52XBR9 d, g b

5) Secure the Mounting Hook to the rear of the TV.

Determine the screw locations and secure the Mounting Hooks to the rear of

the TV. Refer to the “Screw and Hook Locations Diagram/Table” shown here.

Screw Location

When installing the Mounting Hooks on the TV

Hook Location

When installing the TV onto Base Bracket.

* Hook position “a” and “c” cannot be used for the models for XBR9 series.

Back to Installing the Wall-Mount Bracket (Page 2 of 3) Next to When Installing the TV Against a Wall or Enclosed Area

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Installing the TV > When Installing the TV Against a Wall or Enclosed Area

When Installing the TV Against a Wall or Enclosed Area

Make sure that your TV has adequate air circulation. Allow enough space around the TV as shown below.

Avoid operating the TV at temperatures below 41 °F (5 °C).

Consider the following for best picture quality

zDo not expose the screen to direct illumination or sunlight.

zUse spot lighting directed down from the ceiling or cover the windows that face the screen with opaque drapery.

zInstall the TV in a room where the floor and walls are not of a reflective material.

zWhen moving the TV from a cold area to a warm area, sudden change in room temperature may cause the TV’s picture to blur or show

poor color due to moisture condensation. Should this occur, please wait a few hours to allow the moisture to evaporate before

powering on the TV.

Installed with stand

Installed on the wall

Never install the TV set as follows:

Circulation is blocked. Circulation is blocked.



Inadequate air circulation can lead to overheating of the TV and may cause damage to your TV or cause a fire.

Back to Installing the Wall-Mount Bracket Next to Bundling the Connection Cables

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Installing the TV > Bundling the Connecting Cables

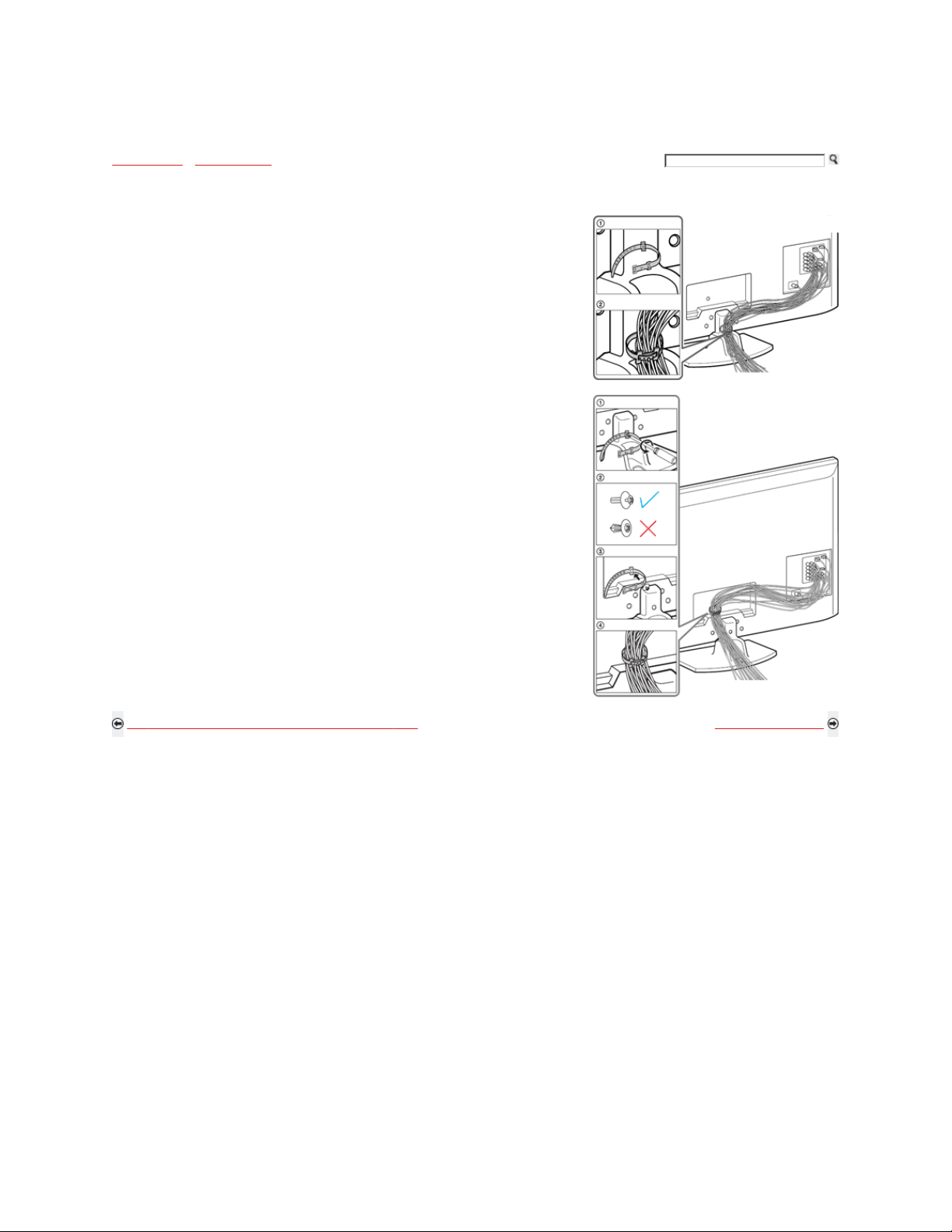

Bundling the Connecting Cables

Use the attached cable clamper to bundle the connecting cables. The cable clamper is located on the

Table-Top Stand as illustrated.

Do not bundle the AC power cord with other connecting cables. This can affect the picture quality.

When using a Wall-Mount Bracket, your connected cables can be clamped to an alternate location. Follow

the steps below.

1) Remove the cable clamper from the Table-Top Stand using a Phillips screwdriver (not supplied).

2) Make sure that the tip of the plastic fastener you removed is closed as shown in (2).

3) Locate the alternate hole to attach the cable clamper on the TV rear cover as shown in (3). Push the

fastener into the hole.

4) Bundle the cables and close the clamper.

Back to When Installing the TV Against a Wall or Enclosed Area Next to Securing the TV

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Installing the TV > Securing the TV

Securin

the TV(Page 1 of 3)

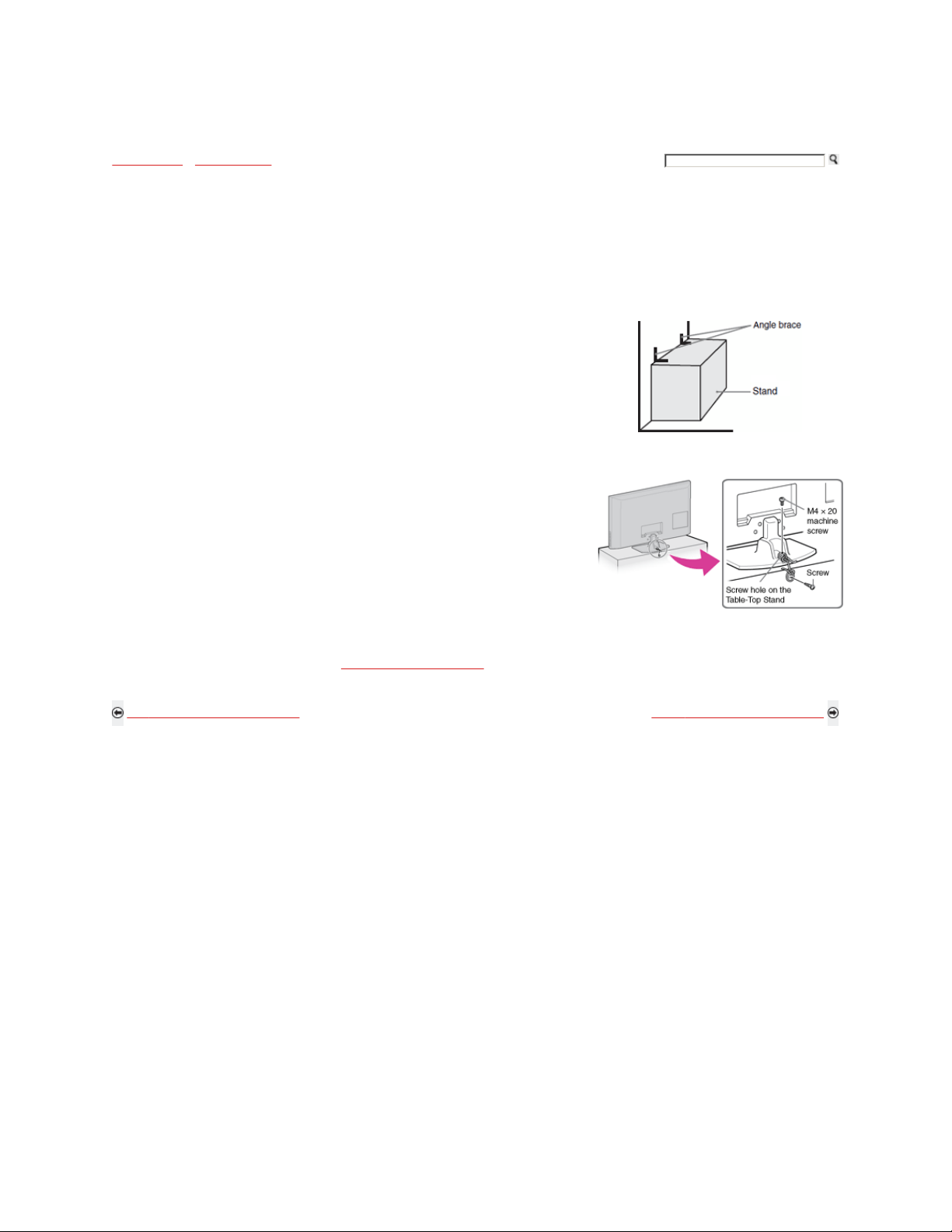

Prevent the TV from Toppling Over

Sony strongly recommends taking measures to prevent the TV from toppling over. Unsecured TVs may topple and result in property damage, serious

bodily injury or even death.

zSecure the TV to a wall and/or stand.

zDo not allow children to play or climb on furniture and TV sets.

zAvoid placing or hanging items on the TV.

zNever install the TV on:

{slippery, unstable and/or uneven surfaces.

{furniture that can easily be used as steps, such as a chest of drawers.

zInstall the TV where it cannot be pulled, pushed, or knocked over.

zRoute all AC power cords and connecting cables so that they are not accessible to curious children.

Back to Bundling the Connecting Cables Next to Securing the TV (Page 2 of 3)

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Installing the TV > Securing the TV

Securin

the TV(Page 2 of 3)

Use a Sony TV Stand

Use a Sony specified TV stand and follow the instruction manual provided with the Sony TV stand.

If a Sony specified TV stand is not used, consider the following recommended measures.

Recommended Measures to Secure the TV

Secure the Stand for the TV

Make sure the TV stand can adequately support the weight of the TV. Use two angle braces (not supplied)

to secure the stand. For each angle brace use the appropriate hardware to:

zAttach one side of the angle brace to the wall stud.

zAttach the other side to the TV stand.

Secure the TV to the Stand

Use the optional hardware listed below (not supplied):

zM4 × 20 machine screw (screwed into the TV’s Table-Top Stand)

zA screw or similar (attach it to the TV stand)

zRope or chain (strong enough to support the weight of the TV). Make sure that

there is no excess slack in the rope or chain.

An alternative way to secure the TV is with an optional Sony Support Belt Kit.



Contact Sony Customer Support to purchase the optional Support Belt Kit by providing your TV model name.



For United States call: 1-800-488-7669 or visit: www.sony.com/accessories



For Canada call: 1-877-899-7669

Back to Securing the TV (Page 1 of 3) Next to Securing the TV (Page 3 of 3)

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Installing the TV > Securing the TV

Securin

the TV(Page 3 of 3)

Anchor the TV to the Wall

Use the hardware listed below (not supplied):

zTwo M6 ×14 mm anchor bolts (screw into the top-most wall-mount holes located on the rear of the

TV)

zRope or chain (attach to one M6 anchor bolt)

zWall-anchor (attach to the wall stud) strong enough to support the weight of the TV (pass the rope

through the wall-anchor, then attach to the other M6 anchor bolt)



Securing the TV to the stand without securing the TV and the stand to the wall provides minimum

protection against the TV toppling over. For further protection, be sure to follow the three measures

recommended.

Back to Securing the TV (Page 2 of 3) Next to Locating Inputs and Outputs

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Locating Inputs and Outputs

Locating Inputs and Outputs

Click on a number to view that feature's description.

Click a number on the diagram for more information.



An HDMI or Component video (YPBPR) connection is required to view 480i, 480p, 720p, 1080i and 1080p video formats. The 1080/24p video format is

available only with HDMI connection. This TV displays all video input signals in a resolution of 1,920 dots × 1,080 lines.

Back to Securing the TV (Page 3) Next to Connecting the TV

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Locating Inputs and Outputs

Locating Inputs and Outputs

Click on a number to view that feature's description.



An HDMI or Component video (YPBPR) connection is required to view 480i, 480p, 720p, 1080i and 1080p video formats. The 1080/24p video format is

available only with HDMI connection. This TV displays all video input signals in a resolution of 1,920 dots × 1,080 lines.

Back to Securing the TV (Page 3) Next to Connecting the TV

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Locating Inputs and Outputs

Locating Inputs and Outputs

Click on a number to view that feature's description.



An HDMI or Component video (YPBPR) connection is required to view 480i, 480p, 720p, 1080i and 1080p video formats. The 1080/24p video format is

available only with HDMI connection. This TV displays all video input signals in a resolution of 1,920 dots × 1,080 lines.

Back to Securing the TV (Page 3) Next to Connecting the TV

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Locating Inputs and Outputs

Locating Inputs and Outputs

Click on a number to view that feature's description.



An HDMI or Component video (YPBPR) connection is required to view 480i, 480p, 720p, 1080i and 1080p video formats. The 1080/24p video format is

available only with HDMI connection. This TV displays all video input signals in a resolution of 1,920 dots × 1,080 lines.

Back to Securing the TV (Page 3) Next to Connecting the TV

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Getting Started > Locating Inputs and Outputs

Locating Inputs and Outputs

Click on a number to view that feature's description.



An HDMI or Component video (YPBPR) connection is required to view 480i, 480p, 720p, 1080i and 1080p video formats. The 1080/24p video format is

available only with HDMI connection. This TV displays all video input signals in a resolution of 1,920 dots × 1,080 lines.

Back to Securing the TV (Page 3) Next to Connecting the TV

Tell us your opinion about this online reference book.

Getting Started Operating the TV Exploring Fun Features TV Home Menu Other Information Specifications

Other manuals for BRAVIA KDL-40XBR9

This manual suits for next models

Table of contents

Other Sony TV manuals

Sony

Sony KV-HR36M31 User manual

Sony

Sony Bravia XR-75X90J User manual

Sony

Sony Wega KE-MR50 User manual

Sony

Sony Trinitron KV-AR29 User manual

Sony

Sony KDL-32U2520 User manual

Sony

Sony BRAVIA KD-75Z9F User manual

Sony

Sony KV-XA29K94 User manual

Sony

Sony Bravia KD-55X7007G User manual

Sony

Sony KV-29LS30E User manual

Sony

Sony BRAVIA KD-100Z9D Manual

Sony

Sony TRINITRON KV-27V40 User manual

Sony

Sony Trinitron KV-XA29 User manual

Sony

Sony BRAVIA KDL-48W700C User manual

Sony

Sony Bravia KDL-65W859C User guide

Sony

Sony Trinitron KV-28DS60U User manual

Sony

Sony Bravia KLV-S19A10E User manual

Sony

Sony Bravia KDL-75W850C User guide

Sony

Sony Trinitron KV-27S35 User manual

Sony

Sony Trinitron WEGA KV-DZ29 User manual

Sony

Sony KV-32S65 User manual

Sony

Sony XBR-65X900B User manual

Sony

Sony KV-AR252M61 Trinitron User manual

Sony

Sony KV-EF34N90 User manual

Sony

Sony Bravia KD-55X80K User manual

Popular TV manuals by other brands

Hisense

Hisense ES-A20020K-1 Quick setup guide

RCA

RCA J13800CL Specifications

Curtis

Curtis LCD2425A instruction manual

LEGRAND

LEGRAND SANUS CCSTVK owner's guide

Daewoo

Daewoo DTW-28W2 Series instruction manual

Panasonic

Panasonic Viera TC-55LE54 owner's manual

Zenith

Zenith Concierge H20D35DT Installation and operating guide, warranty

Panasonic

Panasonic TX-25LK10F operating instructions

Zenith

Zenith SENTRY 2 Z25A65 Operating guide & warranty

Panasonic

Panasonic TX-W28R4 operating instructions

Hisense

Hisense 32D20 Quick setup guide

Salora

Salora 24HSB2704 operating instructions

Panasonic

Panasonic Viera TH-42PX75 operating instructions

Memorex

Memorex MT2274A Service manual

Samsung

Samsung The Sero LS05T user manual

JVC

JVC I' Art AV-27F802 user guide

Philips

Philips 55PFT6609 user manual

Panasonic

Panasonic CT-20L8 operating instructions

Sony BRAVIA KDL-40XBR9 User manual

Popular TV manuals by other brands
