Sony FD Trinitron Wega KV-AR29 User manual

Trinitron Color TV
© 2002 Sony Corporation
KV-AR29
KV-AR25
M81A
4-092-810-12 (1)
Operating Instructions
• Before operating the unit, please read this manual thoroughly and retain
it for future reference.
GB

2

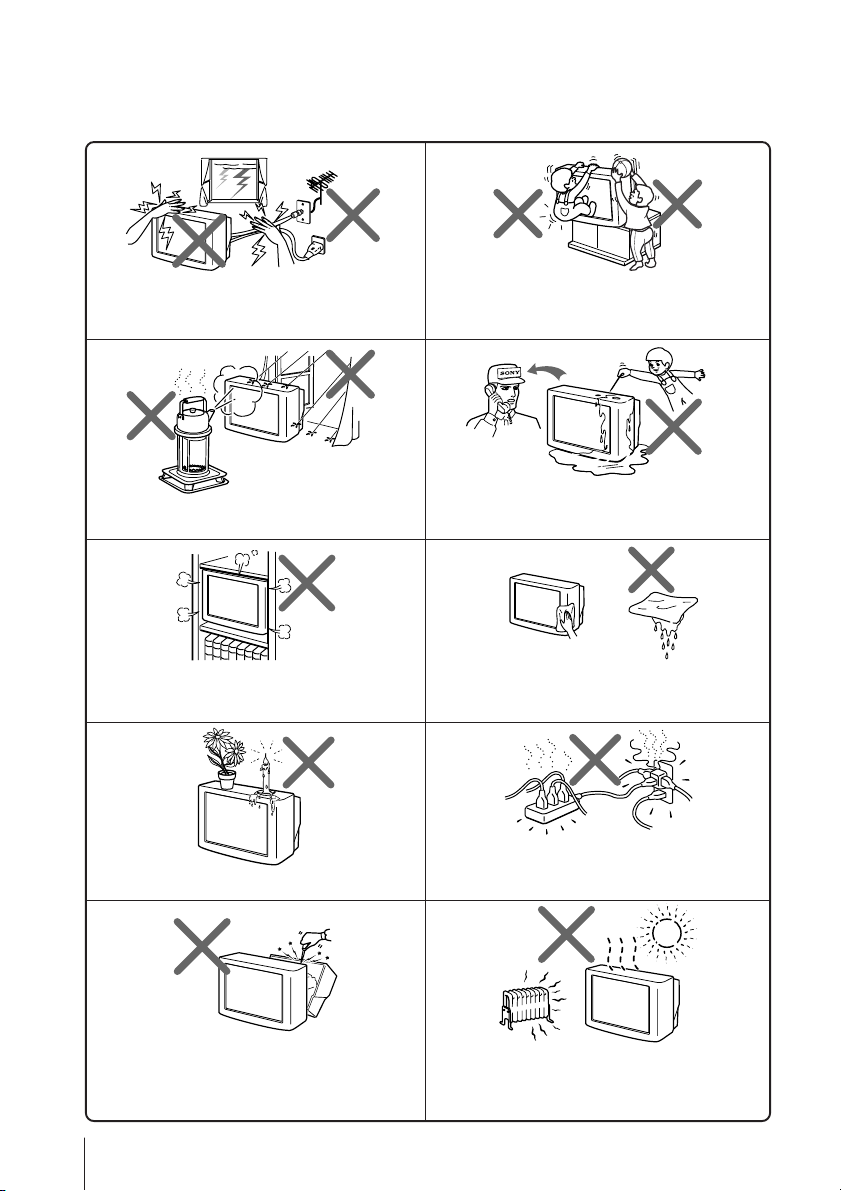

WARNING
• Dangerously high voltages are present inside the TV.
• Operate the TV only between 110 – 240 V AC.
To prevent fire or shock hazard, do not expose
the TV to rain or moisture.
Do not operate the TV if any liquid or solid object
falls into it. Have it checked immediately by
qualified personnel only.
Do not open the cabinet and the rear cover of the
TV as high voltages and other hazards are
present inside the TV. Refer servicing and
disposal of the TV to qualified personnel.
Your TV is recommended for home use only.
Do not use the TV in any vehicle or where it may
be subject to excessive dust, heat, moisture or
vibrations.
Do not block the ventilation openings of the TV.
Do not install the TV in a confined space, such
as a bookcase or built-in cabinet.
For children’s safety, do not leave children alone
with the TV. Do not allow children to climb onto
it.
Do not plug in too many appliances to the same
power socket. Do not damage the power cord.
Clean the TV with a dry and soft cloth.
Do not use benzine, thinner, or any other chemicals
to clean the TV. Do not scratch the picture tube.
For your own safety, do not touch any part of the
TV, the power cord and the antenna cable during
lightning storms.
Do not place any objects on the TV.

3
Using Your New TV
WARNING (continued)
Pull the power cord out by the plug. Do not pull
the power cord itself. Even if your TV is turned
off, it is still connected to the AC power source
(mains) as long as the power cord is plugged in.
Unplug the TV before moving it or if you are not
going to use it for several days.
Install the TV on a stable TV stand and floor
which can support the TV set weight. Ensure that
the TV stand surface is flat and its area is larger
than the bottom area of the TV.
GB
Table of Contents
Using Your New TV
Getting Started ............................................................................................. 4
Step 1: Connect the antenna ................................................................. 4
Step 2: Insert the batteries into the remote ......................................... 5
Step 3: Preset the channels automatically .......................................... 5
Connecting optional components ............................................................. 6
Securing the TV ............................................................................................ 8
Presetting channels ...................................................................................... 9
Watching the TV ........................................................................................ 12
Advanced Operations
Customizing the picture and sound ....................................................... 15
Viewing your favorite channels ............................................................... 18
Blocking the channels (CHILD LOCK) .................................................. 19
Viewing Teletext ......................................................................................... 20
Additional Information
Self-diagnosis function.............................................................................. 22
Troubleshooting ......................................................................................... 23
Overview of controls ................................................................................. 26
Specifications .............................................................................. Back cover

Using Your New TV
4
Getting Started
Step 1
Connect the antenna
If you wish to connect a VCR, see the Connecting a VCR diagram below.
Using Your New TV
IEC connector
(not supplied)
To video and
audio outputs
VCR
(yellow)
-L (MONO) (white)
-R (red)
Antenna cable (not supplied)
Audio/Video cable
(not supplied)
To antenna
output
Rear of TV
Rear of TV
Connecting a VCR
To watch the video input, press t(see page 13).
: Signal flow
VIDEO
VIDEO IN
VIDEO OUT
AUDIO
RL
12
RLYC
B C R
To 8
(antenna
input)
To t1 or 2
(video input)
: Signal flow
or
Antenna cable (not supplied)
Antenna cable (not supplied)
To S video
output
S video cable
(not supplied)
To
(S video input)

Using Your New TV
Using Your New TV
5
Front of TV

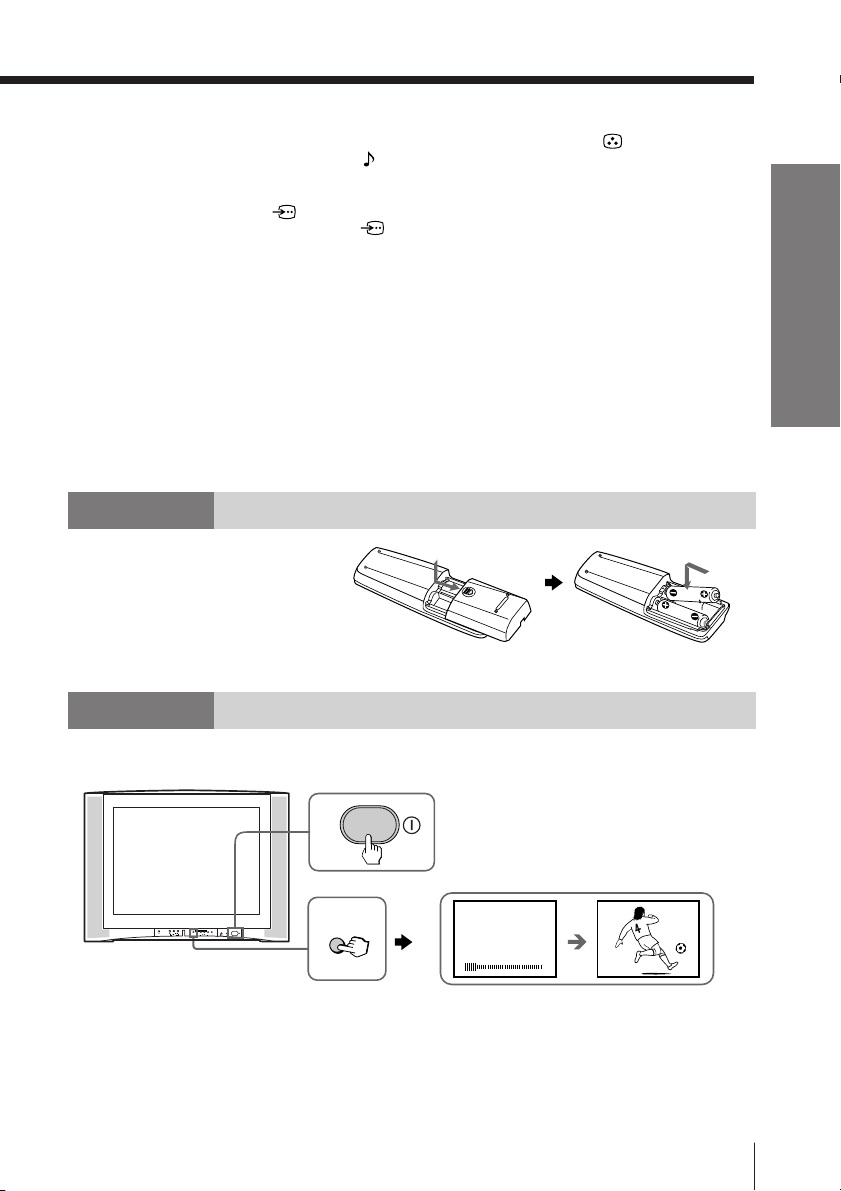

Step 3
Preset the channels automatically
Tips
• If you want to stop automatic channel presetting, press SELECT twice.
• If your TV has preset an unwanted channel or cannot preset a particular
channel, then preset your TV manually (see page 10).
Note
• During automatic channel presetting, your TV screen will indicate “B/G” ,
“I”, “D/K” or “M” for the TV system (“TV SYS”).
Notes
• If you connect a monaural VCR, connect the yellow plug to (the yellow jack)
and the black plug to -L (MONO) (the white jack).
• If you connect a VCR to the 8(antenna input) terminal, preset the signal output
from the VCR to the program number 0 on the TV.
• If both (S video input) and t1 (video input) at the rear of your TV are input
at the same time, the (S video input) is automatically selected. To view the
video input to t1 (video input), disconnect the S video cable.
• Do not connect video equipment to the t2 (video input) jacks at the front and the
rear of your TV at the same time; otherwise the picture will not be displayed
properly on the screen.
• When no signal is input from the connected video equipment, the TV screen
becomes blue.
CAUTION
• Do not plug in the power cord until you have completed making all other
connections; otherwise a minimum leakage current might flow through the
antenna and other terminals to ground.
• To avoid battery leakage and damage to the remote, remove the batteries from
the remote if you are not going to use it for several days. If any liquid that leaks
from the batteries touches you, immediately wash it away with water.
Step 2
Note
• Do not use old batteries nor use different types of batteries together.
Insert the batteries
into the remote
AUTO
PROGR
1
VHF LOW B/G
2
1
PROGRSELECT AUTO
PROGR
ENTER SELECT
1
2
L(MONO) R

Using Your New TV
6

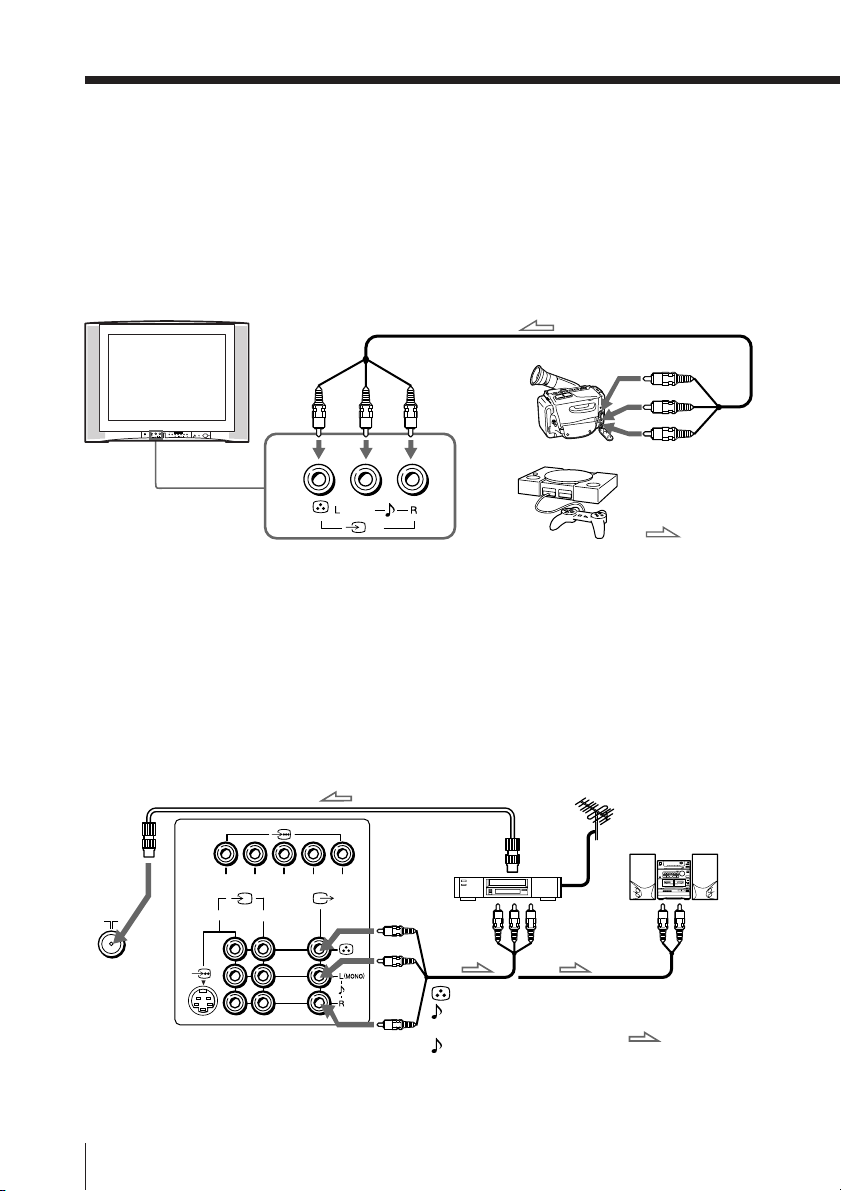

Connecting optional components
You can connect optional audio/video components, such as a VCR, multi disc player,
camcorder, video game or stereo system.
To watch the video input of the connected equipment, press t(see page 13).
Connecting a camcorder/video game equipment
using the t(video input) jacks
Notes
• You can also connect video equipment to the t1 or 2 (video input) jacks
at the rear of your TV.
• Do not connect video equipment to the t2 (video input) jacks at the
front and the rear of your TV at the same time; otherwise the picture will
not be displayed properly on the screen.
Connecting audio/video equipment using the T
(monitor output) jacks
Note
• If you select “DVD” on your TV screen, the signal from the T(monitor
output) jacks will not be output properly. This does not indicate a
malfunction.
12
RLYC
B C R
2
(MONO)
PROGRSELECT AUTO
PROGR
ENTER SELECT
2
L(MONO) R
Front of TV
Camcorder
Video game
equipment
To video and
audio outputs
(yellow)
-L (MONO)
(white)
-R (red)
Rear of TV
To
antenna
output
To video and
audio inputs
Audio system
To
audio
inputs
VCR
: Signal flow
: Signal flow
To t2
(video input)
To T
(monitor
output)
or
Audio/Video cable (not supplied)
Antenna cable (not supplied)
Audio/Video cable
(not supplied)
or

Using Your New TV
Using Your New TV
7
DVD player
To
L (white)
R (red)
Audio cable
(not supplied)
To component
video output
Component video cable
(not supplied)
To audio
output
: Signal flow
To
(component
video input)
Connect To (on the DVD player)
Y (green) Y
CB(blue) Cb, B-Y or PB
CR(red) Cr, R-Y or PR
Rear of TV
VIDEO
R-AUDIO-L
LINE OUT
Y
COMPONENT VIDEO OUT
S VIDEO OUT
C B C R
R L Y C B C R
Connecting a DVD player using the (component video
input) jacks
1 Connect R and L under (component video input) on your TV to the LINE OUT,
AUDIO R and L output connectors on your DVD player.
2 Using a component video cable, connect Y, CB, and CRunder (component video
input) on your TV to the COMPONENT VIDEO OUT Y, CB, and CRoutput
connectors on your DVD player.
Notes
• If your DVD player can output interlace and progressive mode signals,
select the interlace output when connecting to (component video
input) on your TV. Your TV can receive either 525i/60Hz or 625i/50Hz
interlace signals.
• Some DVD player terminals may be labeled differently:
• Since the high quality pictures on a DVD disc contain a lot of information,
picture noise may appear. In this case, adjust the sharpness (“SHARP”)
(see page 16).

Using Your New TV
8
Securing the TV
To prevent the TV from falling, use the supplied screws, clamps and band to
secure the TV.
20 mm
3.8 mm
screws clamps band
Screw the band to the TV stand and to the
provided hole at the rear of your TV.
(1) Put a cord or chain through the clamps.
(2) Screw one clamp to a wall or pillar and
the other clamp to the provided hole at
the rear of your TV.
(1) Attach each end of a cord or chain to
the provided holders at the rear of
your TV.
(2) Securely fix the attached cord or chain
to a wall or pillar using an attachment
which can support the TV set weight.
Note
• Use only the supplied screws. Use of other screws may damage the TV.
or
or

Using Your New TV
Using Your New TV
9
Presetting
channels

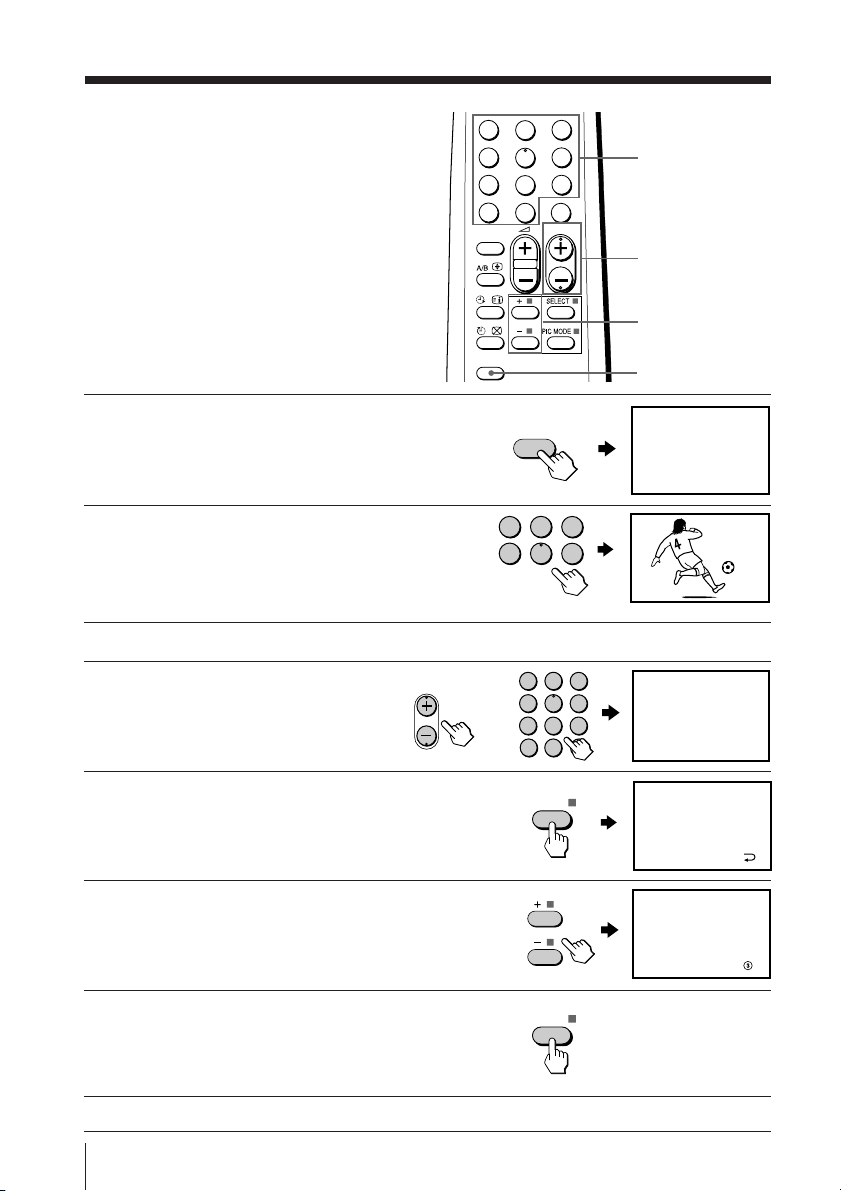

You can preset up to 100 TV channels in
numerical sequence from program
number 1 using the remote and the
buttons on your TV as well.
Presetting channels automatically
1Press !to turn on the TV.
2Press AUTO PROGR.
Note
• During automatic channel presetting, your TV screen will indicate “B/G” ,
“I”, “D/K” or “M” for the TV system (“TV SYS”).
To preset channels automatically from a specified program number
(1) Press SELECT until “AUTO PROGRAM” appears.
(2) Press + or – to enter the “AUTO PROGRAM” mode.
The on-screen display will start flashing.
(3) Press PROGR +/– or the number buttons until the desired program number
appears.
(4) Press + or – to start presetting channels automatically.
TV
123
46
789
-/--
0
5
JUMP
SOUND
MODE
FAVORITE
PROGR
?/1
Number buttons
SELECT
2+/–
PROGR +/–
+ or –
PIC MODE
VHF LOW B/G
AUTO
PROGR
AUTO
PROGR
PROGRSELECT AUTO
PROGR
ENTER SELECT
2
L(MONO) R
continued

Using Your New TV
10
Presetting channels (continued)
1
123
456
78
0
-/--
9
PROGR

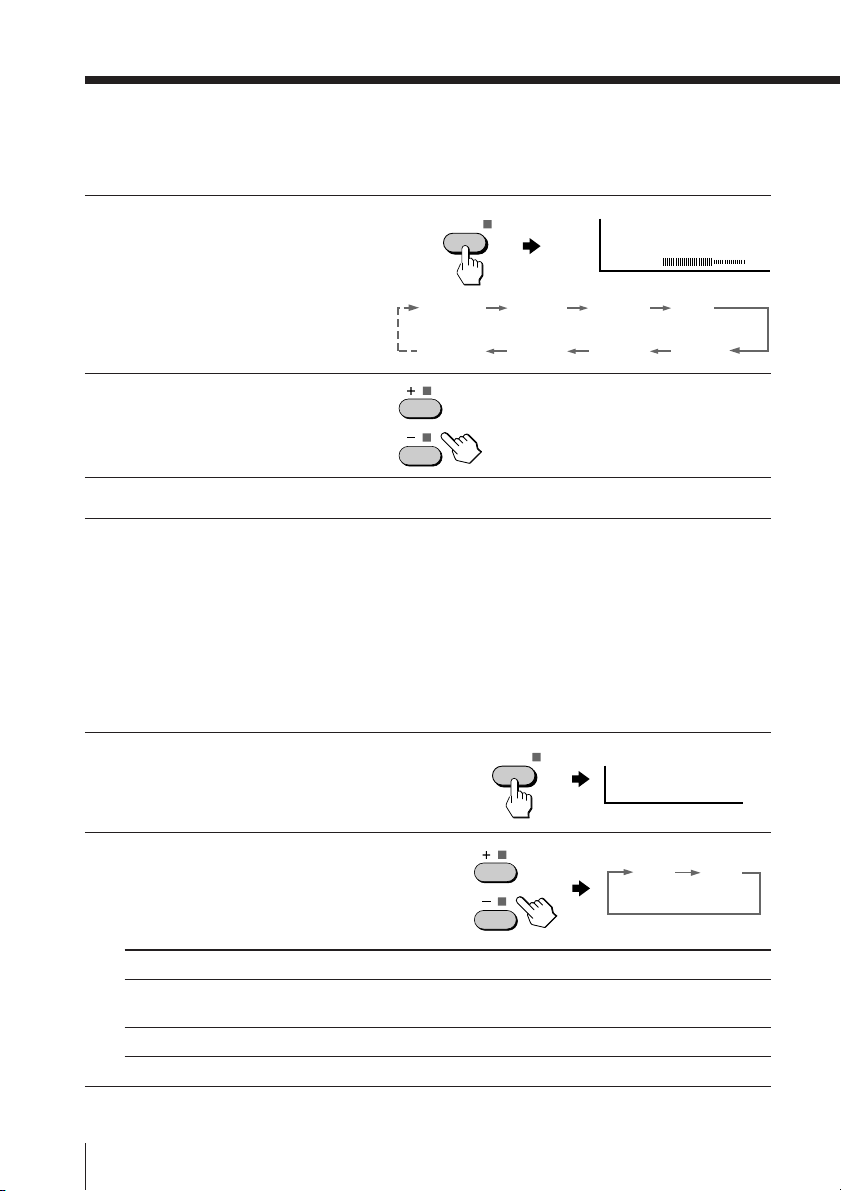

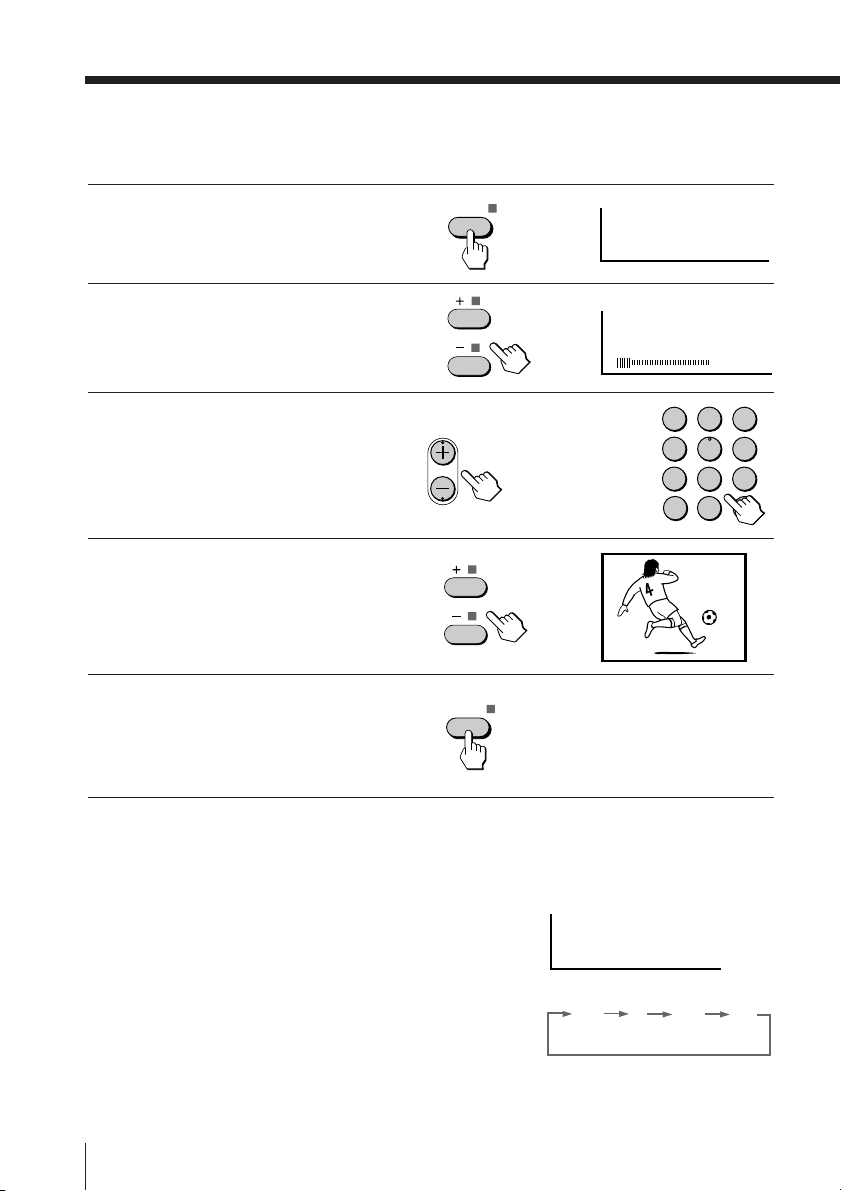

Presetting channels manually
1Press SELECT until
“MANUAL PROGRAM”
appears.
2Press + or – to enter the
“MANUAL PROGRAM”
mode.
3Press PROGR +/– or the
number buttons until the
desired program number
appears.
4Press + or – until the
desired channel picture
appears.
5Press SELECT to exit the
“MANUAL PROGRAM”
mode.
To change the TV system setting
If the picture or sound is abnormal when receiving programs through the 8 (antenna
input) terminal
(1) Press SELECT until “TV SYS” appears.
(2) Press + or – to select the appropriate
TV system until the picture or sound
quality is optimal.
B/G ID/KM
VHF LOW B/G
TV SYS: B/G
b
MANUAL PROGRAM
SELECT
SELECT
b
b
or

Using Your New TV
Using Your New TV
11

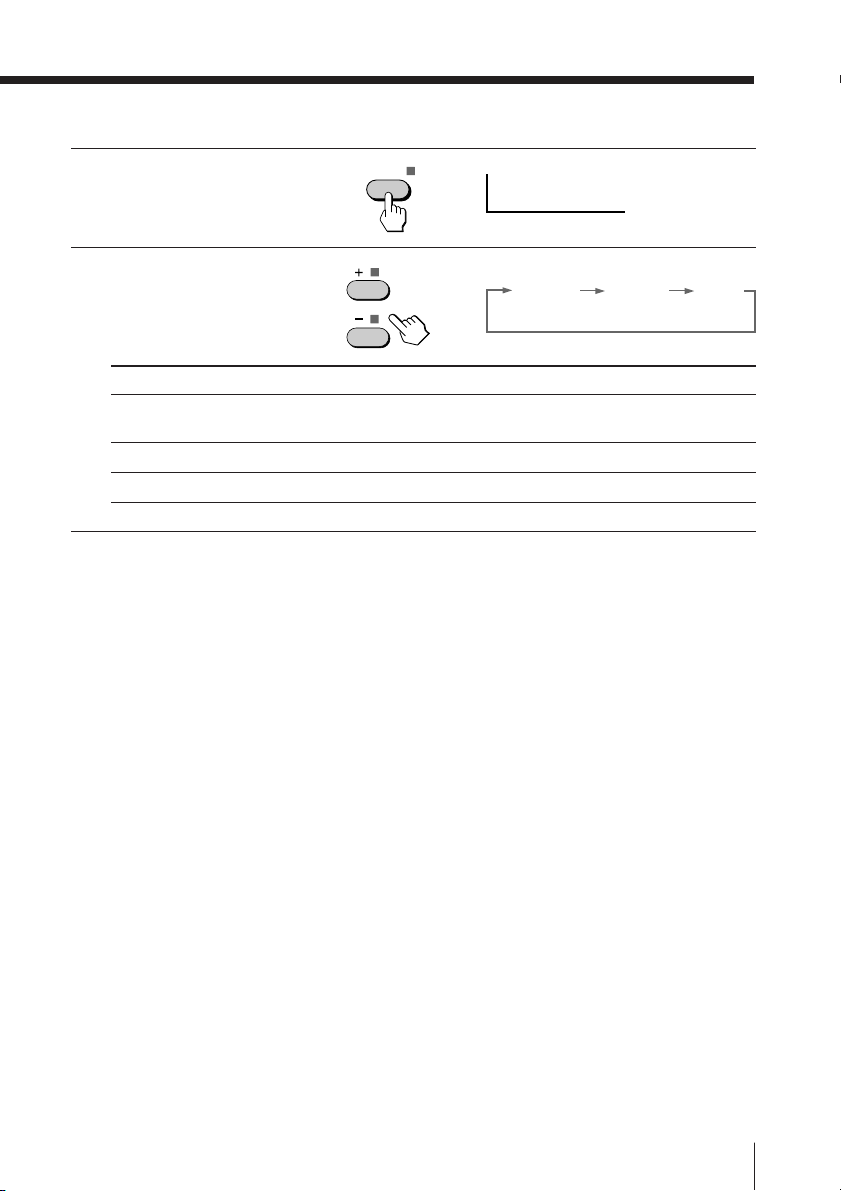

To change the color system setting
If the color is abnormal when receiving programs through the 8 (antenna input)
terminal or the
t (video input) jack.
(1) Press SELECT until “COLOR SYS” appears.
(2) Press + or – to select the appropriate
color system until the color is
optimal.
Tip
• Normally set “COLOR SYS” to “AUTO”.
Skipping program numbers
1Press PROGR +/– or the number buttons until the unused or unwanted
program number appears.
2Press SELECT until “MANUAL PROGRAM” appears.
3Press + or – to enter the “MANUAL PROGRAM” mode.
4Press PIC MODE.
5Press SELECT to exit the “MANUAL PROGRAM” mode.
To restore the skipped program number again
Preset the channel automatically or manually.
Tip
• You can also use SELECT and 2+/– on the TV to preset channels and
skip program numbers.
To use the fine tuning (FINE) function
The fine tuning (FINE) function may help to reduce the following problems:
incomplete Teletext display double images and lines moving across the TV screen.
You can use the fine tuning function as below:
(1) Select the program number you want to adjust.
(2) Press SELECT until “MANUAL PROGRAM” appears on the screen.
(3) Press + or – on the remote control.
(4) Press to display “FINE” on the screen.
(5) Press + or – continuously until the above problems are minimized.
The + or – icon on the screen flashes while tuning.
(6) Press SELECT to return to normal screen.
COLOR SYS: AUTO
AUTO PAL SECAM
NTSC 3.58NTSC 4.43

Using Your New TV
12
Watching the TV
This section explains functions used
while watching the TV. Most operations
can be done using the remote.
1Press !to turn on the TV.
When the TV is in the
standby mode (the 1
indicator on the TV is lit
red), press ?/1 on the
remote or PROGR +/– on
the TV.
2Press PROGR +/– or the
number buttons to select
the program number.
For double digit numbers,
press -, then the number
(e.g., for 25, press -, then
2 and 5).
3Press 2+/– to adjust the
volume.
%
?/1
t
a
Number buttons
SELECT
2+/–
PROGR +/–
+ or –
JUMP
or
4
L(MONO) R
PROGRMENU AU TO
PROGR
ENTER SELECT
TV
123
46
789
0
5
JUMP
SOUND
MODE
FAVORITE
PROGR
-/--
123
456
78
0
-/--
9
PROGR
1
indicator

Using Your New TV
Using Your New TV
13
To
Turn off temporarily
Turn off completely
Mute the sound
Watch the video input
(VCR, camcorder, etc.)
Jump back to the previous program
number
Display the on-screen information*
Adjust the volume of all
program numbers automatically
Adjust the picture position when it
is not aligned to the TV screen
Press
?/1. The 1indicator on the TV lights up red.
!on the TV.
%.
tto select “VIDEO 1”, “VIDEO 2” or “DVD”.
To return to the TV program, press a.
JUMP.
.
SELECT repeatedly until “INTELLIGENT VOL”
appears, then press + or – to select “ON”.
To cancel, select “OFF”.
SELECT repeatedly until “PIC ROTATION” appears,
then press + or – to adjust the alignment of the picture
position.
The or icon on the screen flashes while
adjusting.
Additional tasks
* The picture, sound, and either the program number or video input are
displayed. The on-screen display for the picture and sound information
disappears after about three seconds.
Changing the on-screen display language
1Press SELECT until
“LANGUAGE / :
ENGLISH”appears on the
screen.
2Press + or – to select
““.
Tip
• You can also use SELECT and 2+/– on the TV to select the on-screen
display language.
PIC ROTATION
continued
LANGUAGE / : ENGLISH
SELECT
LANGUAGE / :

Using Your New TV
14
Setting the Wake Up timer
1Press until the desired
period of time appears.
The Wake Up timer starts
immediately after you have
set it.
2Select the program number or video input you want to display when you
wake up.
3Press ?/1 or set the Sleep timer if you want the TV to turn off automatically.
The indicator on the TV lights up orange when the TV goes into standby
mode.
To cancel the Wake Up timer
Press until “WAKE UP TIMER: OFF” appears or turn off the TV’s
main power.
Note
• If no buttons or controls are pressed for more than two hours after the TV
is turned on using the Wake Up timer, the TV automatically goes into the
standby mode. To continue watching the TV, press any button or control
on the TV or the remote.
Setting the Sleep timer
Press until the desired
period of time appears.
The Sleep timer starts
immediately after you have
set it.
To cancel the Sleep timer
Press until “SLEEP TIMER: OFF” appears or turn the TV off.
WAKE UP TIMER:10M
WAKE UP TIMER:OFF WAKE UP TIMER:12H00M
After 10 minutes
No Wake Up timer After 12 hours
SLEEP TIMER:30M SLEEP TIMER:60M
SLEEP TIMER:OFF SLEEP TIMER:90M
After 30 minutes
No Sleep Timer
After 60 minutes
After 90 minutes
Watching the TV (continued)

Advanced Operations 15
Advanced Operations

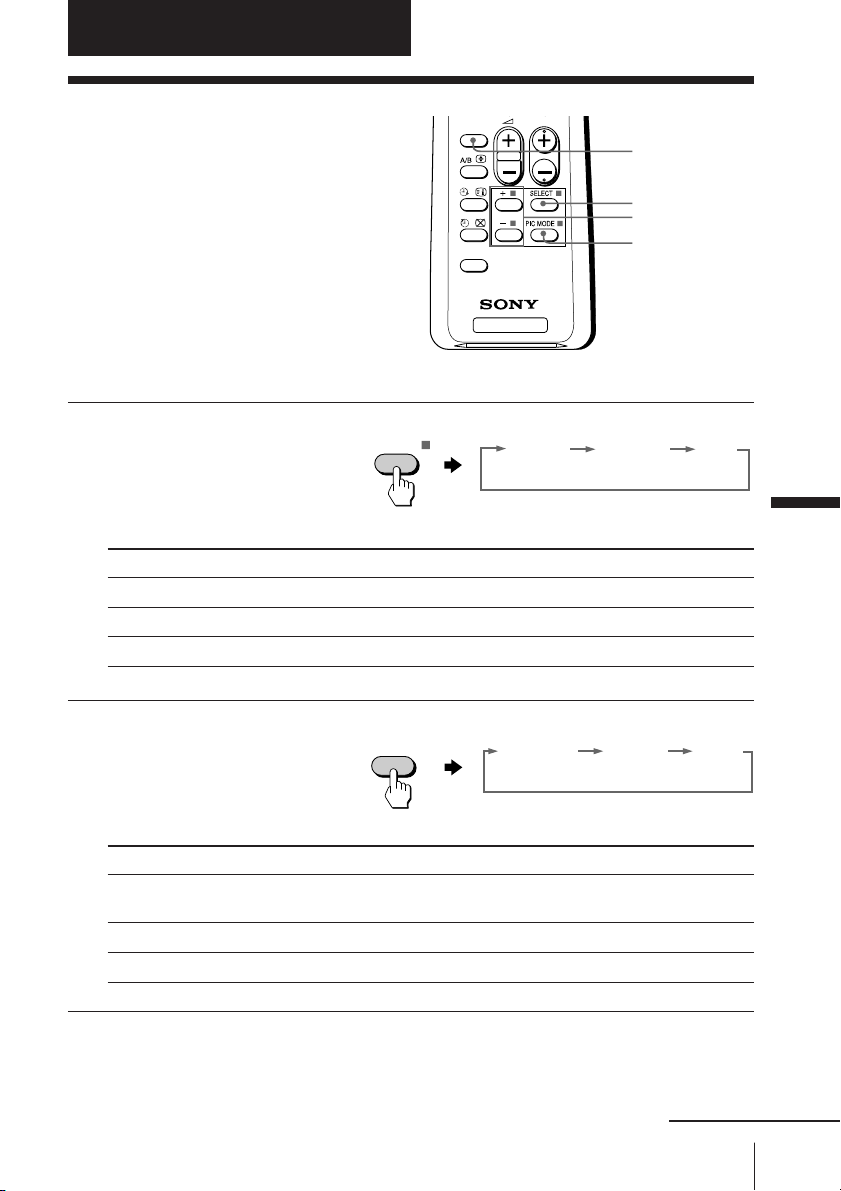

SOUND MODE
Customizing the
picture and sound
You can customize the picture and
sound by selecting the picture and
sound modes or by adjusting its
settings.
You can change the sound effect by
selecting the surround mode.
Selecting the picture and sound modes
To select the picture mode
Press PIC MODE
repeatedly until you get
the desired picture mode.
Select To
“DYNAMIC” view high contrast pictures.
“STANDARD” view normal contrast pictures.
“SOFT” view mild pictures.
To select the sound mode
Press SOUND MODE
repeatedly until you get
the desired sound mode.
Select To
“DYNAMIC” listen to dynamic and clear sound that emphasizes the low and
high sound.
“DRAMA” listen to sound that emphasizes vocals and background music.
“SOFT” listen to soft sound.
PIC MODE
SELECT
+ or –
TV
0
SOUND
MODE
FAVORITE
PROGR
STANDARDDYNAMIC SOFT
PIC MODE
≥DYNAMIC ≥DRAMA ≥SOFT
SOUND
MODE
continued
Advanced Operations

Advanced Operations
16
Adjusting the picture and sound settings
1Press SELECT until the
desired setting appears.
Each time you press
SELECT, the setting
item will change as follows:
2Press + or – to adjust the
item.
3To adjust other items, repeat steps 1 to 2.
* “HUE” can be adjusted for the NTSC system only.
Notes
• When you select a picture or sound mode, the adjusted settings will be
reset according to the selected mode.
• You can also use SELECT and 2+/– on the TV to adjust the picture and
sound settings.
Selecting the wide mode
1Press SELECT repeatedly
until “WIDE MODE”
appears.
2Press + or – to select
“ON”.
Select To
“ON” change the picture size when receiving wide mode (16:9) picture
signal.
“OFF” turn off the wide mode.
PICTURE 60
PICTURE COLOR BRIGHT HUE*
BALANCE TREBLE BASS SHARP
SELECT
Customizing the picture and sound (continued)
WIDE MODE: OFF
SELECT
OFF ON

Advanced Operations 17
b
b
SURROUND: MOVIE
SELECT
MUSICMOVIE OFF
Selecting the surround mode
1Press SELECT repeatedly
until “SURROUND”
appears.
2Press + or – to select the
desired surround sound.
Select To
“MOVIE” listen to sound that spreads out over a large area, giving the feeling
of being at a movie theatre.
“MUSIC” listen to the sound that gives the feeling of being at a live concert.
“OFF” turn off the surround sound.

Advanced Operations
18
123
46
789
0
5
JUMP
SOUND
MODE
FAVORITE
PROGR
-/--
FAVORITE
+ or –
PROGR +/–
Number
buttons
or
SELECT
FAVORITE CH SETUP :
FAVORITE CH SETUP :
123
456
78
0
-/--
9
PROGR
8
SELECT
Viewing your
favorite channels
You can display six of your favorite
channels for quick and easy selection.
You can program the favorite channel
as well.
Selecting a favorite channel
1Press FAVORITE.
2Press the number button
from 1 to 6 to select the
desired favorite channel.
When you use the “FAVORITE CH SETUP”
feature for the first time, six preset channels will appear.
Programming the favorite channel
1Press PROGR +/– or
number buttons to select
the program number you
want to program (e.g.
program number 8).
2Press SELECT until
“FAVORITE CH SETUP”
appears.
3Press + or – to select the
favorite channel you want to
program (e.g. 3).
4Press SELECT.
The selected favorite channel (e.g.,3) turns
red for about one second.
5To program other favorite channels, repeat steps 1 to 4.
123
456
1
FAVORITE
FAVORITE CH
1PR01 2PR02 3PR03
4PR04 5PR05 6PR06

Advanced Operations 19
Blocking the
channels
(CHILD LOCK)
You can lock some program numbers to
prevent children from watching certain
channels, by using the buttons on the
remote control.
1Select the program number you want to lock.
2Press SELECT until “CHILD
LOCK” appears on the
screen.
3Press + or – to select
“ON”.
The symbol appears on
the screen.
To cancel, press + or – to
select “OFF”. The
symbol disappears from
the screen.
Note
• If you preset a locked program number, that particular program number
will be unlocked automatically.
CHILD LOCK: ON
1
CHILD LOCK: OFF
TV
123
46
789
0
5
JUMP
SOUND
MODE
FAVORITE
PROGR
-/--
SELECT
+ or –
SELECT

20 Additional Information
Viewing Teletext
TV stations broadcast an information
service called Teletext via some TV
channels. Teletext allows you to receive
various information, such as shares
market or news.
Displaying Teletext
1Select a TV channel that carries the Teletext broadcast you want to watch.
2Press to display the
text.
A Teletext page (normally
the index page) is
displayed. If there is no
Teletext broadcast, “100” is
displayed at the top left
corner of the screen.
To turn off Teletext
Press a.
TV
123
46
789
0
5
JUMP
SOUND
MODE
FAVORITE
PROGR
-/--
P166 SECTEXT 166 FR1 MAR 03:59:09
Fom Singapore
To PARIS
To OSAKA
To ROMA
To SYDNEY
Day Dep/Arr Flight Alrcraft
1.6 220/0588 SQ28 747
2 2130/1225 PA115 L15
3 2115/1330 SQ26 747
2.7 2130/0745 SQ24
747
4 2300/0915 AZ487 747
2.5 1000/1715 SQ6 747
4.6 0930/2015 CX522 L10
1 2210/0610 SQ21A 747
2 2100/0835 SQ21A 747
a
A/B
x(FASTEXT)
t
/
