TRINITRON® COLOR TV RECEIVER
KV-1747R v
OPERATING INSTRUCTIONS
Congratulations on choosing this advanced Sony Color TV
Receiver. For best results, please read this manual thoroughly
before operating the set, and keep these instructions handy for
future reference.
OWNER’S RECORD
The model and serial numbers are located at the rear. Record the serial
number in the space provided below. Refer to these numbers whenever
you call upon your Sony dealer regarding this product.
Model No. KV-1747R Serial No.
© 1982 by Sony Corporation

CONTENTS
Warning. 2
Precautions. 3
Features. 4
Trinitron color system. 4
Location of parts and controls. 5
Normal TV operation. ;7 .. 7
Cable TV operation.13
Remote control operation.14
Channel presetting. 16
External antenna/cable connection. 18
Viewing VTR playback. 19
Checking the set by yourself.back cover
Specifications.back cover
WARNING
To prevent fire or shock hazard, do not expose the set
to rain or moisture.
Dangerously high voltages are present inside the set.
Do not open the cabinet. Refer servicing to qualified
personnel only.
2

PRECAUTIONS
USE
• Operate only on 120 V ac.
• This set is equipped with a polarized ac power cord plug (one blade of the plug
is wider than the other), which will fit into the power outlet only one way. Should
you be unable to insert the plug fully into the outlet, try reversing the plug. If the
plug still fails to fit, contact your dealer for assistance. Do not defeat the safety
purpose of the polarized plug.
• Should any liquid or solid object fall into the cabinet, unplug the set and have it
checked by qualified personnel before operating it any further.
• Unplug the set from the wall outlet or set the MASTER button to OFF if it is not
to be used for several days.
• To disconnect the cord, pull it out by the plug. Never pull the cord itself.
INSTALLATION
• Allow adequate air circulation to prevent internal heat build-up. Do not place
the set on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies)
that may block the ventilation holes.
• Do not install the set in a location near heat sources such as radiators or air
ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibra¬
tion or shock.
• Save the original shipping carton and packing material; they will come in han¬
dy if you ever have to ship your set. For maximum protection, repack your set as it
was originally packed at the factory.
• To keep the set looking brand-new, periodically clean it with a soft cloth. Stub¬
born stains may be removed with a cloth lightly dampened with a mild detergent
solution. Never use strong solvents such as thinner or benzine, or abrasive
cleansers since these will damage the cabinet. As a safety precaution, unplug the
set before cleaning it.
For detailed safety precautions, see the leaflet “IMPORTANT
SAFEGUARDS” included with this manual in the vinyl bag.
3

FEATURES
• Remote Commander operation of power on/off, sound volume,
muting, channel selection and picture control adjustment.
• CATV (cable television) programs or normal broadcast programs
can be selected.
• Easy channel selection and presetting with the 10-button tuning
system on the Remote Commander.
• Dynamic Picture system adjusts picture contrast automatically
to produce more detail in both bright and dark areas of every scene.
• Dynamic Color system for superior color reproduction with
natural facial color tones and dazzling whites.
• ECONOQUICK, energy-saving quick-start picture system.
• Easy-to-read green fluorescent display on the channel indicator.
TRINITRON COLOR SYSTEM
The Sony Color TV employs the unique Trinitron Color System. A product of inten¬
sive engineering research, the Trinitron Color System provides a brighter and
sharper picture, with simplified and more accurate service adjustments.
One-gun, three-beam electron focusing
structure, and a single large electron lens
for a crisp picture.
Aperture Grille color selection
system for a brighter, sharper
picture, less prone to moire pat
terns (ripple or wave effect).
Guard Grille for a high contrast, brighter
picture, without color spills.
Cylindrical screen reduces distortion
as viewed from the sides ( ©), sharpens
the picture corners ( ©), and diminishes
room reflections (©)-
© and © are simulated pictures.
4

LOCATION OF PARTS AND CONTROLS
OUTSIDE PANEL
VHF telescopic dipole antenna
Adjust as required for best VHF reception.
Remote control detector
Response lamp
Blinks when any button on the Remote
Commander is pressed.
While the sound is muted, or when the
volume or contrast is at a maximum or
minimum, this lamp lights steadily.
VOLUME buttons
Press the + or - button to adjust the
volume up or down.
UHF loop antenna
Adjust as required for best UHF reception.
indicator
Indicates the channel number.
CHANNEL scan buttons
Press the + or - button to scan the
prememorized channels respectively
higher or lower.
POWER switch
Press to turn on the power. Press again to
turn the power off.
Earphone jacks
An earphone may be connected to these jacks. See page 12.

INSIDE THE PANEL COVER
-PICTURE buttons
Adjust the contrast to suit your preference
and the room lighting.
MASTER switch
Generally keep this switch depressed (j=l.ON). If this switch is
released (JZLOFF), even if you press the POWER switch on the
TV or the Remote Commander, the TV will not be turned on.
V (vertical) HOLD
control
SHARPNESS control
HUE control
COLOR control
BRIGHT control
ADD button
Press to add the desired channels.
See "CHANNEL PRESETTING” on
page 16.
ERASE button
Press to erase inactive channels.
See "CHANNEL PRESETTING” on
page 17.
NORMAL/CATV selector
Set to NORMAL to view normal TV programs and to CATV to
view CATV programs. Receivable channels are as follows.
NORMAL: 2-13, 14-83
CATV: 2-13, A-2, A-1, A-W
AUTO switch
See "PICTURE ADJUSTMENT" on page 10.
This TV is supplied with the RM-707 Remote Commander.
See "REMOTE CONTROL OPERATION" on page 14.
6

NORMAL TV OPERATION (PANEL OPERATION)
You can select the desired channel by scanning higher or lower for
the channel among the prememorized channels with the CHANNEL
scan buttons.
This TV is preset at the factory to receive VHF channels 2 through
13 with the CHANNEL scan buttons.
Before operation
Check that the following controls are set to the normal position as
illustrated.
Open the panel cover.

ITU I
Turn on the power.
3 OWER
V
Select the desired channel.
Examples using the
CHANNEL scan buttons
present channel
For higher-
numbered chan¬
nels, press the
+ button.
CHANNEL
U D
For lower-
numbered chan¬
nels, press the
- button.
CHANNEL
To add UHF channels, see page 16.
8

Volume/picture contrast adjustment
Position of controls after the power is turned off and turned on again.
With POWER switch
on the TV or Com¬
mander
With MASTER switch
Channel
Memorized
Memorized
Volume
Factory-preset levels
Picture contrast
—
9

Indoor antenna adjustment
For VHF reception, use the VHF telescopic dipole antenna.
For UHF reception, raise the UHF loop antenna, and swing the loop
back and forth and/or sideways until the picture is clearest.
PICTURE ADJUSTMENT
Satisfactory results will usually be obtained with the controls set at
the following positions. If any adjustments are necessary, adjust
the required controls as described in the “Adjustment Guide" ac¬
cording to the picture conditions.
V HOLD control: at the position where
picture does not roll (probably near the
center position)
SHARPNESS control: at the center detent position
HUE control: at the center position
COLOR control: at the center
position
BRIGHT control: at the center
detent position
AUTO switch: at the ON position 1
(Color intensity and hue of the picture are
adjusted automatically to the factory-
preset values, but may be further adjusted slightly
with the COLOR and HUE controls.)
Note
If satisfactory results cannot be obtained with the built-in indoor
antennas, install external antennas as described on page 18.
10

Adjustment Guide
greenish skin
purplish skin
loo soft
SHARPNESS
COLOR COLOR
too dark
BRIGHT
too bright
Too sharp or loo
soft picture
too sharp or
snowy picture
too pale
SHARPNESS
too vivid
Too bright or too
dark picture
Skin tones not
natural
(With the AUTO switch
at OFF, the HUE and
COLOR controls have a
wider adjustment range.)
BRIGHT
Good picture

INSTRUCTIONS FOR ADDITIONAL USES
To record the TV sound
• Using the AUDIO OUT jack on the
rear panel
stereo
cassette deck
to line inputs
PC-5A
(optional)
minlplug
(RK-105A with PC-5A, optional)
The sound volume setting of the TV
does not affect the record level.
phono plug
monaural
tape recorder
to line input
1- 4
a"
(RK-50A, optional) miniplug
Adjust the TV volume to
a normal listening level.
monaural
tape recorder
>
12

CABLE TV OPERATION (PANEL OPERATION)
In CATV (cable television) systems, programs are brought into the
home on the mid-band channels and the super-band channels.
With the NORMAL/CATV selector set to CATV, this TV receives mid¬
band channels A-2, A-1, A through I and super-band channels J
through W.
Channel A 2 can be tuned in by selecting number 00 on this TV,
channel A-1 by selecting number 01, channel A by selecting
number 14, and so on, as follows:
Most CATV systems use letters to designate channels but some
use numbers. To tune in a numbered channel, select the same
number on the TV.
Consult your local cable TV company or your nearest Sony dealer
to find out which of these channels are receivable and which type
of cable system is used in your area. (Pay cable TV systems use
scrambled or encoded signals and require special converters.)
Number on this TV
1^1 Da
r~n m
1 M-. ■
■ ) l ■
nu
ID
■ :< >-- ■
M m
| B
^ |;
Corresponding CATV channel
A-2 A-1 A
B c D E
F G H 1
SI S3 m
| c'o |
Bc'aB
[ ,? 'f; |
| B BTTj
| 3 c' B
|77B
| B | is b
D^ll
J K L
M N
0 P
Q
MM
S
T
U
V w
OPERATION
CATV programs are tuned in the same way as normal TV programs
except for the NORMAL/CATV selector setting.
See "NORMAL TV OPERATION” on page 7.
A
Receivable channels 2—13
A-2, A-1, A-W
V_ J
Operating notes
• To tune in pay cable TV signals, select the output channel
number of the channel converter.
• It may take a little longer to tune in the desired CATV channel
> than a normal TV channel.
13

REMOTE CONTROL OPERATION
BATTERY INSTALLATION
The Sony RM-707 Remote Commander operates on two supplied
AA batteries (IEC designation R6).
1
Push and slide. Insert batteries observing the
correct polarity.
Slide to close.
FUNCTION OF THE BUTTONS ON THE REMOTE COMMANDER
Buttons which have no equivalent on the TV
Output indicator-
Indicates when the Remote Commander
is operating. If the indicator does not
light when any of the function
buttons are pressed, battery replacement
is required.
MUTING button
To mute the sound immediately, press this
button. Sound muting will be released
when the MUTING button is pressed
again, the VOLUME + button is pressed,
or the TV is turned off and on again.
Channel number buttons-
Channels are selected directly by pressing
two number buttons. First press the button
corresponding to the tens-digit number of the
channel, then press the button corresponding
to the single-digit number. (For channels 2
through 9. press the 0 button first.)
CLEAR button
Press this button to set the display to
if you select an incorrect tens-digit
or forget to first select 0 for channels 2
through 9.
When this button is pressed, the picture
will disappear and the sound will go off
until the channel number is correctly
selected.
^^-Transmitter
Point toward the remote control detector on the TV.
Buttons whose functions are the same
as the TV buttons
-POWER switch
PICTURE buttons
VOLUME buttons
The upper button corresponds to
the right button on the TV, and the
lower one corresponds to the left
one on the TV.
CHANNEL scan buttons
14

OPERATION OF THE REMOTE COMMANDER
Once the MASTER button has been switched on, you can remotely
control the TV with this Commander up to 7 meters (23 feet) away
from the TV and within the angle illustrated below.
j Turn on the power.
2 Select the desired channel with channel number
button* or the CHANNEL buttons.
Adjust the picture contrast.
4 Adjust the volume.
*Channel selection with the channel number buttons
Example
channel 25 channel 7
For channels 2 through 9, press
the 0 button first.
Example |
When you wish to select channel 7, and you forgot to press the 0
button first.
incorrect
number
Wait about 3
seconds.
l
m
The previous number
display is recalled.
Press the
[—correct channel
number buttons.
Press the CLEAR button.
The picture will
disappear (only
snow shows) and
the sound will
go off.
Notes on the Remote Commander
• In normal operation, battery life is up to
half a year. When the battery is exhausted,
the Remote Commander will not operate
the TV properly. In this case, replace the
batteries with new ones.
• When the Commander is not used for a
long period of time, remove the batteries to
avoid damage from possible battery
leakage.
• Keep the Commander away from ex¬
tremely hot or humid places.
• Avoid dropping any foreign objects into
the Commander case when replacing bat¬
teries.
• The RM-707 Commander may be used on¬
ly with those Sony color TV models in¬
dicated in the operating instructions.
15

PUANMPI DDFQFTTIMfJ _How to preset the channels to be scanned
OMANNtL rKtbt I I IIMU with the CHANNEL scan buttons.
Your TV has been set al the factory to receive VHF channels 2
through 13 in sequence when you press the CHANNEL scan but¬
tons. You can add UHF or CATV channels and erase inactive VHF
channels so that only the channels available in your area will ap¬
pear in the sequence.
TO ADD UHF OR CATV CHANNELS
Select the receivable source.
For UHF
NORMAL
For CATV
NORMAL
CATV
CATV
Select the channel number to be added
with the channel number buttons on the
Remote Commander.
Channel indicator
ADD
Number of
channel
added
* V.
Repeat the above for all the channels to be added.
The channels will be entered in numerical sequence regardless of
the adding sequence.
If you have any problem on CATV channel presetting, consult the
CATV company in your area.
16

TO ERASE INACTIVE CHANNELS
Select the receivable source.
for UHF
for CATV
for VHF
Either
position will
do.
Channel indicator
Number of
channel
erased
Repeat the above for all
fhe channels to be erased.
To add once-erased channels again
See "To add UHF or CATV channels" on page 16.
Operating note: It is not possible to erase a UHF channel from the
memory and retain the CATV channel of the same number in the
memory, or vice versa.
If either the UHF channel or the CATV channel of the same number
is to be kept in the memory, do not erase the number.
17

EXTERNAL ANTENNA/CABLE CONNECTION
If your local signal is strong, an indoor antenna may be sufficient to
obtain a clear picture.
The use of an external antenna is recommended especially in dif¬
ficult reception areas (inside steel-frame buildings, in mountainous
areas, or at great distances from the transmitter).
VHF antenna
Pull out the antenna connector from the VHF antenna terminal,
thus disconnecting the VHF telescopic dipole antenna. Use the
antenna connector for 300-ohm ribbon type lead-in connection.
When the cable is a
300-ohm ribbon type
lead-in (flat)
UHF antenna
Loosen the screws on the UHF antenna terminals, and pull out the
lugs of the UHF loop antenna.
Connect the wire and
tighten the screws.
Combination VHF/UHF antenna
Most combination antennas already have a signal splitter. If you
need a splitter or a complete antenna system, see your Sony dealer
or a qualified technician.
CATV cable
Connect the CATV coaxial cable to the VHF antenna terminal. We
recommend that you consult your cable TV company to make sure
that the cable is properly connected.
18

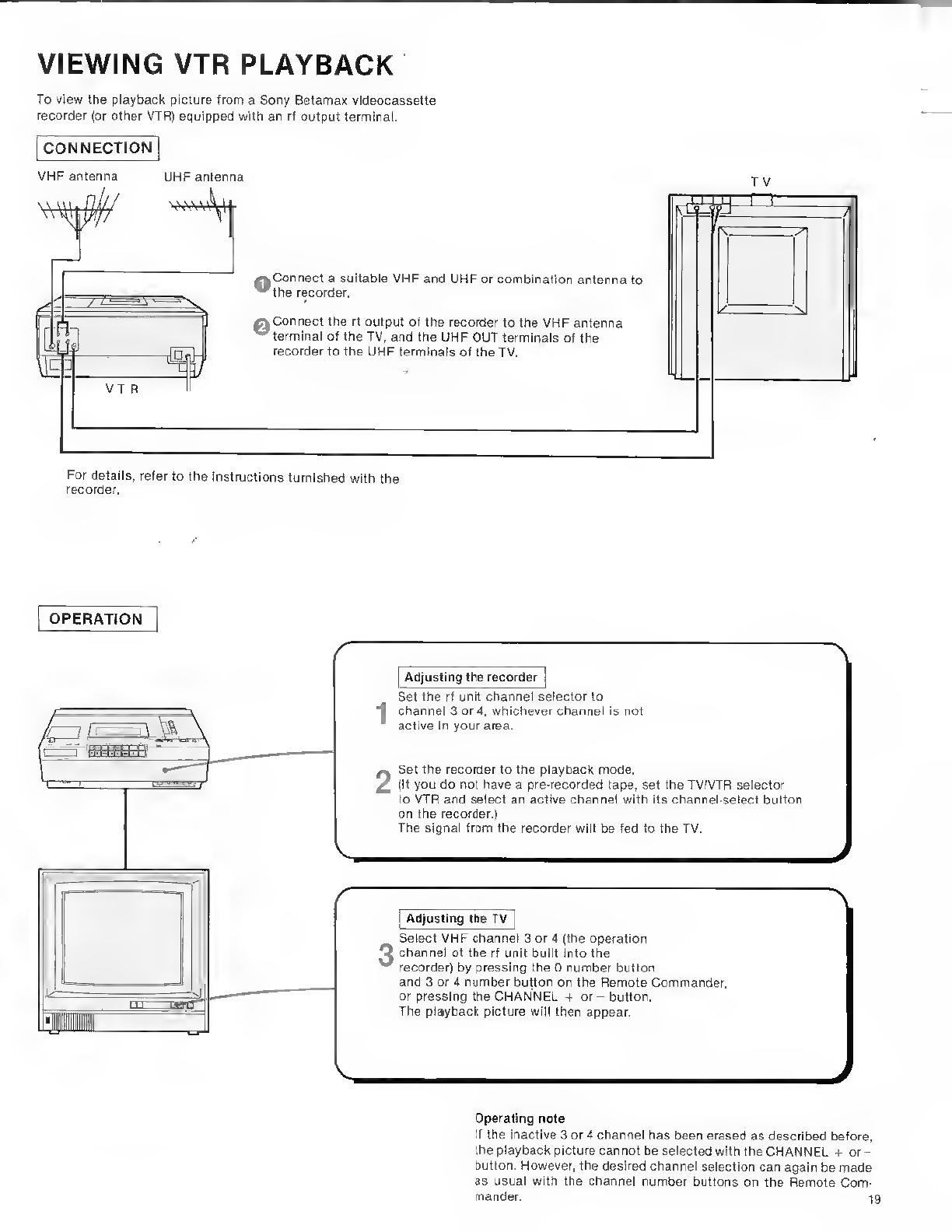

VIEWING VTR PLAYBACK
To view the playback picture from a Sony Betamax videocassette
recorder (or other VTR) equipped with an rf output terminal.
CONNECTION
VHF antenna
UHF antenna
a Connect a suitable VHF and UHF or combination antenna to
the recorder.
QConnect the rf output of the recorder to the VHF antenna
terminal of the TV, and the UHF OUT terminals of the
recorder to the UHF terminals of the TV.
For details, refer to the Instructions furnished with the
recorder.
OPERATION
| Adjusting the recorder
Set the rf unit channel selector to
“| channel 3 or 4, whichever channel is not
active in your area.
Set the recorder to the playback mode.
(If you do not have a pre-recorded tape, set the TV/VTR selector
to VTR and select an active channel with its channel-select button
on the recorder.)
The signal from the recorder will be fed to the TV.
Adjusting the TV
Select VHF channel 3 or 4 (the operation
channel of the rf unit built into the
w recorder) by pressing the 0 number button
and 3 or 4 number button on the Remote Commander,
or pressing the CHANNEL + or - button.
The playback picture will then appear.
Operating note
If the inactive 3 or 4 channel has been erased as described before,
the playback picture cannot be selected with the CHANNEL + or -
button. However, the desired channel selection can again be made
as usual with the channel number buttons on the Remote Com¬
mander. 19

CHECKING THE SET BY
YOURSELF
Many apparent malfunctions may be caused by slight mis-
adjustments of the regular controls or some other equally simple
cause. If any difficulty arises in the operation of your set, first
check through this illustrated list of symptoms and corrections.
Should the difficulty persist, unplug the set and contact your Sony
dealer.
SYMPTOM
CORRECTION
• Plug the set into a work¬
ing outlet.
,• Press the MASTER and
the POWER switches.
no picture
(screen not lit),
no sound
• Press the PICTURE +
button.
• Turn the BRIGHT con¬
trol clockwise.
no picture
(screen not lit),
but good
sound
• Unplug the earphone
from the EARPHONE jack
• Press the VOLUME +
button.
• Release the sound
muting by pressing the
MUTING button or turning
the TV off and on again.
good picture
but no sound
• When is displayed
in the channel indicator
(the CLEAR button has
been pressed), select the
channel number correctly
or turn off the TV
blank snowy
screen,
no sound
momentarily.
• Connect the antenna
properly.
• Adjust the indoor anten¬
na.
• Check the outdoor an¬
tenna.
• Check that a correct
channel is selected.
• Check the NORMAL/
CATV selector setting.
no picture,
no sound, but
snow and
noise only
• Check that the AUTO
switch is set to ON.
• Check that the COLOR
control is not turned fully
counterclockwise.
no color
• Often caused by in¬
terference from autos,
neon signs, hair dryers,
electric razors, etc. Try ad¬
justing the antenna for
minimum interference.
dotted lines or
stripes
• Reflections from nearby
mountains or buildings
often cause this problem.
In such cases, a highly
directional outdoor anten¬
na may improve the pic¬
ture.
double images
or "ghosts”
SPECIFICATIONS
KV-1747R
Television system
Channel coverage
Picture tube
Antenna
Speaker
Power requirements
Power consumption
Dimensions
Weight
Accessories supplied
American TV standards
VHF channels 2 through 13
UHF channels 14 through 83 •'''
CATV mid-band.eharmets-A-2,A-1,
A through I
( super-band channels J through W >
TrinTtron tube
17-inch picture measured diagonally,
90-degree deflection
VHF telescopic dipole antenna
UHF loop antenna
75-ohm antenna terminal for VHF
300-ohm antenna terminals for UHF
Approx. 9 x 5 cm (3 5 /8 x 2 inches)
120 Vac, 60 Hz
110 W (max.), 73 W (average)
2.7 W (in standby condition)
Approx. 484.5 x 473.5 x 464 mm (w/h/d)
(19’/8 x 18 3 M x i8 3 /8 inches)
Approx. 23.4 kg (51 lb 9 oz)
Remote Commander RM-707
Earphone
Remote Commander RM-707
Remote control system
infrared control
Power requirements 3 V dc
Battery size AA x 2
(IEC Battery Designation R6)
Dimensions Approx. 60 x 20 x 150 mm (w/h/d)
(2 3 /a x 3/4 x 6 inches)
Weight Approx. 134 g (4.7 oz)
incl. batteries
Accessory supplied Battery size AA 2 pcs.
Design and specifications subject to change without notice.
Sony Corporation Printed in Japan
4-493-663-21 (1)
