Sony LocationFree LF-B1 User manual

NetAV Quick Start Guide
Revision #1.6
LocationFree TV
LF-X1
LF-X5
© 2005 Sony Corporation
LFX1.fm Page 1 Friday, February 4, 2005 7:04 PM

2
Contents
Overview ........................................................................................3
Setup Summary .............................................................................4
Step 1: Check Your Current Network Set Up ..............................5
Step 2: Obtain a Dynamic Domain Name ....................................6
Step 3: Configure LocationFree TV for DDNS .............................8
Step 4: Configure LocationFree TV for Your Home Router .......9
Step 5: Configure Your Home Router........................................11
Step 6a: Connect NetAV from a Hotspot...................................12
Step 6b: Connect NetAV from a Wired LAN ..............................14
© 2005 Sony Electronics Inc. All rights reserved. Sony and LocationFree are
trademarks of Sony. Linksys is a registered trademark of Cisco Systems Inc.
www.dyndns.org is a service mark of Dynamic Networks Services Inc. All
other marks are property of their respective owners.
LFX1.fm Page 2 Friday, February 4, 2005 7:04 PM

3
Overview
The LocationFree TV’s NetAV function enables you to enjoy video entertainment content
while you’re away from home. Using a public wireless access (also known as a hotspot) or a
wired LAN, such as in a hotel room, you can watch TV and even control your VCR or DVD
player in your home.
✍The network system used in most office locations include firewalls that may restrict an open port
required to use NetAV.
Hot Spot
DSL/Cable
Base Station
(works as a server)
Monitor
(works as a client)
AV Content
Authenticate
(signals encrypted)
LFX1.fm Page 3 Friday, February 4, 2005 7:04 PM

4
Setup Summary
To start enjoying NetAV, follow these five simple steps:
Before You Go Out
(One Time Setup
Only)
From Outside
Task See Page
Step 1 Check Your Current Network Set Up 5
Step 2 Obtain a Dynamic Domain Name 6
Step 3 Configure LocationFree TV for DDNS 8
Step 4 Configure LocationFree TV for Your Home Router 9
Step 5 Configure Your Home Router 11
DSL/Cable
Monitor Mode
Home - Wireless (default)
Task See Page
Step 6a Connect NetAV from a Hotspot 12
Step 6b Connect NetAV from a Wired LAN 14
Hot Spot
DSL/Cable
Monitor Mode
On the go - Wireless
LFX1.fm Page 4 Friday, February 4, 2005 7:04 PM

5
Step 1
Check Your Current Network Set Up
Network
connection
You must have a broadband connection (DSL, cable modem, etc.) with uplink and downlink
speeds of at least 300 kbps. The more uplink bandwidth you have available, the better your
NetAV performance.
Internet Protocol
(IP) Address
If you do not already have a fixed IP address1, you will need to register with a Dynamic
Domain Name Service (DDNS)2. Step 2 explains how to register with one such provider.
Router setting and
Firewall
Your home router must be configured for DMZ4or Port Forwarding5to allow secure access
through your firewall. You must enable use of a port for LocationFree TV (typically 5021).
✍For best performance a premium bandwidth service is recommended. Contact your ISP for details.
✍You cannot use NetAV through a dial-up connection.
✍A public fixed IP address3may be used in lieu of a dynamic DNS service. Contact your ISP for details.
✍You cannot use a private IP address (an address assigned by a home router) for NetAV.
1 Typically your Internet Service Provider (ISP) assigns an IP address to you when you sign up for service. However, this IP
address is “dynamic,” meaning that it may change. Most ISPs offer, for a monthly premium, a “fixed IP address” that is
assigned only to you. If you have a fixed IP address, you do not need to sign up with a Dynamic Domain Name Service
(DDNS) to use NetAV.
2 A DDNS lets you tie a Host/Domain name to a dynamic IP address. If you do not have a Host/Domain name and your
dynamic IP address is changed while you are using NetAV, your connection will drop.
3 Every device connected to the Internet must have either a public or private IP address. Public IP addresses are assigned
to a home router or to a PC when either is connected directly to the global Internet. A Private IP address is assigned
between a home router and another device, typically a PC, on a home network.
4 DMZ stands for “demilitarized zone,” a military term meaning a buffer area between two enemies. On some routers the
term is used to represent a buffer area (outside a firewall) between a trusted private network and an un-trusted external
network, such as the public Internet.
5Port forwarding offers a means of transferring unsecured data from TCP/IP applications through a secure connection.
The transfer of unsecured data takes place by means of “tunneling” through a secure connection established by setting
up port forwarding between two devices, in this case the LocationFree Base Station and the LocationFree Monitor.
LFX1.fm Page 5 Friday, February 4, 2005 7:04 PM

6
Step 2
Obtain a Dynamic Domain Name
If you do not already have a fixed IP address, you will need to register with a dynamic DNS
service such as Dynamic Network Services Inc., a provider of dynamic DNS and other
network services. You can register with www.dyndns.org, as described below.
Registering with a
Dynamic Domain
Name Service
(DDNS)

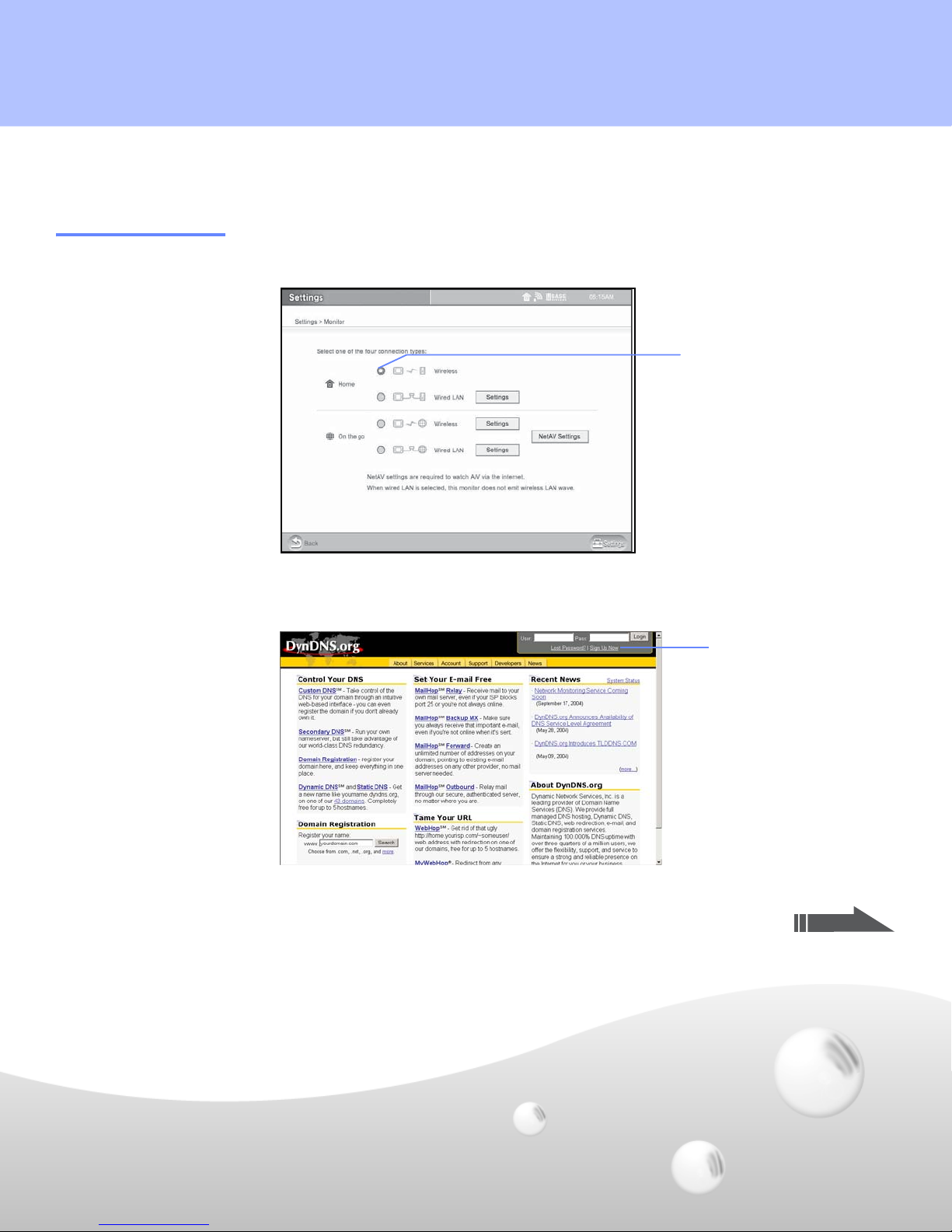

1Check to make sure the LocationFree TV is connected to the Internet (in Home/Wireless
mode) A.
2Using the Web function, enter the URL http://www.dyndns.org/ and then select Sign Up
Now A.
A
Settings > Monitor
A
http://www.dyndns.org/
Continued
LFX1.fm Page 6 Friday, February 4, 2005 7:04 PM

7

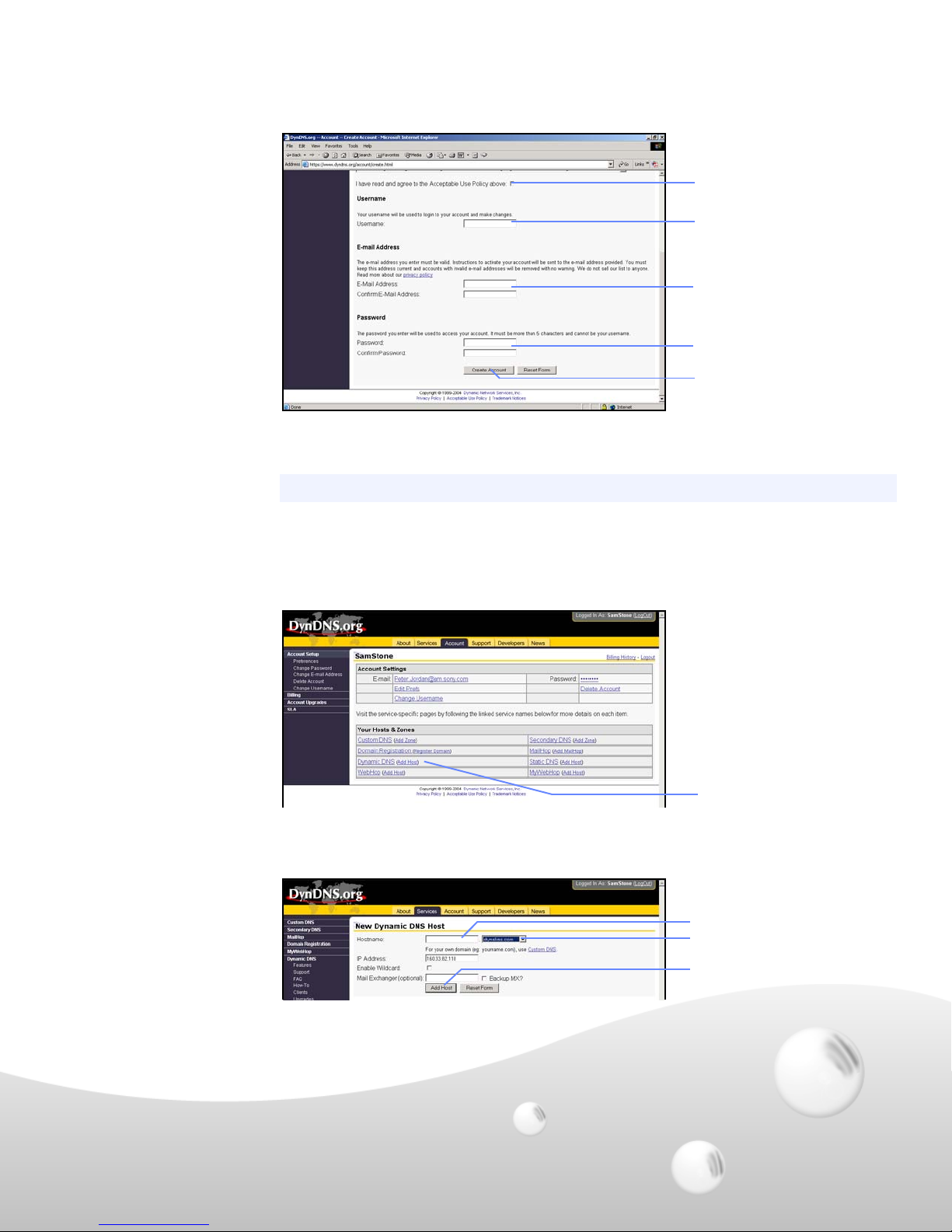

3Read the Use Policy, and then check the Agree box A. Next, enter your Username B,
E-mail address Cand Password (up to 16 characters) D. (Make a note of your Username
and Password, which you’ll use to configure the LocationFree TV, described on the next
page). Then select Create Account E.
An Account Created confirmation page appears and a confirmation e-mail will be sent to
you.
4Go to http://www.dyndns.org again, enter your Username and Password, and then select
the Login button.
5Select the Account tab. Your Account page is displayed.
Under Your Hosts & Zones, select Dynamic DNS (Add Host) A.
6The New Dynamic DNS page is displayed. Enter your host name Aand choose
dnsalias.com from the dropdown menu B. Leave all other fields as is and then select Add
Host C.
You are now registered.
Make a note of the Host/Domain name, which you’ll need to configure your LocationFree
TV on the next page.
✍If you do not receive a confirmation e-mail, send an e-mail to [e-mail].
A
B
C
D
E
A
A
B
C
LFX1.fm Page 7 Friday, February 4, 2005 7:04 PM

8
Step 3
Configure LocationFree TV for DDNS

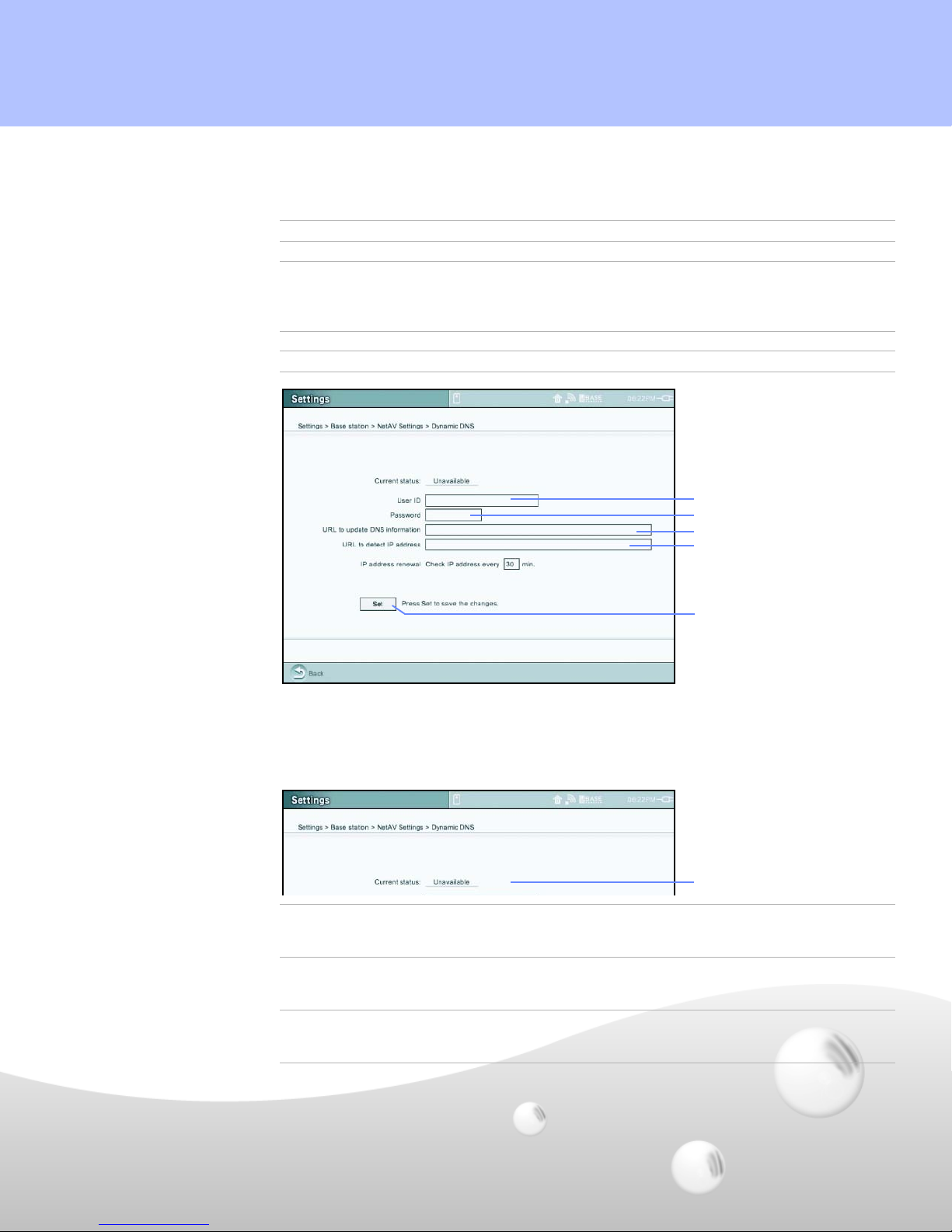

1Make sure your LocationFree TV is connected in the Home/Wireless mode.
2In the Settings menu, go to Base station > NetAV Settings > Dynamic DNS.
Enter the following information in the appropriate field.
3Select the Back button and again select Dynamic DNS. Check that the data is showing as
entered. If the data has changed, repeat step 2 on this page. Then check the Current status
field as follows:
AUser ID Enter the Username you registered in DynDNS
BPassword Enter the Password you registered in DynDNS
CURL to update DNS information If your registered Host/Domain name is
YourName.dnsalias.com, enter
http://members.dyndns.org/nic/update?hostname=
YourName.dnsalias.com
DURL to detect IP address Enter http://checkip.dyndns.org:8245/
ESet button Select the Set button
Success Your Dynamic DNS is successfully configured. The system is automatically
checking IP addresses currently assigned to your base station. Wait at least 10
minutes before going to Step 4 on page 9.
Failure The Dynamic DNS configuration failed or communication to the server failed.
Try repeating Steps 1-3 on pages 5 to 8. The update process may take as long as
10 minutes at the DDNS provider. Wait 10 minutes before trying again
Updating The system is still trying to correctly configure. Try waiting a few more minutes;
the current status will soon indicate “success” or “failure.” If the Current status
field does not change, repeat Step 2 on page 6.
A
B
C
D
E
Settings > Base station > NetAV Settings > Dynamic DNS
A
LFX1.fm Page 8 Friday, February 4, 2005 7:04 PM

9
Step 4
Configure LocationFree TV for Your Home Router
In this section you will specify or “lock” an IP address from your router to the LocationFree
Base Station.

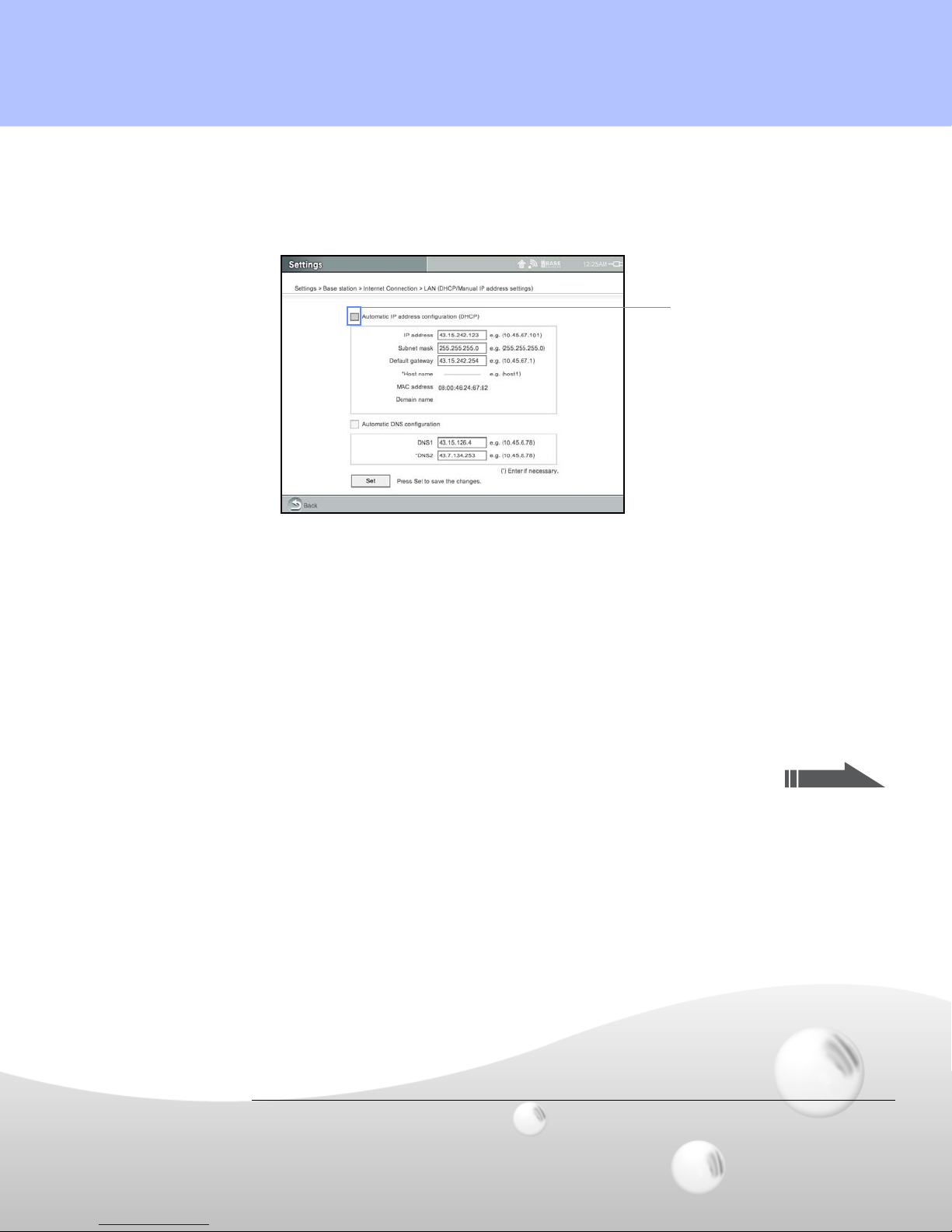

1Go to Settings > Base station > Internet Connections > LAN (DHCP/Manual IP address
settings). Make sure the box next to Automatic IP address configuration (DHCP) is
checked and write down on a piece of paper the information in all of the fields.
2Uncheck the box next to Automatic IP address configuration (DHCP). The information in
the fields will clear, which releases the “automatic” IP settings.
3Enter again the information you wrote down in step 1—with one exception. For the IP
address, be sure to change the last two digits to 64. So, if the IP address your router
provided is 192.168.0.5, then enter or “assign” 192.168.0.64.1
4Select the Set button to lock in the IP address and other important information on this
screen.
5Press the Index button and select Web to go to the Internet. Make sure you are able to
access the Internet by viewing any web page. If you are able to access the Internet, the
settings are correct.
Check this check box
Settings > Base station > Internet Connection > LAN (DHCP/Manual IP address settings)
Continued
1 Why the number 64? Most routers using DHCP assign the last numbers of an IP address between 2-50. The number 64
is safely out of this range. Note that any two-digit number outside of the DHCP range should work.
LFX1.fm Page 9 Friday, February 4, 2005 7:04 PM

10

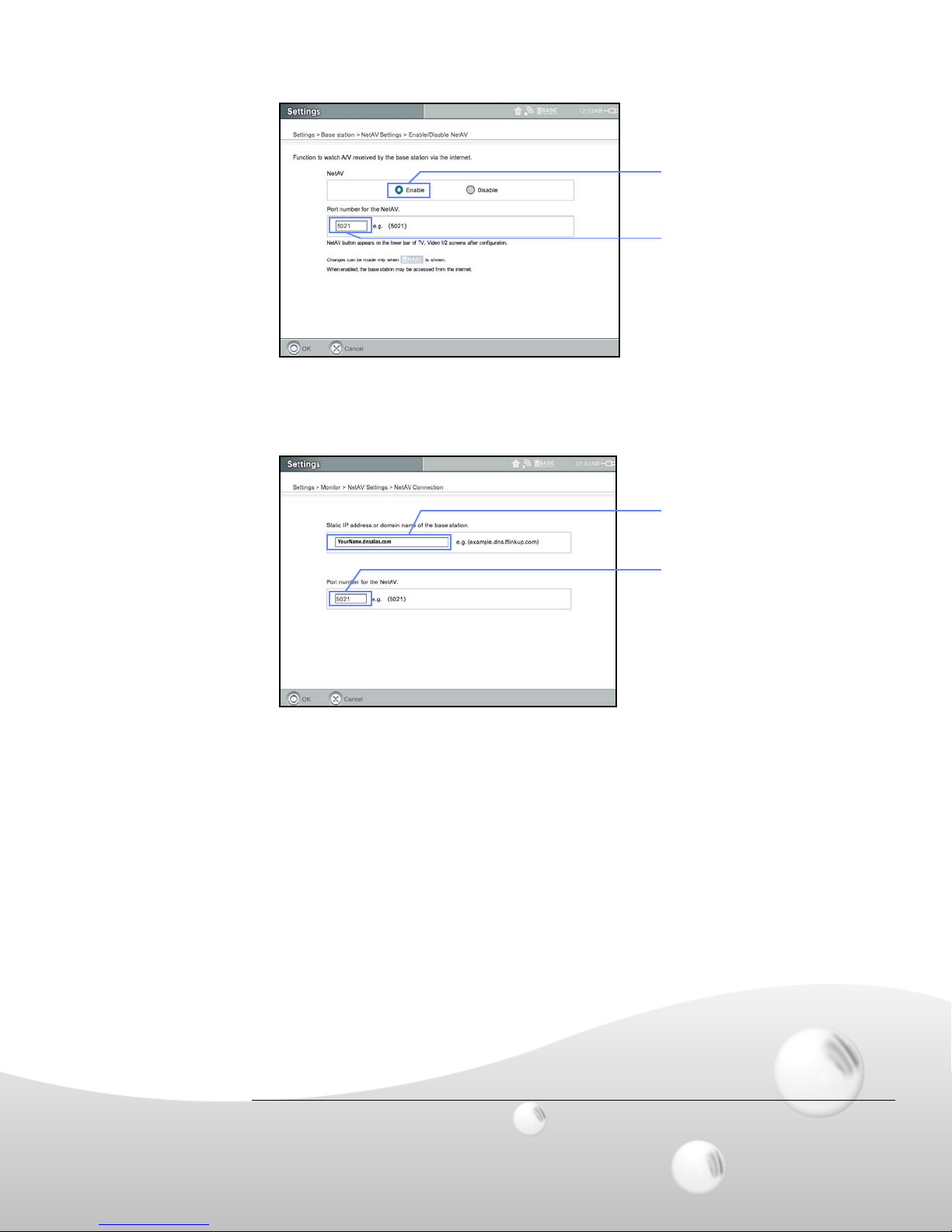

6Configure the base station NetAV settings to send video from the base station to a remote
computer in the Enable/Disable NetAV screen, as described below.
7Configure the monitor to receive video from the base station in the NetAV Settings screen,
as described below.
Set this to Enable
Enter Port Number 5021
Settings > Base station > NetAV Settings > Enable/Disable NetAV
Enter the Host/Domain name
that you acquired on page 7,
step 61
Enter Port Number 5021
Settings > Monitor > NetAV Settings > NetAV Connection
1 If you have a fixed IP address, enter it at this step.
LFX1.fm Page 10 Friday, February 4, 2005 7:04 PM

11
Step 5
Configure Your Home Router
Most of the popular routers used in the USA include DMZ or Port Forwarding.
Setting up the
LinkSys WRT54G
router
The following steps show how to set up one popular home router, the LinkSys Wireless-G
Broadband Router, model WRT54G.
1Press the Index button, select Web and enter the following web address:
http://192.168.1.1/. The Enter Network Password screen appears.
Leave the User Name blank. In the Password field, enter the word admin. Then Select
OK.1
2Select Advanced, then Applications and Gaming A.
3Select DMZ and then Enable DMZ.
4For the DMZ Host IP, enter 64, which corresponds to the private IP address of the Base
Station that you locked in Step 4.3. Then Select Save Settings.
Confirming your
set up
To confirm your setup, do the following:
1Press the Index button and select Web to open up the LocationFree TV browser.
2Type i n http://YourName.dnsalisas.com:5021/lfx/check
3If “NetAV Connection OK!” appears, you are all set. If not, go back and confirm the
settings in Step 5 on page 11.
✍If your router does not have either mode, you cannot use the NetAV function.
A
✍The above example is when using DMZ. As an alternative, you can use Port-forwarding. For more details,
see your router's instruction manual.
1 Note that this is the configuration site for the Linksys WRT54G; other routers will have different configuration sites. See
your router manual for details.
LFX1.fm Page 11 Friday, February 4, 2005 7:04 PM

12
Step 6a
Connect NetAV from a Hotspot
Finding a signal
corresponding to a
hotspot
1Go to Settings > Monitor > and set On the go to Wireless A.
2Go to Settings > Monitor > On the go-Wireless > Settings > Public Wireless Access. A
list of available wireless access points is displayed. If nothing appears in 10 seconds, select
Search/Update A. If an access point you want to connect to does not display the +sign in
the Avail. Column, select an SSID you want to connect and select Configure B.
A
Settings > Monitor
A
B
Settings > Monitor > On the go - Wireless > Settings > Public Wireless Access
Continued
LFX1.fm Page 12 Friday, February 4, 2005 7:04 PM

13

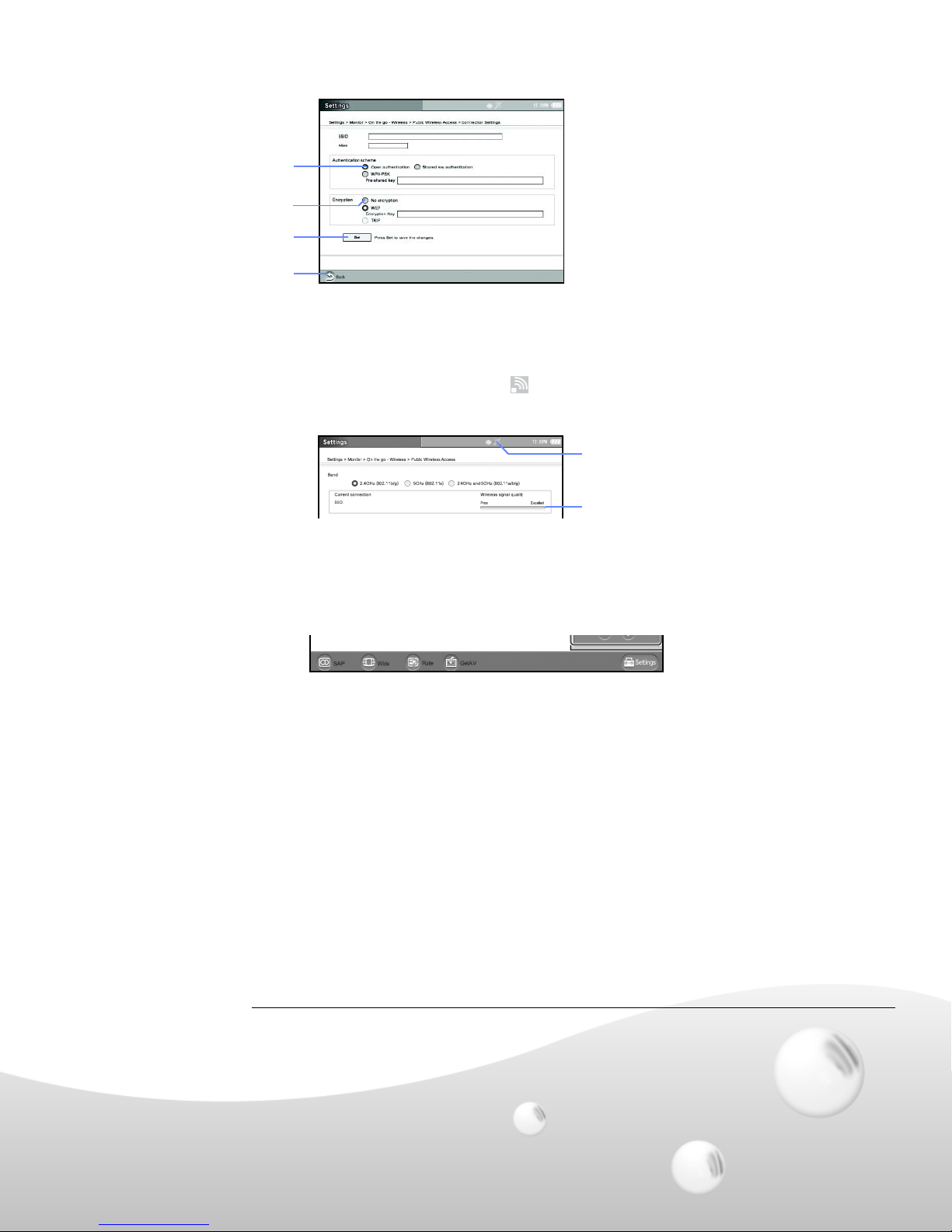

3To set up an unencrypted wireless signal, select Open authentication Aand No encryption
B. Select Set Cto save the changes. Then select the Back button D.1
4Select an SSID2 you want to connect to and select Connect.
5If the wireless signal is unencrypted, the Wireless signal quality level appears Aand the
icon on the top bar Bchanges to . If the wireless signal quality level does not appear,
make sure you entered the correct encryption code in step 3(page 13) or go back to step
2(page 12) and choose another SSID.
6Try to connect to any website. Most hotspots requiring a login will automatically redirect
you to the login page. Note that some hotspots may require a fee.
7Go to TV or Video and select NetAV to start!
A dialog box will show that you are Connecting, then > Authenticating > Buffering.
Shortly the picture will appear. Enjoy!
A
B
C
D
Settings > Monitor > On the go - Wireless > Public Wireless Access > Connection Settings
B
A
Settings > Monitor > On the go - Wireless > Public Wireless Access
1 Some commercial hotspots require an encryption code to log-on. If needed, enter the encryption code at this step. Also,
note that some commercial hotspots require a fee for access.
2 SSID stands for Service Set Identifier, a label that distinguishes one wireless LAN from another.
LFX1.fm Page 13 Friday, February 4, 2005 7:04 PM

14
Step 6b
Connect NetAV from a Wired LAN
1Connect the Ethernet cable to the LAN port on the monitor.
2Go to Settings > Monitor. In the On the go section, select Wired LAN A.
3Press the Index button and select Web to open up the LocationFree TV browser. Some
networks require a login. If a login is required, you will be redirected to the login page.
Enter your name, password or go to the signup page to finish logging in.
4Go to TV or Video and select NetAV to start!
A dialog box will show that you are Connecting, then > Authenticating > Buffering.
Shortly the picture will appear. Enjoy!
LF-X1 LF-X5
A
Settings > Monitor
LFX1.fm Page 14 Friday, February 4, 2005 7:04 PM
