Sony TRINITRON KV-M1100D User manual

SERVICE MANUAL
{KV-M1100D }
Television system
Color system
Channel coverage
Frequency meduim
Picture tube
Inputs
Outputs
Sound output
Power consumption
KV-M1100D
RM-818
AEP Model
Chassis No. SCC-FO4A-A
EE-1
cuassis
SPECIFICATIONS
B/G/H/I/L
PAL, SECAM, NTSC3.58, NTSC4.43
ITALIA VHF: A-H2(C) UHF: 21-69
PAL B/G VHF: E2-E12 UHF: E21-E69
CABLE TV (1): $1-S41
CABLE TV (2): S01-S05, M1-M10, U1-U10
Mono-Standard
Fl: Video 38.9MHz
Fl: Audio 33.4MHz
Trinitron tube
Approx. 28 cm
(Approx. 26 cm picture measured diagonally)
90 °-degree deflection
3 1 21-pin connector :
CENELEC standard including RGB input.
Y: 1Vp-p#3dB 750hm
C: 0.3Vp-p+£3dB 750hm
21-pin connector: CENELEC standard
Earphones jack : minijack
2.5W (Music)
56 Wh
MODELS OF THE SAME SERIES
KV-M1100D KV-M1100E
KV-M1100A |
KV-M1100B
Dimensions Approx. 296.2 X 261.0 X 328.5mm
(w/h/d)
Weight
Supplied accessories
(RM-818]
Remote control system
Power requirements
Dimentions
Weight
Approx. 8.5 kg
RM-818 Remote Commander (1)
IEC designation R6 batteries (2)
Terescopic antenna (1)
DC cord (1)
AC cord (1)
infrared control
3V de
2 batteries IEC designation
R6 (size AA)
Approx. 44X25.3X108.4mm (w/h
/d)
Approx. 105g (including batters)
Design and specifications are subject to change without
TRINITRON- COLOR TV
notice.

KV-M1100D
RM-818
21 pin connector (G+ 1, C2)
Signal
Signai level
Audio output B (right)
Standard level: 0.SVrms
Output Impedance: Less
than 1kohm*
Audio input B (right)
Standard level: 0.5Vrms
Input impedance: More
than 10kohms*
Audio output A (left)
an
Standard level: 0.5Vrms
Output impedance: Less
than 1kohm*
Ground (audio)
Ground (blue)
Audio input A (left)
Standard level: 0.5Vrms
Input impedance: More
than 10kohms*
0.7V + 3dB, 75ohms, positive
e | Bie input
Function select
(AV control)
High state (9.5 — 12V): Part mode
Low state (0 — 2V): TV mode
Input Impedance: More than 10kohms
Input capacitance: Less than 2 nF
Ground (green)
Open
Green
Green signal: 0.7V + 3dB,
75ohms, positive
Open
Ground (red)
Ground (branking)
Red input
0.7V + 3dB, 750hms, positive
15
os .
17 (2)
19
{S signal) croma input
Blanking input
(Ys signal)
© | Ground (video output)
Video output
Video input
Video
Input/Y (S signal)
0.3V + 3dB, 75ohms, positive
High state (1 — 3V)
Low state (0 - 0.4V)
Input impedance: 750hms
© | Ground (video input)
ce)
1V + 3dB, 75ohms, positive
Sync: 0.3V ( — 3, +10dB)
1V + 3dB, 750hms, positive
Sync: 0.3V ( -— 3, +10dB)
1V + 3dB, 75o0hms, positive
Syne: 0.3V ( — 3, +10d8)
—
© connected
@ unconnected (open)
4 pin connector (6 )
Signal
Common ground (plug, shield)
* at 20Hz — 20kHz
Signal level
Ground
Ground
Y (S signal) input 1V + 3dB, 75ohms, positive Syne: 0.3V <=), dB
C (S signal) input 0.3V + 3dB, 75ohms, positive

KV-M1100D
|
1 RM-818

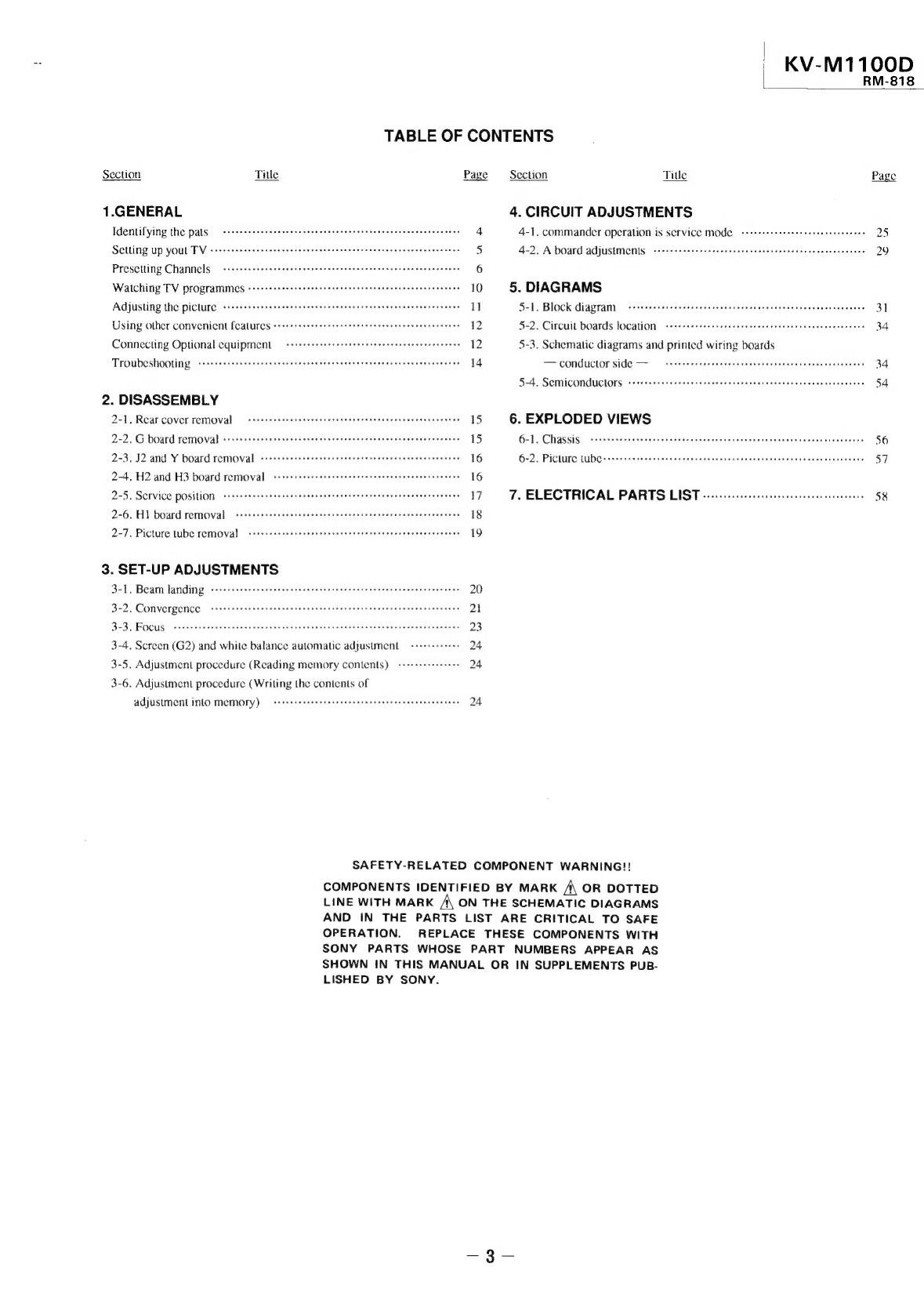

TABLE OF CONTENTS
Section Title Page Section Title Page
1.GENERAL 4. CIRCUIT ADJUSTMENTS
Identifying the pats 4 4-1. commander operation is service MOdC cerreete etree etree eee eee eens 25
Setting up yout TV 5 4-2. A board adjustments -sesceeesseeeeeeeeeceeencoeeneneecateeeneeeeea ees 29
Presetting Channels 6
Watching TV programmes -++r-esseeeseeeeeseeee eee seeetereeaeeeeeeeenaenees 10 5. DIAGRAMS
Adjusting the picture s+ssssrssrseeeeseeeeeeeeeeeeeeeeeeeeeeeeeateas nae n en eenes 11 5-1. Block diagram srsteeeereeceee eee neeeeeeeeesen nent eae eeea reser tnertees 3]
Using other convenient (ealures verre seer eee ere erent eee eee ree ee eeeee ee eenee 12 5-2. Circuit boards location <erreseeeec see eeee ee eeeeereeeteneeeeecaneeneeees 34
Connecting Optional equipment sersreerretereeteeeeeeee ees eeeee nese ences 12 5-3. Schematic diagrams and printed wiring boards
Troubeshooting 14 — conductor side — 34
5-4, SeMICONGUCLOLS eeeee etter reer erect tenet et en een et eeee net eee seen nereeeneee 54
2. DISASSEMBLY
Dc, Rear COVELTEMOVAL “vassathe trsadiacns huswieia cers eer eetertiestatsauns 15 6. EXPLODED VIEWS
2-2.G DOaMrd TEMOVAL] crcecreceerececeeeserereseceeeessnseneretereeseeererentee 15 G-1, Chassis ccctecccceecveerececceecaneccerseeteesenaeetseeseeeunensrnennecree 56
2-3, J2 and Y board removal 16 6-2. Picture tube 57
2-4, H2 and H3 board removal Per eeee Te ee eee eee Eero eee eee eee ee ree eee eee 16
2-5, SCrVice POSILION sereeeteeeeeeeeteseeeeeeeeeeeetttee rte eeeeeeeeeeeeeeenees 17 7. ELECTRICAL PARTS LIST ..:.:.:-:ceccccsereseeeer ects ers eeeees 58
2-6. H1 board removal cesceeeeeeeeeeceeececeeeeeeeeeeeseeeeesneseeeeeeeees 18
2-7. Picture tube removal ceeceeceeceeeeeeeteneeesseeeceeseeeesencesseeeeses 19
3. SET-UP ADJUSTMENTS
3-1. Beam landing 20
3-2, Convergence 21
3-3, Focus 23
3-4. Screen (G2) and white balance automatic adjustment sseerer eres 24
3-5. Adjustment procedure (Reading memory contents) s+rrsereeeeee 24
3-6. Adjustment procedure (Writing the contents of
adjustment into memory) sereeeeeeeeeeeeeeee sees eeeetee teen teeeeenees 24
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

SECTION 1
|
This section is extracted
from instruction manual.
