Sony TRINITRON KV1926RA User manual

SS
ONY:
4-482-491-61
(1)
RINITRON.
COLOR
TV
OPERATING INSTRUCTIONS
Before operating the unit, please read this manual thoroughly
and retain it for future reference.
OWNER’S RECORD
The model and serial numbers are located on the right
side. Record these numbers in the spaces provided below.
Refer to them whenever you cail upon your Sony dealer
regarding this product.
Model No. KV IIR AS Serial No.
es
~~ ae
—
— ==
©1987 by Sony Corporation

re AES

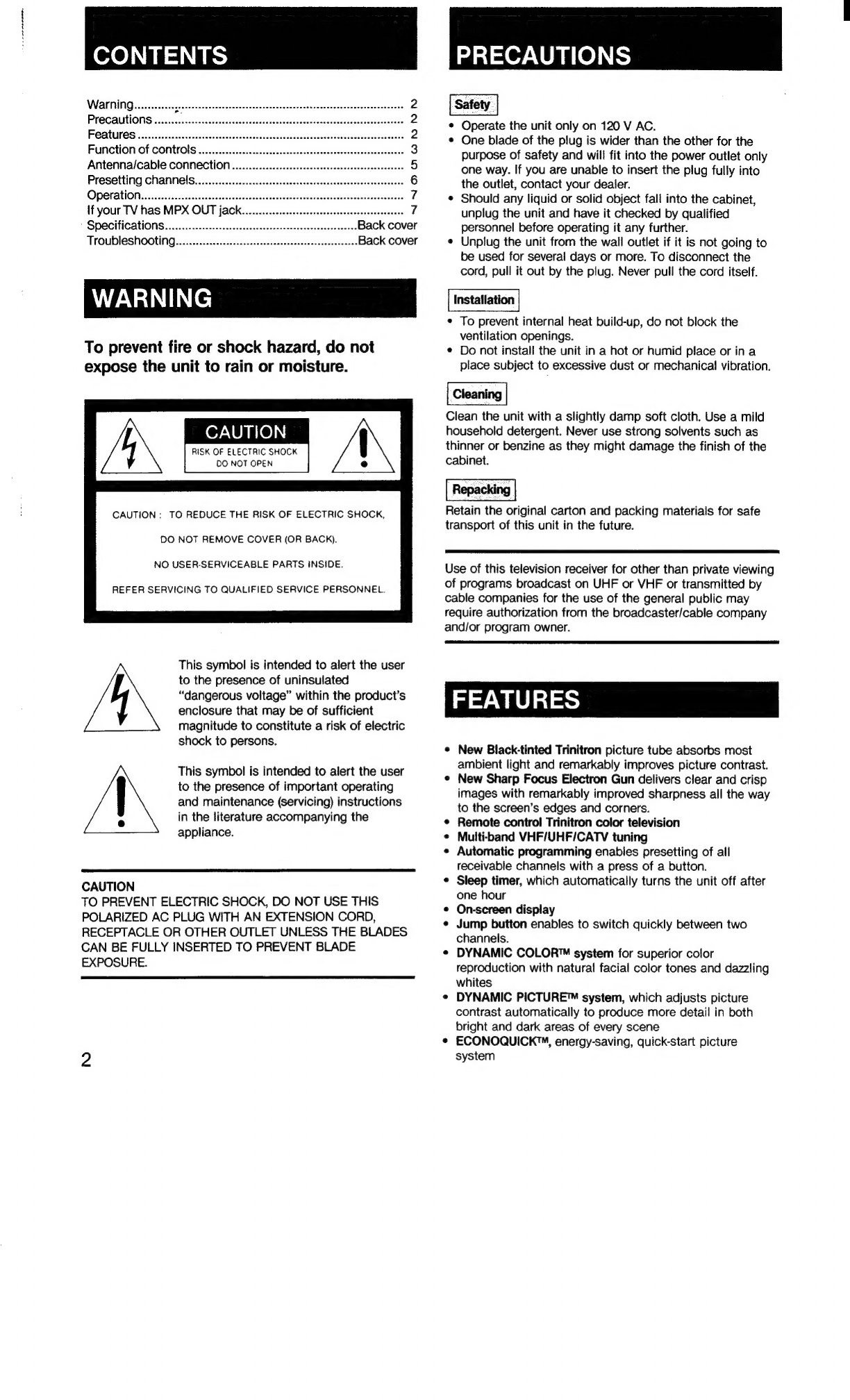

Warning
Precautions ...
Features
Function of controls
Antenna/cable connection
Presetting Channels...............:.:ccccscssssssecsssesscsseesseessesesseeaees 6
QP eLation ss ;.ccsaeesecisshsiecesawsa cues sacnsscdevsnsdecieevesuecesiceus-dausdoetecsee 7
If your TV has MPX OUT jack... eee eeseeseeceeeeeeeseeeceeeeeee 7
“SPSCIHICALIONS. «is. cccssatiasieesevessecnseeesauetevencsevsasscoveeese Back cover
TrOUDIESNOOTING.........ceccecceccesesseeeecetssessenaeeseeeeteeces Back cover
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user
to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user
to the presence of important operating
and maintenance (servicing) instructions
in the literature accompanying the
appliance.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS
POLARIZED AC PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
PRECAUTIONS
Operate the unit only on 120 V AC.
One blade of the plug is wider than the other for the
purpose of safety and will fit into the power outlet only
one way. If you are unable to insert the plug fully into
the outlet, contact your dealer.
Should any liquid or solid object fall into the cabinet,
unplug the unit and have it checked by qualified
personnel before operating it any further.
Unplug the unit from the wail outlet if it is not going to
be used for several days or more. To disconnect the
cord, pull it out by the plug. Never pull the cord itself.
e
e To prevent internal heat build-up, do not block the
ventilation openings.
¢ Do not install the unit in a hot or humid place or ina
place subject to excessive dust or mechanical vibration.
Cleaning
Clean the unit with a slightly damp soft cloth. Use a mild
household detergent. Never use strong solvents such as
thinner or benzine as they might damage the finish of the
cabinet.
Repacking
Retain the original carton and packing materials for safe
transport of this unit in the future.
Use of this television receiver for other than private viewing
of programs broadcast on UHF or VHF or transmitted by
cable companies for the use of the general public may
require authorization from the broadcaster/cable company
and/or program owner.
FEATURES
New Black-tinted Trinitron picture tube absorbs most
ambient light and remarkably improves picture contrast.
New Sharp Focus Electron Gun delivers clear and crisp
images with remarkably improved sharpness all the way
to the screen’s edges and corners.
¢ Remote control Trinitron color television
Multi-band VHF/UHF/CATV tuning
Automatic programming enables presetting of all
receivable channels with a press of a button.
Sleep timer, which automatically turns the unit off after
one hour
On-screen display
Jump button enables to switch quickly between two
channels.
DYNAMIC COLOR™ system for superior color
reproduction with natural facial color tones and dazzling
whites
DYNAMIC PICTURE™ system, which adjusts picture
contrast automatically to produce more detail in both
bright and dark areas of every scene
ECONOQUICK™, energy-saving, quick-start picture
system

FUNCTION OF CONTROLS
Bar display
On-screen display
Bar display
Indicates level of volume and picture contrast.
[2] On-screen display
Shows channel numbers, “MUTING”, and “SLEEP”
indications.
Remote control detector
Point the Remote Commander towards this detector.
SLEEP lamp .
Lights up when the SLEEP button on the Remote
Commander is pressed.
POWER switch
Depress the POWER switch to turn on the TV. To turn
off the unit, press POWER again.
[6] CHANNEL scan buttons
Press CH “+” for higher-numbered channels and “—” for
lower-numbered channels.
VOLUME buttons
Press VOL “+” to increase volume, or “—” to decrease it.
Remote control detector
SLEEP lamp
POWER switch
[6] CHANNEL scan buttons
VOLUME buttons
[8] PICTURE buttons
[9] NORMALICATV selector
HUE control
COLOR control
BRIGHT (brightness) control
SHARPNESS contro!
PICTURE buttons
Press PICTURE “+” to increase picture contrast, or “—
to decrease it.
“oy
[9] NORMALICATV selector
HUE control
Turn clockwise to make the tones greenish or
counterclockwise to make them purplish.
COLOR control
Turn clockwise for more color intensity or
counterclockwise for less.
BRIGHT (brightness) control
Turn clockwise for more brightness or counterclockwise
for less.
SHARPNESS control
Turn clockwise for more sharpness or counterclockwise
for less.

FUNCTION OF CONTROLS
Remote Commander RM-747
MUTING button
Channel number buttons
DISPLAY button
PICTURE buttons *
VOL (volume) buttons * :
Slide to open. §
Inside the cover
_@ _&_]
AUTO PROG
button
ADD button
[16]ERASE button
* The functions of these buttons are duplicated on the TV.
REMOTE COMMANDER
MUTING button
Press to mute the sound immediately. Press it again to
restore the sound.
(15] DISPLAY button
Press to keep the display on the screen.
ERASE button
Press to erase channels.
[17]ADD button
Press to add channels.
[18]AUTO PROG (automatic programming) button
Press to start automatic programming.
[19] SLEEP button
Press to activate sleep timer.
[20] ENTER button
Press after pressing the numerals to select channels.
(21] JUMP button
Press to recall the channel which was displayed directly
before the one being tuned in.
SLEEP button
POWER switch *
ENTER button
CH (channel) scan buttons *
JUMP button
Battery installation
1 Slide the cover all the way so that the battery
compartment appears, then take it off.
2 Place batteries in the Commander with correct polarity,
as illustrated inside the case.
3 Replace the cover.
¢ Use 2 size AA batteries (IEC designation R6).
* In normal operation, batteries will last up to half a year.
If the unit does not operate properly, the batteries might
be exhausted. Replace all with new ones.
© To avoid damage from possible battery leakage, remove
the batteries for extended unused periods.
¢ Be sure that there are no obstructions between the
Commander and the TV.
¢ Operable range is limited. The shorter the distance
between the Commander and the TV, the wider the
angle within which the Commander can control the TV.

ANTENNA/CABLE CONNECTION
INDOOR ANTENNA ADJUSTMENT
For VHF/UHF reception, use the supplied telescopic dipole
antenna. It will provide good reception in most areas.
Adjust the length, direction and angle of both elements
symmetrically until the picture is clearest.
Fasten with a
screwdriver.
Rear of TV
OUTDOOR ANTENNA CONNECTION
lf you cannot obtain satisfactory reception with the dipole 1 Remove the indoor antenna from the antenna terminal
antenna, using an outdoor antenna may be necessary. of the TV.
Cable TV reception is only possible by connecting a cable 2 Prepare the antenna or cable end using the appropriate
supplied by your local cable operator. connector, and connect the antenna or cable to the
antenna terminal of the TV. Gee or below.)
Combination VHF/UHF antenna,* VHF antenna, | B | When both VHF and UHF antennas are connected
UHF antenna or CATV cable
Prepare the VHF antenna end using the appropriate
Select the proper connector according to the cable type. connector as illustrated in [A].
Attach an optional EAC-66 U/V mixer to the TV antenna
( terminal, and connect the cables to the U/V mixer.
When the cable is a When the cable is a zi
7&ohm coaxial type 300-ohm ribbon type
R f
(round) lead-in (flat) VHF ear of TV HFIUHF UHF
a
‘a
Use an optional F-type Attach the antenna
connector. connector which was fixed
Lon, to the indoor antenna.
Rear of TV
VHF/UHF
15 mm
(5/8 in.)
When the cable is connected to the TV with the U/V mixer,
snow and noise may appear in the pictures of the cable TV
channels over 37 (W + 1).
Note to CATV system installer in the U.S.A.
This reminder is provided to call the CATV system
installer’s attention to Article 820-22 of the NEC that
provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of
cable entry as practical.
* Most combination antennas are equipped with a signal
splitter. Take off the splitter and attach the proper connector.

PRESETTING CHANNELS
Use the supplied: Sony RM-747 Remote Commander.
panel opened
POWER switch
CHANNEL scan
NORMALICATV
selector
buttons
Channel number
buttons
ENTER
button
AUTO PROGR button
ADD button
ERASE button
Receivable channels of this unit are:
VHF: 2-13
UHF: 14-69
CATV: 1-125
PREPARATION
1 Turn on TV.
2 Set the NORMALICATV selector to the proper mode.
For VHF and UHF channels: NORMAL
For cable TV channels: CATV
AUTOMATIC PROGRAMMING
Automatic programming presets receivable channels
automatically.
Press AUTO PROGR.
“AUTO PROGRAM?” is displayed on the screen and
receivable channels (other than the channels already
preset) will be preset in numerical sequence. The channel
previously preset remain in the unit’s memory.
When no more channels can be found, the programming
stops and the lowest numbered channel is displayed.
Some channels may not be preset or some unnecessary
channels may be preset because of the signal strength. To
add the channels that cannot be preset with automatic
programming, or to erase the unnecessary channels, follow
the steps in “Manual programming”.
MANUAL PROGRAMMING
By adding and erasing channels, you can preset your TV
so that only the desired channels appear in sequence
when CHANNEL +/- is pressed.
Adding channels
1 Select the channel to be added by pressing the channel
number buttons and then ENTER.
2 Press ADD on the Remote Commander.
A “+” indication will appear on the left of the channel
display on the screen, indicating that the channel has
been added:
Repeat steps 1 and 2 for other channels to be added.
Erasing channels
1 Select the channel to be erased.
2 Press ERASE on the Remote Commander.
“—” indication will appear on the left of the channel
display on the screen, indicating that the channel has
been erased.
Repeat steps 1 and 2 for other channels to be erased.
You cannot erase a VHF or UHF channel from the memory
and retain the cable TV channel which has the same
number, or vice versa. !f either a VHF/UHF channel or a
cable TV channel with the same number is to be kept in
the memory, do not erase the number.
CABLE TV CHANNEL CHART * *
Check with your local cable TV company for more
complete information on the available channels.
Cable TV systems use letters or numbers to designate
channels. To tune in a channel, refer to this chart.
Number on this TV 1 5 6 14 15 16 17 18 , 19 20 21 22 23 24 25 26 27 28 29 30
Corresponding CATV channel | A-8 A-7 A-6 A B Cc dD E F OG H I J K L M N O P™ @
31. 32 33) 340 85 86 87 8B 8D eee eee 93 94 95 96 97 98 99 100 101 102 wo. 123. 124 125 |
R S$ T Ui Vio W W+1 Wt2 WH3 woe W+57 W+58 A-5 A-4 A-3 A-2 A-1 W+tS9W+60 WH61 eee W+82 W+83 W+84 |
Pay cable TV systems use scrambled or encoded signals
and require special converters (decoders) in addition to the
6 normal cable connection.
* * The designation of the cable TV channels conforms to the
EIA/NCTA recommendation.

OPERATION
Preparation
Set NORMALICATY selector to:
NORMAL for VHF and UHF programs.
CATV for cable TV programs.
Panel opened
NORMALI/CATV selector
1 Depress POWER to turn on the TV.
The channel number will be displayed on the screen
and the SLEEP lamp will light up for several seconds.
2 Select channels in one of the following two ways.
e Press the numeral(s) of the channel and then press
ENTER.
e.g. To select channel 6, press 6 and then ENTER.
To select channel 125, press 1, 2, 5 and then
ENTER.
If you pressed a wrong numeral, wait for a few
seconds and it will disappear. Then try again.
e Press CH “+” for higher-numbered channels and “—”
for lower-numbered channels. Preset channels will
appear in sequence. (For presetting desired channels,
see “PRESETTING CHANNELS”)
The channel! display will remain on the screen for a few
seconds. To keep the display on the screen, press
DISPLAY.
3 Adjust volume and picture to your preference, if
necessary.
Press VOL “+” to increase volume, or “—” to decrease it.
Press PICTURE “+” to increase picture contrast, or “—”
to decrease it.
Connect to the MPX OUT jack on the rear of the TV a
special adaptor (not supplied) for multichannel TV sound
(stereo or bilingual) broadcasts.
Before connecting the adaptor, make sure that the power
to each piece of equipment is turned off.
weber ere oon

SPECIFICATIONS TROUBLESHOOTING
Television system § American TV standards Disturbances in picture and sound can often be eliminated
Channel coverage VHF: 2-13 by checking the symptoms and following the suggestions
UHF: 14-69 listed below.
Cable TV: 1-125
tube
Trinitron
tube
“1
CHECK
AND
ADJUST
~
19-inch picture measured diagonally :
20-inch picture tube measured : * Adjust PICTURE.
. Poor or no picture e Adjust BRIGHT.
Power requirements ace Hz screen not lit; . Reorient antenna.
meres ‘ good sound ® Check antenna/cable
Power consumption 120 W (max.), 78 W (average)
6 W (in standby condition) SOnecHons:
Accessories supplied
Remote Commander RM-747 with 2
size AA batteries Good picture, no
sound
¢ Press VOLUME +.
¢ Release MUTING on the
Remote Commander.
Only for the model equipped with MPX OUT jack
Output MPX (multiplex) output +
phono jack, 77.5 m Vrms
een
see
No
(screen
Is
POWER
switched
on?
channel,
1kHz,
100%
modulation)
not
lit),
no
sound
Power
in
outlet?
Design
and
specifications
subject
to
change
without
notice.
No
color
¢
Adjust
COLOR.
e Is it a color program?
¢ Is it an active or the
3 correct channel?
Snow and noise ¢ Check the NORMAL/
only CATV selector setting.
¢ Check antenna
connections.
This is often caused by
local interference (e.g.
cars, neon signs, hair-
dryers etc.). Adjust
antenna for minimum
interference.
| Dotted fines
or stripes
Reflections from nearby
mountains or buildings
often cause this problem.
A highly directional
outdoor antenna or a
CATV cable may improve
the picture.
Double
images
Try another channel. It could be station trouble.
If the problem still cannot be solved, contact your nearest
service facility.
Sony Corporation Printed in U.S.A.
