Sony HANDYCAM HVR-M35U User manual

HVR-M35U
HVR-M25AU
HVR-M15AU
Digital HD Videocassette Recorder
www.sony.com/HDV TM
(images simulated)
SONY55397_HVR:SONY54208_HVR 5/7/09 7:15 AM Page 2

2
The Perfect Choice for Cost-effective HD
Productions-the Sony HVR-M35U, HVR-M25AU
and HVR-M15AU HDV 1080i VTRs
Sony has introduced an affordable, yet high-performance
HD recording system incorporating the HDV™ 1080i
specification for use in its products, thereby offering
the HDV format to a wide range of professional
videographers. Since they were introduced, HDV
systems have gained rapid and wide acceptance
due to their high picture quality, outstanding
performance, and cost effectiveness.
Today, in response to the demands for greater levels of
operability, such as longer recording time and
progressive format playback/record capabilities, Sony
has introduced its latest HDV recorders – the HVR-M35U,
HVR-M25AU and HVR-M15AU.
The HVR-M35U, HVR-M25AU and HVR-M15AU enable
users to record and play back video in a choice of
formats –HDV 1080i, DVCAM™, and DV. They also
feature the HDV native progressive format capability,
which provides stunning 1080p image at 24, 25 or 30
frames per second.*
One of the most powerful features of these VTRs is their
compatibility with standard cassettes in addition to
mini cassettes, which provides extended recording
time of up to 276 minutes.
These models are optimized for use with nonlinear
editing systems thanks to their highly compact size
and ease of operation. However, the HVR-M35U and
HVR-M25AU provide additional powerful features such
as a built-in 2.7-inch*1type, 16:9 LCD monitor and an
HD-SDI or HDMI (High Definition Multimedia Interface)
output for more demanding production environments.
The HVR-M35U, HVR-M25AU and HVR-M15AU are highly
powerful, yet cost-effective tools for nonlinear editing
systems that will serve both today’s production needs,
as well as those of tomorrow.
*In this brochure, "24p" means "23.98p" video signal and
"30p" means "29.97p" video signal.
*1 Viewable area measured diagonally.
HVR-M35U
HVR-M15AU
HVR-M25AU
SONY54208_HVR 3/31/08 3:54 PM Page 3

3
HDV 1080i Specification
The HDV 1080i specification*2of the HDV format features
1,080 effective scanning lines (interlace scanning system)
and 1,440 horizontal pixels. It adopts the MPEG-2
compression format (MP@H-14 for video), which uses 8-bit
digital component recording with a sampling rate of 4:2:0.
The HDV 1080i specification provides high picture quality
that can be used for HDTV program production.
In HDV format, the progressive recording format is also
defined as an option for HDV 1080i specification.With this
format, called HDV native progressive format, 1080p images
at 24, 25 or 30 frames per second can be recorded.
The HVR-M35U /M25AU/M15AU enables users to play back
1080p images recorded with camcorders featuring this
format and to record with i.LINK®input.
HDV FORMAT
Track Pattern of the HDV 1080i Specification
FEATURES OF HVR-M35U, HVR-M25AU AND HVR-M15AU
Compatible with Existing and New DV
Videocassette Tape
As a member of the proven DV family of formats, the HDV
format has, from the outset, been developed for
compatibility with all grades of DV videocassette tape.
This allows operators to use high-grade DV videocassette
tapes for applications where high robustness is critical, or
consumer-grade videocassette tapes for more economical
operations. For heavy-duty applications, the DigitalMasterTM
high-grade cassette tape has been developed. This tape is
compatible with the HDV, DVCAM, and DV formats.
Long Recording Time
The HDV format adopts the same track pitch and tape
speed as the DV format, thus offering the same recording
time – a maximum of 276 minutes when recording on a
DigitalMaster standard cassette tape and a maximum of
63 minutes when recording on a DigitalMaster mini
cassette tape.
Switchable Recording and Playback
– HDV 1080i/DVCAM/DV SP and 60i/50i
The HVR-M35U/M25AU/M15AU can switch between HDV
1080i, DVCAM, and DV*3recording, providing full flexibility to
record in either standard definition or high definition
depending on your production needs. In addition, it can be
switched between 60i and 50i modes (NTSC and PAL), which
allows for flexible production operations, without the need
for two separate VTRs of each standard. These models also
supports HDV native progressive recording format, so they
can playback/record;
•HDV1080i: 60i/50i/24p/30p/25p
•DVCAM/DV:60i/50i
Dual-size Cassette Mechanism
The HVR-M35U/M25AU/M15AU has a dual-size cassette
mechanism that accepts both mini- and standard-sized
DigitalMaster, DVCAM, and DV cassette tapes – without using
any special adaptor. This feature allows the six different
types of cassette tape to be used without the cumbersome
process associated with additional mechanical hardware.
*2 The HDV format also defines the HDV 720P specification, which features 720 effective scanning lines (progressive scanning system) and 1,280 horizontal pixels. *3 The HVR-M35U/M25AU/M15AU
supports DV SP mode only; no support for DV LP mode.
M15AM25A M35
M15AM25A M35
Direction of tape travel 10 μm
Sub Code sector
MPEG-2 PES sector
(Video + Audio + Search + AUX)
ITI sector
Direction
of head motion 6.35 mm
(1/4 inch)
ITI: Insert and Track Information
PES: Packetized Elementary Stream
SONY54208_HVR 3/31/08 3:54 PM Page 4

4
FEATURES
HDV Four Channel Audio Playback
The HVR-M35U can play back four-channel audio recorded
with the HVR-S270U shoulder-mount camcorder. The audio
data is output via an AES/EBU output terminal. Also the audio
data is embedded in the i.LINK or the HD/SD-SDI output signal.
Edge Crop Adjust
When down-converting signals in the Edge Crop mode,
the HVR-M35U/M25AU’s Edge Crop Adjust function is
provided to adjust the edge crop position. By displaying
the edge crop marker on the LCD monitor, operators can
conveniently check the edge crop position before
outputting down-converted signals.
i.LINK
*
5
Interface
The HVR-M35U/M25AU/M15AU is equipped with a 6-pin*
6
i.LINK
interface. This allows for one cable digital transfer*
7
of video,
audio, and command signals to a compatible connected VTR
or nonlinear editing system in HDV, DVCAM, or DV format.
Time Code Copy from External Devices
When the HVR-M35U/M25AU/M15AU records signals from
the i.LINK port, the time code that was recorded on the
original tape can be copied onto other tapes, along with
the video and audio signals. This is effective when
downloading edited material from nonlinear editors or
creating dubs from other VTRs.
Auto Repeat and Custom Repeat
The HVR-M35U/M25AU/M15AU has a convenient auto
repeat function. This enables the VTR to automatically
rewind the tape to either the beginning of the tape, the first
complete blank portion, or an index point on the tape, and
start playback again from there*8. In addition, the HVR-
M35U/M25AU has a Custom Repeat function that allows
operators to set the number of repeat playbacks, the
interval between each playback, and the hour at which the
playback should begin.
Down-conversion Playback Capabilities
The HVR-M35U/M25AU/M15AU can convert material from 1080i
down to 480i and 576i, and output these video signals through
its i.LINK interface. In addition, these signals can be output via
the other connectors. This allows users to edit recorded
material with a compatible nonlinear editing system using
current DV editing software, as well as record SD signals to an
external VTR. Video material can also be down-converted to
480P and 576P (as well as 720P on the HVR-M35U/HVR-M25AU),
and output via the VTR’s SDI (on the HVR-M35U), HDMI (on the
HVR-M25AU) or analog component video connector. When
down-converting these signals, the aspect ratio displayed can
be converted from 16:9 to 4:3. Display modes can be
selected from Squeeze, Letterbox
*
4
, and Edge Crop.
HDV 1080i (16:9)
DVCAM/DV (4:3)
Squeeze Letterbox Edge crop
Input Format
DVCAM/DV 480/60i
DVCAM/DV 576/50i
Input Terminal
Analog Composite / S-Video
Analog Composite / S-Video
Recording Formats
[60i/50i SEL]
60i
50i
i.LINK
i.LINK
HDV
HDV
1080/60i
1080/30p
1080/24p
1080/50i
1080/25p
DVCAM
–
–
–
–
–
HDV
–
–
–
–
Recording Format
DV(SP)
–
–
–
–
–
: Available
Recorded Format
DVCAM/DV 480/60i
DVCAM/DV 576/60i
Playback Formats
[60i/50i SEL]
60i
50i
HDV
HDV
1080/60i
1080/30p
1080/24p
1080/50i
1080/25p
480i
480p/480i
1080i/480i
720p/480i
*
2
*
3
480i
480p/480i
1080i/480i
720p/480i
*
2
*
3
576i
576p/576i
1080i/576i
720p/576i
*
2
*
3
576i
576p/576i
1080i/576i
720p/576i
*
2
*
3
Analog
Component
480/60i
576/50i
HDMI
(M25AU only)
480/60i
480/60p
480/60i
480/60i
576/50i
576/50p
576/50i
576/50i
480/60i
480/60p
1080/60i
720/60p
576/50i
576/50p
1080/50i
720/50p
HD/SD-SDI
(M35U only)
480/60i
not available
1080/60i
*
4
720/60p
480/60i
480/60i
480/60i
480/60i
576/50i
not available
1080/50i
*
5
720/50p
576/50i
576/50i
576/50i
576/50i
480/60i
576/50i
Output
*1 for HVR-M15AU *2 for HVR-M25AU *3 for HVR-M35U
*4 1080/30p video is converted to 60i (1080/30PsF) *5 1080/25p video is converted to 50i (1080/25PsF)
MENU SETTING
[COMPONENT]*
1
[HDMI/CMPNT]*
2
[SDI/CMPNT]
*
3S-Video
Analog
Composite
Recorded Format
Output Settings of i.LINK
[60i/50i SEL]
60i
50i
HDV
1080/60i
1080/30p
1080/24p
1080/50i
1080/25p
[HDV DV CONV]
MENU SETTING
OFF
DVCAM
DV SP
OFF
DVCAM
DV SP
Output Format via i.LINK Connector
same as the recorded format
DVCAM 480/60i
DV 480/60i
same as the recorded format
DVCAM 576/50i
DV 576/50i
DVCAM/DV signal is output via the i.LINK connector as it is.
Squeezed SD Video Image
Output Type can be Selected.
The HVR-M35U can convert squeezed SD video images to
edge-cropped or letterbox video images for output. This
function is convenient when viewing the squeezed SD video
image on an SD monitor with 4:3 screen aspect ratio.
*
4 When outputting down-converted signals in the 4:3 aspect ratio via an i.LINK connector, the Letterbox mode cannot be selected.
*5 i.LINK is a trademark of Sony Corporation used only to
designate that a product contains an IEEE 1394 connector. Not all products with an i.LINK connector will necessarily communicate with each other. For information on compatibility, operating
conditions, and proper connection, please refer to the documentation supplied with any device with an i.LINK connector. For information on devices that include an i.LINK connection, please
contact your nearest Sony office. *
6 Please use a 4-pin/6-pin i.LINK cable when you connect the HVR-M35U/M25AU/M15AU with a device which has a 4-pin i.LINK connector.
*
7 Insert and
assemble editing using HDV material is not recommended with the HVR-M35U/M25AU/M15AU. When video programs in the HDV format are transferred via the i.LINK interface and edited,
transitions from cut to cut may not be smooth.
*
8 The HVR-M35U/M25AU/M15AU ignores any blank or index point in the first 20 seconds of the tape.
M15AM25A M35
M35
M15AM25A M35
M15AM25A M35
M15AM25A M35
M25A M35
M35
(images simulated)
SONY54208_HVR 3/31/08 3:54 PM Page 5

5
FEATURES
Color Bar and 1-kHz Audio Tone
Signal Output
The HVR-M35U/M25AU/M15AU can output several types of
color bar, as well as an audio tone signal of 1 kHz. These are
useful when checking the system conditions.
External Control
The HVR-M35U/M25AU/M15AU comes equipped
with a Remote Commander®unit, which enables
users to control the recorder’s functions wirelessly.
In addition, the HVR-M35U/M25AU/M15AU is
equipped with a LANC terminal, as well as a
Control S terminal to connect with the optional
DSRM-10 Remote Control Unit.
Built-in, 2.7-inch Type,
Clear Photo LCD PlusTM Monitor
The HVR-M35U/M25AU is equipped with a 2.7-inch*2type
widescreen color LCD monitor with a high resolution of
211,200 dots. It adopts a newly developed Clear Photo LCD
Plus panel, which provides enhanced brightness and a
higher level of color reproduction than that used in the
DSR-25. This LCD monitor allows operators to view the input
source during recording, and check the playback picture in
a 16:9 widescreen aspect ratio. Setup menus,VTR/audio
settings, and audio level meters can also be displayed.
Non-compressed Digital HD Output
The HD/SD-SDI output of HVR-M35U allows straight
duplication to a deck with HD/SD-SDI input such as HDCAM
and XDCAM HD. The HVR-M25AU comes equipped with a
HDMI interface. This interface allows the HVR-M25AU to
transfer non-compressed, high-definition digital video and
audio to other HDMI-equipped devices via a single cable.
DUPLICATE PLUS
The DUPLICATE PLUS function makes it easy to copy video
and audio from a VTR or camcorder onto the HVR-
M35U/M25AU – along with the original time code. Operators
simply connect the two i.LINK devices together via their
i.LINK interfaces and press the DUPLICATE PLUS and Play
buttons on the front panel of the
HVR-M35U/M25AU. The
copying will then begin. This function can also
be used for
copying the content of multiple tapes onto a single tape,
which is convenient when there is a need to compile
multiple mini cassette tapes onto a single standard cassette
tape. Another unique feature of DUPLICATE PLUS is the
ability to selectively copy portions of material recorded in a
designated format from a tape that contains mixed-format
recordings. For example, you can choose to copy only HDV
format recordings from a tape that includes DVCAM and DV
video as well. This DUPLICATE PLUS function is available for
any recordable formats (HDV/DVCAM/DV SP).
Playback Zoom
Using the playback zoom function of the HVR-M35U, a
selected area of the recorded HD images can be enlarged
and output in SD format via the i.LINK and analog
connectors.This function allows operators to cut out parts of
the HD image and use them as SD material.
Buit-in Monaural Speaker
The built-in monaural speaker of the HVR-M35U/M25AU allows
quick and convenient checking of audio.
Time Code Preset
The time code of the HVR-M35U/M25AU can be preset using
any number in H/M/S/F (hours/minutes/seconds/frames) to
record desired tape-position information. The time code
mode can be selected between “REC RUN” and “FREE RUN”.
In addition to the time code, user bits can also be set.
Status Check
At the touch of the STATUS CHECK button of the HVR-
M35U/M25AU, operators can display the menu settings for
Audio Level Meter, Output Signal, Assign Button, and Custom
Repeat on the LCD monitor – allowing for easy status or
setting checks during recording, playback, and source
feeding. It is also possible to display the status of the
connected HVR-DR60 hard disk recording unit or the
HVR-MRC1 memory recording unit.
Assign Buttons
The buttons for INDEX, COUNTER RESET, and AUDIO DUB on the
front panel of the HVR-M35U/M25AU can be used as “Assign
Buttons”, to which operators can assign another frequently
used function.
All Scan Mode
The All Scan Mode of the HVR-M35U/M25AU is similar to the
Under Scan Mode of ordinary monitors, in that it displays all
effective scanning lines in the LCD monitor when the 1080i
mode is selected. This is useful if you want to check pictures
for web applications, for example. The All Scan Mode can
be easily recalled at the touch of a button if you pre-assign
it to one of the three “Assign Buttons”.
Compact, Unique Design
The HVR-M15AU is compact, with a
small footprint that enables it to be
deployed in existing work
environments without disruption.
It is also unique in that it can be
placed either horizontally or vertically.
M15AM25A M35
M15A
M25A M35
M25A M35
M25A M35
M25A M35
M25A M35
M25A M35
M25A M35
M25A M35
M35
M15AM25A M35
SONY54208_HVR 3/31/08 3:54 PM Page 6

6
HVR-M35U
FRONT & REAR PANELS
Front Panel
HVR-M15AU
HVR-M25AU
Rear Panel
Front Panel Rear Panel
Front Panel Rear Panel
SONY54208_HVR 3/31/08 3:55 PM Page 7

7
HDV native progressive format
HDV 4ch audio
LCD panel
Speaker
HD/SD-SDI out
HDMI out
AES/EBU out
TC out
Audio out
Main Power Switch
Playback Zoom
Color Bar
Squeezed SD output type
Edge Crop Adjust
VCR profile
Status check
Status display of the HVR-DR60/MRC1
30p / 24p / 25p
YES
YES
Monaural x1
YES
NO
YES
YES
XLR x4
YES
YES
4 types + BLACK
YES (SQ, LB, EC)
YES
YES
YES
YES
30p / 24p / 25p
NO
YES
Monaural x1
NO
YES
NO
NO
RCA x2
YES
NO
3 types
NO
YES
NO
YES
YES
30p / 24p / 25p
NO
NO
NO
NO
NO
NO
NO
RCA x2
No
No
3 types
No
No
No
No
YES
HVR-M35U HVR-M25AU HVR-M15AU
HVR-M15AU
HVR-M35U
HVR-M35U/M25AU
HVR-M15AU
i.LINK
(HDV/DVCAM/DV)
i.LINK
(HDV/DVCAM/DV)
HD/SD-SDI
Output
HDV1080i/DV
Nonlinear Editing System
HDCAM Tape
Nonlinear Editing
Dubbing to HD/SD-SDI Deck
COMPARISON
Dubbing with the Time Code Recording Capability
VTR with HD/SD-SDI input
HDV1080i/DVCAM VTRHDV1080i/DVCAM
HVR-M35U/M25AU
DigitalMaster Tapes
Mini Cassette Standard Cassette
Mini Cassette
DigitalMaster Tapes
Standard Cassette
APPLICATIONS
ACCESSORIES
VMC-IL4408A/IL4415/IL4435
i.LINK Cable
(4-pin to 4-pin, 0.8/1.5/3 m)
VMC-IL4615/IL4635
i.LINK Cable
(4-pin to 6-pin, 1.5/3.5 m)
DLC-HM15/HM30/HM50
HDMI Cable (1.5/3/5 m)
PHDVM-63DM
DigitalMaster Mini Cassette Tape
PHDV-276DM/186DM/124DM/64DM
DigitalMaster Standard Cassette Tape
SONY54208_HVR 3/31/08 3:55 PM Page 8

10 3/8 (261)
7 1/4 (184)
1/4 
(6.1)
5/32 (3.8)
6 (151)
2 3/4 (69)
7 1/8 (184)
HVR-M15AU
3 1/2 (88)
7 (175)
8 3/8 (212) 15 3/8 (390.3)
11 1/4 (284)
11/32 ]
(8.7)
13/32 (10)
HVR-M35U / HVR-M25AU
Unit: inches (mm)

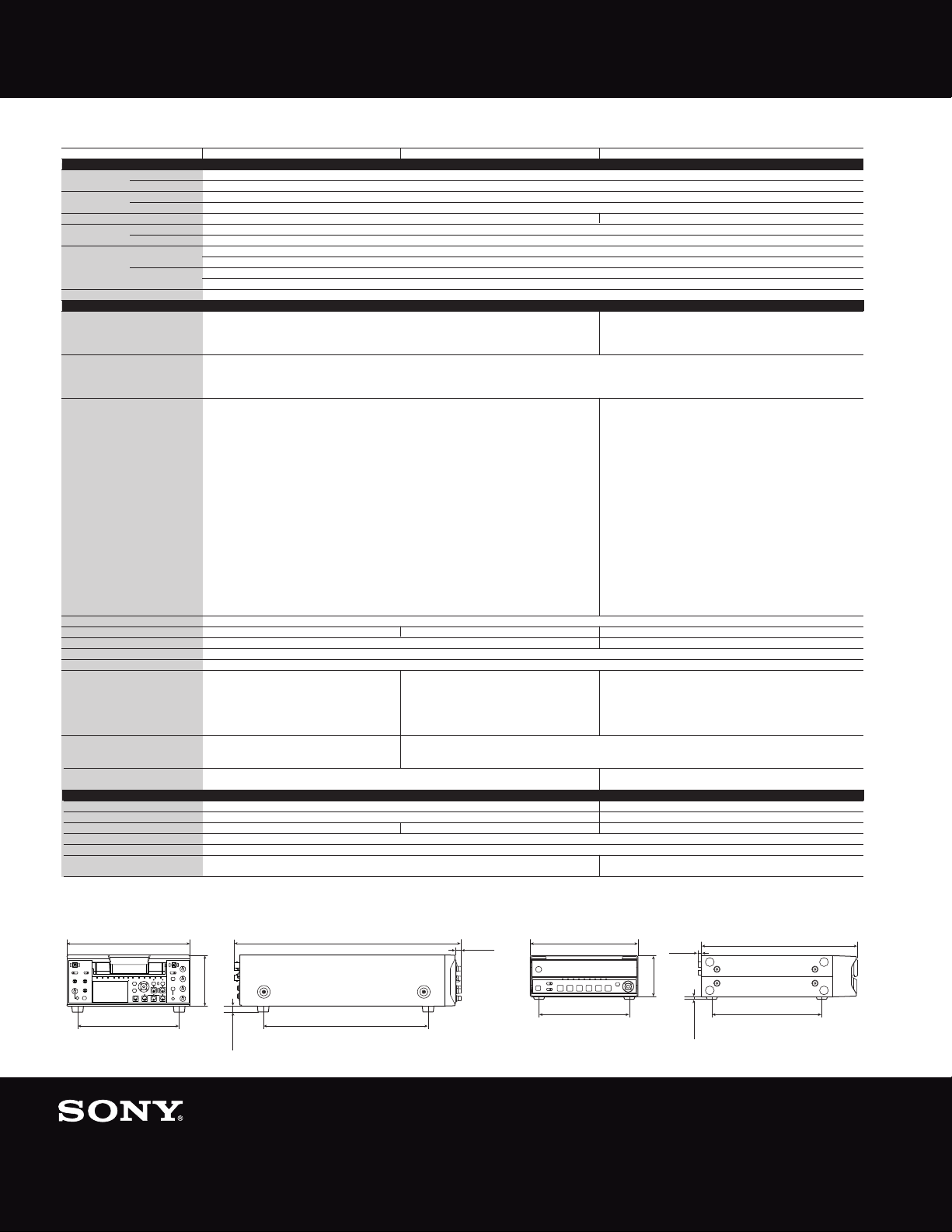

SPECIFICATIONS
HDV1080/60i, 1080/50i, 1080/24p, 1080/25p, 1080/30p
DVCA , DV SP 480/60i (NTSC), 576/50i (PAL)
HDV1080/60i, 1080/50i, 1080/24p, 1080/25p, 1080/30p.
DVCA , DV SP 480/60i (NTSC), 576/50i (PAL)
ax. 18.812 mm/s
ax. 28.218 mm/s
ax. 276 min with PHDV-276D cassette
ax. 63 min with PHDV -63D cassette
ax. 184 min with PHDV-276D cassette
ax. 41 min with PHDV -63D cassette
Approx. 2.5 min with PHDV-276D cassette
ini-DIN 4pin x 2
Y : 1Vp-p , 75ohm unbalanced, sync negative
Sync signal : 0.286Vp-p (60i / NTSC) , 0.3Vp-p (50i / PAL)
Chrominance signal : 0.286Vp-p (60i / NTSC),(burst, 75ohm) , 0.3Vp-p (50i / PAL),(burst, 75ohm)
6-pin
Stereo mini-minijack ( 2.5 mm)
Stereo minijack ( 3.5 mm)
41 to 104°K (5 to 40°C)
-4 to 140°K (-20 to +60°C)
HVR-M15AU
1080/60i, 1080/50i, 480/60i (NTSC), 576/50i (PAL)
RCA x 1 / RCA x 1
1Vp-p , 75ohm unbalanced, sync negative
Sync signal : 0.286Vp-p (50i / NTSC) , 0.3Vp-p (60i / PAL)
Burst signal : 0.286Vp-p (50i / NTSC) , 0.3Vp-p (60i / PAL)
RCA pin x 3
Output at 480i NTSC
With[BETACA ]®selected in [480i LEVEL] of the [IN/OUT REC] menu
Y : 1 Vp-p (0.286Vp-p sync negative, output impedance 75ohm unbalanced)
Pb / Cb / B-Y , Pr / Cr / R-Y : 0.7Vp-p (output impedance
75ohm unbalanced) (75% color bar with 7.5% IRE setup)
With[S PTE] selected in [480i LEVEL] of the [IN/OUT REC] menu
Y: 1 Vp-p (0.3Vp-p sync negative, output impedance 75ohm unbalanced)
Pb / Cb/B-Y , Pr / Cr / R-Y : 0.7Vp-p (output impedance 75ohm
unbalanced)(100% color bar with no setup)
Output with other settings
Y: 1 Vp-p (output impedance 75ohm unbalanced)
Pb / Cb / B-Y , Pr / Cr / R-Y : 0.7Vp-p (output impedance
75ohm unbalanced)(100% color bar with no setup)
480i / 480p :
Y : with 0.3Vp-p sync negative
1080i / 720p :
Y / Pb / Pr : with 0.6Vp-p 3-level sync
-
-
RCA x2,stereo
Input level : -10dBu,
input impedance: min. 47 Ωunbalanced,
max Input level :
+18dBu (approx. 6Vrms)60i , +16dBu (approx. 5Vrms)50i
-
Approx. 5 lb 1 oz (2.3 kg)
DC 8.4 V
6 W (playback mode)
Remote Commander (1), AC adaptor (1), power cord (1),
stand (1), cleaning cassette (1), operating instructions (1)
1080/60i, 1080/50i, 480/60i (NTSC), 576/50i (PAL), 480/60P, 576/50P, 720/60P, 720/50P
BNC x1/BNC x1
1Vp-p , 75ohm unbalanced, sync negative
Sync signal : 0.286Vp-p (50i / NTSC) , 0.3Vp-p (60i / PAL)
Burst signal : 0.286Vp-p (50i / NTSC) , 0.3Vp-p (60i / PAL)
BNC x 3
Output at 480i NTSC
With[BETACA ] selected in [480i LEVEL] of the [IN/OUT REC] menu
Y : 1 Vp-p (0.286Vp-p sync negative, output impedance 75ohm unbalanced)
Pb / Cb / B-Y , Pr / Cr / R-Y : 0.7Vp-p (output impedance 75ohm unbalanced)
(75% color bar with 7.5IRE setup)
With[S PTE] selected in [480i LEVEL] of the [IN/OUT REC] menu
Y: 1 Vp-p (0.3Vp-p sync negative, output impedance 75ohm unbalanced)
Pb / Cb/B-Y , Pr / Cr / R-Y : 0.7Vp-p (output impedance 75ohm unbalanced)
(100% color bar with no setup)
Output with other settings
Y: 1 Vp-p (output impedance 75ohm unbalanced)
Pb / Cb / B-Y , Pr / Cr / R-Y : 0.7Vp-p (output impedance 75ohm unbalanced)
(100% color bar with no setup)
480i / 480p :
Y : with 0.3Vp-p sync negative
1080i / 720p :
Y / Pb / Pr : with 0.6Vp-p 3-level sync
Stereo minijack ( 3.5 mm)
2.7-inch (viewable area measured diagonally) type,
approx. 211,200 dots (960 x 220), Clear Photo LCD Plus˛
Approx . 9 lb. 12 oz (4.4 kg)
AC 120 V, 60 Hz
Remote Commander (1), power cord (1), cleaning cassette (1),
operating instructions (1)
HVR-M35U
HD/SD-SDI BNC x 1
RCA x4,stereo
Input level: -10/-2/+4dBu,
input impedance: min. 47 Ωunbalanced,
max Input level:
-10:+18dBu(approx. 6Vrms) , -2:+24dBu(approx.
12.5Vrms), +4:+30dBu(approx.25Vrms)
XLR 3pin x4,stereo
impecance: max. 600 Ωbalanced
+4dBu
15W(playback mode with LCD monitor on)
HVR-M25AU
HD I Connector x 1
RCA x2,stereo
Input level : -10 / -2 / +4dBu,
input impedance : min. 47 Ωunbalanced,
max Input level :
-10 : +18dBu (approx . 6Vrms) , -2 : +24dBu(approx .
12.5Vrms), +4 : +30dBu (approx . 25Vrms)
11 W (playback mode with LCD monitor on)
RCA x2,stereo
impedance : max. 1kΩunbalanced,
Output level : -10dBu (=full bit -20dB) impedance 47
Ω
unbalanced 60i, -10dBu (=full bit -18dB) impedance 47
Ω
unbalanced 50i
HDV
DVCA / DV SP
HDV
DVCA / DV SP
HDV/DV SP
DVCA
HDV/DV SP
DVCA
Recording/playback performance
Recording
format
Playout format
Playout video signal
Tape speed
Playback/
recording time
Fast forward/rewind time
Input/output connectors/devices
Video input/output
S-video input/output
Component video output
i.LINK Interface
Digital uncompressed output
Phones
LANC
Control S
Audio input
Audio output
LCD monitor
General
Weight
Powere requirements
Power consumption
Operating temperature
Storage temperature
Supplied accessories
φ
φ
φ
Printed in USA (5/09)
© 2008 ony Electronics Inc, All rights reserved.
Reproduction in whole or in part without permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
ony, DVCAM, DigitalMaster, i.LINK, Clear Photo LCD Plus,
Remote Commander, HDCAM and XDCAM are trademarks of ony.
HDV and HDV logo are trademarks of ony Corporation and Victor Company of Japan, Limited.
V-2413-A (MK10333V2)
ony Electronics Inc.
1 ony Drive
Park Ridge, NJ 07656
www.sony.com/HDV
SONY55397_HVR:SONY54208_HVR 5/7/09 7:14 AM Pa e 1
