Sony ICD-UX512F User manual

4-196-548-12(1)
ICD-UX512F/UX513F
IC Recorder Quick Start Guide GB
Guía de inicio rápido ES
CS
CT
KR

2GB
CAUTION
Risk of explosion if battery is replaced by an incorrect
type.
Dispose of used batteries according to the instructions
of batteries.
Precautions
On power
Operate the unit only on 1.2 V or 1.5 V DC.
Use one NH-AAA rechargeable battery or one
LR03 (size AAA) alkaline battery.
On safety
Do not operate the unit while driving, cycling or
operating any motorized vehicle.
On handling
• Do not leave the unit in a location near heat
sources, or in a place subject to direct sunlight,
excessive dust or mechanical shock.
• Should any solid object or liquid fall into the
unit, remove the battery and have the unit
checked by qualified personnel before operating
it any further.
If you have any questions or problems concerning
your unit, please consult your nearest Sony dealer.
This Quick Start Guide describes only basic
operations, such as how to record, play back, or
erase files. The operating instructions
explaining all the features and functions of
the IC recorder are stored as PDF files in 7
languages in the built-in memory of the IC
recorder. To copy the operating instructions
from the IC recorder to your computer, see
“Step 6: Copying the Operating Instructions to
Your Computer” on page 6.
You can also get another copy of the operating
instructions from the Sony support home page:
http://www.sony-asia.com/section/support
Moreover, to install the supplied application
software (Sound Organizer), refer to the
operating instructions stored as PDF files.
For details on using the Sound Organizer
software, visit its help files.

3GB
Getting Started
Step 1: Checking the
Contents of the Package
IC Recorder (1)
Remove the film on the display window before you
use the IC recorder.
Stereo headphones (1)
USB connection support cable (1)
If the IC recorder cannot be connected to a computer
directly, use the supplied USB connection support
cable.
Telephone recording microphone (1)
(for ICD-UX513F only)
Application software, Sound Organizer
(CD-ROM) (1)
Carrying pouch (1)
NH-AAA (size AAA) rechargeable
battery (1)
Battery case (1)
Operating Instructions
The operating instructions are stored as PDF files in
the built-in memory of the IC recorder.
Step 2: Recharging the
Battery
Recharging the battery using a
computer
1Insert a rechargeable battery.

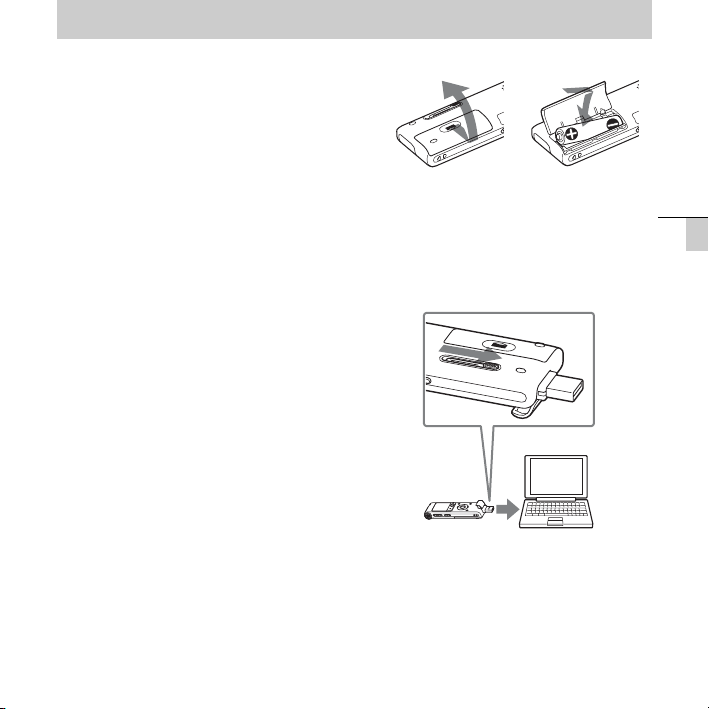

Slide and lift the battery compartment lid, insert
one NH-AAA rechargeable battery with correct
polarity, and close the lid.
2Connect the IC recorder to your computer.
Slide the USB slide lever on the back of the IC
recorder in the direction of the arrow, and insert
the USB DIRECT connector into the USB port
of a running computer.
3Disconnect the IC recorder from your
computer.
Follow the procedures below; otherwise, when
the IC recorder contains data files, the files may
be damaged or become unplayable.
1Make sure that the operation indicator of the
IC recorder does not light.
Computer
IC recorder
To USB port of
your computer
GB

4GB
2Perform the following operation on your
computer.
On a Windows screen, left-click the icon at
the bottom of the desktop of the computer.
tLeft-click “Eject IC RECORDER.”
The icon and menu displayed can be different on
different operating systems.
On a Macintosh screen, drag “IC
RECORDER” on the desktop to “Trash” and
drop it there.
For details on disconnecting the IC recorder
from your computer, refer to the operating
instructions supplied with your computer.
3Disconnect the IC recorder from the USB
port of the computer, and slide the USB
slide lever in the direction of the arrow to
retract the USB DIRECT connector.
Step 3: Turning the IC
Recorder On
Turning the power on

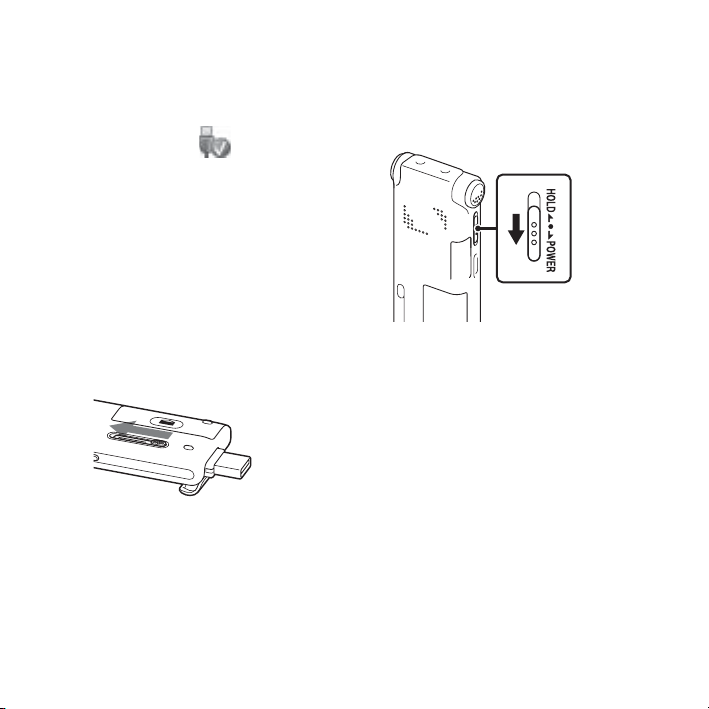

Slide the HOLD/POWER switch in the direction
of “POWER” for more than 1 second. The IC
recorder is turned on, and the “Accessing...”
animation is displayed.
Turning the power off
Slide the HOLD/POWER switch in the direction
of “POWER” for more than 2 seconds, and the
“Power Off” animation is displayed.

5GB
Step 4: Setting the Clock
You need to set the clock to use the alarm
function or record the date and time.
When you insert a battery for the first time, or
when you insert a battery after the IC recorder has
been without a battery for more than 1 minute, the
“Set Date&Time” animation appears, and then the
year section begins to flash in the clock setting
display window.
Setting the clock after
recharging the battery
1Press vor Von the control button to set the
year, month, day, hour, and minute in sequence,
and then press N/ENT.
Select the last two digits of the year when you
set the year.
2Press xSTOP to return to the stop mode
display.
Setting the clock using the
menu
Refer to “Setting the clock using the menu”
(page 14 in “Operating Instructions”).
Step 5: Setting the
Language to Be Used in
the Display Window
You can select the language to be used for
messages, menus, folder names, file names, etc.
from 11 languages.
1Select the (IC recorder setting) tab t
“Language” in the menu, and then press N/
ENT.
xSTOP
N/ENT
v, V
xSTOP
N/ENT
v, V

6GB
2Press vor Von the control button to select the
language that you want to use, and then press
N/ENT.
You can select the following languages.
Deutsch (German), English, Español (Spanish),
Français (French), Italiano (Italian), Русский
(Russian), (Japanese), (Korean),
(Chinese), (Chinese),
(Thai)
3Press xSTOP to exit the menu mode.
Step 6: Copying the
Operating Instructions
to Your Computer
1Connect the IC recorder to your computer
(page 3).
2Complete the following procedure on your
computer.
On a Windows screen; open “My Computer” or
“Computer,” - “IC RECORDER” -
“Instructions.”
On a Macintosh screen; open the “IC
RECORDER” drive on the desktop -
“Instructions.”
3Drag and drop the files of the operating
instructions from “Instructions” folder to the
local disk on your computer.
The file names of the operating instructions are
as follows:
Product name_language name_version.pdf (e.g.
ICD-UX512F_UX513F_English_11.pdf)
4Disconnect the IC recorder from your computer
(page 3).

7GB
Basic Operations
Recording
zTip
Before you start recording, we recommend you make a trial recording first, or monitor the recording.
Selecting a folder
1Slide the HOLD/POWER switch towards the center to release
the IC recorder from the HOLD status.
2Press to display the folder selection window.

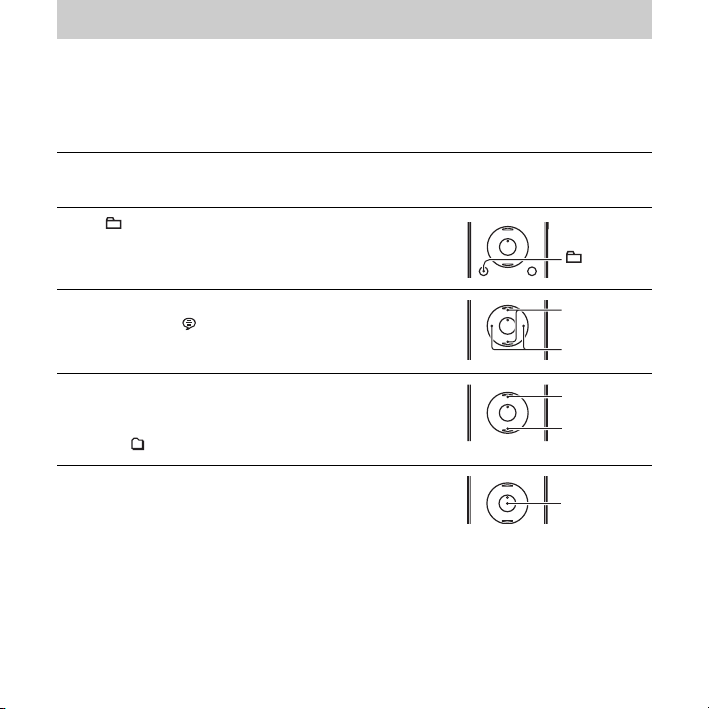

3Press .on the control button, press vor Von the control
button to select the (Voice) tab, and then press >on the
control button.
4Press vor Von the control button to select the folder in which
you want to record files.
When you purchase the IC recorder, there are 5 folders already
available ( FOLDER01-05).
5Press N/ENT.
., >
v, V
v
V
N/ENT

8GB
Starting to record (Auto (AGC) recording)
To stop recording
Listening
Starting playback

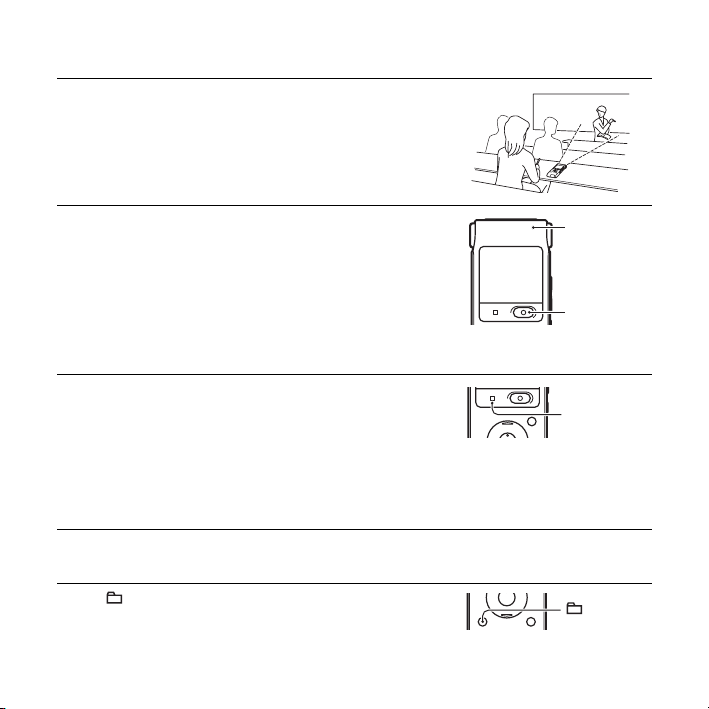

1Place the IC recorder so that the built-in microphones face the
direction of the source to be recorded.
2Press zREC/PAUSE in the stop mode.
The operation indicator lights in red.
You do not need to press and hold zREC/PAUSE while
recording.
The new file will be automatically recorded after the last
recorded file.
1Press xSTOP.
The “Accessing...” animation appears and the IC recorder stops
at the beginning of the current recording file.
1Slide the HOLD/POWER switch towards the center to release
the IC recorder from the HOLD status.
2Press .
Operation
indicator
z REC/PAUS
E
xSTOP

9GB
3Press .on the control button, press vor Von the control
button to select the (Voice) tab, the (Music) tab, or the
(Podcast) tab, and then press >on the control button.

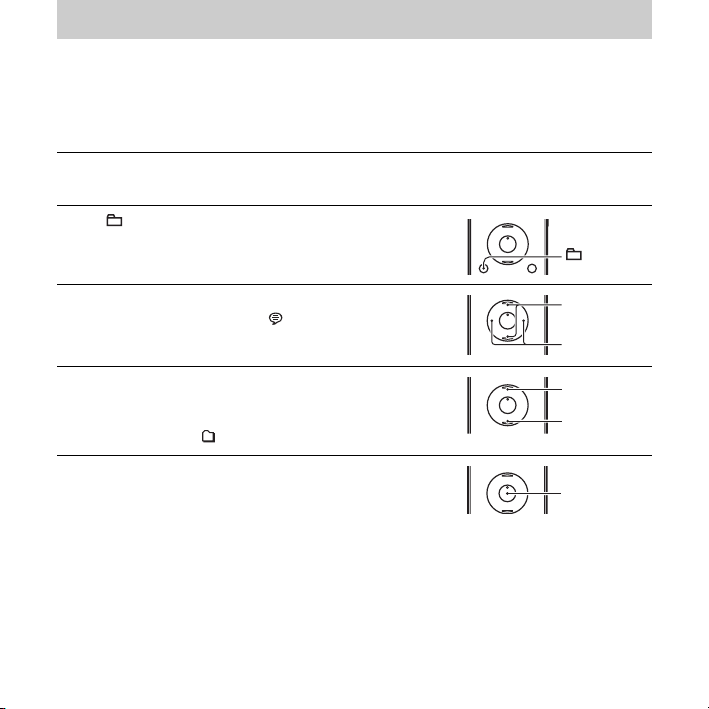

4Press vor Von the control button to select the folder.
5Press >on the control button.

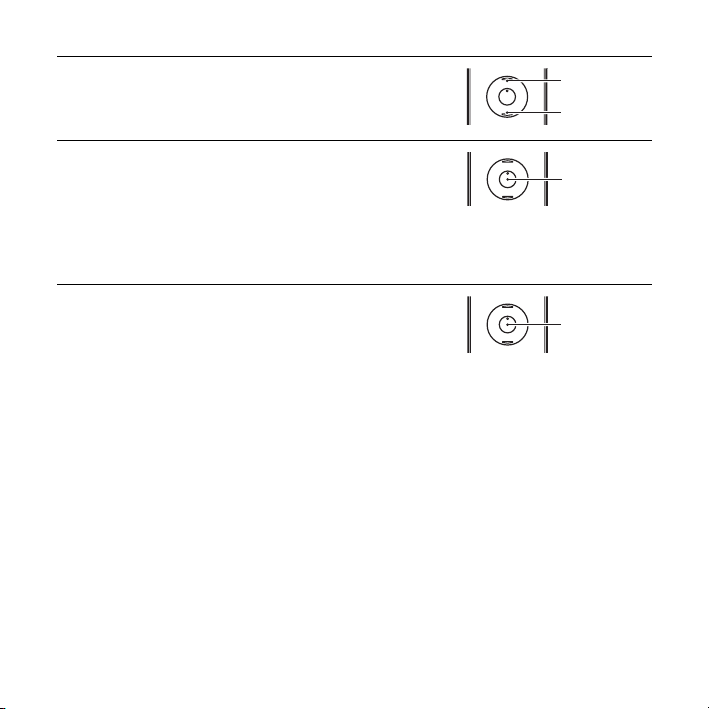

6Press vor Von the control button to select the file you want to
play.
7Press N/ENT.
Playback will start soon, and the operation indicator will light in
green. (When “LED” is set to “OFF” in the menu, the operation
indicator does not light.)
., >
v, V
v
V
>
v
V
Operation
indicator
N/ENT

10GB
To stop playback
Erasing
PNote
Once a recording has been erased, you cannot retrieve it.
Selecting a file and erasing it

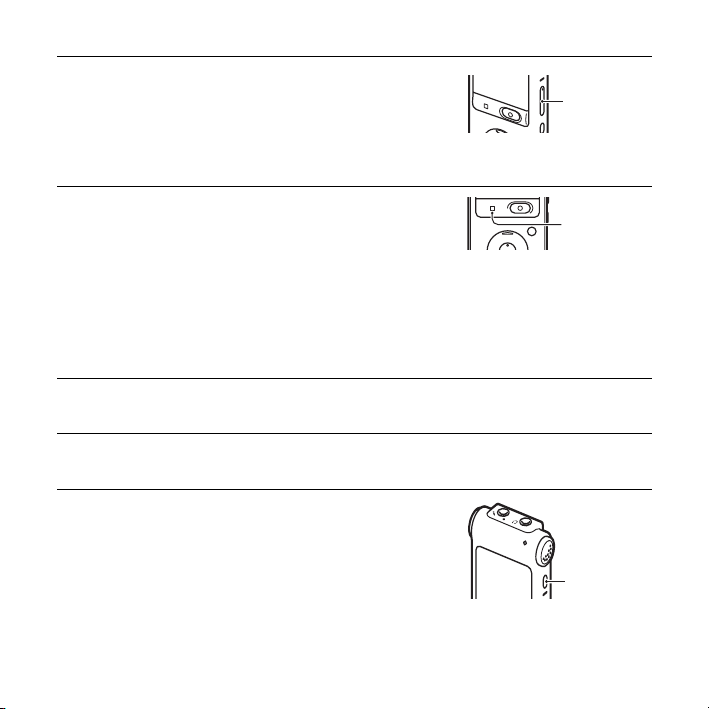

8Press VOL –/+ to adjust the volume.
1Press xSTOP.
1Slide the HOLD/POWER switch towards the center to release
the IC recorder from the HOLD status.
2Select the file you want to erase when the IC recorder is in the
stop or playback mode.
3Press ERASE.
“Erase?” is displayed and the specified file is played back for
confirmation.
VOL –/+
xSTOP
ERASE
