SOtM sMS-200 Installation and user guide

How to enable sMS-200 to the Gigabit Ethernet support
1. Hardware
A. Disassemble the front case

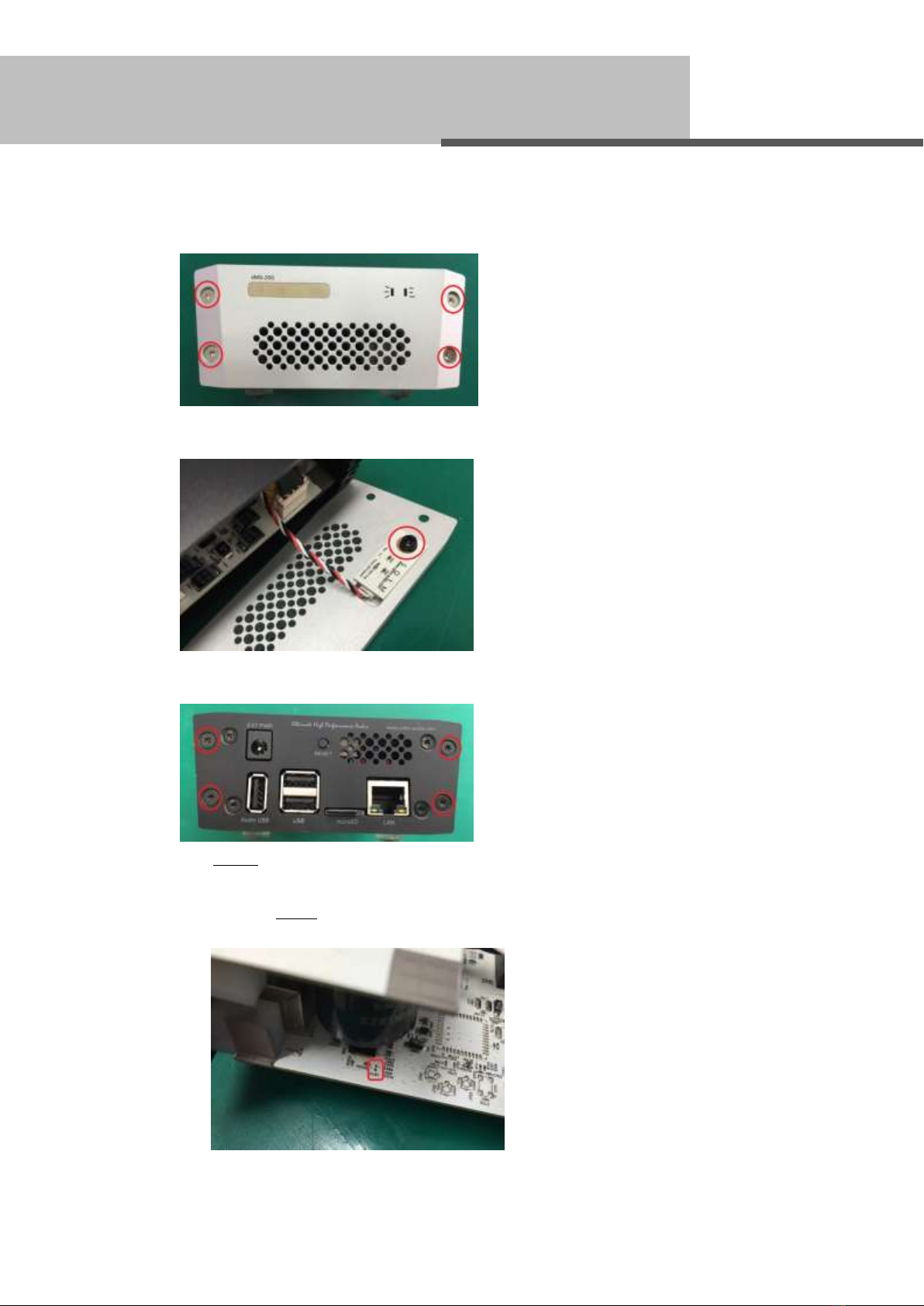

i. Unscrew 4points of Torx screws as like the image below.
B. Disassemble the LED board
i. Unscrew the black screw and separate the LED board from the front case.
C. Disassemble the rear case
i. Unscrew 4points of Torx screws as like the image below.
D. Remove ‘C670’Chip Capacitor
i. Pull out the rear case very carefully to disassemble the main board from the body case.
1. Remove ‘C670’by a soldering machine.
(If required, the power board can be disassembled.)
E. Assemble sMS-200 cases
i. Repeat to assemble sMS-200 cases in the reverse order.

2. Change the micro SD card image
A. Preparation
i. Download the new micro SD card image in the link below. Please be noted the image file is
quite big(7.4GB BIN file)
https://drive.google.com/open?id=0B8NxBL8eTX11bFc3ZndpUS1Mc1k
ii. Download the imageUSB exe file in the link and unzip.
http://www.osforensics.com/downloads/imageusb.zip
iii. Take out the micro SD card from the rear case of sMS-200 and insert to the USB port by using
the micro SD card reader.
B. Run imageUSB
i. Run imageUSB. The connected USB device will be shown up.
(If the connected USB device is not shown, click ‘Refresh Drives’.)

C. Select an USB device
i. Select an USB device to write the new image file.
D. Select the new image file
i. Click ‘Browse’button and select the downloaded image file(20160830-RC2.bin).

E. Write the new image
i. Click ‘Write’button to write the new image file to the micro SD card.
3. Finish
A. Insert the micro SD card to the rear panel of sMS-200 again.
B. Power on sMS-200, and apply the latest software upgrade in Eunhasu animated GUI settings.
