Sound Sation WDX-100 User manual
WDX-100
2.4GHz DMX512 wireless transmitter
for Soundsation 5x18W & 5x10W
Battery Powered Pars
Please read this manual carefully and proper take care of this manual
USER MANUAL
2
ENGLISH
Dear customer,
First of all thanks far purchasing a SOUNDSATION® product. Our mission is to satisfy
all possible needs of musical instrument and professional audio users offering a wide
range of products using the latest technologies.
We hope you will be satised with this item and, if you want to collaborate, we are look-
ing for a feedback from you about the operation of the product and possible improve-
ments to introduce in the next future. Go to our website www.soundsationmusic.com
and send an e-mail with your opinion, this will help us to build instruments ever closer
to customer’s real requirements.
One last thing: read this manual before using the instrument, an incorrect operation
can cause damages to you and to the unit. Take care!
The SOUNDSATION Team
3
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
fRead these instructions
fKeep these instructions
fHeed all warning
fFollow all instructions
1.2.1. Water / Moisture
This lighting is intended to indoor use only. To prevent risk of re or shock, do not
expose xture to rain or moisture. Make sure there are no ammable, explosive or
corrosive materials surrounded in 10 meters while operating.
1.2.2. Heat
The apparatus should be located away from heat sources such as radiators, stoves or
other appliances that produce heat.
1.2.4. Object and Liquid Entry
Objects do not fall into and liquids are not spilled into the inside of the apparatus for
safety.
1.2.7. Power Supply
Always make sure that you are connecting to the proper voltage and the line voltage
not higher than stated on the decal or rear panel of the xture. Unplug this apparatus
during lightning storms or when unused for long periods of time.
1.2.12. Servicing
In case of failure or mis-function occurred, stop using the unit immediately. Never try to
repair the unit by yourself. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized technical assistance center. Buy
the same spare parts/components from manufacturer directly.
TABLE OF CONTENTS
1. BEFORE YOU START .............................................................................................4
2. PRODUCT OVERVIEW............................................................................................4
3. PRODUCT SPECIFICATION....................................................................................4
4. WIRELESS DMX CONTROL ...................................................................................5
4.1. ID code and LED color correspondence ...............................................................................5
5. WARRANTY AND SERVICE....................................................................................7
6. WARNING ................................................................................................................7
4
ENGLISH
1. BEFORE YOU START
Carefully unpack the box and check the contents to ensure that all parts are present
and in good conditions.
1. WDX-100 Wi-Fi DMX Transmitter
2. 5Vcc - 1A Power Adapter
3. This User Manual
If anything damaged during transport, notify the shipper immediately and keep the
packing material for inspection. Again, please save the carton and all packing materi-
als. If the unit must be returned to manufacturer, it is important that it is returned in the
original manufacturer box and packing.
2. PRODUCT OVERVIEW
WDX-100 is a 2.4GHz wireless DMX512 interface for Soundsation PAR-18-4-BW and
PAR-10-5-BW; and allows them to be controlled without the use of DMX cables. The
system operates on 2,400-2,525 GHz license-free band and can be used on maximum
7 transmitter-receiver pairs, for a total of 126 DMX channels. Maximum distance is
400m (without obstacles). Setting it up is easy and immediate.
3. PRODUCT SPECIFICATION
fUp to 7 transmitter-receiver pairs simultaneously
fUp to 126 DMX512 channels
fControls: 1 setup button to change ID value; 1 LED to show 7 different colors ac-
cording to the chosen ID; 1 power connector.
fPower requirement: 5Vcc, 1A (adapter included)
fDimension: 137mm x D18mm (without antenna); 215 x D18mm (with antenna)
fNet weight: 0.08 kg
5
ENGLISH
WDX-100 User manual

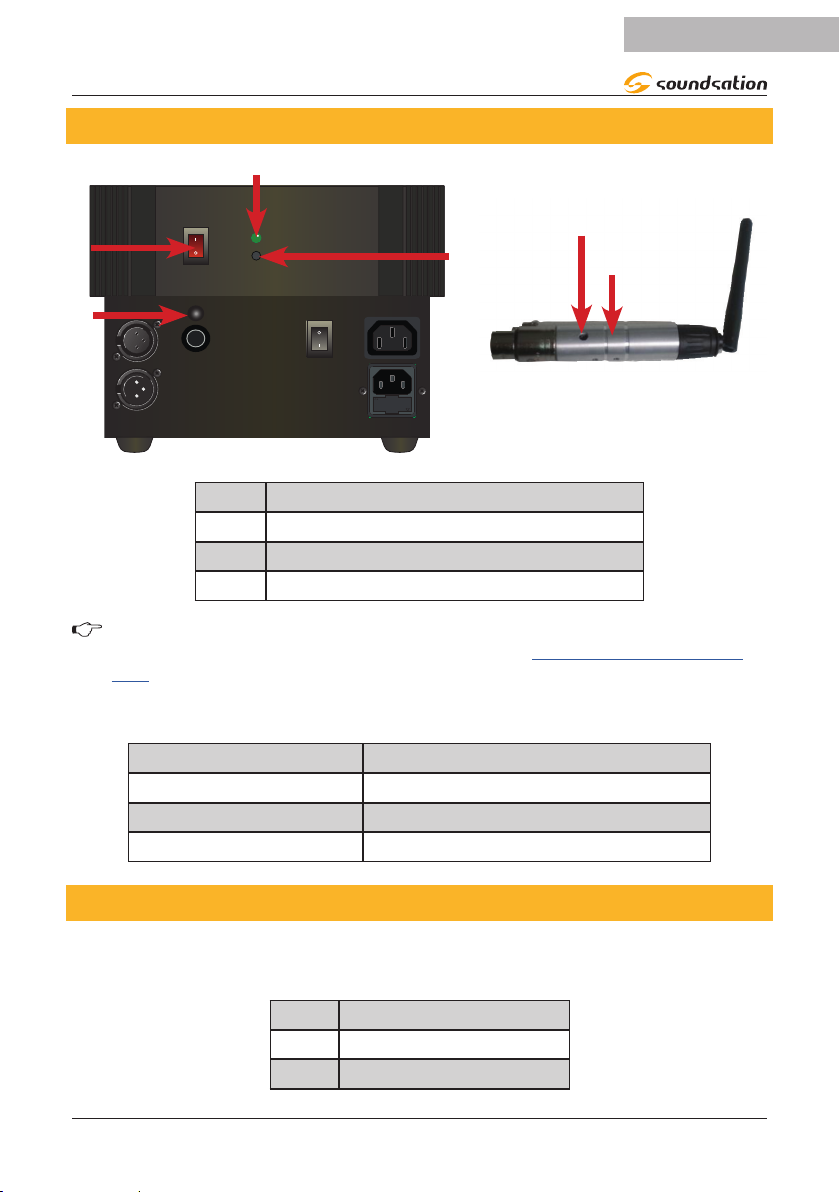

4. WIRELESS DMX CONTROL
MIC
DMX IN DMX OUT
POWER OUTPOWER IN
ON
WIRELESS
ID
3
4
2
1
ID switch
LED
1. Antenna
2. DMX Wireless Receiver On/Off switch
3. LED indicator
4. ID setting switch
System works with SOUNDSATION PAR-10W-5-BW & PAR-18-5-BW pars.
Contact your SOUNDSATION local dealer or visit www.soundsationmusic.
com for further information.
Working conditions:
LED constant lit up: no DMX or wireless signal.
Red LED ash: transmitting
Green LED ash: receiving
RF frequency: 2. 400-2. 525 G, total 126 channels
4.1. ID code and LED color correspondence
DMX data communication occurs only if transmitter an receiver are both under same ID
code. Each ID has a different assigned color as shown in next table.
ID COLOR
1 RED
2 GREEN
6
ENGLISH
WDX-100 User manual
3 RED+GREED
4 BLUE
5 RED+BLUE
6 GREEN+BLUE
7 RED+GREED+BLUE
6.2.2. Establishing Communication
1. Power on the DMX512 wireless receiver by using switch 2 on PAR-10/18W-5-BW
2. Power on SOUNDSATION WDX-100 Wireless Transmitter board
3. Press “Key” button to set same ID value on transmitter and receiver (please use
different ID values if you need to use more than 1 group wireless network at same
time in same place)
4. The LED on the transmitter turns red and ashes when it sends DMX data by no
interfered frequencies
5. If same ID value is set on both devices and there are no interferences, LED on
receiver turns green and ashes. The faster DMX data are, the faster it ashes
6. Then communication is established correctly.
5. WARRANTY AND SERVICE
All SOUNDSATION products feature a limited two-year warranty. This two-year warranty is specif-
ic to the date of purchase as shown on your purchase receipt.
The following cases/components are not covered from the above warranty:
• Any accessories supplied with the product
• Improper use
• Fault due to wear and tear
• Any modication of the product effected by the user or a third party
SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing
faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual
parts or the entire appliance. Any defective parts removed from a product during the course of a
warranty claim shall become the property of SOUNDSATION.
While under warranty period, defective products may be returned to your local SOUNDSATION
dealer together with original proof of purchase. To avoid any damages in transit, please use the
original packaging if available. Alternatively you can send the product to SOUNDSATION SER-
VICE CENTER – Via Enzo Ferrari , 10 – 62017 Porto Recanati - Italy . In order to send a product
to service center you need an RMA number. Shipping charges have to be covered by the owner of
the product.
For further information please visit www.soundsationmusic.com
7
ENGLISH
WDX-100 User manual
6. WARNING
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your household waste, accord-
ing to the WEEE Directive (2202/96/EC) and your national law.
This product should be handed over to a designated collection point, e.g., on an authorized one-
for-one basis when you buy a new similar product or to an authorized collection site for recycling
waste electrical and electronic equipment (WEEE).
Improper handling of this type of waste could have a possible negative impact on the environment
and human health due to potentially hazardous substances that are generally associated with
EEE. At the same time, your cooperation in the correct disposal of this product will contribute to
the effective usage of natural resources.
For more information about where you can drop off your waste equipment for recycling, please
contact your local city ofce, waste authority, approved WEEE scheme or your household waste
disposal service.
This product is imported in EU by
Questo prodotto viene importato nella UE da
FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy
www.soundsationmusic.com
Soundsation® is a registered trademark of FRENEXPORT SPA - Italy
Soundsation® è un marchio di fabbrica registrato della FRENEXPORT SPA - Italy
www.soundsationmusic.com
Ver 1.0 - Oct. 2016
