PRODUCT MANUAL
STCL-64
Two-way Column Array Loudspeaker

IMPORTANT SAFETY INSTRUCTIONS
1. Read all safety and operating instructions before using this product.
2. All safety and operating instructions should be kept for future reference.
3. Read and understand all warnings listed on the operating instructions.
4. Follow all operating instructions to operate this product.
5. This product should not be used near water, i.e. Bathtub, sink, swimming pool, web basement etc.
6. Only use dry cloth to clean this product.
7. Do not block any ventilation openings, it should not be placed flat against a wall or placed in a built-in
enclosure that will impede the flow of cooling air.
8. Do not install this product near any heat sources, such as, radiators, heat registers, stove or other apparatus
(including heat producing amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The side
blade or the third prong are provided for your safety if the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord being walked on or pinched particularly at Plugs, convenience receptacles and the
point where they exit from the apparatus. Do not break the ground pin of the power supply cord.
11. Only use attachments specified by the manufacturer.
12. Use only the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus.
When a cart is used use caution when moving cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Care should be taken so that objects do not fall and liquids are not spilled into the unit through the ventilation
ports or any other openings.
15. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way; such as, power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or has been
dropped.
16. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
17. Correct disposal of this product: This symbol indicates that this product must not be disposed of with house-
hold waste, according to the national law. This product should be take to a collection center licensed for the
recycling of waste electrical and electronic equipment. The mishandling of this type of waste could have a
possible negative impact on the environment and human health due to potentially hazardous substances.
At the same time, your cooperation in the correct disposal of this product will contribute to the efficient use
natural resources. For more information about where you can take your waste equipment for recycling,
please contact your local city office, or your household waste collection service.

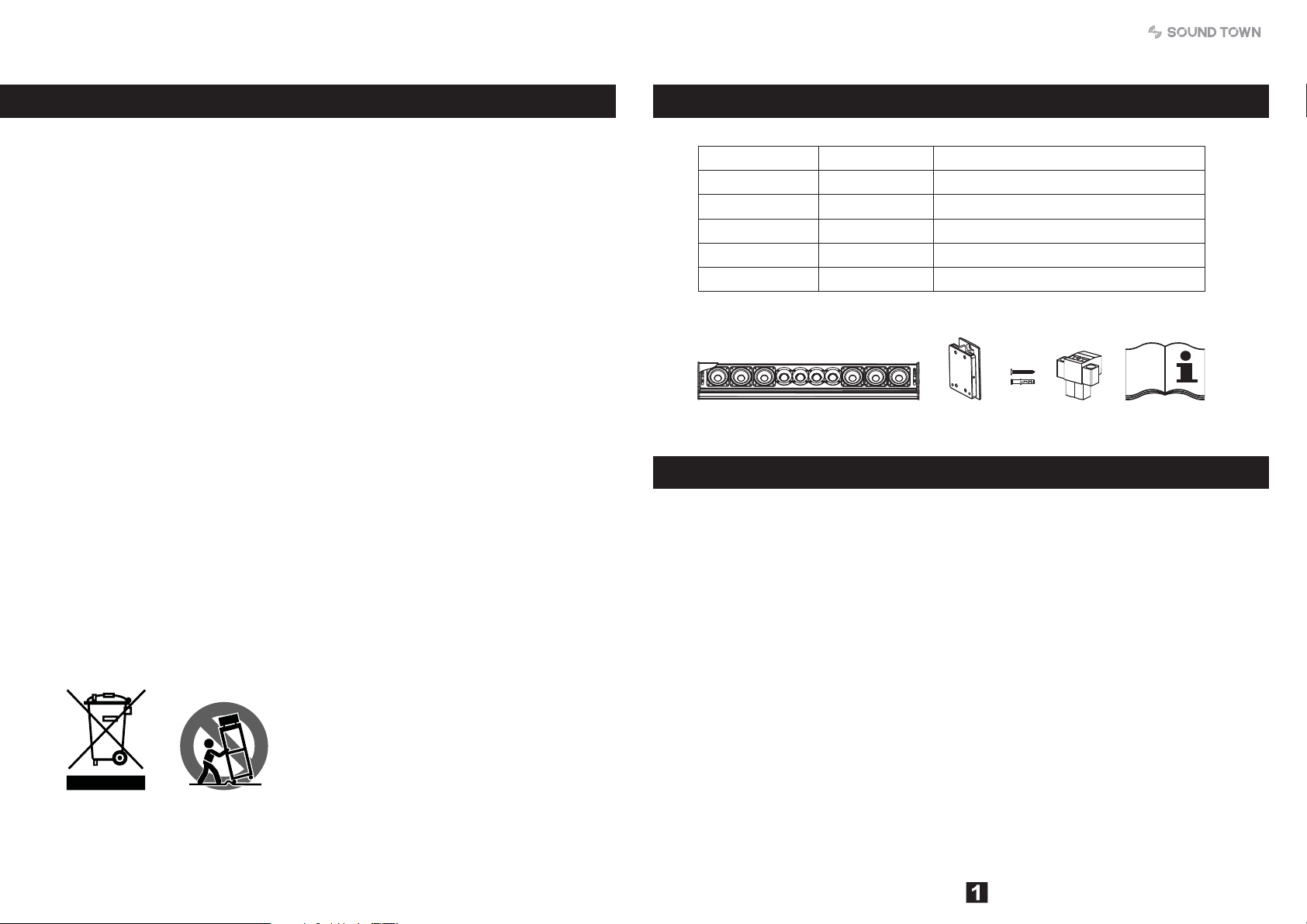

In the package
AB
CD E
DESCRIPTION
Column Array Loudspeaker
Standard Wall Mount Bracket
Expansion Screw
Detachable Input Terminal Block
User Manual
QTY
1
1
4
1
1
ITEM
A
B
C
D
E
Features
Designed specifically for venue with challenging acoustics.
Integrates the 6 x 3" woofers and 3 x 1.2" soft dome tweeters.
Line array effects create consistent 25 x 140 coverage.
oo
Direct radiating drivers provide extra wide horizontal coverage.
Built-in low-inductance passive crossover.
Various installation.
Standard wall mounting bracket included.
Optional adjustable wall mounting bracket or stand mounting adaptor available.

Other than a regular SPEAKON connector, the speaker
also provide a 2 pin EUROBLOCK connector. When the
speaker is installed close to the wall and don't have enough
space for SPEAKON, use the 2 pin EUROBOCK connector
and make the wiring according to Figure 1.1.
Installation
1. Standard Wall Mount
(Standard mounting bracket included in package)
2. Adjustable Wall Mount
(Optional adjustable mounting bracket need to purchase separately)
3. Pole Mount
(Optional pole mounting adaptor need to purchase separately)
STEP 1: Remove the 2 small
screws and slide the 'Speaker
attach plate' out of the 'Wall-
mount plate'.
STEP 2. Using the 4 provided
'Expansion anchor and screws'
to secure the 'Wall-mount plate'
to the wall.
STEP 3. Fix the 'Speaker attach
plate' on the column back by 2
screws.
STEP 4. H the columnang on
'Wall-mount plate' and slidethe
in the 'Speaker attach plate'.
Part # STCL-AB
Before adjusting horizontal
, first loosen the hex-angle
screw on the bottom.
Fasten the screw after
adjustment.
Horizontal +90 ~-90 adjustableangle oo
Vertical 0 ~10 adjustableangle oo
This adjustable wall bracket is also
supplied as two interlocking plate.
One plate attaches to the rear of
the speaker and the other secured
to the wall. (Same installation step
as the standard bracket but angle
adjustable.)
Connections
Part # STCL-POLESET
This pole mounting adaptor
fits standard 35mm tube and
make the speaker suitable for
tripod speaker stands or pole
stands on subwoofer cabinet.
Figure 1.1

Specifications
How can we help you?
CONTACT OUR US-BASED SUPPORT TEAM
Simple or complex, your questions are important to us. For service, support
or more information, please contact the Sound Town support team:
Email: [email protected]
MODEL
Operating Range
Nominal Beamwidth
LF Driver
HF Driver
Input Impedance
Continues Power Rating
Peak Power
Sensitivity
SPL
Connector
Mounting Hardware
Enclosure
Color
Grille
Dimensions (W x D x H)
Net Weight
STCL-64
100~20kHz
140 x 25 (H x V)
oo
6 x 3"
4 x 1.2" Dome
8Ω
160W
320W
95dB, 1W @ 1m
123dB (Peak)
Speakon & 2-pole Euroblock
Wall-mount Bracket or Pole-mount Adaptor
Extrusion Aluminum
Black/ White
Powder-coated marine-grade metal
4.37"/111mm x 3.86"/98mm x 30.31"/770mm
6.8kgs, 15Lbs
