SoundMax SM-LED32M04S User manual

LED TV
Телевизор цветного изображения
c жидкокристаллическим экраном
SM-LED32M04S
Instruction manual
Руководство по эксплуатации

Table of contents
2
Table of contents
Dear customer!
Thank you for purchasing our product. For safety, it is strongly recommended to read
this manual carefully before connecting, operating and/or adjusting the product and keep
the manual for reference in the future.
Table of contents
Before you start
Utilization of the product
Important safeguards
Installation
Base installation
Wall mounting
Connection
Outdoor antenna connection
Other connections
Operation
Control elements
Front panel
Back panel
Remote controller
Changing the battery
General operations
Signal sources
Teletext operations
OSD operation
Channel setting
Picture setting
Sound setting
Timer setting
Option setting
Lock setting
Electronic programme guide
Digital programme recording
Time Shift function
CI information
USB operation
Background information
Operations of file playback
Smart TV operation
General information
Troubleshooting
Causes of interference
Accessories
Specifications
2
3
3
3
4
4
4
5
5
5
6
6
6
6
7
7
8
8
8
9
9
10
10
11
11
11
12
12
12
12
13
13
14
15
15
15
16
16
14
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United
States and other countries.

Before you start
3
Before you start
If you want to dispose of this product, do not mix it with general household waste. There
is a separate collection system for used electronic products in accordance with legislation
that requires proper treatment, recovery and recycling.
Please contact your local authorities for the correct method of disposal. By doing so,
you will ensure that your disposed product undergoes the necessary treatment, recovery
and recycling and thus prevent potential negative effects on the environment and human
health.
Utilization of the product
Important safeguards
• Please unplug the power cord from the AC
outlet and contact a service center for repair
if following occurs: any obvious abnormality
appears in the unit, such as smoky, peculiar
smell or strange sound; liquid has been spilled or
other objects have fallen into the unit; no picture
or sound; cover or panel is broken; although you
have operated the unit following the operating
instructions, it still cannot work normally.
• This unit can be connected to a power
supply outlet without the third ground contact
as well as with a ground contact.
• Always disconnect the power cord and
antenna during a storm.
• Do not fix the power cord with a metal nail.
• Unplug the power cord from the AC outlet;
also unplug the signal cables from the input
ports when the unit is unused for long periods
of time.
• When unplugging the plug, always hold the
wide slot, do not touch the metal part, and do
not destroy, twist, pull or roast the power cord.
• Please contact the service center
immediately if you found that the core is
showed in the air or has been broken.
• Please replace the AC outlet if the metal
bolt cannot be inserted into the power socket
completely or it cannot be fastened even when
it was pushed in, otherwise, any accidents of
shocks and fires would happen.
• Never touch the antenna lie or power plug
if it stars to thunder.
• Do not touch the power plug with wet
hands.
• Do not use any non-rated power socket
with numerous devices jointed on one power
socket or cable device. The wire of non-
designated capacity may cause the fire due to
the generation of heat.
• All instructions must be read and
understood well before you operate the unit.
Heed all warnings and follow all instructions.
• Please use the accessories provided
by the manufacturer. Using inadequate
accessories may result in accidents.
• Please adjust the product through the
panel buttons or the remote controller, do
not remove the cover or attempt to service
the product by yourself. Do not disassemble
back cover and do not make maintenance by
yourself to avoid the electric shock.
• Over-press the panel may destroy the
product.
• Do not place the product on an unstable
cart, stand surface, tripod, bracket, or table.
The product may fall, causing serious accidents
as well as the damage to the product.
• Please place the product on a flat surface
in a well-ventilated location. Keep it away from
the burning-light, direct sunlight, vibration,
high-temperature and humidity.
• Do not place any vase, potted plant, cup,
medicine and any container with water on this

Before you start
4
4
Before you start
product. If the liquid is spilt, it may cause the
fire, electric shock or breakdown.
• Do not install it at the place on the strong
magnetic field or current field. It may cause
break down. This equipment may be observed
deterioration of the picture by electromagnetic
radiation in electromagnetic environment.
• Fasten the wheel of the product or shelf
with wheels when installing this product. If it
moves or is tipped over, it may be damaged.
• Do not place any fire source such as
candlelight close to this product or place it on
this product. If it is tipped over or fallen down, it
may cause damage or fire.
• Do not place the unit into closed space
of TV for better ventilation; it can reduce the
product lifetime. Keep a space at least 10 cm
at above, left, and right of the TV.
• Please place all the signal cords behind of
rear panel.
• Do not overexert or touch the panel when
you convey the product. Do not transfer the
LED TV up or down display direction.
• Do not transport it with the power cord
or the connection cable connected. If you
move this product with the power cord or the
connection cable connected, damaged power
cord, connection cable or connection terminal
may cause fire, electric shock or breakdown.
• 2 persons or more shall transport the
device, which is heavier than 18 kg. If you drop
or tip over the device, it may damage it.
• The temperature of the product’s body
becomes a little higher after a long period use.
This phenomenon indicates that heat
exchange in normal working mode, thus please
do not let children or anyone who is sensitive
of temperature to touch.
All images provided herein are schematic
drawings and may differ from real objects.
WARNING
In order to avoid damage, make sure
to secure the unit on the wall
according to the wall mounting
instruction.
Installation
Base installation
Fix the assembly with the four supplied
screws.
Wall mounting
• For wall mounting the back panel of this
unit is equipped with 4 screw holes (spread
distance 200х100 mm). A VESA wall-mount
bracket should be used for wall mounting (the
bracket is not included and should be acquired
separately). Manufacturer is not responsible
for improper mounting resulting in damage of
the unit.
Cover a flat stable surface with a soft cloth.
Place the TV unit facedown on the cloth. Insert
the two stands into the appropriate holes in
lower back panel of the unit.

Before you start
5
5
Before you start
Connection

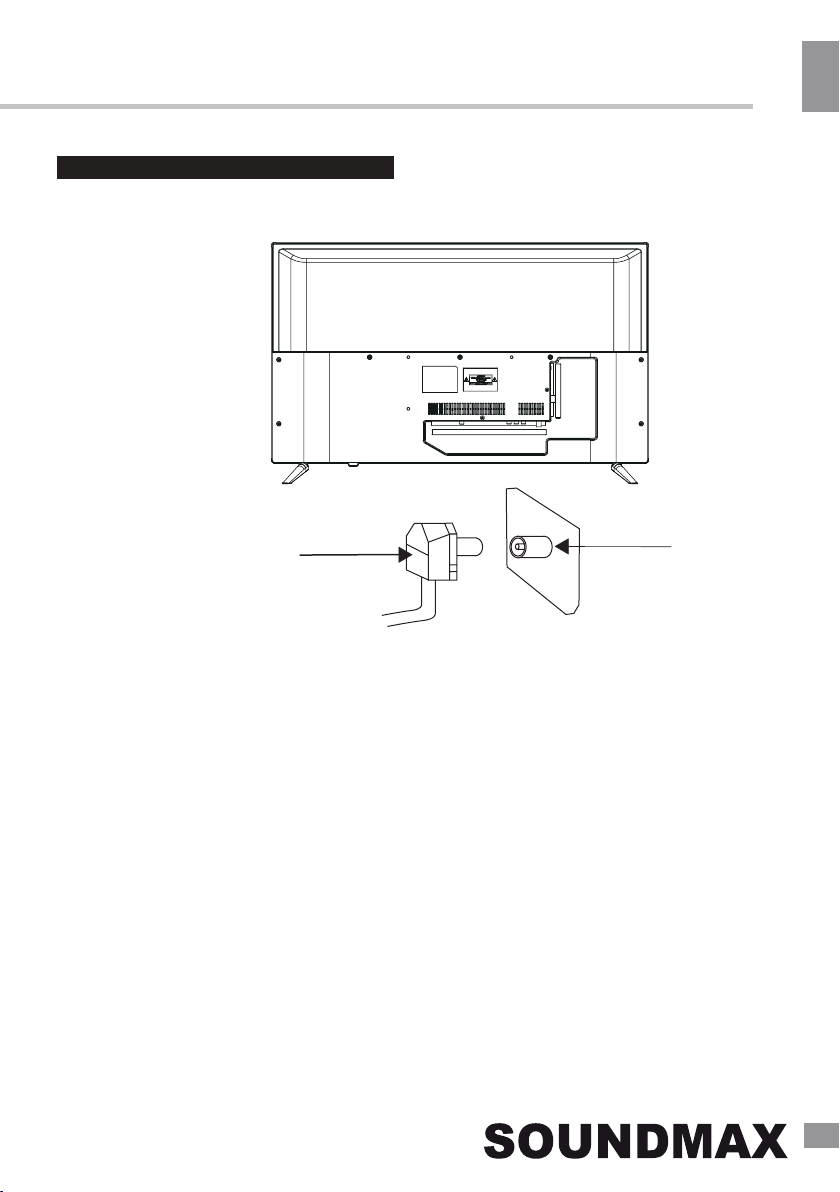

75 Ohm co-axis cable
TVRF antenna jack
Antenna cable connector
Outdoor Antenna Connection
Use 75Ω coaxial cable plug or 300-75Ω
impedance converter to plug in antenna input
terminal on the rear of the cabinet.
Other connections
• Connect the audio sources (Including
DVD, VCDR, CAMCORDER and PC) to the
proper Audio input jacks ‘L’ and ‘R’.
• Connect the video source to the
Composite video jack by RCA cable.
• Plug the power cable in the electric outlet,
making sure the current voltage is supported.
• If the video source has a HDMI output jack,
you can connect the signal to the TV by the
HDMI cable (not included).
• Coaxial output is intended for transmitting
multi-channel sound to an external decoder
(e.g. in 5.1-CH format). Coaxial cable should
be used for connection.
• PCMCIA slot is used for CI modules that
are obtained from your digital TV provider.
• Connect your headphones or earphones
(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.
• LAN port allows your TV to connect
to the Internet using an Ethernet network
cable (not included).

Operation
6
Operation
Front panel
Control elements
1. Remote control sensor
2. Indicator LED: RED STANDBY
3. Keyboard
REAR Terminals (Bottom)
REAR Termianls (Side)
The keyboard is located at the bottom left
near the right side of the signal indicator.
TV Status Pull Up / Down Pull Left / Right Press
Power Off Null Press to power on Null
Press to Confirm
Press and hold to pop up setting
menu (power off / select source)
Play Play Menu Fast Forward /
Fast Rewind
No display
when power on Move Up / Down Move Left / Right
Press to
Confirm
Press and hold the rocker button to call
the setting menu, where you can power off
or select the source.
•Power off: press to power off.
•Source: press the source button to
open signal source interface.
•Menu: press the menu to display the
OSD menu.
All the terminals are (from left to right):
LAN, USB, COAXIAL, HDMI3, HDMI2, VIDEO, AUDIO INPUT (LEFT & RIGHT).
COAXIAL
All the terminals are (from left to right):
RF, USB, CI, HDMI1, HEADPHONE.
Button
Rocker

Operation
7
7
Operation
Remote controller (RC)
MASTER/
AUDIO
/
2. : mutes and restores the sound.
1. : switches the TV between on and standby.
3.NUMBER KEYS : press to enter a TV channel number.
4. : return to the previously viewed channel.
5. :
reveal the hidden information.
press to display the channel information. In Teletext mode, press to
(previous)
(forward):
(reverse):
Advance playback rapidly (USB mode).
Reverse playback rapidly (USB mode).
6.▽△◁ ▷ : navigation within the menu.
7. OK : Confirm the selection.
8. : Press to close the on-screen menu.
9. VOL +/- : To adjust the sound level.
10. (next) : Press to select previous or next file.
11. Press to select previous or last file.
12.
13.
14. S.MODE : Press repeatedly to switch sound modes.
15. ASPECT : Press to change the picture aspect ratio.
16. SUBTITLE : Display subtitles if they are broadcast with programme.
17. : Turn on and off the teletext function.
18. MASTER/AUDIO:: Speed up the Android system / switch audio.
19. SOURCE: Press to open the input source list.
20. : Press to open the on-screen menu. In Teletext mode, press to go
to the index page.
21. HOME: Return to home page
22. CH+/-:Select a channel.
23. (pause): Press to pause in multimedia mode.
24.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
23
24
25
26
27
28
29
30
18
19
20
22
21
25.
26.
27. P.MODE: Press repeated to switch picture modes.
28. SLEEP: A short-cut to set sleep time.
29. :Press to access the electronic programme guide when watching
digital TV. In Teletext mode, press to toggle the list mode.
30. REC: Press to record the TV program you are watching in DTV mode.
31. Color buttons (Red, Green, Yellow, Blue)
: Display the favourite channel list. In Teletext mode, press to
hold the current page
(stop): Stop the play or recording (USB mode).
(play): Start playback (USB mode).
/
31

Operation
8
8
Operation
General operations
Power
• Connect the plug of the power cord to the
mains socket.
• Do not leave your TV in standby mode for
a long period of time; if you are not going to
use the unit, disconnect it from power supply.
• In TV mode the unit will automatically go to
standby mode if there is no signal for 10 minutes.
Operations
• Press VOL- button repeatedly to decrease
the volume; press VOL+ button repeatedly to
increase the volume.
• Press MUTE to mute sound, press this
button again or increase volume to resume sound.
• Press RECALL button on the RC to select
from the present channel and the previously
displayed channel.
• Select the TV function mode. Press
CH-/CH+ buttons to select previous or next
channels; or press number buttons to enter a
channel number directly.
• Press INFO button to display the preset
TV channel play information.
• Press AUDIO button in TV mode repeatedly
to switch between various Nicam sound
modes (can be unavailable for some
channels). This function is optional.
Signal sources
Press the SOURCE button, then press
DOWN/UP cursor buttons on the RC or on
the keyboard to select a source from available
source list: DTV => ATV => AV => HDMI1 =>
HDMI2 => HDMI3.
Press OK button on the RC to confirm.
Teletext operations (option)
Select a TV channel in order to pick up the
picture signal of Teletext. Teletext button
functions are as follows:
TEXT: Press this button to enter into TEXT
mode. Press the button again to return to the
channel you are watching.
HOLD: Press this button to stop the move to
the next page. Press this button again to
cancel operation.
INDEX: Press this button to go to the index
page.
REVEAL: Press this button to reveal the
concealed information. Press this button again
to conceal the information.
Red/Green/Yellow/Blue buttons: Press these
4 color buttons to access directly to
corresponding color page displayed at the
lower parts of teletext screen.

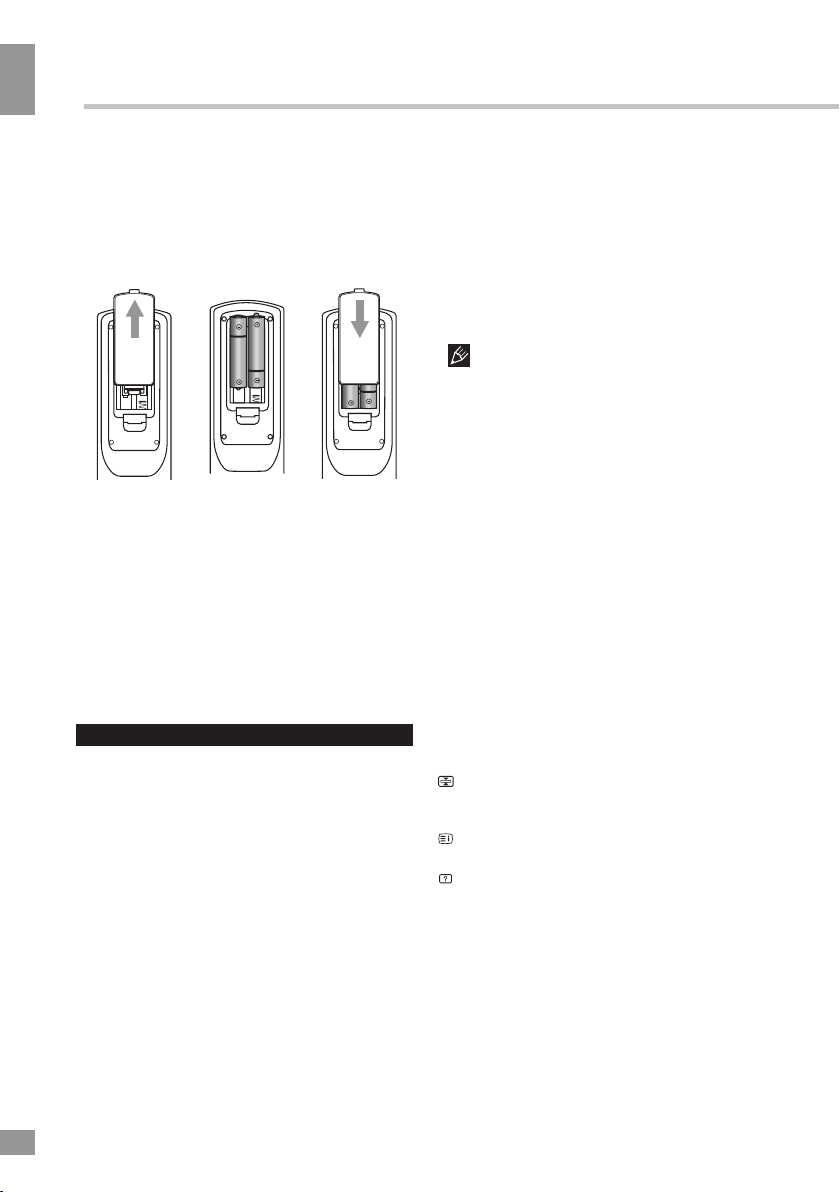

Changing the battery
1. Remove the battery compartment cover
on the back of the RC.
2. Insert the batteries into the battery
compartment making sure that the correct
polarity is observed.
3. Install the cover back.
1 2 3
• Use two AAA batteries for the RC. The RC
should be pointed at remote sensor within 8
meters and within 30 degrees at the left or the
right side.
• Take the battery out of the RC if it is not
used for a long time.
• Do not mix new and used batteries or
different types of batteries. Weak batteries can
leak and severely damage the RC.
• Do not expose the RC to shock, liquids,
and do not place it in an area with high
humidity.
On average, the loading time of the
TV can take up to 40 seconds.
However, the loading time might differ,
depending on the number of installed
applications.

Operation
9
9
Operation
OSD operation
1. Press MENU button to enter the setting
menu displayed on the screen.
2. Press LEFT/RIGHT cursor buttons on the
RC or on the keyboard to go to the needed
setting page.
3. Press UP/DOWN cursor buttons on the
RC or on the keyboard to select a parameter to
adjust.
4. Press LEFT/RIGHT buttons on the RC or
on the keyboard to adjust the selected
parameter.
5. Press MENU button to return to the root
menu or exit menu setting.
Some menu items may be in grey color,
in this case they are not adjustable. Pictures of
OSD menu are for reference only; they may
differ from the real screens.
Channel setting
CHANNEL
Antenna Type
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Programme Edit
Signal Information
CI Information
Select
Press “OK” to select
Press “MENU” to return
•Auto Tuning: press OK buttons to select
the country and tune type for channels to start
automatic search and saving of available ATV
channels. After the search is finished, the unit
will skip to searching DTV channels, Radio
channels and Data. During the ATV search,
press MENU button to skip to DTV, Radio and
Data search.
•DTV Manual Tuning: Press LEFT/RIGHT
cursor buttons to select channel number. Press
OK button to start searching. When the nearest
available channel is found, the search will
stop and the channel will be saved under the
selected number. Press button to quit.
•ATV Manual Tuning:
Storage To: select channel number.
System: select corresponding sound system.
Current CH: search for next available
channel starting from current frequency.
Search: press LEFT/RIGHT buttons; the
unit will search for next available channel
downward or upward and save it under the
current number.
Fine-Tune: perform fine adjustment of the
current frequency.
•Programme Edit: this item allows
you to sort TV programs according to your
preferences. Enter the program edit menu:
Delete: Select the channel you want to delete.
Press red button to delete the channel.
Move (not available for DTV channels with
LCN): Highlight the needed channel. Press
yellow button; select the position to put the
channel into. Press yellow button to confirm.
Favorite: Select the channel you want to edit.
If this channel is your favorite channel, you can
add it to your favorite channel list by pressing
the FAV button.
Skip: Highlight the needed channel. Press
blue button; now this channel will be skipped
when you select previous/next channels.
Edit: Select the needed channel. Press the
green button; now you can rename this
channel. Enter a new name and press OK to
confirm.
•Signal Information (only in DTV mode):
View the information on the current signal.
•CI Information (only in DTV mode): This
function enables you to watch some encrypted
services (pay services). Please insert a CI card
into the PCMCIA slot according to the arrow on
the CI card.
• The function can only be gotten when
CI slot is available.
• It is possible for you to change CI
(Common Interface) menu screen and service
by consulting your dealer.
• Please do not insert or pull out the CI card
when power on. During initialization of the CI

Operation
10
10
Operation
card, please don’t operate the TV.
• Do not insert or pull out the CI card
frequently so as to avoid any damages of the
TV and the CI card.
Picture setting
Picture Mode
Color Temperature
Zoom Mode
Image Noise Reduction
Select
Press “OK” to select
Press “MENU” to return
Sound setting
SOUND
Select
Press “OK” to select
Press “MENU” to return
MPEG Noise Reduction
Sound Mode
Surround
SPDIF Output
•Sound mode: Standard/Music/Movie/
Sports/User. When User mode is selected, you
can adjust bass and treble.
•SPDIF Output: select the digital audio
output mode: OFF/Auto/PCM.
•Surround: set the surround sound
effect on or off.
•Picture Mode: Standard/Soft/User/
Vivid. When User mode is selected, you
can adjust contrast, brightness, saturation,
sharpness and tint (in NTSC) of the
image.
•Color Temperature: Nature/Warm/
Cool/User.
•Image Noise Reduction: Dynamic noise
reduction effect for reducing the video noise
level. Select the Off/Weak/Middle/Strong/
Auto.
•Zoom Mode: Set the picture format:
16:9/4:3/Auto/Zoom1/Zoom2/Full
Screen (only HDMI).
•MPEG Noise Reduction: Dynamic noise
reduction effect for reducing the video noise
level. Select the Off/Weak/Middle/Strong.
Boot Limit Volume
•Boot Limit Volume: limit the volume
value of the boot.

Operation
11
11
Operation
Option setting
Select
Press “OK” to select
Press “MENU” to return
Lock setting
LOCK
Select
Press “OK” to select
Press “MENU” to return
OPTION
Lock System
Set Password
Block Program
Parental Guidance
•Lock system: The feature can prevent
unauthorized operation of the TV set unless
entering a 4-digit password. When Lock
System is on and the system is locked, you
must input the system password at Auto
Tuning, Manual Tuning, Programme Edit or
Default. Press the right number buttons for the
password. The default password is 6666.
After a password correction has been
confirmed, please remember it for entering
into the Parent Guide menu, all functions can
not be activated until the correct password is
entered.
•Set password: You can set your private
password. Press the number buttons on the
remote control to set the new password. When
the new password has been put in twice, the
setting is finished successfully. The TV will go
back to previous menu.
•Block program (in TV/DTV mode): Press
Green button to lock the available program you
want. Press Green button again to unlock it.
Audio Language
2nd Audio Language
Subtitle
Subtitle Language
2nd Subtitle Language
PVR File System
HDMI_CEC
HDMI_ARC
System Standby
Restore To Default
•Audio Language: select audio languages
(available for some DTV channels).
•Subtitle Language: select subtitle languages
(available for some DTV channels).
Shift.
Format: format the USB.
Speed Check: display the speed of the
storage.
•Restore To Default: restore TV settings
to their initial factory defaults.
•PVR File System (in DTV mode):
Select Disc: select the storage used for PVR.
Time Shift Size: select the time for Time
•HDMI_CEC: switch the HDMI Consumer
Electronic Control feature on and off.
•HDMI_ARC: switch the HDMI Audio
Return channel feature on and off.
•System Standby: turn the System Standby
feature on and off.
CI CAM Pin Code
•CI CAM Pin Code: when using CI CAM
module, enter the PIN code obtained from your
service provider to access paid channels.

Operation
12
12
Operation
Electronic Programme Guide
(in DTV mode)
Press EPG button to display the Programme
Guide menu. This function gives you the
detailed information of the channel, indicating
the time of the program playing. From the
Programme Guide it is possible to check
the program information for the next eight days
(If the information is available from the
broadcaster). Press button to quit.
•Record: Press Red button to set the
parameters of recording, The unit is able to
do schedule recording when TV is turning on
or in standby mode. You can set up several
schedule recording. Different schedules should
not overlap. When recording starts in standby
mode, the front indicators will change color and
there will be no picture or sound from the unit.
You can press the POWER button to light up
the screen.
•Schedule: Press Green button to display
the schedule list.
•Remind: If you find the desired program
which will be shown in the future. Press Blue
button to book program.
Digital program recording
Insert a USB, the system will automatically
create a folder to store the files recorded.
Recording begins when REC button is pressed,
and it records all the time until STOP button is
pressed or the memory is full. Press to quit
recording mode.
Please note the following about PVR:
• USB storage device must have the
capacity of at least 512 MB and support the
USB 2.0 standard. Some non-standard storage
devices may not be supported
• Try formatting the inserted storage device
when you have trouble recording.
• Do not disconnect the device while the
formatting is in progress. When you format
the device, all data on it is deleted. It may
be advisable to back up your files before
formatting.
• If the USB storage device has several
partitions, the PVR system can record the data
on any one of them.
Time Shift function
Time Shift is a feature enabling you to
record an air program while you are away.
Press PAUSE button to activate Time Shift
while recording. Press PLAY to resume the
program. Press to quit the Time Shift
mode.
CI Information
(only in DTV mode): This function enables
you to watch some encrypted services (pay
services). Please insert a CI card into the
PCMCIA slot according to the arrow on the CI
card.
• The function can only be available
when CI card is present.
• It is possible for you to change CI

Operation
13
13
Operation
(Common Interface) menu screen and service
by consulting your dealer.
• Please do not insert or pull out the CI card
when power on. During initialization of the CI
card, please don’t operate the TV.
• Do not insert or pull out the CI card
frequently so as to avoid any damages of the
TV and the CI card.
• If there is no picture and/or sound with the
CI+ CAM module inserted, please contact the
customer support of the service provider.
USB operation
Background information
• This unit supports playback of video files
with 3GP, ASF, AVI, MKV, MPG, M2TS, MP4,
TS, VOB extension, with video codecs WMV
V9, H263, MPEG-4, MPEGII and audio codecs
PCM, WAV, MP3, DD(AC3).
The above list of extensions and codecs
is for information only and is not a guarantee
that all files having the above extensions and
codecs sohuld be read by this unit.
• USB file systems supported: FAT16,
FAT32. USB 2.0 version is supported, maximum
capacity is 500 GB. Max. load: DC5V, 500 mA.
For correct and satisfactory operation, licensed
USB devices of famous brands should be used
with this unit. Avoid using USB devices of
unknown brands. Playback of some file formats
cannot be supported.
According to the USB 1.1/2.0 Standard,
usage of a USB device with power current
consumption exceeding 500 mA is not
recommended without supplementary power
supply. Failure to use supplementary power for
connected USB drives with power consumption
exceeding this value as well as defective
USB drives may cause mechanical or thermal
changes of elements of this unit as well as
failure of internal elements of the USB port.
Such damages are not warranty cases.
Warning: usage of external USB drives
containing BIN files in the root directory may
cause malfunction of the unit or damage to the
software.

General Information
14
General Information
• While playback, press PAUSE and PLAY
to pause or resume playback. Press
button to stop playback.
• When playing video files you can press
/ buttons to fast reverse or forward. You can
press / buttons to select the desired files
manually in normal condition.
Operations of file playback
• Insert a USB into the USB jack. Go to
the Android main menu. In it you can access
the files on your USB storage device, select
and open them by pressing the LEFT/RIGHT
cursor buttons and OK button.
• In the content menu, press cursor buttons
to select folder, press OK button on the RC
to enter it, then press cursor buttons to select
the file you want to watch or to listen to. When
highlighting the file, the file information will
appear and picture will be previewed (not
available for music files). Press PLAY and
PAUSE buttons on the RC to play the selected
file.
Basic specifications
CPU ARM Cortex A53
Quad Core 1.3 GHz
Operating
system Android 6.0
RAM 512 + 512 MB DDR3
Storage 8 GB*
(extendable by
external USB
storage devices)
Connections
WiFi 802.11 b/g/n
Ethernet LAN RJ-45
USB USB 2.0 x 2
*User has direct access to less storage than
that, as the operating system and pre-installed
applications already occupy some of that
memory.
SMART TV
General Information
• This unit supports the SMART TV feature.
For a detailed information about its operation
please refer to a separate leaflet included in
the documentation package.
Technical specifications

Troubleshooting
Below is a table describing simple measures that can help you eliminate most problems likely
to emerge when this unit is in use. If below measures do not help, turn to a service center or to the
nearest dealer.
Symptom Cause Solution
No picture, no
sound, and no
indicator light
The power cord is not plugged in.
Contrast, brightness, color and
volume are all in the minimum value
or TV is in mute mode.
Plug the power cord in.
Alter the value of contrast,
brightness, color and volume.
Picture and
sound with
abnormity
Contrast and color are set improperly.
Color system is set improperly.
Sound system is set improperly.
Set the value of Contrast and color
properly.
Set the sound system properly.
Picture is spotted
or with snow
Signal source is low-grade or the
signal is in a lower quality.
Use the qualified signal cord.
Blue background No video signal or the signal cord is
improperly/not connected.
Connect the signal cord properly.
No sound No audio signal or the signal cord is
improperly/not connected.
Connect the audio signal cord
properly.
Set the sound system properly.
The RC does not
work
Batteries are improperly installed or
exhausted.
Make sure the positive and the
negative polarities are correct.
Reattach the battery lid.
Replace the batteries.
Causes of interference
Incorporated in your TV receiver are the most up-to-date devices to eliminate interference.
Local radiation however, can create disturbances, which visibly affect your picture. Proper
installations, a good aerial are your best safeguards against these disturbances.
• RF INTERFERENCE: Moving ripples across the screen are caused by nearby transmitting or
receiving short-wave radio equipment.
• DIATHERMY: Herringbone pattern and partial picture loss can result from the operation of
diathermy equipment from a nearby doctor’s surgery or hospital.
• SNOW: Weak TV signals from long distant stations result in an instead picture and give the
effect of falling snow. An antenna adjustment or antenna amplifier may be needed.
• GHOST: Multiple image, caused by TV signals reflected back from surrounding buildings,
hills, aircraft, etc. is minimized by correct aerial positioning.
• CAR IGNITION: Nearby cars and electrical motors can cause small streaks across the picture
or make the picture roll.
General information
15
General information

Accessories
1 pc
1 pc
2 pcs
2 pcs
1. LED TV
2. Remote controller
3. Batteries
4. Stand
Specifications
Size (diagonal)
Response time
Resolution
Aspect ratio
Color system
View angle
Sound system
NICAM Stereo
AV RCA input
USB port
HDMI input
Headphone jack
Digital coaxial audio output
DVB-T/DVB-T2/DVB-C signal reception
PCMCIA slot (CI, CI+ support)
Russian and English OSD
Progressive scan
Digital comb filter
Sleep timer
Quantity of channels (ATV/DTV)
Teletext pages
PVR function
Time Shift function
USB movie, photo and audio support
Electric shock protection class
Nominal voltage range of the LED TV:
Unit dimensions: with stand
The LED panel is a high technology product with many thin film transistors that can
give you a fine picture details. Occasionally, a few non-active pixels may appear on the screen
as a fixed point of blue, green, red, black or white, please note that this does not affect the
performance of your LED TV.
Warning: For improvement reasons, specifications may be subject to change without prior
notice. Dimensions and weigths are approximate.
1 pc
4 pcs
without stand
Net weight
Operating conditions
Ambient temperature
Relative humidity
Atmospheric pressure
31.5” (80 cm)
8.5 ms
1366 x 768
16:9
PAL, SECAM, NTSC
vertical 150°; horizontal 160°
B/G, DK, I, L
2 x 8 W
+
x2
x3
+
+
+
+
+
+
3D
+
100/1000
1000
+
+
+
II
~100–240 V; 50 Hz
730 x 180 x 468 mm
730 x 61 x 427 mm
4.5 kg
from 5 to 35 °C
from 45 to 75%
from 86 to 106 kPa
(650-800 mm Hg)
5. Screw
6. Instruction manual
General information
16
General information

Содержание
17
15
Содержание
Уважаемый покупатель!
Благодарим Вас за покупку нашего изделия. Чтобы понять, как правильно и безо-
пасно пользоваться приобретенным устройством, рекомендуется тщательно изучить
настоящее руководство перед подключением и эксплуатацией изделия. Сохраняйте
руководство для использования в будущем.
Перед покупкой рекомендуется
провести проверку оборудования:
-на отсутствие механически повреждений
конструкции, внешнего оформления и
упаковки, на функционирование, на
сохранность пломб, на соответствие
комплекта поставки данным раздела
"Комплектность". Проведение проверки
на функционирование является
обязанностью продавца;
-на наличие гарантийного талон
-на правильность простановки
гарантийном талоне даты продажи и
штампа продавца.
Рекомендуется сохранять товарный
(кассовый) чек, руководство по
эксплуатации с гарантийным талоном
до конца гарантийного срока
эксплуатации.
Содержание
Перед началом эксплуатации
Утилизация изделия
Меры предосторожности
Установка
Установка на подставку
Крепление на стену
Подключение
Подключение внешней антенны
Прочие подключения
Управление устройством
Элементы управления
Передняя панель
Задняя панель
Пульт дистанционного управления
Установка батареек
Общие операции
Источники сигнала
Операции с телетекстом
Экранное меню
Настройка каналов
Настройка изображения
Настройка звука
Настройка таймера
Настройка параметров
Настройка блокировки
Электронный телегид
Запись цифровой программы
Функция “Сдвиг во времени”
Информация CI
Операции с USB
Общая информация
Воспроизведение файлов
17
18
18
18
20
20
20
21
21
21
22
22
22
22
23
23
24
24
24
25
25
26
26
27
27
28
28
28
29
29
29
29
30
31
31
31
32
Функция SMART TV
Общая информация
Руководство по устранению
неисправностей
Источники помех
Комплект поставки
Технические характеристики 32
30

Перед началом эксплуатации
18
16
Перед началом эксплуатации
Если вы желаете утилизировать данное изделие, не выбрасывайте его вместе с
обычным бытовым мусором. Существует отдельная система сбора использованных
электронных изделий в соответствии с законодательством, которая предполагает
соответствующее обращение, возврат и переработку.
Обращайтесь в органы местного управления за инструкциями по правильной
утилизации продукта. Тем самым Вы обеспечите утилизацию Вашего изделия с
соблюдением обязательных процедур по обработке, утилизации и вторичной пере-
работке и, таким образом, предотвратите потенциальное негативное воздействие на
окружающую среду и здоровье людей.
Утилизация изделия
Меры предосторожности
• Пожалуйста, извлеките шнур пита-
ния из розетки и свяжитесь с сервисной
службой в следующих случаях: если в
устройстве имеются явные неисправности,
например, из него идет дым, чувствуется
специфический запах или слышен неха-
рактерный звук; если внутрь устройства
попала жидкость или посторонние предме-
ты; если нет изображения или звука; если
поврежден корпус или панель; если Вы
пользуетесь устройством согласно инструк-
ции, но оно не работает должным образом.
• Данное изделие может подключаться
к розетке питания как без заземляющего
третьего контакта, так и с заземляющим
третьим контактом.
• Во избежание поражения электриче-
ским током защищайте шнур питания от
возможного нажатия на него или защемле-
ния, особенно рядом с разъемами.
• Не закрепляйте шнур питания метизами.
• Если Вы не пользуетесь устройством
длительное время или в случае грозы
обязательно отключайте шнур питания из
розетки, а также отключайте все сигналь-
ные кабели от входных разъемов.
• При отключении вилки из розетки всег-
да держитесь за утолщение на вилке, не
касайтесь металлических частей, не тяните
за шнур и не ломайте и не перегибайте его,
не ремонтируйте, не перекручивайте и не
нагревайте.
• Немедленно свяжитесь с сервисным
центром, в случае если имеются какие-либо
неисправности шнура питания, в нем оголи-
лись жилы или он поврежден.
• Замените сетевую розетку, если в
нее невозможно вставить вилку или вилка
плохо закрепляется в розетке. Иначе могут
возникнуть неисправности или произойти
несчастные случаи или возгорания.
• Не прикасайтесь к проводам мокрыми
руками.
• Запрещается использование розетки, в
которую подключено несколько устройств.
Перегрузка такой розетки может привести
к пожару.
• Место подключения вилки шнура
питания к сети 220 В должно оставаться
легкодоступным.
• Перед работой с устройством необ-
ходимо полностью прочитать и понять все
инструкции. Необходимо соблюдать все пред-
упреждения и следовать всем инструкциям,
приведенным в настоящем руководстве.
• Пожалуйста, используйте только реко-
мендованные производителем аксессуары.

Перед началом эксплуатации
19
17
Перед началом эксплуатации
Использование других аксессуаров может
привести к неисправностям.
• Пожалуйста, проводите все настройки
и регулировки только с помощью кнопок
на передней и боковой панелях или на
пульте дистанционного управления. Ни в
коем случае не снимайте заднюю панель
и не пытайтесь самостоятельно проводить
техническое обслуживание устройства,
так как существует опасность поражения
электрическим током, а также возможно
возникновение неисправностей.
• Не устанавливайте устройство на
непрочные или неровные поверхности,
тележки, стойки, треноги, кронштейны
или столы. Устройство может упасть, в
результате чего могут возникнуть неисправ-
ности или произойти несчастные случаи.
Используйте только те приспособления,
которые рекомендованы производителем
или продавцом.
• Пожалуйста, устанавливайте устрой-
ство на горизонтальной поверхности в ме-
стах с хорошей вентиляцией. Не допускайте
воздействия на устройство вибрации, пря-
мого солнечного света, высокой температу-
ры, а также попадания пыли и влаги.
• Не ставьте на устройство вазы, сосуды
с жидкостью. Попадание жидкости внутрь
аппарата может привести к пожару или по-
ломке устройства.
• Не устанавливайте устройство в зоне
магнитных волн. Это может привести к по-
ломке устройства. В зоне электромагнитно-
го излучения может наблюдаться искаже-
ние изображения.
• Не устанавливайте вблизи устройства
источники открытого огня, например, свечи.
В случае их падения устройство может быть
повреждено или может произойти возгора-
ние.
• Установка телевизора в замкнутое
пространство при эксплуатации может со-
кратить срок службы устройства; поэтому
необходимо обеспечить минимальную
дистанцию между LED-телевизором и
внутренними границами приспособления
под аппарат для нормальной вентиляции
(минимум по 10 см свободного простран-
ства со всех сторон).
• Располагайте кабели позади устрой-
ства. Не закрепляйте их метизами, не пере-
гибайте, не ремонтируйте и не нагревайте.
• При перемещении телевизора не
нажимайте и не касайтесь панели. Не пере-
носите телевизор в положении, при котором
экран направлен вверх или вниз.
• Не перемещайте устройство при под-
ключенном проводе питания или других
подключенных проводах. Повреждение про-
вода питания, подключенный провод или
подключенные устройства могут стать при-
чиной пожара, электрошока или поломки.
• Если устройство тяжелее 18 кг, его
должны перемещать не менее 2 человек.
При падении устройство может повредиться.
• Слишком сильное нажатие на панель
может повредить устройство.
• При длительном использовании может
немного повысится температура корпуса
устройства. Это явление свидетельствует о
теплоотдаче в нормальном рабочем режи-
ме. Однако не позволяйте детям и людям с
повышенной температурной чувствительно-
стью касаться устройства.
После транспортировки в холодную
погоду (ниже 5° С) рекомендуется не
включать телевизор в течение как
минимум трех часов: за это время он
нагреется до комнатной температуры, а
весь конденсат испарится.
Все иллюстрации, приведенные в на-
стоящем руководстве, являются схе-
матическими изображениями, которые
могут отличаться от реальных объектов.
