Southland S-CV-43 User manual

Look inside for:
Page
Safety Definitions 1
Important Safety Information 2-3
Product Specifications 4
Parts & Features 4
Assembly 5-6
Operation 7-8
Maintenance 9
Storage 9
Troubleshooting 10
Technical Service 10
Warranty 11-16
10/30/09 Printed in China A200485
Operator’s Manual
GASOLINE POWERED CULTIVATOR
43cc, 2 Cycle
IMPORTANT:
Thank you for purchasing this Southland™ Cultivator.
Read and understand all warnings and instructions in this manual before using this tool. Improper use of this tool can cause
severe injury or death. Keep this manual for future reference.
Record the following for future reference:
Mfg. Date Code : _________________
Date of Purchase: Attach a copy of your sales receipt.
Consumer Toll Free Number: 1-800-737-2112
KEEP THIS MANUAL FOR FUTURE REFERENCE
MODEL No. S-CV-43
For Occasional Use Only
If you have a question or problem...
CALL TOLL FREE: 1-800-737-2112
Refer to the website for electronic manual and parts book.
www.gardnerinc.com

Indicates WARNING, DANGER, or
CAUTION.
This equipment can throw small objects
at high speed causing personal injury.
Inspect area where used and remove
all foreign objects.
Read operator’s manual before
operating this machine. Failure to
follow directions could result in serious
injury.
Engine exhaust contains carbon
monoxide, an odorless and deadly gas.
NEVER run unit indoors or in a poorly
ventilated area.
Always wear eye protection that meets or
exceeds the requirements of ANSI Z87.1.
Wear hearing protection.
Wear breathing protection.
To reduce risk of fire, clean spilled gas
and oil and keep unit free from debris.
Gasoline is extremely flammable. Allow
machine to cool completely before
refueling.
Do not use if children or bystanders
are present.
Extremely hot surface. Do not touch
a hot muffler, gear box or cylinder,
you may get burned. These parts get
extremely hot from operation and
remain hot for a short time after the unit
is turned off.
Keep hands, feet, and clothing away
from rotating tines. Contact with
rotating tines may result in serious
injury.
Safety Definitions
• Save all instructions

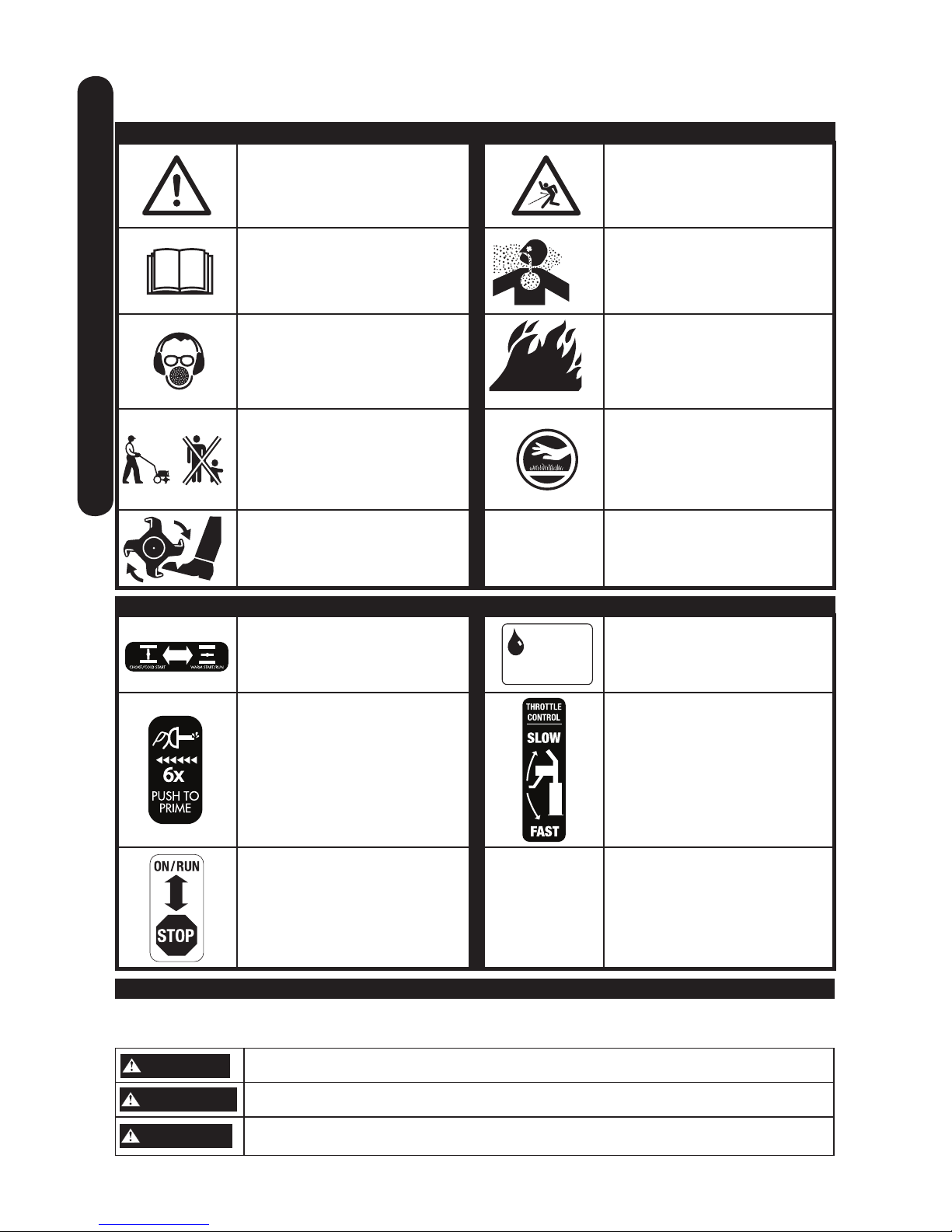

Safety Warning Symbols:
Control and Operating Symbols:
Choke Control:
Run/Warm Start
Choke/Cold Start
Fuel Mixture
40:1
Unleaded Gas: 2 Cycle Oil
Caution: Do Not Use Gas
Mix with More Than 10%
Methanol or Ethanol
Fuel Mixture:
40:1
(Unleaded Gas : 2 Cycle Oil)
Fuel Primer:
Press 6 times.
Throttle Control:
SLOW
FAST
Ignition Switch:
ON/RUN
OFF/STOP
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury
or equipment/property damage
DANGER
CAUTION
WARNING
The information listed below should be read and understood by the operator. We utilize the symbols below to allow the
reader to recognize important information about their safety.
Safety Alert Symbols
Questions? Call Toll Free at 1-800-737-2112 1 Copyright © 2009 MAT Engine Technologies, LLC
Important Safety Information

Questions? Call Toll Free at 1-800-737-2112 2 Copyright © 2009 MAT Engine Technologies, LLC
Before Operating Cultivator
1. READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE OPERATING CULTIVATOR. Be thoroughly familiar with
the controls and the proper use of the equipment. Know how to stop the unit and disengage the controls quickly.
WARNING
Read and follow all warnings and safety instructions. Failure to do so can result in serious injury to you or bystanders.
2. Avoid Dangerous Environments
a. Do not operate cultivator while under the influence of alcohol, medications, or drugs.
b. Do not operate cultivator when you are tired.
c. Do not use this cultivator if you are mentally or physically unable to operate safely.
3. Inspect cultivator for damaged parts, and make sure all fasteners and guards are in place and secure. Replace any
damaged parts.
4. Dress properly when operating cultivator.
a. Always wear heavy long pants, boots, gloves, and a long-sleeve shirt.
b. Do not wear loose clothing or jewelry that can get caught in the moving parts of the cultivator.
c. Always wear gloves and substantial foot wear when working outside.
d. Always wear protective hair covering to contain long hair.
5. Always wear a face or dust mask if operation is dusty.
6. Always wear eye protection that meets or exceeds the requirements of ANSI Z87.1.
7. Always wear hearing protection which meets or exceeds ANSI standards.
8. Thoroughly inspect the area where the cultivator is to be used and remove all foreign objects.
9. Keep the area of operation clear of all persons, particularly small children, and pets.
WARNING
Your equipment can throw small objects at high speed causing personal injury or property damage.
10. Never allow children to operate the equipment. Never allow adults to operate the equipment without proper
instruction.
11. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people, their property,
and themselves.
WARNING
Engine exhaust from this product contains chemicals known to the State of California to cause cancer or birth defects, or
other reproductive harm.
Important Safety Information
• Save all instructions
While Operating Cultivator
1. Stay alert. Use common sense. Watch what you are doing.
2. Do not operate cultivator if it is damaged or not securely and fully assembled.
3. Never operate the cultivator without good visibility or light.
4. Never operate the machine without proper guards, plates, or other safety protective devices in place.
5. Keep all part of your body away from the rotating tines. Do not put hands or feet near or under rotating parts.
6. Keep children and pets away.
7. Use only for jobs explained in this manual. Do not use cultivator for any job except that for which it is intended.
8. Maintain your balance and proper footing at all times. Do not overload the machine capacity by attempting to till too
deep.
9. After striking a foreign object, stop the engine, remove the wire from spark plug, thoroughly inspect the machine for any
damage, and repair the damage before restarting and operating the machine.
10. Never leave the machine unattended. Stop the engine when leaving the operating position.
11. Stop the engine before unclogging the tines, and when making any repairs, adjustments, and inspections.
12. Be careful when tilling in hard ground. The tines may catch in the ground and propel the cultivator forward. If this
occurs, let go of the handles and do not restrain the machine.
13. Use extreme caution when reversing or pulling the machine towards you.
14. Do not force cultivator. It will do the job better and with less likelihood of a risk of injury at the rate for which it was
designed.
DANGER
Never start or run the unit inside a closed room or building; breathing exhaust fumes can kill.
16. Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards
or traffic.
17. Exercise caution to avoid slipping or falling.
18. If the unit should start to vibrate abnormally, stop the engine and check immediately for the cause. Vibration is generally
a warning sign of trouble.
19. Never operate the machine at high transport speeds on hard or slippery surfaces.
20. Start the engine carefully according to instructions and with feet well away from the tines.
Important Safety Information
Important Safety Information

Important Safety Information (Continued)
• Save all instructions
Questions? Call Toll Free at 1-800-737-2112 3 Copyright © 2009 MAT Engine Technologies, LLC
While Operating Cultivator (cont.)
21. Never pick up or carry a machine while the engine is running.
CAUTION
Prolonged exposure to vibrations through use of gasoline powered hand tools could cause blood vessel or nerve damage
in fingers, hands, and joints of people prone to circulation disorders or abnormal swellings. Extensive use in cold weather
has been linked to blood vessel damage in otherwise healthy people. If symptoms occur such as numbness, pain, loss of
strength, change in skin color or texture, or loss of feeling in the fingers, hands, or joints, discontinue the use of this tool
and seek medical attention.
Fuel Safety
1. Mix and pour fuel outdoors WHERE THERE ARE NO SPARKS OR FLAMES.
2. Use a container approved for gasoline.
3. Do not smoke or allow smoking near fuel or the cultivator.
4. Avoid spilling fuel or oil. Wipe up all fuel spills.
5. Move at least 10 feet (3 meters) away from fueling site before starting engine. Do not refuel a hot engine. Do not refuel
a running engine.
6. Stop engine and allow to cool before removing fuel cap. Remove fuel cap slowly.
8. Never store engine with fuel in the tank indoors. Fuel and fuel vapors are highly flammable.
9. Replace all fuel tank and container caps securely.
Maintenance & Storage of Cultivator
1. Stop the engine, and disconnect the spark plug before servicing, cleaning, or performing maintenance on the unit. Never
attempt to make any adjustments while the engine is running.
2. Maintain cultivator with care. Inspect cultivator periodically. Keep machine, attachments, and accessories in safe
working condition. If cultivator is not working properly or damaged, have it repaired by a qualified service center.
3. Check for misalignment of moving parts, binding of moving parts, broken parts, and any other condition that may affect
its operation. Check shear bolts, engine mounting bolts, and other bolts at frequent intervals for proper tightness to be
sure the equipment is in safe working condition.
4. Keep guards in place and in working order.
5. A guard or other part that is damaged should be properly repaired or replaced by a qualified service center.
6. Use only genuine Southland™ replacement parts and accessories. Use of any non-Southland™ parts or accessories
could lead to injury, damage the unit, and void your warranty.
7. Do not remove or modify any parts. Removing or modifying parts could lead to injury, damage the machine and will
void the warranty.
8. Keep handles dry, clean, and free from oil and grease.
9. Allow engine to cool and empty the fuel tank before storing or transporting in vehicle. Use up remaining fuel in the
carburetor by starting the engine and letting it run until it stops. If the fuel tank has to be drained, do it outdoors.
10. When not in use, store cultivator indoors in a dry location. Store cultivator above the reach of children or in a locked
area out of the reach of children.
11. Store unit and fuel in area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors
or switches, furnaces, etc.
12. Always refer to the operator’s manual for important details if the cultivator is to be stored for an extended period.
13. Follow manufacturer’s recommendations for safe loading, unloading, transport, and storage of machine.
Important Safety Information
Important Safety Information

Engine .................... 43 cc, 2 cycle, Full-Crank
Idle Speed ....................... 2,800-3,000 RPM
Tilling Width ................................ 7”-10”
Tilling Depth .............................. Up to 5”
Fuel Tank Capacity.................... 28 oz (840 ml)
Fuel Type ....... Unleaded Gasoline – 87 Octane or higher
2-Cycle Oil Type ........ 2-Cycle Oil that meets or exceeds
. . . . . . . . . . . . . . . . . . . . . . . . . . . JASO – FC Specifications
Fuel Mixture ................ 40:1 (Gasoline: 2-Cycle Oil)
Spark Plug ......................... NGK - BPMR7A
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CHAMPION - CJ7Y
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . or equivalent
Net Weight ...........................33 lbs (15 kg)
Product Specifications
• Save all instructions
Parts & Features
Questions? Call Toll Free at 1-800-737-2112 4 Copyright © 2009 MAT Engine Technologies, LLC
6
54
2
8
1
3
15
1. Ignition Switch 7. Tines 13. Air Filter Cover
2. Upper Handle 8. Recoil Starter Handle 14. Throttle Trigger
3. Middle Handle 9. Fuel Tank 15. Muffler
4. Lower Handle 10. Spark Plug 16. Drag Stake
5. Front Carry Handle 11. Fuel Primer Bulb 17. Detent Pin
6. Engine 12. Choke 18. Transport Wheels
9
7
14
18
11
12
13
16
17
10

Parts Included with Cultivator
• Middle Handle (1)
• Upper Handles (2)
• Wing nuts and bolts (4 ea.)
• Spark Plug Wrench & Rod (1)
• Cable Ties (3)
• Operator’s Manual (1)
• 3.2 oz bottle of 2-Cycle engine oil (1)
* Wrench (1)
Do not operate cultivator if it is damaged or not securely and fully assembled.
If you need assistance or find any parts
missing, CALL TOLL FREE: 1-800–737-2112
Assembly
• Save all instructions
Questions? Call Toll Free at 1-800-737-2112 5 Copyright © 2009 MAT Engine Technologies, LLC
WARNING
How to Unpack Cultivator from Carton
1. Remove all parts and packing components.
2. Use a utility knife to cut all 4 vertical edges. Lay the side panels flat around the cultivator.
3. Remove inner components and packaging.
CAUTION
Use care when removing parts not to damage any cables or wires that are attached to the parts.
4. Roll the unit out from the carton, and place on a hard level surface.
Fig. 2
Drag stake
pointed down
Detent Pin
1. Place the cultivator upright with tines and wheels on a hard level surface. Wheels should be set in the lowest position.
WARNING
Do NOT place the cultivator on a high surface where it can fall and cause property damage or personal injury.
2. Assemble the middle handle to the lower handle with the 2 bolts and wing nuts. Refer to Figure 1. Firmly hand-tighten
the wing nuts.
3. Attach the upper handles to the middle handle using the two remaining bolts and wing nuts. Refer to Figure 1.
4. Assemble the ignition switch and throttle trigger to the right upper handle with the screw. Use included wrench. See
Figure 1.
5. Make sure the ignition wire is connected to both the ignition switch (on the upper handle) and the engine. Make sure the
wires are connected at the white connection terminal.
6. Use the cable ties to secure the throttle cable and ignition wire to the handles.
7. The drag stake is shipped with the point facing upwards. To use for cultivating, remove detent pin, and turn the drag stake
upside down so the point faces downward. Re-insert the detent pin. Refer to Figure 2.
How to Assemble the Handles and Drag Stake
Fig. 1
Lower
Handle
Middle Handle
Left Upper
Handle
Right Upper
Handle
Wingnut Bolt
Cable
Ties
Ignition
Wire
Throttle Wire
Screw
Ignition Switch
Throttle
Trigger

Questions? Call Toll Free at 1-800-737-2112 6 Copyright © 2009 MAT Engine Technologies, LLC
Assembly (Continued)
• Save all instructions
To Remove Tines
1. Remove the pins from each end of the tine shaft. Refer
to Figure 3.
2. Slide the four tines off the tine shaft.
To Install Tines
The 4 different tines are labeled “A”, “B”, “C”, and “D”. Refer
to Figure 4a for the location of the label.
For a 10” tilling width:
1. Assemble the tines as shown in Figure 4b. Make sure the
collars of the tines are facing each other.
2. Insert the pins into the holes at each end of the tine shaft
to lock the tines into place. See Figure 3.
For a 7” tilling width:
1. Only assemble tines B and C (the two inside tines). Do
not assemble tines A and D (the two outside tines). Refer
to figure 4b.
2. Insert the pins into the INSIDE holes of the tine shaft to
lock the tines into place. See Figure 5.
How to Assemble the Tines
Fig. 3
Pin
Fig. 5
Fig. 4a
D C B A
Fig. 4b
Pin

Before Starting Engine:
A
Adding Fuel to Cultivator:
B
1. Stop engine and allow it to cool before refueling.
2. Place the unit upright on the ground or on a sturdy bench and wipe and any debris from around the fuel cap.
3. Remove fuel cap slowly and use a funnel to pour the mixture into the tank, and replace the fuel cap.
4. Avoid spilling fuel or oil. Wipe up all fuel spills.
5. Move at least 10 feet (3 meters) away from fueling site before starting engine.
Operation
• Save all instructions
Questions? Call Toll Free at 1-800-737-2112 7 Copyright © 2009 MAT Engine Technologies, LLC

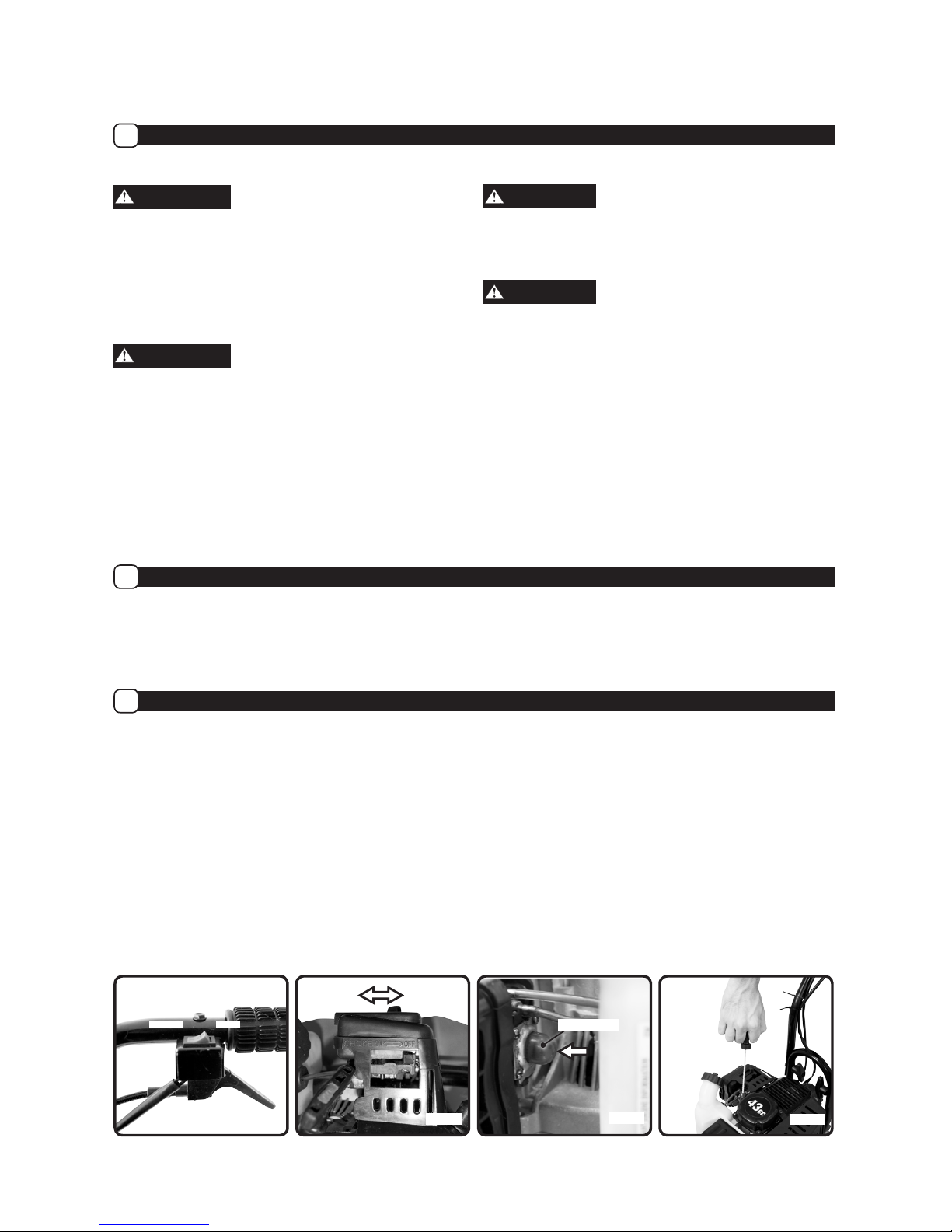

Fig. 6 Fig. 9
Fig. 7
COLD START
RUN/WARM
START
Fig. 8
PRIMER BULB
Mixing Fuel / 2-Cycle Oil
WARNING
Do not smoke or allow smoking near fuel or the cultivator.
Mix and pour fuel outdoors WHERE THERE ARE NO
SPARKS OR FLAMES.
The 2-cycle engine on your cultivator requires that fuel and
2-cycle engine oil need to be pre-mixed before adding to
the fuel tank.
WARNING
Always mix the gasoline and 2-cycle oil in a container
approved for gasoline. Never mix fuel directly in the engine
fuel tank.
Use fresh unleaded gasoline with an octane rating of 87 or
higher and less than 10% ethanol or methanol.
Use 2-cycle oil that meets or exceeds JASO – FC
specifications and is intended for mixing at a fuel to oil
ratio of 40:1.
CAUTION
Use of incorrect gasoline such as diesel fuel or gasoline
containing more than 10% ethanol or methanol will damage
the cultivator engine and void your warranty.
CAUTION
Use of incorrect oil, such as automotive oil, 2-cycle marine
outboard oil, or any oil other than specified oil will damage
the cultivator engine and void your warranty.
To mix the fuel and 2-cycle oil, follow instructions on 2-cycle
oil container for mixing fuel. Mix gasoline and 2-cycle oil
at a ratio of 40:1. A mixture with a 40:1 ratio is obtained
by mixing 1 gallon (4 liters) of gasoline with 3.2 ounces of
oil (95 ml). After adding oil to gasoline, shake container
momentarily to ensure proper mixing.
IMPORTANT: Mix only enough fuel for your immediate
needs. Do not store pre-mixed fuel.
Starting Engine:
C
Starting a Cold Engine
1. Place the cultivator on a flat surface.
2. Move the ignition switch to the “on” position. (See Figure 6)
3. Move the choke lever to the ‘cold start’ position. (See
Figure 7)
4. Press the primer bulb slowly 6 times. (See Figure 8)
5. Grab the recoil starter handle with your right hand, and
support the cultivator with your left hand. (See Figure 9)
6. Pull the recoil starter handle sharply until the engine
starts and runs
7. After engine starts and runs for 10-15 seconds, move
choke lever to “run/ warm start” position. (See Figure 7)
Starting a Warm Engine
1. Place the cultivator on a flat surface.
2. Move the ignition switch to the “on” position. (See Figure 6)
3. Move the choke lever to the ‘run/ warm start’ position.
(See Figure 7)
4. Grab the recoil starter handle with your right hand, and
support the cultivator with your left hand. (See Figure 9)
5. Pull the recoil starter handle sharply until the engine
starts and runs.
ON/RUN STOP

Operation (Continued)
• Save all instructions
Engine Break-In Period:
H
Questions? Call Toll Free at 1-800-737-2112 8 Copyright © 2009 MAT Engine Technologies, LLC
During the first ten (10) hours of use, use the slowest engine speed which allows for effective cutting and avoid operation
at high engine speeds for extended periods of time.
This will maximize the life and performance of your cultivator’s engine. Maximum power will be achieved after the first ten
(10) hours of engine operation.
Fig. 11 Fig. 12
The drag stake adds resistance when cultivating which
makes the unit easier to control. It also can be adjusted to
change the depth of cultivating. To adjust the drag stake
position, follow the steps below and refer to Figure 11:
1. Remove the detent pin
2. Slide the stake to the desired position, aligning the hole
in the stake with the holes in the support bracket
3. Insert the detent pin through the holes to secure the drag
stake.
Note: For the deepest cultivating depth, set the drag stake
in its lowest position. This will give the greatest resistance
and allow for the deepest depth.
Adjusting the Drag Stake Position:
F
1. Slide the spring loaded sleeve toward the wheel. See
Figure 12.
2. Move the wheels up or down
NOTE: the upper position is for cultivating, the lower
position is for transport
3. When the wheels are in either the upper or lower
position, allow the spring loaded sleeve to slide into the
assembly to lock the wheels in position.
Adjusting the Wheel Height:
G
Starting Engine (Continued):
C
Adjusting Engine Speed:
D
If the unit still doesn’t start, refer to the
TROUBLESHOOTING section of this manual or:
If you need assistance or have any questions,
CALL TOLL FREE: 1-800–737-2112
Starting a Flooded Engine
1. Place the cultivator on a flat surface.
2. Move the ignition switch to the ON position.
3. Move the choke lever to the ‘run/ warm start’ position.
(see Figure 7)
4. Hold the throttle trigger fully depressed in fast position.
(See Figure 10)
5. Pull the recoil starter handle repeatedly until engine
starts and runs. This could require pulling the recoil starter
handle many times, depending on how badly the unit is
flooded.
6. If the engine still does not start, allow the unit to sit for
about 15 minutes, and repeat steps 1-5.
Note: this cultivator is equipped with a centrifugal clutch, so the tines will not turn until the engine speed is increased.
To increase the engine speed, lift up on the throttle trigger. (See Figure 10)
To slow the engine down, slowly release the throttle trigger. Completely releasing the throttle lever will return the engine to
idle and will stop the tines from rotating.
1. Release the throttle trigger and allow the engine to idle for a few moments. (See Figure 10)
2. Push and hold the ignition switch to the ‘stop’ position. (See Figure 6)
Stopping the Engine:
E
Fig. 10
FAST
SLOW
Drag stake
Detent Pin
Holes
Support Bracket
Spring Loaded Sleeve
Pull sleeve outward
to adjust height

Turn off ignition switch, and disconnect the spark plug before performing maintenance except for carburetor adjustments.
Reconnect the spark plug wire after the service is done.
WARNING
Maintenance
• Save all instructions
Air Filter
A
Your cultivator has been equipped with two (2) foam air
filters inside the air filter housing to prevent dirt and debris
from entering the engine.
Accumulated debris and dust in the air filter will reduce
engine performance, increase fuel consumption, and
increase the risk of damage. Inspect the air filters frequently
for dust and debris build-up, and clean the air filters
every 5 hours of operation (more frequently in dusty/dirty
conditions).
Both air filters should be cleaned by following these
instructions:
1. Before removing air filter cover, brush away any loose dirt
or debris on and around the filter cover.
2. Remove the screw securing the air filter cover. See
Figure 13.
3. Remove and clean foam filter.
• Light surface dust can readily be removed by
tapping the filter.
• Heavy deposits should be washed out in soap and
water. Squeeze out any remaining water and allow
the filter to completely dry.
WARNING
Never clean filter in gasoline or other flammable solvents.
4. Add a drop of thin oil to the filter and replace it.
Questions? Call Toll Free at 1-800-737-2112 9 Copyright © 2009 MAT Engine Technologies, LLC
Fig. 13
Spark Plug
B
Inspect the spark plug after every 10-15 hours of use; adjust spark plug gap and replace spark plug as necessary. Replace
spark plug every year to maintain engine performance and easy starting.
To inspect or replace the spark plug:
1. Remove the insulated spark plug boot.
2. Use the spark plug wrench to remove the spark plug, by turning counter-clockwise.
3. Visually inspect the spark plug for cracks or damage. If damaged, replace spark plug with a recommended replacement
(see “Product Specifications”).
4. Clean carbon deposits. If excessive carbon build up, replace spark plug.
5. Adjust the spark plug gap to 0.024 – 0.028 in. (0.6 - 0.7mm).
6. Install the spark plug finger tight in the cylinder head, and then tighten firmly with the spark plug wrench.
7. Re-install the insulated spark plug boot.
Storage
1. Allow engine to cool and empty the fuel tank before storing or
transporting in vehicle. Use up remaining fuel in the carburetor
by starting the engine and letting it run until it stops.
2. When not in use, store cultivator indoors in a dry location.
Store cultivator above the reach of children or in a locked
area out of the reach of children.
3. Store unit and fuel in area where fuel vapors cannot
reach sparks or open flames from water heaters, electric
motors or switches, furnaces, etc.
4. When preparing the cultivator for storage or when
cultivator will not be used for 30 days or more:
a. Empty fuel tank and use up remaining fuel in the
carburetor by starting the engine and letting it run
until it stops.
b. Inspect and clean the cultivator thoroughly.
c. Lightly oil all external metal surfaces.
d. Remove the spark plug, place a few drops of
2-cycle engine oil into the cylinder. Pull the recoil
starter several times to distribute the oil. Replace
the spark plug.
e. Inspect and clean air filter as required.

PROBLEM POSSIBLE CAUSE(S) SOLLUTION(S)
Engine will not start. 1. Ignition Switch in the “OFF” position.
2. Engine flooded.
3. Fuel Tank empty.
4. Spark Plug not firing.
5. Fuel not reaching carburetor.
6. Carburetor requires adjustment.
1. Move ignition switch to the ON position.
2. See Starting a Flooded Engine in
OPERATION section.
3. Fill tank with correct fuel mixture.
4. Replace Spark Plug.
5. Check for kinked or split fuel line; repair
or replace.
6. Contact a qualified service center.
Engine will not accelerate, lacks
power or stalls.
1. Fuel not reaching carburetor.
2. Air filter dirty.
3. Spark plug fouled.
4. Carburetor requires adjustment.
5. Carbon build-up on muffler outlet
screen.
6. Compression low.
1. Check for kinked or split fuel line; repair
or replace.
2. Clean air filter.
3. Clean or replace spark plug
4. Contact a qualified service center.
5. Contact a qualified service center.
6. Contact a qualified service center.
Engine smokes excessively. 1. Fuel mixture incorrect.
2. Air filter dirty.
3. Carburetor requires adjustment.
4. Choke lever in the CHOKE/COLD
START position.
1. Empty Fuel Tank and refill with correct fuel
mixture.
2. Clean or replace air filter.
3. Contact a qualified service center.
4. Rotate choke lever to the RUN/WARM
START position.
Engine runs hot. 1. Fuel mixture incorrect.
2. Spark Plug incorrect.
3. Carburetor requires adjustment.
4. Carbon build-up on muffler outlet
screen.
1. See Mixing Fuel / 2-Cycle Oil in
OPERATION section.
2. Replace with correct Spark Plug.
3. Contact a qualified service center.
4. Contact a qualified service center.
Engine will not idle properly. 1. Carburetor requires adjustment.
2. Crankshaft seals worn.
3. Compression low.
1. Contact a qualified service center.
2. Contact a qualified service center.
3. Contact a qualified service center.
Troubleshooting
• Save all instructions
You may have further questions about assembling, operating, or maintaining this cultivator. If so, you can contact our
Technical Service Department at 1-800-737-2112 (English only).
You may also write to:
METL Corporate Office - CORRESPONDENCE ONLY
ATTN: Technical Service – METL
6700 Wildlife Way
Long Grove, IL 60047
Technical Service
Questions? Call Toll Free at 1-800-737-2112 10 Copyright © 2009 MAT Engine Technologies, LLC
When contacting the Technical Service Department, have
ready:
• Your Name
• Your Address
• Your Phone Number
• Model Number of Product
• Date of Purchase (include copy of receipt for written requests)
If you need assistance or have any questions,
CALL TOLL FREE: 1-800–737-2112

Warranty
• Save all instructions
Always specify model number when contacting the factory.
We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard
written warranty. We make no other warranty, expressed or implied. MAT Engine Technologies, LLC warrants this Cultivator
and any parts thereof, to be free from defects in material and workmanship for two years (90 days for reconditioned unit) from
the date of first purchase from an authorized dealer, provided that the product has been properly maintained and operated in
accordance with all applicable instructions. This warranty is extended only to the original retail purchaser. The bill of sales or
proof of purchase must be presented at the time a claim is made under this warranty. This warranty does not cover commercial,
industrial, or rental usage, nor does it apply to parts that are not in original condition because of normal wear and tear, or parts
that fail or become damaged as a result of misuse, accident, lack of proper maintenance, tampering, or alteration. Travel,
handling, transportation, and incidental costs associated with warranty repairs are not reimbursable under this warranty and
are the responsibility of the owner. To the full extent allowed by the law of the jurisdiction that governs the sale of the product,
this express warranty excludes any and all other expressed warranties and limits the duration of any and all implied warranties,
including warranties of merchantability and fitness for a particular purpose to two years from the date of first purchase, and MAT
Engine Technologies, LLC’s liability is hereby limited to the purchase price of the product and MAT Engine Technologies,
LLC shall not be liable for any other damages whatsoever including indirect, incidental, or consequential damages. Some states
do not allow limitation of how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages,
so the above limitation of damages may not apply to you. This warranty provides the original purchaser with specific rights.
For information regarding those rights, please consult the applicable state laws.
METL Corporate Office - CORRESPONDENCE ONLY
ATTN: Technical Service – METL
6700 Wildlife Way
Long Grove, IL 60047
This MAT Engine Technologies, LLC ( METL )outdoor power equipment engine complies with the emissions regulations of:
Southland™ Model No. Regulatory Agency
S-CV-43 United States Environmental Protection Agency (“U.S. EPA”) and State of California
To the extent there is any conflict between this Emissions Control Warranty and the METL Limited Warranty, this Emissions Control
Warranty shall apply except where the METL Limited Warranty may provide a longer warranty period.
YOUR WARRANTY RIGHTS AND OBLIGATIONS
State of California:
The California Air Resources Board and MAT Engine Technologies, LLC (METL) are pleased to explain the emissions
control system warranty on your 2009 small off-road engine (SORE). In California, new SOREs must be designed, built
and equipped to meet the State’s stringent anti-smog standards. METL must warrant the emissions control system on
your SOREs for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of
your SOREs.
Questions? Call Toll Free at 1-800-737-2112 11 Copyright © 2009 MAT Engine Technologies, LLC
Southland™ CULTIVATOR Limited Warranty
A
Federal and California Emissions Control Warranty Statement
B

In other areas of the Unites States, your outdoor power equipment engine must be designed, built and equipped so as
to conform at the time of sale to U.S. EPA emissions standards for small off-road spark ignition engines at or below 19
kilowatts.
Warranty (Continued)
• Save all instructions
Other U.S States / Territories:
All of the United States:
Your emission control system may include parts such as the carburetor or fuel-injection system, fuel lines, the ignition
system, and catalytic converter. Also included may be hoses, belts, clamps, connectors and other emission-related
assemblies.
Where a warrantable condition exists, METL will repair your small off-road engine at no cost to you including diagnosis,
parts and labor.
Manufacturer’s Warranty Coverage:
The emissions control system is warranted for two years. If any emissions-related part on your engine is defective, the part
will be repaired or replaced by METL.
Owner’s Warranty Responsibilities:
• As the SORE owner, you are responsible for the performance of the required maintenance listed in your owner’s manual.
METL recommends that you retain all receipts covering maintenance on your SORE, but METL can not deny warranty
solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
• As the SORE owner, you should however be aware that METL may deny your warranty coverage if your SORE or a part
has failed due to abuse, neglect, improper maintenance or unapproved modifications.
• You are responsible for presenting your SORE to a distribution center or service center authorized by METL as soon as
the problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty
coverage, you should contact METL customer service:
Questions? Call Toll Free at 1-800-737-2112 12 Copyright © 2009 MAT Engine Technologies, LLC
If you need assistance or have any questions,
CALL TOLL FREE: 1-800–737-2112

Warranty (Continued)
• Save all instructions
Defects Warranty Coverage:
METL warrants to the original purchaser and each subsequent purchaser that the small off-road engine (SORE) (1) has
been designed, built and equipped so as to conform with all applicable regulations; and (2) is free from defects in materials
and workmanship that cause the failure of a warranted part to conform with those regulations as may be applicable to the
terms and conditions stated below.
(a) The warranty period begins on the date the engine is first purchased. The warranty period is two years.
(b) Subject to certain conditions and exclusions as stated below, the warranty on emissions related parts is as follows:
(1) Any warranted part that is not scheduled for replacement as required maintenance in your Operator’s Manual is
warranted for the warranty period stated above. If the part fails during the period of warranty coverage, the part will
be repaired or replaced by METL according to Subsection (4) below. Any such part repaired or replaced under
warranty will be warranted for the remainder of the period.
(2) Any warranted part that is scheduled only for regular inspection in your Operator’s Manual is warranted for the
warranty period stated above. Any such part repaired or replaced under warranty will be warranted for the remaining
warranty period.
(3) Any warranted part that is scheduled for replacement as required maintenance in your Operator’s Manual is
warranted for the period of time before the first scheduled replacement date for that part. If the part fails before the
first scheduled replacement, the part will be repaired or replaced by METL according to Subsection (4) below.
Any such part repaired or replaced under warranty will be warranted for the remainder of the period prior to the first
scheduled replacement point for the part.
(4) Repair or replacement of any warranted part under the warranty provisions herein must be performed at a
warranty station at no charge to the owner.
(5) Notwithstanding the provisions herein, warranty services or repair will be provided at all of our distribution centers
that are franchised to service the subject engines.
(6) The engine owner must not be charged for diagnostic labor that leads to the determination that a warranted part is
in fact defective, provided that such diagnostic work is performed at a warranty station.
(7) METL is liable for damages to other engine components proximately caused by a failure under warranty of any
warranted part.
(8) Throughout the engine warranty period stated above, METL will maintain a supply of warranted parts sufficient to
meet the expected demand for such parts.
(9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be
provided without charge to the owner. Such use will not reduce the warranty obligations of METL.
(10) Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of
any non-exempted add-on or modified parts by the original or subsequent purchaser will be grounds for disallowing
a warranty claims. METL will not be liable to warrant failures of warranted parts caused by the use of a non-
exempted add-on or modified part.
(11) The manufacturer issuing the warranty shall provide any documents that describe that warranty procedures or
policies within five working days or requested by the Air Resources Board.
Questions? Call Toll Free at 1-800-737-2112 13 Copyright © 2009 MAT Engine Technologies, LLC

Warranty (Continued)
• Save all instructions
Emission Warranty Parts List:
The repair or replacement of any warranted part otherwise eligible for warranty coverage may be excluded from such
warranty coverage if METL demonstrates that the engine has been abused, neglected, or improperly maintained, and that
such abuse, neglect, or improper maintenance was the direct cause of the need for repair or replacement of the part. That
notwithstanding, any adjustment of a component that has a factory installed, and properly operating, adjustment limiting
device is still eligible for warranty coverage. The following emissions warranty parts list is covered.
(1) Fuel Metering System:
(a) Gasoline carburetor assembly and its internal
components (if so equipped)
(b) Fuel filter (if so equipped)
(c) Carburetor gaskets
(d) Fuel pump (if so equipped)
(2) Air Induction System including:
(a) Intake pipe/manifold
(b) Air cleaner
(3) Ignition System including:
(a) Spark plug
(b) Ignition module/coil
(4) Catalytic Muffler Assembly (if so equipped) including:
(a) Muffler gasket
(b) Exhaust manifold
(5) Crankcase Breather Assembly including:
(a) Breather connection tube.
(6) Miscellaneous items Used in Above Systems including:
(a) Switches
(b) Hoses, belts, connectors, and assemblies.
Questions? Call Toll Free at 1-800-737-2112 14 Copyright © 2009 MAT Engine Technologies, LLC

Warranty (Continued)
• Save all instructions
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board and METL are pleased to explain the evaporative emission control system’s warranty
on your 2009 model year small off-road engine (SORE). In California, new SOREs must be designed, built and equipped
to meet the State’s stringent anti-smog standards. METL must warrant the evaporative emission control system on your
SOREs for the period of time listed below provided there has been no abuse, neglect or improper maintenance of your
SOREs.
Your evaporative emission control system may include parts such as: carburetors, fuel tanks, fuel lines, fuel caps, valves,
canisters, filters, vapor hoses, clamps, connectors, and other associated components.
Manufacturer’s Warranty Coverage:
This evaporative emission control system is warranted for two years. If any evaporative emission-related part on your
equipment is defective, the part will be repaired or replaced by METL.
Owner’s Warranty Responsibilities:
• As the SORE owner, you are responsible for performance of the required maintenance listed in your owner’s manual.
METL recommends that you retain all receipts covering maintenance on your SOREs, but METL can not deny warranty
solely for the lack of receipts.
• As the SORE owner, you should however be aware that METL may deny you warranty coverage if your SOREs or a part
have failed due to abuse, neglect, or improper maintenance or unapproved modifications.
• You are responsible for presenting your SOREs to distribution center or service center authorized by METL as soon as
the problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty
coverage, you should contact METL customer service:
Questions? Call Toll Free at 1-800-737-2112 15 Copyright © 2009 MAT Engine Technologies, LLC
California Evaporative Emission Control Warranty Statement
C
If you need assistance or have any questions,
CALL TOLL FREE: 1-800–737-2112

Warranty (Continued)
• Save all instructions
Defects Warranty Coverage:
(a) The warranty period begins on the date the engine is purchased.
(b) General Evaporative Emissions Warranty Coverage. The engine must be warranted to the ultimate purchaser and
any subsequent owner that the evaporative emission control system when installed was:
(1) Designed, built, and equipped so as to conform with all applicable regulations; and
(2) Free from defects in materials and workmanship that causes the failure of a warranted part for a period of two years.
(c) The warranty on evaporative emissions-related parts will be interpreted as follows:
(1) Any warranted part that is not scheduled for replacement as required maintenance in the written instructions must
be warranted for the warranty period defined in subsection (b) (2).
If any such part fails during the period of warranty coverage, it must be repaired or replaced by METL issuing
the warranty. Any such part repaired or replaced under the warranty must be warranted for a time not less than the
remaining warranty period.
(2) Any warranted part that is scheduled only for regular inspection in the written instructions must be warranted
for the warranty period defined in subsection (b) (2). A statement in such written instructions to the effect of “repair
or replace as necessary” will not reduce the period of warranty coverage. Any such part repaired or replaced under
warranty must be warranted for a time not less than the remaining warranty period.
(3) Any warranted part that is scheduled for replacement as required maintenance in the written instructions must be
warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the
first scheduled replacement, the part must be repaired or replaced by METL Any such part repaired or replaced under
warranty must be warranted for a time not less than the remainder of the period prior to the first scheduled
replacement point for the part.
(4) Repair or replacement of any warranted part under the warranty provisions of this article must be performed at no
charge to the owner at a warranty station.
(5) Notwithstanding the provisions of subsection (4) above, warranty services or repairs must be provided at
distribution centers that are franchised to service the subject engines or equipment.
(6) The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact
defective, provided that such diagnostic work is performed at a warranty station.
(7) Throughout the evaporative emission control system’s warranty period set out in subsection (b) (2), METL issuing
the warranty must maintain a supply of warranted parts sufficient to meet the expected demand for such parts.
(8) Manufacturer approved replacement parts must be used in the performance of any warranty maintenance or
repairs and must be provided without charge to the owner. Such use will not reduce the warranty obligations of the
manufacturer issuing the warranty.
(9) The use of any add-on or modified parts will be grounds for disallowing a warranty claim made in accordance with
this article. The manufacturer issuing the warranty will not be liable under this Article to warrant failures of warranted
parts caused by the use of an add-on or modified part.
(10) METL issuing the warranty shall provide any documents that describe the warranty procedures or policies within
five working days of request by the Executive Officer.
(1) Fuel Tank.
Evaporative Emission Warranty Parts List:
Questions? Call Toll Free at 1-800-737-2112 16 Copyright © 2009 MAT Engine Technologies, LLC
