Sovereign SBV 3200 User manual

Petrol Leaf Vacuum
Artikel-Nr.:
Ident-Nr.: 01014

Komponenten / Ersatzteile
Position Artikel-Nr. Beschreibung
1 343600001001 carburettor
3 343600001003 air filter cover
4 343600001004 air filter
11 343600001010 pump
13 343600001012 throttle cable
19 343600001060 switch
28 343600001026 ISOLATOR
30 343600001028 tank lid
38 343600001036 nozzle
39 343600001061 blower bag
48 343600001045 fan wheel
53 343600001050 spray valve
54 343600001051 louver
55 343600001052 suction tube
56 343600001053 SCREW
64 343600001064 starter
65 343600001065 spark coil
66 343600001066 shoulder strap
67 343600001067 spark plug
68 343600001068 sailing

Operating Instructions
Garden Blower Vac
SBV 3200
34.360.01
Art.-No.: 519920 I.-No.: 01014
Anleitung SBV 3200 10.01.2005 9:37 Uhr Seite 1

2
Meaning of symbols marked on the product
Read the user manual before using the machine
Wear safety goggles to protect your eyes
Wear ear protector to protect against noise
Wear dust mask to protect against dust
Wear gloves to protect your hands
Wear safety boots to protect agains electric shock
Please pull out page 2
Anleitung SBV 3200 10.01.2005 9:37 Uhr Seite 2

3
1
2
3
4
5
6
7
8
9
10
13
15
11 12
16
14
17
18
1
Anleitung SBV 3200 10.01.2005 9:37 Uhr Seite 3

4
GB
GENERAL SAFETY RULES
• WHAT NOT TO DO
READ YOUR USER MANUAL AND ALL
SUPPLEMENTS (IF ANY ENCLOSED)
THOROUGHLY BEFORE OPERATING YOUR
UNIT.
1. WEAR CLOSE FITTING, TOUGH WORK
CLOTHING that will provide protection/without
restricting your movements, such as long slacks
or trousers, safety work shoes, heavy duty work
gloves, hard hat, a safety face shield, or safety
glasses for eye protection and a good grade of
ear plugs or other sound barriers for hearing
protection.
2. REFUEL IN A SAFE PLACE. Open fuel cap
slowly to release any pressure which may have
formed in fuel tank. Always wipe unit of fuel or oil
spills before starting. To prevent a fire hazard,
move at least 10 feet (3 meters) from fueling area
before starting.
3. TURN UNIT OFF before setting it down, and also
before installing or removing attachments.
4. KEEP ALL SCREWS AND FASTENERS TIGHT
and the unit in good operating condition. Never
operate this equipment if it is improperly adjusted
or not completely and securely assembled.
5. KEEP HANDLES DRY, clean and free of fuel
mixture.
6. STORE EQUIPMENT AWAY FROM POSSIBLE
IGNITION SOURCES, such as gas-powered
water heaters, clothes dryers, or oil-fired
furnaces, portable heaters, etc.
7. ALWAYS KEEP the engine free of debris build-
up.
8. OPERATION OF EQUIPMENT should always be
restricted to mature and properly instructed
individuals.
9. ALL PERSONS WITH RESPIRATORY
PROBLEMS and persons operating blower in
very dusty environments, should wear a dust
particle mask at all times. Paper dust masks are
available at most paint and hardware stores.
• WHAT NOT TO DO
WARNING: DO NOT USE ANY OTHER FUEL than
that recommended in your manual. Always follow
instructions in the Fuel and Lubrication section of this
manual. Never use gasoline unless it is properly
mixed with 2-stroke engine lubricant. Permanent
damage to engine will result, voiding manufacturer’s
warranty.
1. DO NOT SMOKE while refueling or operating
equipment.
2. DO NOT OPERATE UNIT WITHOUT A
MUFFLER and properly installed muffler shield.
3. DO NOT TOUCH or let your hands or body come
in contact with a hot muffler or spark plug wire.
4. DUE TO THE DANGER of exhaust fumes, never
operate blower in a confined or poorly ventilated
area.
5. NEVER POINT BLOWER in the direction of
people, animals, buildings, automobiles, or
windows, etc.
6. DO NOT operate unit without inlet cover installed
to prevent contact with impeller.
7. DO NOT set a hot engine down where flammable
material is present.
8. DO NOT OPERATE UNIT FOR PROLONGED
PERIODS. Rest periodically.
9. DO NOT OPERATE UNIT WHILE UNDER THE
INFLUENCE OF ALCOHOL OR DRUGS.
WARNING: DO NOT ADD, REMOVE OR ALTER
ANY COMPONENTS OF THIS PRODUCT. Doing so
could cause personal injury and/or damage the unit
voiding the manufacturer’s warranty.
10. DO NOT operate your unit near or around
flammable liquids or gases whether in or out of
doors. An explosion and/or fire may result.
11. DO NOT WEAR loose clothing, scarfs, neck
chains, unconfined long hair, and the like. Doing
so could cause injury associated with objects
being drawn into the rotating parts. Tie up long
hair and fasten it, for example with a head scarf,
cap, helmet, etc.
12. DO NOT refuel a running engine or an engine
that is hot

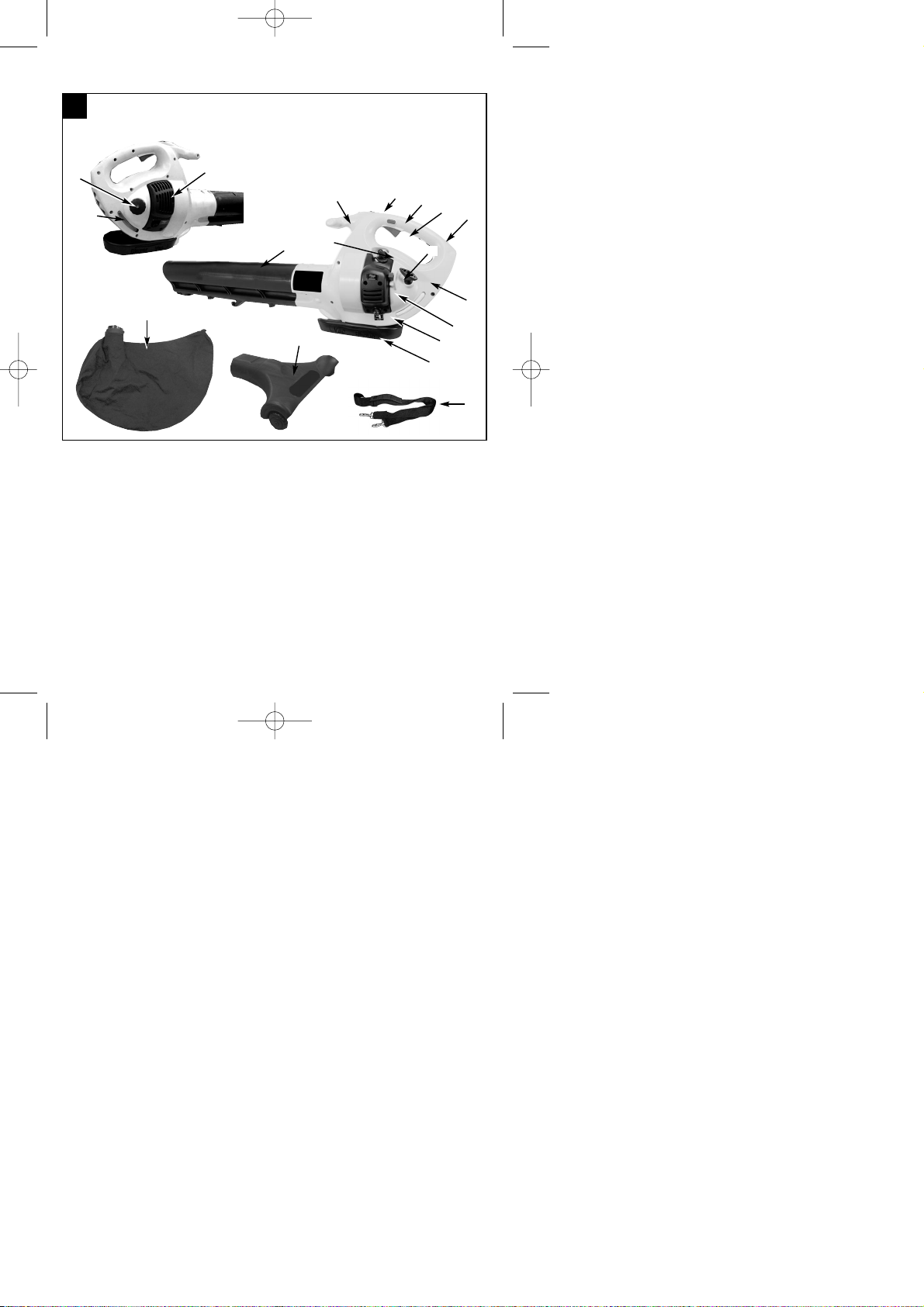

Layout (Fig. 1)
1. Rear Handle
2. Throttle Trigger
3. Throttle Lock
4. On/Off Switch
5. Front Handle
6. Muffler Cover (Exhaust)
7. Fuel Tank Window
8. Fuel Cap
9. Starter Handle
10. Air Filter Cover
11. Vacuum/Blower Tube
12. Choke Lever
13. Spark Plug Wire / Spark Plug
14. Vacuum/Blower Slide
15. Primer Bulb
16. Harness
17. Vacuum Bag
18. Speed Cleaner Head
Anleitung SBV 3200 10.01.2005 9:37 Uhr Seite 4

5
GB
2. Technical data
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 cm3
Max. Air Velocity . . . . . . . . . . . . . . . . . . . .ca. 40 m/s
Max. Air Volume . . . . . . . . . . . . . . . . . . . . . .240 m3/h
Max. Engine Speed . . . . . . . . . . . . . . . . .11,500 min-1
Collection Bag . . . . . . . . . . . . . . . . . . . . . . . . .55 Litre
Mulching Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . .10:1
Fuel Capacity . . . . . . . . . . . . . . . . . . . . . . . . . .700 ml
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6.4 kg
Maximum Enquine Performance . . . . . . . .0.8 kW
Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108 dB(A)
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . .13.7 m/s2
3. BLOWER ATTACHMENT ASSEMBLY
INSTRUCTIONS
1. Release the screws (A) and remove the screw (B).
Insert blower tube (C) into the blower housing and
replace screw (B). Tighten screws (A). (Fig. 1A)
2. Insert speed cleaner head (D) to the tube (C). (Fig.
1B)
• HARNESS INSTALLATION
Attach the 2 harness clips to the
2 links in the blower handle.
(Fig. 2)
• VACUUM ATTACHMENT
ASSEMBLY INSTRUCTIONS
To install vacuum bag:
Pull the slide (A) forward and fit bag (B) into the
vacuum housing. (See Fig. 3)
NOTICE: Vacuum bag installation
The vacuum bag connection tube MUST be scurely
and correctly fitted to the vacuum housing (see fig. 3
of the instructions) prior to the operation. To ensure
the tube is in place correctly, first line up with the
indentations either side of the opening. Push the
connector into place and turn to the right until a click
is heard and the unit locks securely.
This is a safety feature and if the connector is not in
place the blower vac will not start.
The vacuum bag can now be fitted over the open end
of the connection tube and secured with the velcro
strap.
FUEL AND LUBRICATION
• FUEL
Use regular grade unleaded gasoline mixed with 40:1
custom 2-stroke engine oil for best results.
WARNING: Never use straight gasoline in your unit.
This will cause permanent engine damage and void
the manufacturer’s warranty for that product. Never
use a fuel mixture that has been stored for over 90
days.
WARNING: Use only Class I 2-stroke oil suitable for
air-cooled engines.
• MIXING FUEL
Mix the fuel with 2-stroke oil in a suitable container.
Shake the container to ensure that it is properly
mixed.
• FUEL AND LUBRICATION
• RECOMMENDED FUELS
Some conventional gasolines are being blended with
oxygenates such as alcohol or an ether compound to
meet clean air standards. Your engine is designed to
operate satisfactorily on any gasoline intended for
automotive use including oxygenated gasolines.
Gasoline and
Oil Mix 40:1
Fig. 2
Fig. 1A Fig. 1B
A
B
C
D
C
Fig. 3
B
A
Anleitung SBV 3200 10.01.2005 9:37 Uhr Seite 5

6
GB
OPERATING INSTRUCTIONS
• STARTING A COLD ENGINE
Fill fuel tank with proper gas and oil mixture. See
Fuel and Lubrication. Set unit on ground so that it
rests on housing feet.
1. Pull the throttle trigger (A). (It will auto lock) Fig.
4A.
2. Prime the carburetor. Pump the primer bulb (C) 10
times (Fig. 4B).
3. Your unit is designed with a 2 position choke (D):
START “ ” and RUN “ ”. Move choke lever to
START “ ” position (Fig. 4C).
4. Grip handle firmly .
5. Pull starter rope out a short way until resistance is
felt (approximately 100mm). Pull starter rope
quickly and evenly until engine starts or attempts
to run.Once engine starts, warm up at full throttle
for 10 seconds and release throttle.
6. Push down the throttle lock (B), the throttle trigger
(A) will back to the nomal position. (Fig. 4A)
7. Move the choke to RUN “ ” position (Fig. 4E).
NOTE: If engine fails to start after repeated attempts,
refer to Troubleshooting section.
NOTE: Always pull starter rope straight out. Pulling
starter at an angle will cause rope to rub against the
eyelet. This friction will cause the rope to fray and
wear more quickly. Always hold starter handle when
rope retracts. Never allow rope to snap back from
extended position. This could cause rope to snag or
fray and also damage the starter assembly.
• STOPPING THE ENGINE
Emergency Stopping Procedure. When it is
necessary to stop blower engine immediately,
DEPRESS the switch to stop.
Normal Stopping Method. For normal stopping,
push down the throttle lock, the throttle trigger will
back to the nomal position and allow engine to return
to idle speed. Then DEPRESS and HOLD the “OFF”
switch until the engine stops completely.
• STARTING A WARM ENGINE (Engine has been
stopped for no more than 15-20 minutes)
1. Pull starter rope again. Engine should start with
ONE or TWO pulls. If engine fails to start after 6
pulls, repeat steps 2 through 6 (see Starting a cold
engine).
2. If engine does not start, or starts and then stops
after 5 rope pulls, follow procedure “STARTING A
COLD ENGINE”.

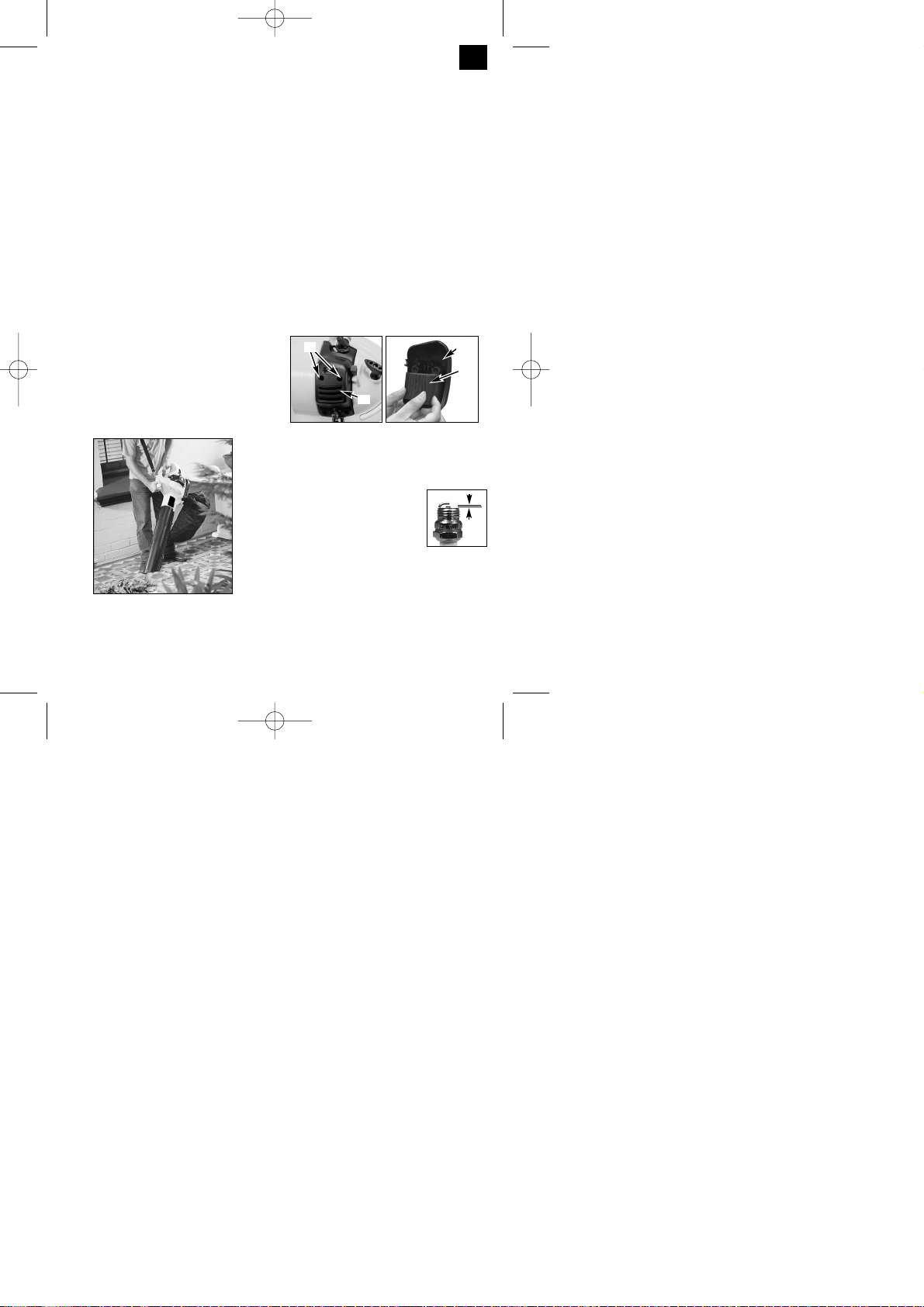

• BLOWER OPERATIONS (Fig. 5)
Your blower is designed to easily remove debris from
patios, walkways, lawns, bushes, etc., and many
hard to reach areas where debris may accumulate.
WARNING: Because of flying debris, always wear
approved shielded safety glasses or face shield when
operating blower.
Before using your blower, review Safety Precautions
in your User Manual, and all regulations for operation
of the unit. These precautions and regulations are for
your protection.
CAUTION: Hold the blower so that hot exhaust does
not damage clothing and is not inhaled by operator.
DO NOT operate the blower with other people or
animals in the immediate vicinity. Allow a minimum of
30 feet (9 meters) between operator and other
people or animals.
We recommend that a face mask be worn when
operating blower in dusty areas.
Stand away from the debris, at a distance that will
easily allow you to control the direction of blown
debris. Never blow debris in direction of bystanders.
To control velocity of airstream, blower can be
operated at any speed between idle and full throttle.
Experience with the unit will help you determine the
amount of airflow necessary for each application.
• VACUUM OPERATIONS
WARNING: NEVER OPERATE VACUUM WITHOUT
VACUUM BAG PROPERLY ATTACHED, AS
FLYING DEBRIS COULD CAUSE INJURY TO
OPERATOR AND BYSTANDERS. ALWAYS MAKE
SURE VACUUM BAG ZIPPER IS CLOSED
BEFORE OPERATING UNIT.
Fig. 5
Fig. 4D Fig. 4E
Fig. 4A
C
A
Fig. 4B Fig. 4C
D
D
B
Anleitung SBV 3200 10.01.2005 9:38 Uhr Seite 6

7
GB
Do not vacuum hot or burning materials (e.g. hot
ash, glowing cigarettes) from outdoor fireplaces or
barbecue pits. always wait for these materials to be
cool enough. Do not vacuum lighted smoking
material such as discarded cigars or cigarettes. Do
not operate unit near open flame.
CAUTION: This unit is designed to vacuum up debris
such as leaves, small bits of paper, small twigs,
weeds, grass clippings, etc. Do not use this unit for
any other purpose.
Do not attempt to vacuum rocks, broken glass,
bottles, tin cans or other such objects. Damage to
impeller and unit as well as operator injury could
result.
If vacuum tube is level with power unit horizontal,
rocks or large objects may be drawn into tube,
damaging the impeller.
To Operate Vacuum:
1. Follow correct starting procedures as explained in
this manual.
2. Allow engine to return to idle. Put the shoulder
harness on so the strap is over your right
shoulder. Put the vacuum bag strap on so it is
over your left shoulder.
CAUTION: Do not allow shoulder harness to cover,
block, or come in contact with exhaust outlet during
operation. The muffler generates heat and could
burn, melt, or damage harness strap.
3. Place your left hand on the top handle and right
hand on side handle as shown (Fig. 6).
4. Swing unit side to side to vacuum debris.
CAUTION: To avoid clogging vacuum tube. DO NOT
FORCE OR PLACE SUCTION TUBE INTO A PILE
OF DEBRIS.
• VACUUM TUBE CLOGGING
To Unclog Vacuum Tube:
1. Turn engine “OFF”. Promptly compress vacuum
bag while it is still inflated, expelling air out of the
suction tube.
This reverse airflow is usually sufficient to dislodge
most obstructions. If the obstruction cannot be
cleared by compressing vacuum bag, follow this
procedure:
2. Remove and inspect vacuum tubes.
3. Carefully clean out nozzle.
4. Reinstall vacuum tubes.
AIR FILTER
CAUTION: NEVER operate blower without the air
filter or dust and dirt will be sucked into the engine
and damage it. The air filter must be kept clean. If it
becomes damaged, install a new filter.
To Clean Air Filter:
1. Remove 2 screws (A) holding air filter cover in
place, remove cover (B) and lift filter (C) from
cover (Fig. 7A and B).
2. Wash filter in soap and water. DO NOT USE
GASOLINE!
3. Air dry filter.
4. Reinstall air filter and air filter cover.
NOTE: Replace filter if frayed, torn, damaged or
unable to be cleaned.
• CARBURETOR ADJUSTMENT
The carburetor was pre-set at the factory for
optimum performance. If further adjustments are
necessary, please take your unit to the nearest
professional.
• SPARK PLUG
1. Spark plug gap = .025 in.
(.635mm) (Fig. 8).
2. Torque to 105 to 130 inch
pounds (12 to 15 N•m). Connect
spark plug boot.
• VACUUM BAG CLEANING
A dirty bag will obstruct airflow, thereby reducing
vacuum efficiency.
To Clean Bag:
1. Detach vacuum bag from unit.
2. Open zipper and remove contents.
3. Turn bag INSIDE OUT and shake vigorously.
This procedure should be performed on a regular
basis.
Fig. 7A Fig. 7B
C
B
AB
.025 in.
(.635mm)
Fig. 8
Fig. 6
Anleitung SBV 3200 10.01.2005 9:38 Uhr Seite 7

4. Turn bag RIGHT SIDE OUT, close zipper and
attach to unit.
NOTE: If vacuum bag is unusually dirty, it should be
washed by hand in warm water with a mild detergent.
Rinse thoroughly. Let dry before using.
• STORING A UNIT
WARNING: Failure to follow these steps may cause
varnish to form in the carburetor and difficult starting
or permanent damage following storage.
1. Perform all the general maintenance
recommended in the Maintenance Section of
your User Manual.
2. Clean outside surface of unit.
3. Drain fuel from the fuel tank.
4. After fuel is drained, start engine.
5. Run engine at idle until unit stops. This will
purge the carburetor of fuel.
6. Allow engine to cool (approx. 5 minutes).
7. Using a spark plug wrench, remove the spark
plug.

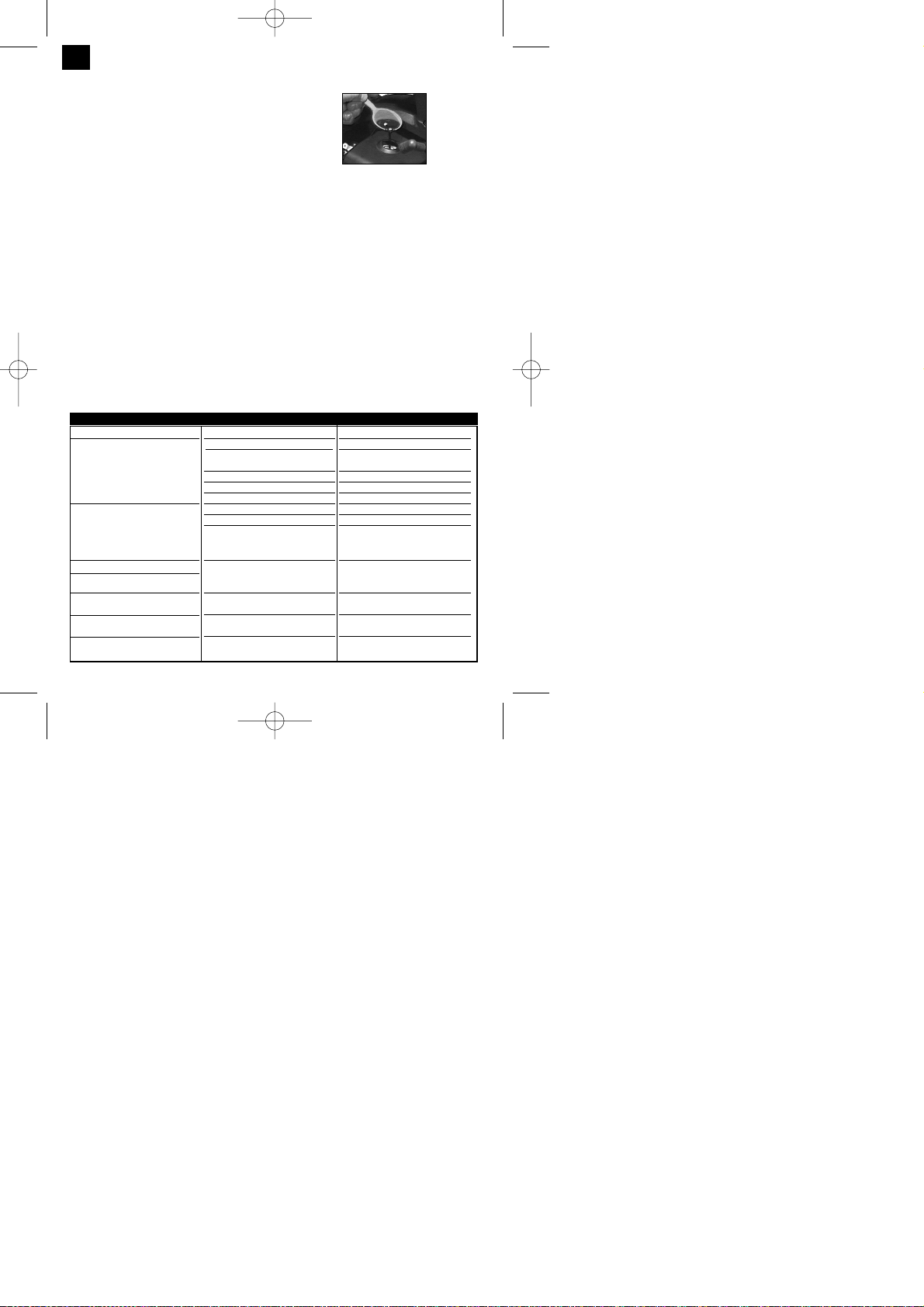

8. Pour 1 teaspoon of clean 2-stroke oil into the
combustion chamber (Fig. 9). Pull starter rope
slowly several times to coat internal components.
Replace spark plug.
9. Store unit in a cool, dry place away from any
source of ignition such as an oil burner, water
heater, etc.
• REMOVING A UNIT FROM STORAGE
1. Remove spark plug.
2. Pull starter rope briskly to clear excess oil from
combustion chamber.
3. Clean and gap spark plug or install a new spark
plug with proper gap.
4. Prepare unit for operation.
5. Fill fuel tank with proper fuel / oil mixture. See
Fuel and Lubrication Section.
8
GB
TROUBLE SHOOTING THE ENGINE
PROBLEM
Unit won’t start or starts but will not run.
Unit starts, but engine has low power.
Engine hesitates.
No power under load.
Runs erratically.
Smokes excessively.
PROBABLE CAUSE
Incorrect starting procedures.
Incorrect carburetor mixture adjustment
setting.
Fouled spark plug
Fuel filter plugged.
Vacuum bag tube isn’t fitted correctly.
Incorrect lever position on choke.
Dirty air filter.
Incorrect carburetor mixture adjustment
setting.
Incorrect carburetor mixture adjustment
setting.
Incorrectly gapped spark plug.
Incorrect carburetor mixture adjustment
setting.
Incorrect fuel mixture.
CORRECTIVE ACTION
Follow instructions in the User Manual.
Have carburetor adjusted by an Authorized
Service Center.
Clean / gap or replace plug.
Replace fuel filter.
Check vacuum bag tube is fitted correctly.
Move to RUN position.
Remove, clean and reinstall filter.
Have carburetor adjusted by an Authorized
Service Center.
Have carburetor adjusted by an Authorized
Service Center.
Clean / gap or replace plug.
Have carburetor adjusted by an Authorized
Service Center.
Use properly mixed fuel (40:1 mixture).
Fig. 9
Anleitung SBV 3200 10.01.2005 9:38 Uhr Seite 8

9
Derklärt folgende Konformität gemäß EU-Richtlinie
und Normen für Artikel
declares conformity with the EU Directive
and standards marked below for the article
Fdéclare la conformité suivante selon la
directive CE et les normes concernant l’article
verklaart de volgende conformiteit in overeen-
stemming met de EU-richtlijn en normen voor
het artikel
Edeclara la siguiente conformidad a tenor de la
directiva y normas de la UE para el artículo
Pdeclara a seguinte conformidade de acordo
com a directiva CE e normas para o artigo
Sförklarar följande överensstämmelse enl. EU-
direktiv och standarder för artikeln
ilmoittaa seuraavaa Euroopan unionin direkti-
ivien ja normien mukaista yhdenmukaisuutta
tuotteelle
erklærer herved følgende samsvar med EU-
direktiv og standarder for artikkel
заявляет о соответствии товара
следующим директивам и нормам EC
izjavljuje sljedeću uskladjenost s odredbama i
normama EU za artikl.
declarå urmåtoarea conformitate cu linia direc-
toare CE µi normele valabile pentru articolul.
ürün ile ilgili olarak AB Yönetmelikleri ve
Normlar gere©ince aµa© daki uygunluk aç kla
mas n sunar.
‰ËÏÒÓÂÈ ÙËÓ ·ÎfiÏÔ˘ıË Û˘Ìʈӛ· Û‡Ìʈӷ ÌÂ
ÙËÓ √‰ËÁ›· ∂∂ Î·È Ù· ÚfiÙ˘Ô ÁÈ· ÙÔ ÚÔ˚fiÓ
Idichiara la seguente conformità secondo la
direttiva UE e le norme per l’articolo
attesterer følgende overensstemmelse i
henhold til EU-direktiv og standarder for
produkt
prohlašuje následující shodu podle směrnice
EU a norem pro výrobek.
Ha következ konformitást jelenti ki a termékek-
re vonatkozó EU-irányvonalak és normák
szerint
pojasnjuje sledečo skladnost po smernici EU
in normah za artikel.
deklaruje zgodność wymienionego poniżej
artykułu z następującymi normami na
podstawie dyrektywy WE.
vydáva nasledujúce prehlásenie o zhode podľa
smernice EÚ a noriem pre výrobok.
деклаpиpа следното съответствие съгласно
диpективите и ноpмите на ЕС за пpодукта.
Landau/Isar, den 03.11.2004
Landauer
Produkt-Management
Garden Blower Vac SBV 3200
Brunhölzl
Leiter Produkt-Management
ISC GmbH
Eschenstraße 6
D-94405 Landau/Isar Konformitätserklärung
98/37/EG
73/23/EWG_93/68/EEC
97/23/EG
89/336/EWG_93/68/EEC
90/396/EWG
89/686/EWG
87/404/EWG
R&TTED 1999/5/EG
2000/14/EG:
95/54/EG:
97/68/EG:
x
x
xLWM = xxx dB; LWA = 108 dB
P = xxxx kW; L/Ø = xxxx cm
Art.-Nr.: 34.360.01 I.-Nr.: 01014 Archivierung: 3436000-02-4160270-E
Subject to change without notice
EN ISO 14982
Anleitung SBV 3200 10.01.2005 9:38 Uhr Seite 9

GARANTIEURKUNDE
Auf das in der Anleitung bezeichnete Gerät geben wir 2 Jahre
Garantie, für den Fall, dass unser Produkt mangelhaft sein sollte.
Die 2-Jahres-Frist beginnt mit dem Gefahrenübergang oder der
Übernahme des Gerätes durch den Kunden. Voraussetzung für
die Geltendmachung der Garantie ist eine ordnungsgemäße
Wartung entsprechend der Bedienungsanleitung sowie die be-
stimmungsgemäße Benutzung unseres Gerätes.
Selbstverständlich bleiben Ihnen die gesetzlichen Gewähr-
leistungsrechte innerhalb dieser 2 Jahre erhalten. Die Garan-
tie gilt für den Bereich der Bundesrepublik Deutschland oder der
jeweiligen Länder des regionalen Hauptvertriebspartners als Er-
gänzung der lokal gültigen gesetzlichen Vorschriften. Bitte be-
achten Sie Ihren Ansprechpartner des regional zuständigen Kun-
dendienstes oder die unten aufgeführte Serviceadresse.
ISC GmbH ·International Service Center
Eschenstraße 6 ·D-94405 Landau/Isar (Germany)
Info-Tel. [phone] •Telefax 0180-5 835 830
Service- und Infoserver: http://www.isc-gmbh.info
EH 11/2004
 Technical specifications subject to change

The reprinting or reproduction by any other means, in whole or in
part, of documentation and papers accompanying products is
permitted only with the express consent of ISC GmbH.
Sovereign Customer Helpline 0044 (0) 151 649 1500
Contact for Warranty repairs: HSS plc Tel: [phone]
Anleitung SBV 3200 10.01.2005 9:38 Uhr Seite 10
