Sovereign SPL 26 User manual

Quick Start Guide
Your Safety is most important
please read these safety rules before you use this machine
Note - This quick start guide is intended for experi-
enced users who have already assembled the tool,
please refer to the manual for further details
General Safety Rules
Read the user manual before using the machine
Warning! Hazard!
Keep other people away.
Warning! Hot surface
Never work if people - especially children
- or animals are in the danger area.
Fuel pump
Never allow the blower to run without the blower tube.
After the unit is switched off, the motor continues to run for a short while.
Sound power level with EC Directive 2000/14/EC!
Wear safety goggles to protect your eyes and
ear plugs to protect yourself from the noise.

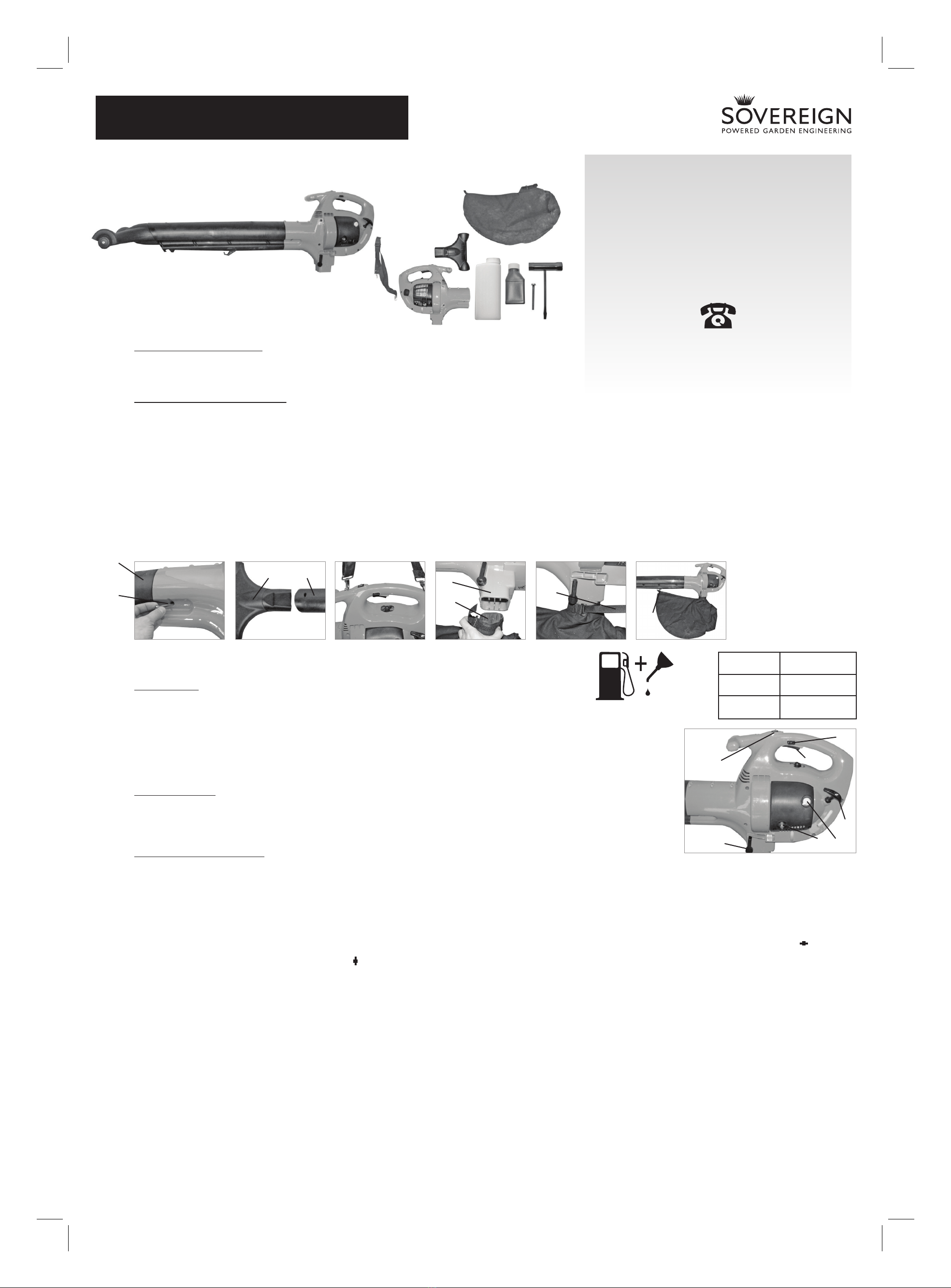

Quick Start Guide
1Unpack the Blower Vac
a) Open carton carefully and remove all parts
b) Ensaure you have all items (see above) before you discard the packaging
3
Do you have questions?
We can help
Call Customer Service
Mon-Thur 08:45 am - 5:00 pm
Friday 08:45 am - 3:15 pm
0151 649 1500
Spare Parts also available
Fuel and oil
Fig 1b Fig 2 Fig 3a Fig 3b Fig 3c
ALWAYS READ THE SAFETY WARNINGS PRIOR TO USE
ASSEMBLING THE BLOWER VAC
(If in doubt, ALWAYS refer to the user guide before continuing)
IF YOU ARE UNSURE, ALWAYS REFER TO THE USER GUIDE
Items Included
2Assembling the Blower Vac
Blower tube assembly (Fig. 1a)
Push the blower tube (14) into the blower housing and secure the blower tube using the securing screw (19). Tighten the screw (19).
Suction extension assembly (Fig. 1b)
When in suction mode, the suction extension (16) can be assembled. For this, insert the suction extension (16) into the blower pipe (14).
Fitting the carrying strap (Fig. 2)
Attach the carrying strap clips to the eyelets on the handle provided for them.
Fitting the debris bag (3a – 3c)
Push the debris bag (11) over the debris bag adapter and secure it with the Velcro fastening (A) above the ridge (B) on the suction tube.
Attach the debris bag to the lug (C) on the blower/suction tube.
Use only a mixture of normal unleaded petrol and special 2-stroke engine oil.
Mix the fuel mixture as indicated on the fuel mixing table.
Please note: Do not use a fuel mixture which has been kept for longer than 90 days.
Please note: Do not use 2-stroke oil with a recommended mixing ration of 100:1. If inadequate
lubrication causes engine damage, the manufacturer’s engine warranty will be voided.
NOTE: If the engine fails to start after repeated attempts, refer to the Troubleshooting section of the manual.
Important: Always pull the starter rope straight out. Pulling the starter at an angle will cause rope to rub against the eyelet. This friction will cause the rope
to fray and wear more quickly. Always hold the starter handle when the rope retracts. Never allow the rope to snap back from an extended position. This
could cause the rope to snag or fray and also damage the starter assembly.
RESTARTING A WARM ENGINE (Engine has been stopped for no more than 15-20 minutes)
Place the Blower Vac safely and securely on the ground. Set the ON/OFF switch (2) to “I” (Fig. 4a). Pull starter rope again sharply. Engine should start with
ONE or TWO pulls. If engine fails to start after 6 pulls, repeat steps 2 through 6 (see Starting a cold engine). If engine does not start, or starts and then
stops after 5 rope pulls, follow procedure “STARTING A COLD ENGINE”.
Switching between suction and blower mode (Fig. 4 / Item 10). You can either blow or suck with this equipment.
• To activate the blower mode slide the suction/blower lever (10) to the right.
• To activate the suction mode slide the suction/blower lever (10) to the front.
Mixing the fuel
Pour the correct quantity of petrol into the mixing bottle (see scale printed on the bottle) and
then top up with the 2-stroke oil. Screw on the mixing bottle cap, and shake the bottle well.
40 parts petrol
to 1 part oil
Petrol 2-Stroke Oil
1 litre 25 ml
5 litres 125 ml
4Starting the Blower Vac
Cold start (4a-4c)
Fill the tank with the required amount of oil/petrol mix. See “Fuel and oil”.
1. Place the Blower Vac safely and securely on the ground.
2. Set the ON/OFF switch (2) to OFF “0” (Fig. 4)
3. Press the throttle lever (4) until it locks (Fig. 4)
4. Press the fuel pump primer (12) (Fig. 4) 10 times.
5. Set the choke lever (13) (Fig. 4) to “ ”.
6. Hold the equipment firmly by the handle.
7. Pull the starter cable (8) (Fig. 4) out a short way until you feel
resistance - it must be pulled evenly and quickly to start the
engine. Then pull the starter handle rapidly 4 times.
8. Set the ON/OFF switch (2) to “I” (Fig. 4)
9. Pull the starter handle rapidly up to another 6 times.
10. When the engine is running, set the choke lever to “ “. Allow
the engine to warm up for approx. 10 seconds.
11. Press the throttle lever lock (3) (Fig. 4). The throttle lever will
jump back into its idling position.
Fig 1a
Fig 4
14
19
16 14
11
BA
24
3
8
131210
C
