SOYO SY-6BA+ Use and care manual

SY-6BA+
Motherboard
****************************************************
Pentium® III, Pentium® II & Celeron
Processor supported
82440 BX AGP/PCI Motherboard
66&100MHz Front Side Bus supported
ATX Form Factor
****************************************************
User's Guide
&
Technical Reference

SOYO™SY-6BA+
ii
About This Guide
This User's Guide is for assisting system manufacturers and end users in setting up
and installing the Motherboard. Information in this guide has been carefully checked
for reliability; however, no guarantee is given as to the correctness of the contents.
The information in this document is subject to change without notice.
Copyright Notice
Copyright 1998, Soyo Computer Inc. All rights reserved. This manual is copyrighted
by Soyo Computer Inc. You may not reproduce, transmit, transcribe, store in a
retrieval system, or translate into any language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of
this publication without express written permission of Soyo Computer Inc.
Trademarks
Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property
of their owners.
Disclaimer
Soyo Computer Inc. makes no representations or warranties regarding the contents
of this manual. We reserve the right to revise the manual or make changes in the
specifications of the product described within it at any time without notice and without
obligation to notify any person of such revision or change. The information contained
in this manual is provided for general use by our customers. Our customers should be
aware that the personal computer field is the subject of many patents. Our customers
should ensure that their use of our products does not infringe upon any patents. It is
the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and
not to infringe upon or assist others to infringe upon such rights.
Restricted Rights Legend
Use, duplication, or disclosure by the Government is subject to restrictions set forth in
subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause
at 252.277-7013.
Product Rights
Products mentioned in this manual are mentioned for identification purpose only.
Product names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies.
If you need any further information, please come to our home page on the Internet.
The address is "http://www.soyo.com.tw".
Edition: February 1999
Version 2.0
6BA+ SERIAL
FC
CTested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
POST CONSUMER
RECYCLED PAPER
100%

Table of Contents SY-6BA+
iii
Table of Contents
SY-6BA+ MOTHERBOARD LAYOUT ...........................................1
CHAPTER 1 INTRODUCTION .....................................................2
1-1 KEY FEATURES......................................................2
1-2 HANDLING THE MOTHERBOARD..........................5
1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS....5
CHAPTER 2 HARDWARE SETUP...............................................6
2-1 PREPARATIONS .....................................................6
2-2 UNPACKING THE MOTHERBOARD .......................7
2-3 INSTALLATION GUIDE............................................8
CHAPTER 3 BIOS SETUP UTILITY...........................................26
3-1 SOYO COMBO SETUP .........................................28
3-2 STANDARD CMOS SETUP ...................................33
3-3 BIOS FEATURES SETUP......................................36
3-4 CHIPSET FEATURES SETUP...............................40
3-5 POWER MANAGEMENT SETUP...........................43
3-6 PNP/PCI CONFIGURATION SETUP......................47
3-7 LOAD SETUP DEFAULTS .....................................50
3-8 INTEGRATED PERIPHERALS...............................54
3-9 SUPERVISOR PASSWORD ..................................55
3-10 USER PASSWORD ...............................................56
3-11 IDE HDD AUTO DETECTION................................57
CHAPTER 4 DRIVERS INSTALLATION......................................58

Motherboard Features SY-6BA+
1
SY-6BA+ MOTHERBOARD LAYOUT
Back Panel SY-6BA+ Platform
COM 1
COM 2
PRT
USB 1USB 2
PS/2 KB
Connector
PS/2 Mouse
Connector JP10
PCI Slot #1
PCI Slot #2
PCI Slot #3
PCI Slot #4
PCI Slot #5 (Slave)
ISA Slot #1
ISA Slot #2
JP5
3V Lithium
Battery
JP44
1
3
Intel
®
82371 EB
SB-LINK
(PC-PCI)
Intel
®
82443 BX
IR1
15
1
CPUFAN
Ultra
I/O Chipset
CHAFAN
1
IDE 1
IDE 2
11
1
FDC
Slot 1
®
1
3
AGP Slot
ATX
Power
DIMM 1
DIMM 2
DIMM 3
DIMM 4
Speaker
Keylock
Power
LED
Reset
PWRBT
Turbo
LED
HDD LED
_
+
_
+
_
+
_
+
3
1
WOL
Header
CMOS Clear
Jumper
Power-On by Keyboard
Jumper
Flash BIOS
TM

Introduction SY-6BA+
2
Chapter 1
INTRODUCTION
The SY-6BA+AGP/PCI Motherboard is a high-performance Slot 1
processor supported ATX form-factor system board. SY-6BA+uses
the 82440 BX Chipset technology and supports Slot 1 processors.
This Motherboard is fully compatible with industry standards and
adds many technical enhancements.
1-1 KEY FEATURES
Supports Intel Pentium® III processor (450-550MHz), Pentium® II
processor (233-450MHz) & CeleronTM processor (266-433MHz)
Auto-detect CPU voltage
PC98, ACPI, Ultra DMA/33
Supports system memory up to 1 GBytes
Power-on by modem or alarm
Supports Wake-On-LAN (WOL)
Supports power-on by keyboard
Supports onboard hardware monitoring
and includes Hardware Doctor™utility
Supports Creative SB-LINK™(PC-PCI) for PCI audio
1 x 32-bit AGP slot
5 x 32-bit bus mastering PCI slots
2 x USB ports onboard
1 x IrDA port
Supports multiple-boot function

Introduction SY-6BA+
3
SY-6BA+ PLATFORM FEATURES
Board Size 4-layer PCB, 19x30.5cm(7.5”x12”), ATX Form
Factor
Slot1 Slot 1 for Pentium® III, Pentium® II & Celeron
Processor
ØSupports the following processors
u100MHz FSB
Pentium® II 350/400/450 MHz
Pentium® III 450/500/550 MHz
u66MHz FSB
Pentium® II 233/266/300/333 MHz
Celeron300A/333/366/400/433 MHz
Celeron266/300 MHz
ØSupports both boxed and non-boxed type of CPUs
ØIncludes a CPU mount kit with retention clip
ØFeatures Auto-detection of CPU voltage
Chipset 82440 BX AGP Set
ATX Power 20-pin Male Connector
CPUFAN 3-pin CPU Cooling Fan Connector
Memory DIMM Bank (DIMM1~4)
ØFour strips of 168-pin Unbuffered SDRAM DIMM
ØSupports 8/16/32/64/128/256MB DIMM modules in
each bank
ØProvides up to 1 Gbytes of main memory
ØSupports ECC configuration
BIOS System BIOS built-in, Award BIOS
ØAPM, ACPI and "Plug-and-Play" function
ØSupports multiple-boot function
ØOnboard FLASH memory for easy upgrade
ØY2K Compliant
Bus Controller Compliant with version 2.1 PCI specifications
PCI Slots 5 x 32-bit Bus Mastering Slots
AGP Slot 1 x 32-bit AGP Slot
ISA Slots 2 x 16-bit ISA Slots

Introduction SY-6BA+
4
IDE1, IDE2 2 x 40-pin Bus Mastering E-IDE/ATAPI Ports
ØIDE1: Primary IDE Device Connector
ØIDE2: Secondary IDE Device Connector
ØSupports Ultra DMA/33
FDC 1 Floppy Disk Drive (FDD) Port
(Supports 1.2MB/1.44MB/2.88MB and LS120/3-mode FDD)
IR1 5-pin Serial Infrared Device Header
Keylock 5-pin KeyLock Header
Reset 2-pin Reset Switch Header
Speaker 4-pin PC Speaker Header
TB_LED 2-pin Turbo LED Header
HDD_LED 2-pin IDE Device LED Header
PWRBT ATX Power On/Off Switch 2-pin Header
JP5 CMOS Clear Jumper
JP10 Power On by Keyboard Jumper
JP44 WOL (Wake-On-LAN) 3-pin Header
SBLINK™PCI Audio Card Header (PC-PCI)
SY-6BA+ BACK-PANEL FEATURES
PRT 1 x Onboard 25-pin Female Parallel Printer Port
ØECP/EPP/SPP multi-mode parallel printer port
COM1, COM2 2 x Onboard RS-232 Serial Ports
ØFeature 2 x high-speed UARTs (with 16550 FIFO)
PS/2 KB 1 x Onboard PS/2 Keyboard Connector
PS/2 Mouse 1 x Onboard PS/2 Mouse Connector
USB1, USB2 2 x Onboard USB (Universal Serial Bus) Connectors

Introduction SY-6BA+
5
1-2 HANDLING THE MOTHERBOARD
To avoid damage to your Motherboard, follow these simple rules
while unpacking:
ØBefore handling the Motherboard, ground yourself by grasping
an unpainted portion of the system's metal chassis.
ØRemove the Motherboard from its anti-static packaging. Hold
the Motherboard by the edges and avoid touching its
components.
ØCheck the Motherboard for damage. If any chip appears loose,
press carefully to seat it firmly in its socket.
Warning: Do not apply power if the Motherboard appears
damaged. If there is damage to the board, contact your
dealer immediately.
1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS
Make sure to ground yourself before handling the Motherboard or
other system components. Electrostatic discharge can easily
damage the components. Note that you must take special
precautions when handling the Motherboard in dry or air-conditioned
environment.
To protect your equipment from electrostatic discharge, take the
following precautions:
ØDo not remove the anti-static packaging until you are ready to
install.
ØGround yourself before removing any system component from its
protective anti-static packaging. (To ground yourself, grasp the
expansion slot covers or other unpainted portions of the computer
chassis.)
ØFrequently ground yourself while working or use a grounding strap.
ØHandle the Motherboard by its edges and avoid touching its
components.

Hardware Setup SY-6BA+
6
Chapter 2
HARDWARE SETUP
Congratulations on your purchase of SY-6BA+ Motherboard. You
are about to install and connect your new Motherboard.
Note: Do not unpack the Motherboard from its protective
anti-static packaging until you have made the following
preparations.
2-1 PREPARATIONS
Gather and prepare all the following hardware equipment to
complete the installation successfully:
1. Slot 1 processor with built-in CPU cooling fan (boxed type).
Note: This Motherboard supports non-boxed type CPUs. The
heavier CPU cooling fan requires the installation of a CPU
support stand.
2. DIMM memory module
3. Computer case and chassis with adequate power supply unit
4. Monitor
5. PS/2 Keyboard
6. Pointing Device (PS/2 mouse)
7. Speaker(s) (optional)
8. Disk Drives: HDD, CD-ROM, Floppy drive…
9. External Peripherals: Printer, Plotter, and Modem (optional)
10. Internal Peripherals: Modem and LAN cards (optional)

Hardware Setup SY-6BA+
7
2-2 UNPACKING THE MOTHERBOARD
When unpacking the Motherboard, check for the following items:
ØThe SY-6BA+ 82440 BX AGP/PCI Motherboard
ØThis Quick Start Guide *
ØThe Installation CD-ROM *
ØOne IDE Device Flat Cable
ØOne Floppy Disk Drive Flat Cable
* If your board comes with a driver disc and a paper manual, the Quick Start Guide
and the CD-ROM are not included in the package.
Warning: Do not unpack the Motherboard from its anti-
static packaging until you are ready to install it.
Like most electronic equipment, your Motherboard may be damaged
by electrostatic discharge. To avoid permanent damage to
components ground yourself while working by using a grounding
strap. Otherwise, ground yourself frequently by touching the
unpainted portion of the computer chassis to drain the static
charges.
Handle the Motherboard carefully, holding it by the edges.
You are now ready to start the installation.

Hardware Setup SY-6BA+
8
2-3 INSTALLATION GUIDE
We will now begin the installation of the Motherboard. Please follow
the step-by-step procedure designed to lead you to a complete and
correct installation.
Warning: Turn off the power to the Motherboard, system
chassis, and peripheral devices before performing any
work on the Motherboard or system.
BEGIN THE INSTALLATION
Step 1. CPU Installation
Your SY-6BA+ motherboard comes with a CPU retention set kit. The
retention set is used to hold the processor attached to the Slot 1
CPU connector on the motherboard.
Follow these instructions to install your Slot 1 processor correctly.
ØRetention Module

Hardware Setup SY-6BA+
9

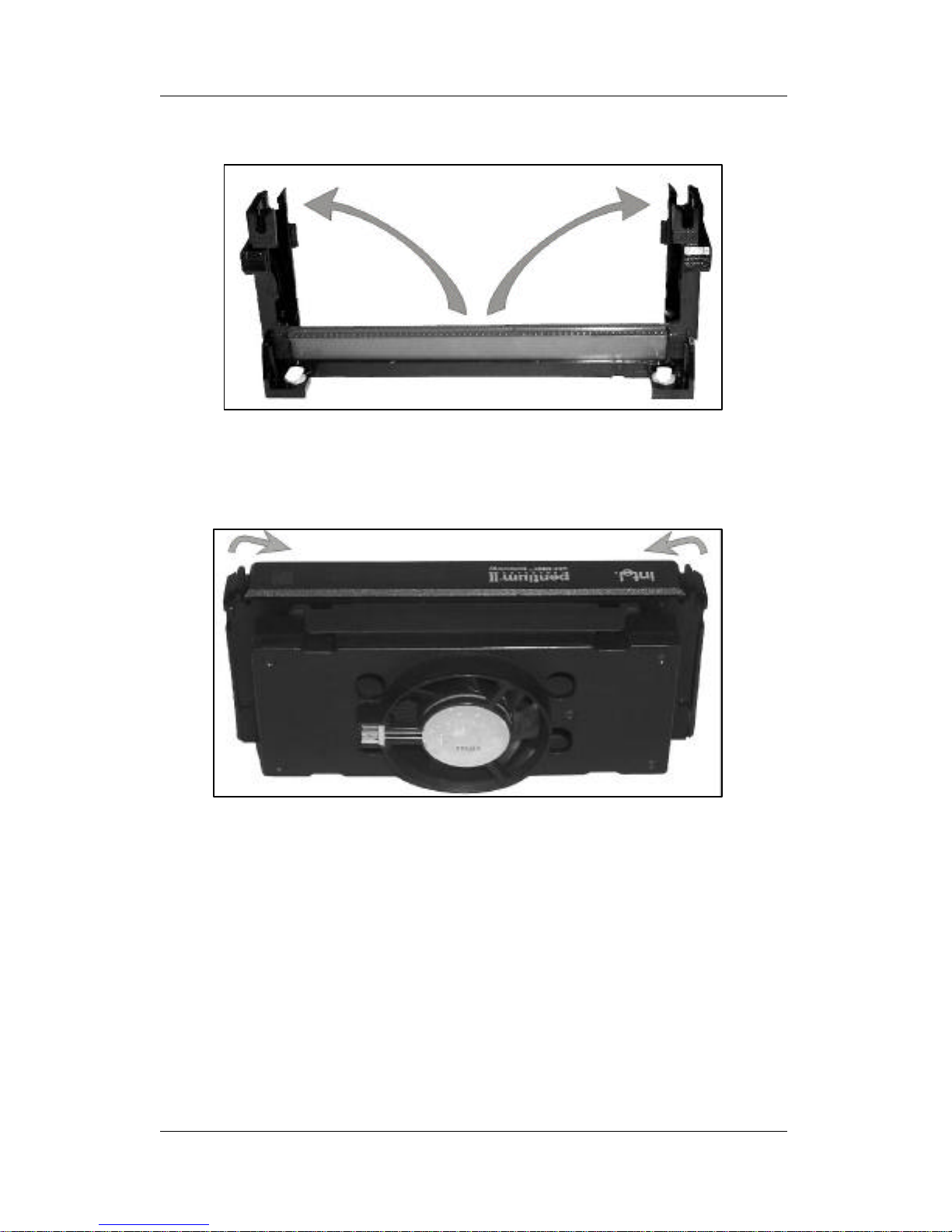

1. Open the two sides by folding them up.
2. Push the locks on top of the CPU inward.

Hardware Setup SY-6BA+
10
3. Insert the CPU into the retention module. The CPU fits in the CPU slot
in only ONE way, do not try to force it in.

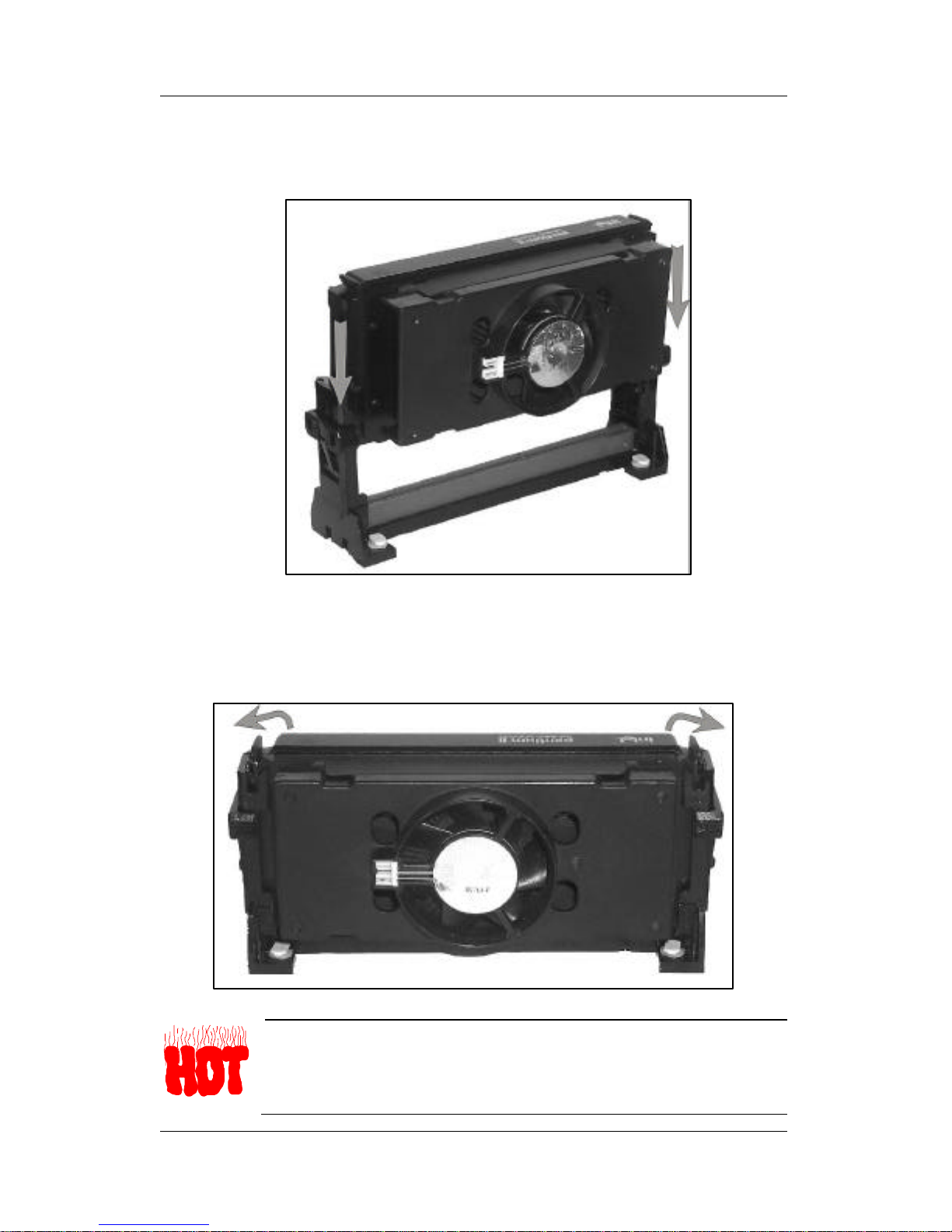

4. After completely inserting the CPU, push the two locks on top of the
CPU outward. Now your CPU is ready for use.
To remove the CPU, press the two notches on top of the CPU
inward. Now press the two slides on the retention module down
and remove the CPU.

Hardware Setup SY-6BA+
11
Note: Installing a heat sink and cooling fan on top of your
CPU is necessary for proper heat dissipation. Failing to
install these items may result in overheating and possible
burn-out of your CPU.
Step 2. CPU Fan Installation
Your Slot 1 processor kit comes with a cooling fan. Mount the fan on
the processor according to the instructions provided by the
manufacturer. The fan is a key component that will ensure system
stability. The fan prevents overheating, therefore prolonging the life
of your CPU.
Note: Remember to connect the fan to the appropriate power
source.

Hardware Setup SY-6BA+
12
Step 3. SDRAM Memory Module Installation
This Motherboard features 4 x DIMM Banks for 168-pin 3.3V
unbuffered and registered DIMM modules. Your board comes with
four DIMM sockets, providing support for up to 1GB of main memory
using DIMM modules from 8MB to 256MB. For 66MHz front side bus
CPUs use 12ns or faster memory; for 100MHz front side bus CPUs
use 8ns (100MHz, PC100 compliant) memory.
Number of
Memory Modules DIMM 1 DIMM 2 DIMM 3 DIMM 4
11st
21st 2nd
31st 2nd 3rd
41st 2nd 3rd 4th
RAM Type SDRAM
Memory Module
Size (MB) 8/16/32/64/128/256 Mbytes
Note: (1) 256 MB memory modules available on PC registered DIMM only.
(2) Always install memory modules in the order prescribed in this table.
(3) Do not install unbuffered and registered memory modules together.
Important: It is of prime importance that you install DIMM modules
as outlined in the table above in order to preserve signal integrity on
100MHz front side bus systems.

Hardware Setup SY-6BA+
13
Step 4. IDE Device Installation (HDD, CD-ROM)
This Motherboard offers two primary and secondary IDE device
connectors (IDE1, IDE2.) It can support up to four high-speed HDD
or CD-ROM.
Connect one side of the 40-pin flat cable to the IDE device (HDD or
CD-ROM) and plug the other end to the primary (IDE1) or secondary
(IDE2) directionally keyed IDE connector on the Motherboard.
This Motherboard can support up to four HDDs.
Step 5. Floppy Drive Installation
The system supports 5 possible floppy drive types: 720 KB, 1.2 MB,
1.44 MB, 2.88 MB, and LS-120. In addition, this Motherboard
supports a 3-mode (720KB/1.2MB/1.44MB) floppy commonly used
in Japan.
Connect one side of the 34-pin flat cable to the floppy drive and plug
the other end to the floppy drive connector on the Motherboard.
This Motherboard can support up to 2 floppy drives.

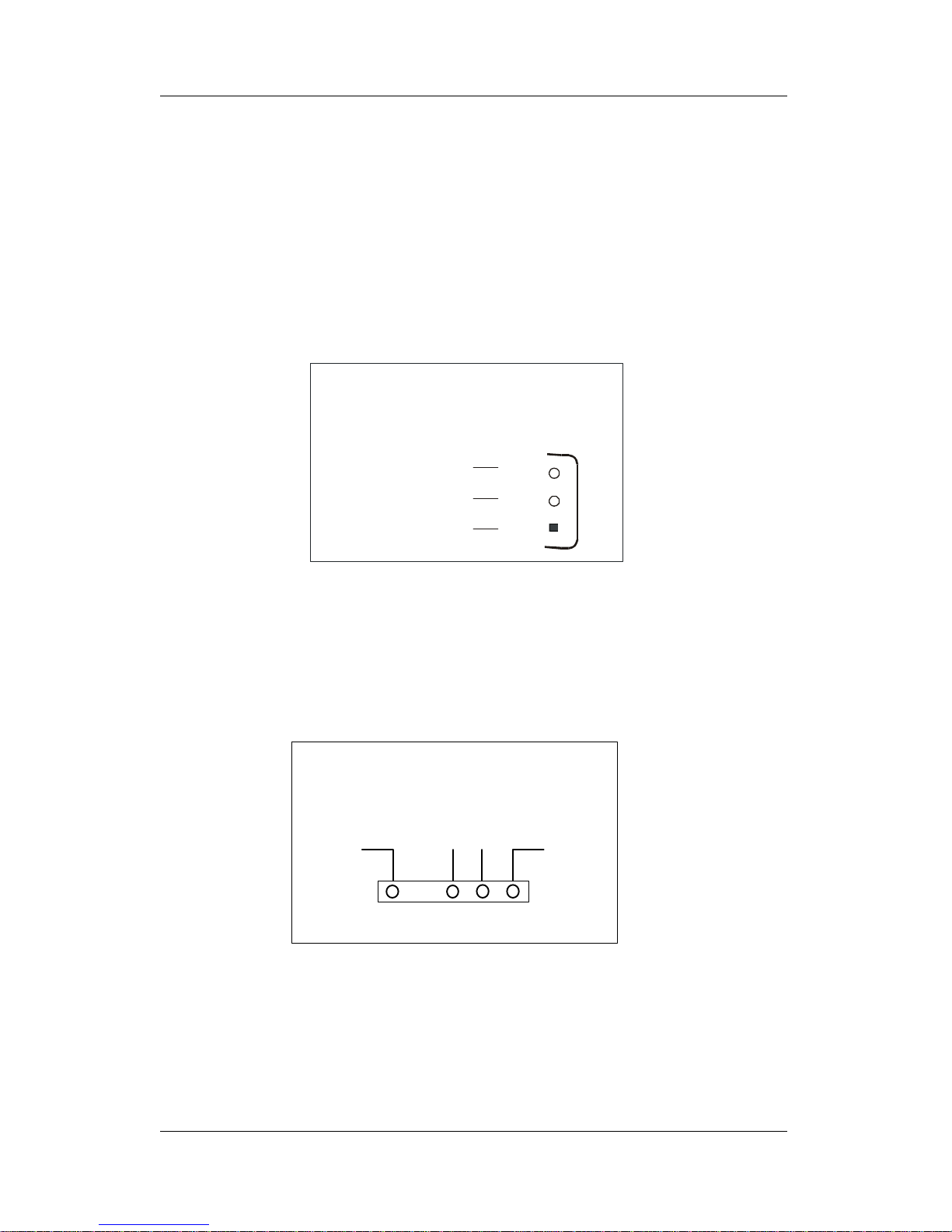

Step 6. Front Panel Connections
Speaker
Keylock
Power
LED Reset
PWRBT
Turbo
LED
HDD LED
_
+
_
+
_
+
_
+

Hardware Setup SY-6BA+
14
Plug the computer case's front panel devices to the corresponding
headers on the Motherboard.
1. Power LED & KeyLock
Plug the Power LED cable into the 5-pin Keylock header.
Some systems may feature a KeyLock function with a front panel
switch for enabling or disabling the keyboard. Connect the KeyLock
switch to the 5-pin Keylock header on the Motherboard.
Please install according to the following pin assignment: pin 1,3 are
for Power LED and pin 4,5 are for Keylock.
2. Reset
Plug the Reset push-button cable into the 2-pin Reset header on the
Motherboard. Pushing the Reset button on the front panel will cause
the system to restart the boot-up sequence.
3. Speaker
Attach the 4-pin PC speaker cable from the case to the Speaker
header on the Motherboard.
4. Turbo LED
Connecting the 2-pin Turbo LED cable to the corresponding Turbo
LED header will cause the LED to light whenever the system is in
Turbo mode.
The manufacturer has permanently set this Motherboard in Turbo
mode due to most hardware and software compliance to turbo
mode.
5. IDE LED
Attach the 2-pin IDE device LED cable to the corresponding IDE
LED header on the Motherboard. This will cause the LED to lighten
when an IDE (HDD, CD-ROM) device is active.

Hardware Setup SY-6BA+
15
6. ATX Power On/Off Switch
Attach the 2-pin momentary type switch to the PWRBT header for
turning On or Off your ATX power supply.
Step 7. Back Panel Connections
All external devices such as the PS/2 keyboard, PS/2 mouse, printer,
modem, USB can be plugged directly onto the Motherboard back
panel.
Only after you have fixed and locked the Motherboard to the
computer case can you start connecting the external peripheral
devices.

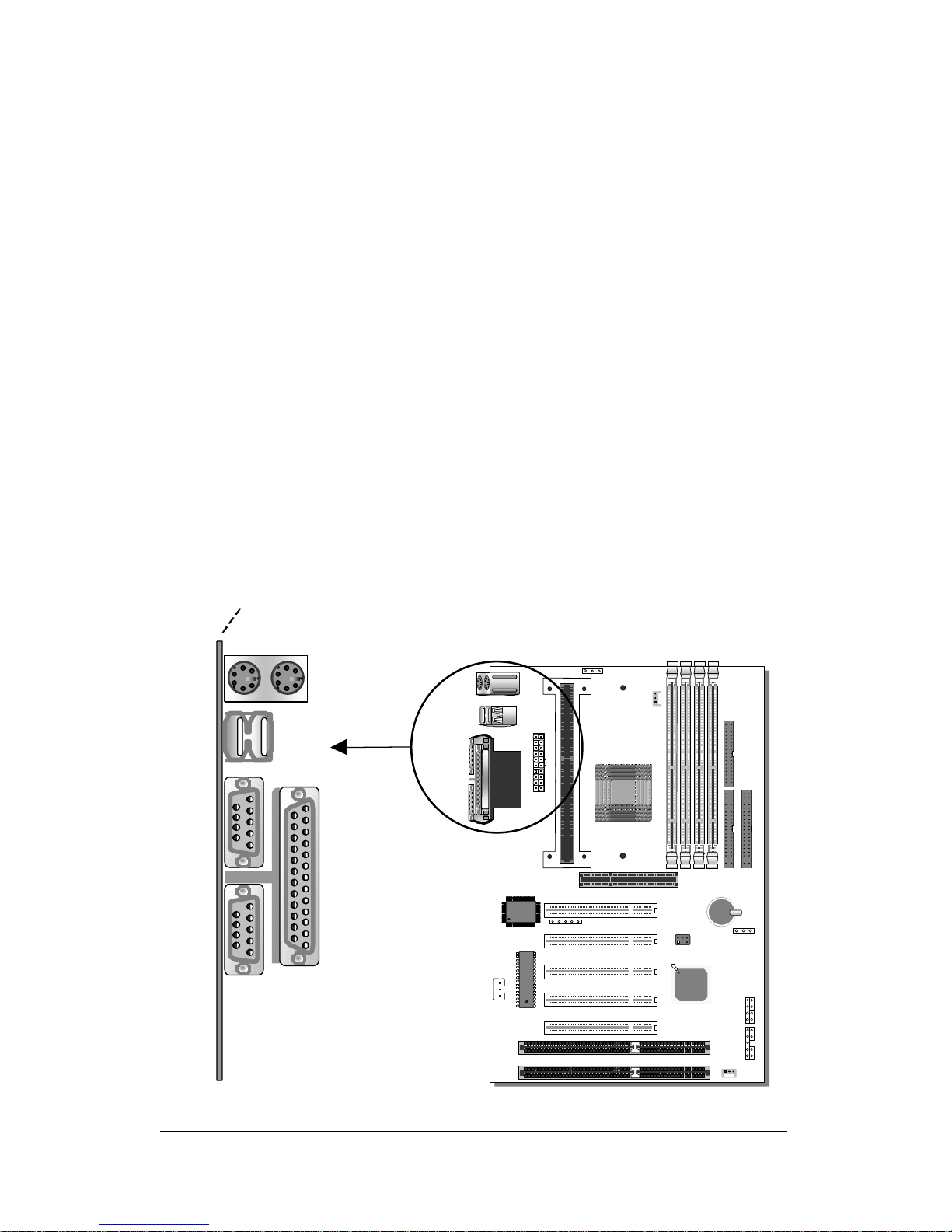

When connecting an external device, use the following figure to
locate and identify which back panel connector to plug the device to.
COM 1
COM 2
PRT
USB 1
USB 2
PS/2 KB
Connector
PS/2 Mouse
Connector

Hardware Setup SY-6BA+
16
1. Onboard Serial Ports COM1/COM2
External peripherals that use serial transmission scheme include:
-serial mouse,
-and modem.
Plug the serial device cables directly into the COM1/COM2 9-pin
male connectors located at the rear panel of the Motherboard.
2. Parallel Port PRT
This parallel port is used to connect the printer or other parallel
devices.
Plug the parallel device cable into the 25-pin female connector
located at the rear panel of the Motherboard.
3. PS/2 Keyboard
Plug the keyboard jack directly into the 6-pin female PS/2 keyboard
connector located at the rear panel of the Motherboard.
4. PS/2 Mouse
Similarly, plug the mouse jack directly into the 6-pin female PS/2
mouse connector.
5. Universal Serial Bus USB1/USB2
This Motherboard provides two USB ports for your additional
devices. Plug the USB device jack into the available USB connector
USB1 or USB2.
-USB devices under Win98 are allowed.
-With Win95, use the flow UniversalHCI specifications.

Hardware Setup SY-6BA+
17
Step 8. Other Connections
1. Wake-On-LAN (WOL)
Attach the 3-pin connector from the LAN card which supports the
Wake-On-LAN (WOL) function to the JP44 header on the
Motherboard. This WOL function lets users wake up the connected
computer through the LAN card.

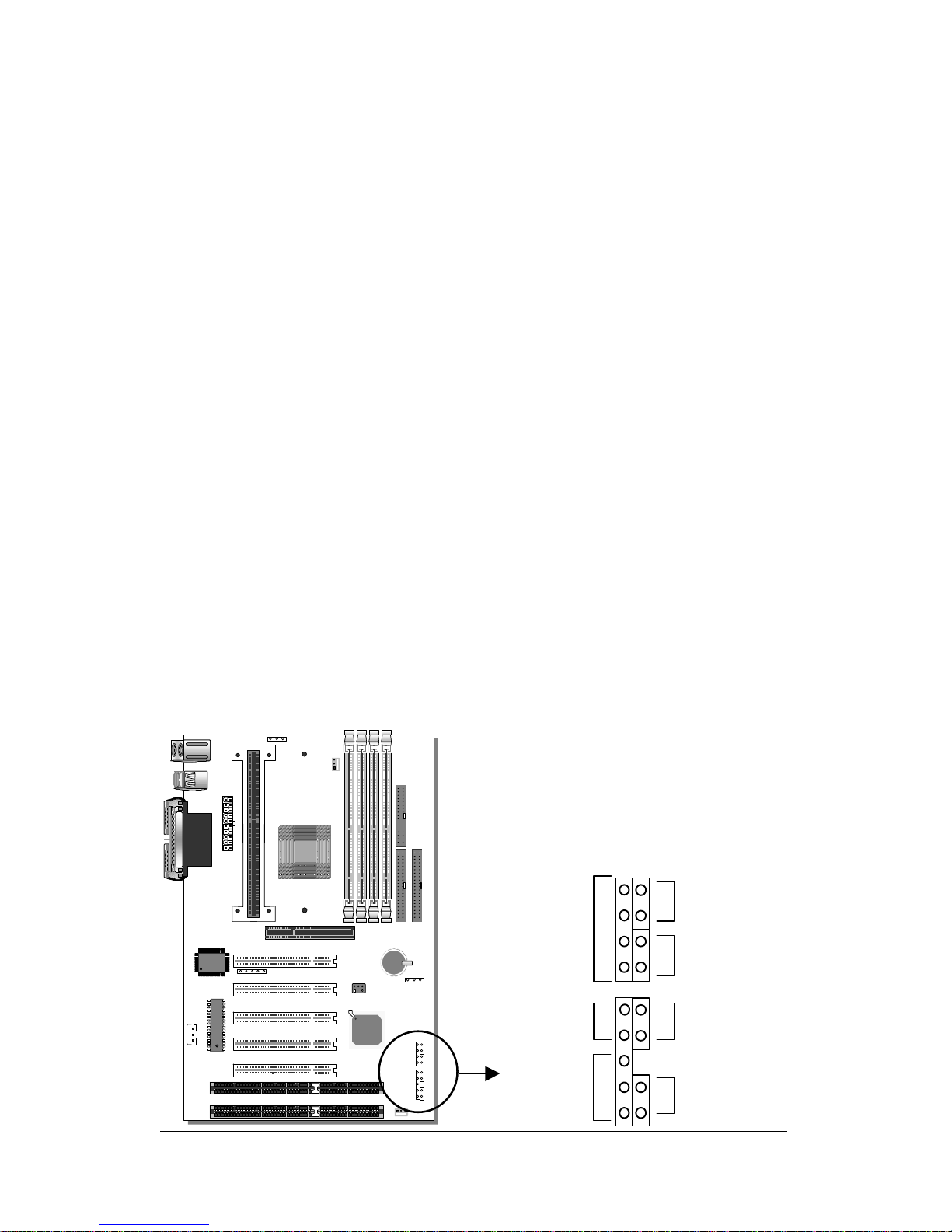

Please install according to the following pin assignment:
2. Infrared (IR1)
Plug the 5-pin infrared device cable to the IR1 header. This will
enable the infrared transfer function. This Motherboard meets both
the ASKIR and HPSIR specifications.
Please install according to the following pin assignment:
3. Other Display Cards
Insert other types of VGA cards into the PCI or ISA expansion slots
according to card specifications.
1 23 4 5
VCC IRRX GND IRTX
Infrared (IR1) Connector
IR1 Pin Assignment
Wake-On-LAN
JP44 Pin Assignment
GND
1
2
3
5VSB
MP - Wake-up
