SOYO Super 7 V1.0 User manual

SY-5EHM/5EH5
V1.0/V1.1
Super 7
™
Motherboard
Quick Start Guide
FC
CTested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
POST CONSUMER
RECYCLED PAPER
100%
Installation

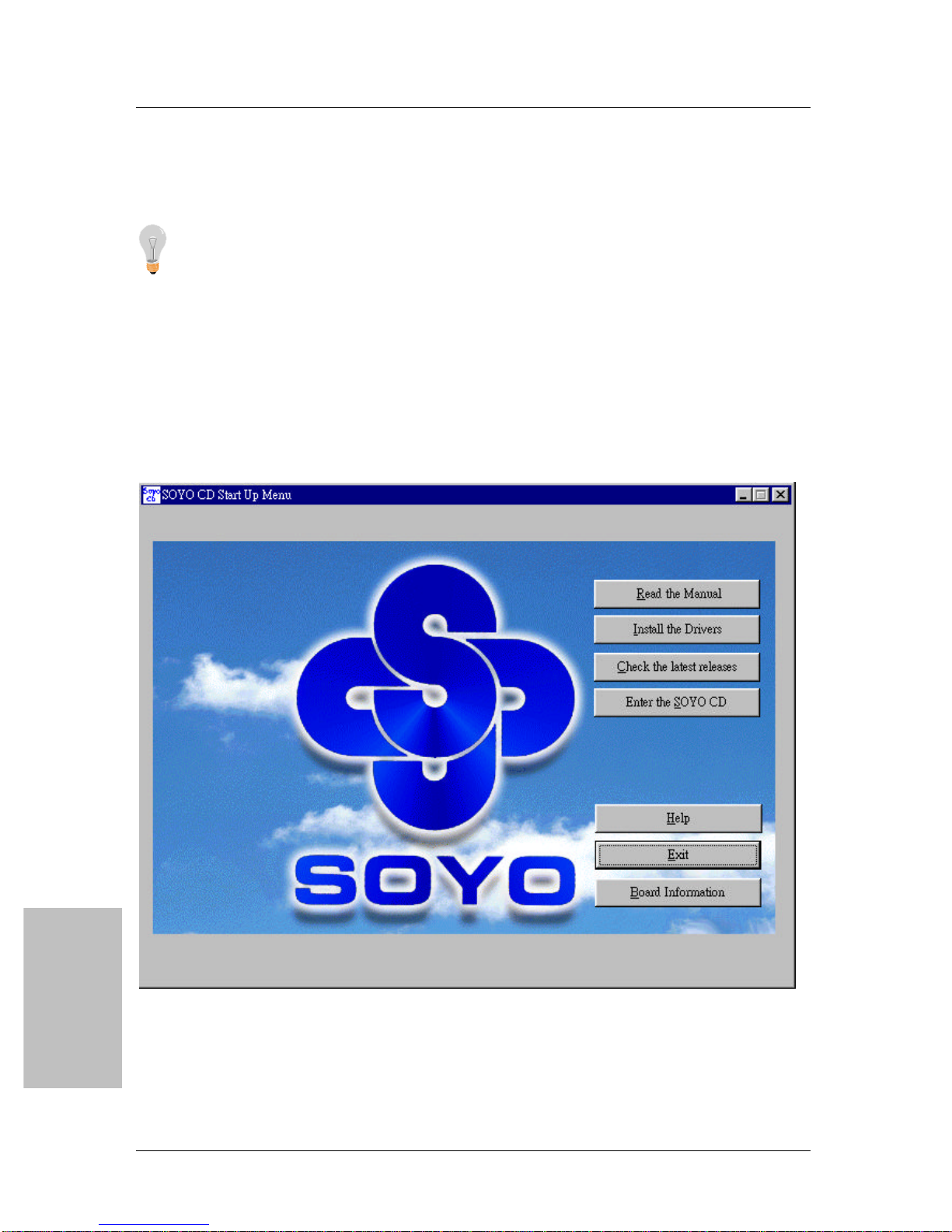

The SOYO CD
Introduction
Quick BIOS Setup

NSTL “Year 2000 Test”Certification Letter
September 23, 1998
Testing Date: September 23, 1998
Certification Date: September 23, 1998
Certification Number: NCY2000-980923-004
To Whom It May Concern:
We are please to inform you that the “SY-5EHM/5EH5”system has passed NSTL Year 2000
certification test program. The Year 2000 test program tests a personal computer for its ability to
support the year 2000. The “SY-5EHM/5EH5: system is eligible to carry the NSTL :Year 2000
Certification”seal.
The Year 2000 certification test has been done under the following system configuration:
Company Name : SOYO COMPUTER INC.
System Model Name : SY-5EHM/5EH5
Hardware Revision : N/A
CPU Model : Intel Pentium 200/66Mhz
On Board Memory/L2 Cache : PC100 SDRAM DIMM 32MBx1 /1MB
System BIOS : Award Modular BIOS V4.51PG, An Energy Star Ally
Copyright © 1984—98, EH-1A6,07/15/1998-VP3-586B-
8669-2A5LES2AC-00
Best regards,

Declaration of Conformity
According to 47 CFR, Part 2 and 15 of the FCC Rules
Declaration No.: D872907 July.10 1998
The following designated product
EQUIPMENT: Main Board
MODEL NO.: SY-5EH
Which is the Class B digital device complies with 47 CFR Parts 2 and 15 of the FCC rules.
Operation is subject to the following two conditions : (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
The product was tested with the following configuration:
Monitor: SONY/AK8GDM17SE2T Printer: HP/DS17XU2225
Modem: ACEEX/IF AXDM1414 Keyboard: SILITED/GYUM99SK
This declaration is given for the manufacturer
SOYO COMPUTER INC.
No.21, Wu-Kung 5 Rd., Hsing Chuang City,
Taipei Hsien, Taiwan, R.O.C.
The test was carried out by
SPORTON INTERNATIONAL INC.
6F, No. 106, Hsin Tai Wu Rd., Sec. 1, His Chih,
Taipei Hsien, Taiwan, R.O.C.
SPORTON INTERNATIONAL INC.

SOYO
4
5EHM/5EH5V1.xSuper7
™
Motherboard
Pentium
®
Class CPU (66&100MHz) supported
ETEQ82C663 PCI/AGP Motherboard
AT Form Factor
Copyright © 1998 by Soyo Computer Inc.
Trademarks:
Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property of their
owners.
Product Rights:
Product and corporate names mentioned in this publication are used for identification
purposes only and may be registered trademarks or copyrights of their respective companies.
Copyright Notice:
All rights reserved. This manual is copyrighted by Soyo Computer Inc. You may not
reproduce, transmit, transcribe, store in a retrieval system, or translate into any language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, any part of this publication without express written permission of Soyo Computer
Inc.
Disclaimer:
Soyo Computer Inc. makes no representations or warranties regarding the contents of this
manual. We reserve the right to revise the manual or make changes in the specifications of the
product described within it at any time without notice and without obligation to notify any
person of such revision or change. The information contained in this manual is provided for
general use by our customers. Our customers should be aware that the personal computer field
is the subject of many patents. Our customers should ensure that their use of our products does
not infringe upon any patents. It is the policy of Soyo Computer Inc. to respect the valid patent
rights of third parties and not to infringe upon or assist others to infringe upon such rights.
Restricted Rights Legend:
Use, duplication, or disclosure by the Government is subject to restrictions set forth in
subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at
252.277-7013.
About This Guide:
This Quick Start Guide is for assisting system manufacturers and end users in setting up and
installing the Motherboard. Information in this guide has been carefully checked for reliability;
however, no guarantee is given as to the correctness of the contents. The information in this
document is subject to change without notice.
If you need any further information, please visit our Web Site on the Internet. The address is
"http://www.soyo.com.tw".
5EHM/5EH5 V1.x Serial - Version 1.4 - Edition: August 1999
*Thesespecificationsaresubjecttochangewithoutnotice

SY-5EHM/5EH5 V1.x Quick Start Guide
5
Introduction
1 1 Introduction
Congratulationsonyourpurchaseofthe 5EHM/5EH5V1.x Super7™Motherboard. This
QuickStartGuidedescribesthestepsforinstallingandsettingupyournewMotherboard.
ThisguideisdesignedforalluserstoprovidethebasicstepsofMotherboardsettingand
operation.Forfurtherinformation, pleasereferto 5EHM/5EH5V1.xMotherboardUser's
GuideandTechnicalReference onlinemanualincludedontheCD-ROMpackedwithyour
Motherboard.
Unpacking
WhenunpackingtheMotherboard,checkforthefollowing
items:
u The5EHM/5EH5V1.xSuper7™Motherboard
u ThisQuickStartGuide
u TheInstallation CD-ROM
u
SOYO3-in-1BonusPackCD-ROM(Norton AntiVirus,Ghost
andVirtualDrive)
u OneIDEDeviceFlatCable
u OneFloppyDiskDriveFlatCable
u Onedual25-pinparallelwith25-pinflatcableand9-pinserial
with9-pinflatcableexternalconnector
u Onedual6-pinPS/2mouseconnectorwith6-pinflatcable
and9-pinserialconnectorwith9-pinflatcable

SY-5EHM/5EH5 V1.x Quick Start Guide
6
Introduction

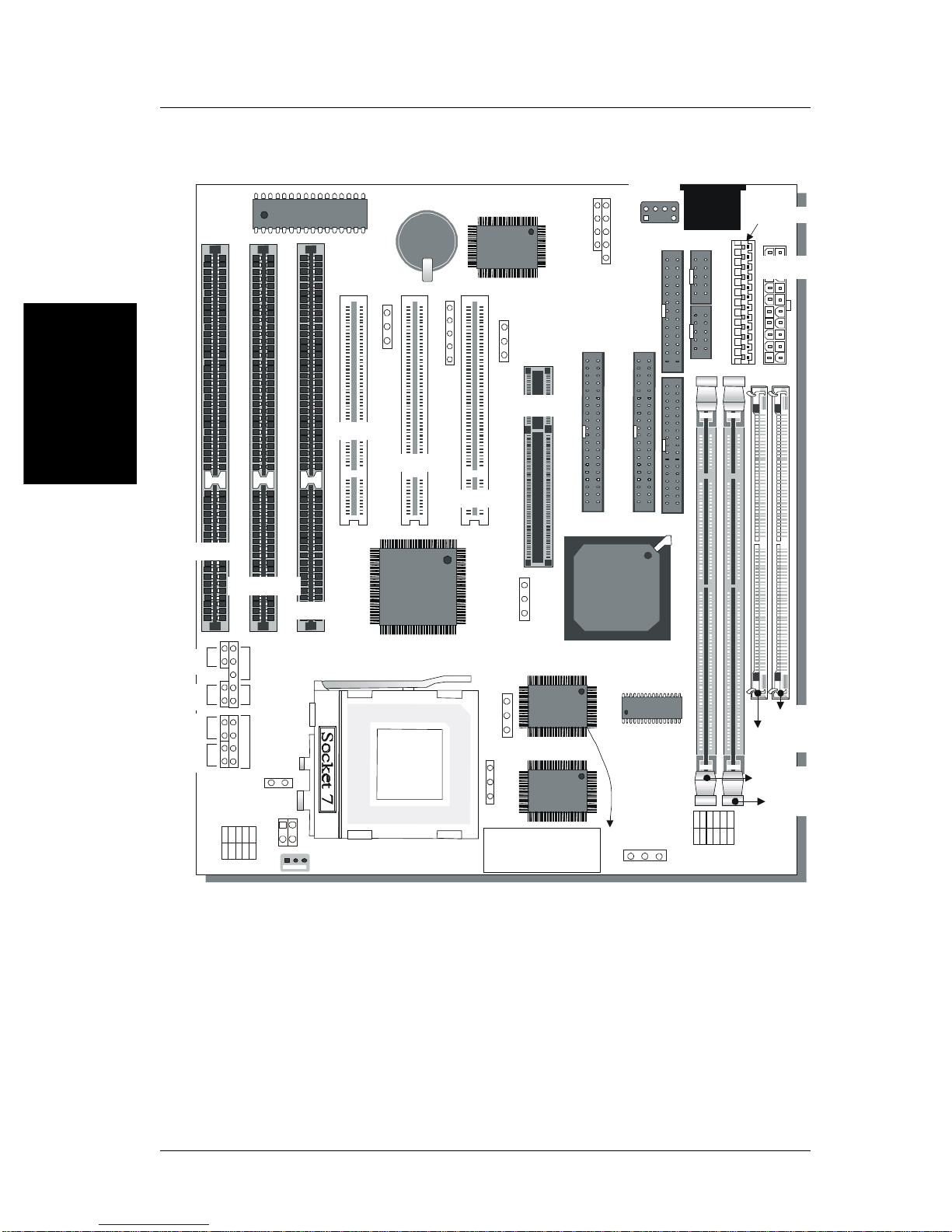

SY-5EHM/5EH5 V1.x Motherboard Layout
Key Features
Ø 100MHzAGPSuper7™platform
Ø 512KB/1MByteL2cache
Ø SupportsCPUvoltagefrom2.0Vto3.5V
in0.1Vincrements
Ø PC98,ACPI,UltraDMA/33
Ø Power-onbymodemoralarm
Ø SupportsATorATXpowerconnector
Ø SupportsWake-On-LAN(WOL)
Ø Fanoffinsuspendmode
Ø 3x32-bitbusmasteringPCIslots
Ø 3x16-bitISAslots
Ø 1xIrDAport
Ø Supportsmultiple-bootfunction
Ø Y2KCompliant
Flash BIOS
JP44
1
3
IR1
5
1
JP5
1
3
AGP Slot
ISA Slot #1
ISA Slot #2
ISA Slot #3
IDE 1 IDE 2
PRT 1
COM 1
COM 2
FDC
KB
Connector
PS/2Mouse
Connector
ATX Power
AT Power
1
1
1
1
1
1
1
3
1
4
5
9
SIMM 1
SIMM 2
3V
Lithium
Battery
6
5
4
3
2
1
EQ82C6629
1
USB1
RST
PW2
SPK
Keylock
Power
LED
Turbo
LED
HDD LED
_
_
_
_
++
+
+
+
ETEQ
EQ82C6638
SW1
P.B. SRAM
64Kx64
P.B. SRAM
64Kx64
(Optional)
TAG SRAM
1
3
1
3
JP4
SW2
JP1JP9
JP22
JP7
DIMM 2
DIMM 1
SMC
FDC37C669Q
*
for model 5EHM V1.0
only (1 MB Cache)
featuring two P.B. SRAM.
JP12
PCI Slot #2
PCI Slot #1
PCI Slot #3
ETEQ
1
3
JP10
ON
1
4
3
2
1
5
4
3
2
ON

SY-5EHM/5EH5 V1.x Quick Start Guide
7
Installation
2 2 Installation
ToavoiddamagetoyourMotherboard,followthesesimpleruleswhilehandling
thisequipment:
l BeforehandlingtheMotherboard,groundyourselfbygraspinganunpainted
portionofthesystem'smetalchassis.
l RemovetheMotherboardfromitsanti-staticpackaging.Holditbytheedgesand
avoidtouchingitscomponents.
l ChecktheMotherboardfordamage.Ifanychipappearsloose,presscarefullyto
seatitfirmlyinitssocket.
Followthedirectionsinthissectiondesignedtoguideyouthroughaquickandcorrect
installationofyournew 5EHM/5EH5V1.x Super7™Motherboard.For detailed
information,pleasereferto5EHM/5EH5V1.x MotherboardUser'sguideandTechnical
ReferenceonlinemanualincludedontheCD-ROMpackedwithyourMotherboard.
PREPARATIONS
Gatherandprepareallthenecessaryhardwareequipmenttocompletetheinstallation
successfully:
u Pentium
®
Classprocessorwithcoolingfan
u SDRAMmodule
u Computercaseandchassiswithadequatepowersupplyunit
u Monitor
u Keyboard
u PointingDevice(PS/2mouse)
u VGACard
u SoundCard(optional)
u Speaker(s)(optional)
u DiskDrives:HDD,CD-ROM,Floppydrive…
u ExternalPeripherals:Printer,Plotter,andModem-(optional)

SY-5EHM/5EH5 V1.x Quick Start Guide
8
Installation
Install the Motherboard
Followthestepsbelowinordertoperformtheinstallationofyournew 5EHM/5EH5V1.x
Super7™Motherboard.
Step 1. Install the CPU
TomountthePentium
®
processorthatyouhavepurchasedseparately,followthese
instructions.

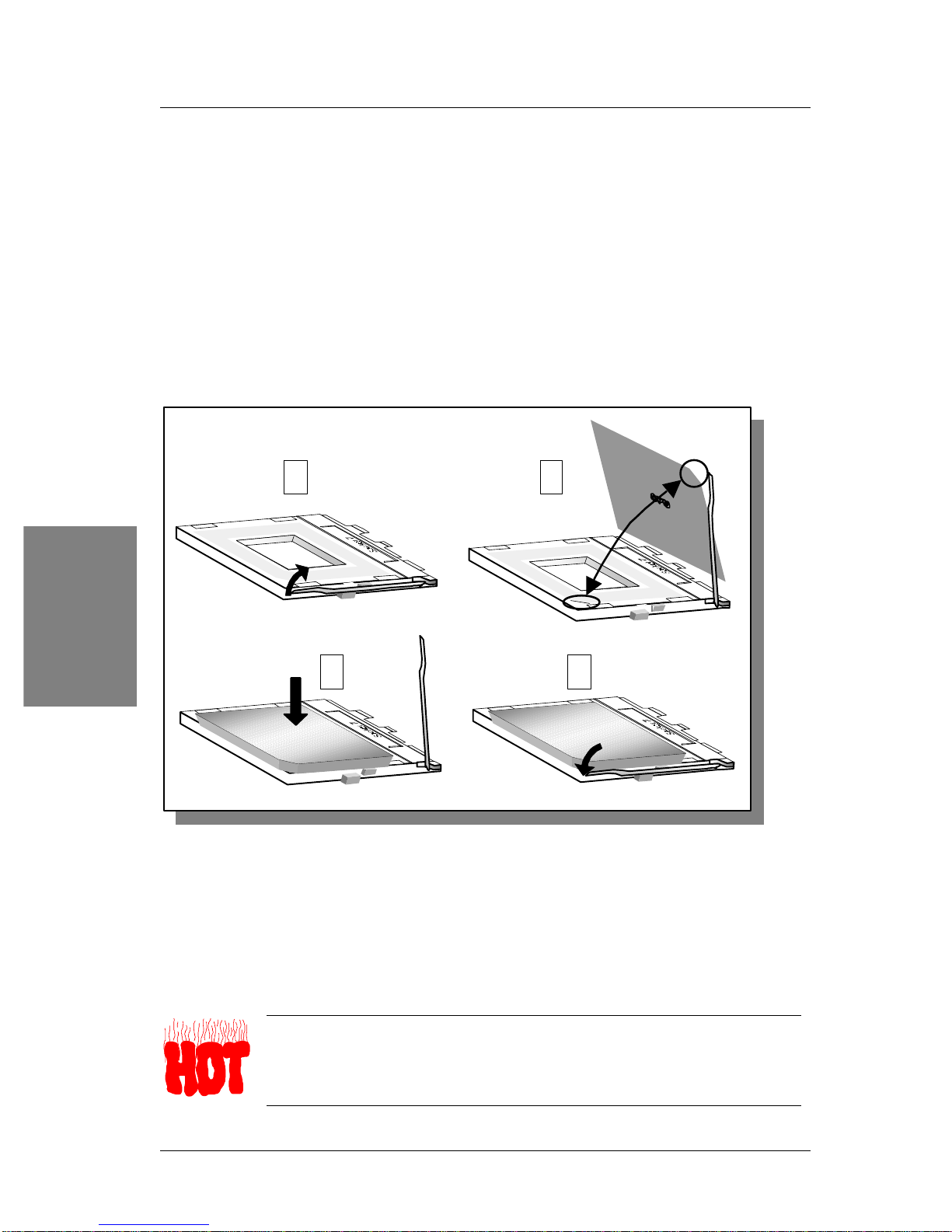

CPU Mount Procedure
1. Liftthesockethandleuptoaverticalposition.
2. AlignthebluntedgeoftheCPUwiththematchingpinholedistinctiveedgeonthe
socket.
3. Seattheprocessorinthesocketcompletelyandwithoutforcing.
4. ThenclosethesockethandletosecuretheCPUinplace.
RemembertoconnecttheCPUCoolingFantotheappropriatepower
connector(JP12)ontheMotherboard. Thefanisakeycomponentthatwill
ensuresystemstability.Thefanpreventsoverheating,thereforeprolonging
thelifeofyourCPU.
12
3 4

SY-5EHM/5EH5 V1.x Quick Start Guide
9
Installation
Step 2. Set SW2 ,JP1 for CPU Voltage
SW2isusedtosettheCPUcorevoltage,JP1isusedtoselecttheCPUvoltagetype
singlevoltageordualvoltage.
Pleaseverifythecorrectvoltagesettingswithyourdealerbeforeinstallation.Usethe
followingtabletosetSW2,JP1tothepropervoltagevalueaccordingtothespecifications
markedonyourCPU:
Voltage Setting: SW2 JP1
Processor Voltage
12345
1-2 3-4
3.52 V on on on on off open open
AMD K5 PR100
AMD K5 PR133
AMD K5 PR166
The AMD K5 and K6 come in several versions with different voltages.
Please verify the correct voltage settings with your dealer before
installation. The most common K5 runs on 3.52V.
AMD K6 166
AMD K6 200 2.9 V
on off off on off close close
AMD K6 233 3.2 V off off on on off close close
AMD K6 266
AMD K6 300
AMD K6-2 266
AMD K6-2 300
AMD K6-2 333
AMD K6-2 350
AMD K6-2 366
AMD K6-2 380
AMD K6-2 400
2.2 V off on off off off close close
2.2 V off on off off off close close
2.4 V off off on off off close close
AMD K6-2 450
AMD K6-2 475
AMD K6-2 500
AMD K6-III 400
AMD K6-III 450
The AMD K6-2 and K6-III comes in several versions with different voltages.
Please ask your dealer for the correct voltage.
Cyrix 6x86(L) PR166+
Cyrix 6x86(L) PR200+
The Cyrix 6X86(L) and M ¢º come in several versions with different
voltages. Please ask your dealer for the correct voltage.
Cyrix 6x86MX PR166
Cyrix 6x86MX PR200
Cyrix 6x86MX PR233
Cyrix 6x86MX PR266
Cyrix MII 300
Cyrix MII 333
Cyrix MII 350
Cyrix MII 366
2.9 V on off off on off close close
3.3 V on off on on off open openIntel P54C P100
Intel P54C P133
Intel P54C P166
Intel P54C P200
The P54C (standard Pentium®) comes in several versions
with different voltages. Please ask your dealer for the correct
voltage. The most common P54C runs on 3.3V.
2.8 V off off off on off close close
Intel P55C P166
Intel P55C P200
Intel P55C P233
The P55C (MMX) processors have the same voltage setting.

SY-5EHM/5EH5 V1.x Quick Start Guide
10
Voltage Setting: SW2 JP1
Processor Voltage
1 2 3 4 5 1-2 3-4
3.52 V on on on on off open open
IDT X86 CPU C6/2-225*
IDT X86 CPU 2-266
IDT X86 CPU 2-300 The IDT X86 CPU C6/2 comes in several versions with different. Voltage.
Please ask your dealer for the correct voltage.
IDT X86 CPU C6/2-200*
IDT X86 CPU 2-233*
3.3 V on off on on off open open
Rise mP6 PR266 2.8 V off off off on off close close
Step 3. Set SW1 for CPU Frequency
TheDIPswitchSW1enablesyoutoassigntheFrequencyMultiplier,CPUHostBus
Clock,AGPClockandPCIClock,asshowninthefollowingtable:
Frequency Setting: SW1
Processor Multiplier CPU Bus
Clock JP7 JP9 JP10
123456
AMD K5 PR100 1.5x 66MHz 2-3 2-3 1-2 off off off off off off
AMD K5 PR133 2.0x 66MHz 2-3 2-3 1-2 on off off off off off
AMD K5 PR166 2.5x 66MHz 2-3 2-3 1-2 on on off off off off
AMD K6 166 2.5x 66MHz 2-3 2-3 1-2 on on off off off off
AMD K6 200 3x 66MHz 2-3 2-3 1-2 off on off off off off
AMD K6 233 3.5x 66MHz 2-3 2-3 1-2 off off off off off off
AMD K6 266 4.0x 66MHz 2-3 2-3 1-2 on off on off off off
AMD K6 300 4.5x 66MHz 2-3 2-3 1-2 on on on off off off
AMD K6-2 266 4.0x 66MHz 2-3 2-3 1-2 on off on off off off
4.5x 66MHz 2-3 2-3 1-2 on on on off off off
AMD K6-2 300 3x 100MHz 1-2 2-3 1-2
off on off off off on
5.0x 66MHz 2-3 2-3 1-2 off on on off off off
AMD K6-2 333 3.5x 95MHz 1-2 2-3 1-2
off off off on off on
AMD K6-2 350 3.5x 100MHz 1-2 2-3 1-2 off off off off off on
AMD K6-2 366 5.5x 66MHz 2-3 2-3 1-2 off off on off off off
AMD K6-2 380 4.0x 95MHz 1-2 2-3 1-2 on off on on off on
AMD K6-2 400 4.0x 100MHz 1-2 2-3 1-2 on off on off off on
AMD K6-2 450 4.5x 100MHz 1-2 2-3 1-2 on on on off off on
AMD K6-2 475 5.0x 95MHz 1-2 2-3 1-2 off on on on off on
AMD K6-2 500 5.0x 100MHz 1-2 2-3 1-2 off on on off off on
AMD K6-III 400 4.0x 100MHz 1-2 2-3 1-2 on off on off off on
AMD K6-III 450 4.5x 100MHz 1-2 2-3 1-2 on on on off off on
Cyrix 6x86 MX PR 166+
2.0x 66MHz 2-3 2-3 1-2 on off off off off off
Cyrix 6x86 PR MX 200+
2.0x 75MHz 2-3 2-3 1-2 on off off off on off
Cyrix 6x86 MX PR 166
2.0x 66MHz 2-3 2-3 1-2 on off off off off off

SY-5EHM/5EH5 V1.x Quick Start Guide
11
Installation
Frequency Setting: SW1
Processor Multiplier CPU Bus
Clock JP7 JP9 JP10
123456
2.5x 66MHz 2-3 2-3 1-2 on on off off off off
Cyrix 6x86 MX PR 200
2.0x 75MHz 2-3 2-3 1-2 on off off off on off
Cyrix 6x86 MX PR 233
2.5x 75MHz 2-3 2-3 1-2 on on off off on off
Cyrix 6x86 MX PR 266
2.5x 83MHz 1-2 2-3 1-2 on on off on on off
3.5x 66MHz 2-3 2-3 1-2 off off off off off off
Cyrix MII 300 3x 75MHz 2-3 2-3 1-2
off on off off on off
4.0x 66MHz 2-3 2-3 1-2 on off on off off off
3.5x 75MHz 2-3 2-3 1-2 off off off off on off
Cyrix MII 333
3x 83MHz 1-2 2-3 1-2 off on off on on off
Cyrix MII 350 3x 100MHz 1-2 2-3 1-2 off on off off off on
Cyrix MII 366 2.5x 100MHz 1-2 2-3 1-2 on on off off off on
P54C P100 1.5x 66MHz 2-3 2-3 1-2 off off off off off off
P54C P133 2.0x 66MHz 2-3 2-3 1-2 on off off off off off
P54C/P55C P166 2.5x 66MHz 2-3 2-3 1-2 on on off off off off
P54C/P55C P200 3x 66MHz 2-3 2-3 1-2 off on off off off off
P55C P233 3.5x 66MHz 2-3 2-3 1-2 off off off off off off
IDT X86 CPU C6/2-
200 3x 66MHz 2-3 2-3 1-2
off on off off off off
IDT X86 CPU C6/2-
225 3x 75MHz 2-3 2-3 1-2
off on off off on off
IDT X86 CPU 2-233 3.5x 66MHz 2-3 2-3 1-2 off off off off off off
IDT X86 CPU 2-266 2.33x 100MHz 1-2 2-3 1-2 off on on off off on
IDT X86 CPU 2-300 2.5x 100MHz 2-3 2-3 1-2 on on off off off on
3x 66MHz 2-3 2-3 1-2 off on off off off off
Rise mP6 PR266 2.0x 100MHz 1-2 2-3 1-2
on off off off off on
This main board supports various CPU multiplier and host bus frequency settings.
Please select the proper frequency setting based on specifications of the CPU you have purchased. System
stability or components damage, in case of over-specification setting, is not guaranteed.

SY-5EHM/5EH5 V1.x Quick Start Guide
12
Installation
JumperJP7isusedtoindicatethefrequencyoftheCPUbusclocktotheETEQchipset.JumpersJP9
andJP10areusedtodeterminethattheSDRAMisrunningatthefrequencyoftheCPUbusclockorat
thatoftheAGPclock.
CPU BUS
Clock AGPBUS Clock PCI Clock JP7 JP9 JP10 SDRAM Clock
66MHz 66MHz 33MHz 2-3 2-3 1-2 66MHz
75MHz 75MHz 37.5MHz 2-3 2-3 1-2 75MHz
1-2 1-2 2-3 55MHz
83MHz 55MHz 27.5MHz 1-2 2-3 1-2 83MHz
1-2 1-2 2-3 63.4MHz
95MHz 63.4MHz 31.7MHz 1-2 2-3 1-2 95MHz
1-2 1-2 2-3 66MHz
100MHz 66MHz 33MHz 1-2 2-3 1-2 100MHz
1-2 1-2 2-3 75MHz
112MHz 75MHz 37.5MHz 1-2 2-3 1-2 112MHz
1-2 1-2 2-3 82.6MHz
124MHz 82.6MHz 41.3MHz 1-2 2-3 1-2 124MHz
Note: Use 8ns or faster SDRAM modules (for PC100) when SDRAM is set to run
at the frequency of 95/100MHz.
Step 4. Select the CPU Burst Mode
TherearetwotypesofCPUburstmodesaccordingtomanufacturerdesign:
Ø InterleaveBurst (CPU:IntelP54C/P55C,AMDK5/K6/K6-2/K6-III,IDTX86
CPU,Rise mP6)
Ø LinearBurst (CPU: Cyrix6x86/L/MX/MII)
Interleave Linear
CPU Burst Mode Intel™P54C/P55C
AMD™K5/K6/K6-2/K6-III
IDT X86 CPU, Rise mP6 Cyrix™6x86/L/MX/M
II
JP22 Setting When using Intel or AMD CPUs.
(Default)
When using
Cyrix type of
CPU.
IfyouareusingaCyrix™6x86/L/MX/MIIseriesCPU,settheburstmode toLinearby
shortingpin2-3onjumperJP22,andfollowthefollowingstepstoselectthecorrectLinear
burstmodeinBIOS:
1. Duringthe boot-up initialsequence, press the[Delete] key toenter the BIOSsetup menu.
2. Selectthe [CHIPSET FEATURESSETUP] section inBIOS.
3. In the [CHIPSET FEATURES SETUP] sub-menu,set the [LinearBurst] field to[Enabled].
4. Press[Esc] toreturn tothe BIOS main menu.
5. Thenchoose [Save& ExitSetup] to re-boot your computer.
3
2
1
3
2
1

SY-5EHM/5EH5 V1.x Quick Start Guide
13
Installation
Step 5. Attach Connectors
Thissectiontellshowtoconnectinternalperipheralsandpowersupplytothe
Motherboard.
InternalperipheralsincludeIDEdevices(HDD,CD-ROM),FloppyDiskDrive,FrontPanel
Devices(TurboLED,InternalSpeaker,ResetButton,IDELED,and KeyLockSwitch.),
Wake-On-LANcard,VGAcard,SoundCard,andotherdevices.
Formoredetailsonhowtoconnectinternalandexternalperipheralstoyournew
5EHM/5EH5V1.xSuper7™Motherboard, pleaserefer to 5EHM/5EH5V1.x
MotherboardUser'sGuideandTechnical Reference onlinemanualonCD-ROM.
Connectors and Plug-ins
IrDA(Infrared Device Header): IR1 Wake-On-LAN Header: JP44
Pin1 Pin2 Pin3 Pin4 Pin5 Pin1 Pin2 Pin3
VCC None IRRX GND IRTX 5VSB GND MP-Wakeup
CPU Cooling Fan: JP12 USB
Pin1 Pin2 Pin3
GND 12V NC Connect your USB devices to this header.
PowerLED Keylock
Pin1 Pin2 Pin3
Pin1 Pin2
5V NC GND
ControlPin GND
Speaker
Pin1 Pin2 Pin3 Pin4
5V NC NC Speakerout
HDDLED TB LED PWRBT RESET
Pin1 Pin2 Pin1 Pin2 Pin1 Pin2 Pin1 Pin2
LEDAnode LED
Cathode LEDAnode LED Cathode Power On/Off GND Power Good GND
ATXPowerOn/Off:PWRBT
Connectyourpowerswitchtothisheader(momentaryswitchtype).
Toturn off thesystem, pleasepressthis switchand hold downfor longer than4 seconds.
ATXPower Supply: ATXPW
AttachtheATXPowercabletothisconnector.
PleasemakesuretheATXpowersupplycantakeatleast720mAloadonthe5Vstandbylead(5VSB),if
youwanttousetheadvancedpowermanagementfunctionslikePower-OnbymodemorWOL.
Note:Use only ONEtype ofpowersupply. Ifan AT powersupply isused,do notattachan ATX
powersupply.
ATPowerCable
ConnecttheATPowercabletothisconnector.IfyouuseATpowersupply.
Power LED
Key Lock
Speaker
Reset
PWRBT
Turbo LED
HDD LED
+
+
++
__
_
_

SY-5EHM/5EH5 V1.x Quick Start Guide
14
Installation

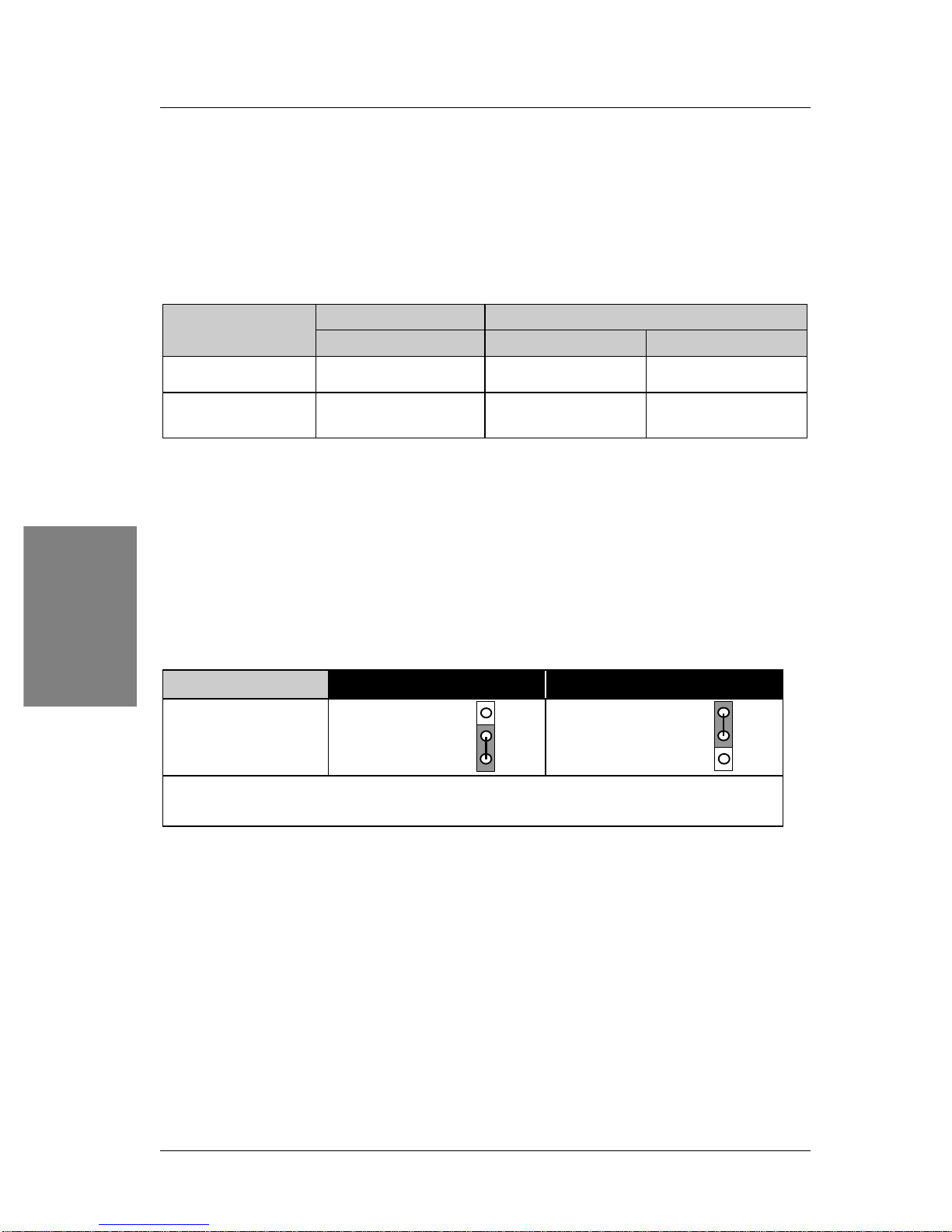

Step 6. Configure Memory
YourboardcomeswithoneSIMMBank(2modules)andtwoDIMMsockets,providing
supportforupto512MBofmainmemoryusingDIMMmodulesfrom8MBto256MB.For
66MHzhostbusCPUsuse12nsorfasterDIMMmodules;for83MHzhostbusCPUsuse
8nsmodules.
Memory Configuration Table
SIMM Bank DIMM BanksMEMORY
CONFIGURATION Bank 1,2 DIMM 1 DIMM 2
RAM Type FPM/EDO/BEDO EDO/SDRAM EDO/SDRAM
Single RAM
Module Size (MB) 4/8/16/32/64 8/16/32/64/128/256 8/16/32/64/128/256
Note: 1. You must install two SIMM modules to complete the SIMM Bank
2. Do not use FPM or EDO type of SIMM/DIMM if you already use SDRAM.
3. Do not install SIMM Bank and DIMM 1 at the same time.
Step 7. Clear CMOS
CleartheCMOSmemorybymomentarilyshortingpin2-3onjumperJP5,andthenby
shortingpin 1-2toretainnewsettings. Thisjumpercanbeeasilyidentifiedbyitswhite
coloredcap.
CMOS Clearing Clear CMOS Data Retain CMOS Data
JP5 Setting short pin 2-3 to
clear the CMOS Short pin 1-2 to retain new settings
Note: You must unplug the ATX power cable from the ATX power connector when
performing the CMOS Clear operation.
3
2
1
3
2
1

SY-5EHM/5EH5 V1.x Quick Start Guide
15
Quick BIOS
Setup
3 3 Quick BIOS Setup
Afterthehardwareinstallationiscomplete,turnthepowerswitchon,thenpressthe
<DEL> keyduringthesystemdiagnosticcheckstoentertheAwardBIOSSetupprogram.
TheCMOSSETUPUTILITYwilldisplayonscreen.Then,followthesestepstocomplete
thequickBIOSsetup.
Step 1. Select [LOAD SETUP DEFAULT]
Selectthe“LOADSETUPDEFAULT”menuandtype“Y”attheprompttoloadtheBIOS
optimalsetup.
Step 2. Select [STANDARD CMOS SETUP]
Set[Date/Time]and[Floppydrivetype],then set[HardDiskType] to “Auto”.
Step 3. Select [SAVE & EXIT SETUP]
Press <Enter> tosavethenewconfigurationtotheCMOSmemory,andcontinuethe
bootsequence.

SY-5EHM/5EH5 V1.x Quick Start Guide
16
The SOYO CD
4 4 The SOYO CD
The SOYO-CD will NOT autorunifyouuse it onanOperatingSystemotherthan
Windows9xor NT.
YourSY-5EHM/5EH5V1.xMotherboardcomeswithaCD-ROMlabeled"SOYOCD."The
SOYOCDcontains(1)theuser'smanualfileforyournewMotherboard,(2)thedrivers
softwareavailableforinstallation,and(3)adatabaseinHTMLformatwithinformationon
SOYOMotherboardsandotherproducts.
Step 1. Insert the SOYO CD into the CD-ROM drive
TheSOYOCDwillauto-run,andtheSOYOCDStartUpMenuwillbeshownasbelow.
(SOYOCD Start UpProgramMenu)
IfyouuseWindows95/98,theSOYOCDStart UpProgramautomaticallydetectswhich
SOYOMotherboardyouownanddisplaysthecorrespondingmodelname.
Step 2. Read SOYO [5EH V1.0] Manual
Clickthe Read Manual buttontoopentheuser'smanualfileofyourMotherboard.

SY-5EHM/5EH5 V1.x Quick Start Guide
17
The SOYO CD
PleasenotethatiftheStartUpprogramwasunabletodeterminewhichSOYOMotherboard
youown,themanualselectionmenuwillpopup,asshownbelow.Thenselecttheuser's
manualfilethatcorrespondstoyourMotherboardmodelnameandclick OK.
(ManualSelection Menu)
Theuser'smanualfilesincludedontheSOYOCDareinPDF(PostscriptDocument)format.In
ordertoreadaPDFfile,theappropriateAcrobatReadersoftwaremustbeinstalledinyour
system.
Note: TheStartUpprogramautomaticallydetectsiftheAcrobatReaderutilityisalready
presentinyoursystem,andotherwisepromptsyouonwhetherornotyouwanttoinstallit.You
mustinstalltheAcrobatReaderutilitytobeabletoreadtheuser'smanualfile.Followthe
instructionsonyourscreenduringinstallation,thenoncetheinstallationiscompleted,restart
yoursystemandre-runtheSOYOCD.
Step 3. Install Drivers and Utilities
ThefollowingdescribesthebestwayofinstallingWindows95orWindows98onyour
5EHM/5EH5V1.xMotherboard:
Ø ThefollowingBIOSdefaultsettingsshouldnotbechanged:
1. The‘OnChip USBController’itemunder‘ChipsetfeaturesSetup’issettoenabled.
2. The‘USBAssignedIRQ’itemunder‘PnP/PCIConfigurationisset toenabled.
YouMUSThavethesetwoitemsenabledforWindows95/98torunproperlyonyoursystem.
Ø InstallWindows95/98
Ø IfyouinstalledWindows95youwillnowneedtoupgradeyourUSBdriverbyrunningthe
followingprogramonyourWindowsCD:
Win95/OSR2/Usbsupp/USBsupp.exe
SOYO CD Manuals
Please select your manual in the box below
and click OK.
686 boards:586 boards:
OKBack
5EH V1.0

SY-5EHM/5EH5 V1.x Quick Start Guide
18
The SOYO CD
Ø Afterinstallationofwindows,youwillneedtoinstalltheETEQdrivers.Followthe
instructionbelow.
Clickthe EnterSOYO CD buttontodisplaythelistofdriversthatcanbeinstalledonyour
Motherboard.Thestart-upprogramdisplaysthedriversavailableforthe5EHM/5EH5V1.xand
theWindowsversionyouuse.
ClicktheInstalldriversbuttontodisplaythelistofdriversthatcanbeinstalledonyour
Motherboard.Thestart-upprogramdisplaysthedriversavailableforthe5EHM/5EH5V1.x.
(DriverInstallationMenu)
However,todisplaythe listofall driverssoftwareavailablewithSOYOMotherboards,clickthe
Displayalldriversonthe SOYO CD button.Pleasemakesuretoinstallonlythedrivers
adaptedtoyoursystem,orotherwisethismaycausesystemmalfunctions.
Ashortdescriptionofallavailabledriversfollows:
ØETEQ 4in1 driver package
The4in1driverpackageincludesalldriversyourmotherboardneeds.Afterselectingthisdriver
package,onedriverwillbeinstalledautomatically(theIRQ remappingutility),theotherthree
areinstalledifselected.Bydefaultallthreedriversareselected.Adescriptionofthe4drivers
follows:
 Bus Master PCI IDE Driver
Thisdriverwillspeedupthedata-transferratetoandfromthe harddisk.
Please select the driver you want to install and click OK, You will have to
restart your system after installation. Only the drivers that are relevant
to your board are displayed initially.
ETEQ 4 in 1 driver package
CancelDisplay all drivers
on the SOYO CDOK
Driver Installation

SY-5EHM/5EH5 V1.x Quick Start Guide
19
The SOYO CD
 AGPVxD Driver
Thisdrivermustbeinstalledinordertobeabletomakeuseoftheon-boardAGP
Videofunctionality.
 ETEQChipset FunctionsRegistry
ThisdriverwillmakethenecessarychangestotheWindowsregistry,inordertomake
surethatWindowshasnoproblemsrecognizingyourETEQchipset.
 IRQremappingutility(Thisdriveris installed automatically)
ThisutilitywillremaptheIRQlinestomakesurethateverythingfunctionsproperly
underWindows.
Selectwhichdriveryouwanttoinstallandclick OK, orclick Cancel toreturntothemainmenu.
WhentheinstallationprogramofadriverstartsrunningtheSOYO-CDwillexit.
Note: Whentheinstallationiscomplete,mostdriversrequire torestartyoursystembeforethey
canbecomeactive.
IfyouwanttoseeallthedriversavailableontheSOYO –CD,clickthe Displayalldriverson
theSOYOCD button.DoNOTinstalldriversthatarenotsuitableforyourboard,otherwise
yoursystemmaycrash.
Step 4. Check the Latest Releases
Clickthe'CheckthelatestReleases'buttontogotheSOYO Websitetoautomaticallyfindthe
latestBIOS,manualanddriverreleasesforyourmotherboard.Thisbuttonwillonlyworkifyour
computerisconnectedtothe internetthroughanetworkormodemconnection.Makesureto
getyourmodemconnectionupbeforeclickingthisbutton.
Step 5. Enter the SOYO CD
Clickthe EnterSOYO CD buttontoentertheSOYOHTMLdatabase.TheStartUpprogram
willactivatethedefaultHTMLbrowserinstalledonyoursystem(forexample,InternetExplorer
orNetscape)todisplaythecontentsoftheSOYOCD.
TheSOYOCDcontainsusefulinformationaboutyourMotherboardandotherSOYOproducts
available.Foryourconvenience,thisinformationisavailableinHTMLformat,similartothe
formatwidelyusedontheInternet.

SY-5EHM/5EH5 V1.x Quick Start Guide
20
The SOYO CD
Note: IfnoHTMLbrowserisinstalledonyoursystem,theStartUpprogramwillpromptyouon
whetherornotyouwouldliketoinstalltheInternetExplorer*browser.ClickYEStoinstallthe
HTMLbrowser.Aftertheinstallationiscomplete,pleaserestartyoursystem.Thenre-runthe
SOYOCDandyouwillbeabletobrowsetheSOYOHTMLdatabase.
(*InternetExplorerisaMicrosoftTrademark)
