Space Television cahors D120-O-SMC-V User manual
D120-O-SMC-V
User Manual
Helpline: 0861 40 41 42 • www.spacetv.co.za
120cm
SMC FIBRE
SATELLITE DISH
HELPLINE 0861 40 41 42 • www.spacetv.co.za
2
SAFETY 1
SATELLITE DISH PARTS 2
MOUNTING POLE DIMENSIONS 3
STEP BY STEP ASSEMBLY 4
SATELLITE DISH ALIGNMENT 6
POINTING DATA ACCORDING TO GEOGRAPHICAL SITUATION 8
ALIGNMENT EXAMPLE USING THE ANGULAR CONVENTIONS 8
ELEVATION CHART 9
POLARIZATION CHART 9
AZIMUTH CHART 10
SPECIFICATIONS 11
CONTENTS:
No part of this manual may be copied, reproduced, transmitted, transcribed or translated into any language without permission.
© Space Television - 78 Republic Road, Ferndale, Randburg, Johannesburg, 2125
PO Box 9317, Johannesburg 2000
T 0861 40 41 42
email sales@spacetv.co.za
www.spacetv.co.za
D120-O-SMC-V Cahors 120cm Satellite Dish
User Manual
HELPLINE 0861 40 41 42 • www.spacetv.co.za 1
SAFETY:
television and interactive multimedia signals EN 50083-1. The installer must follow these rules to be
in conformity with the law. Always implement regulations as issued by national and local authorities.
PRECAUTIONS:
D120-O-SMC-V Cahors 120cm Satellite Dish
User Manual
HELPLINE 0861 40 41 42 • www.spacetv.co.za
2
SATELLITE DISH PARTS LIST:
1. Main dish
3. Support arm
4. U-shape arm support
7. Screws and nuts for Main Dish / Arm/
Side feed legs /
8. User manual
D120-O-SMC-V Cahors 120cm Satellite Dish
User Manual
Screw
Nut
Screw
Screw
Screw
Nut
Nut
Nut
Screw
HELPLINE 0861 40 41 42 • www.spacetv.co.za 3
MOUNTING POLE DIMENSIONS:
Mechanical forces to be considered are shown in the picture below:
Minimum pole diameter must be 76 mm.
In order to receive signals through geostationary
satellites, you need a clear view in the direction in
which the satellite is pointed, i.e.: Clear to the north
ASSEMBLY TOOLS REQUIRED FOR INSTALLATION
D120-O-SMC-V Cahors 120cm Satellite Dish
User Manual
HELPLINE 0861 40 41 42 • www.spacetv.co.za
4

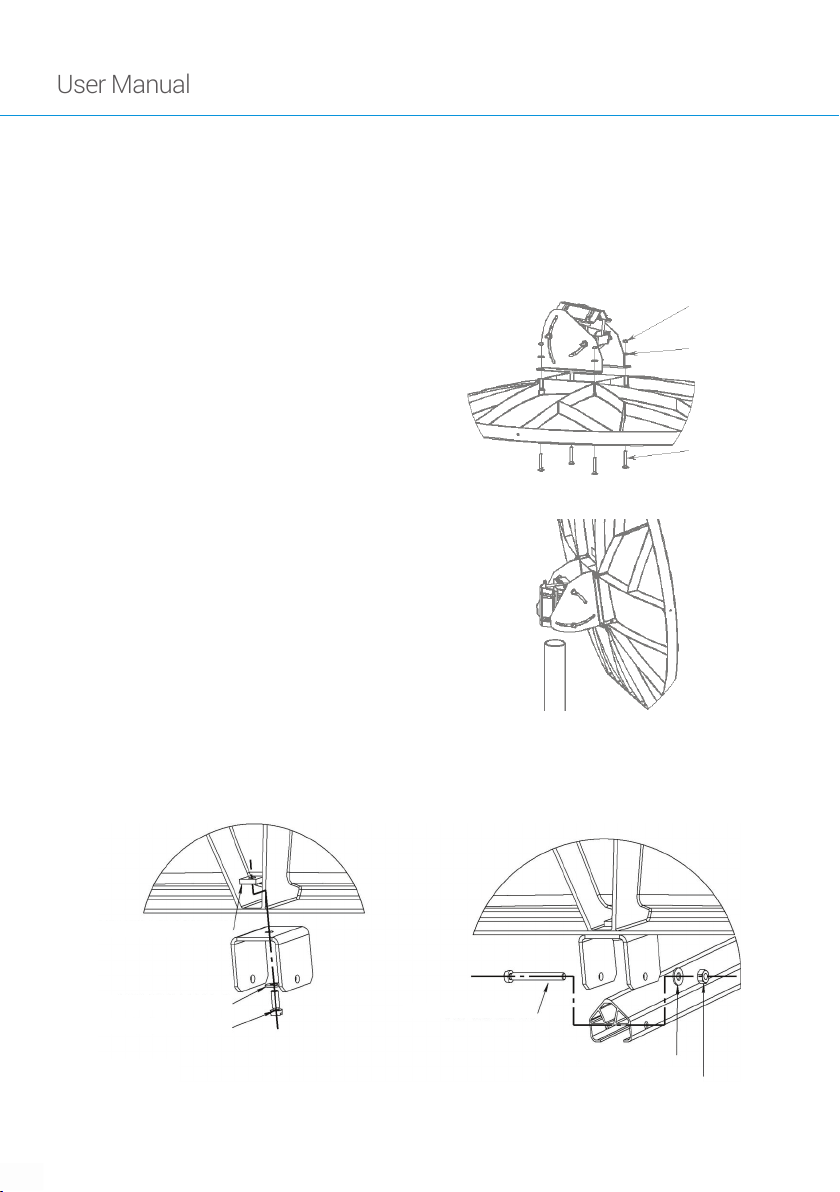

STEP BY STEP ASSEMBLY:
Important! It is recommended that 2 people install this satellite dish
2. Install the Az-Ez mount on the pole and tighten the
bolts only lightly, see Fig 2.
3. Install the U shape on the top of the external rib of the dish, align its edge with the edge of the dish
D120-O-SMC-V Cahors 120cm Satellite Dish
User Manual
AZ - EL MOUNT AND DISH ASSEMBLY: Nut HM8
Screw
M8x55
Fig 1.
Fig 2.
Nut M6
Nut HM6
Screw M6-16
Screw M6-50
Fig 3.
HELPLINE 0861 40 41 42 • www.spacetv.co.za 5
D120-O-SMC-V Cahors 120cm Satellite Dish
User Manual
4. Install the side legs as shown in Fig 4a, do not initially tighten the bolts.
Nut M6
Screw M6-16 Nut M6
Screw M6-40
Fig 4a. Fig 4b.
5. Install the LNB holder on the arm, see Fig 5a.
Install the Universal LNB in the LNB holder, see Fig 5b.
Fig 5a. Fig 5b.
Screw M6-40
Nut QM6
Screw CP 5-25
HELPLINE 0861 40 41 42 • www.spacetv.co.za
6
SATELLITE DISH ALIGNMENT PROCEDURE:
you to align the satellite dish regardless your geographical position with respect to Earth station
latitude and Delta L, the difference between earth station longitude and satellite longitude. Angle
representation is given according to the convention described in the pointing data on page 14.
Important! Precise alignment requires the use of a professional eld strength meter
SATELLITE DISH ALIGNMENT:
Use the elevation and azimuth charts at the end of this user manual to determine your elevation setting
NB: Check all nuts and bolts are correctly tightened (Mount and LNB holder).
D120-O-SMC-V Cahors 120cm Satellite Dish
User Manual
HELPLINE 0861 40 41 42 • www.spacetv.co.za 7
D120-O-SMC-V Cahors 120cm Satellite Dish
User Manual
HELPLINE 0861 40 41 42 • www.spacetv.co.za
8
D120-O-SMC-V Cahors 120cm Satellite Dish
User Manual
POINTING DATA ACCORDING TO GEOGRAPHICAL SITUATION:
CAUTION! EAST longitude: + sign WEST longitude: - sign
ALIGNMENT EXAMPLE USING THE ANGULAR CONVENTIONS:
Paris:
Latitude : 48.85°N Longitude : 2.34E
Satellite AB3 : 5W ie –5°
DELTA = I –5 – 2.34 I = I –7.34 I = 7.34
Satellite is West of the alignment location and latitude is close to 49° Northern Hemisphere.
Look at the azimuth chart for the Northern Hemisphere, Satellite west of the site.
Azimuth in NH (chart P13) : Az = 190° (10°West from south)
Elevation (chart P 12) : El = 33°
Polarisation (chart P 12) : 6° negative anti-clockwise direction

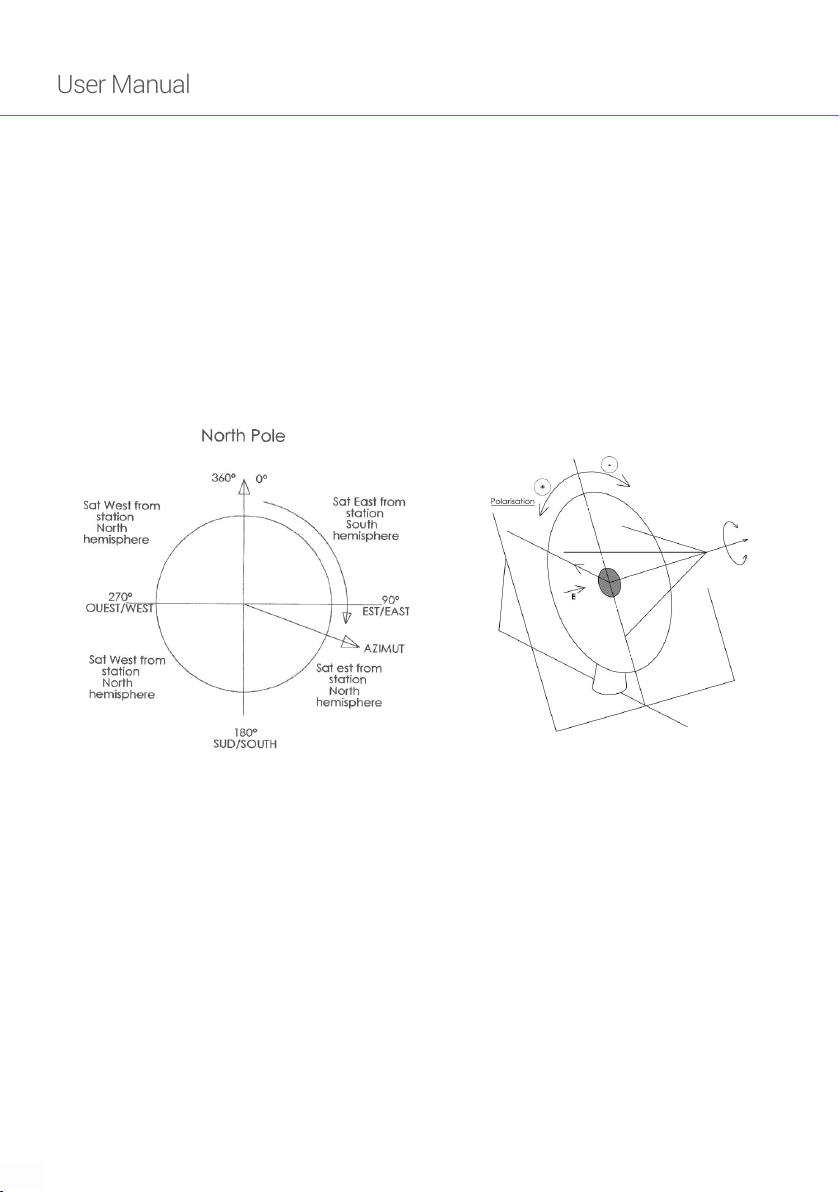

DELTA
satellite dish site longitude and the satellite
longitude, in absolute terms.
DELTA = Location Longitude - Satellite Longitude
Azimuth angle is positive from North pole
WARNING!
Satellite West of satellite dish site:
+ sign Clockwise (CW)
Satellite East of satellite dish site:
- sign Anti-Clockwise (ACW)
HELPLINE 0861 40 41 42 • www.spacetv.co.za 9
D120-O-SMC-V Cahors 120cm Satellite Dish
User Manual

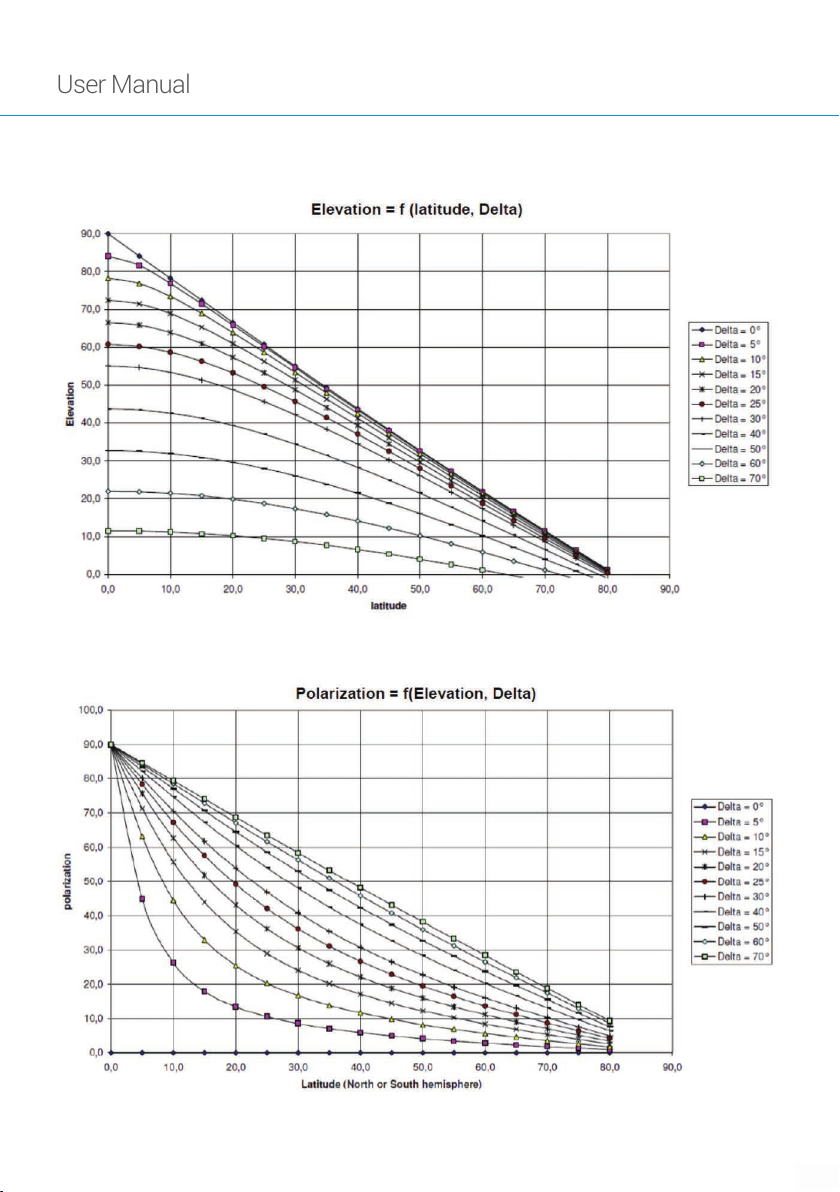

ELEVATION CHART:
POLARISATION CHART:
HELPLINE 0861 40 41 42 • www.spacetv.co.za
10
D120-O-SMC-V Cahors 120cm Satellite Dish
User Manual

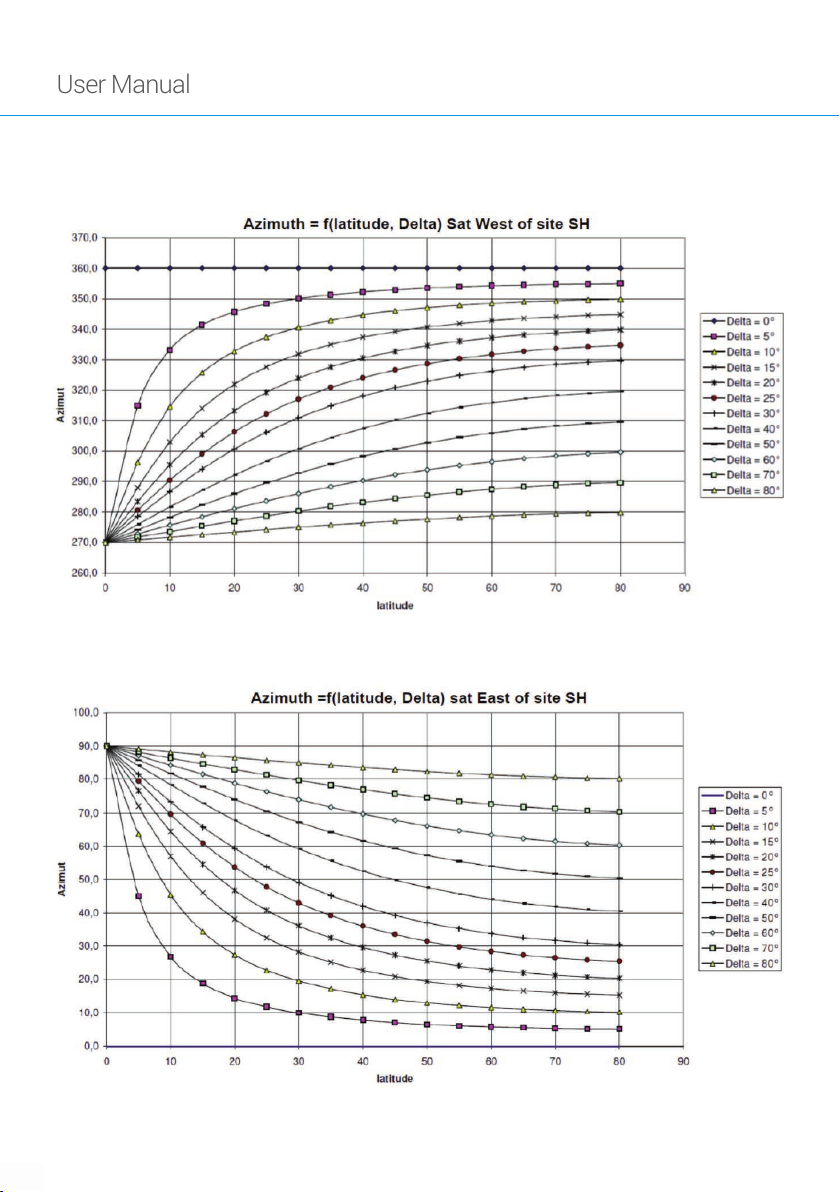

AZIMUTH CHART:
AZIMUTH CHART: SATELLITE EAST OF SATELLITE DISH SITE, SOUTHERN HEMISPHERE
HELPLINE 0861 40 41 42 • www.spacetv.co.za 11
SPECIFICATIONS
Horizontal axis 123 cm
Vertical axis 127 cm
Disc material
Arm material Aluminum
SMC / Galvanized steel
10.7 - 12.75 GHz
Opening angle at 11.325 GHz
Performance 70%
41
41.8
20
21
Noise temperature
Tube mounting Ø 60 to 76 mm
Elevation regulation
D120-O-SMC-V Cahors 120cm Satellite Dish
User Manual
www.spacetv.co.za
Helpline: 0861 40 41 42
