Spacetronik DIO SPD-M777 User manual

Please read this manual carefully before using the product.
!
USER MANUAL
Smart Monitor Spacetronik
SPD-M777 / SPD-M775 / SPD-M772

1
1. Parts and functions
2. Monitor mounting
7" Digital TFT LCD Screen
Speaker
145 - 160 cm
2 . Connecting the system correctly, then hang the monitor on the mounting bracket firmly.
1 . Using the screws to fix the mounting bracket on the wall.
1 2
NO
DIP switches
BUS terminal
IP Connection port
Door bell connection port
SD card slot
(6:CALL)
(8:GND)
(7:VI)
(4:SP)
(3:ISK)
(2:IJK)
(1:IDJ)
(5:MIC)
1 2
1 2
1 21 21 2
TALK Button
UNLOCK Button
Microphone
ON ON ON ON
NC100 75 50
IP Connection port
ON
DIP switches
Monitor at the end
of the line
Bit state Setting Bit state Setting
Monitor NOT at
the end of the line
Reserved
1 2
NO
1 2
NO
12
NO
Reserved
1 2
NO

Press anywhere of the screen on monitor in standby mode, the main menu page
will be shown as follows:
Video/Audio
recording
Door station and camera
3. Main menu
4. Basic door release operation
Press CALL button on outdoor station, the indoor monitor rings, meanwhile, the
screen displays the visitor’s image.
Press Answer on monitor, you can talk with the visitor for 100 seconds. Press
Close to end the conversation. If nobody answers the call, the screen will be
turned off automatically after seconds.100
During talking status, press Unlock to unlock the door. ress
Switch camera to switch to extra camera.(If theres extra camera in the
system). Press Close to end the communication.
Press Function, p
’Swi
2 .
1 .
3 .
2
Time and SD card
Inner Call
Press it to activate
Inner call
Recording
Picture & video
playback
Monitor
Press it to view the
outside
Activate “Do not Disturb”
Activate “Voicemail”
Activate “Do not ring”
Close
Press it to turn off
the screen
Qiuck Commands

Press Monitor on main menu to enter the door camera switching mode, if
multi door stations are installed, you can select the door station or CCTV camera
you want to monitor.
6. Inner call
User in one apartment can call other apartment in the system. Press Inner Call
to enter Inner call page, use t
o select next page, press to call another
monitor.
3
5. Monitor

7. Record-Picture / Video / Audio
Picture / video record: 3 seconds after the call was received, the monitor will
record a video/picture automatically. Or you can press Function, and then
to record the visitor’s video/picture manually when the monitor in
monitoring or calling state.
(1) .
Audio Record: Audio recording will be activated in two situations.
2.1. When you call other apartments (Inner Call).
2.2. If you select SD card as storage location, the audio recording will be
activated when the door station call the monitor.
( )2 .
Video/Picture/Audio playback: Press Record on main menu to select
Video/picture/Audio playback. Press to select, press to pause, press
to
delete.
( )3 .
Note:
1.Only supports writing speeds greater
than 4M/S SD card.
2. A new SD card must be formatted by the
monitor before you using it.
3. Without SD card, you could only store 6
picture and 2 audio.
4.Up to 32G SD card.
4
8.1 Settings-Voicemail

8.2 Volume:
Press Settings on main menu page, press
Volume to enter volume adjusting page.
Day time: 8:00 - 20:59, ringing volume
adjusting range from 0-10.
Night time: 21:00 - 7:59, ringing volume
adjusting range from 0-10.
8.3 Screen settings:
Press Settings on main menu page, press
Color to enter color adjusting page.
8.4 Date & Time:
Press Settings on main menu page, press
Time to enter date & time setting page.
1 .
5
8.5 Storage- SD card
Press Storage to enter SD card setting
page. Press Format to format the SD
card Press Info to check the SD card
storage information.
SD
SD
x
SD

8.6 Optional
Press Settings on main menu page, press Optional to enter personalized setting
page. You can adjust
Automatic / manual video recording
Automatic / manual photography
Turn on / off Inner Call
Turn on / off Do Not Disturb
6
2. Door station & Extra Camera:
If multi door stations and extra cameras
installed in the system, you have to set the
door station and camera quantity. The
default setting is 1 door station and 0
camera.
1.Personalized settings:
3. Ringtone:
If multi door stations and extra cameras
4. Network (Divert Call Function,
With IP Module Only):
Network call disable: Calls from door
station will not diverted.

Router
Power Supply
CAT 5
IP Module
Mobile phone
2
MonitorDoor station
2
9. Basic Wringing (With IP module)
AC
10. Specifications
Power supply for monitor:
Power consumption:
Monitor screen:
Wiring:
Dimensions:
DC 24V
Standby 15mA, working 350mA
7 inch digital color TFT
2 wires, non-polarity
7

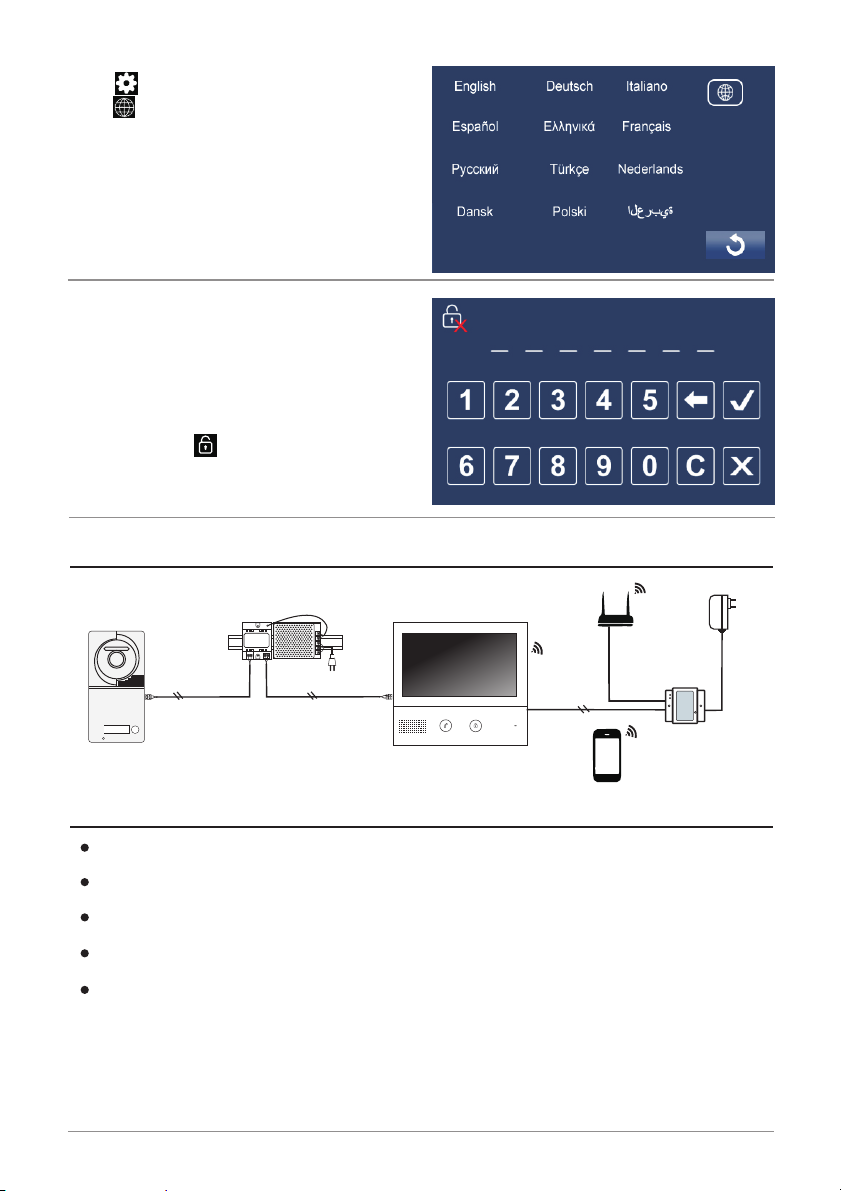

5. Language
Press Settings icon on main menu page,
press Language to enter language setting
page. There’re twelve languages for
optional: English, German, Italian,
Spanish, Greek, French, Russian, Turkish
and Dutch., etc
6.Password
Room number password is
1111111(default). Modify room
number password operation: input old
password, setting new password. If
you forget the room number password,
you can press button and input
1111111, recover the room number
password to 1111111.
X
Produced in ChRL for: DMTrade Mikołaj Tomaszewski; Wiśniowa 36; 64-000 Kościan; Poland
NIP: PL 6981681757 [e-mail] Tel.: [phone] [phone]
The WEEE symbol (the crossed-out wheeled bin) using indicates that this product is not home waste. Appropriate waste management aids in avoiding consequences
which are harmful for people and environment and result from dangerous materials used in the device, as well as improper storage and processing. Segregated
household waste collection aids recycle materials and components of which the device was made. In order to get detailed
information about recycling this product please contact your retailer or a local authority.
M777 200 x 130 x 18 mm
M775 185 x 165 x 21 mm
M772 184 x 166 x 23 mm
