SpeakerCraft
OWNER’S MANUAL
BassX Series
BassX-10 • BassX-12
Floor Standing Powered Subwoofers
®

Page 2 Eazy6 Owner’s Manual
BassX-10 • BassX-12 Owner’s Manual Page 3
INTRODUCTION
The BassX-10 and BassX-12 provide accurate bass to any audio system, and are designed to work in conjunction with your other audio com-
ponents. They can be connected to any surround sound receiver that has a subwoofer output; any receiver that has a built-in preamplifier; or
any receiver that has speaker level outputs. The pass-through feature of the BassX-10 and BassX-12 allows the left and right line level input sig-
nals to be fed out of the unit to other amplifiers or system components.
PLACEMENT
For optimal performance, the BassX-10 or BassX-12 should be placed in a corner along the same wall as the front speakers. The unit is
shielded, so it is safe to place near video devices. When choosing a place for the BassX-10 or BassX-12, please keep the following in mind:
DO
• Place the BassX-10 or BassX-12 with its feet resting on a solid flat level surface.
• Place the BassX-10 or BassX-12 in a well-vented area to provide proper cooling. In areas that lack proper ventilation, such as tight
cabinets or racks, it may be necessary to install small fans to create air movement.
DON’T
• Obstruct the driver or ports of the BassX-10 or BassX-12 as that will hinder performance.
• Place the BassX-10 or BassX-12 in any position other than horizontal with the feet down. Never place on its side or resting on the
back where the terminals are located.
• Place the BassX-10 or BassX-12 near heat sources, or in an area that it would be exposed to moisture.
INSTALLATION
Connecting the Line Level Audio Inputs (See Diagram 3)
If your surround sound receiver or amplifier has only one subwoofer output, simply plug it into the
Left Line Level Input. (See Diagram 4) If your receiver or amplifier has a built-in preamplifier, the
left and right pre-outputs can be connected to these line level inputs. (See Diagram 5)
CAUTION: Only make connections when the BassX-10 or BassX-12 is turned off.
Connecting the Line Level Audio Outputs (See Diagram 3)
Sources connected to the left and right line level inputs can be forwarded to other components or
amplifiers by connecting to the corresponding output sections to the left of each input section. If
your receiver or amplifier has a built-in preamplifier, the left and right pre-inputs can be connected
to these line level outputs. (See Diagram 5) Use the BassX 10 / BassX 12’s Frequency Knob to
adjust the high pass crossover. CAUTION: Only make connections when the BassX-10 or
BassX-12 is turned off.
DIAGRAM 3:
Line Level Input/Output
Page 2 Eazy6 Owner’s Manual
Page 2 BassX-10 • BassX-12 Owner’s Manual
SAFETY INSTRUCTIONS
• Explanation of Graphical Symbols
1. Read Instructions - All the safety and operating instructions
should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions
should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions - All operating and other instructions
should be followed.
5. Water and Moisture - The appliance should not be used near
water - for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool, etc.
6. Carts and Stands - The appliance should be used only with a
cart or stand that is recommended by the manufacturer.
PORTABLE CART
WARNING
7. Wall or Ceiling Mounting - The appliance should be mounted
to a wall or ceiling only as recommended by the manufacturer.
8. Ventilation - The appliance should be situated so that its location
or position does not interfere with its proper ventilation. For
example, the appliance should not be situated on a bed, sofa,
rug, or similar surface that may block the ventilation openings; or
placed in a built-in installation, such as a bookcase or cabinet that
may impede the flow of air through the ventilation openings.
9. Heat - The appliance should be situated away from heat sources
such as radiators, stoves, or other appliances that produce heat.
10. Power Source - The appliance should be connected to a
power supply only of the type described in the operating
instructions or as marked on the appliance.
11. Power-Cord Protection - Power-supply cords should be rout-
ed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention
to cords at plugs, convenience receptacles, and the point
where they exit from the appliance.
12. Cleaning - The appliance should be cleaned only as recom-
mended by the manufacturer.
13. Nonuse Periods - The power cord of the appliance should be
unplugged from the outlet when left unused for a long period
of time.
14. Object and Liquid Entry - Care should be taken so that
objects do not fall into and liquids not spilled into the inside of
the appliance.
15. Damage Requiring Service - The appliance should be serv-
iced by qualified service personnel when:
a. The power-supply cord or the plug has been damaged; or
b. Objects have fallen onto, or liquid has been spilled into the
appliance; or
c. The appliance has been exposed to rain; or
d. The appliance does not appear to operate normally or
exhibits a marked change in performance; or
e. The appliance has been dropped, or the cabinet damaged.
16. Servicing - The user should not attempt to service the appli-
ance beyond those means described in the operating instruc-
tions. All other servicing should be referred to qualified service
personnel.
17. Grounding or Polarization - The precautions that should be
taken so that the grounding or polarization means of an appli-
ance is not defeated.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert you to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert you to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
APPLICABLE FOR USA, CANADA OR WHERE
APPROVED FOR USAGE
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE PLUG TO WIDE SLOT, INSERT FULLY.
ATTENTION: POUR EVITER LES CHOCS ELEC-
TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE
LA FICHE DANS LA BORNE CORRESPONDANTE DE
LA PRISE ET POUSSER JUSQU AU FOND.
CAUTION: To reduce the risk of electric
shock, do not remove cover (or back). No
user-serviceable parts inside. Refer servicing
to qualified service personnel.

BassX-10 • BassX-12 Owner’s Manual Page 5
DIAGRAM 5: Receiver with Preamp Outputs
Page 4 BassX-10 • BassX-12 Owner’s Manual
DIAGRAM 4: Receiver with Sub Out

BassX-10 • BassX-12 Owner’s Manual Page 7
OPERATION
Once the BassX-10 or BassX-12 is connected, use the controls described below
to make adjustments so that it will blend seamlessly with the other speakers in
your system. (See Diagrams 8 & 9)
Power Switch
This switch turns the BassX-10 or BassX-12 on or off. When switched to the
“On” position, the green light will illuminate; when “Off”, the red light will
illuminate.
Volume Knob
Use this control to match the output of the BassX-10 or BassX-12 to that of the
main speakers in the system. We recommend that you play a variety of material
before selecting a setting. Start with the control in the “Off” position (completely
counterclockwise) and slowly turn it up.
Boost Knob
Use this control to adjust the bass of the BassX-10 or BassX-12 from 0dB to 3dB.
Frequency Knob
Use this control to adjust the upper frequency limit of the BassX-10 or BassX-12.
The purpose is to control the overlap the upper frequencies of the BassX-10 or
BassX-12 and the main speaker’s lower frequencies.
Phase Switch
Allows you to toggle between 0° and 180° phase modes. Listen to the system
and leave the switch in the position that has more audible bass.
DIAGRAM 8:
Power Switch (Rear Panel)
DIAGRAM 9:
Front-Mounted Controls
No sound is heard.
A hum or buzzing sound is heard. The sound may be caused by a ground loop in the system. Try
to eliminate this by reversing the AC plugs of other components
in the system.
Try plugging the receiver into another outlet.
Other causes may include faulty cables.
The BassX-10 or BassX-12 will not turn on. The subwoofer must be plugged into a live outlet. The power
switch on the back panel must be on. A signal must be playing
into the input jacks.
Audio cable to the receiver is not connected properly or the
cable is bad. Use another cable that you know is good.
Check all wire connections and plugs.
The Problem Possible Causes And Solutions
TROUBLESHOOTING
The BassX-10 and BassX-12 are designed to function trouble-free. Most problems occur due to operating errors. If you have a problem, please
check the troubleshooting list first. If the problem persists, contact your authorized SpeakerCraft dealer or SpeakerCraft Customer Service at
[phone].
Page 6 BassX-10 • BassX-12 Owner’s Manual

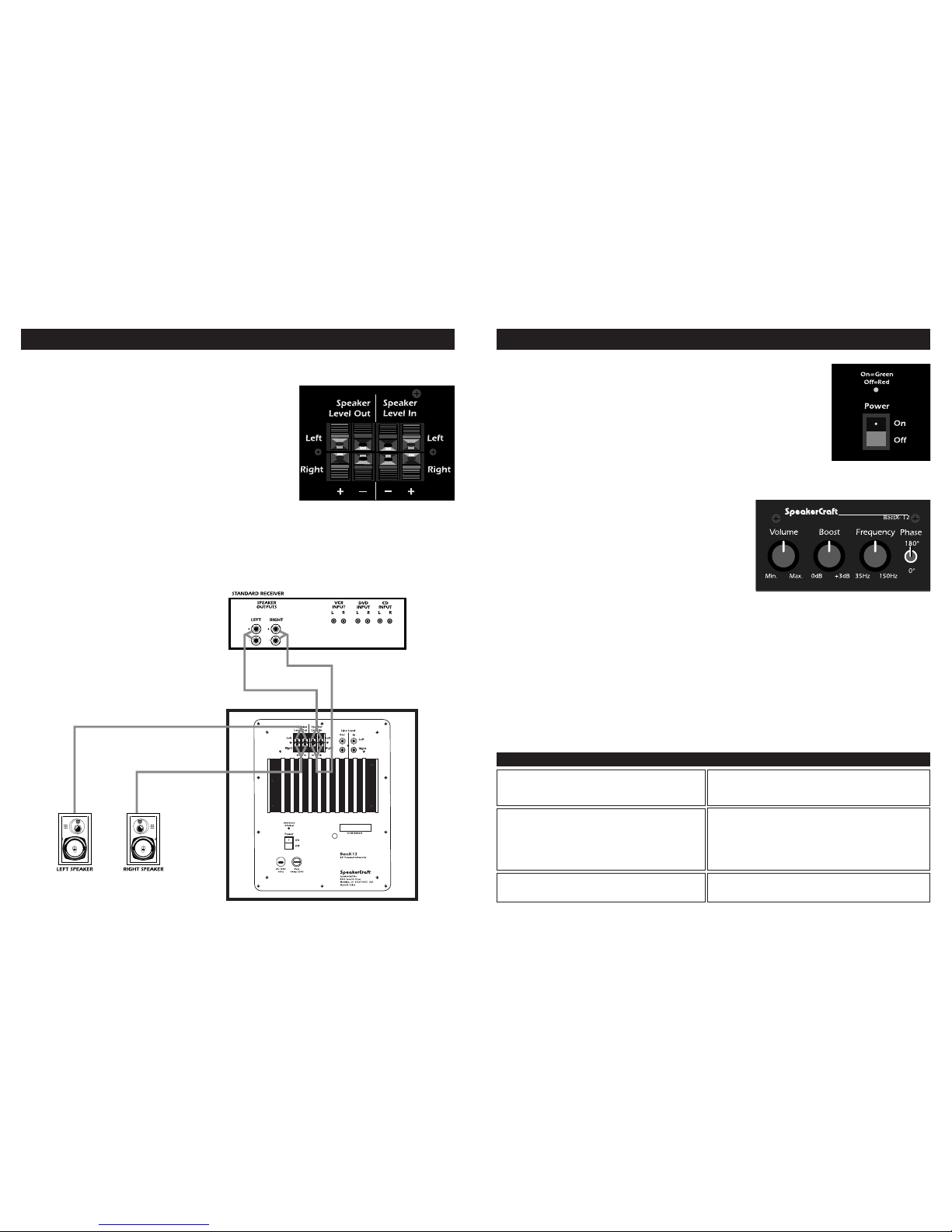

Connecting the Speaker Wires (See Diagram 6)
Follow these instructions when using the Speaker Level Outputs of your receiver or
amplifier to connect to the BassX-10 or BassX-12.
For best results, use speaker wire that is at least 18 gauge. For runs longer than 75
feet, 14 gauge wire is recommended.
Wire larger than 14 gauge is not recommended because it may not fit into the
connector. For best results, strip all wire insulation no more than 3⁄8" from the end
before inserting into the connector.
1. Strip the speaker wires’ insulation 3⁄8" from the end.
2. Connect the wires from the speakers to the appropriate location under “Speaker
Level Out”. Please observe proper polarity of the connections (+ to + and - to -).
(See Diagram 7)
3. Connect the amplifier’s or receiver's speaker outputs to the appropriate location
under “Speaker Level In”. Please observe proper polarity of the connections
(+ to + and - to -).
CAUTION: If the “Speaker Level Out” and “Speaker Level In” connections are
reversed, a short could result across the amplifier or receiver output terminals, which
may seriously damage your amplifier or receiver. Please double-check all connections
before turning on your amplifier or receiver.
DIAGRAM 6:
Speaker Level Input/Outputs
DIAGRAM 7:
Receiver with Stereo Outputs

Page 8 BassX-10 • BassX-12 Owner’s Manual
SPECIFICATIONS
BassX-10 BassX-12
Woofer 10" woofer, coated pulp cone, 12" woofer, coated pulp cone,
reverse dust cap, rubber surround, reverse dust cap, rubber surround,
2" voice coil, full magnetic shield 2" voice coil, full magnetic shield
Impedance 4Ω4Ω
Power Rating 150 Watts 250 Watts
Dimensions 143⁄8" x 143⁄8" x 143⁄8" 171⁄2" x 171⁄2" x 171⁄2
In our attempt to constantly improve our products, features and specifications are subject to change without notice.
SpeakerCraft
1650 Seventh Street, Riverside CA 92507-4492
[phone] Fax [phone]
www.speakercraft.com LITX1000
Should you have any questions regarding this, or any other SpeakerCraft product, please call our toll-free service hotline at
1-800-448-0976. We are available to assist you every weekday, except holidays, between the hours of 7:00 a.m. and 5:00 p.m. PST.
SpeakerCraft offers a variety of accessories to make your installation of these speakers and other SpeakerCraft products easy, economical,
and professional. Contact your authorized SpeakerCraft Dealer for more information.
®
LIMITED 2-YEAR WARRANTY
SpeakerCraft Inc. warrants to the original retail purchaser only that this SpeakerCraft product will be free from defects in materials and workmanship for a period
of two years, provided the product was purchased from a SpeakerCraft Authorized Dealer.
Defective products must be shipped, together with proof of purchase, prepaid insured to the SpeakerCraft Authorized Dealer from whom they were purchased,
or to the SpeakerCraft factory at the address listed on this installation instruction manual. Freight collect shipments will be refused. It is preferable to ship this
product in the original shipping container to lessen the chance of transit damage. In any case, the risk or loss or damage in transit is to be borne by the pur-
chaser. If upon examination at the Factory or SpeakerCraft Authorized Dealer it is determined that the unit was defective in materials or workmanship at any
time during this warranty period, SpeakerCraft or the SpeakerCraft Authorized Dealer will, at its option, repair or replace this product at no additional charge,
except as set forth below. If this model is no longer available and can not be repaired effectively, SpeakerCraft, at its sole option may replace the unit with a cur-
rent model of equal or greater value. In some cases where a new model is substituted, a modification to the mounting surface may be required. If mounting
surface modification is required, SpeakerCraft assumes no responsibility or liability for such modification. All replaced parts and product become the property of
SpeakerCraft Inc. Products replaced or repaired under this warranty will be returned to the original retail purchaser, within a reasonable time, freight prepaid.
This warranty does not include service or parts to repair damage caused by accident, disaster, misuse, abuse, negligence, inadequate packing or shipping proce-
dures, commercial use, voltage inputs in excess of the rated maximum of the unit, or service, repair or modification of the product which has not been author-
ized or approved by SpeakerCraft. This warranty also excludes normal cosmetic deterioration caused by environmental conditions. This warranty will be void if
the Serial number on the product has been removed, tampered with or defaced.
This warranty is in lieu of all other expressed warranties. If the product is defective in materials or workmanship as warranted above, the purchaser’s sole reme-
dy shall be repair or replacement as provided above. In no event will SpeakerCraft be liable for any incidental or consequential damages arising out of the use
or inability to use the product, even if SpeakerCraft Inc. or a SpeakerCraft Inc. Authorized Dealer has been advised of the possibility of such damages, or for any
claim by any other party. Some states do not allow the exclusion or limitation of consequential damages, so the above limitation and exclu-
sion may not apply.
All implied warranties on the product are limited to the duration of this expressed warranty. Some states do not allow limitation on the length
of an implied Warranty. If the original retail purchaser resides in such a state, this limitation does not apply.
