Spear & Jackson XSZ48B-SD User manual

1
235
6 7
4
9
8
Important - Please read these instructions
fully before starting assembly
These instructions contain important information that will help
you get the best from your mower, ensuring it is assembled correctly
and safely. If you need help or have damaged or missing parts,
call the Customer Helpline on 0345 605 2067
AFTER SALES SUPPORT
0345 605 2067
48cm 140cm3 self propelled
Petrol
Lawnmower
XSZ48B-SD
QUICK START
GUIDE
1. Main mower deck (with upper handle attached)
2. Lower handle (with rope guider fixed)
3. Grass collection bag 1pc
4. Side discharge chute 1pc
5. Plastic mulching plug 1pc
6. Lower handle fixing knob with nut M8 and arch-head bolts 2pcs
7. Quick release 2pcs
8. Cable clip 1pc
9. Plug wrench 1pc
IN THE BOX

Engine stop
Engine start
Always read the instruction manual thoroughly before starting the lawnmower.
Never allow the starter cord to snap back.
Check the oil level before every use. Always use high quality detergent oil classified
SAE30 oil (or equivalent eg 5W/30, often termed as 4 Stroke lawn mower oil).
In cold weather it may be necessary to repeat the cold engine starting
process.
If you have any difficulties please contact the
helpline on 0345 605 2067
To stop the mower release the start/stop bar.
When starting a cold
engine, press down the
primer fully 3~5 times.
When starting a warm
engine, the primer
does not need to be
used.
Hold the start/stop bar
firmly to the handle to
disengage the motor
brake and automatic
cut out.
To start the engine slowly
pull the start cord out
until resistance is felt
(approx 10-15cm) then
start the engine with a
sharp vigorous pull.
9
10
Do not start the engine before putting 500ml of SAE 30 oil into the engine.
Failure to do so will result in irreparable damage to the engine and invalidate your
warranty.
Fill the petrol tank with 0.8l of normal 95 Octane petrol (standard unleaded) using a funnel
and measuring jug.
Pull up the propulsion lever
to engage the self propelled
function.
12
PRIMER BULB
3~5 TIMES
START STOP BAR
CLOSED
PULL STARTING
KNOB
PROPULSION LEVER
CLOSED
11
OPERATE
IMPORTANT INFORMATION!

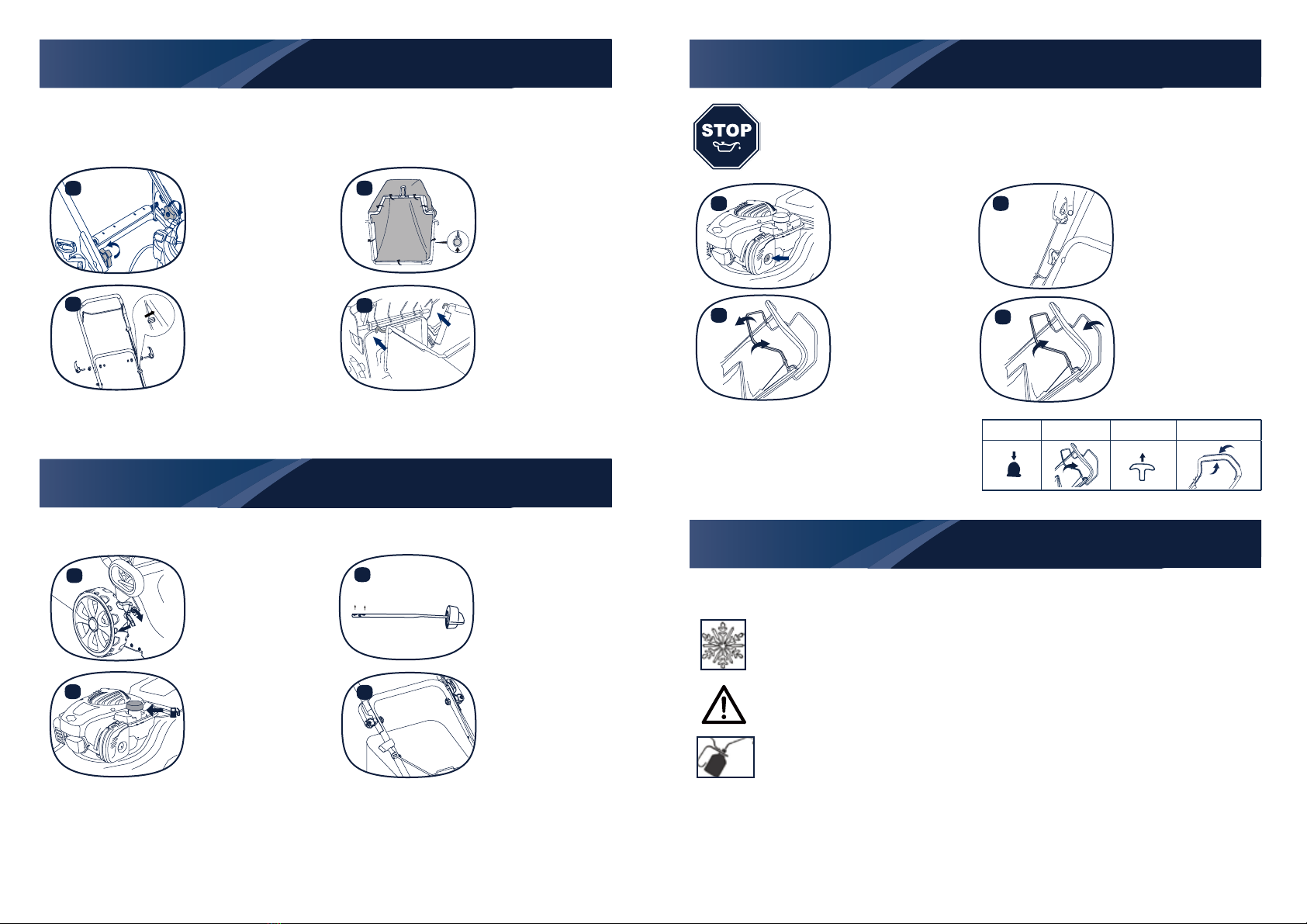

Unpack the lawn mower ensuring all parts are present
2
1
Align the lower handle with
the holes in the deck. Fix the
lower handle using the 4
handle fixing bolts onto
the deck firmly with supplied
wrench. Make sure that
the rope guide is in the
right ,
when you stand behind the mower.
Fix the upper and lower
handle with supplied quick
clamps, ensuring cables are
not twisted. Use the cable
clip to secure the cables to
the handle.
Lift the flap and
hook the grass bag
over the plastic
hooks on the rear
of the mower.
4
3
Attach the grass bag to
the frame by fixing all plastic
hooks.
The engine does not
come with oil. Add
0.5 litres SAE 30 oil.
CHECK THE OIL LEVEL
BEFORE EVERY USE.
Adjust the cutting
height via the lever
located at the rear
right wheel.
Slowly pull out starter
rope & hook it through
the eye of rope guide.
You should ALWAYS
start your mower
from this position.
Add Full
5
8
6
1
2
Fill the petrol tank with 0.8l
of normal 95 Octane petrol
(standard unleaded) using
a funnel and measuring jug.
7
ASSEMBLE
PREPARE
Note: See manual for details of mulching
function and side discharge operation.
