High power Tungsten-
Halogen Light Source
- ASBN-W-050 / ASBN-W075 -
- ASBN-W100 / ASBN-W150 -
Operation Manual

Spectral Products
Spectrometers ·Spectrophotometers ·Color Instruments ·Spectrographs ·Monochromators
111 Highland Drive · Putnam, CT · 06260 · USA
PHONE [phone]· FAX [phone]
http://www.spectralproducts.com
Important Safety Notices
1. Never look directly into the light beam, including through the cooling fan
while light is on, as this can cause eye damage.
2. Do not remove or modify any installed safety device on this equipment. Doing
so will void your warranty and create an unsafe operating environment.
3. Do not use the unit if it is damaged in any way. Contact your dealer for repair
or replacement information.
Warranty and Liability
This SP’s product is warranted against defects in material and workmanship for a
period of one year from the date of shipment. During the warranty period, Spectral
Products will, without charge, repair or replace, at its discretion, the defective product or
component parts.
For warranty service or repair, this product must be returned to a service facility
designated by Spectral Products (SP). For products returned under warranty, the Buyer
shall prepay shipping charges (including shipping charges, duties, and taxes for products
returned to SP from another country), and SP will pay for shipping charges to return the
product to the Buyer.
This warranty does not apply in the event of misuse or abuse of the product or as a
result of unauthorized alterations, modifications or repairs, if the serial number is altered,
defaced or removed, the improper or inadequate maintenance by the Buyer, Buyer-
supplied software or interfacing, or improper site preparation or maintenance. No other
warranty is expressed or implied. SP shall not be liable for any consequential damages,
including without limitation, damages resulting from loss of use, as permitted by law.

Spectral Products
Spectrometers ·Spectrophotometers ·Color Instruments ·Spectrographs ·Monochromators
111 Highland Drive · Putnam, CT · 06260 · USA
PHONE [phone]· FAX [phone]
http://www.spectralproducts.com
Specification
The following tables provide information on our high-power tungsten-halogen light
sources.
Overview
Mount
Tapered flange, adjustable, Post mounting for standalone operation
Housing
Air cooled
w/ focusable fused silica singlet collection lens, 1” size
w/ focusable Al coating mirror, 1” size
Dimension:
Output type
Collimated (C) : Connection Flange (right fig)
A: 1.0” (25.4mm),
B: 0.875” (22.2mm),
C: 0.1” (2.54mm),
Accuracy: ±0.005”
Fiber coupling (F) : SMA905 or FC
Electric
Electric
Power
Input
Input: 85-264 VAC, 47-63Hz
Inrush Current: 30A/100V, 40A/200V
Over-voltage protection: Clamp, 115-135%
Current limit: 105-150% typically, self-reset fold back
Safety: UL/TUV/CE
Operation Temperature: 0 to 50 ºC
Electric
Power
Output
VDC: 12V (50-100W), 24V (150W)
Max. Current: 12.5A (50-100W), 8.4A (150W)
Ripple/Noise:100mV Peak to Peak, typically.
Regulation: +/-0.5% typically

Spectral Products
Spectrometers ·Spectrophotometers ·Color Instruments ·Spectrographs ·Monochromators
111 Highland Drive · Putnam, CT · 06260 · USA
PHONE [phone]· FAX [phone]
http://www.spectralproducts.com
Component
Optics
Lens
Fiber
coupling
1” UV grade fused silica (quartz) bi-convex lens,
R=23.9mm or 21.4mm, f=25.0mm (nominal), F# in the
housing = ~1.97
Collimated
1” UV grade fused silica (quartz) plano-convex lens,
R=18.0mm, f=35.0mm (nominal), F# in the housing =
~1.38 (Effective: ~1.84)
Mirror
1.0” UV protected Al coating mirror, f=12.5mm
Lamp
50W
Filament size: 2.5mm x 4.2mm
Light Output: 900 lumens (nominal)
Voltage: 12.0 V (nominal)
Color Temperature: 3000°K
Average Life: 2,000 hours (nominal)
75W
Filament size: 1.6mm x 5.0mm
Light Output: 1400 lumens (nominal)
Voltage: 12.0 V (nominal)
Color Temperature: 3000°K
Average Life: 2,000 hours (nominal)
100W-L
Filament size: 2.3mm x 5.2mm
Light Output: 2000 lumens (nominal)
Voltage: 12.0 V (nominal)
Color Temperature: 3000°K
Average Life: 2,000 hours (nominal)
100W-H
Filament size: 3.0mm x 5.3mm
Light Output: 3000 lumens (nominal)
Voltage: 12.0 V (nominal)
Color Temperature: 3400°K
Average Life: 50 hours (nominal)
150W-L
Filament size: 3.0mm x 5.8mm
Light Output: 5000 lumens (nominal)
Voltage: 24.0 V (nominal)
Color Temperature: 3200°K
Average Life: 200 hours (nominal)
150W-H
Filament size: 3.1mm x 6.2mm
Light Output: 6000 lumens (nominal)
Voltage: 24.0 V (nominal)
Color Temperature: 3400°K
Average Life: 50 hours (nominal)

Spectral Products
Spectrometers ·Spectrophotometers ·Color Instruments ·Spectrographs ·Monochromators
111 Highland Drive · Putnam, CT · 06260 · USA
PHONE [phone]· FAX [phone]
http://www.spectralproducts.com
Spectrum
The Tungsten-halogen light source is a well known near black body radiation
source. Its spectrum is also very similar with those of black body radiation.
The envelope of tungsten-halogen lamps is made of quart. Quartz transmittance,
therefore, needs to be considered.

Spectral Products
Spectrometers ·Spectrophotometers ·Color Instruments ·Spectrographs ·Monochromators
111 Highland Drive · Putnam, CT · 06260 · USA
PHONE [phone]· FAX [phone]
http://www.spectralproducts.com

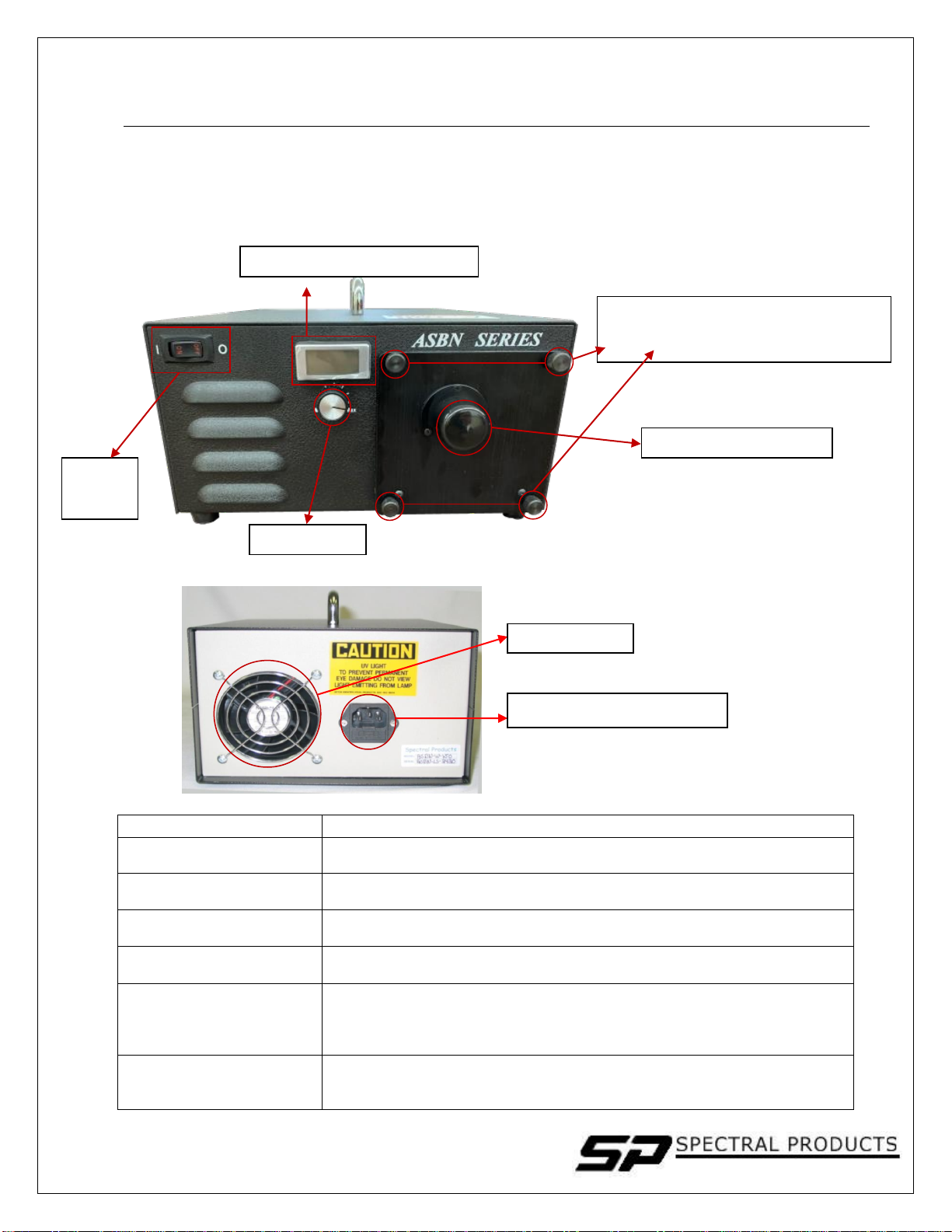

Operation
[Front]
[Back]
Component
Description
Power terminal input
Connect power cable to provide voltage to our high-power tungsten-
halogen light source.
Power switch
Turn on to supply power to the tungsten-halogen lamp. The RED light
illuminates when this switch is in the “ON”position.
Fuse
Contains the fuse to protect the unit against overload:
Fuse type: 5A/250V
Cooling fan
Cools the interior of the light source housing.
Note: Do not look directly into the light beam through this fan.
Driving Voltage
Indicator
For ASBN-W-PV option user:
Show the current percentage of the designed driving voltage. The
designed driving voltage of 50-100W lamps is 12V and that of 150W is
24V. It varies from 0% to 100%.
Control Knob
For ASBN-W-PV option user:
Controls the relative tungsten-halogen driving voltage from ~0% (min) to
~100% (max).
Power terminal Input & Fuse
Cooling Fan
Power
Switch
Collimated Output
Thumb Screws (4)
*Remove thumb screws to replace
bulb
Driving voltage (%) Indicator
Control Knob

Spectral Products
Spectrometers ·Spectrophotometers ·Color Instruments ·Spectrographs ·Monochromators
111 Highland Drive · Putnam, CT · 06260 · USA
PHONE [phone]· FAX [phone]
http://www.spectralproducts.com

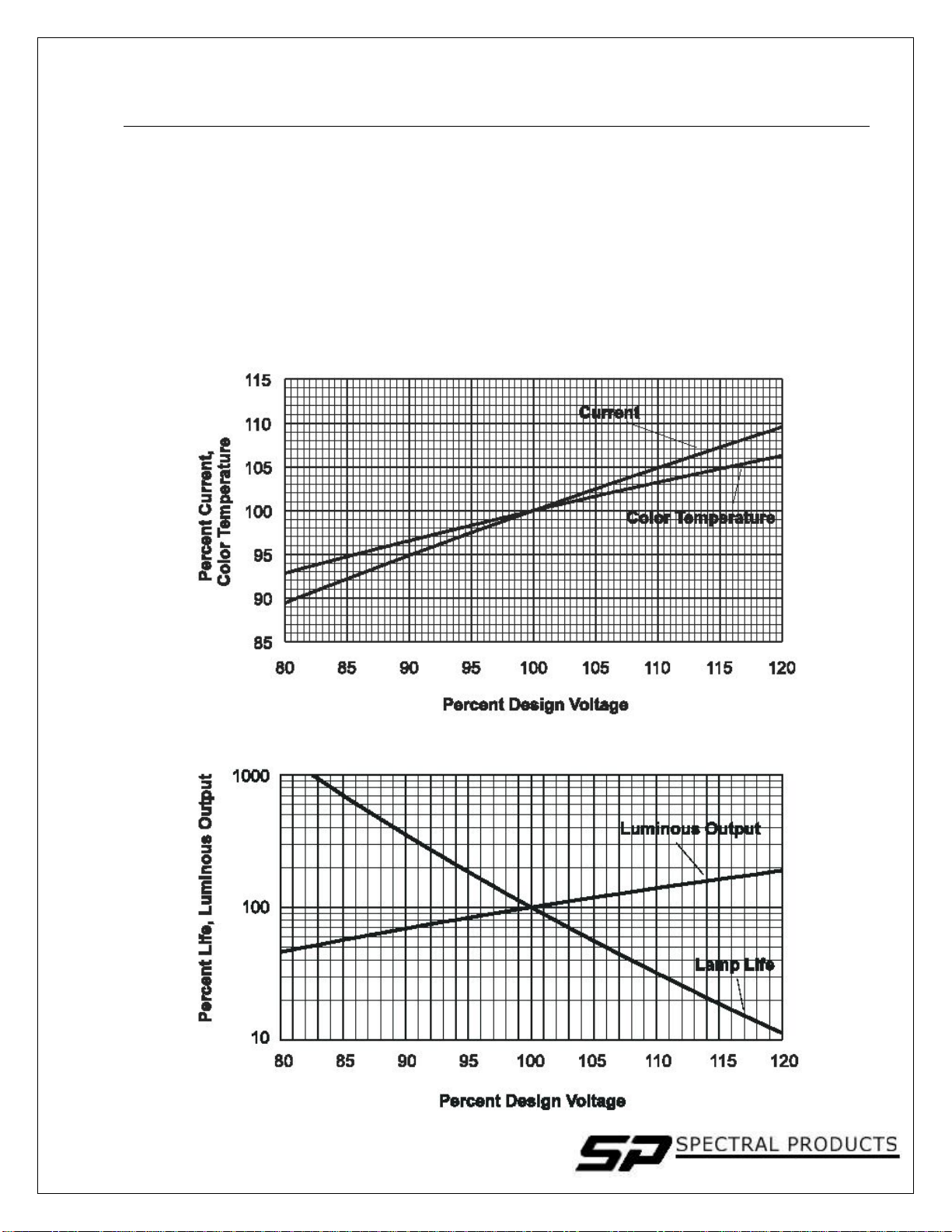

Relationship Curves for ASNM-W-PV
The following curves show the relationship between the driving voltage setting and
the color temperature/current/luminous power/lifetime on/off the lamp.
Color Temperature/Current vs. Driving Voltage:
Life time/Luminous power vs. Driving Voltage:

Spectral Products
Spectrometers ·Spectrophotometers ·Color Instruments ·Spectrographs ·Monochromators
111 Highland Drive · Putnam, CT · 06260 · USA
PHONE [phone]· FAX [phone]
http://www.spectralproducts.com
Bulb Replacement
Replacing the Tungsten-Halogen bulb
1. Turn off all power.
2. Wait until the lamp cools down.
3. Remove (4) Thumb Screws from front panel.
4. Use this panel to slide for access to bulb.
5. Do not handle bulb with bare fingers. Replace the bulb, sitting it squarely in socket.
6. Align the Tungsten-halogen filament position to be in the center line of the optical
axis.
Fiber coupling option

Spectral Products
Spectrometers ·Spectrophotometers ·Color Instruments ·Spectrographs ·Monochromators
111 Highland Drive · Putnam, CT · 06260 · USA
PHONE [phone]· FAX [phone]
http://www.spectralproducts.com
Collimating output option
NOTE: All the optical components were properly aligned by SP. Do not touch any
mounting screws. Adjust the bulb itself when aligning the filament position.
