PAR Light Sensor
PRODUCT MANUAL
Item # 3668I

2
Thank you for purchasing a PAR Light Quantum Sensor
to use with your WatchDog Data Logger. The sensor
approximates the radiation between 400 and 700
nanometers, the most influential wavelengths for optimum
plant growth.
This manual will aid you in placement and mounting of
the sensor. Read it thoroughly to insure proper and
effective use.
CONTEN TS
Use With a Field Scout Light Sensor Reader 3
Use With a WatchDog Station or Logger 3
Installation 4
Cosine Correction 6
Warranty 7
Specifications 3
PAR Light 5

3
The PAR Light Sensor includes a 6 foot data cable; which
is plugged into an available external port on a WatchDog
weather station or data logger. Once the sensor is in a
representative micro-climate, insert the data cable plug
into the WatchDog external channel to log PAR Light
data.
Use With a WatchDog
Station or Logger
Use With a F ield Scout
Light Sensor R eader
You may wish to remove the mounting bracket when us-
ing the PAR sensor with a Field Scout Light Sensor
Reader. If so, loosen the thumbscrews, and save the
parts for reassembly.
Just plug the sensor into the reader, and SET the reader
to “PAR SUN” or “PAR ELEC”. For more details, see the
Field Scout Sensor Reader Manual.
Range 0-2500 µMol/m
2
s, ±5%
Excitation Voltage 3.0-5.0VDC
Sensor Output 0-2.5V
Linear: µMol/m
2
s = V * 1000
Specifications

The sensor can be placed above or within plant canopies,
as well as in growth rooms and greenhouses. Install the
sensor so that it is level. Once the sensor is mounted, use
the adjustment screws to level the sensor so that the
bubble is centered on the level indicator. Mount the
sensor on a 1” to 1¼” mast or pipe using the u-bolt
provided.
Position the sensor in an appropriate area that monitors
the plant conditions. Make sure the PAR sensor is not
being shadowed or blocked by another external sensor.
Contact your cooperative extension agricultural agent for
further suggestions on field placement.
Inspect the sensors frequently to make certain the
sensors are still level and clear of obstructions.
Use SpecWare software to program the WatchDog to log
PAR Light on the desired port. Refer to the SpecWare
Instruction Manual for detailed launch and/or readout
instructions. PAR Light Hours and Daily Light Integral can
be calculated in SpecWare Software under “Reports”.

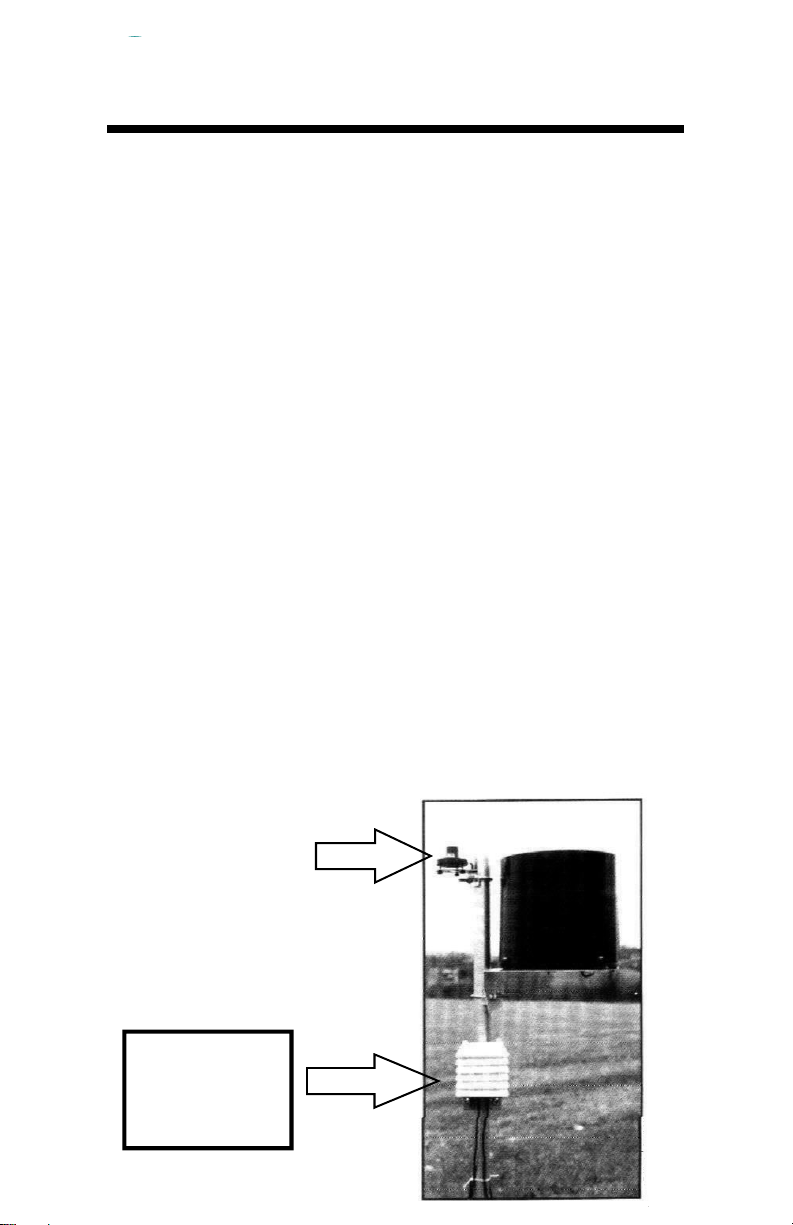

WatchDog Data
Logger inside
mini-radiation
shield
Place PAR Light
sensor in a position
that it will mimic the
sunlight the plant is
getting, while being
within reach of
external WatchDog
data port.
Insta llation

5
Photosynthesis is driven primarily by photos of light with
wavelengths between 400 and 700 nanometers, which is
referred to as Photosynthetically Active Radiation, or PAR
light. Because a quantum is the amount of energy pos-
sessed by a photon, PAR light is sometimes labeled
quantum light. The intensity of PAR light is referred to as
Photosynthetic Photon Flux Density (PPFD), which is
measured in units of µmol m
-2
s
-1
(the number of photons,
in units of micromoles, striking an area one meter square
each second). Quantum Light sensors are calibrated to
display PPFD.
The chart below displays the spectral response of the
Quantum Light sensor
PAR Light
NOTE: When measuring under fluorescent lights values may
vary because fluorescent lights flicker on and off 100 or 120
times per second. The sensor value depends on the precise
instant when the reading is taken. Because the values are aver-
aged, the variation is usually apparent only when 1 minute (and
to a lesser extent, 5 minute) intervals are selected. When re-
cording longer intervals, or when using the FieldScout External
Light Sensor Meter (Item #3415FX), the effect is generally not
noticeable.

6
Because the detected light intensity is dependent on the
angle of the incoming rays, the sensor must be construct-
ed to minimize this error. This is called cosine correction
because the radiant intensity of the incident light is de-
pendent on the cosine of the angle between the sun and
an imaginary vertical line extending from the ground. The
PAR light sensor is designed to give accurate readings
over a wide range of solar position. This is accomplished
by recessing the photodiode and building a protective dif-
fuser that scatters the light in such a way that the sensor

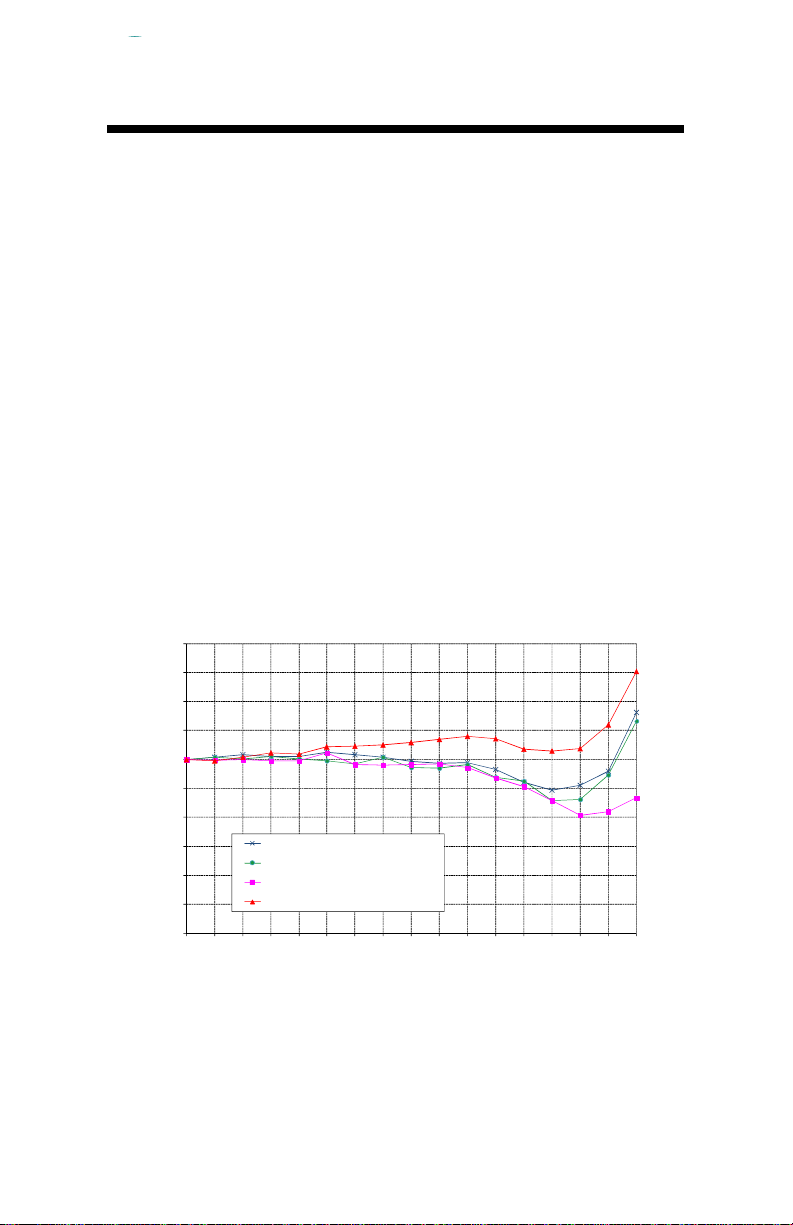

output is accurate. The following chart shows the cosine
response error as a function of the solar angle. This error
compares favorably with other commercially available
sensors.
Cosine Correction
-30.00
-25.00
-20.00
-15.00
-10.00
-5.00
0.00
5.00
10.00
15.00
20.00
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80
Error %
Zenith Angle
Cosine Error for Different Light Sensors
Spectrum Solar Radiation Sensor
Spectrum PAR Light Sensor
Competitive Sensor A
Competitive Sensor B

7
This product is warranted to be free from defects in material or
workmanship for one year from the date of purchase. During
the warranty period Spectrum will, at its option, either repair or
replace products that prove to be defective. This warranty does
not cover damage due to improper installation or use, lightning,
negligence, accident, or unauthorized modifications, or to inci-
dental or consequential damages beyond the Spectrum prod-
uct. Before returning a failed unit, you must obtain a Returned
Materials Authorization (RMA) from Spectrum. Spectrum is not
responsible for any package that is returned without a valid
RMA number or for the loss of the package by any shipping
company.
Warr an ty

3600 Thayer Ct.
Aurora, IL 60504
[phone] or [phone]
Fax [phone]
E-Mail: [email protected]
www.specmeters.com
R 05/15
