100 years. It’s a long time for any company to be at the forefront of an industry. It’s given us a long time to refine our craft, down to the smallest
detail. For more than a century, Speed Queen has built a legacy on providing proven premium quality laundry equipment that stands up to any
challenge. We make no compromises in performance. We refuse to be outdone in reliability and efficiency. And our commitment to quality is
matched only by our commitment to you.
The result is the most reliable machine in the industry. We believe that strength comes from within. That’s why every technical feature and
every component of a Speed Queen machine is built specifically for the commercial environment. Our world-class test lab rigorously pushes
our products far beyond the conditions they’re likely to ever face. We work hard at every point of our manufacturing process to ensure that our
machines reflect that belief.
MANUAL MACHINES PROVIDE:
Uses less energy, saves money and helps protect the environment
Water use as low as 13.9 (52.6) per cycle to reduce operating costs.
Efficient dryer heating with 25,000 BTU (gas models) and 5,350 Watts (electric models) provide fast drying and lower operating costs.
 Multi-cycle free wheeling timer knob is user friendly free for start and cycle selections.
BUILT FOR RELIABLE PERFORMANCE.
TOP LOAD WASHER

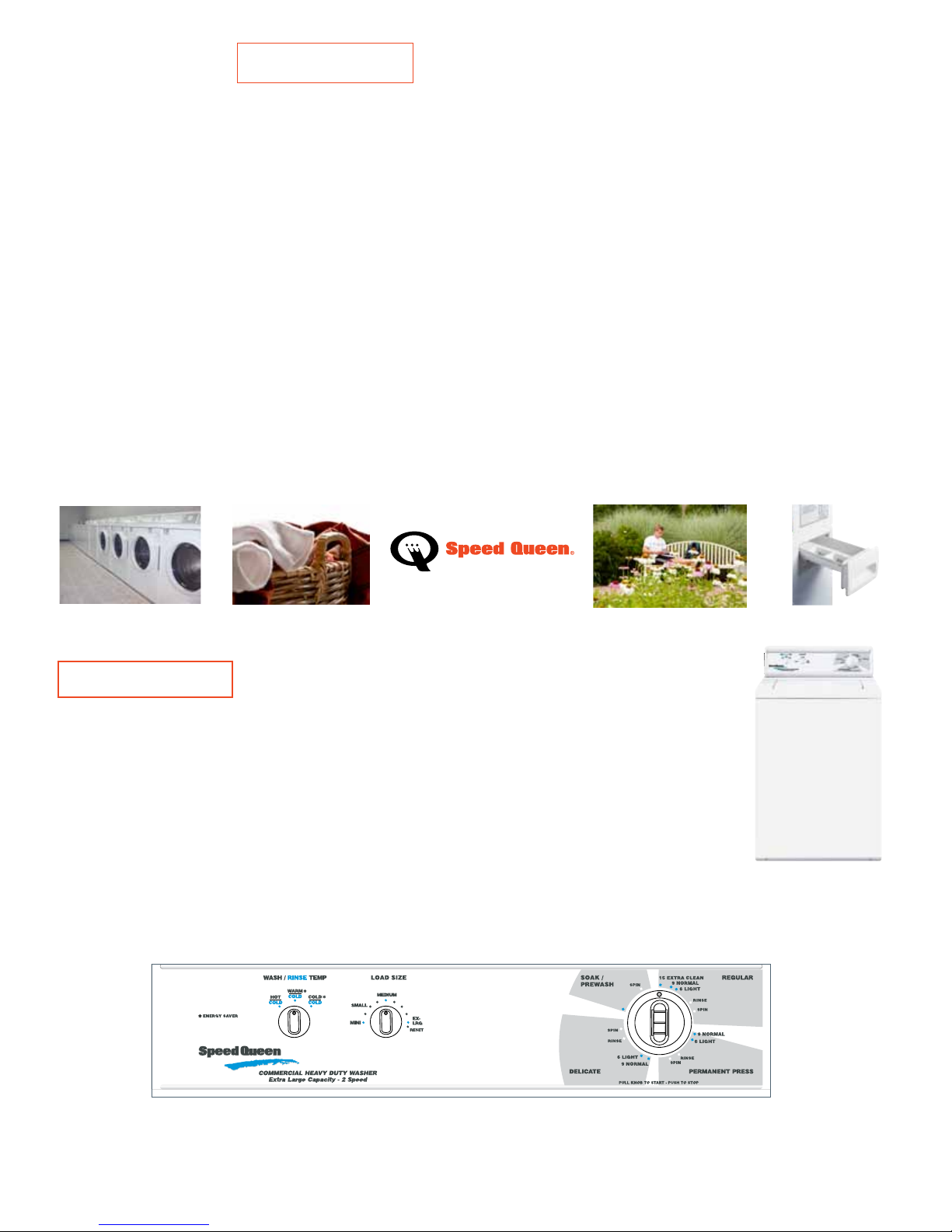

Speed Queen top load washers offer customer conveniences, quality components and a variety of different
control options and activation combinations allowing you to tailor your laundry room to fit your needs.
FEATURES
HIGH SPEED EXTRACT|710 RPM final spin to maximize moisture removal from clothes.
AUTOMATIC BALANCING SUSPENSION SYSTEM|Rear self-leveling legs maximize smooth and quiet
operation on all floor types.
DURABLE STAINLESS STEEL WASH TUB|Comes with a lifetime warranty, and actually becomes smoother with
each use, so it won’t pill, snag or fray clothes.

The Speed Queen stack dryer offers the same great features as the single load dryer. Two commercial dryers in the
space of one, both operating independently, including independent controls for optimum usage. Available with see-
through or solid door models. (Solid door is reversible).

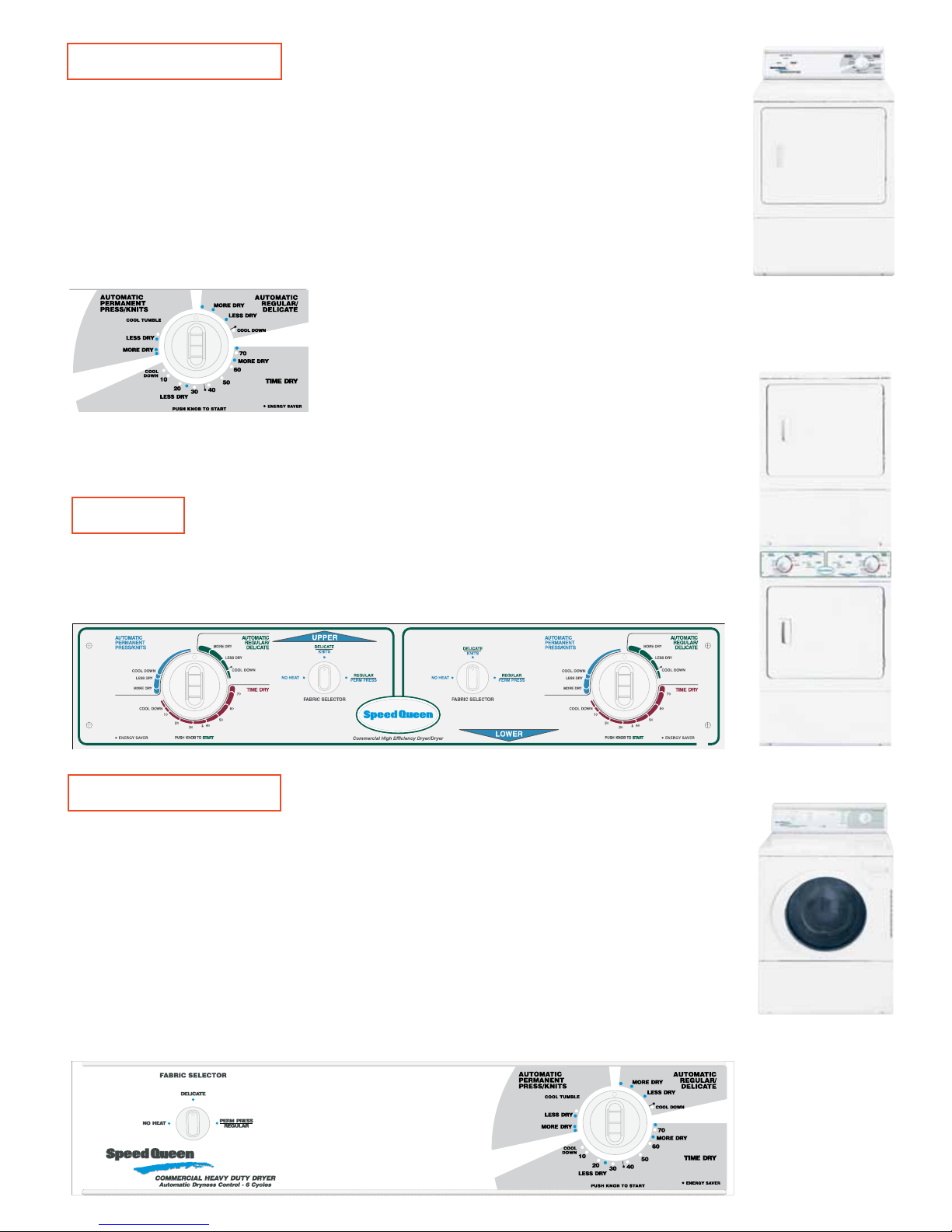

Speed Queen’s front control dryer, defined by its simplicity and its performance, provides everything you need to get
the job done – and nothing you don’t.
Speed Queen’s single load dryers combine heavy-duty construction with reliable operation proven to stand the test
of time. They’re designed with less moving parts for one reason: so you’ll face fewer maintenance problems and less
wear and tear down the road. Our cabinet design maintains the perfect balance of heat, airflow and tumble action for
optimal performance and efficiency.
FEATURES
SINGLE LOAD DRYER
SUPERIOR DRYING CONVENIENCE|With a 2.06 sq. . (1914
cm²) door opening, making it the widest in the industry, Speed Queen dryers
offer the convenience of easy loading and unloading.
EFFICIENT DRYER HEATING|With 25,000 BTU (gas models) and up
to 5,350 Was (electric models), Speed Queen dryers offer some of the fastest
drying times in the industry.
UPFRONT LINT FILTER|Easy to clean and secured.
REVERSIBLE DOOR (SOLID DOORS ONLY)|For installation
flexibility.
STACK DRYER
FRONT LOAD WASHER
The Speed Queen freestanding front load washers are constructed from the highest-quality materials. Ultra high
efficiency saves energy and water.
FEATURES
HIGH SPEED EXTRACT|1000 RPM final spin exerts 300 G-Force to maximize moisture removal from clothes.
LARGE DOOR OPENING|With heavy-duty stainless steel 10" (25.4 cm) hinge for easy loading and unloading of clothes.
DURABLE STAINLESS STEEL WASH TUB|Comes with a lifetime warranty, and actually becomes smoother with each
use, so it won’t pill, snag or fray clothes.
MULTI-COMPARTMENT SUPPLY DISPENSER|Automatically adds detergent, bleach and soener.

© 2012 Alliance Laundry Systems LLC AM12-0060R1 www.speedqueen.com
Top Load
Washers Single Load Dryers Stack Dryers Front Load Washers
LWN311PP, LWN311SP, LWN311WP
LWN412SP, LWS05NW
Electric:
Gas:
LES17AWF
LGS17AWF
Electric:
Gas:
KES17AWF
KGS17AWF
Electric:
Gas:
LTSA0AWN
LFNAORS
Basket/Cylinder Volume
cu.. (liters) 3.3 (95) 7.0 (198) 7.0 (198) ea 2.84 (80)
Width - in (mm) 25 5/8" (651) 26 7/8" (683) 26 7/8" (683) 26 7/8" (683)
Depth - in (mm) 28" (711) 28" (711) 28" (711) 28" (711)
Height* - in (mm) 43" (1092) 41 3/8" (1054) 75 1/4" (1911) 43" (1092)
Weight - lb (kg) 180 (82) Electric:
Gas:
140 (64)
145 (66)
Electric:
Gas:
240 (109)
250 (113) 230 (105)
Shipping Weight - lb (kg) 195 (88) Electric:
Gas::
155 (68)
160 (73)
Electric:
Gas:
255 (115)
265 (120) 250 (113)
Motor HP (Capacitor Start and
Thermal Protected) 1/2 HP 1/3 HP, 5.5 amps 1/3 HP, 5.5 amps 1 HP, 750 W
Water Consumption - gal (Liter) 31.4 (118.9) N/A N/A 13.9 (52.6)
Water Factor
gal/³ (Liters/Liter/cycle) 9.4 (1.26) N/A N/A 4.9 (0.65)
Modified Energy Factor
³/kWh/cycle (Liters/kWh/cycle) 1.33 (37.67) N/A N/A 2.04 (57.77)
Average Hot Water Usage
gal (Liter) 4.7 (17.8) N/A N/A 1.74 (6.6)
Water Pressure - psi (bar) Pressure fill 20 to 120 (1.4/8.3) N/A N/A Pressure fill 20 to 120 (1.4/8.3)
Spin Speed - RPM 710 | 1 sp, 2 sp N/A N/A 500, 650, 1000
Cycle/Temperature
Regular
Perm Press
Delicate
Soak/Prewash
Hot/Cold
Warm/Cold
Cold/Cold
Perm Press/Regular
Delicate
No Heat
Regular
Delicate
Perm Press
No Heat
Regular
Perm Press
Delicate
Rinse & Spin
Spin Only
Hot/Cold Regular
Warm/Warm Delicate
Warm/Cold No Heat
Cold/Cold
Electrical Specifications and
Circuit Requirements
120/60/1-15 amp Electric:
Gas:
120/208/60/1-30 amp
120/240/60/1-30 amp**
120-60/1-15 amp
Electric: 2 ea
Gas: 2 ea
120/208/60/1-30 amp
120/240/60/1-30 amp **
120-60/1-15 amp
Electric:
Gas:
120/208/60/1-30 amp
120/240/60/1-30 amp**
120-60/1-15 amp
Btu per Hour (kcal) N/A 22, 500 (5,670) 25,000 (6300) N/A
Heating Element** N/A 4750W, 208V** | 5350W, 240V 4750W, 208V** | 5350W, 240V N/A
Type of Gas (Gas models only) N/A Factory-equipped natural/mixed
gas convertible to LP gas***
Factory-equipped natural/mixed gas
convertible to LP gas*** N/A
Utility Connections - in (mm) N/A Gas: 3/8" NPT (9.5) Gas: 3/8" NPT (9.5) N/A
Air Outlet Diameter - in (mm) N/A 4" (102) 4" (102) N/A
Exhaust Airflow† - cfm (liters/
sec)
N/A 220 (105) 220 (105) N/A
Maximum Exhaust Static Back
Pressure
N/A 0.6" W.C. 0.6" W.C. N/A
Agency Approval cULus
cCSAus
Electric:
Gas:
cULus
cCSAus
Electric:
Gas:
cULus
CSA Star cULus
Activation Manual Manual Manual Manual
Top and Lid Finish Porcelain Porcelain N/A Porcelain
Colors White White White White
Door Type N/A Solid Solid, Window Window
*Heights may vary slightly depending on leveling adjustments.
** Electric dryers come equipped for 120/240/60/1 operation. They can be field converted to operate on 120/208/60/1 with optional 61928 conversion kit.
Gas dryers can be field converted for operation on LP gas with optional 458P3 conversion kit.
*** IMPORTANT: Any product revisions or conversions must be made by the Manufacturer’s Authorized Dealers, Distributors, or local service personnel.
† Measured at point of exit from dryer.
For the most accurate information, the installation guide should be used for all design and construction purposes. Due to continuous product improvements, design and specifications subject to change
without notice. The quality management system of Alliance Laundry Systems’ Ripon facility has been registered to ISO 9001:2008.
Printed in the U.S.A.
©Copyright 2012 Alliance Laundry Systems LLC
MANUAL CONTROL COMMERCIAL WASHER & DRYER SPECIFICATIONS
