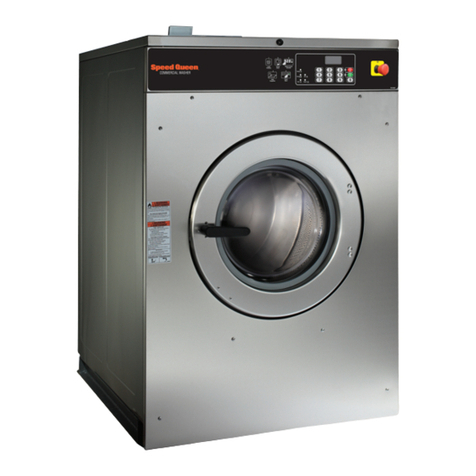

Speed Queen SCN060G2 Installation instructions

©Copyright 2011 Alliance Laundry Systems LLC AO11-0679
FEATURES & BENEFITS
• Advancedwaterprotection
alertsownersifthewasher
hasastuckdrainorslow
draincondition,whichhelps
conservewater.
• Ruggeddoorhandleand
newlockmechanismensure
easyopeningandclosing
andreliablelocking—no
moredoorlockerrorcodes.
• Newtriple-lipsealanda
stainlesssteelsleevearound
thetrunnion,deliverthe
strongestlineofdefense
inprotectingthebearings
againstthedamagingeffects
ofmoisture.
• Newfour-compartment
chemicaldispenseradds
chemicalsattherighttime,automaticallysavingstafftime.Thenewdispenser
designeliminatesover-sudsingconditions.
AVAILABLE CONTROLS
Control Description
Quantum Standard Washer Extractor OPL For laundry managers requiring basic manage-
ment options, Quantum Standard comes with four
cycle selections, two water levels and manual
programming. It also offers a maximum extraction
speed of 86 G-force.
Forthemostaccurateinformation,theinstallationguideshouldbeusedforalldesignandconstructionpurposes.
Duetocontinuousproductimprovements,designandspecificationssubjecttochangewithoutnotice.Thequal-
itymanagementsystemofAllianceLaundrySystems’RiponfacilityhasbeenregisteredtoISO#9001:2000.
PRODUCT SPECIFICATIONS
Cabinet Dimensions
Capacity 60 lb
Width 34 1/16”
Depth 42 9/16”
Height 49 7/8”
Cylinder Diameter 30”
Cylinder Depth 22”
Cylinder Volume 9 cu. ft.
Door Opening Size 16 1/4”
Door Bottom to Floor 15”
Speed
Wash Speeds 44 RPM
Extract Speed 469 RPM
Distribution Speed N/A
Extract G-Force 86
Connections
Water Inlet 2 @ 3/4”
Drain Diameter 1 @ 3”
Drain Height To Floor 4 11/16”
Motor
Motor Size 2.7 HP
Electrical Specifications
F 440-480/60/3
Voltage/Hz/Phase
O 208-240/60/3
Voltage/Hz/Phase
Shipping
Net Weight 812 lb
Shipping Weight 854 lb
Shipping Width 38”
Shipping Depth 49”
Shipping Height 59 3/8”
Agency Approvals
Agency Approvals cETLus, CE
ON-PREMISES LAUNDRY HARDMOUNT SCN060G2
