Speedaire 1WC95 Service manual

Speedaire®Permanently Lubricated
Twin Cylinder Air Compressor
Operating Instructions and Parts Manual 1WC95
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or
maintain the product described. Protect yourself and others by observing all safety information. Failure to
comply with instructions could result in personal injury and/or property damage! Retain instructions for
future reference.
Description
Speedaire twin cylinder, direct drive, oil free air compressor
designed for durability and no maintenance. Featuring a 25
gallon tank, high flow air regulator, and a larger air regulat-
ed pressure gauge this unit is for home, farm, and medium
duty industrial use at a 50/50 duty cycle.
Printed in U.S.A.
03465
1001/183/VCPVP
Form 5S4673
F
R
A
N
Ç
A
I
S
E
S
P
A
Ñ
O
L
E
N
G
L
I
S
H

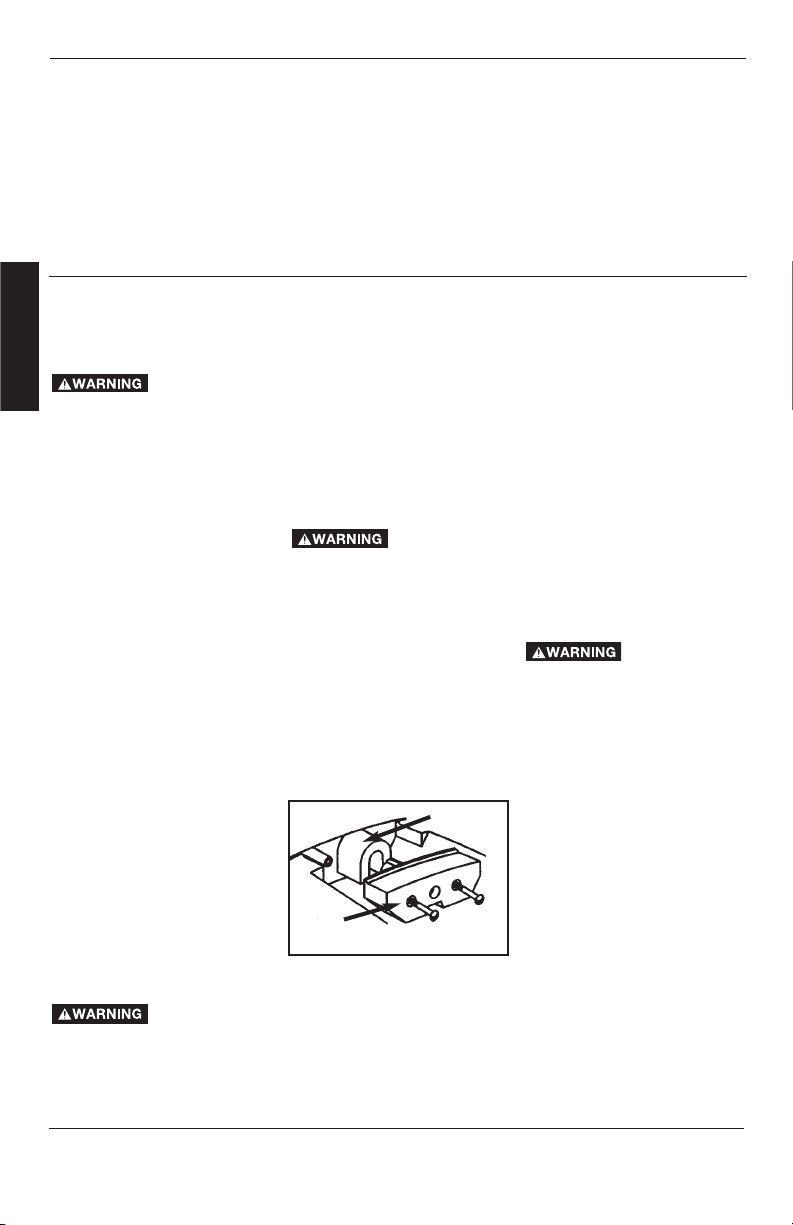

Unpacking
1. Remove all packaging
leaving the air compres-
sor on the pallet.
2. Remove and discard the
(4) screws holding the air
compressor to the pallet.
Screws
It may be
necessary to brace or sup-
port one side of the air
compressor when remov-
ing the pallet because the
air compressor will have
a tendency to tip.
3. Carefully remove the air
compressor from the pal-
let.
After unpacking unit,
inspect carefully for any
damage that may have
occurred during transit.
Check for loose, missing, or
damaged parts. Shipping
damage claim must be filed
with carrier.
Specifications
Horsepower . . . . . . . . . . . . . . . .1.6
Cylinders . . . . . . . . . . . . . . . . . . . . .2
Air Delivery - SCFM @ 90 . . . . . .5.1
Maximum Air Pressure(psi) . . . .175
Tank Size (gallons) . . . . . . . . . . .25
Voltage @ 60 Hz., 1- Phase . . . .120
Amperage (Amps) . . . . . . . . . . . .15
Overall Dimensions
L W H Weight
23” 23” 53” 150 lbs.
D24848

2
Speedaire Operating Instructions and Parts Manual 1WC95
Speedaire®Permanently Lubricated
Twin Cylinder Air Compressor
E
N
G
L
I
S
H
Safety Guidelines -
Definitions
Indicates a
potentially hazardous sit-
uation which, if not
avoided, may result in
minor or moderate
injury.
Indicates a
potentially hazardous
situation which, if not
avoided, could result in
death or serious injury.
Indicates an
imminently hazardous
situation which, if not
avoided, will result in
death or serious injury.
NOTE: Indicates special
instructions, which are
important but not related
to hazards.
IMPORTANT: Indicates fac-
tors concerned with assem-
bly, installation, operation,
or maintenance, which
could result in damage to
the machine or equipment
if ignored.
This manual contains infor-
mation that is important for
you to know and under-
stand. This information
relates to protecting YOUR
SAFETY and PREVENTING
EQUIPMENT PROBLEMS.
To help you recognize this
information, we use the
symbols below. Please read
the manual and pay atten-
tion to these sections.
Important Safety
Instructions
Some dust
created by power sand-
ing, sawing, grinding,
drilling, and other con-
struction activities con-
tains chemicals known
(to the State of
California) to cause can-
cer, birth defects or
other reproductive harm.
Some example of these
chemicals are:
• lead from lead-based
paints
• crystalline silica from
bricks and cement and
other masonry prod-
ucts
• arsenic and chromium
from chemically-treated
lumber
Your risk from these
exposures varies, depend-
ing on how often you do
this type of work. To
reduce your exposure to
these chemicals when
using such tools:
• work in a well ventilat-
ed area
• work with approved
safety equipment
• always wear
MSHA/NIOSH approved,
properly fitting face
mask or respirator.
When using air tools,
basic safety precautions
should always be fol-
lowed to reduce the risk
of personal injury.

3
E
N
G
L
I
S
H
Speedaire Operating Instructions and Parts Manual
Model 1WC95
SAVE THESE INSTRUCTIONS
IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS
INJURY AND PROPERTY DAMAGE. READ AND UNDERSTAND ALL WARNINGS AND OPERAT-
ING INSTRUCTIONS BEFORE USING THIS EQUIPMENT.
RISK OF EXPLOSION OR FIRE
ALWAYS OPERATE THE COMPRESSOR IN A
WELL VENTILATED AREA FREE OF COMBUSTIBLE
MATERIALS, GASOLINE OR SOLVENT VAPORS.
IF SPRAYING FLAMMABLE MATERIALS, LOCATE
COMPRESSOR AT LEAST 20 FEET AWAY FROM
SPRAY AREA. AN ADDITIONAL LENGTH OF HOSE
MAY BE REQUIRED.
STORE FLAMMABLE MATERIALS IN A SECURE
LOCATION AWAY FROM COMPRESSOR.
NEVER PLACE OBJECTS AGAINST OR ON TOP
OF COMPRESSOR. OPERATE COMPRESSOR IN
AN OPEN AREA AT LEAST 12 INCHES AWAY
FROM ANY WALL OR OBSTRUCTION THAT
WOULD RESTRICT THE FLOW OF FRESH AIR TO THE
VENTILATION OPENINGS.
OPERATE COMPRESSOR IN A CLEAN, DRY, WELL
VENTILATED AREA. DO NOT OPERATE UNIT
INDOORS OR IN ANY CONFINED AREA.
ALWAYS REMAIN IN ATTENDANCE WITH THE
PRODUCT WHEN IT IS OPERATING.
ALWAYS DISCONNECT ELECTRICAL POWER BY
MOVING PRESSURE SWITCH LEVER TO THE OFF
POSITION AND DRAIN TANK DAILY OR AFTER
EACH USE.
HOW TO PREVENT IT
IT IS NORMAL FOR ELECTRICAL CONTACTS
WITHIN THE MOTOR AND PRESSURE SWITCH TO
SPARK.
IF ELECTRICAL SPARKS FROM COMPRESSOR
COME INTO CONTACT WITH FLAMMABLE
VAPORS, THEY MAY IGNITE, CAUSING FIRE OR
EXPLOSION.
RESTRICTING ANY OF THE COMPRESSOR VENTI-
LATION OPENINGS WILL CAUSE SERIOUS OVER-
HEATING AND COULD CAUSE FIRE.
UNATTENDED OPERATION OF THIS PRODUCT
COULD RESULT IN PERSONAL INJURY OR PROP-
ERTY DAMAGE. TO REDUCE THE RISK OF FIRE,
DO NOT ALLOW THE COMPRESSOR TO OPER-
ATE UNATTENDED.
WHAT CAN HAPPEN
HAZARD

4
Speedaire Operating Instructions and Parts Manual 1WC95
Speedaire®Permanently Lubricated
Twin Cylinder Air Compressor
E
N
G
L
I
S
H
HAZARD
RISK OF BURSTING
AIR TANK: THE FOLLOWING CONDITIONS COULD LEAD TO A WEAKENING OF THE
TANK, AND RESULT IN A VIOLENT TANK EXPLOSION AND COULD CAUSE PROPERTY
DAMAGE OR SERIOUS INJURY.
HOW TO PREVENT IT
WHAT CAN HAPPEN
DRAIN TANK DAILY OR AFTER EACH USE. IF
TANK DEVELOPS A LEAK, REPLACE IT IMMEDIATE-
LY WITH A NEW TANK OR REPLACE THE ENTIRE
COMPRESSOR.
NEVER DRILL INTO, WELD, OR MAKE ANY MODI-
FICATIONS TO THE TANK OR ITS ATTACHMENTS.
THE TANK IS DESIGNED TO WITHSTAND SPECIFIC
OPERATING PRESSURES. NEVER MAKE ADJUST-
MENTS OR PARTS SUBSTITUTIONS TO ALTER
THE FACTORY SET OPERATING PRESSURES.
FOR ESSENTIAL CONTROL OF AIR PRESSURE,YOU
MUST INSTALL A PRESSURE REGULATOR AND
PRESSURE GAUGE TO THE AIR OUTLET (IF NOT
EQUIPPED) OF YOUR COMPRESSOR. FOLLOW THE
EQUIPMENT MANUFACTURERS RECOMMENDA-
TION AND NEVER EXCEED THE MAXIMUM ALLOW-
ABLE PRESSURE RATING OF ATTACHMENTS.
NEVER USE COMPRESSOR TO INFLATE SMALL
LOW-PRESSURE OBJECTS SUCH AS CHILDREN’S
TOYS, FOOTBALLS, BASKETBALLS, ETC.
1. FAILURE TO PROPERLY DRAIN CON-
DENSED WATER FROM THE TANK, CAUS-
ING RUST AND THINNING OF THE STEEL
TANK.
2. MODIFICATIONS OR ATTEMPTED
REPAIRS TO THE TANK.
3. UNAUTHORIZED MODIFICATIONS TO THE
UNLOADER VALVE, SAFETY VALVE, OR
ANY OTHER COMPONENTS WHICH CON-
TROL TANK PRESSURE.
4. EXCESSIVE VIBRATION CAN WEAKEN
THE AIR TANK AND CAUSE RUPTURE OR
EXPLOSION.
ATTACHMENTS & ACCESSORIES:
EXCEEDING THE PRESSURE RATING OF AIR
TOOLS, SPRAY GUNS, AIR OPERATED ACCES-
SORIES, TIRES AND OTHER INFLATABLES CAN
CAUSE THEM TO EXPLODE OR FLY APART, AND
COULD RESULT IN SERIOUS INJURY.

E
N
G
L
I
S
H
Speedaire Operating Instructions and Parts Manual
Model 1WC95
5
HAZARD
RISK OF ELECTRICAL SHOCK
HOW TO PREVENT IT
WHAT CAN HAPPEN
YOUR AIR COMPRESSOR IS POWERED BY
ELECTRICITY. LIKE ANY OTHER ELECTRICALLY
POWERED DEVICE, IF IT IS NOT USED PROPER-
LY, IT MAY CAUSE ELECTRIC SHOCK.
REPAIRS ATTEMPTED BY UNQUALIFIED PER-
SONNEL CAN RESULT IN SERIOUS INJURY OR
DEATH BY ELECTROCUTION.
ELECTRICAL GROUNDING: FAILURE TO PROVIDE
ADEQUATE GROUNDING TO THIS PRODUCT
COULD RESULT IN SERIOUS INJURY OR DEATH
FROM ELECTROCUTION. SEE GROUNDING
INSTRUCTIONS.
NEVER OPERATE THE COMPRESSOR OUTDOORS
WHEN IT IS RAINING OR IN WET CONDITIONS.
NEVER OPERATE COMPRESSOR WITH PROTEC-
TIVE COVERS REMOVED OR DAMAGED.
ANY ELECTRICAL WIRING OR REPAIRS
REQUIRED ON THIS PRODUCT SHOULD BE PER-
FORMED BY AUTHORIZED SERVICE CENTER
PERSONNEL IN ACCORDANCE WITH NATIONAL
AND LOCAL ELECTRICAL CODES.
MAKE CERTAIN THAT THE ELECTRICAL CIRCUIT
TO WHICH THE COMPRESSOR IS CONNECTED PRO-
VIDES PROPER ELECTRICAL GROUNDING, COR-
RECT VOLTAGE AND ADEQUATE FUSE
PROTECTION.
HAZARD
RISK FROM FLYING OBJECTS
HOW TO PREVENT IT
WHAT CAN HAPPEN
THE COMPRESSED AIR STREAM CAN CAUSE
SOFT TISSUE DAMAGE TO EXPOSED SKIN AND
CAN PROPEL DIRT, CHIPS, LOOSE PARTICLES
AND SMALL OBJECTS AT HIGH SPEED, RESULT-
ING IN PROPERTY DAMAGE OR PERSONAL
INJURY.
ALWAYS WEAR ANSI Z87.1 APPROVED SAFETY
GLASSES WITH SIDE SHIELDS WHEN USING THE
COMPRESSOR.
NEVER POINT ANY NOZZLE OR SPRAYER
TOWARD ANY PART OF THE BODY OR AT OTHER
PEOPLE OR ANIMALS.
ALWAYS TURN THE COMPRESSOR OFF AND
BLEED PRESSURE FROM THE AIR HOSE AND
TANK BEFORE ATTEMPTING MAINTENANCE,
ATTACHING TOOLS, OR ACCESSORIES.

Speedaire Operating Instructions and Parts Manual 1WC95
Speedaire®Permanently Lubricated
Twin Cylinder Air Compressor
E
N
G
L
I
S
H
6
HAZARD
HOW TO PREVENT IT
WHAT CAN HAPPEN
RISK TO BREATHING
AIR OBTAINED DIRECTLY FROM THE COMPRES-
SOR SHOULD NEVER BE USED TO SUPPLY AIR
FOR HUMAN CONSUMPTION. IN ORDER TO USE
AIR PRODUCED BY THIS COMPRESSOR FOR
BREATHING, SUITABLE FILTERS AND IN-LINE
SAFETY EQUIPMENT MUST BE PROPERLY
INSTALLED. IN-LINE FILTERS AND SAFETY
EQUIPMENT USED IN CONJUNCTION WITH THE
COMPRESSOR MUST BE CAPABLE OF TREATING
AIR TO ALL APPLICABLE LOCAL AND FEDERAL
CODES PRIOR TO HUMAN CONSUMPTION.
WORK IN AN AREA WITH GOOD CROSS-VENTI-
LATION. READ AND FOLLOW THE SAFETY
INSTRUCTIONS PROVIDED ON THE LABEL OR
SAFETY DATA SHEETS FOR THE MATERIAL YOU
ARE SPRAYING. USE A NIOSH/MSHA
APPROVED RESPIRATOR DESIGNED FOR USE
WITH YOUR SPECIFIC APPLICATION.
THE COMPRESSED AIR DIRECTLY FROM YOUR
COMPRESSOR IS NOT SAFE FOR BREATHING.
THE AIR STREAM MAY CONTAIN CARBON
MONOXIDE, TOXIC VAPORS, OR SOLID PARTI-
CLES FROM THE TANK. BREATHING THESE CON-
TAMINANTS CAN CAUSE SERIOUS INJURY OR
DEATH.
SPRAYED MATERIALS SUCH AS PAINT, PAINT
SOLVENTS, PAINT REMOVER, INSECTICIDES, AND
WEED KILLERS, MAY CONTAIN HARMFUL
VAPORS AND POISONS.
HAZARD
HOW TO PREVENT IT
WHAT CAN HAPPEN
RISK OF BURNS
TOUCHING EXPOSED METAL, SUCH AS THE
COMPRESSOR HEAD OR OUTLET TUBES, CAN
RESULT IN SERIOUS BURNS.
NEVER TOUCH ANY EXPOSED METAL PARTS
ON COMPRESSOR DURING OR IMMEDIATELY
AFTER OPERATION. COMPRESSOR WILL REMAIN
HOT FOR SEVERAL MINUTES AFTER OPERATION.
DO NOT REACH AROUND PROTECTIVE SHROUDS
OR ATTEMPT MAINTENANCE UNTIL UNIT HAS
BEEN ALLOWED TO COOL.

E
N
G
L
I
S
H
Speedaire Operating Instructions and Parts Manual
Model 1WC95
7
HAZARD
HOW TO PREVENT IT
WHAT CAN HAPPEN
RISK FROM MOVING PARTS
NEVER OPERATE THE COMPRESSOR WITH
GUARDS OR COVERS WHICH ARE DAMAGED OR
REMOVED.
ANY REPAIRS REQUIRED ON THIS PRODUCT
SHOULD BE PERFORMED BY AUTHORIZED
SERVICE CENTER PERSONNEL.
MOVING PARTS SUCH AS THE PULLEY, FLYWHEEL
AND BELT CAN CAUSE SERIOUS INJURY IF THEY
COME INTO CONTACT WITH YOU OR YOUR
CLOTHING.
ATTEMPTING TO OPERATE COMPRESSOR WITH
DAMAGED OR MISSING PARTS OR ATTEMPTING
TO REPAIR COMPRESSOR WITH PROTECTIVE
SHROUDS REMOVED CAN EXPOSE YOU TO MOV-
ING PARTS AND CAN RESULT IN SERIOUS
INJURY.
HAZARD
HOW TO PREVENT IT
WHAT CAN HAPPEN
HAZARD
HOW TO PREVENT IT
WHAT CAN HAPPEN
RISK OF FALLING
A PORTABLE COMPRESSOR CAN FALL FROM A
TABLE, WORKBENCH OR ROOF CAUSING DAM-
AGE TO THE COMPRESSOR AND COULD RESULT
IN SERIOUS INJURY OR DEATH TO THE OPERA-
TOR.
ALWAYS OPERATE COMPRESSOR IN A STABLE
SECURE POSITION TO PREVENT ACCIDENTAL
MOVEMENT OF THE UNIT. NEVER OPERATE
COMPRESSOR ON A ROOF OR OTHER ELEVAT-
ED POSITION. USE ADDITIONAL AIR HOSE TO
REACH HIGH LOCATIONS.
RISK OF PROPERTY DAMAGE WHEN TRANSPORTING COMPRESSOR
OIL CAN LEAK OR SPILL CAUSING FIRE OR
BREATHING HAZARD. SERIOUS INJURY OR DEATH
CAN RESULT. OIL LEAKS WILL DAMAGE CARPET,
PAINT OR OTHER SURFACES IN VEHICLES OR TRAIL-
ERS.
ALWAYS PLACE COMPRESSOR ON A PROTEC-
TIVE MAT WHEN TRANSPORTING TO PROTECT
AGAINST DAMAGE TO VEHICLE FROM LEAKS.
REMOVE COMPRESSOR FROM VEHICLE IMMEDI-
ATELY UPON ARRIVAL AT YOUR DESTINATION.
(Fire, Inhalation, Damage to Vehicle Surfaces)

8
Speedaire Operating Instructions and Parts Manual 1WC95
Speedaire®Permanently Lubricated
Twin Cylinder Air Compressor
E
N
G
L
I
S
H
HAZARD
HOW TO PREVENT IT
WHAT CAN HAPPEN
RISK OF UNSAFE OPERATION
REVIEW AND UNDERSTAND ALL INSTRUC-
TIONS AND WARNINGS IN THIS MANUAL.
BECOME FAMILIAR WITH THE OPERATION
AND CONTROLS OF THE AIR COMPRESSOR.
KEEP OPERATING AREA CLEAR OF ALL PER-
SONS, PETS, AND OBSTACLES.
KEEP CHILDREN AWAY FROM THE AIR COM-
PRESSOR AT ALL TIMES.
DO NOT OPERATE THE PRODUCT WHEN
FATIGUED OR UNDER THE INFLUENCE OF
ALCOHOL OR DRUGS. STAY ALERT AT ALL
TIMES.
NEVER DEFEAT THE SAFETY FEATURES OF
THIS PRODUCT.
EQUIP AREA OF OPERATION WITH A FIRE
EXTINGUISHER.
DO NOT OPERATE MACHINE WITH MISSING,
BROKEN, OR UNAUTHORIZED PARTS.
UNSAFE OPERATION OF YOUR AIR COMPRESSOR
COULD LEAD TO SERIOUS INJURY OR DEATH TO
YOU OR OTHERS.

9
E
N
G
L
I
S
H
Speedaire Operating Instructions and Parts Manual
Model 1WC95
GROUNDING
INSTRUCTIONS
RISK OF
ELECTRICAL SHOCK. In
the event of a short cir-
cuit, grounding reduces
the risk of shock by pro-
viding an escape wire for
the electric current. This
air compressor must be
properly grounded.
The portable air compressor
is equipped with a cord hav-
ing a grounding wire with
an appropriate grounding
plug (see following illustra-
tions). The plug must be
used with an outlet that has
been installed and ground-
ed in accordance with all
local codes and ordinances.
1. The cord set and plug
with this unit contains a
grounding pin. This plug
MUST be used with a
grounded outlet.
IMPORTANT: The outlet
being used must be installed
and grounded in accordance
with all local codes and
ordinances.
2. Make sure the outlet
being used has the same
configuration as the
grounded plug. DO NOT
USE AN ADAPTER. See
illustration.
3. Inspect the plug and cord
before each use. Do not
use if there are signs of
damage.
Installation
LOCATION OF THE AIR
COMPRESSOR
Locate the air compressor in
a clean, dry and well venti-
lated area. The air compres-
sor should be located at
least 12" away from the wall
or other obstructions that
will interfere with the flow
of air. The air compressor
pump and shroud are
designed to allow for proper
cooling. The ventilation
openings on the compressor
are necessary to maintain
proper operating tempera-
ture. Do not place rags or
other containers on or near
these openings. The air filter
must be kept clear of
obstructions which could
reduce air flow to the air
compressor.
Assembly
ASSEMBLE WHEELS
It will be
necessary to brace or
support one side of the
compressor when
installing the wheels
because the compressor
will have a tendency to
tip.
1. Attach wheels with
shoulder bolts and nuts
as shown.
2. Tighten securely.
Rubber
Feet
Screw
Nut
Wheel Shoulder
Bolt
TOOLS REQUIRED FOR
ASSEMBLY
1 - 9/16" socket or open end
wrench
1 - 1/2" socket or open end
wrench
CONTENTS OF CARTON
1 -Air Compressor
2 -Wheels
2 -3/8-16 Shoulder Bolts
2 -3/8-16 Hex Nuts
2 -Rubber Bumpers
2 -1/4-20 x .75” Screws
NOTE: The compressor will
sit level if the wheels are
properly installed.
The wheels
and handle
do not provide adequate
clearance, stability or
support for pulling the
unit up and down stairs
or steps. The unit must be
lifted, or pushed up a
ramp.
ASSEMBLE RUBBER FEET
1. Attach rubber feet with
the screws provided as
shown in previous figure.
2. Tighten securely.

10
4. If these grounding
instructions are not com-
pletely understood, or if
in doubt as to whether
the compressor is proper-
ly grounded, have the
installation checked by a
qualified electrician.
IMPROPER
GROUNDING CAN RESULT
IN ELECTRICAL SHOCK.
Do not modify the plug
provided. If it does not
fit the available outlet, a
correct outlet should be
installed by a qualified
electrician.
Repairs to the cord set or
plug MUST be made by a
qualified electrician.
Speedaire Operating Instructions and Parts Manual 1WC95
Speedaire®Permanently Lubricated
Twin Cylinder Air Compressor
E
N
G
L
I
S
H
Grounding Pin Grounded
Outlets
Plug
VOLTAGE AND CIRCUIT
PROTECTION
Refer to the specificaitons
chart for the voltage and
minimum branch circuit
requirements.
Certain air compressors can
be operated on a 15 amp
circuit if the following con-
ditions are met.
1. Voltage supply through
branch circuit is 15 amps.
2. Circuit is not used to sup-
ply any other electrical
needs (lights, appliances,
etc.).
3. Extension cords comply
with specifications.
4. Circuit is equipped with a
15 amp circuit breaker or
15 amp time delay fuse.
NOTE: If compressor is
connected to a circuit pro-
tected by fuses, use only
time delay fuses. Time
delay fuses should be
marked “D” in Canada
and “T” in the US.
EXTENSION CORDS
Using extension cords is not
recommended. The use of
extension cords will cause
voltage to drop resulting in
power loss to the motor and
overheating.
Instead of using extension
cords attach extra air hoses
to each other starting at the
air outlet.
If an extension cord must be
used, be sure it is:
• a 3-wire extension cord
that has a 3-blade
grounding plug, and a 3-
slot receptacle that will
accept the plug on the
product
• in good condition
• no longer than 50 feet
• 12 gauge (AWG) or larger.
(Wire size increases as
gauge number decreases.
10 AWG and 8 AWG may
also be used. DO NOT
USE 14 OR 16 AWG.)
If any of the above condi-
tions cannot be met, or if
operation of the compressor
repeatedly causes interrup-
tion of the power, it may be
necessary to operate it from
a 20 amp circuit. It is not
necessary to change the cord
set.
Operation
DESCRIPTION OF
OPERATION
Become familiar with these
controls before operating
the unit.
On/Auto/Off Switch: Turn
this switch ON to provide
automatic power to the
pressure switch and OFF to
remove power at the end of
each use.
Pressure Switch: The pres-
sure switch automatically
starts the motor when the
air tank pressure drops
below the factory set “cut-
in” pressure. It stops the
motor when the air tank
pressure reaches the factory
set “cut-out” pressure.

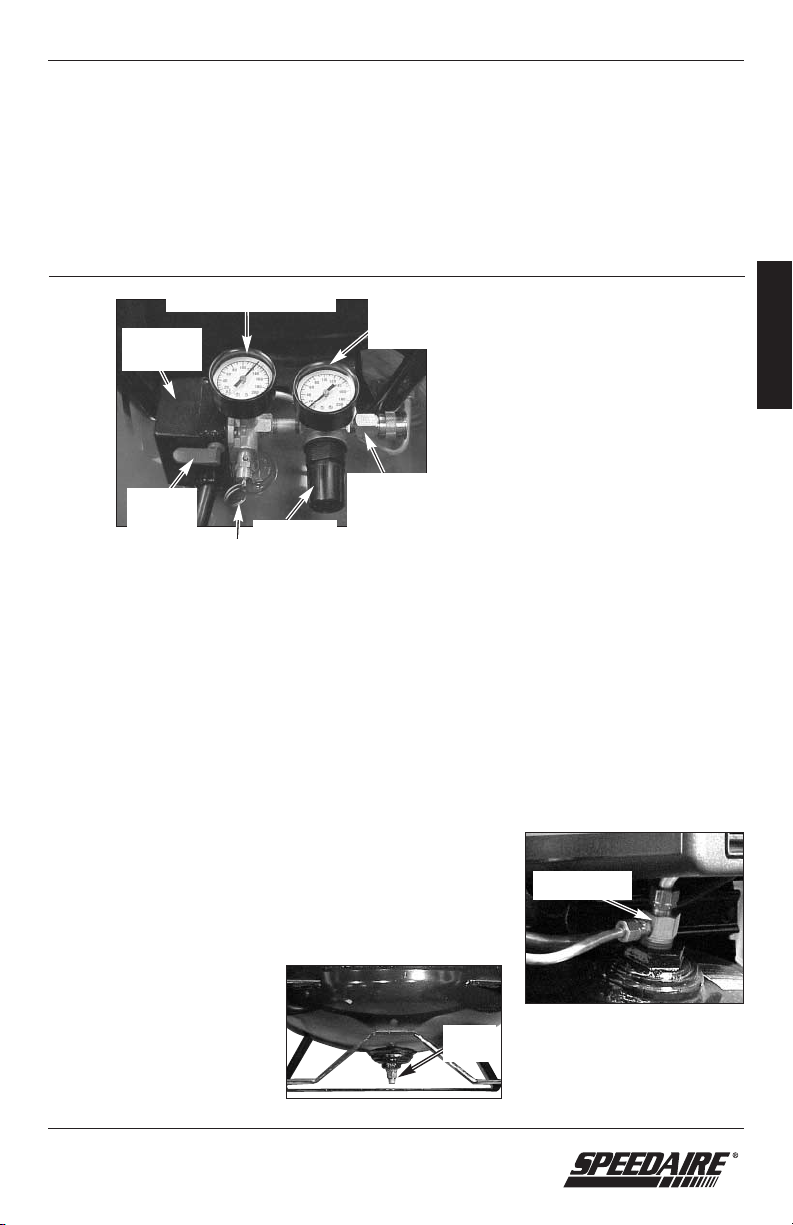

KNOW YOUR AIR
COMPRESSOR
READ THIS OWNER’S MANU-
AL AND SAFETY RULES
BEFORE OPERATING YOUR
UNIT. Compare the illustra-
tions with your unit to famil-
iarize yourself with the
location of various controls
and adjustments. Save this
manual for future reference.
Installation
(Continued)

11
E
N
G
L
I
S
H
Speedaire Operating Instructions and Parts Manual
Model 1WC95
to increase pressure and
counterclockwise to
decrease pressure. When
the desired pressure is
reached push knob in to
lock in place.
Universal Quick-Connect
Body: The universal quick-
connect body accepts the
three most popular styles of
quick-connect plugs:
Industrial, automotive (Tru-
flate), and ARO. One hand
push-to-connect operation
makes connections simple
and easy.
Drain Valve: The drain
valve is located at the base
of the air tank and is used
to drain condensation at
the end of each use.
Cooling System (not
shown): This compressor
contains an advanced design
cooling system. At the heart
of this cooling system is an
engineered fan. It is perfect-
ly normal for this fan to
blow air through the vent
holes in large amounts. You
know that the cooling sys-
tem is working when air is
being expelled.
Air Compressor Pump
(not shown): Compresses
air into the air tank.
Working air is not available
until the compressor has
raised the air tank pressure
above that required at the
air outlet.
Check Valve: When the air
compressor is operating, the
check valve is “open”, allow-
ing compressed air to enter
the air tank. When the air
compressor reaches “cut-
out” pressure, the check
valve “closes”, allowing air
pressure to remain inside the
air tank.
Safety Valve: If the pres-
sure switch does not shut
off the air compressor at its
“cut-out” pressure setting,
the safety valve will protect
against high pressure by
“popping out” at its factory
set pressure (slightly higher
than the pressure switch
“cut-out” setting).
Outlet Pressure Gauge:
The outlet pressure gauge
indicates the air pressure
available at the outlet side
of the regulator. This pres-
sure is controlled by the
regulator and is always less
than or equal to the tank
pressure.
Tank Pressure Gauge:
The tank pressure gauge
indicates the reserve air
pressure in the tank.
Regulator: Controls the air
pressure shown on the out-
let pressure gauge. Pull the
knob out and turn clockwise
Drain
Valve
Safety Valve
On/Auto/
Off
Switch Regulator
Outlet
Pressure
Gauge
Tank Pressure Gauge
Pressure
Switch
Universal
Quick-
Connect
Body
Check Valve
Operation
(Continued)

12
Speedaire Operating Instructions and Parts Manual 1WC95
Speedaire®Permanently Lubricated
Twin Cylinder Air Compressor
E
N
G
L
I
S
H
Pressure Release Valve:
The pressure release valve
located on the side of the
pressure switch, is designed
to automatically release
compressed air from the
compressor head and the
outlet tube when the air
compressor reaches “cut-
out” pressure or is shut off.
The pressure release valve
allows the motor to restart
freely. When the motor
stops running, air will be
heard escaping from this
valve for a few seconds. No
air should be heard leaking
when the motor is running
or after the unit reaches
“cut-out” pressure.
Motor Overload Protector
(not shown): The motor
has an automatic reset ther-
mal overload protector. If
the motor overheats for any
reason, the overload protec-
tor will shut off the motor.
The motor must be allowed
to cool down before restart-
ing. The compressor will
automatically restart after
the motor cools.
HOW TO USE YOUR
UNIT
HOW TO STOP:
Set the On/Auto/Off lever
to “OFF”.
Pressure
Release
Valve
BEFORE EACH START-UP:
1. Place On/Auto/Off lever
to “OFF”.
2. Pull regulator knob out,
turn counterclockwise
until it stops. Push knob in
to lock in place.
3. Attach hose and acces-
sories.
NOTE: The hose or accessory
will require a quick connect
plug if the air outlet is
equipped with a quick con-
nect.
BEFORE FIRST START-UP
Serious
damage may result if the
following break-in
instructions are not close-
ly followed.
This procedure is required
before the air compressor is
put into service and when
the check valve or a com-
plete compressor pump has
been replaced.
1. Make sure the
On/Auto/Off lever is in the
"OFF" position.
NOTE: If quick connect is
installed, pull coupler back
until it clicks to prevent air
from escaping through the
quick connect.
2.
Plug the power cord into
the correct branch circuit
receptacle. (Refer to
Voltage and Circuit
Protection paragraph in
the Installation section of
this manual.)
3. Open the drain valve fully
(counterclockwise) to per-
mit air to escape and pre-
vent air pressure build up
in the air tank during the
break-in period.
NOTE: Always drain tank on
a washable surface or in a
suitable container to pre-
vent damaging or staining
surfaces.
4. Move the On/Auto/Off
lever to "ON/AUTO" posi-
tion. The compressor will
start.
5. Run the compressor for 15
minutes. Make sure the
drain valve is open and
there is minimal air pres-
sure build-up in tank.
6. After 15 minutes, close
the drain valve (clock-
wise). The air receiver will
fill to “cut-out” pressure
and the motor will stop.
The compressor is now ready
for use.
Operation
(Continued)
If the overload protector
shuts the motor off fre-
quently, check for a possible
voltage problem. Low volt-
age can also be suspected
when:
1. The motor does not get
up to full power or
speed.
2. Fuses blow out when
starting the motor; lights
dim and remain dim
when motor is started
and is running.

13
E
N
G
L
I
S
H
Speedaire Operating Instructions and Parts Manual
Model 1WC95
HOW TO START:
1. Turn the On/Auto/Off
lever to “AUTO” and
allow tank pressure to
build. Motor will stop
when tank pressure
reaches “cut-out” pres-
sure.
2. Pull the regulator knob
out and turn clockwise to
increase pressure. When
the desired pressure is
Maintenace
CUSTOMER RESPONSIBILITIES
Daily or
after
each
use
Before
each
use
●
●
●
Every
40
hours
Every
100
hours
Yearly
●1
(1)- more frequent in dusty or humid conditions
Check Safety Valve
Drain Tank
Air Filter
Air compressor pump intake
and exhaust valves ●
reached push knob in to
lock in place. The com-
pressor is ready for use.
NOTE: Always operate the
air compressor in well-venti-
lated areas free of gasoline
or other combustible vapors.
If the compressor is being
used to operate a sprayer
DO NOT place near the spray
area.
To ensure efficient opera-
tion and longer life of the
air compressor, a routine
maintenance schedule
should be prepared and fol-
lowed. The following rou-
tine maintenance schedule
is geared to an air compres-
sor in a normal working
environment operating on a
daily basis. If necessary, the
schedule should be modi-
fied to suit the conditions
under which your air com-
pressor is used. The modifi-
Unit cycles
automatically when
power is on. When per-
forming maintenance,
you may be exposed to
voltage sources, com-
pressed air, or moving
parts. Personal injuries
can occur. Before per-
forming any maintenance
or repair, disconnect
power source from the
compressor and bleed off
all air pressure.
cations will depend upon
the hours of operation and
the working environment.
An air compressor in an
extremely dirty and/or hos-
tile environment will require
a greater frequency of all
maintenance checks.
NOTE: See “Operation” sec-
tion for the location of con-
trols.
Operation
(Continued)
Too much
air pressure causes a haz-
ardous risk of bursting.
Check the manufacturer’s
maximum pressure rating
for air tools and acces-
sories. The regulator out-
let pressure must never
exceed the maximum
pressure rating.

Speedaire Operating Instructions and Parts Manual 1WC95
Speedaire®Permanently Lubricated
Twin Cylinder Air Compressor
E
N
G
L
I
S
H
14
4. Replace air filter and air
filter cover.
NOTE: If the air filter is
extremely dirty it will need
to be replaced. Refer to the
“Repair Parts” for the cor-
rect part number.
6. After the water has been
drained, close the drain
valve (clockwise). The air
compressor can now be
stored.
NOTE: If drain valve is
clogged, release all air pres-
sure. The valve can then be
removed, cleaned, and then
reinstalled.
AIR FILTER INSPECTION
AND REPLACEMENT
Hot sur-
faces. Risk of burn.
Compressor heads are
exposed when filter
cover is removed. Allow
compressor to cool prior
to servicing.
A dirty air filter will not
allow the compressor to
operate at full capacity.
Keep the air filter clean at
all times.
1. Remove the air filter
cover.
2. Remove the air filter and
make sure it is clean.
IMPORTANT: Do not oper-
ate the compressor with the
air filter removed.
3. If dirty, rinse air filter with
warm water and squeeze
dry.
Air Filter
Air
Filter
Cover
AIR COMPRESSOR
PUMP INTAKE AND
EXHAUST VALVES
Once a year have a Trained
Service Technician check the
air compressor pump intake
and exhaust valves.
TO DRAIN TANK
1. Set the On/Auto/Off lever
to “OFF”.
2. Pull the regulator knob
out and turn clockwise to
set the outlet pressure to
zero.
3. Remove the air tool or
accessory.
4. Pull ring on safety valve
allowing air to bleed from
the tank until tank pres-
sure is approximately 20
psi. Release safety valve
ring.
5. Drain water from air tank
by opening drain valve
(counter-clockwise) on
bottom of tank.
Water will
condense in the air tank.
If not drained, water will
corrode and weaken the
air tank causing a risk of
air tank rupture.
Service and
Adjustments
Unit cycles
automatically when
power is on. When doing
maintenance, you may be
exposed to voltage
sources, compressed air
or moving parts. Personal
injuries can occur. Before
performing any mainte-
nance or repair, unplug
the compressor and bleed
off all air pressure.
ALL MAINTENANCE AND
REPAIR OPERATIONS NOT
LISTED MUST BE PER-
FORMED BY A TRAINED
SERVICE TECHNICIAN.
TO REPLACE OR CLEAN
CHECK VALVE
1. Release all air pressure
from air tank. See “To
Drain Tank” in the
Maintenance section.
TO CHECK SAFETY
VALVE
If the safety
valve does not work
properly, over-pressuriza-
tion may occur, causing
air tank rupture or an
explosion.
Before starting compressor,
pull the ring on the safety
valve to make sure that the
safety valve operates freely.
If the valve is stuck or does
not operate smoothly, it
must be replaced with the
same type of valve.
Maintenance
(Continued)

15
E
N
G
L
I
S
H
Speedaire Operating Instructions and Parts Manual
Model 1WC95
6. Using an adjustable
wrench loosen pressure
relief tube nut at air tank.
Carefully move pressure
relief tube away from
check valve.
7. Unscrew the check valve
(turn counterclockwise)
using a 7/8” open end
wrench. Note the orienta-
tion for reassembly.
8. Using a screwdriver, care-
fully push the valve disc
up and down.
NOTE: The valve disc should
move freely up and down on
a spring which holds the
valve disc in the closed posi-
tion; if not the check valve
needs to be cleaned or
replaced.
9. Clean or replace the check
valve. A solvent, such as
paint or varnish remover
can be used to clean the
check valve.
2. Unplug air compressor.
3. Using a phillips screwdriv-
er, remove the air filter
cover.
4. Remove the rear shrouds
using T-20 torx wrench.
5. Using an adjustable
wrench, loosen outlet
tube nut at air tank.
Carefully move outlet
tube away from check
valve.
Outlet Tube
Check
Valve
Nut
Nut
Pressure
Relief
Tube
TO REPLACE
REGULATOR
1. Release all air pressure
from air tank. See “To
Drain Tank” in the
Maintenance section.
2. Unplug compressor.
3. Remove the outlet pres-
sure gauge and quick con-
nect (if equipped) from
the regulator.
4. Remove the regulator.
Outlet
Pressure
Gauge
Quick
Connect
Regulator
Screwdriver
In open
position
nothing is
visible.
In closed position disc
is visible.
10.Apply sealant to the
check valve threads.
Reinstall the check valve
(turn clockwise).
11.Replace the pressure
release tube. Tighten nut.
12.Replace the outlet tube
and tighten nut.
13.Replace the shroud and
air filter.
14.Perform the Break-in
Procedure. See “Break-in
Procedure” in the
Operation section.
Service and
Adjustments
(Continued)

Speedaire Operating Instructions and Parts Manual 1WC95
Speedaire®Permanently Lubricated
Twin Cylinder Air Compressor
E
N
G
L
I
S
H
16
5. Apply pipe sealant tape
to the nipple.
6. Assemble the regulator
and orient as shown.
NOTE: Arrow indicates flow
of air. Make sure it is point-
ing in the direction of air
flow.
7. Reapply pipe sealant to
outlet pressure gauge
and quick connect.
Nipple
Regulator
Arrow
Regulator
8. Reassemble outlet pres-
sure gauge and quick con-
nect. Orient outlet
pressure gauge to read
correctly. Tighten quick
connect with wrench.
STORAGE
Before you store the air
compressor, make sure you
do the following:
1. Review the
"Maintenance" section on
the preceding pages and
perform scheduled main-
tenance as necessary.
2. Set the On/Auto/Off lever
to “OFF”.
3. Turn the regulator coun-
terclockwise and set the
outlet pressure to zero.
4. Remove the air tool or
accessory.
5. Pull ring on safety valve
allowing air to bleed from
the tank until tank pres-
sure is approximately 20
psi. Release safety valve
ring.
6. Drain water from air tank
by opening drain valve on
bottom of tank.
Water will
condense in the air tank.
If not drained, water will
corrode and weaken the
air tank causing a risk of
air tank rupture.
7. After the water has been
drained, close the drain or
drain valve.
NOTE: If drain valve is
plugged, release all air pres-
sure. The valve can then be
removed, cleaned, then rein-
stalled.
8. Protect the electrical cord
and air hose from damage
(such as being stepped on
or run over). Wind them
loosely around the com-
pressor handle.
Store the air compressor in a
clean and dry location.
Service and
Adjustments
(Continued)

17
E
N
G
L
I
S
H
Speedaire Operating Instructions and Parts Manual
Model 1WC95
Symptom (s) Possible Causes (s) Corrective Actions (s)
Voltage sources, moving parts, or compressed air sources
are exposed when repairing the compressor. Personal injury
can occur. Unplug the compressor before attempting any repairs.
Troubleshooting Chart
1. Pressure switch does not
shut off motor when com-
pressor reaches “cut-out”
pressure
2. Pressure switch “cut-out”
too high
1. Move On/Auto/Off lever to the
“OFF” position, if the air compres-
sor does not shut off contact a
Trained Service Technician
2. Contact a trained service technician
Excessive tank
pressure - safety
valve pops off
Tube fittings are not tight
enough.
Tighten fittings where air can be
heard escaping. Check fittings with
soapy water solution. Do Not
Overtighten
Air leaks at fit-
tings
Air leaks at pres-
sure switch
release valve
Defective pressure switch
release valve
Contact a trained service technician
Air leaks at or
inside check valve
Check valve seat damaged A defective check valve results in a
constant air leak at the pressure
release valve when there is pressure in
the tank and the compressor is shut
off. Replace check valve. Refer to the
“To Replace or Clean Check Valve” in
the “Service and Adjustment” section
Air leaks in air
tank or at air
tank welds
Air tank must be replaced. Do not
repair the leak
Do not drill into,
weld or otherwise
modify air tank or it will weaken.
The tank can rupture or explode.
Defective air tank

18
Speedaire Operating Instructions and Parts Manual 1WC95
Speedaire®Permanently Lubricated
Twin Cylinder Air Compressor
E
N
G
L
I
S
H
Symptom (s) Possible Causes (s) Corrective Actions (s)
Air leaks between
head and valve
plate
Leaking seal Contact a trained service technician
1. Possible defect in safety
valve
1. Operate safety valve manually by
pulling on ring. If valve still leaks, it
should be replaced
Knocking Noise
It is normal for “some” pres-
sure drop to occur If there is an excessive amount of pres-
sure drop when the accessory is used,
adjust the regulator following the
instructions in the “Description of
Operation” paragraph in the
“Operation Section
NOTE: Adjust the regulated pressure
under flow conditions (while accessory
is being used)
2. Defective check valve 2. Remove and clean, or replace
Compressor is not
supplying enough
air to operate
accessories
6. Restricted air intake filter
1. Decrease amount of air usage
Pressure reading
on the regulated
pressure gauge
drops when an
accessory is used
3. Check and replace if required
4. Remove and clean, or replace
5. Tighten fittings
6. Clean or replace air intake filter. Do
not operate the air compressor with
the filter removed. Refer to the “Air
Filter” paragraph in the
“Maintenance “ section
2. Check the accessory air requirement.
If it is higher than the SCFM or pres-
sure supplied by your air compressor,
you need a larger compressor
1. Prolonged excessive use of
air
2. Compressor is not large
enough for air requirement
3. Hole in hose
4. Check valve restricted
5. Air leaks
Troubleshooting Chart (Continued)

19
E
N
G
L
I
S
H
Speedaire Operating Instructions and Parts Manual
Model 1WC95
Regulator will
not shut off air
outlet
Damaged regulator Replace
Damaged regulator Replace
Regulator knob
has continuous
air leak
Symptom (s) Possible Causes (s) Corrective Actions (s)
Motor will not
run 1. Motor overload protection
switch has tripped
1. Let motor cool off and overload
switch will automatically reset
2. Tank pressure exceeds pres-
sure switch “cut-in” pressure
2. Motor will start automatically
when tank pressure drops below
“cut-in” pressure of pressure switch
3. Extension cord is wrong
length or gauge
3. Check for proper gauge wire and
cord length
5. Loose electrical connections 5. Check wiring connection inside
pressure switch and terminal box
area
6. Have checked by a trained service
technician
4. Check valve stuck open 4. Remove and clean, or replace
6. Possible defective motor or
starting capacitor
7. Have checked by a trained service
technician. Do not operate the
compressor in the paint spray area.
See flammable vapor warning
7. Paint spray on internal motor
parts
8. Bleed the line by pushing the lever
on the pressure switch to the “off”
position; if the valve does not
open, replace switch
8. Pressure release valve on
pressure switch has not
unloaded head pressure
Troubleshooting Chart (Continued)

20
Speedaire Operating Instructions and Parts Manual 1WC95
Speedaire®Permanently Lubricated
Twin Cylinder Air Compressor
E
N
G
L
I
S
H
9. Fuse blown, circuit breaker
tripped 9a. Check fuse box for blown fuse and
replace as necessary. Reset circuit
breaker. Do not use a fuse or cir-
cuit breaker with higher rating
than that specified for your partic-
ular branch circuit
b. Check for proper fuse. You should
use a time delay fuse
c. Check for low voltage conditions
and/or proper extension cord
d. Disconnect the other electrical
appliances from circuit or operate
the compressor on its own branch
circuit
Motor will
not run
(Continued)
Symptom (s) Possible Causes (s) Corrective Actions (s)
Troubleshooting Chart (Continued)
