Model 556 Converter
Installation and Maintenance Instructions

www.spiraxsarco.com IM-P403-98 EMM Issue 5
2
Preface
These Installation and Maintenance Instructions have been written to assist the
user in proper procedures for trouble-free operation. They explicitly point out
that Spirax Sarco assumes no responsibility for loss or damage caused due to
improper use of these instructions or products described herein.
These Installation and Maintenance Instructions are protected by ©Copyright
2015. However, the user may produce copies and translations if required for
correct operation of the products described herein.
On request, these Installation and Maintenance Instructions are available in other
languages as well as in digital format (Acrobat
®Reader 7.0 required).
Local regulations may restrict the use of this product to below the conditions
quoted.
In the interests of development and improvement of the product, we reserve the
right to change the specification without notice.
Dated, August 2017

www.spiraxsarco.com
IM-P403-98 EMM Issue 5
1
Table of contents
1Using these Installation and Maintenance Instructions
1
1.1 Validity of these Installation and Maintenance Instructions
1.2 Pictograms and signal words 2
2Returns and disposal
3
2.1 Declaration of decontamination
2.2 Disposal
3Intended use 4
4Safety
5
4.1 General safety instructions
4.2 Safety instructions for works on electrical equipment 6
5Description of the converter 7
5.1 Converter front view 8
5.2 Converter rear view 10
6Technical data 12
6.1 Possible sensors
13
6.2 Converter dimensions
6.2.1 Dimensions for wall mount housing B19-21 -
Plastic (ABS) - IP66 (option)
14
6.2.2 Dimensions for wall mount housing B19-42 -
Plastic (ABS) - IP66 (option)
16
6.2.3 Dimensions for wall mount housing S19-42 -
Stainless steel 1.4301 / SS304 - IP65 (option)
18
6.2.4 Dimensions for mounting with mounting angle 20
7Installation of the converter
21
7.1 Installation site requirements for standard installation
7.2 Standard installation
7.3 Requirements for mounting with mounting angle
22
7.4 Mounting with mounting assembly

www.spiraxsarco.com IM-P403-98 EMM Issue 5
2
8Wiring
23
8.1 General advice on wiring
8.2 Connecting the voltage supply 115 or 230 Vac
24
8.3 Connecting the voltage supply 24 Vac / dc (option)
8.4 Connecting the sensor 25
8.4.1 Wiring plan TF56 to 556 converter 27
8.5 Connecting the relay outputs 28
8.6 Connecting the mA-output 30
9Commissioning
31
9.1 Requirements for commissioning
9.2 Switching the converter on
9.3 Adjusting lamp voltage 32
9.4 Setting the zero point 34
9.5 Setting the measuring range 35
9.6 Setting alarms 37
9.7 Adjusting the digital read-out 38
9.8 Other activities when commissioning 39
10 Faults 40
11 Spare parts and accessories
42
11.1 Accessories converter
11.2 Small parts fuses 43
12 Appendix
44
12.1 Installation documentation - hardware
13 Declaration of conformity
45
14 Contacts

www.spiraxsarco.com
IM-P403-98 EMM Issue 5
1
1. Using these Installation and
Maintenance Instructions
1.1 Validity of the these Installation and Maintenance
Instructions
This instruction manual is valid for the Spirax Sarco Model 556 converter only.
Follow the instruction manual for every operation. If the converter is not used as described
in this instruction manual, your safety and the converter function could be affected.
To keep up reliability of the product, enhance its life cycle and avoid down times, you have
to follow the instructions given in this manual.
Furthermore, please follow the existing accident prevention and environmental protection
instructions, as well as recognized technical instructions for safe and professional working.

www.spiraxsarco.com IM-P403-98 EMM Issue 5
2
1.2 Pictograms and signal words
Especially important information in this instruction manual is marked with the following
pictograms:
Danger!
This pictogram indicates immediate danger to life and health of persons.
The text next to the symbol gives information on how to avoid bodily injuries.
If the possible cause of risk can be specified, the corresponding pictogram
preceeds instructions:
Danger!
Electrical voltage.
This pictogram indicates danger due to electrical voltage.
Caution!
This pictogram indicates information on how to avoid material damage.
Note!
This pictogram indicates instructional or general advice.

www.spiraxsarco.com
IM-P403-98 EMM Issue 5
3
2.1 Declaration of decontamination
For the safety of our employees and because of legal regulations we require a signed
'Declaration of decontamination' before your return can be handled. This signed declaration
must be included with the shipping documents on the outside of the packaging.
Any returns which were exposed to hazardous substances and were not professionally
decontaminated are not accepted and will be sent back at your cost.
Spirax Sarco's declaration of decontamination and contact information can be found on
our website www.Spirax Sarco.com
2.2 Disposal
Special legal regulations apply to the return and disposal of industrial waste equipment.
However, manufacturer and user can contractually agree on which party is to fulfill these
legal obligations.
Observe current national disposal regulations.
For disposing of packaging material, please separate materials:
-Paper / cardboard
-Plastic
For disposal, disassemble the system components and separate them according to different
material groups.
Dispose of materials according to National and Local regulations.
If no agreement has been made, products may be shipped to Spirax Sarco for disposal.
2. Returns and disposal

www.spiraxsarco.com IM-P403-98 EMM Issue 5
4
3. Intended use
The converter is exclusively to be used as a converter for Spirax Sarco sensor assemblies
according to the technical data.
In combination with inline sensors for turbidity, the converter is used for displaying and
processing measuring results.
The converter is only applicable for sensors listed in Section 6 'Technical data'.
The converter is to be installed in a control cabinet, which provides an external release
device so that the converter can be switched voltage-free. Reference Section 6 'Technical
data'.
The use in explosion proof areas is prohibited.
Unauthorized constructional changes, additional fittings or rebuildings as well as changes
to and interference with the converter program are prohibited.
The manufacturer is not liable for damage resulting from use contrary to intended use.
Following these Installation and Maintenance Instructions is part of the intended use.
The content of all serial number plates on Spirax Sarco products is model specific and
refers to the time of delivery.

www.spiraxsarco.com
IM-P403-98 EMM Issue 5
5
4. Safety
4.1 General safety instructions
Only operate the converter when free from defects and in accordance with the instructions
provided in this manual.
Read this instruction manual prior to initial commissioning. This applies especially to persons
only operating the converter occasionally, such as maintenance staff.
Observe all safety and information labels on the product and keep them in readable
condition.
Inspect the product for signs of physical damage. Report any damage immediately and do
not commission the product until corrective actions have been taken.
After maintenance and repair, proper function as well as the fulfillment of the safety
requirements and testing must be guaranteed.
Protect the converter from impacts causing corrosion or preventing components from
working properly.
Have faulty parts of the measuring system replaced immediately.
Spare parts must comply with the technical requirements defined by Spirax Sarco. This is
always guaranteed when using original spare parts.
For maintenance and repair activities, attach a warning sign to the external release device
to prevent re-commissioning of the converter.
When malfunctioning, take the product out of operation. Have the malfunctions repaired
immediately by a qualified electrician.
The safety instructions are to be supplemented with the current National regulations on
accident prevention.

www.spiraxsarco.com IM-P403-98 EMM Issue 5
6
4.2 Safety instructions for works on electrical equipment
Work on electrical equipment has to be carried out by qualified electricians only. The power
line connection of the converter must be specified correctly to prevent overload.
Disconnect the voltage supply before connecting the power line. Only connect the power
line when voltage-free. Do not use the terminal socket for release since no first-to-mate
last-to-break protective ground contact is provided.
Do not work on live active parts of the electrical equipment. When working on the electrical
equipment, observe the following safety regulations:
1. Switch voltage-free.
2. Protect against re-commissioning.
3. Check if voltage-free.
4. Cover live parts.
5. Earth and short-circuit.
In case of faults in the power supply, disconnect the converter immediately. In case of a
short-circuit, there is a danger of sparking and fire.
Use only original fuses with specified current and triggering characteristics! When a fuse has
to be exchanged, first try to detect the cause and clear the fault before exchanging the fuse.
When work on live parts is necessary, use insulated tools only.

www.spiraxsarco.com
IM-P403-98 EMM Issue 5
7
5. Description of the converter
The Model 556 converter is a universal device designed for process monitoring and control
of a Spirax Sarco sensor assembly.
Fig. 1 Model 556 converter
In the converter, both the direct light and the scattered light signal are boosted and a
weighted proportional value is obtained. The thus created measurand is proportional to
the total volume of particles in the medium. The Model 556 provides four defined and one
variable measuring range to be adjusted to your specific process parameters. The LED
indicator indicates the percentage of the selected measuring range.
For connection to the process control system, the Model 556 converter is equipped with two
independent setpoints and a 4 - 20 mA-output for alarms and real-time process monitoring.
An additional relay output (failsafe) gives alarm in case of lamp or power failure. In a
standardized manner, basic system calibration is carried out in ppm DE (mg of diatomaceous
earth / l of water). If desired, calibration in FTU (Formazin Turbidity Standard) or EBC
(European Brewery Convention) is possible as well.
The converter complies with the highest security standards. The device complies with the
requirements of the EMC Directive in accordance with .

www.spiraxsarco.com IM-P403-98 EMM Issue 5
8
5.1 Converter front view
9
2
1
15
10
8
7
6
3
4
5
11
12
13
14

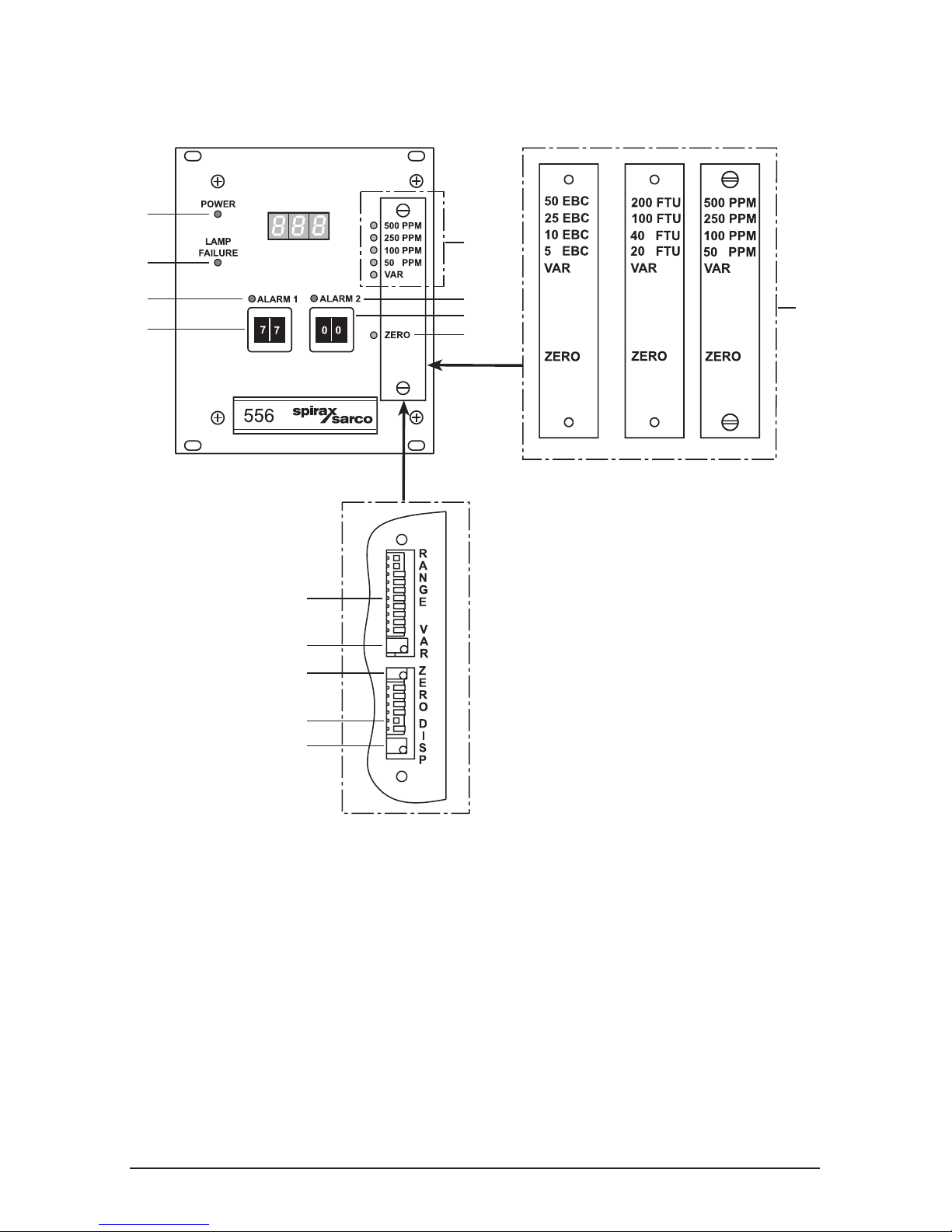

Fig. 2 Model 556 converter - Front view

www.spiraxsarco.com
IM-P403-98 EMM Issue 5
9
Numbers stand for:
1. Digital read-out, LED display, 3 digits, height: 7 mm
2. 5 LEDs (yellow), indication of set measuring range
3. LED (red), switch indicator for alarm 2
4. Encoding button for setting alarm 2 in steps of 1% of the respective measuring range
5. LED (green), zero point indication
6. Encoding button for setting alarm 1 in steps of 1% of the respective measuring range
7. LED (red), switch indicator for alarm 1
8. LED (red), lamp failure indication
9. LED (red), power indication
10. DIP switch (RANGE 1 - 10) for measuring range setting
11. Potentiometer (VAR) for setting the variable measuring range
12. Potentiometer (ZERO) for zero point setting
13. DIP switch (DISP 1-2) for setting digital read-out 1
14. Potentiometer for setting digital read-out 1
15. Possible measuring range plates for EBC, FTU and PPM

www.spiraxsarco.com IM-P403-98 EMM Issue 5
10

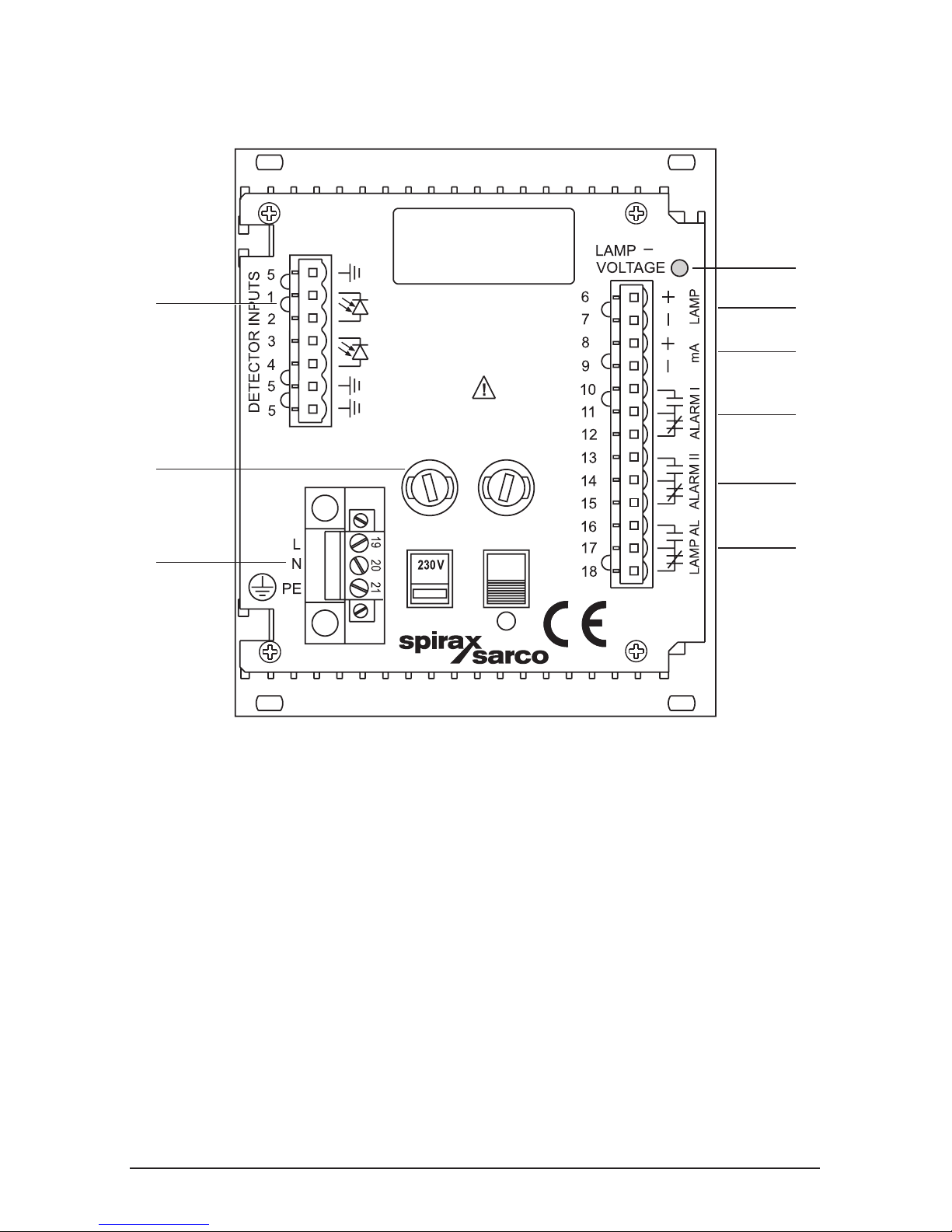

5.2 Converter rear view
115 / 230 V
50 / 60 Hz, 30 VA
115 Vac to 630 A
230 Vac to 315 A
Fig. 3 Model 556 converter - Rear view
27
16
2223
26
25
24
17
18
19
20
21

www.spiraxsarco.com
IM-P403-98 EMM Issue 5
11
Numbers stand for:
16. Potentiometer for lamp voltage
17. Lamp output (only for Spirax Sarco sensors)
18. mA output (4 - 20 mA)
19. Relay output 1
20. Relay output 2
21. Relay output 3
22. Power switch
23. Selector switch for voltage (preset 230 Vac or 115 Vac) -
(does not apply for a 24 Vac / dc version)
24. Power supply (fixed)
25. Fuse I
• T 0.315 A for 230 Vac
• T 0.630 A for 115 Vac
• T 1.250 A for 24 Vac / dc
26. Fuse II
• T 0.315 A for 230 Vac
• T 0.630 A for 115 Vac
• T 1.250 A for 24 Vac / dc
27. Detector input (only for Spirax Sarco sensors)

www.spiraxsarco.com IM-P403-98 EMM Issue 5
12
6. Technical data
Table 1 Technical data for the Model 556 converter
*
Housing
19" version for mounting in control cabinets 3 U / 21 HP :
- Dimensions: W106.3 mm (4.19") H128.4 mm (5.06") D208 mm (8.19")
- Material: Aluminium / diverse plastics
- Protection: Front IP40 / rear IP20
-(mains supply secured against accidental touching)
Display 1 digital display, 3 digits, LED, height 7mm
Operation Dip switches, potentiometer, coding switch
LED
1 LED (red):
1 LED (green):
5 LED (yellow):
2 LED (red):
1 LED (red):
Power on
Zero
Measuring ranges
Alarm I and II
Lamp or system failure
Sensor inputs 1 for Spirax Sarco photometric sensor TF56
Sensor lamp-
outputs 1 lamp supply for Spirax Sarco photometric sensor TF56 4.8 ... 7.0 Vdc
mA outputs
1 x 4 - 20 mA (NAMUR) functionally galvanically isolated (min. 500 Vdc)
for connection to PELV
- Accuracy: < 1 %
- Load: < 500 Ohm
Relay outputs
2 independently adjustable SPDT contacts 0 - 250 Vac, 0 - 300 Vdc,
0 - 8 A (refer to load limit curve relay outputs in the manual)
- For alarm 1 and 2
Failsafe output
1 SPDT contact to alarm in case of lamp or system failure (active)
0 - 250 Vac, 0 - 300 Vdc, 0 - 8 A (refer to load limit curve relay outputs in
the manual)
Cable lengths
(sensor) 2, 3, 5, 10, 15, 20, 30 … 100 m (7, 10, 16, 33, 49, 66, 98 …328 ft)
Power supply
(Fixed, secured
against
accidental
touching)
115 / 230 Vac, selectable (93.5 - 132 / 187 - 264 Vac, 47 - 64 Hz) or
24 Vac / dc (ac: 20.4 - 26.4 Vac, 47 - 64 Hz; dc: 20.4 - 28.8 Vdc)
(SELV / PELV) consider an external release device
- Power consumption: < 30 VA
Ambient
conditions
Temperature during operation (no direct sunlight):
- Converter:
- With optional stainless steel housing S19-42
(IP65):
- With optional plastic housing B19-42 (IP66):
- With optional plastic housing B19-21 (IP66):
- Temperature during transport
- (no direct sunlight):
EN 61010-1 / 2002-08 / class 1
0 to 50 °C (32 to 122 °F)
0 to 40 °C (32 to 104 °F)
0 to 35 °C (32 to 95 °F)
0 to 35 °C (32 to 95 °F)
-20 to 70 °C (-4 to 158 °F)
Weights
(depends on
configuration)
Model 556 with mounting angle:
Model 556 with S19-42 housing:
Model 556 with B19-42 housing:
Model 556 with B19-21 housing:
1.4 - 2.0 kg
8.5 - 7.9 kg
3.5 - 4.1 kg
1.4 - 2.0 kg
* Data given is subject to changes without prior notice.

www.spiraxsarco.com
IM-P403-98 EMM Issue 5
13
6.1 Possible sensors
One or more of the following Spirax Sarco sensors can be connected to the converter:
-TF56-N
-TF56-HT-N
Connecting flameproof sensors to the converter is prohibited.
The product specific characteristics of the sensor options is described in the relevant
sensor manuals.

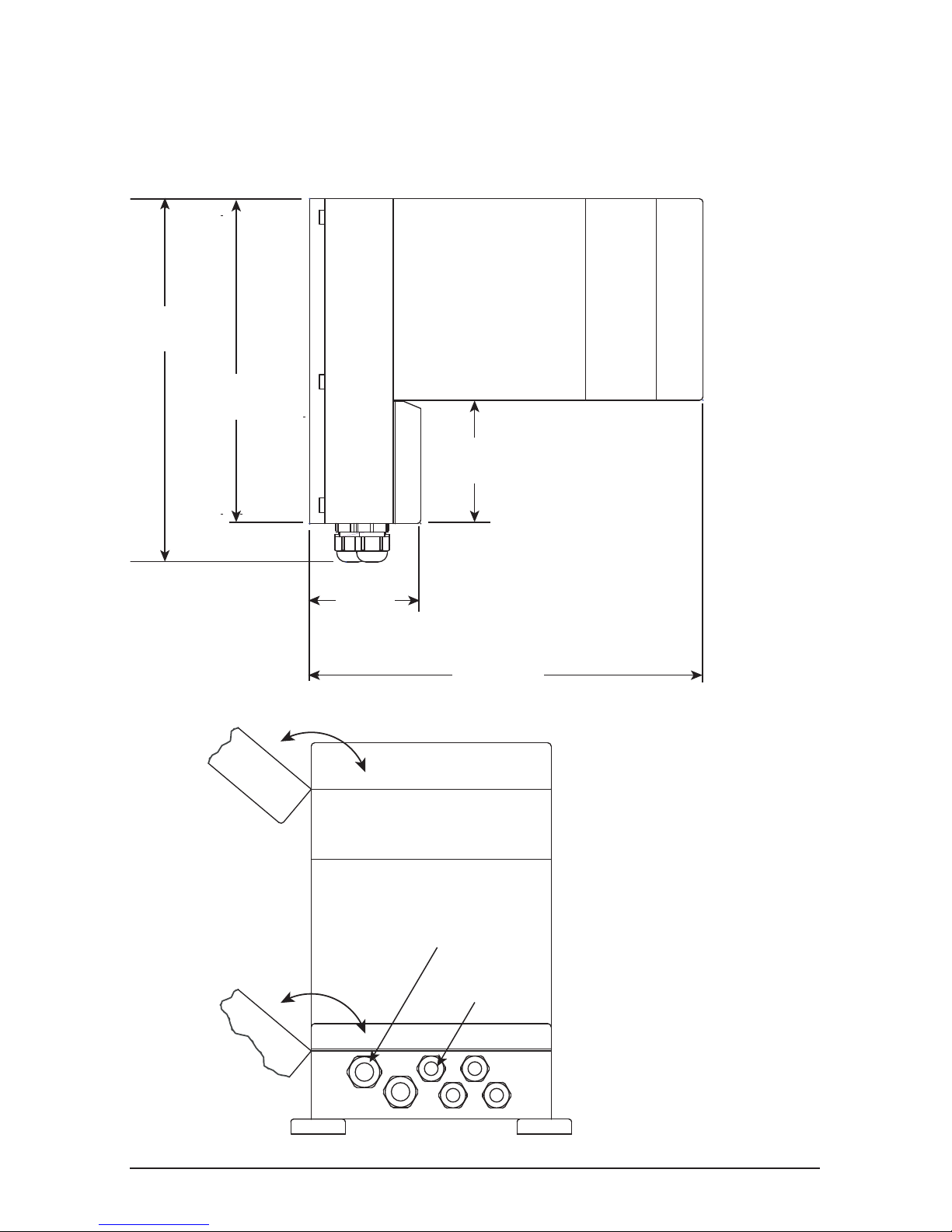

6.2 Converter dimensions
Fig. 4 Dimensions
128.4 mm
(5.06")
106.3 mm
(4.19")
18 mm (0.71")
Side elevation
190 mm (7.48")

www.spiraxsarco.com IM-P403-98 EMM Issue 5
14
X56
ZERO
VAR
24.8
ALARM 1
LAMP
FAILURE
POWER
ALARM 2
88 8 8
Fig. 5 Dimensions with wall mount housing B19-21
6.2.1
Dimensions for wall mount housing B19-21 -
Plastic (ABS) - IP66 (option)
192.7 mm
( 7.59 " )
176 mm
(6.93")
5.5 mm
(0.22")
13.4 mm
(0.53")
90 mm
(3.54")
120 mm
(4.72")
206 mm
(8.11")

www.spiraxsarco.com
IM-P403-98 EMM Issue 5
15
X56
ZERO
VAR
24.8
ALARM 1
LAMP
FAILURE
POWER
ALARM 2
88 8 8
237 mm
(9.33")
265 mm
(10.43")
81 mm
(3.19 ")
287 mm
(11.03")
2 x M20
4 x M16
140°
140°
90 mm
(3.54")

www.spiraxsarco.com IM-P403-98 EMM Issue 5
16
ALARM 2ALARM 1ALARM 2ALARM 1
X56
ZERO
X56
ZERO
POWER
LAMP
FAILURE
24.8 24.8
LAMP
VAR
POWER
FAILURE
VAR
8 888 888 8
6.2.2
Dimensions for wall mount housing B19-42 -
Plastic (ABS) - IP66 (option)
340 mm
(13.39")
5.5 mm
(0.22")
13.4 mm
(0.53")
90 mm
(3.54")
120 mm
(4.72")
323 mm
(12.72")
353 mm
(13.90")
Fig. 6
Dimensions with wall mount housing B19-42
