Spirit Commercial CT800 User manual

CT800 Treadmill
OWNER’S MANUAL

Spirit Fitness

1
www.spirittness.com

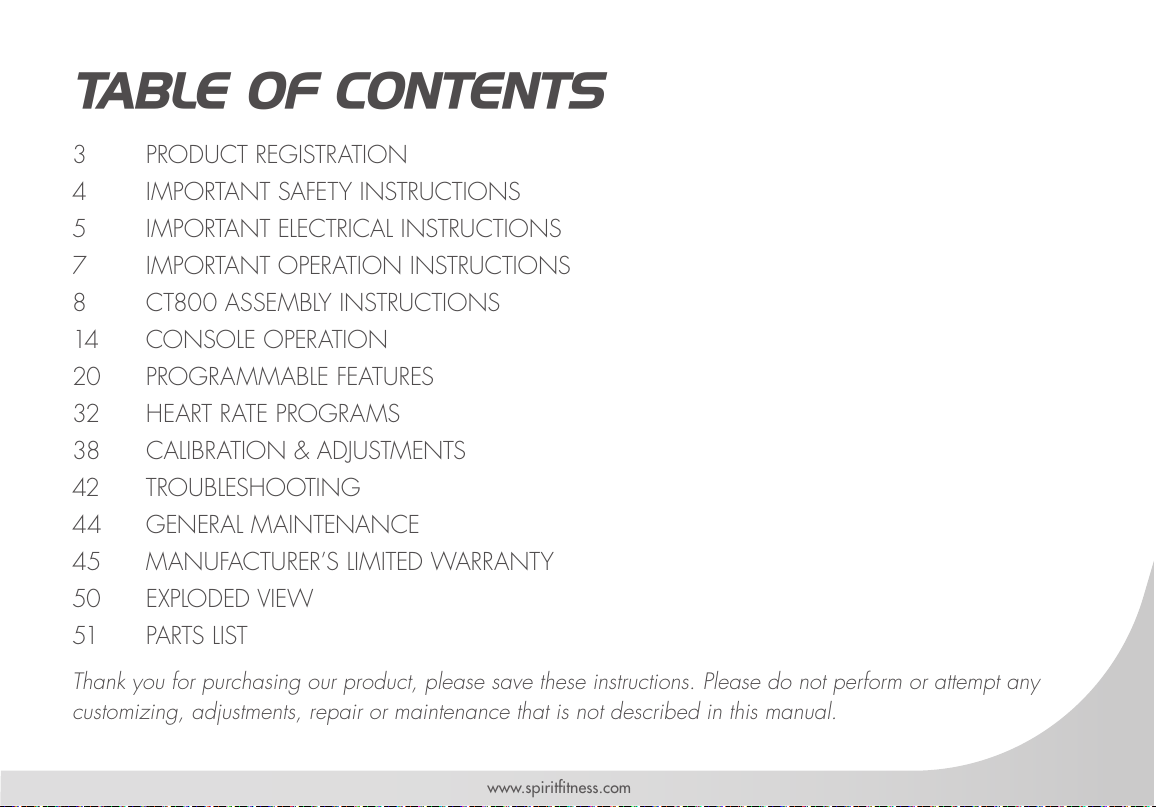

TABLE OF CONTENTS
3 PRODUCT REGISTRATION
4 IMPORTANT SAFETY INSTRUCTIONS
5 IMPORTANT ELECTRICAL INSTRUCTIONS
7 IMPORTANT OPERATION INSTRUCTIONS
8 CT800 ASSEMBLY INSTRUCTIONS
14 CONSOLE OPERATION
20 PROGRAMMABLE FEATURES
32 HEART RATE PROGRAMS
38 CALIBRATION & ADJUSTMENTS
42 TROUBLESHOOTING
44 GENERAL MAINTENANCE
45 MANUFACTURER’S LIMITED WARRANTY
50 EXPLODED VIEW
51 PARTS LIST
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.

2
Spirit Fitness

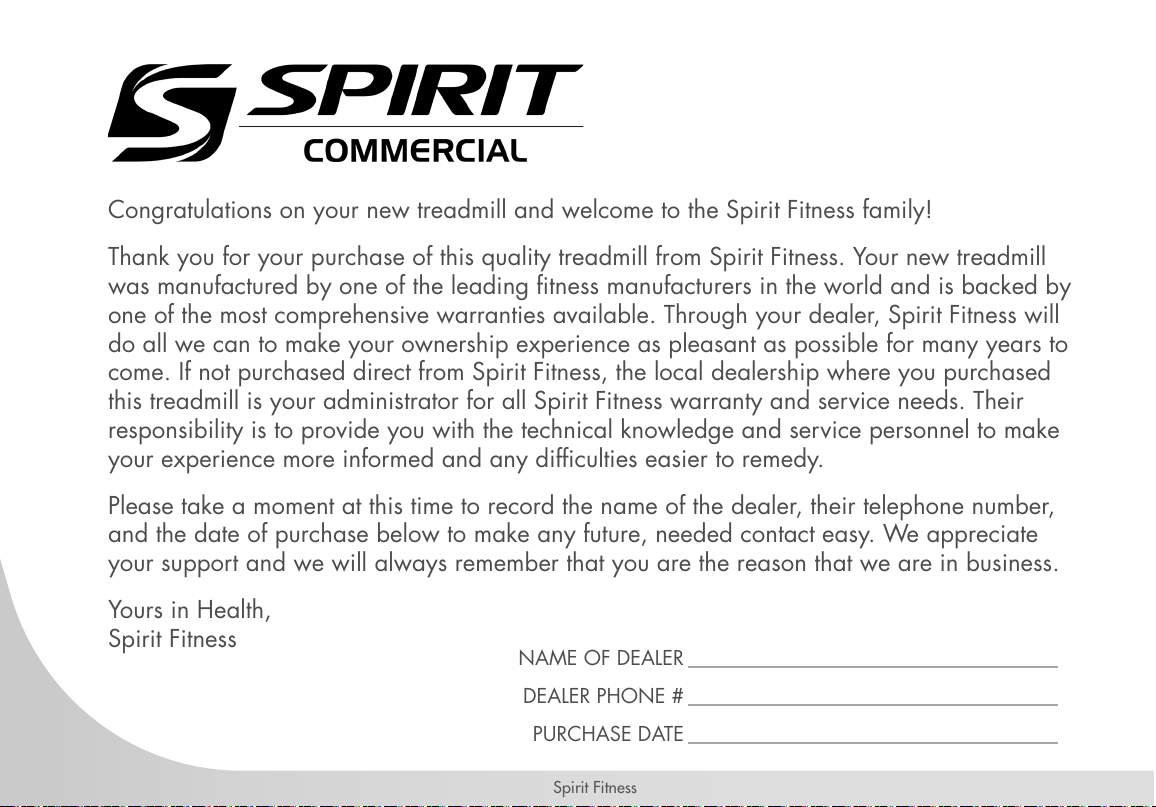

Congratulations on your new treadmill and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality treadmill from Spirit Fitness. Your new treadmill
was manufactured by one of the leading tness manufacturers in the world and is backed by
one of the most comprehensive warranties available. Through your dealer, Spirit Fitness will
do all we can to make your ownership experience as pleasant as possible for many years to
come. If not purchased direct from Spirit Fitness, the local dealership where you purchased
this treadmill is your administrator for all Spirit Fitness warranty and service needs. Their
responsibility is to provide you with the technical knowledge and service personnel to make
your experience more informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number,
and the date of purchase below to make any future, needed contact easy. We appreciate
your support and we will always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________

3
www.spirittness.com
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in the space provided below. The serial number is
located at the front of the treadmill by the Power switch.
Serial Number:
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You
can also go to http://www.spirittness.com/commercialwarrantyregistration.html under the Support tab to
register online.

4
Spirit Fitness
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
When using an electrical appliance, basic
precautions should always be followed, including
the following:
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
Always unplug this appliance from the electrical
outlet immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re electric
shock, or injury to persons:
• An appliance should never be left unattended when
plugged in. Unplug from outlet when not in use, and
before putting on or taking off parts.
• Do not operate under blanket or pillow. Excessive
heating can occur and cause re, electric shock, or
injury to persons.
• Close supervision is necessary when this appliance
is used by, on, or near children, invalids, or disabled
persons.
• Use this appliance only for its intended use as
described in this manual. Do not use attachments not
recommended by the manufacturer.
• Never operate this appliance if it has a damaged
cord or plug, if it is not working properly, if it as
been dropped or damaged, or dropped into
water. Return the appliance to a service center for
examination and repair.
• Do not carry this appliance by supply cord or use
cord as a handle.
• Keep the cord away from heated surfaces.
• Never operate the appliance with the air openings
blocked. Keep the air openings free of lint, hair, and
the like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are
being use or where oxygen is being administered.
• Connect this appliance to a properly grounded outlet
only. See Grounding Instructions.
• The appliance is intended for household use.
• Maximum User Weight: 450 lbs
• This appliance is not intended for use by persons
with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,

5
www.spirittness.com
unless they have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Keep children under the age of 13 away from this
machine.
• ASTM F2115-05 Specications
6.1.2.11 The recommended minimum clearance
required around each treadmill for access to,
passage around, and emergency dismount shall be
stated. The minimum dimensions are to be: 0.5 m
(19.7 in.) on each side of the treadmill, and 1 m
(39 in.) behind the machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
NEVER use a ground fault circuit interrupt (GFCI)
wall outlet with this treadmill. As with any appliance
with a large motor, the GFCI will trip often. Route
the power cord away from any moving part of the
treadmill including the elevation mechanism and
transport wheels. NEVER remove any cover without
rst disconnecting AC power. If voltage varies by
ten percent (10%) or more, the performance of your
treadmill may be affected. Such conditions are not
covered under your warranty. If you suspect the
voltage is low, contact your local power company
or a licensed electrician for proper testing.
NEVER expose this treadmill to rain or moisture.
This product is NOT designed for use outdoors,
near a pool or spa, or in any other high
humidity environment. The operating temperature
specication is 40 to 120 degrees Fahrenheit, and
humidity is 95% non-condensing (no water drops
forming on surfaces).
Circuit Breakers: Some circuit breakers used in
homes are not rated for high inrush currents that
can occur when a treadmill is rst turned on or
even during use. If your treadmill is tripping the
house circuit breaker (even though it is the proper
current rating) but the circuit breaker on the treadmill
itself does not trip, you will need to replace the
home breaker with a high inrush type. This is not
a warranty defect. This is a condition we as a
manufacture have no ability to control. This part is

6
Spirit Fitness
available through most electrical supply stores. Examples: Grainger part # 1D237, or available online at
www.squared.com part #QO120HM. The electrical outlet used should have a dedicated 20 amp circuit
breaker.
GROUNDING INSTRUCTIONS
This product must be grounded. If the treadmill should malfunction or breakdown, grounding provides a
path of least resistance for electric current, reducing the risk of electric shock. This product is equipped with
a cord having an equipment-grounding plug. The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualied electrician or serviceman if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product if it will not t the outlet; have a proper outlet
installed by a qualied electrician.

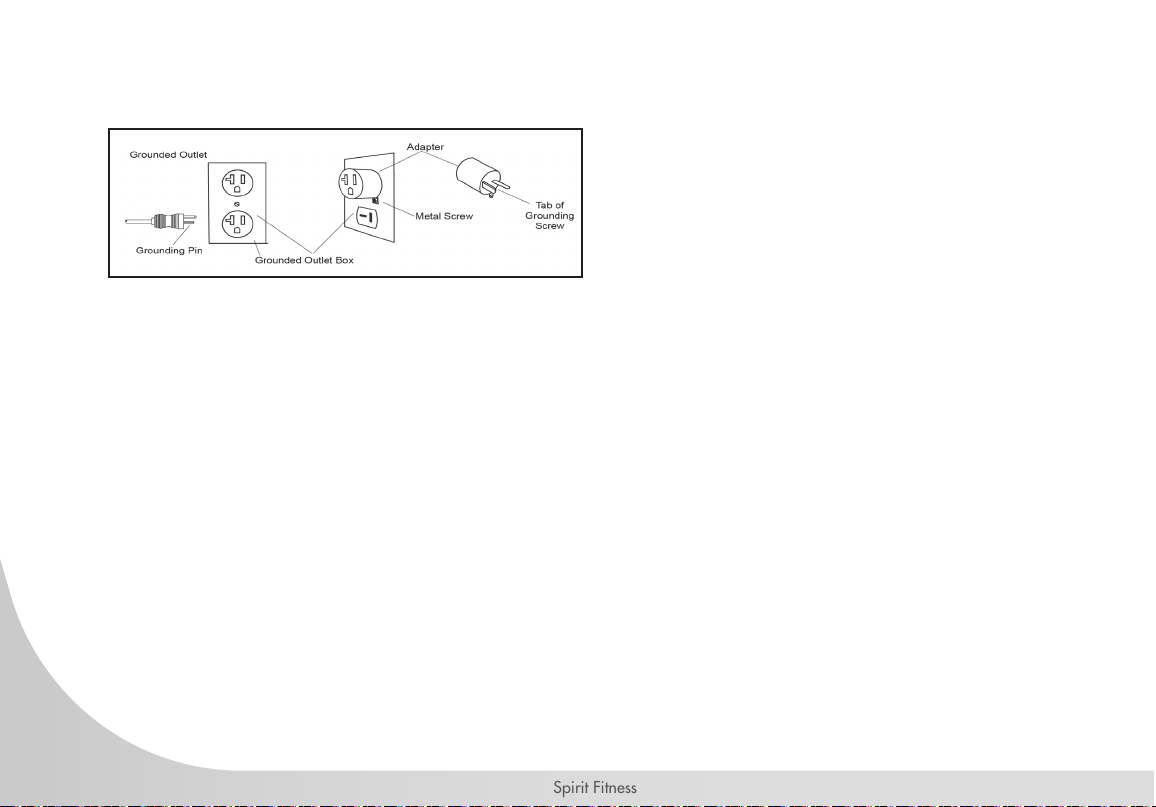

This product is for use on a nominal 120-volt/20 amp dedicated circuit, and has a grounding plug that
looks like the plug illustrated below. A temporary adapter that looks like the adapter illustrated below may
be used to connect this plug to a 2-pole receptacle as shown below if a properly grounded outlet is not
available. The temporary adapter should be used only until a properly grounded outlet, (shown below)
can be installed by a qualied electrician. The green colored rigid ear-lug, or the like, extending from the

7
www.spirittness.com
adapter, must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever
the adapter is used, it must be held in place by a metal screw.
IMPORTANT OPERATION INSTRUCTIONS
• NEVER operate this treadmill without reading and completely understanding the results of any operational change
you request from the computer.
• Understand that changes in resistance do not occur immediately. Set your desired resistance level on the computer
console and release the adjustment button. The computer will obey the command gradually.
• Use caution while participating in other activities while pedaling on your treadmill; such as watching television,
reading, etc. These distractions may cause you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control buttons. They are precision set to function properly with little
nger pressure.
WARNING
This product can expose you to chemicals including Toluene and Acrylamide which are known to the State of California
to cause Cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

8
Spirit Fitness
CT800 PRE-ASSEMBLY
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box;
lift the box over the unit and unpack.
2. Locate the hardware package. The hardware is separated into four
steps. Remove the tools rst. Remove the hardware for each step as
needed to avoid confusion. The numbers in the instructions that are
in parenthesis (#) are the item number from the assembly drawing
for reference.
TOOLS INCLUDED:
3/8”Allen Wrench
10mm Allen Wrench
Phillips Screwdriver
PARTS INCLUDED:
2 Console Masts
2 Side Covers
1 Base Frame
1 Console Support
1 Console
1 Safety Button
1 Power Cord
1 Hardware Kit

9
www.spirittness.com

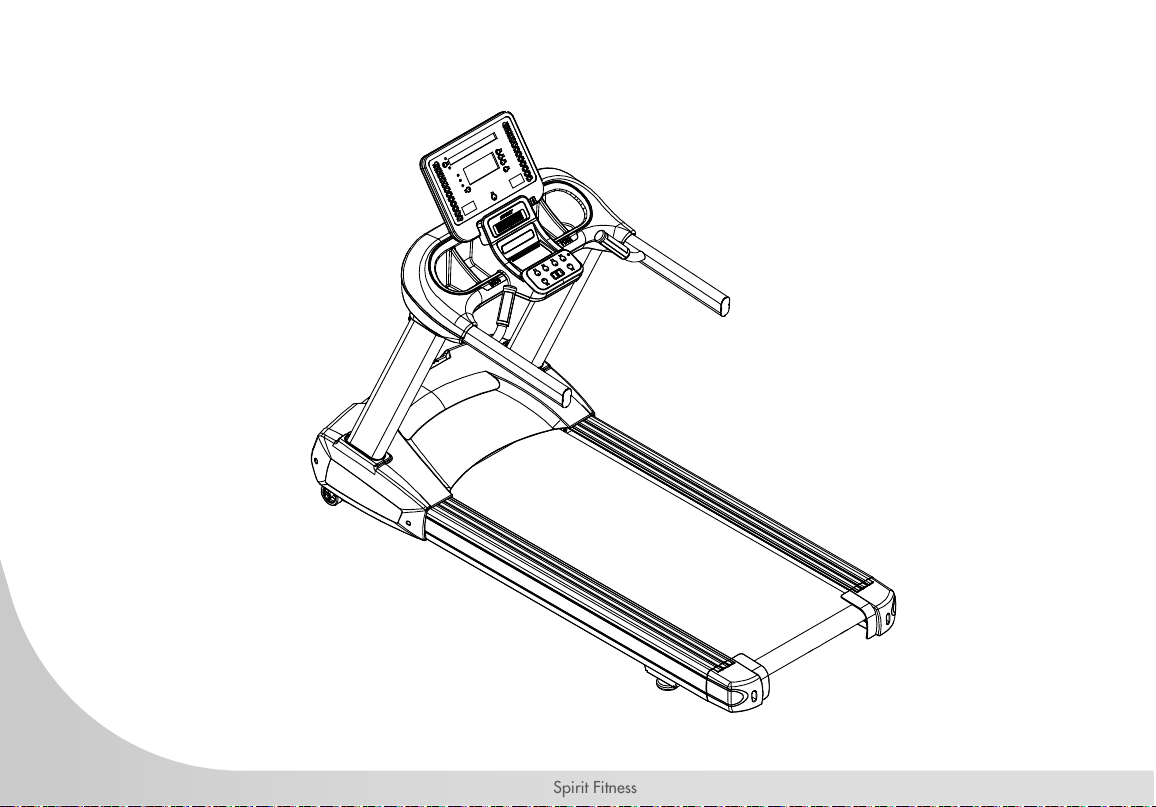

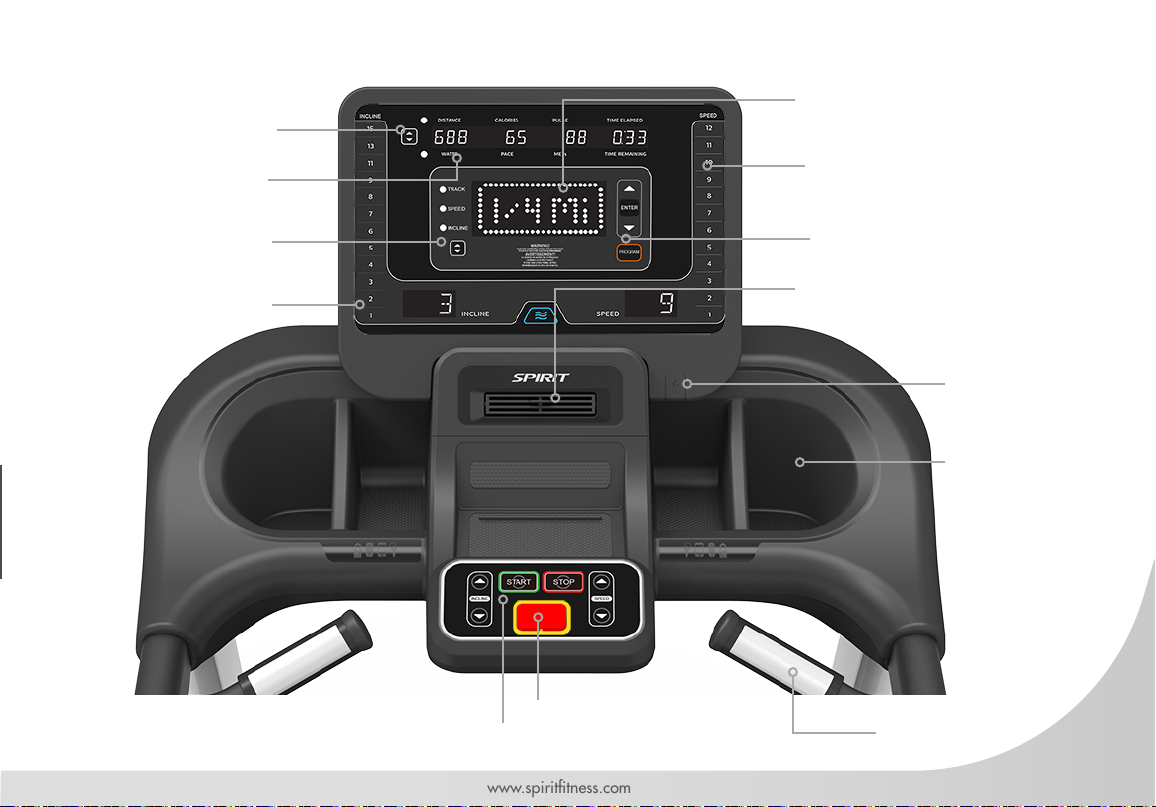

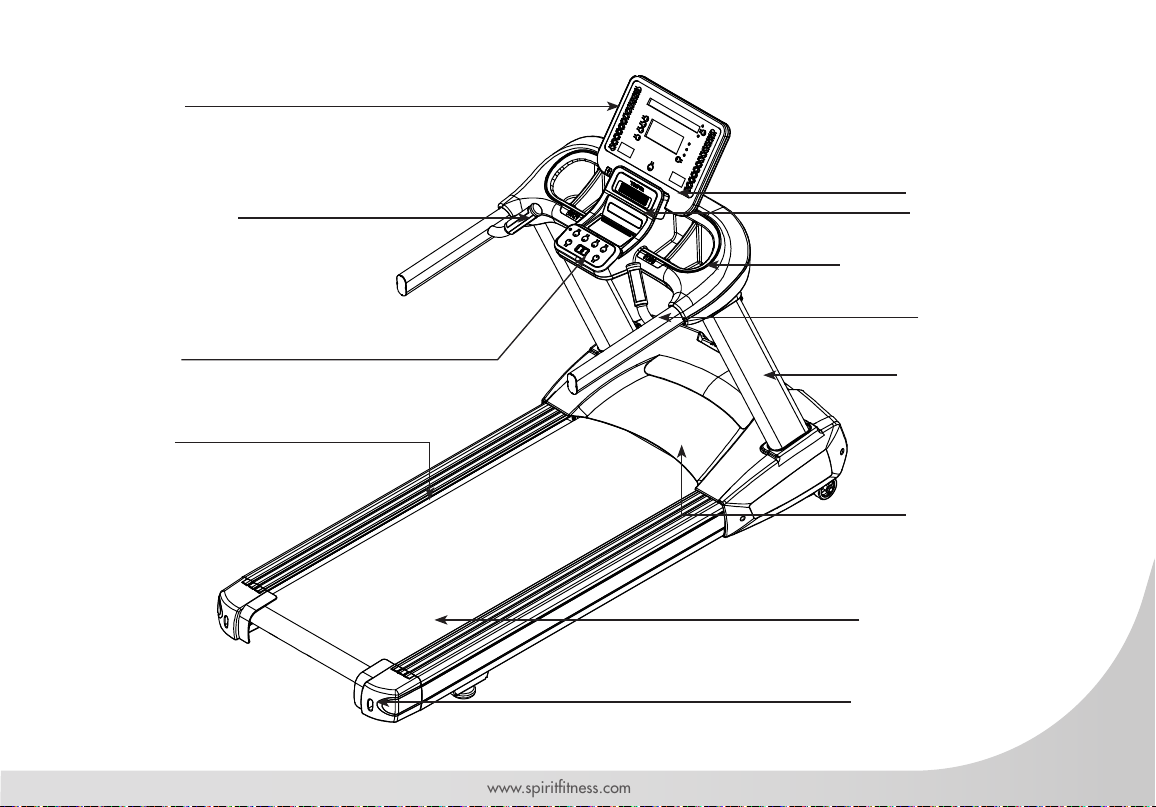

CONSOLE
HEART RATE GRIPS
SAFETY KEY
SIDE RAILS
RUNNING BELT/DECK
TREAD-BELT TRACKING
CONSOLE MAST
HANDLEBARS
MOTOR COVER
CONSOLE FAN
BOTTLE HOLDER
READING RACK

10
Spirit Fitness

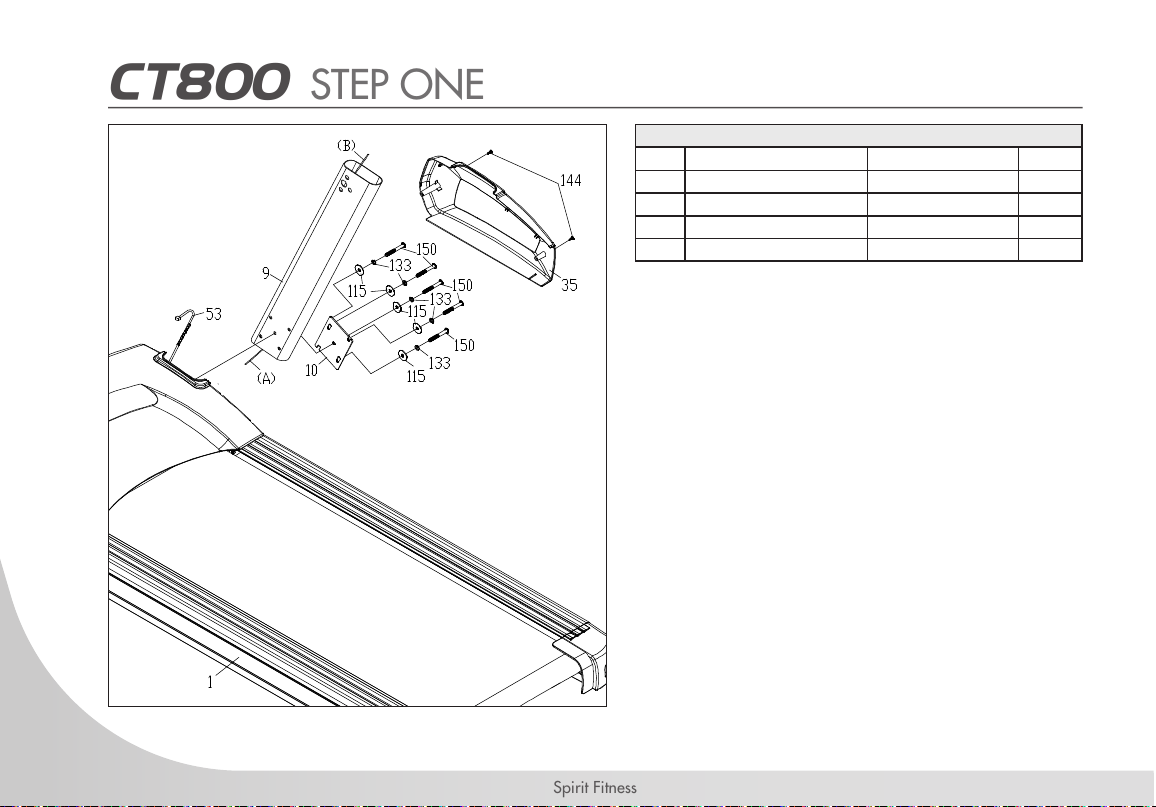

CT800 STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
150 BUTTON HEAD SOCKET BOLT 3/8” x 3” 10
133 SPLIT WASHER Ø10 x 2T 10
115 FLAT WASHER Ø3/8” x 35 x 2.0T 10
144 PHILLIPS HEAD SCREWS M5 x 12mm 4
1. Gather Hardware for Step 1.
2. Thread the Computer Cable (No.53) up through the
center of the Right Upright Column (No.9).
3. Use four sets of Button Head Socket Bolt (No.150),
Split Washer (No.133) against a Flat Washer
(No.115) to secure the Upright Fixing Plate (No.10)
to the Right Uprights (No.9) to the Main Frame
(No.1) using the Allen Wrench (No.160).
4. Use two Phillips Head Screws (No.144) to secure
the Motor Base Cap Right (No.35) to Main Frame
(No.1) using the Screw Driver (No.158).
5. Repeat the previous two steps on the left side.

11
www.spirittness.com

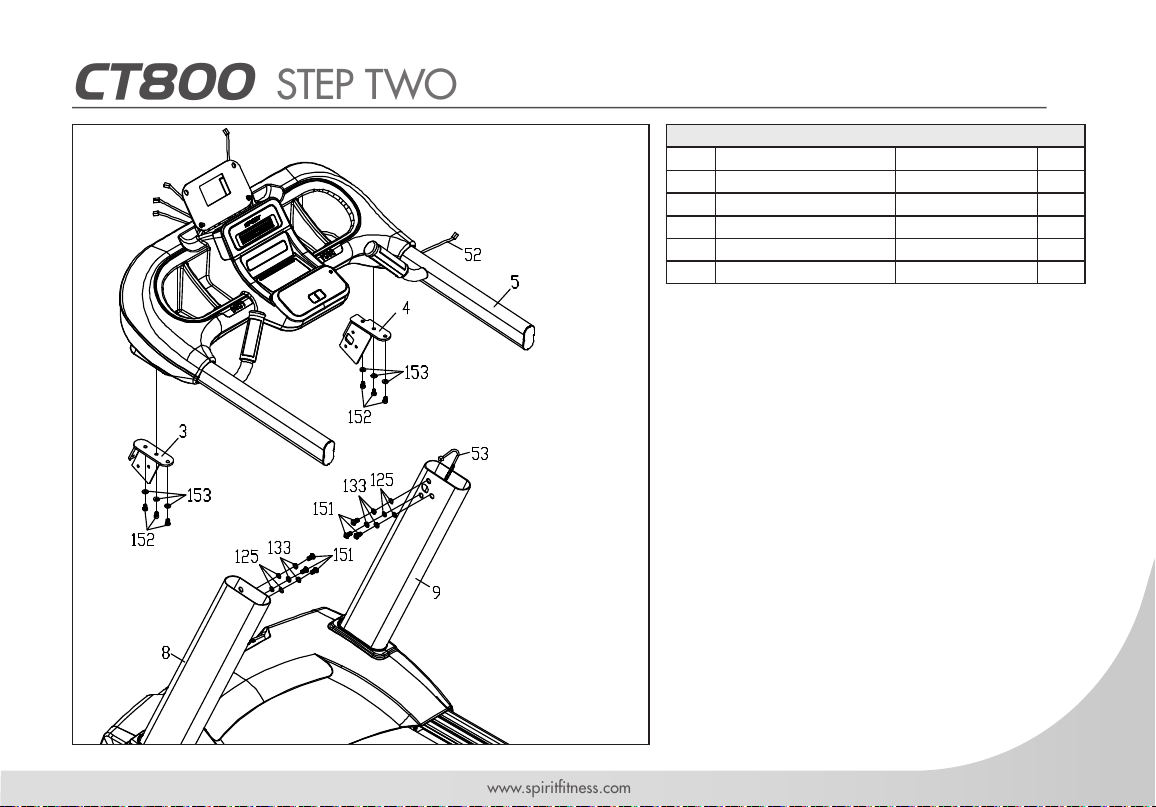

CT800 STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
152 SOCKET HEAD CAP BOLT M8 x 12mm 6
153 FLAT WASHER Ø8 x Ø16 x 2T 6
151 BUTTON HEAD SOCKET BOLT 3/8” x 3/4” 6
133 SPLIT WASHER Ø10 x 2T 6
125 FLAT WASHER Ø3/8” x Ø25 x 2.0T 6
1. Gather Hardware for Step 2.
2. On the underside of the Console Support
(No.5) is where the Locking Plate Assembly
(No. 3 & 4) can be attached. Use 3 Socket
Head Cap Bolts (No.152) and 3 Flat
Washers(No.153) on each side to secure.
3. Connect the Computer Cable (No. 53) with
the Upper Computer Cable (No.52). Be
careful not to pinch the wires and slide them
into the Right Upright (No.9).
4. Gently slot the Console Support (No.5) into
the Left/Right Uprights (No.8 & 9) and
secure with 3 Button Head Socket Bolts
(No.151), 3 Split Washers (No.133), and
3 Flat Washers (No.125) on both sides
using the Allen Wrench (No.160).

12
Spirit Fitness

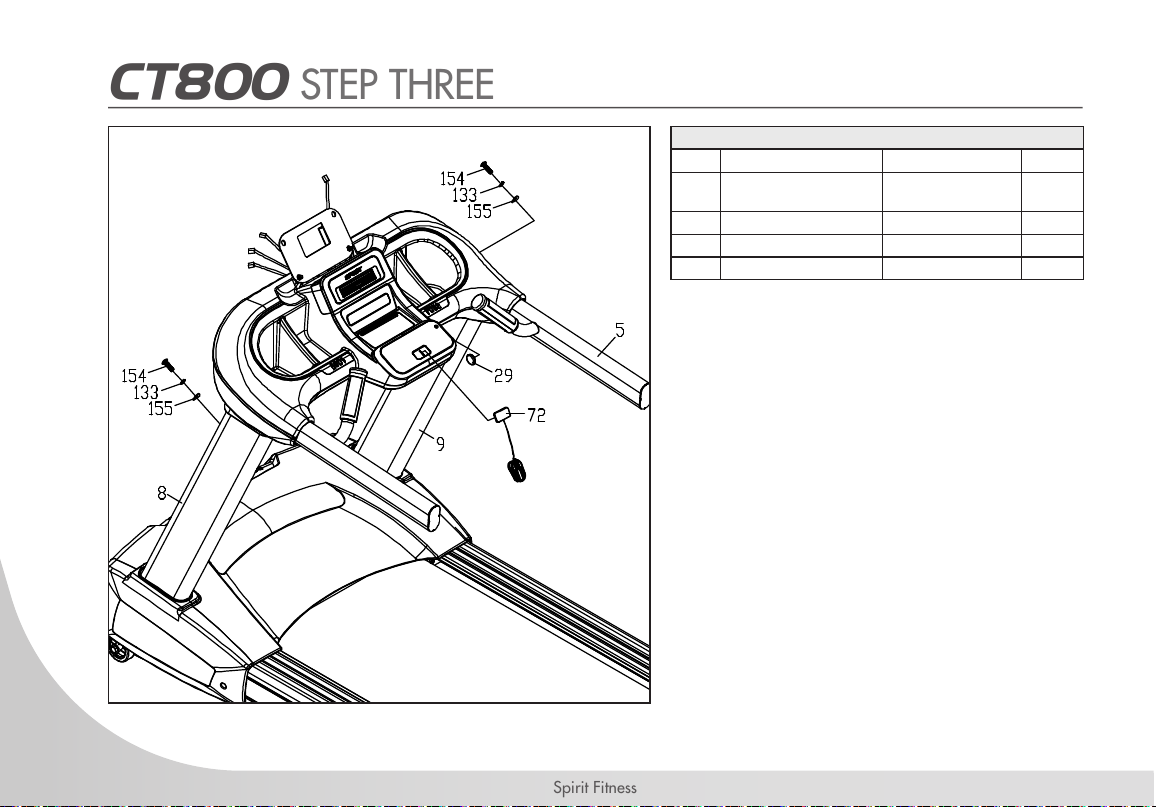

CT800 STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
154 BUTTON HEAD SOCKET
BOLT 3/8” x UNC16
x1-1/4
2
133 SPLIT WASHER Ø10 x 2T 2
155 CURVED WASHER Ø10 x Ø23 x 1.5T 2
29 ROUND CAP 1
1. Gather Hardware For Step 3.
2. Further secure the uprights by inserting a Button
Head Socket Bolt (No.154) through a Split
Washer (No.133), and a Curved Washer
(No.155) onto the backside of both Left/Right
Uprights (No. 8 & 9) using the Allen Wrench
(No.160).
3. Plug the Round Cap (No.29) into the Right
Upright (No.9).
4. Plug the Safety Key (No.72) into the Safety
Key base on the Console Support (No.5).

13
www.spirittness.com

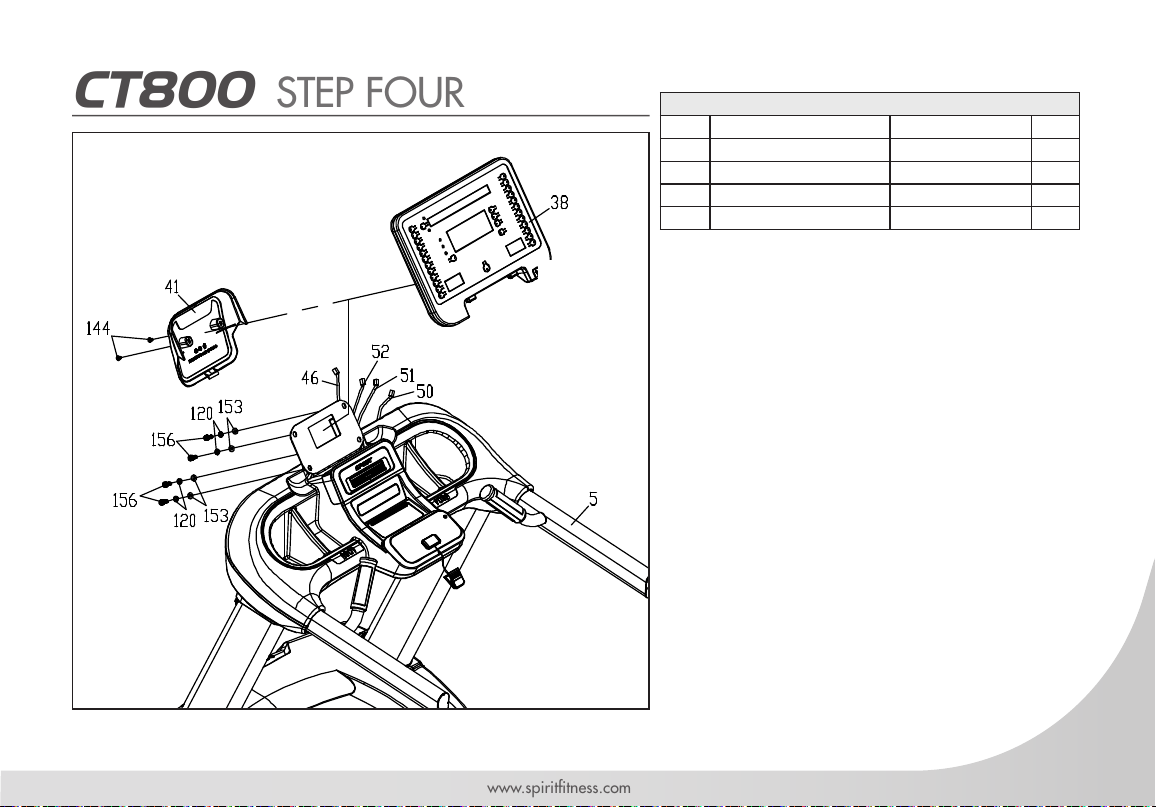

CT800 STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
156 SOCKET HEAD CAP BOLT M8 x P1.25 x 20L 4
120 SPLIT WASHER Ø8 x 1.5T 4
153 FLAT WASHER Ø8 x Ø16 x 2T 4
144 PHILLIPS HEAD SCREW M5 x 12mm 2
1. Gather Hardware for Step 4.
2. Place the Console Assembly (No.38) onto the
Console Support (No.5). Secure with 4 Socket
Head Cap Bolts (No.156), 4 Split Washer
(No.120), and 4 Flat Washers (No.153) using
the Allen Wrench (No.159).
3. Connect the Upper Handpulse Wires (No.50
& 51) and Upper Computer Cable (No.52) to
Console Assembly (No.38).
4. Fasten the Console Cover (No.41) with 1 Phillips
Head Screw (No.144) to the Console Support
(No.5) using the Screw Driver (No.158).

14
Spirit Fitness
CT800 CONSOLE OPERATION

15
www.spirittness.com
Fan
Contact Heart
Rate Grips
Dot Matrix
Message Center
Water bottle
holder and cargo
compartment for
buttons, phone,
or MP3 player
USB
Charger
Scan Button for
LED Windows
Scan Button for
Dot Matrix
Direct Access
Incline Buttons
Direct Access
Speed Buttons
Start, Stop, Speed, and
Incline constrols Safety Key
Up, Down,
Program Controls
LED Data Display
Windows

16
Spirit Fitness
POWER
Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located
at the front of the treadmill below the motor hood. Ensure that the safety button is installed, as the treadmill
will not power on without it.
When the power is turned on, all the lights on the display will light for a short time. Then the Time and
Distance windows will display odometer readings for a short time. The Time window will show how many
hours the treadmill has been in use and the Distance window will show how many miles (or Kilometers if
the treadmill is set to metric readings; see maintenance for changing settings) the treadmill has gone. A
message will be displayed showing the current software version. The treadmill will then enter idle mode,
which is the starting point for operation.
CSAFE FEATURE

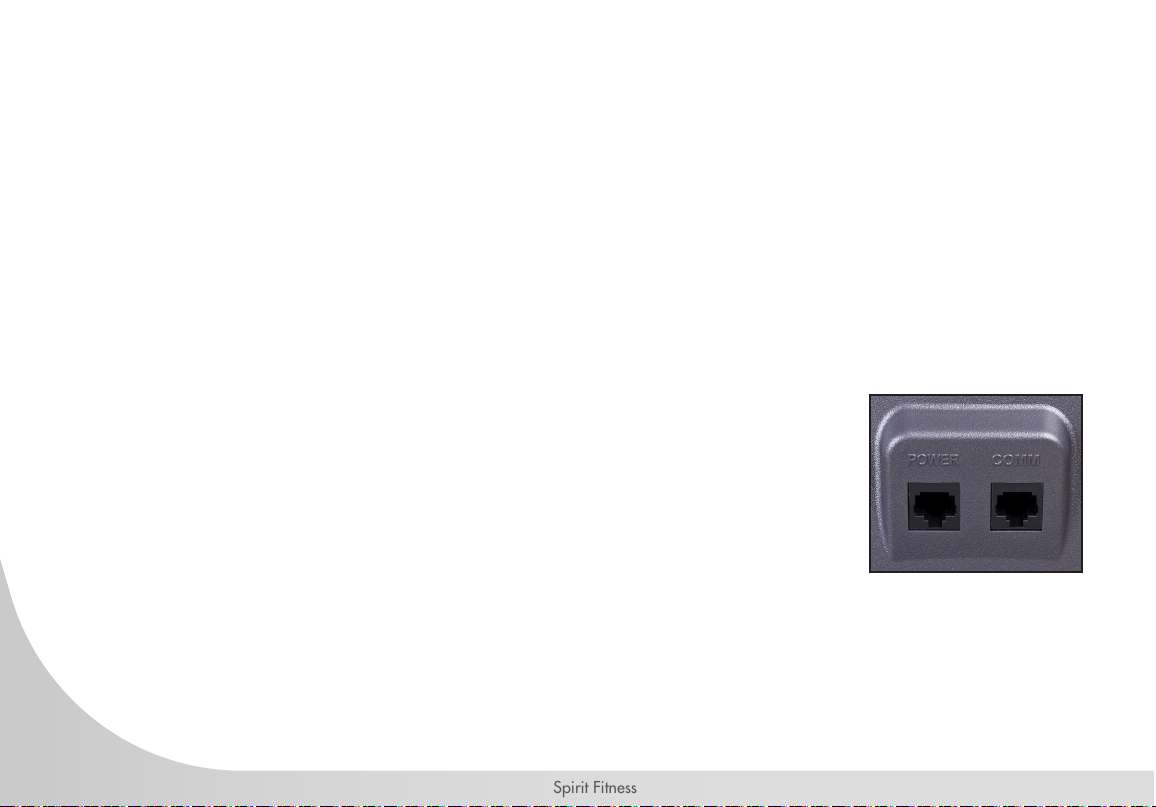

Your console is equipped with a CSAFE feature. The Power (POWER) port can
be used for powering a remote controlled audio-visual system by connecting
a cable from the remote to the Power port at the back of the console. The
Communication port (COMM) can be used to interact with tness software
applications.
SAFETY TETHER CORD
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all
times. It is for your safety should you fall or move too far back on the tread-belt. Pulling this safety tether
cord will stop tread-belt movement. To Use:
1. Place the magnet into position on the round metal portion of the console control head. Your treadmill will not start
and operate without this. Removing the magnet also secures the treadmill from unauthorized use.

17
www.spirittness.com
QUICK START
• Press and release any button to wake display up if not already on.
• Press and release the Start button to begin belt movement at 0.5 mph, then adjust to the desired speed using the
Up/Down Speed buttons. You may also use the Direct Access Speed Buttons 1 through 12 to set to a specic
speed directly.
• To slow the treadmill belt press and hold the Speed Down button (console or hand rail) to the desired speed. You
may also press the Direct Access Speed Buttons, 1 through 12.
• To stop the treadmill belt press and release the red Stop button.
PAUSE/STOP/PRESET
• When the treadmill is running the pause feature may be utilized by pressing the red Stop button once. This will
slowly decelerate the treadmill belt to a stop. The incline will go to zero percent. The Time, Distance and Calorie
readings will hold while the unit is in the pause mode. After 5 minutes the display will reset and return to the start
up screen.
• To resume your exercise when in Pause mode, press the Start button. The speed and incline will return to their
previous settings.
• Pressing the Stop button twice will end the program and a workout summary will be displayed. If the Stop button
is pressed a third time, the console will return to the idle mode (start up) screen.
• If the Stop button is held down for more than 3 seconds the console will reset.
2. Fasten the plastic clip onto your clothing securely to assure good holding power. Note: The magnet has strong
enough power to minimize accidental, unexpected stopping. The clip should be attached securely to make
certain it does not come off. Be familiar with its function and limitations. The treadmill will stop, depending on
speed, with a one to two step coast anytime the magnet is pulled off the console. Use the Stop / Pause switch in
normal operation.

18
Spirit Fitness
• When you are setting data, such as age and time, for a program pressing the Stop button will allow you to go
back one step for each button press.
INCLINE
• Incline may be adjusted anytime after the belt starts moving.
• Press and hold the adjust Incline Up/Down buttons to achieve desired level of effort. You may also choose a
more rapid increase / decrease by selecting a rapid incline button, 1 through 15, on left hand side of console
(incline).
• The display will indicate incline numbers as percent of grade (the same as grade of a road) as adjustments are
made.
DOT MATRIX MESSAGE CENTER
Ten rows of dots indicate each level of a workout in manual mode. Displays messages that help guide you
through the programming process. During a program the message window displays your workout data.
The dots are only to show an approximate level (speed/incline) of effort. They do not necessarily indicate
a specic value - only an approximate percent to compare levels of intensity. In Manual Operation the
Speed / Incline Dot Matrix Message Center will build a prole “picture” as values are changed during a
workout. There are twenty-four columns, indicating time. The 24 columns are divided into 1/24th of the
total time of the program. When the time is counting up from zero (as in quick start) each column represents
1 minute.
Next to the Dot Matrix Message Center are three LED lights labeled: Track, Speed and Incline, along with
a Up/Down Scan button. When the Track LED is lit the Dot Matrix Message Center displays the Track
prole, when the Speed LED is lit the Dot Matrix Message Center displays the Speed prole and when the
Incline LED is lit it displays the Incline prole. You may change the prole view by pressing the Up/Down
