Sport-Tiedje BodyMax Multi Gym MG5 User manual

max. 135 kg
L 187 | B 105 | H 208
~ 400 Min.
CM
195 kg
BodyMax Multi Gym MG5
SEMG2112.01.01
SKU: SEMG2112
Assembly and Operating Instructions

2
MG5

3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 11
2.3 Assembly 16
3 STORAGE AND TRANSPORT 38
3.1 General Instructions 38
4 TROUBLESHOOTING, CARE AND MAINTENANCE 39
4.1 General Instructions 39
4.2 Faults and Fault Diagnosis 39
4.3 Maintenance and Inspection Calendar 40
5 DISPOSAL 40
6 RECOMMENDED ACCESSORIES 41
7 ORDERING SPARE PARTS 42
7.1 Serial Number and Model Name 42
7.2 Parts List 43
7.3 Exploded Drawing 45
8 WARRANTY 46
9 CONTACT 48

4
MG5

5
Dear customer,
Thank you for choosing training equipment from BodyMax.
BodyMax is your reliable partner for home and commercial gym equipment. We are specialized in
cardio and strength training machines for home and commercial use. Our products are not only
strong, durable, and aordable but also designed to t your personal needs.
The BodyMax headquarter is based in Rutherglen, Glasgow. Our brand was created with the intention
of providing innovative exercise equipment at aordable prices for users of all training levels.
You can nd further information at www.bodymax-tness.com.
Disclaimer
©2009 BodyMax® is a registered brand of the company Sport-Tiedje GmbH. All
rights reserved. Any use of this trademark without the explicit written permission
of Sport-Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is suitable for home use and semi-professional use (e.g. hospitals, clubs, hotels,
schools, etc.). The equipment is not suitable for commercial or professional use (e.g. tness
studio).

6
MG5
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
Due to ongoing changes and software optimisations, the manual may have to be updated. If
you notice any discrepancies during assembly or use, please refer to the manual uploaded to the
webshop. The latest manual is always available there.
This equipment has been manufactured according to the latest safety knowledge. As far as possible,
potential safety hazards which could cause injury have been eliminated. Make sure to carefully follow
the instructions and that all parts are securely in place. If required, read through the
instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here.
The contract partner cannot be held liable for damage to health, accidents or
damage to the equipment when it is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

7
1 GENERAL INFORMATION
1.1 Technical Data
Weight and dimensions:
Article weight (gross, incl. packaging):
No.1: 62 kg
No.2: 15 kg
No.3: 28.5 kg
No.4: 36.6 kg
No.5: 37.5 kg
No.6: 37.5 kg
Article weight (net, without packaging): 195 kg
Packaging dimensions cartons:
No.1 (L x W x H):
No.2 (L x W x H):
No.3 (L x W x H):
No.4 (L x W x H):
No.5 (L x W x H):
No.6 (L x W x H):
Set-up dimensions:
(L x W x H):
Maximum user weight:
Cables and pulleys:
Number of cables:
Cable length:
Diameter of pulley:
Weight block:
Quantity:
Total weight:
Weight plates:
Weight of a single weight plate:
approx. 193 cm x 53 cm x 20.5 cm
approx. 97 cm x 97 cm x 95 cm
approx. 180 cm x 28 cm x 22 cm
approx. 49.5 cm x 29.5 cm x 19 cm
approx. 49.5 cm x 29.5 cm x 19 cm
approx. 49.5 cm x 29.5 cm x 19 cm
approx. 187 cm x 105 cm x 208 cm
135 kg
4
396 cm, 520 cm, 483 cm, 182 cm
4.8 cm
1
220 lb
14+1
15 lb + 10 lb

8
MG5
1.2 Personal Safety
⚠DANGER
+Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+This equipment may not be used by children under the age of 14.
+Children should not be allowed unsupervised access to the equipment.
+Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+The equipment is strictly for use by one person at a time.
+If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+Do not insert any objects of any kind into the openings of the device.

9
1.3 Set-Up Place
⚠WARNING
+Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+The training room should be well ventilated during training and not be exposed to any
draughts.
+Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+The set-up and mounting surface of the equipment should be at, loadable and solid.
+If your device is to be mounted on the wall/ceiling, make sure that you use the appropriate
assembly material to avoid possible damages or personal injuries. The contractual partner
accepts no liability for this.
࣑ATTENTION
+The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

10
MG5
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+Ensure to have sucient room for movement in each direction during assembly.
+The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+Ideally, assemble the equipment at its later set-up place.

11

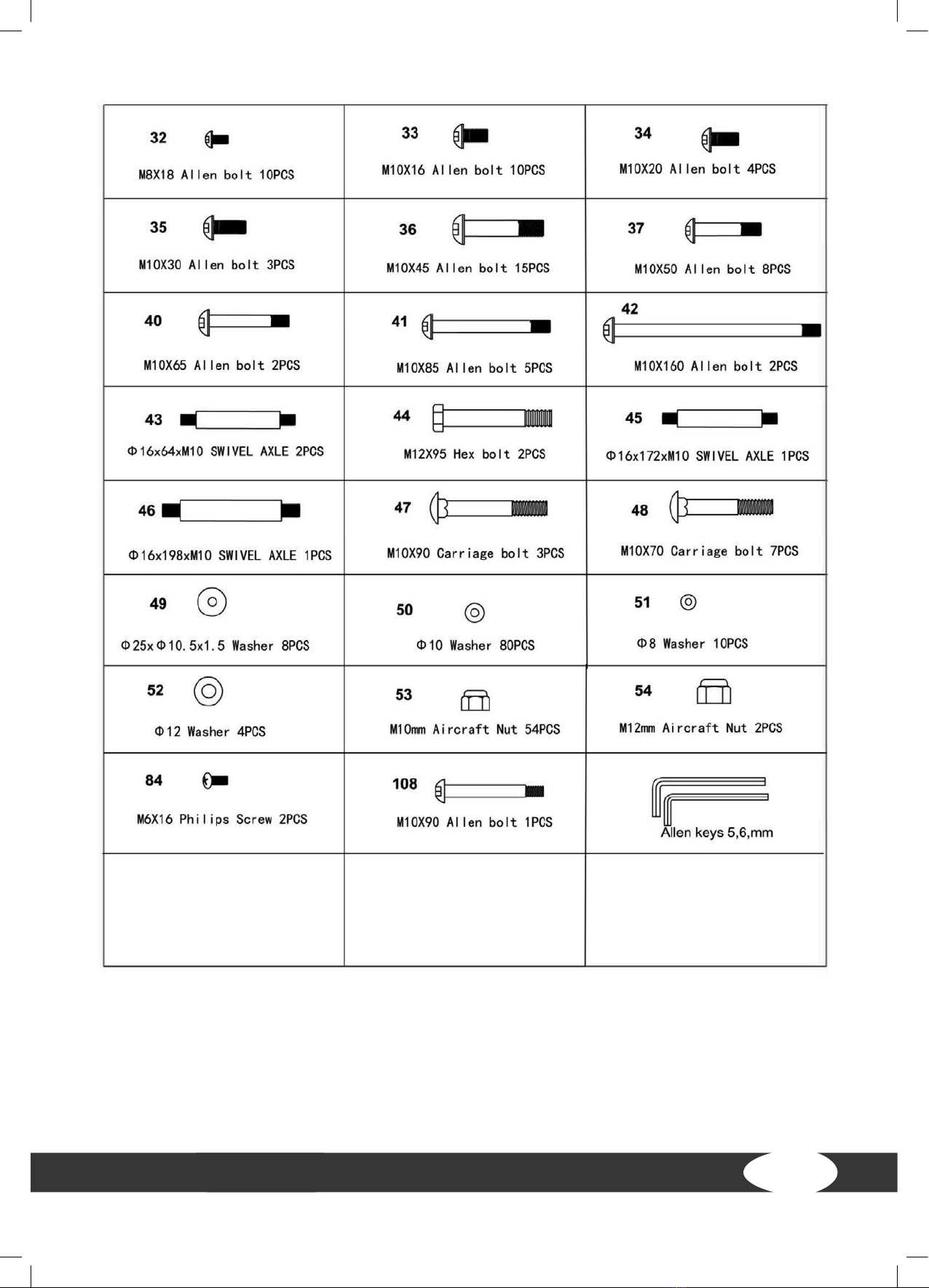

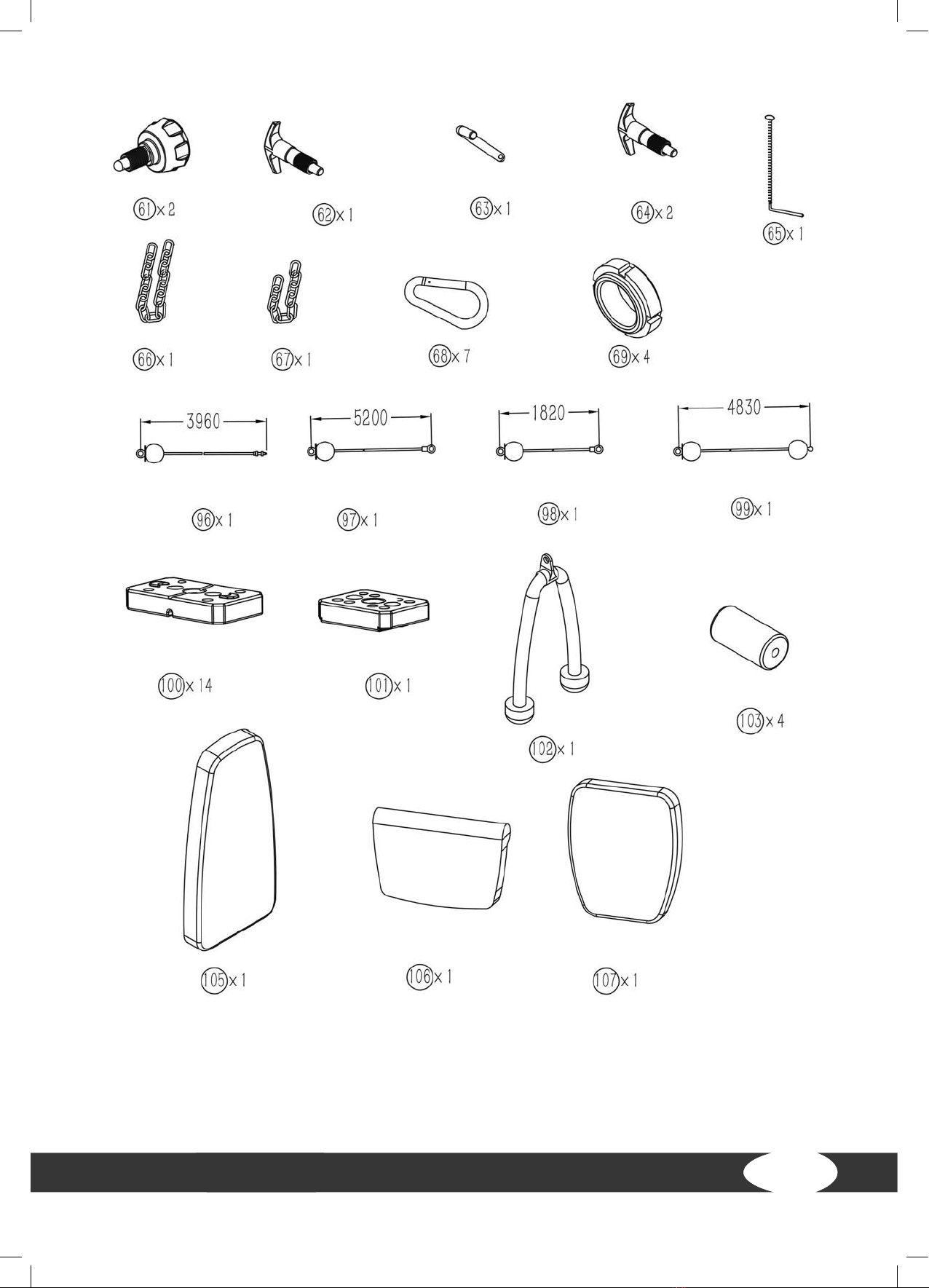

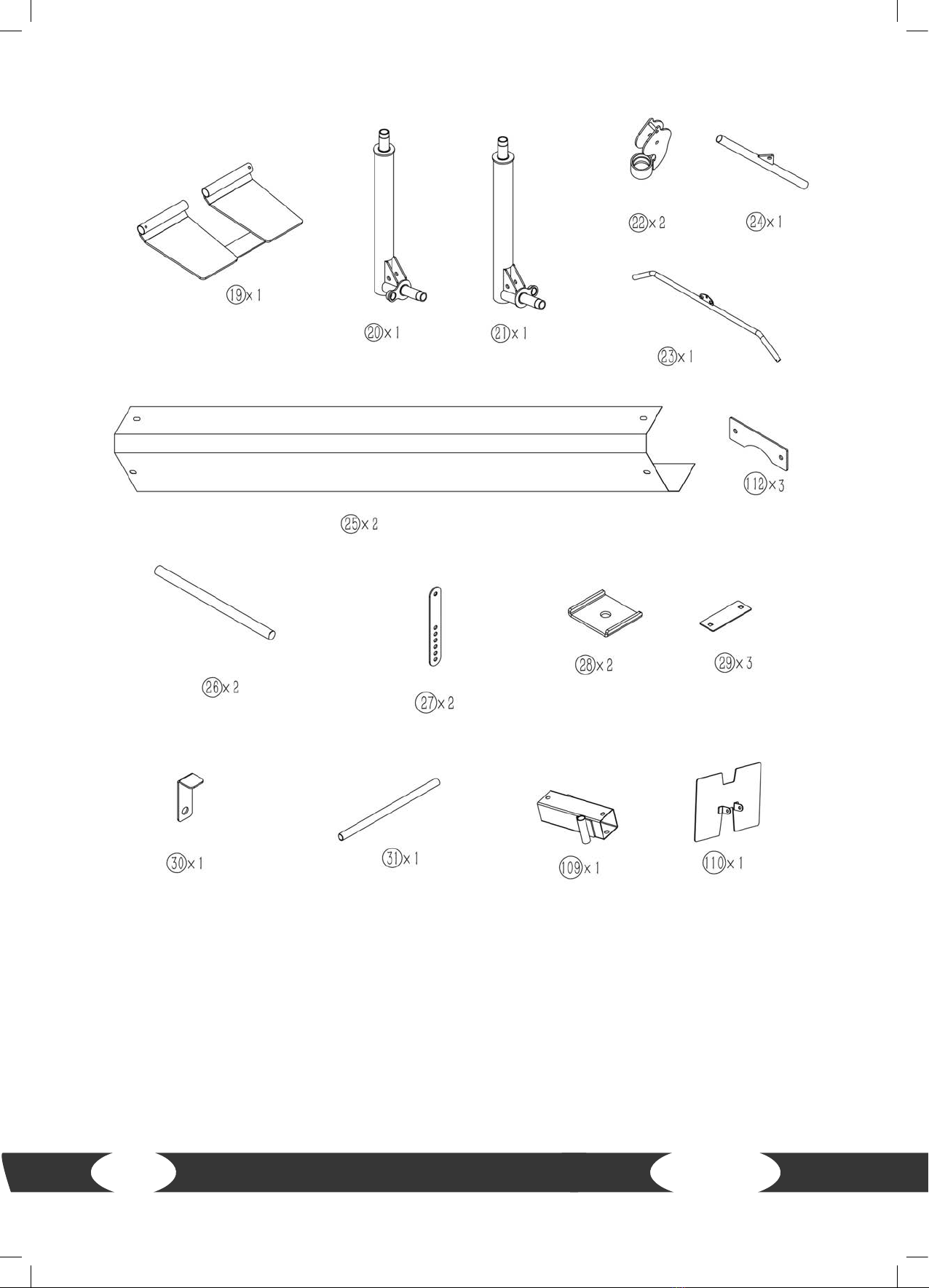

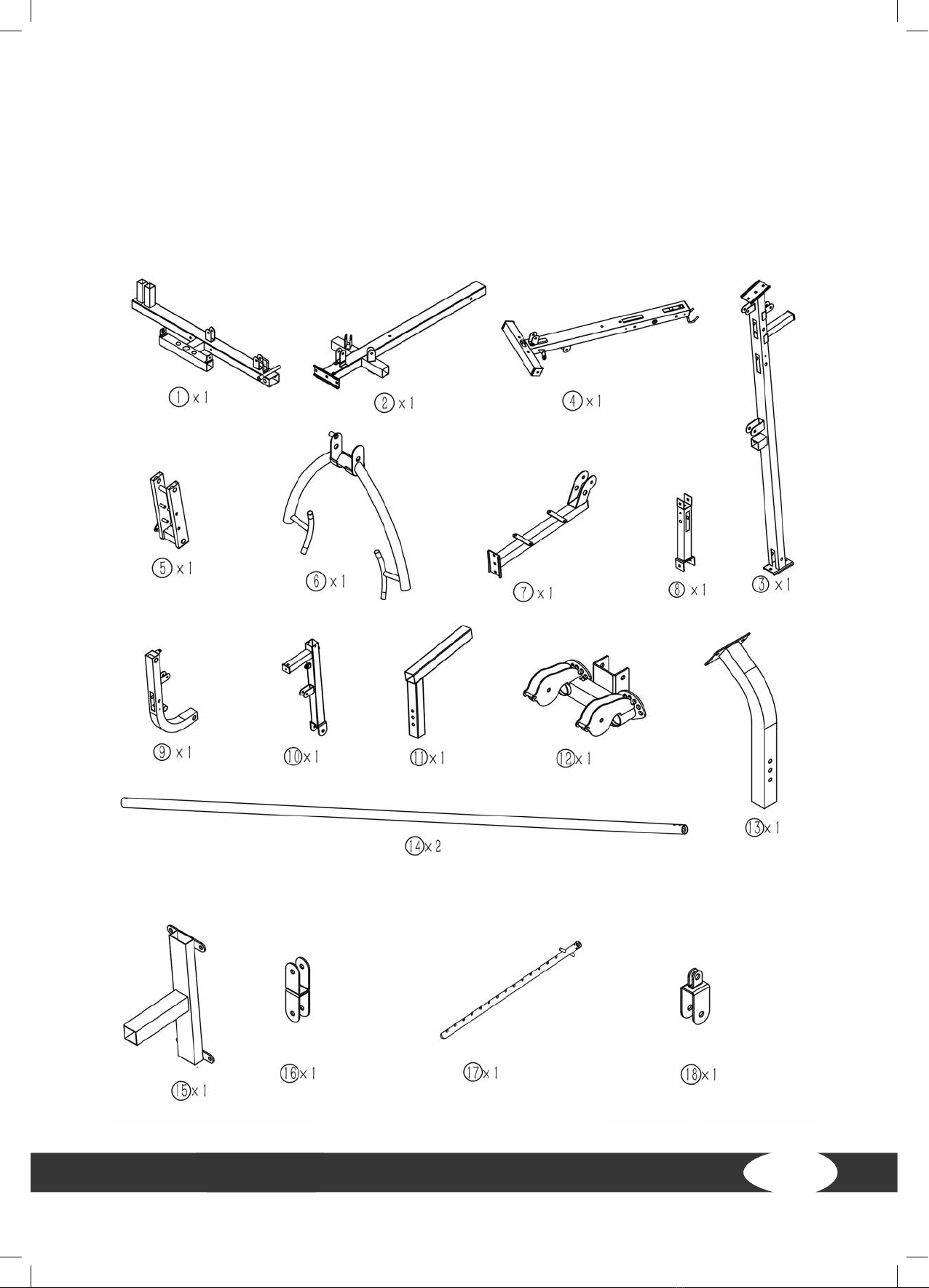

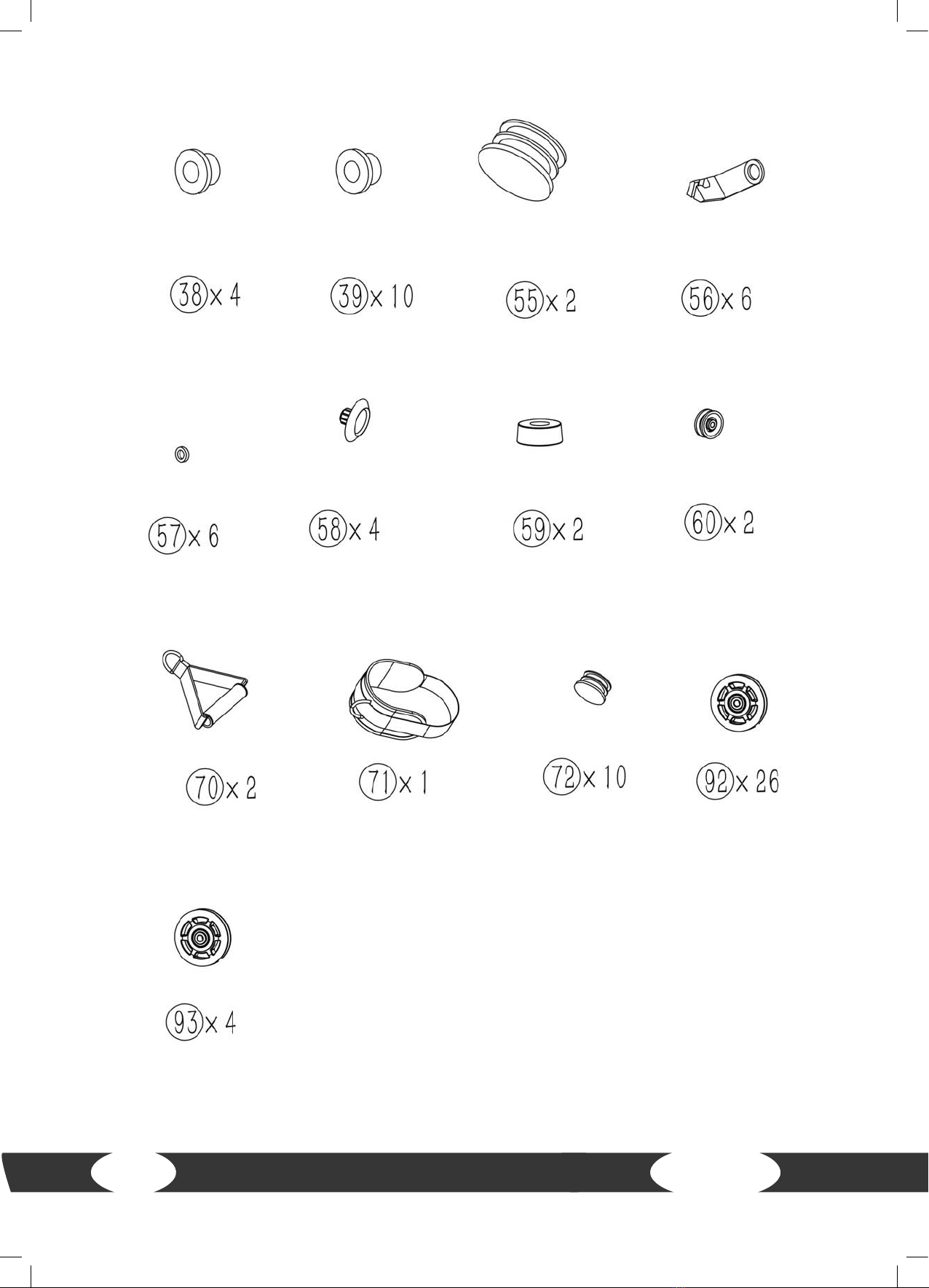

2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

12
MG5

13

14
MG5

15

16
MG5
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
+First loosely screw all parts together and check that they t properly. Tighten the screws
using the tool only when you are instructed to do so.
+If you have diculty recognising the graphics, we recommend that you open and/or
download the PDF instructions stored in the webshop on your end device (e.g. smartphone,
tablet or PC). There you have the option of zooming in closer. Please note that the Adobe
Acrobat Reader programme must be installed on your end device in order to open the le.

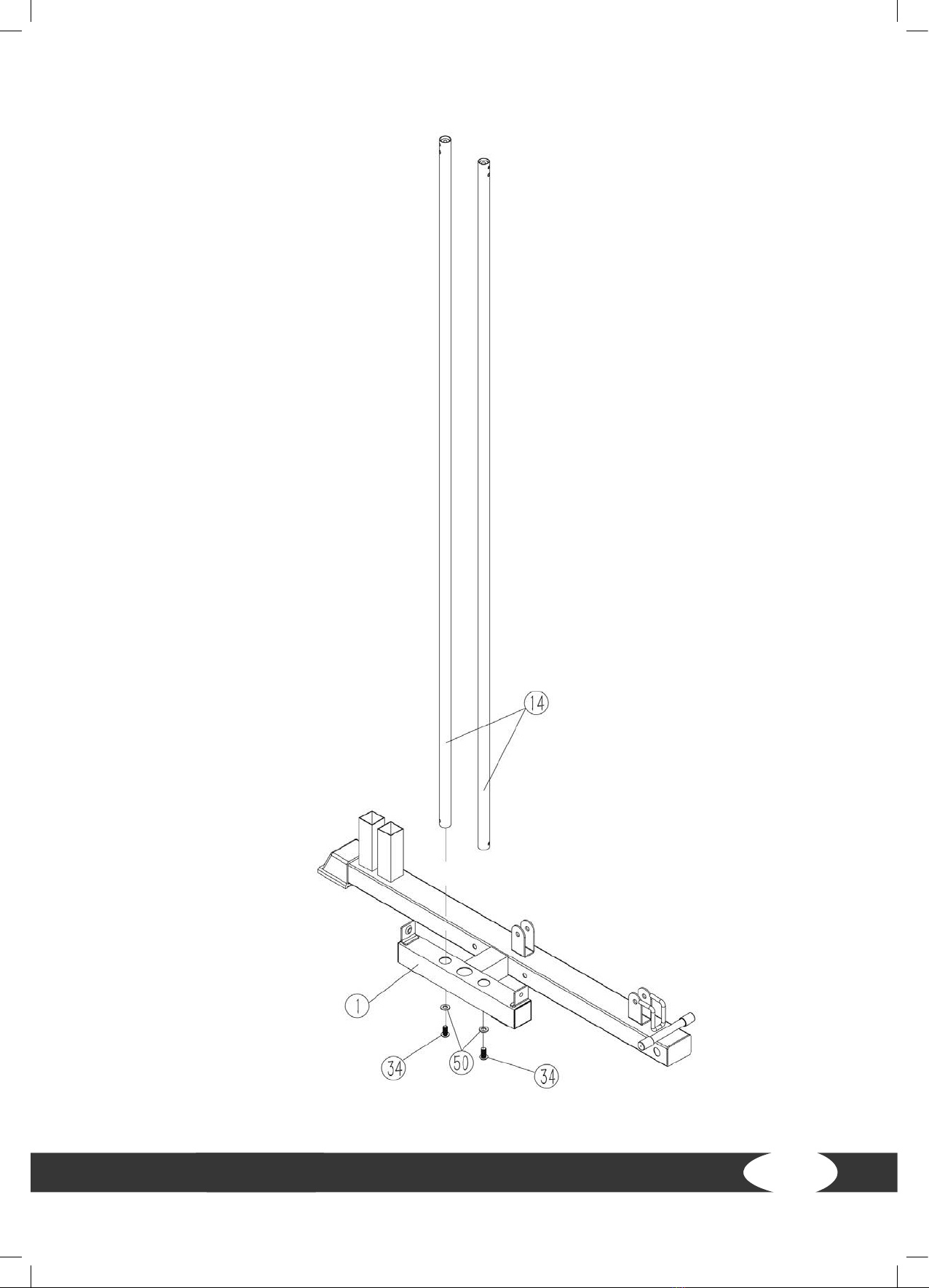

Step 1: Assembly of the Guide Rods
1. Unpack the cartons and place all parts on the oor.
2. Remove the packing material and check parts for completeness.
3. Assemble two guide rods (14) to the rear stabilizer (1) with two bolts (34) and 2 washers (50).

17

18
MG5

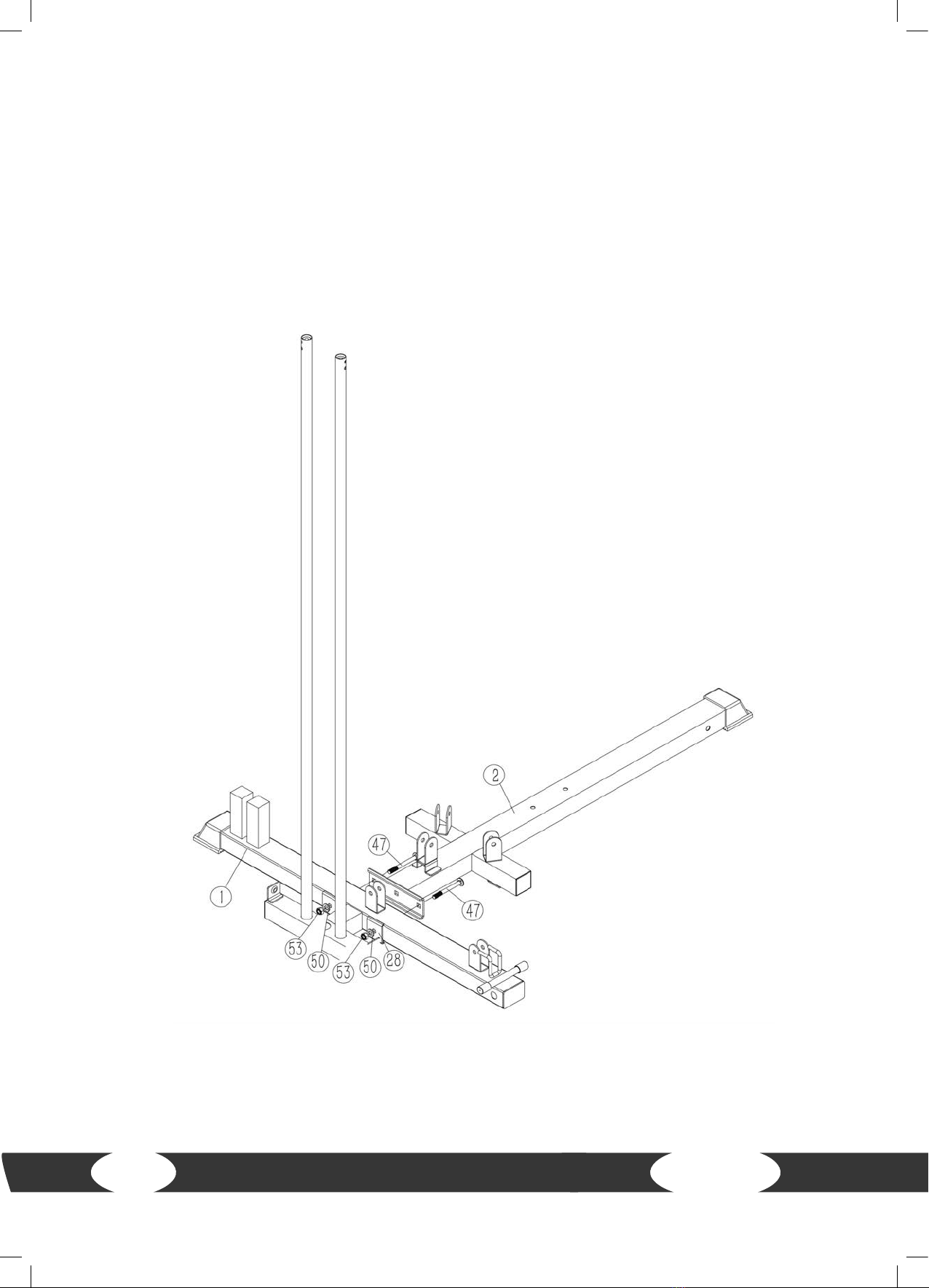

Step 2: Assembly of the Front Stabilizer
1. Assemble the front stabilizer (2) to the rear stabilizer (1) with two connecting brackets (28), two
bolts (47), two washers (50) and two nuts (53).

19

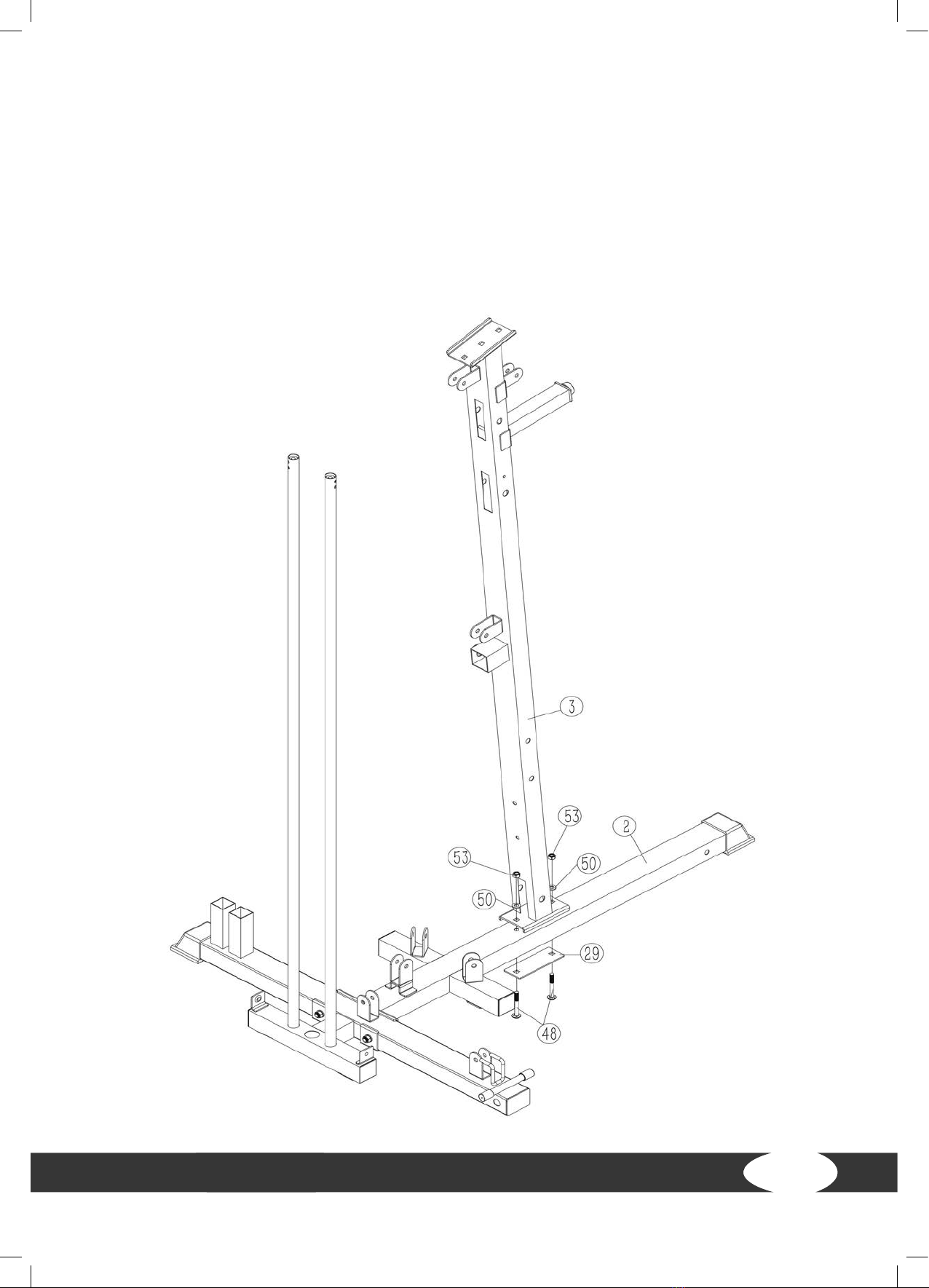

Step 3: Assembly of the Vertical Frame
1. Assemble the vertical frame (3) to the front stabilizer (2) with one long bracket (29), two bolts
(48), two washers (50) and two nuts (53).

20
MG5

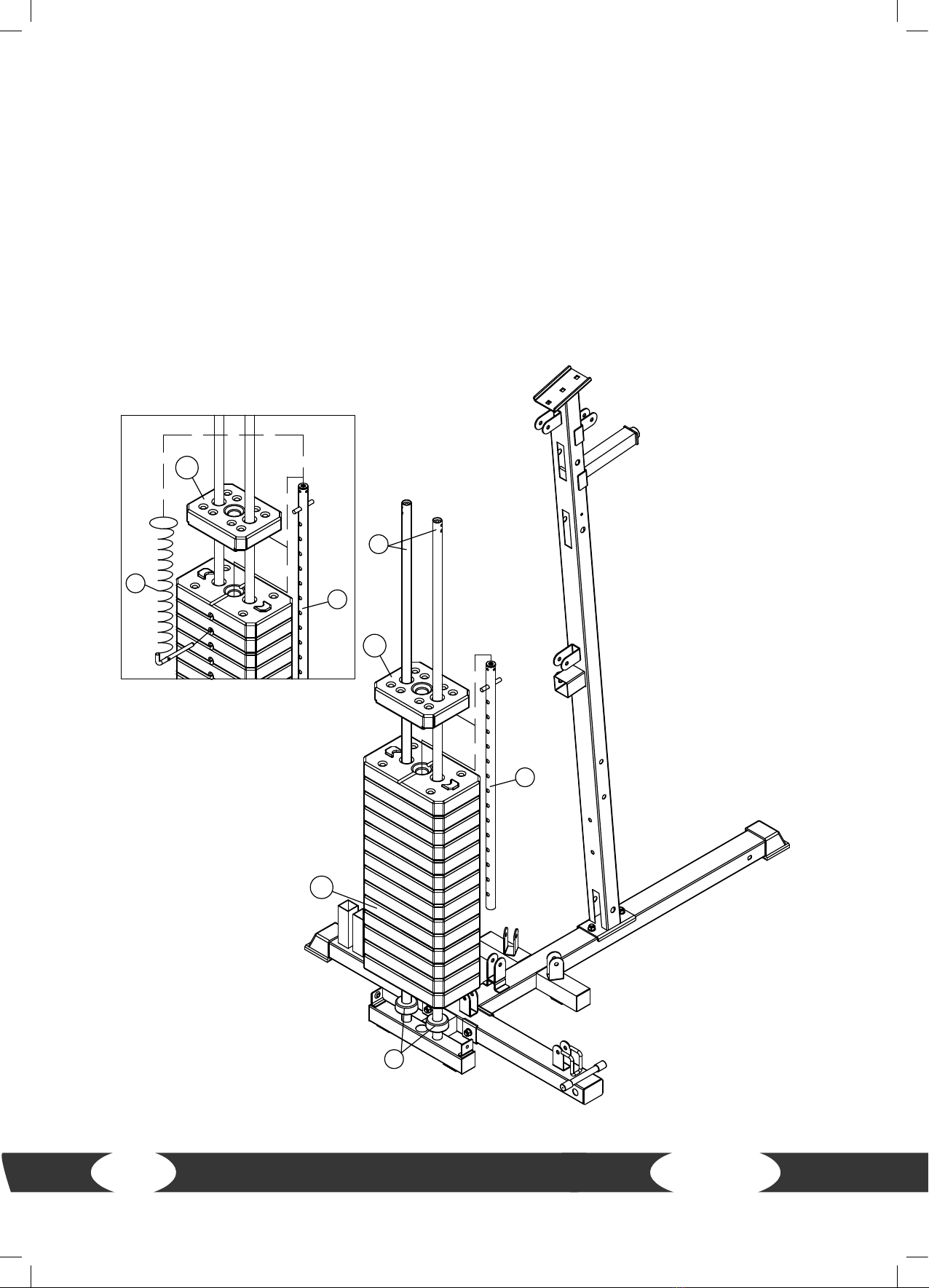

Step 4: Assembly of the Weight Plates
LNOTICE
+The holes of the weight plates need to face the front of the gym.
+The holes of the weight plates need to point downwards.
1. Slide two rubber bumpers (59) and 14weight plates (100) through the guide rods (14).
2. Insert the selector rod (1 7) into the weight plates (100).
3. Slide the upper plate (101) through the guide rods (14).
4. Insert one end of the weight select pin (65) into one of the weight plates (100).
5. Attach the other end of the weight select pin (65) onto the selector rod (17).
17
100
59
14
17
101
65
101
