Sportsman Aviation F4U Corsair ARF User manual

1
F4U Corsair ARF Specifications:
●Wing Span: 58.25 Inches (1480mm)
●Wing Area: 618 Square Inches (39.88 dm2)
●Length: 45.25 Inches (1150mm)
●Weight RTF: 6.25 Pounds (2.8-2.9kg)
●Wing Loading: 23.25 Ounces Per Square Foot (70 sq dm)
●Functions: Ailerons, Elevator, Rudder, Throttle and Retracts
●Engine Required: .46 - .52 Two-Stroke or .65 - .70 Four-Stroke
●Radio Required: Four-Channel or More
●Servos Required: Four Standard Ball Bearing Servos
One 180º Retract Servo
One Standard Servo
INSTRUCTIONS FOR FINAL ASSEMBLY
The Sportsman Aviation F4U Corsair ARF is distributed
exclusively by Global Hobby Distributors
18480 Bandilier Circle, Fountain Valley, CA 92708
All contents copyright © 2004, Global Hobby Distributors
Version V2.0 September 2004
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦The Sportsman Aviation F4U Corsair ARF is not intended for inexperienced pilots. It is in no way a trainer. If
you are not comfortable flying high-performance, sport aircraft, we strongly suggest returning the airplane (brand new, in the box
with all original packaging and your dated sales receipt) to the place of purchase.
Kit Product Number 127534
Sportsman Aviation has done it again, setting a new higher standard in ARF construction. This beautiful F4U Corsair ARF is
perfectly matched to the Magnum XLS .52 two-stroke engine or the Magnum XL .70RFS four-stroke engine. From the rotating
retracts to the beautiful covering job with world-wide recognized Oracover, this is a model you'll be proud to own and you can bet that
it will attract attention at the field. At the field and in the air, this F4U Corsair looks great and flies even better.
The F4U Corsair ARF is completely built-up from laser-cut plywood and balsa. The all-wood construction technique used on the
wing makes aligment and assembly a breeze. The design is durable and stout, ensuring your investment will give you long-lasting
enjoyment. In addition to the F4U Corsair's Oracover covering material, the airplane features preinstalled 90º rotating retracts,
molded wheel cups, adjustable engine mounting beams, dual aileron servos and rear-mounted elevator and rudder servos for crisp,
solid control response. Details, such as a molded fiberglass cowling, molded clear canopy, molded dummy radial engine and an
antenna mast, plus a high-quality hardware package, round out this specatacular model.

2
TABLE OF CONTENTS
Safety Warning ...................................................................................... 2
Introduction ............................................................................................ 3
Customer Service Information .............................................................. 3
Section 1: Our Recommendations ....................................................... 4
Section 2: Tools and Supplies Required ............................................. 5
Section 3: Replacement Parts ............................................................. 5
Section 4: Kit Contents ........................................................................ 6
Section 5: A Note About Covering ....................................................... 7
Section 6: Wing Assembly ................................................................... 8
Section 7: Belly Pan Installation ........................................................ 13
Section 8: Horizontal Stabilizer Installation ....................................... 15
Section 9: Vertical Stabilizer Installation ........................................... 19
Section 10: Retractable Landing Gear Installation ........................... 23
Section 11: Engine Installation ........................................................... 27
Section 12: Throttle Control System Installation ............................... 29
Section 13: Fuel Tank Assembly and Installation .............................. 31
Section 14: Elevator Control System Installation .............................. 33
Section 15: Rudder Control System Installation ............................... 36
Section 16: Aileron Control System Installation ................................ 38
Section 17: Cowling Installation ......................................................... 39
Section 18: Final Assembly ................................................................ 42
Section 19: Balancing the F4U Corsair ARF ..................................... 45
Section 20: Lateral Balancing the F4U Corsair ARF ......................... 45
Section 21: Control Throws ................................................................ 46
Section 22: Preflight Check and Safety ............................................. 46
Product Evaluation Sheet ................................................................... 47
This R/C airplane is not a toy! If misused or abused, it can cause serious bodily injury and/or damage to property. Fly only in open
areas and preferably at a dedicated R/C flying site. We suggest having a qualified instructor carefully inspect your airplane before
its first flight. Please carefully read and follow all instructions included with this airplane, your radio control system and any other
components purchased separately.
OUR GUARANTEE
Sportsman Aviation guarantees this kit to be free from defects in both material and workmanship at the date of purchase. This does not cover any
component parts damaged by use, misuse or modification. In no case shall Sportsman Aviation's liability exceed the original cost of the
purchased kit.
In that Sportsman Aviation has no control over the final assembly or material used for final assembly, no liability shall be assumed for any damage
resulting from the use by the user of the final user-assembled product. By the act of using the final user-assembled product, the user accepts all
resulting liability.
FOR YOUR INFORMATION
To make your modeling experience totally enjoyable, we recommend that you get experienced, knowledgeable help with assembly and during
your first flights. Your local hobby shop has information about flying clubs in your area whose membership includes qualified instructors. If there
is no hobby shop in your area, we recommend that you contact the AMA at the address below. They will be able to help you locate a flying field
near you.
Academy of Model Aeronautics
5151 East Memorial Drive
Muncie IN 47302-9252
[phone]
www.modelaircraft.org
SAFETY WARNING

3
Thank you for purchasing the Sportsman Aviation F4U Corsair ARF. Before completing the final assembly of your new
airplane, please carefully read through this instruction manual in its entirety. Doing so will ensure your success the first
time around!
SPORTSMAN AVIATION F4U CORSAIR ARF FEATURES
●CAD-Designed Airframe is Prebuilt from High-Quality Laser-Cut Balsa and Light Plywood
●Precovered with Real Iron-On, Heat-Shrink Covering Material
●Heavy-Duty Scale 90º Rotating Retracts are Preinstalled and Are Operated By a Single Retract Servo
●Prepainted Fiberglass Cowling and Canopy
●Scale Details, Such As a Molded Radial Engine, Molded Radiator Scoops, Pilot Headrest and Aerial Antenna
●Includes High-Quality Hardware and Scale Decals
●Straight-Forward, Easy Assembly - Over 110 High-Resolution Digital Photos and Drawings to Guide You
INTRODUCTION
This instruction manual is designed to guide you through the entire assembly process of your new airplane in the least amount of
time possible. Along the way you'll learn how to properly assemble your new airplane and also learn tips that will help you in the
future. We have listed some of our recommendations below. Please read through them before beginning assembly.
●Please read through each step before beginning assembly.
You should find the layout very complete and straightforward.
Our goal is to guide you through assembly without any of the
headaches and hassles that you might expect.
●There are check boxes next to each procedure. After you
complete a procedure, check off the box. This will help prevent
you from losing your place.
●Cover your work table with brown paper or a soft cloth, both
to protect the table and to protect the parts.
●Keep a couple of small bowls or jars handy to put the small
parts in after you open the accessory bags.
●We're all excited to get a new airplane in the air, but take your
time. This will ensure you build a straight, strong and great
flying airplane.
●If you come across this symbol ☞, it means that this is an
important point or an assembly hint.
If you should find a part missing or damaged, or have any questions about assembly, please contact us at the address below:
To enable us to better serve your needs, please include your email address with any correspondence you send to us. Your email
address will be added to our Customer Service Database so you will automatically receive free updates and tech notices for your
particular product. You will also receive repair status updates (if applicable) and other important information about your product
as it becomes available.
IMPORTANT INFORMATION ABOUT YOUR EMAIL ADDRESS
CHECK IT OUT! We urge you to come check out our website at http://globalservices.globalhobby.com. There you will find public message
boards frequented by other SA product owners and the SA support staff. This is a great place to learn about new SA products, get help and
suggestions for your current SA products or just simply hang out and chat with people that share your same interests.
Global Hobby Distributors will not disclose the information it collects to outside parties. Global Hobby Distributors does not sell,
trade, or rent your personal information to others . Your privacy is important to us.
Global Services
18480 Bandilier Circle
Fountain Valley, CA 92708
Phone: [phone] Fax: [phone] Email: [e-mail]
Check out our website for more information on
this and other exciting Sportsman Aviation products!
http://www.globalhobby.com
CUSTOMER SERVICE INFORMATION

4
SECTION 1: OUR RECOMMENDATIONS
This section describes our recommendations to help you in deciding which types of accessories to purchase for your new Sports-
man Aviation F4U Corsair ARF. Please read through this entire section very carefully. We have provided you with tips and
recommendations that, if followed, will result in a great flying airplane. Failure to follow our recommendations may
result in a poor flying airplane.
What Engine Should I Use?
If you prefer to use a two-stroke engine, we recommend using a .46 - .52 size engine. A strong
.46 size engine will fly the airplane with good authority and result in scale speed and performance.
A strong .52 size engine will fly the airplane with power to spare. Use a .52 size engine if you
plan on decking out your model with scale details or want faster flight speeds and more vertical
performance.
The engine is mounted at a 45º down angle, so you will need to use an aftermarket Pitt's style muffler
to divert the exhaust out the bottom of the cowling.
If you prefer to use a four-stroke engine, we recommend using a .65 - .70 size engine. A strong .65
size engine will fly the airplane with authority and result in scale speed and performance with the
great scale sound of the four-stroke engine. A strong .70 size engine will fly the airplane with power
to spare. Expect good vertical performance and plenty of extra power.
Again, the engine is mounted at a 45º down angle, but since the muffler pipe on most four-stroke
engines is adjustable, no aftermarket muffler will be necessary.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦We don't suggest using an engine larger than we recommend. The airplane flies very well with the
recommended engine sizes, and using a larger, heavier engine will only result in the airplane being heavier with an increased
wing loading. Airplanes with higher than necessary wing loadings tend to exhibit poor flight performance, especially at slow speeds.
Be careful when adding scale details to the finished airplane. These add weight and in many instances the weight adds up fast.
Just remember that for the best flight performance the airplane should be kept as light as possible.
If you will be flying at high altitudes we strongly suggest using an engine
in the upper end of the recommended size range
What Radio System and Servos Should I Use?
Since there is no option for fixed landing gear, you will need to use a 5 or more channel
radio control system. Ideally, the transmitter should feature dual rates, servo reversing
and end point adjustments. Most newer radio control systems have these features
and more.
Regarding servos, you will need to use four standard ball bearing servos with a
minimum of 40oz/in of torque for the flight control surfaces and one standard servo for
the throttle. To operate the retractable landing gear, you will need to use one 180º low
profile retract servo.
You will also need a servo extension for the elevator, rudder and both aileron servos,
plus a Y-Harness to connect both aileron servos together.
Continued On Next Page
☛☛
☛☛
☛
What Else Do I Need?
There really isn't too much else that you'll need to finish the airplane. Most of the hardware
is included in the kit, so about the only thing else you'll need is a spinner nut to fit your
engine's crankshaft. For more scale realism, a pilot bust would be a good choice, and to
make filling the fuel tank easier, a remote fueling valve would be convenient. You'll also
need typical modeling supplies, such as foam rubber to protect your receiver and battery,
and fuel tubing.

5
❑Kwik Bond Thin C/A # 887500
❑Kwik Bond Thick C/A # 887510
❑Kwik Bond 5 Minute Epoxy # 887560
❑Kwik Bond 30 Minute Epoxy # 887565
❑Kwik Bond C/A Debonder # 887545
❑Pacer Formula 560 Canopy Glue # 339176
❑Wilhold Silicon Sealant # 335407
❑Pacer Z-42 Blue Threadlocker # 339162
❑# 1 & # 2 Phillips Head Screwdrivers
❑3mm Hex Wrench
❑Adjustable Open-End Wrench
❑Wire Cutters
❑Needle Nose Pliers
❑Excel Modeling Knife # 692801
❑Scissors
❑Electric Drill
❑Assorted Drill Bits
❑Dubro T-Pins # 567685
❑Ernst Airplane Stand # 223977
❑Rotary Tool w/Cutting Disc & Sanding Drum
❑Ruler
❑Pencil
❑Builder's Triangle
❑220 Grit Sandpaper w/Sanding Block
❑Masking Tape
❑Waxed Paper
❑Paper Towels
❑Rubbing Alcohol
❑NHP Epoxy Mixing Sticks # 864204
❑NHP Epoxy Mixing Cups # 864205
❑Global Heat Gun # 360920
❑Global Heat-Sealing Iron # 360900

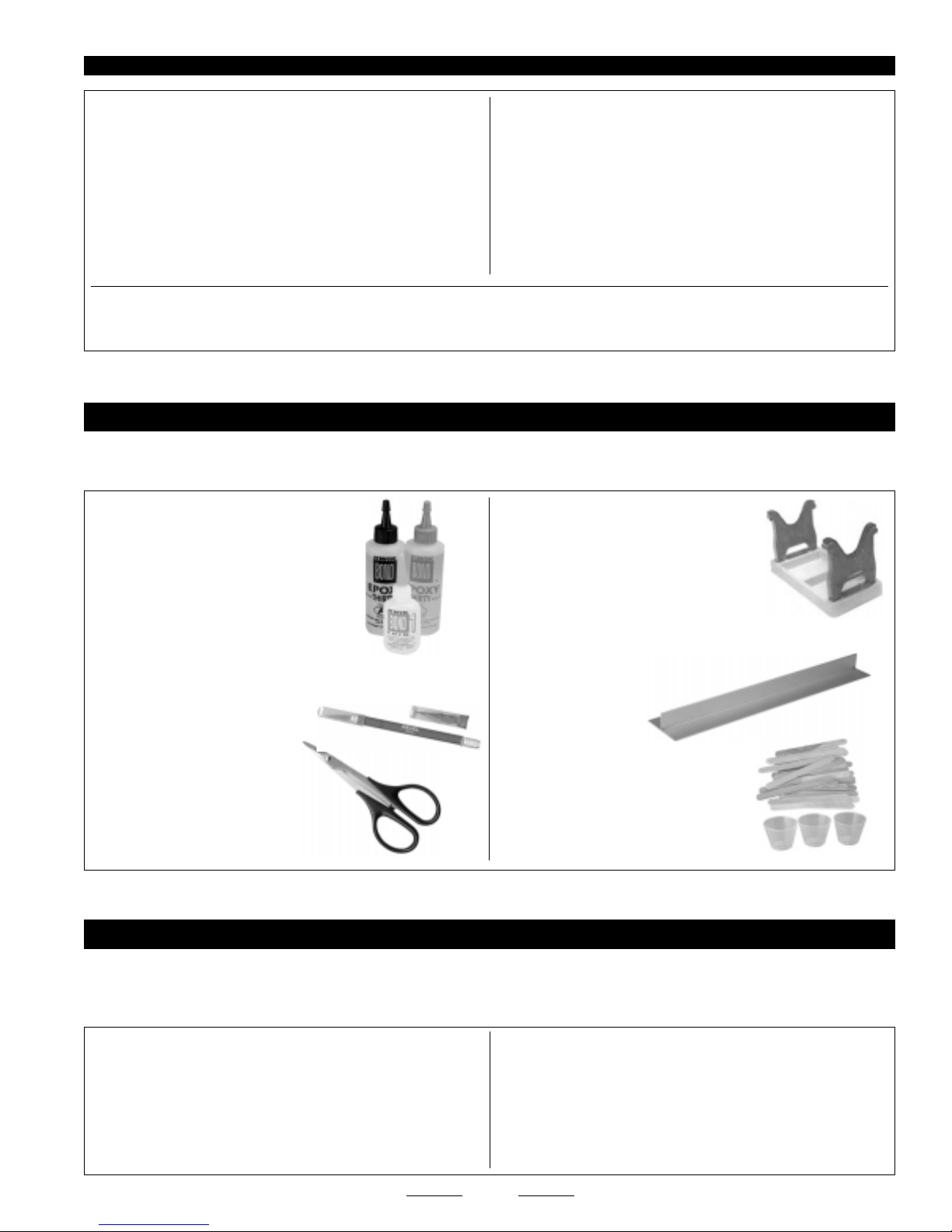

SECTION 2: TOOLS AND SUPPLIES REQUIRED
The tools and supplies listed below will be necessary to finish the assembly of your F4U Corsair ARF. We suggest having these
items on hand before beginning assembly.
QTY. 1 210760 Magnum XLS .52A Two-Stroke Engine
QTY. 1 279940 Magnum Pitt's Style Muffler
QTY. 1 540088 Zinger 12 x 4 Wood Propeller
QTY. 1 507152 Higley Aluminum Spinner Hub - 1/4" Thread
QTY. 4 759349 Hitec HS-425BB Dual Ball Bearing Servos
QTY. 1 444104 Cirrus CS-36 Standard Servo
QTY. 1 759538 Hitec HS-75BB Low Profile Retract Servo
QTY. 4 444713 Cirrus 12" Servo Extensions
QTY. 1 444728 Cirrus Y-Harness
QTY. 1 115559 Thunderbolt # 3 Performance Glow Plug
QTY. 1 237500 Magnum Fueling Valve
QTY. 1 115923 Global XX Silicone Fuel Tubing
QTY. 1 868638 Dubro 1/4" Protective Foam Rubber
QTY. 1 867903 Dubro 3/8" Heat-Shrink Tubing
QTY. 1 592428 Williams Bros. 1/6 Scale Military Pilot
Here's a List of What We Used to Finish Our F4U Corsair ARF
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦The part number for the Hitec servos and the Cirrus servo extension and Y-Harness are compatible with Hitec and JR
radio control systems. These items are also available with connectors that are compatible with Futaba and Airtronics radio control systems.
The part number for the Cirrus servo is compatible with all name-brand radio control systems. This servo uses a universal connector.
We stock a complete line of replacement parts for your Sportsman Aviation F4U Corsair ARF. We suggest ordering directly from your
local dealer. If your dealer does not stock Sportsman Aviation or Global products, you can order replacement parts directly
from us, using the Customer Service Information on page # 3.
SECTION 3: REPLACEMENT PARTS
F4U Corsair ARF - Complete ..................................................... 127534
Instruction Manual ...................................................................... 180015
Wing Set ..................................................................................... 180016
Fuselage Set .............................................................................. 180017
Stabilizer Set .............................................................................. 180018
Canopy ....................................................................................... 180019
Cowling ....................................................................................... 180020
Dummy Radial Engine w/Radiator Scoops & Wheel Wells ...... 180021
Belly Pan .................................................................................... 180022
Motor Mount Set ......................................................................... 180023
Tail Wheel Assembly .................................................................. 180024
Main Gear Retracts .................................................................... 180025
Fuel Tank Assembly ................................................................... 180026
Hardware Set ............................................................................. 180027

6
AIRFRAME ASSEMBLIES
❑(1) Fuselage
❑(1) Right Wing Panel w/Aileron & Retract Assembly
❑(1) Left Wing Panel w/Aileron & Retract Assembly
❑(1) Center Wing Panel
❑(1) Horizontal Stabilizer w/Elevator Halves
❑(1) Vertical Stabilizer w/Rudder
LANDING GEAR ASSEMBLIES
❑(2) Main Gear Wheels
❑(2) Plastic Wheel Cups
❑(1) Prebent Tail Wheel Wire
❑(1) Tail Wheel
❑(4) Wheel Collars w/Grub Screws (Large)
❑(1) Wheel Collar w/Grub Screw (Small)
AILERON CONTROL SYSTEM
❑(2) 6-1/8" Threaded Pushrod Wires
❑(4) 3/4" x 3/8" x 3/4" Hardwood Blocks
❑(2) Nylon Control Horns w/Backplates
❑(2) Nylon Clevises
❑(2) Nylon 90º Snap-Keepers
❑(4) M2 x 25mm Machine Screws
❑(8) M2 x 10mm Wood Screws
❑(2) 1/4" Diameter Tubing
❑(8) C/A Style Hinges
RETRACT CONTROL SYSTEM
❑(2) Notched Balsa Servo Tray Mounts
❑(1) Plywood Servo Tray
❑(2) 9-5/8" Prebent Pushrod Wires
❑(2) Pushrod Connectors w/Grub Screws, Washers & C-Clips
❑(1) Prebent Elevator Joiner Wire
❑(1) 6-1/8" Threaded Pushrod Wire
❑(1) Nylon Control Horn w/Backplate
❑(1) Nylon Clevis
❑(1) Nylon 90º Snap-Keeper
❑(2) M2 x 15mm Machine Screws
❑(1) 1/4" Diameter Tubing
❑(6) C/A Style Hinges
ELEVATOR CONTROL SYSTEM
❑(1) 7-1/2" Threaded Pushrod Wire
❑(1) Nylon Steering Arm w/Grub Screw
❑(1) Nylon Clevis
❑(1) Nylon 90º Snap-Keeper
❑(1) 1/4" Diameter Tubing
❑(3) C/A Style Hinges
RUDDER CONTROL SYSTEM
❑(2) Composite Engine Mounting Beams
❑(4) M4 x 20mm Socket-Cap Screws
❑(4) M4 x 30mm Socket-Cap Screws
❑(4) M4 Blind Nuts
❑(4) M4 Lock Nuts
❑(12) M4 Flat Washers
ENGINE MOUNT ASSEMBLY
Continued On Next Page
☛☛
☛☛
☛
THROTTLE CONTROL SYSTEM
❑(1) 12" Nylon Pushrod Housing
❑(1) 18" Pushrod Wire w/Z-Bend
❑(1) Pushrod Connector w/Grub Screw, Washers & C-Clip
We have organized the parts as they come out of the box for easier identification during assembly. Before you begin assembly,
group the parts as we list them below. This will ensure that you have all of the parts before you begin assembly and it will also help
you become familiar with each part.
If you find any parts missing or damaged, please contact us as soon as possible,
using the Customer Service Information on page # 3.
SECTION 4: KIT CONTENTS
❑(1) Fiberglass Cowling
❑(1) Plastic Dummy Radial Engine
❑(1) Plastic Canopy
❑(1) Plywood Servo Tray
❑(4) 3/4" x 5/8" x 3/4" Hardwood Blocks
❑(1) Precovered Balsa Fuselage Fairing
❑(1) Precovered Plywood Antenna Mast
❑(1) Plastic Headrest
❑(4) M2 x 8mm Flange-Head Wood Screws
❑(1) 1.5mm Hex Wrench
❑(1) Decal Set
MISCELLANEOUS FUSELAGE PARTS
To convert inches into millimeters:
Inches x 25.4 = mm
To convert millimeters into inches:
Millimeters / 25.4 = in

7
KIT CONTENTS, CONTINUED....
❑(1) 260cc Fuel Tank
❑(1) Large Diameter Metal Plate
❑(1) Small Diameter Metal Plate
❑(1) Rubber Stopper
❑(1) Fuel Pick-Up "Clunk"
❑(1) M3 x 18mm Machine Screw
❑(1) Silicone Fuel Tubing
❑(3) Aluminum Tubing
FUEL TANK ASSEMBLY MISCELLANEOUS WING PARTS
❑(1) Plastic Belly Pan
❑(2) Plywood Wing Joiners
❑(1) Plywood Wing-Screw Doubler
❑(2) M4 x 35mm Socket-Cap Screws
❑(2) M4 Flat Washers
❑(4) Strips of Blue Covering Material
❑(2) Plastic Radiator Scoops
The covering material used on the Sportsman Aviation F4U Corsair ARF is real iron-on, heat-shrink covering material. It is
possible with heat and humidity changes that the covering on your airplane may wrinkle or sag. This trait is inherent in all
types of heat-shrink material. To remove any wrinkles that might be visible you will need to use a heat-sealing covering iron.
Follow this simple procedure to remove the wrinkles:
❑Plug in and turn on the sealing iron to the medium-high temperature setting. Allow the sealing iron to heat up for approximately
5 - 7 minutes.
❑After the sealing iron has reached temperature, lightly apply the sealing iron to the wrinkled section of the covering. Move the
sealing iron slowly over the wrinkled section until the covering tightens and the wrinkles disappear.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦You will notice that the color of the covering will darken when it is heated. When the covering cools back down,
it will return to its normal color.
☞If the color layer smears from any of the seams the temperature of the sealing iron is too hot. Turn the temperature dial down
and wait about 5 minutes for the sealing iron to adjust to the lower temperature. You can remove any excess color streaks using a
paper towel soaked with a small quantity of Acetone.
We do not suggest storing your airplane in an extremely hot environment (like the back of your car in direct sunlight)
for any length of time. The extreme heat could distort the molded parts and/or cause the covering material to wrinkle and possibly
damage the fragile components of the radio control system.
✦✦
✦✦
✦WARNING✦✦
✦✦
✦The fiberglass cowling, radiator scoops, dummy radial engine and canopy on your F4U Corsair ARF are painted.
Do not use any harsh chemical cleaners, such as Acetone, to clean the painted surfaces. Use of rubbing alcohol is okay and will
not damage the paint.
SECTION 5: A NOTE ABOUT COVERING
PRO TIP

8
❑Kwik Bond Thin C/A
❑Kwik Bond 5 Minute Epoxy
❑Kwik Bond 30 Minute Epoxy
❑Kwik Bond C/A Debonder
❑# 1 Phillips Head Screwdriver
❑Excel Modeling Knife
❑Electric Drill
❑1/16" Drill Bit
❑Ruler
❑(1) Right Wing Panel w/Aileron & Retract Assembly
❑(1) Left Wing Panel w/Aileron & Retract Assembly
❑(1) Center Wing Panel
❑(4) 3/4" x 3/8" x 3/4" Hardwood Blocks
❑(8) M2 x 10mm Wood Screws
❑(8) C/A Style Hinges
❑(2) Plywood Wing Joiners
❑(4) Strips of Blue Covering Material
❑Pencil
❑220 Grit Sandpaper w/Sanding Block
❑Masking Tape
❑Paper Towels
❑Rubbing Alcohol
❑NHP Epoxy Mixing Sticks
❑NHP Epoxy Mixing Cups
❑Global Heat-Sealing Iron
YOU'LL NEED THE FOLLOWING PARTS FROM THE KIT:
YOU'LL NEED THE FOLLOWING TOOLS AND SUPPLIES:
SECTION 6: WING ASSEMBLY
STEP 1: HINGING THE AILERONS
Continued On Next Page
☛☛
☛☛
☛
✦✦
✦✦
✦Important Information About the C/A Style Hinges Included with Your F4U Corsair ARF✦✦
✦✦
✦
The hinges are NOT glued into place from the factory, they are simply slid into place dry for shipping purposes. You must glue
them into place.
The F4U Corsair ARF uses C/A style hinges to hinge the control surfaces. These hinges are designed to be glued into place using
thin C/A. Do not glue these hinges into place using any other type of glue, such as thick C/A or epoxy. Use of any adhesive other
than thin C/A could result in failure of the hinges during flight.
For flutter-free control surfaces, it is imperative that the hinges be glued in properly. This is achieved by having a tight hinge gap
(no more than 1/32" wide) and using plenty of thin C/A glue. Poor hinge installation can lead to control surface flutter which can
result in a catastrophic failure of the airframe.
❑Remove the aileron and hinges from one wing panel.
❑Push two T-Pins through the center of three C/A style aileron
hinges, as shown.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦The T-Pins will keep the hinges centered and square
to the leading edge while you are hinging the aileron.
❑Slide one hinge into each hinge slot in the aileron, making sure that
you push each hinge in up to the T-Pins. Don't glue the hinges into
place yet, though.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦If you look closely at the hinges, you will notice that
each hinge has a thin slot cut in it. This slot helps wick the thin C/A
glue deep into the hinge slot. When sliding the hinge into place, make
sure that this slot is perpendicular to the leading edge of the aileron.

9
❑Push the aileron and its hinges into the hinge slots in the trailing edge of the wing panel. Remove the T-Pins and push the aileron
into its final position. The aileron should be pushed firmly up against the trailing edge, so that there is a minimal hinge gap (no more
than 1/32" wide), and the inner and outer ends of the aileron should not rub against the wing panel. There should be about a
1/16-3/32" wide gap between them.
❑While holding the aileron tight against the trailing edge of the wing
panel, pivot the aileron down about 45º and apply 5-6 drops of thin C/A
to the exposed area of each hinge. Turn the wing panel over and repeat
for the other side of the hinges.
☞Remove any C/A that may run down the hinge line, using C/A
Debonder.
❑Allow the C/A to dry for about 15 minutes, then pivot the aileron up
and down several times to free up the hinges.
Continued On Next Page
☛☛
☛☛
☛
After the C/A has fully cured, gently grasp the aileron and wing panel and pull on the aileron like you are trying to
pull out the hinges. The hinges should hold securely. If one or more hinges feels loose, apply more C/A to the hinge(s) and
allow it to completely cure.
❑Repeat the previous procedures to hinge the aileron to the second wing panel, making sure to check the integrity of the
hinges after the C/A fully cures. The last thing you want is for a hinge to come loose during flight.
PRO TIP
STEP 2: INSTALLING THE AILERON SERVOS
❑Plug one 12" servo extension onto the aileron servo lead.
❑To prevent the plugs from pulling apart during assembly, or worse,
during flight, secure the plugs together, using a short piece of 3/8"
diameter heat-shrink tubing.
❑Install the rubber grommets and brass collets onto one aileron servo, making sure to install the collets with the flanges toward
the bottom of the servo.
❑Remove the servo hatch cover from the bottom of one wing panel,
then use a modeling knife to cut away and remove the covering material
from over the precut slot in the hatch cover.
☞The servo hatch cover is held in place from the factory, using clear tape. If any residue is left on the wing from the clear tape,
it can be removed using rubbing alcohol or Acetone.
❑Connect your radio system and plug the aileron servo into the receiver. Center the servo by double-checking that the aileron trim
lever on your transmitter is centered.

10
❑Install the servo horn onto the servo, making sure that it's centered,
as shown.
❑Install the servo horn retaining screw to secure the servo horn to the servo.
Continued On Next Page
☛☛
☛☛
☛
❑Temporarily place the aileron servo, along with two hardwood blocks,
onto the bottom of the servo hatch cover. The servo arm should be
inserted through, and centered within, the precut slot, as shown.
❑When satisfied with the alignment, use a pencil to mark the locations
of the hardwood blocks onto the servo hatch cover.
❑After the epoxy has completely set up, mount the aileron servo to
the hardwood blocks.
❑Remove the aileron servo and carefully glue the two hardwood
blocks to the servo hatch cover, using a generous amount of 5 minute
epoxy. Remove any excess epoxy, using a paper towel and rubbing
alcohol, and allow the epoxy to completely set up before proceeding.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦To prevent the hardwood blocks from splitting, drill 1/16" diameter pilot holes for the servo mounting screws.
❑Repeat the previous procedures to install the second aileron servo onto the other servo hatch cover.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦You will need to cut a notch in one hardwood block, so that it doesn't interfere with the servo wire.
❑Using a modeling knife, cut away all but one arm from a large "4-point" servo horn.

11
STEP 3: INSTALLING THE SERVO HATCH COVERS
❑Working with one servo hatch cover and wing panel for now, run the
servo extension lead through the wing, using the factory-installed
length of string; run it through the wing from the servo hatch and out the
root rib.
☞Tie the end of the string to the servo extension plug, then pull the
string from the other end to pull the servo extension lead through the
wing panel.
Continued On Next Page
☛☛
☛☛
☛
❑Set the servo hatch cover into place, making sure that the servo arm is positioned toward the root edge of the wing panel.
❑While holding the servo hatch cover firmly in place, carefully drill
four 1/16" diameter pilot holes through the servo hatch cover and into
the wing. Position the holes 1/8" in from each corner of the servo
hatch cover.
❑Secure the servo hatch cover assembly to the wing, using four
M2 x 10mm wood screws.
❑Repeat the previous procedures to install the second servo hatch
cover assembly onto the other wing panel.
STEP 4: ALIGNING THE WING PANELS
❑Using a modeling knife, cut away and remove the excess covering
material that overlaps onto the root ribs of both outer wing panels and
the center wing panel, making sure to leave about 1/16" of covering
material overlapped onto the root ribs, so it doesn't pull away.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦It's very important to the integrity of the wing joints
that you remove as much covering material from the root ribs as
possible. Do not omit this procedure or the wing joints may fail
during flight.
❑Use a ruler and a pencil to draw a vertical centerline on one side of
each plywood wing joiner.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦Notice that we've labeled each wing joiner to
ensure that they are installed properly. We recommend that you do
the same.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦The wing joiners are cut in the shape of a "V". When installed into the wing panels, the "V" shape should be
toward the BOTTOM of the wing panels.

12
❑Test-fit one wing joiner into one side of the center wing panel and the
matching outer wing panel. It should slide easily into each wing panel
up to the centerline you drew.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦When the wing joiner is installed, it should not fit
tightly into the wing panels. It should actually be slightly loose. This
will ensure that when you glue the wing joiner into place that epoxy
can get into the joints between the wing joiner and the wing joiner box.
Continued On Next Page
☛☛
☛☛
☛
☞If the wing joiner does not fit properly, use 220 grit sandpaper with a sanding block to lightly sand the edges and tips of the
wing joiner, until you are satisfied with the fit.
❑Carefully slide both wing panels together with the wing joiner
temporarily installed (without using glue).
❑While holding the two wing panels together firmly, make sure that
both wing panels are lined up at both the leading edges and the trailing
edges, then look carefully at the glue joint: the wing panels should fit
together tightly with few or no gaps in the joint.
☞If the wing panels do not fit together properly, remove the wing joiner and use 220 grit sandpaper with a sanding block to
lightly sand the edges and tips of the wing joiner, until you are satisfied with the fit.
❑When satisfied with the fit and alignment, pull the wing panels apart
and remove the wing joiner.
❑Apply a long strip of masking tape to the top and bottom edges of the
root rib on the outer wing panel and the center wing panel.
☞The masking tape will prevent excess epoxy from getting onto the
wing panels when you join them.
STEP 5: JOINING THE WING PANELS
❑Mix a generous amount of 30 minute epoxy. Working with the center wing panel for now, apply a thin layer of epoxy inside the
wing joiner box and to only half of the wing joiner. Make sure to cover the top and bottom, as well as the sides, and use enough
epoxy to fill any gaps.
✦✦
✦✦
✦WARNING✦✦
✦✦
✦Use only 30 or 45 minute epoxy to install the wing joiner and to join the wing panels together. Do not use 5
minute epoxy. It is not strong enough. If you use 5 minute epoxy, the wing will fail during flight.
❑Slide the wing joiner into the center wing panel up to its centerline. Quickly remove any excess epoxy, using a paper towel and
rubbing alcohol, and allow the epoxy to set up before proceeding.
❑After the epoxy has set up, test-fit both wing panels together again to double-check that they still fit together properly. Check the
leading and trailing edges, too. It's important that they be even with each other.
❑Mix a generous amount of 30 minute epoxy and apply a thin layer to the exposed half of the wing joiner, the inside of the wing
joiner box in the outer wing panel, and the entire surface of BOTH root ribs. Make sure to use enough epoxy to fill any gaps.

13 Continued On Next Page
☛☛
☛☛
☛
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦It is of the utmost importance to the integrity of the glue joint that you apply a generous amount of epoxy to both
root ribs and the wing joiner. Not using enough epoxy can result in wing failure during flight.
❑Slide the two wing panels together and realign them. Quickly wipe away any excess epoxy, using a paper towel and rubbing
alcohol, and use pieces of masking tape to hold the two wing panels aligned until the epoxy fully cures.
❑After the epoxy has fully cured, repeat the previous steps to align and glue the second outer wing panel to the center wing panel.
STEP 6: CHECKING THE WING PANEL GLUE JOINTS
❑Once the epoxy has fully cured, remove the masking tape and double-check both wing panel glue joints. If any gaps are present
in either joint, mix a small quantity of 30 minute epoxy and carefully fill any remaining gaps. Quickly remove any excess epoxy, using
a paper towel and rubbing alcohol, and allow the epoxy to thoroughly cure.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦Do not omit this procedure. All three wing panels should fit together tightly, but it's possible to have some small
gaps that appear in the glue joints after the epoxy has cured.
STEP 7: APPLYING THE WING JOINT COVERING MATERIAL
❑Using a heat-sealing iron, carefully apply the four strips of covering
material over the top and bottom of the two glue joints. Apply the
bottom strips first, then the top strips.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦To prevent wrinkling or creasing the strips, make
sure to pull them taut over the wing contours while applying heat.
Work slowly to achieve a smooth, finished look.
☞Use a medium to high heat setting on your heat-sealing iron. If the
covering material doesn't seem to stick down, remove the clear
protective backing from it.
❑Kwik Bond Thick C/A
❑Pacer Formula 560 Canopy Glue
❑3mm Hex Wrench
❑Excel Modeling Knife
❑Ernst Airplane Stand
❑(1) Fuselage
❑(1) Plastic Belly Pan
❑(1) Plywood Wing-Screw Doubler
❑(2) M4 x 35mm Socket-Cap Screws
❑(2) M4 Flat Washers
❑Pencil
❑220 Grit Sandpaper w/Sanding Block
❑Masking Tape
❑Waxed Paper
❑Paper Towels
YOU'LL NEED THE FOLLOWING PARTS FROM THE KIT:
YOU'LL NEED THE FOLLOWING TOOLS AND SUPPLIES:
SECTION 7: BELLY PAN INSTALLATION
STEP 1: INSTALLING THE WING-SCREW DOUBLER
❑Place the wing-screw doubler onto the bottom of the wing and align the predrilled holes in the wing-screw doubler with the
predrilled holes in the wing.
☞The covering material should be cut away from over the predrilled holes, but if not, the holes are located 3/4" in front of the
trailing edge and 1-3/4" in from the wing panel glue joints.

14
❑Using a modeling knife, cut away and remove the covering material
from inside the outline you drew.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦Never glue anything directly to covering material.
Always remove the covering material first to ensure a strong glue joint.
❑Using a generous amount of thick C/A, glue the wing-screw doubler to the wing. Allow the C/A to fully cure before proceeding.
STEP 2: MOUNTING THE WING
❑Place the wing into the wing saddle, push it forward completely, then push the trailing edge down into place.
☞Two holes have been predrilled into the forward bulkhead to accept the wing hold-down dowels in the leading edge of the wing.
❑Align the holes in the wing with the preinstalled blind nuts in the wing
mounting block inside the fuselage.
❑Secure the wing into place, using two M4 x 35mm socket-cap screws
and two M4 flat washers.
☞Don't overtighten the screws. You don't want to crush the wing.
STEP 3: INSTALLING THE BELLY PAN
❑With the wing installed onto the fuselage, position the belly pan onto the
wing. When lined up properly, the curved sides and bottom of the belly pan
should be even with the curved sides and bottom of the fuselage, and there
should be few or no gaps between the base of the belly pan and the wing.
☞You may need to trim the back edges of the mounting flanges on
the belly pan to achieve a perfect fit with the trailing edge of the wing.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦So that the wing can be installed and removed
without interference, there should be about a 1/16" wide gap between
the fuselage and the front and the back of the belly pan.
❑While holding the wing-screw doubler in place, trace an outline around
it, using a pencil.
Continued On Next Page
☛☛
☛☛
☛

15 Continued On Next Page
☛☛
☛☛
☛
❑After you're satisfied with the fit of the belly pan, remove the wing,
lay a long piece of waxed paper over the wing saddle, then reinstall the
wing, making sure that the ends of the waxed paper are covering the
joints between the fuselage and the leading and trailing edges of the wing.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦It's important to use waxed paper or plastic wrap when you glue the belly pan to the wing. The waxed paper will
ensure that you don't accidentally glue the wing to the fuselage when you glue the belly pan into place.
❑Apply a generous amount of Formula 560 Canopy Glue to the mounting flanges on the belly pan.
❑Set the belly pan into place and realign it. When satisfied with the alignment, push the belly pan down firmly and remove any
excess glue, using a paper towel and water. Hold the belly pan securely in place, using pieces of masking tape, until the glue
completely cures.
❑Kwik Bond Thin C/A
❑Kwik Bond 5 Minute Epoxy
❑Kwik Bond 30 Minute Epoxy
❑Kwik Bond C/A Debonder
❑Excel Modeling Knife
❑Electric Drill
❑3/32" Drill Bit
❑Dubro T-Pins
❑Ernst Airplane Stand
❑(1) Horizontal Stabilizer w/Elevator Halves
❑(1) Prebent Elevator Joiner Wire
❑(6) C/A Style Hinges
❑Ruler
❑Pencil
❑220 Grit Sandpaper w/Sanding Block
❑Masking Tape
❑Waxed Paper
❑Paper Towels
❑Rubbing Alcohol
❑NHP Epoxy Mixing Sticks
❑NHP Epoxy Mixing Cups
YOU'LL NEED THE FOLLOWING PARTS FROM THE KIT:
YOU'LL NEED THE FOLLOWING TOOLS AND SUPPLIES:
SECTION 8: HORIZONTAL STABILIZER INSTALLATION
STEP 1: ALIGNING THE HORIZONTAL STABILIZER
❑Remove the two elevator halves and six hinges from the horizontal stabilizer and set them aside for now.
❑Using a modeling knife, cut away and remove the covering material
from over the horizontal and vertical stabilizer mounting slots in the
back of the fuselage.

16 Continued On Next Page
☛☛
☛☛
☛
❑Slide the elevator joiner wire into the stabilizer mounting slot,
as shown.
❑Slide the horizontal stabilizer into the mounting slot and center it by
carefully measuring out from each side of the fuselage to each end of
the stabilizer (at the trailing edge only for now). When the stabilizer is
centered, both measurements will be equal.
☞Make sure that the stabilizer is pushed completely forward. There
should be room at the trailing edge for the elevator joiner wire to
pivot freely.
❑When you're satisfied that the stabilizer is centered at the trailing
edge, draw a mark on each side of the stabilizer (at the trailing edge)
where it meets the fuselage sides.
❑With the marks on the stabilizer lined up with the fuselage sides, hold
only the trailing edge of the stabilizer in position, using a T-Pin.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦The front of the stabilizer should be able to pivot from side to side and the back should stay firmly in place and
aligned. The trailing edge should not be allowed to move from side to side.
❑With the wing mounted to the fuselage, use a ruler to measure the
distance between the tips of the stabilizer and the tips of the wing. Pivot
the front of the stabilizer until both of these measurements are equal.
☞When both of these measurements are equal, you're assured
that the stabilizer is square to the wing.
❑When you're satisfied that the stabilizer is square to the wing, use a pencil to draw a couple of marks on each side of the front of
the stabilizer where it and the fuselage sides meet, then use a couple of T-Pins to hold the stabilizer firmly in place and aligned.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦You MUST slide the elevator joiner wire into the stabilizer mounting slot BEFORE installing the stabilizer. If
you don't, it will be impossible to slide the elevator joiner wire into place after the stabilizer is installed.

17
❑With the stabilizer held firmly in place, look from the front of the
airplane at both the wing and the stabilizer. When aligned properly, the
stabilizer should be parallel to the wing.
☞If the stabilizer is out of alignment, remove it and use 220 grit sandpaper
with a sanding block to sand down the higher side of the stabilizer
mounting slot, then reinstall the stabilizer and check the alignment once
more. Repeat this procedure until you are satisfied with the alignment.
❑When satisfied with the alignment, use a pencil to draw a line on
each side of the stabilizer where it meets the fuselage sides. Do this on
both the top and the bottom.
STEP 2: MOUNTING THE HORIZONTAL STABILIZER
❑Remove the stabilizer from the fuselage and leave the elevator
joiner wire in the slot.
❑Using a modeling knife, carefully cut away and remove the covering
material from between the lines you drew. Do this on both the top and
the bottom.
✦✦
✦✦
✦WARNING✦✦
✦✦
✦When cutting through the covering to remove it, cut
with only enough pressure to cut through only the covering itself.
Cutting down into the balsa structure could weaken the stabilizer and
cause it to fail during flight.
Continued On Next Page
☛☛
☛☛
☛
❑To make it less messy during installation, apply masking tape to the
fuselage around the side of the mounting slot that the stabilizer will slide
into. Apply masking tape to the top and bottom of the corresponding
side of the stabilizer, too.
❑Partially slide the stabilizer into the mounting slot.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦Because the stabilizer has to slide into place through
the fuselage, apply epoxy only to the stabilizer. This will prevent the
epoxy from spreading over the entire length of one half of the stabilizer
when you slide it into place.
❑Mix and apply a generous amount of 30 minute epoxy to ONLY the top and bottom gluing surfaces of the stabilizer.
❑Being careful not to get any epoxy on the elevator joiner wire, push the stabilizer into place and realign it, double-checking all of
your measurements once more before the epoxy sets up. Quickly remove any excess epoxy and use pieces of masking tape or
T-Pins to hold the stabilizer in place and aligned until the epoxy has fully cured.
❑After the epoxy has fully cured, remove the masking tape and look closely at the glue joint. If there are any gaps between the
stabilizer and the fuselage, fill them using 30 minute epoxy for added strength. Again, before the epoxy sets up, remove any excess
epoxy, using a paper towel and rubbing alcohol.

18
STEP 3: HINGING THE ELEVATOR HALVES
❑Temporarily slide three elevator hinges into each elevator half. Don't
glue them into place yet.
❑Using a modeling knife, cut away and remove the covering material
from over the precut slot in the leading edge of the root end of each
elevator half.
❑Center the elevator joiner wire and use a pencil to carefully mark the
90º bend in each end of the joiner wire onto the elevator halves.
❑Remove the elevator halves from the stabilizer and carefully drill one
3/32" diameter, 3/4" deep hole into the leading edge of each elevator
half, using the marks you drew as a guide. Be careful that you don't drill
out through the top or bottom of the elevator halves.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦The pilot holes should be centered within the
precut slot and drilled perpendicular to the leading edge.
❑Push each elevator half and its hinges into the hinge slots in the trailing edge of the stabilizer, making sure that the elevator joiner
wire is firmly seated within the precut slot in each elevator half. Both elevator halves should be pushed firmly up against the trailing
edge, so that there is a minimal hinge gap (no more than 1/32" wide), and the end of each elevator half should be even with the ends
of the stabilizer.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦You may need to cut the slots for the elevator joiner wire deeper, so that the elevator halves can be pushed
forward enough to result in no more than a 1/32" wide hinge gap.
❑When satisfied with the fit, remove both elevator halves from the stabilizer, then cut out a 1-3/4" long x 1" wide piece of waxed paper.
❑Working with one half for now, use 220 grit sandpaper to lightly sand the end of the elevator joiner wire to roughen the surface,
then mix a small quantity of 5 minute epoxy and apply a thin layer of it to the end of the elevator joiner wire and into the pilot hole and
the precut slot in the leading edge of the matching elevator half.
❑Slide the piece of waxed paper between the elevator joiner wire and the trailing edge of the stabilizer, then push the elevator half
and its hinges into the hinge slots in the trailing edge of the stabilizer, making sure that the elevator joiner wire is firmly seated in the
precut slot.
Continued On Next Page
☛☛
☛☛
☛
❑Carefully push each elevator half and its hinges into the trailing edge of the stabilizer, making sure that the ends of the elevator
halves are even with the ends of the stabilizer.

19
❑While holding the elevator half tight against the stabilizer, pivot the
elevator half down about 45º and apply 5-6 drops of thin C/A to the
exposed area of each hinge. Turn the fuselage over and repeat for
the other side of the hinges.
☞Remove any C/A that may run down the hinge line, using C/A
Debonder.
❑Allow the C/A and epoxy to dry for about 15 minutes, then pivot the
elevator half up and down several times to free up the hinges.
After the C/A and epoxy have fully cured, gently grasp the elevator half and the stabilizer and pull on the elevator
half like you are trying to pull out the hinges. The hinges should hold securely. If one or more hinges feels loose, apply more
C/A to the hinge(s) and allow it to completely cure.
❑Repeat the previous procedures to hinge the second elevator half to the stabilizer, making sure to check the integrity of the
hinges after the C/A and epoxy fully cure.
PRO TIP
❑Kwik Bond Thin C/A
❑Kwik Bond 5 Minute Epoxy
❑Kwik Bond 30 Minute Epoxy
❑Kwik Bond C/A Debonder
❑Needle Nose Pliers
❑Excel Modeling Knife
❑Electric Drill
❑3/32" Drill Bit
❑Dubro T-Pins
❑Ernst Airplane Stand
❑(1) Vertical Stabilizer w/Rudder
❑(1) Prebent Tail Wheel Wire
❑(1) Tail Wheel
❑(1) Wheel Collar w/Grub Screw (Small)
❑(1) Nylon Steering Arm w/Grub Screw
❑(3) C/A Style Hinges
❑(1) Precovered Balsa Fuselage Fairing
❑(1) 1.5mm Hex Wrench
❑Rotary Tool w/Cutting Disc
❑Ruler
❑Pencil
❑220 Grit Sandpaper w/Sanding Block
❑Masking Tape
❑Waxed Paper
❑Paper Towels
❑Rubbing Alcohol
❑NHP Epoxy Mixing Sticks
❑NHP Epoxy Mixing Cups
YOU'LL NEED THE FOLLOWING PARTS FROM THE KIT:
YOU'LL NEED THE FOLLOWING TOOLS AND SUPPLIES:
SECTION 9: VERTICAL STABILIZER INSTALLATION
Continued On Next Page
☛☛
☛☛
☛
STEP 1: INSTALLING THE TAIL WHEEL WIRE
❑Install the nylon steering arm onto the tail wheel wire, using the 1.5mm
hex wrench to tighten the grub screw firmly.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦When positioned properly, the steering arm should
be parallel to, and 1-1/2" above the axle.

20
❑Using a modeling knife, cut away and remove the covering material
from over the tail wheel mounting bracket in the bottom of the fuselage.
☞The mounting bracket is located 7-1/2" in front of the back edge of
the fuselage.
❑Slide the tail wheel wire through the mounting bracket, as shown.
When positioned properly, the steering arm should rest on the mounting
bracket and the prebent angle in the tail wheel wire should be toward
the back of the fuselage.
❑Using a pair of pliers, carefully make a 90º bend in the tail wheel wire.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦When making the 90º bend, you must ensure that
the bend is perpendicular to the axle, so that the tail wheel will be
straight when the rudder is centered.
❑Using a rotary tool with a cutting disc, carefully cut off the excess
wire, leaving 1" of wire beyond the 90º bend.
❑Using a ruler and a pencil, measure up 7/8" from the top of the fuselage and draw a mark on the tail wheel wire.
✦✦
✦✦
✦IMPORTANT✦✦
✦✦
✦When you measure and draw this mark, it's very important that the tail wheel wire is pulled up firmly to ensure
that the steering arm is against the bottom of the mounting bracket.
Continued On Next Page
☛☛
☛☛
☛
STEP 2: ALIGNING AND MOUNTING THE VERTICAL STABILIZER
❑Remove the rudder and the two hinges from the vertical stabilizer and set them aside for now.
❑Push the vertical stabilizer down into its mounting slot. To align it
properly, the trailing edge of the stabilizer should be gently pushed against
the front edge of the tail wheel wire and the stabilizer should be pushed
down firmly. Use a builder's triangle to check and make sure that the
vertical stabilizer is perpendicular to the horizontal stabilizer, too.
❑While holding the vertical stabilizer firmly in place, use a pencil to
draw a line on each side of the vertical stabilizer where it meets the top
of the fuselage.
