Sportsmith LifeCycle LC9500 LC95-0100-12 Configuration guide

1Page 1 of 19
LifeCycle LC9500 LC95-0100-12
General Assembly S/N CBJ100000
Operation Manual M051-00K63-A043
Service Manual XXXX-XXXXX-XXXX
Console
Overlay
Final Frame
Assembly
Alternator
w/Pulley
Crank Shaft
Assembly
Intermediate
Pulley/Shaft
Assembly
Seat Latch
Assembly
Seat Post
Assembly
Seat Post
Shrouds
Idler Bracket
Assembly
Console Support
Assembly
Left Side Shroud
and Crankarm
Right Side Shroud
and Crankarm
PCB Mounting
Bracket Assembly Front Wheels
Resistor
Assembly
Handlebar
Assembly
Belts
Cables
Bottom Sensor
Cover
0K63-01146-0000 Upper Sensor
Cover
0K63-01145-0000
Polar Receiver
AK40-00045-0001
Accessory Tray
0K63-01030-0000
Screws(4)
0017-00101-1253

2Page 2 of 19
LifeCycle LC9500 LC95-0100-12

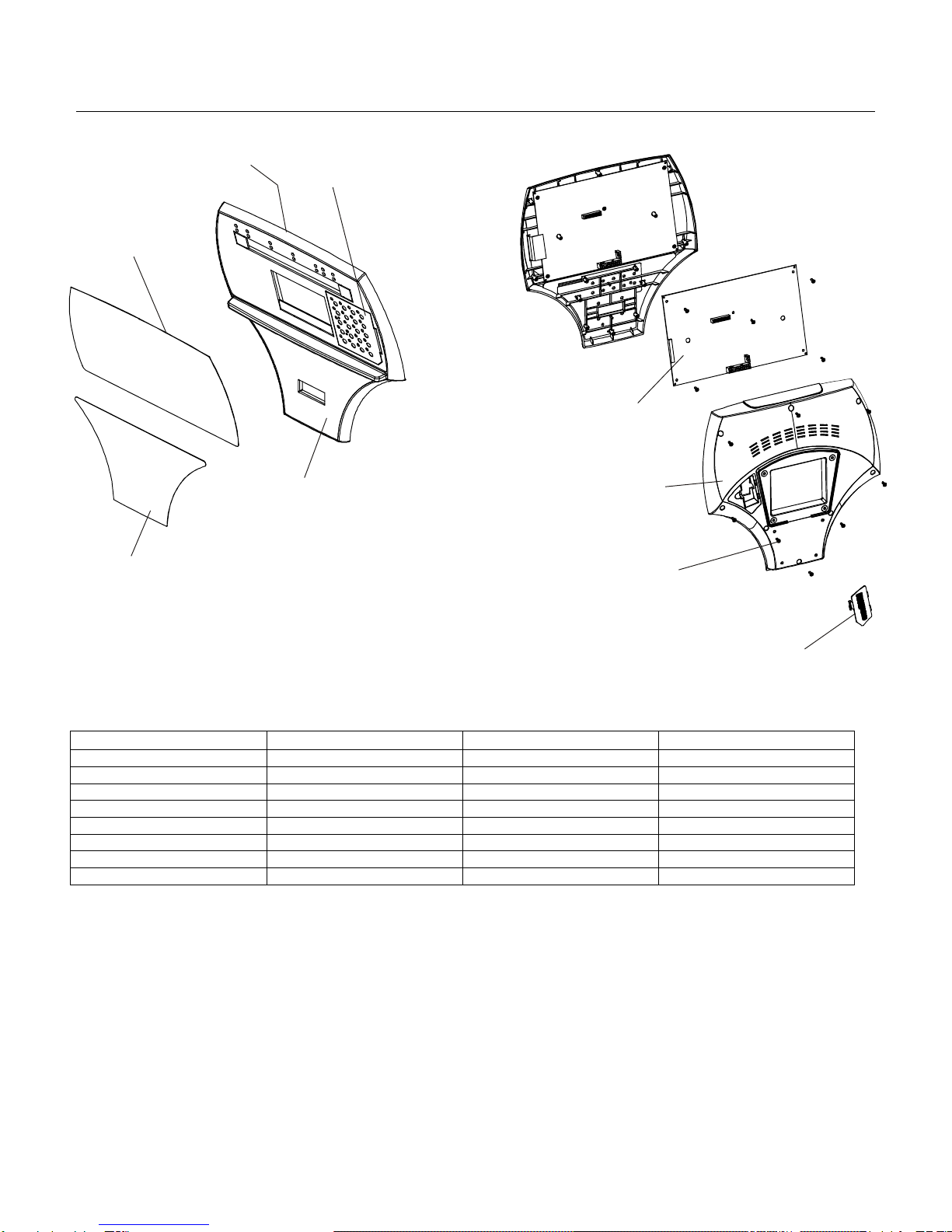

Console Overlay Bezel Assembly S/N CBJ100000
Console Assembly Overlay Bezel Upper Overlay Lower Overlay
AK63-00070-0001 Eng Met AK63-00063-0001 Eng Met 0K63-01096-0001 Eng Met 0K63-01098-0001 Eng Met
AK63-00070-0003 Ger Met AK63-00063-0003 Ger Met 0K63-01096-0003 Ger Met 0K63-01098-0003 Ger Met
AK63-00070-0004 Spn Met AK63-00063-0004 Spn Met 0K63-01096-0004 Spn Met 0K63-01098-0004 Spn Met
AK63-00070-0006 Jap Met AK63-00063-0006 Jap Met 0K63-01096-0006 Jap Met 0K63-01098-0006 Jap Met
AK63-00070-0007 Frn Met AK63-00063-0007 Frn Met 0K63-01096-0007 Frn Met 0K63-01098-0007
AK63-00070-0008 Itl Met AK63-00063-0008 Itl Met 0K63-01096-0008 Itl Met 0K63-01098-0008 Itl Met
AK63-00070-0009 Itl Met AK63-00063-0009 Itl Met 0K63-01096-0009 Itl Met 0K63-01098-0009 Itl Met
AK63-00070-0010 Por Met AK63-00063-0010 Por Met 0K63-01096-0010 Por Met 0K63-01098-0010 Por Met
Console Board - Upper
A084-92219-A001
Console Case Assembly
AK63-00121-0000
Battery Door
0K63-01029-000
0
Phillips Pan Screws(13)
9917-00101-1650
Bezel/Switch Assembly
AK63-00064-0000
Upper Overlay
Lower Overlay
Switch Membrane
118E-00001-0133
Lower Switch
Membrane
118E-00001-0134

3Page 3 of 19
LifeCycle LC9500 LC95-0100-12
Final Frame Assembly S/N CBJ100000
Alternator w/Pulley
AK63-00093-0000
Power Control Board
and Battery Assembly
AK63-00049-00000
Frame Gasket
0K63-01007-0001
Seat Post Assembly
AK63-00045-0000
Clutch Assembly
AK63-00026-0000
Idler Pulley Assy
AK63-00021-0000
Crank Disc
0K63-01095-0001
Crank Pulley Assy
AK63-00051-0000
Resistor Assy
AK63-00047-0001
Grommet
0017-00042-1134
Seat Latch Ass
y
AK63-00043-0000

4Page 4 of 19
LifeCycle LC9500 LC95-0100-12
Alternator w/Pulley - AK63-00093-0000 S/N CBJ100000
Alternator Pulley
0K61-02500-0001 Alternator
0017-00009-0841
Locking Nut
0017-00103-0117 Washer
0017-00104-0044
Bolt
0017-00101-0956

5Page 5 of 19
Lif LifeCycle LC9500 LC95-0100-12

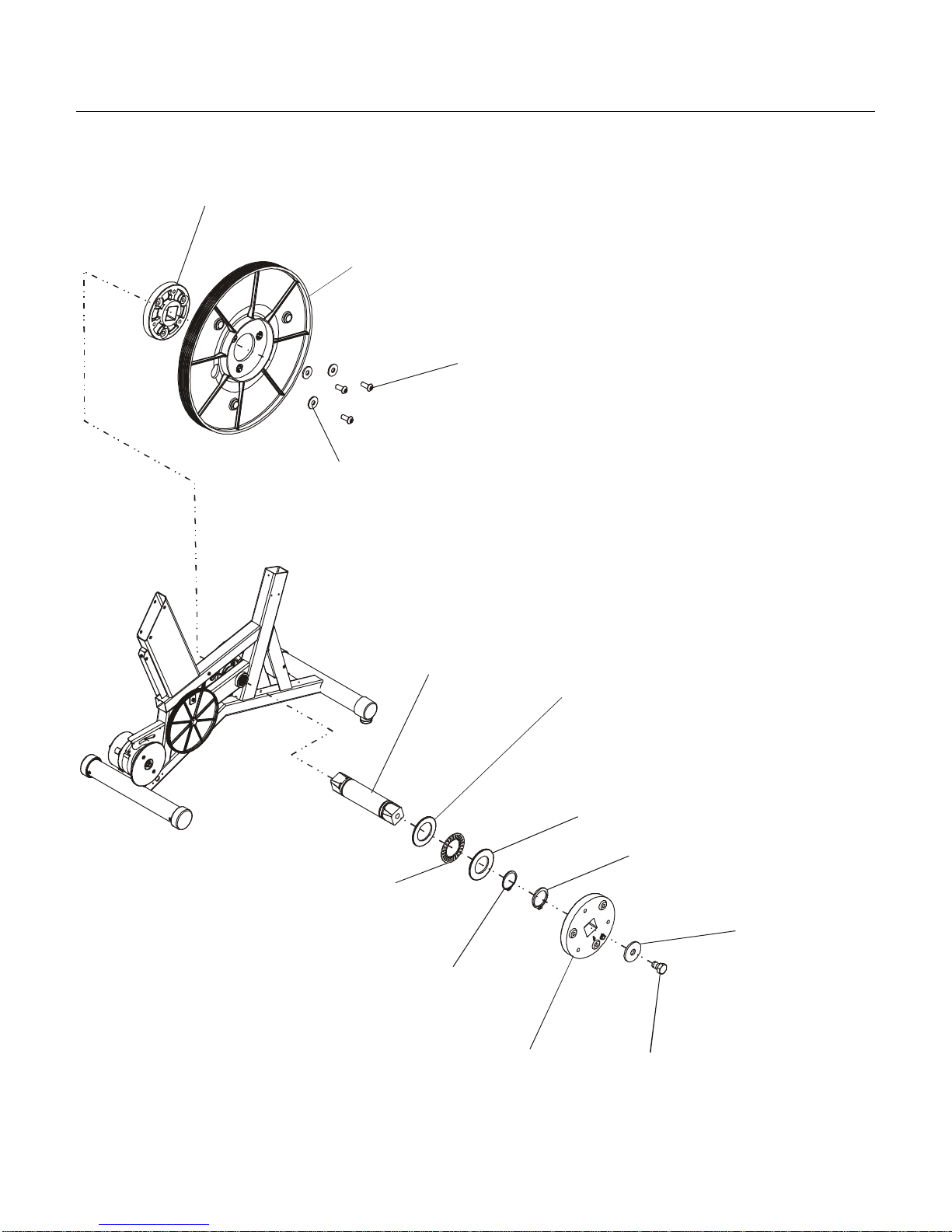

Crank Shaft & Bearing Assembly - GK63-00002-00006 S/N CBJ100000
*Small Thrust Washer(2)
0K63-01129-0000
*Needle Bearing(2)
0K63-01128-0000
*Large Thrust Washer(2)
0K63-01129-0001
*Small Snap Ring(2)
0017-00100-0241
*Bowed Retainer Ring(2)
0017-00100-0243
Washer(2)
0017-00104-0409
Bolt(2)
0017-00101-1705
Flywheel Screws(3)
0017-00101-01715
Washers(3)
0017-00104-00458
Pulley Assemlby
AK63-00051-0000
Pully
0K63-01018-0000
Crank Arm Hu
b
*Crank Shaft
*Crank Shaft & Bearing Kit
GK63-0002-0006
Crank Arm Hub(2)
0K63-01095-0001

6Page 6 of 19
LifeCycle LC9500 LC95-0100-12
Intermediate Shaft & Bearing Assembly – GK63-00002-0007 S/N CBJ100000
Spacer
Clutch Assembly
AK63-00026-0000
DELRIN Washers
0017-00104-0455
Retaining Ring
0017-00100-0242

7Page 7 of 19
LifeCycle LC9500 LC95-0100-12
Seat Latch Assembly - AK63-00043-0000 S/N CBJ100000
Set Screws (2)
0017-00101-0333
NYLINER
0017-00042-1129
Latch Spring
0K63-01117-000
Latch Bracket
0K63-01064-0000
E-Ring
0017-00100-0050
NYLINER
0017-00042-1129
Latch Rack
0K63-01061-0000
Link Shaft
AK63-00113-0000

8Page 8 of 19
LifeCycle LC9500 LC95-0100-12

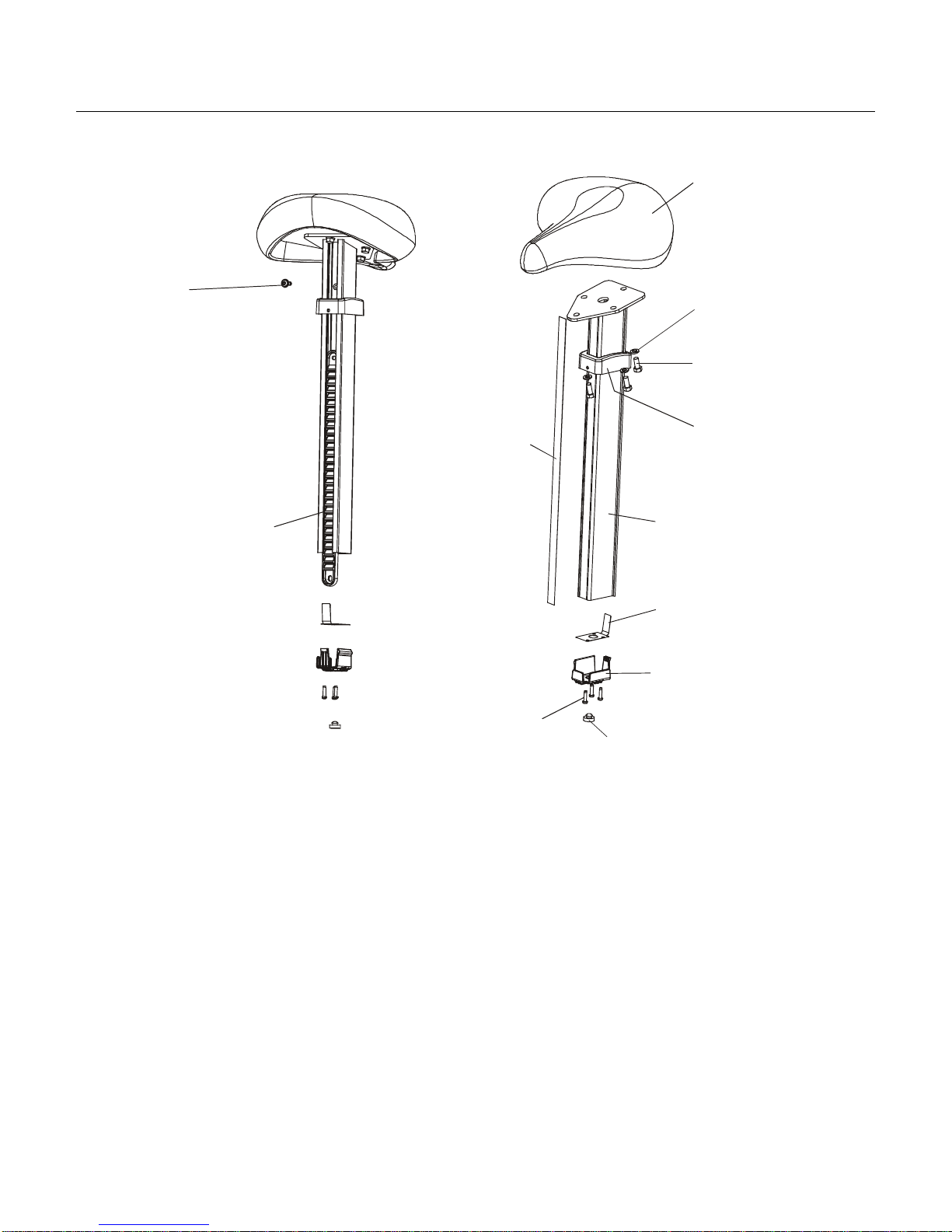

Seat Post Assembly - AK63-00045-0000 S/N CBJ100000
Seat-Deluxe
0K63-01058-0000
Lock Washer(4)
0017-00104-0064
Hex Bolt(4)
0017-00101-1121
Extrusion
Guide Cap
0K63-01044-0000
Seat Post Assembly
AK63-00099-0000
Spring Support Bracket
0K63-01210-0000
Guide Base
0K63-01045-0000
Polylastomer Bumper
0017-00042-1131
Pan Screws(3)
0017-00101-1614
Seat Adjustment Rack
0K63-01049-0000
Screw
0017-00101-1623
Seat Post Decal
0K63-01151-0000

9Page 9 of 19
LifeCycle LC9500 LC95-0100-12
Seat Post Shrouds S/N CBJ100000
Left Seat Post Shroud
0K63-01092-0001
Right Seat Post Shroud
0K63-01092-0002
Screw
0017-00101-0991

10Page 10 of 19
LifeCycle LC9500 LC95-0100-12

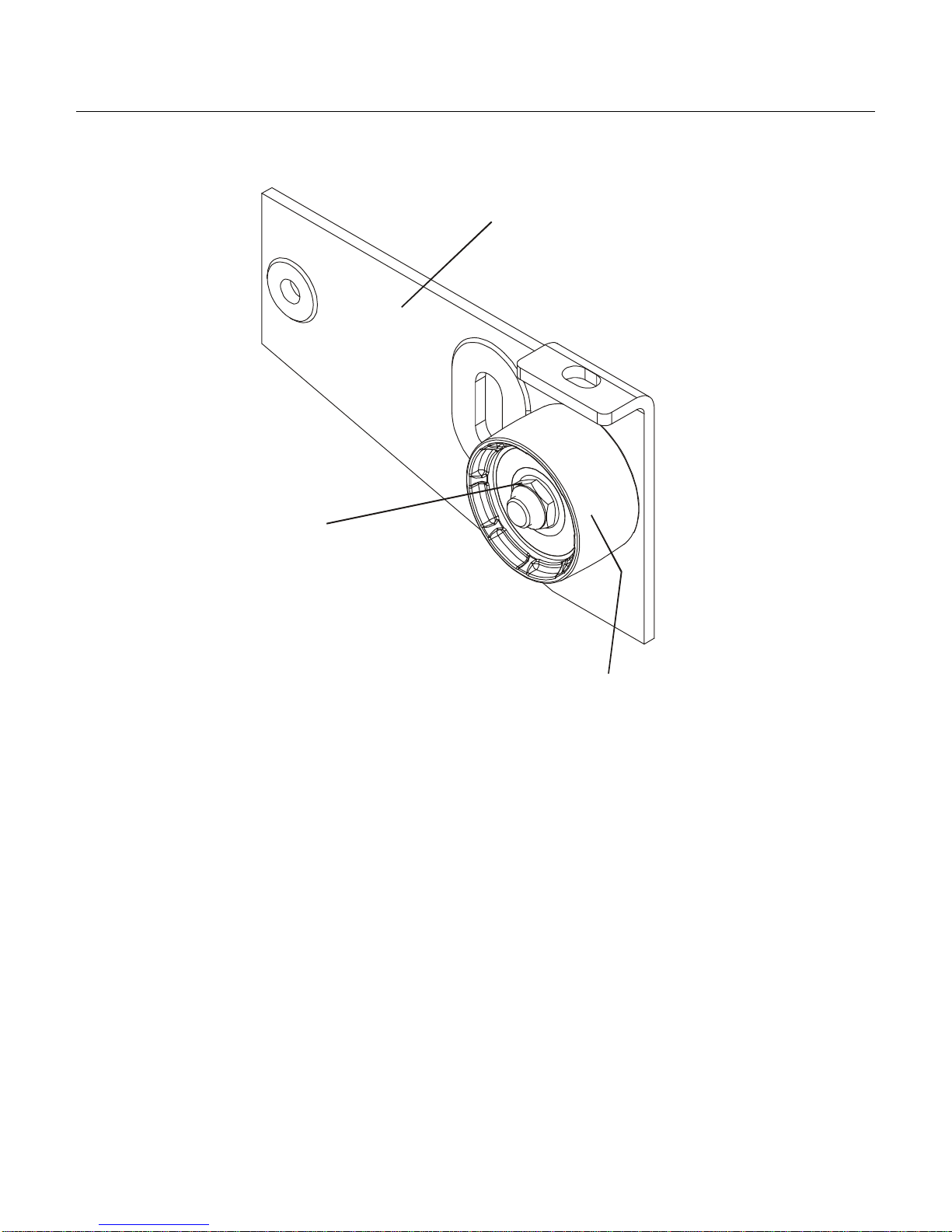

Idler Bracket Assembly - AK63-00021-0000 S/N CBJ100000
Idler Bracket
0K63-01050-0000
Idler Bearing
AK63-00008-0000
Lock Nut
0017-00103-0218

11Page 11 of 19
LifeCycle LC9500 LC95-0100-12

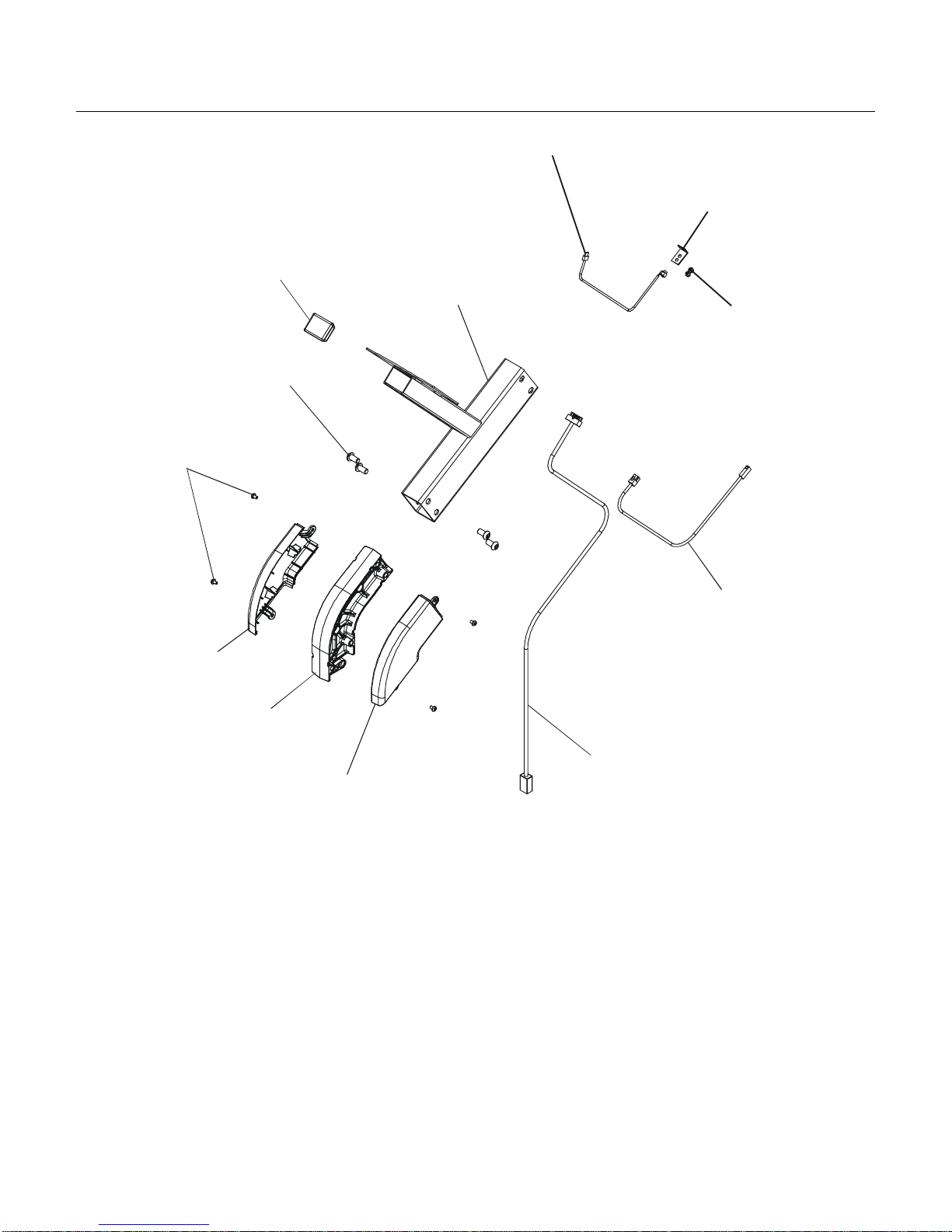

Console Support Assembly - AK63-00065-0000 S/N CBJ100000
Console Cable
HR Electrode Cable
Console Support
Weldment Assy
AK63-00089-0000
End Cap
0017-00042-1132
Support Screws(4)
0017-00101-1704
Pan Screws(4)
0017-00101-1721
Handlebar Cover-RT
0k63-01192-0001
I-Beam Joint
0K63-01178-0002
Handlebar Cover-LT
0k63-01192-0002
Polar Bracket
0K63-01113-0000
Nut(2)
0017-00103-0318
Screws
0017-00101-1710
Cable Assy: Jack/Hr

12Page 12 of 19
LifeCycle LC9500 LC95-0100-12

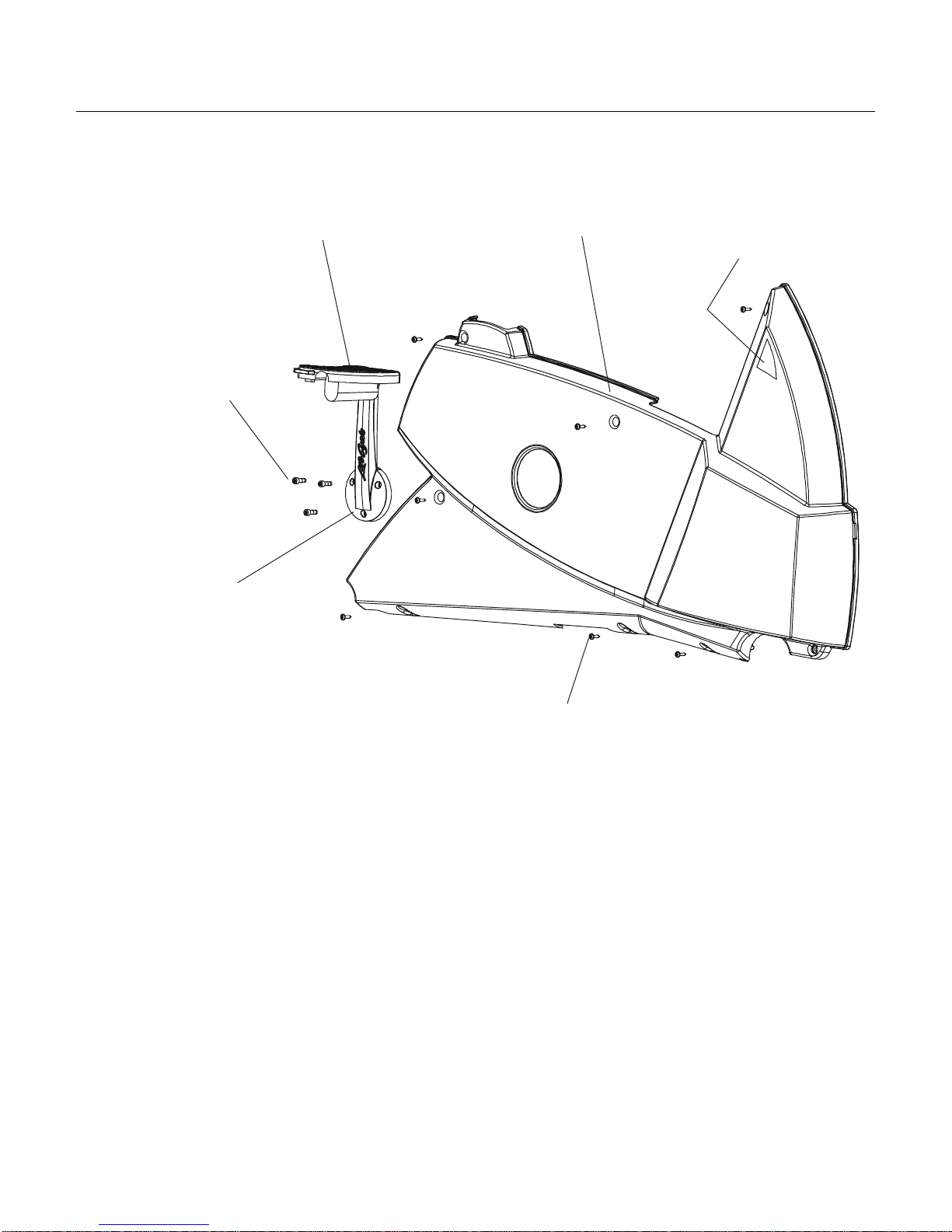

Left Side Shroud and Crankarm S/N CBJ100000
Crank Arm Screws(3)
0017-00101-1702
Shroud Screws(3)
0017-00101-0991 Left Side Shroud
AK63-00058-0002
Shroud Plug
0K63-01084-0000 Left Pedal
AK63-00124-0002
Left Strap
0K63-01238-0002
Crank Arm, LT
0K63-01209-0002
Washer(2)
0017-00104-0280
Decal
0K63-01153-0000

13Page 13 of 19
LifeCycle LC9500 LC95-0100-12
Right Side Shroud and Crankarm S/N CBJ100000
Crank Arm Screws(3)
0017-00101-1702
Right Side Shroud Screws(8)
0017-00101-0991
Right Side Shroud
AK63-00058-0001
Right Pedal
AK63-00124-0001
Right Strap
0K63-01238-0001
Crank Arm, RT
0K63-01209-0001
Decal
0K63-01152-0000

14Page 14 of 19
LifeCycle LC9500 LC95-0100-12

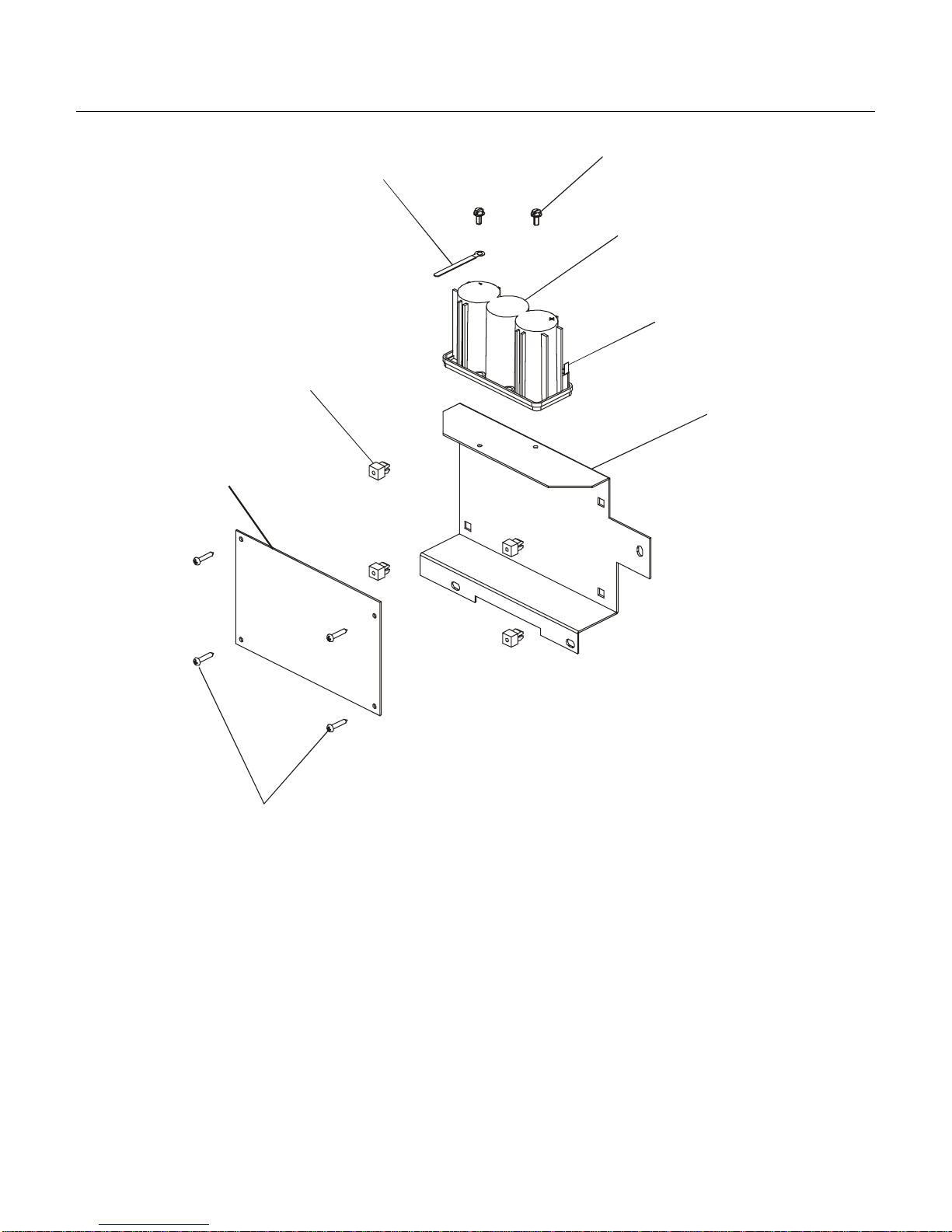

PCB Mounting Bracket Assembly – AK63-00049-0000 S/N CBJ100000
Plastic Grommet(4)
0017-00042-0821
Battery - 6V
0017-00003-0685
Battery Screws(2)
0017-00101-0975
Cable-Insulated Clamp
0017-00009-0915
Positive
Terminal
Battery Mounting
Bracket
0K63-01211-0000
Pan Screws(4)
0017-00101-0863
PCB Circuit Board
B084-92218-C000

15Page 15 of 19
LifeCycle LC9500 LC95-0100-12

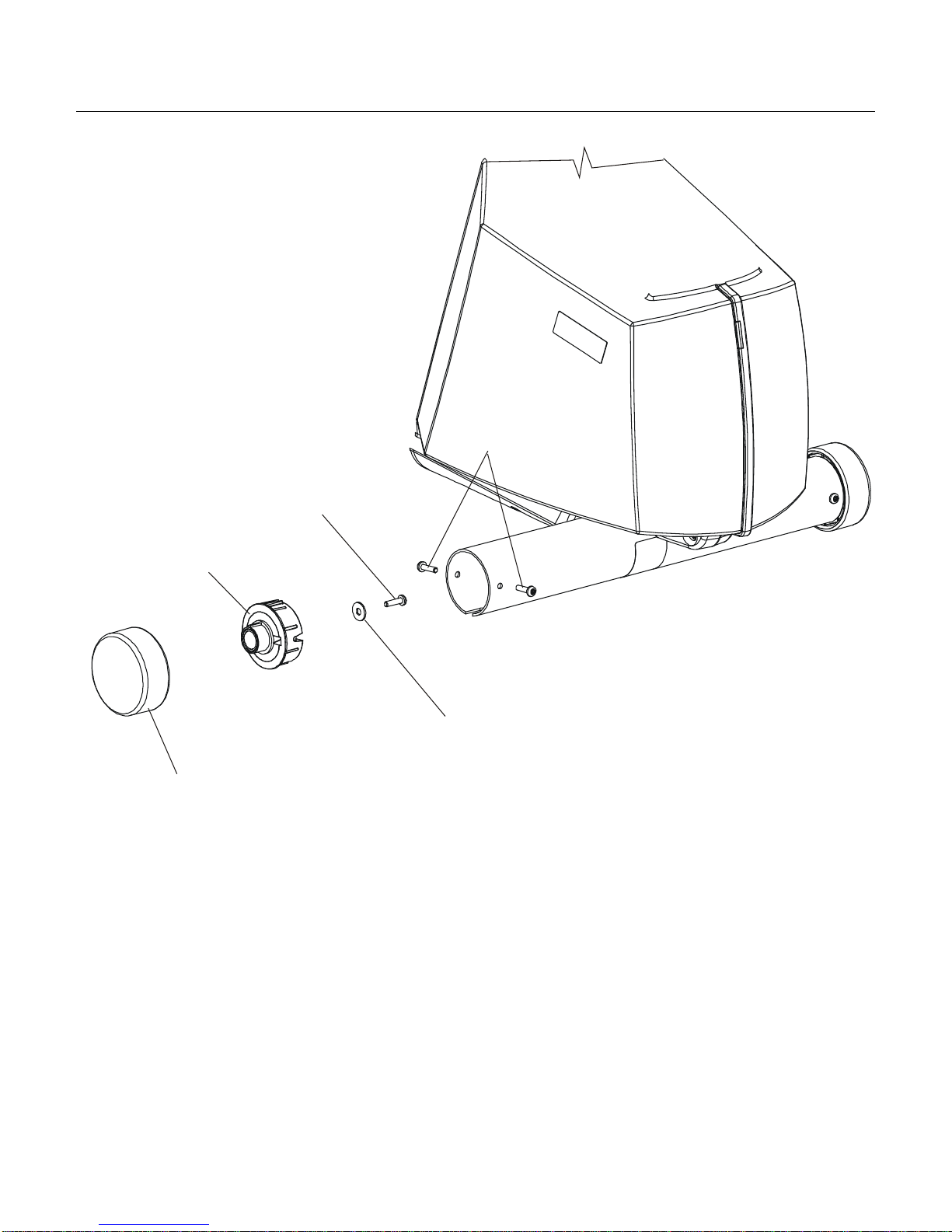

Front Wheels – AK63-00017-0000 S/N CBJ100000
Wheel/Bearing Assembly
AK63-00016-0000
Wheel Screw
0017-00101-1611
Flat Washer
0K63-01041-0000
Pan Screw(2)
0017-00101-1611
Wheel Insert
0K63-01039-0000

16Page 16 of 19
LifeCycle LC9500 LC95-0100-12

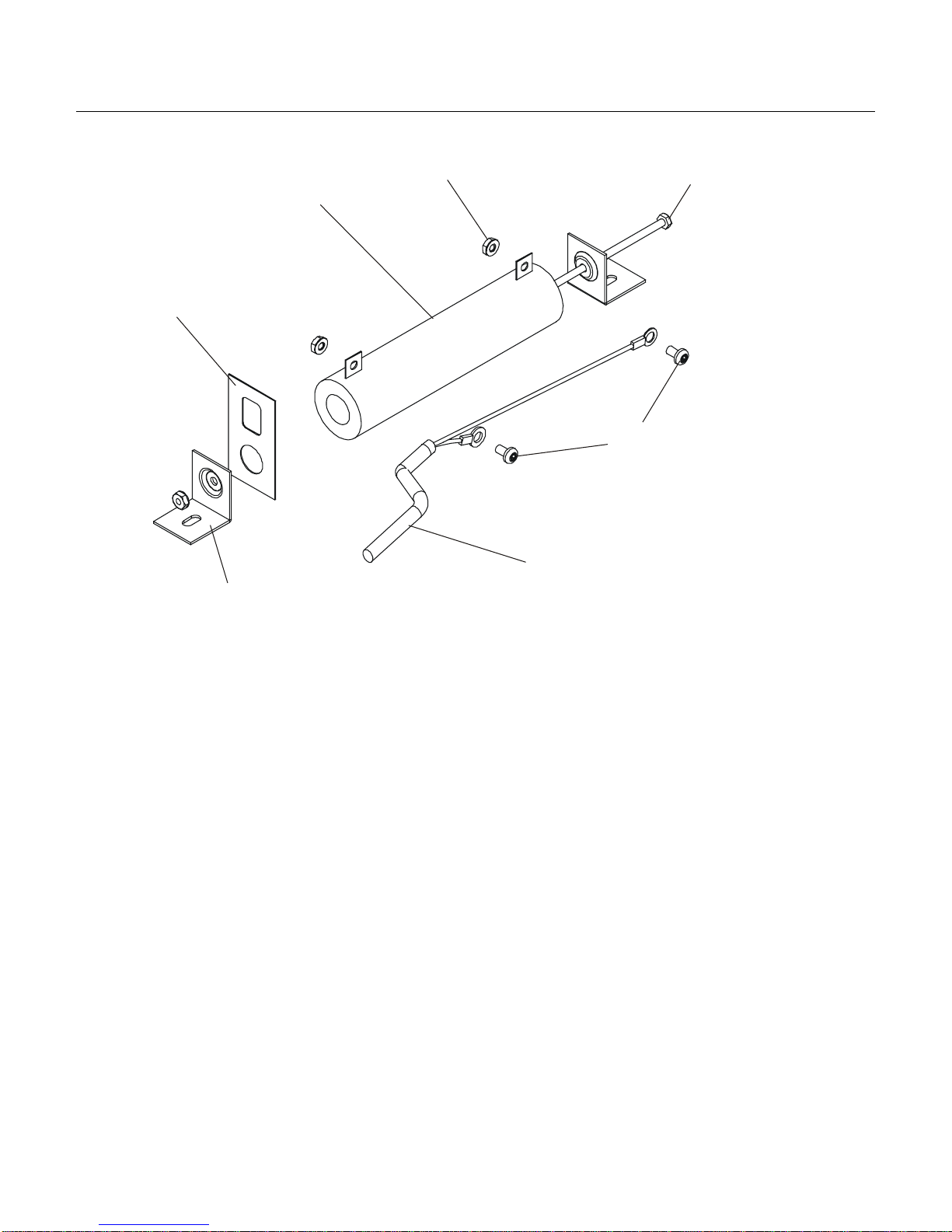

Resistor Assembly - AK63-00047-0001 S/N CBJ100000
Resistor Bracket(2)
0K63-01165-0000
Resistor Mounting Rod
0K63-01166-0000
Resistor
.5 OHM 240 Watt
100E-00002-0084
Nut(3)
0017-00103-0081
Retainer
0K63-01215-0000
Power Control
Cable Assembly
TORX Screw(20)
0017-00101-1282

17Page 17 of 19
LifeCycle LC9500 LC95-0100-12
Handlebar Assembly - AK63-00091-0000 S/N CBJ100000
Handlebar
End Cap(2)
0K63-01114-0000
Insulated Plug(4)
0K63-01167-0000
Phillips Screw(4)
0017-00101-172
0
Electrode Cable
Assembly
Electrode
Molded Insert(4)
AK63-00014-0001
Molder Grip
Handlebar
AK63-00083-0000

18Page 18 of 19
LifeCycle LC9500 LC95-0100-12

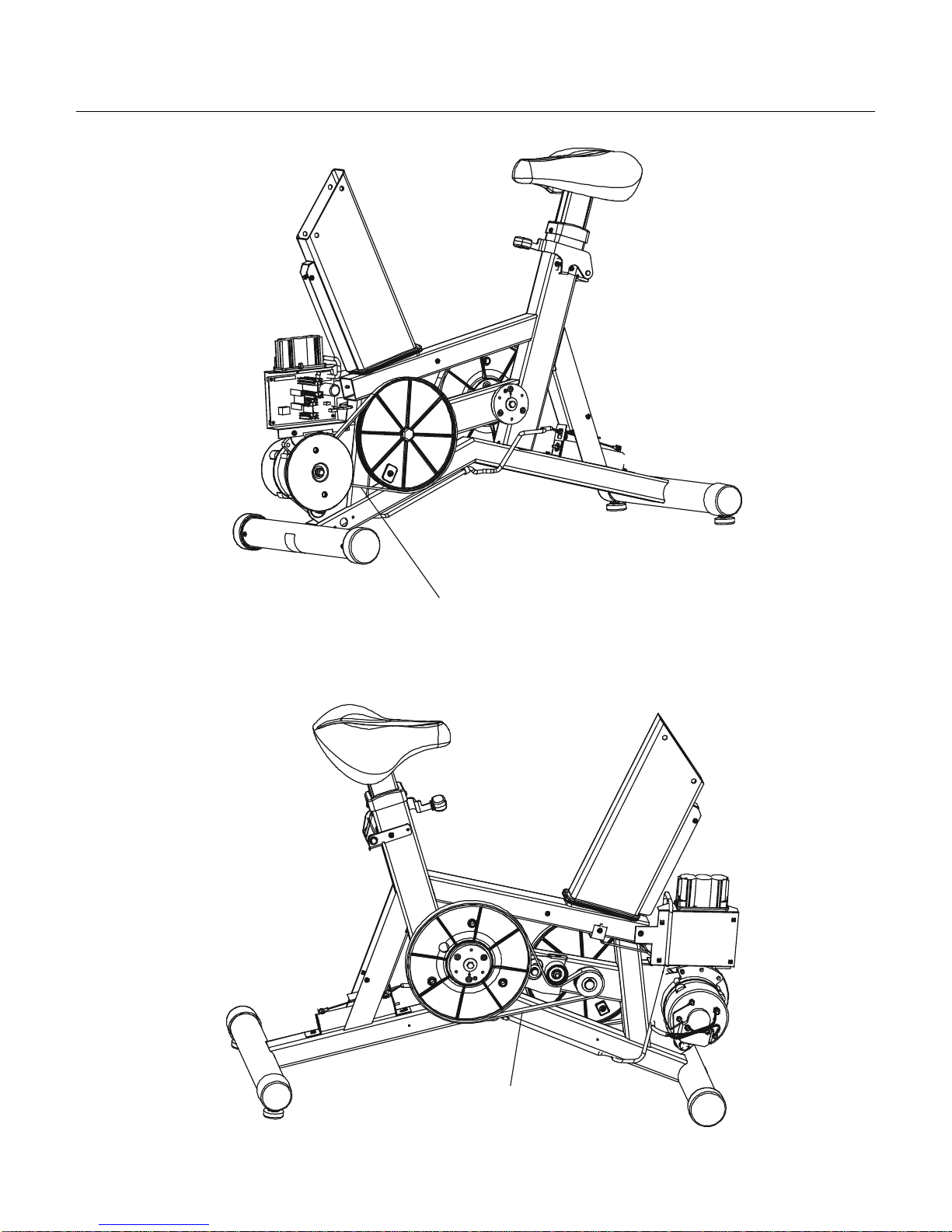

Belts S/N CBJ100000
Alternator Belt
0K63-01065-0000
Intermediate Belt
0K63-01066-0001

19Page 19 of 19
LifeCycle LC9500 LC95-0100-12
Cables S/N CBJ100000
