SPARTAN sport Magnetic 994 User manual

Magnetic 994
Magnetic Upright Bike
ITEM NO.: 994
OWNER’S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
The specifications of this product may vary from this photo and are subject to change without
prior notice.

1
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 2
PARTS LIST ------------------------------------------------------------------------------- 3
HARDWARE LIST ----------------------------------------------------------------------- 5
TOOLS -------------------------------------------------------------------------------------- 5
EXPLODED VIEW ----------------------------------------------------------------------- 6
ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 7
OPERATING THE COMPUTER ------------------------------------------------------ 17
HOW TO MOVE THE BIKE ------------------------------------------------------------ 21
ADJUSTMENTS -------------------------------------------------------------------------- 22
MAINTENANCE -------------------------------------------------------------------------- 23
TROUBLESHOOTING ------------------------------------------------------------------ 23
WARM UPAND COOL DOWN ROUTINE ----------------------------------------- 24

2
IMPORTANT SAFETY INSTRUCTIONS
Basic precautions should always be followed, including the following important
safety instructions when using this equipment. Read all instructions before using
this equipment.
1. Read all instructions and follow it carefully before using this equipment. Make sure the
equipment is properly assembled and tightened before use.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercises are
recommended.
3. Please make sure all parts are not damaged and fixed well before use. This
equipment should be placed on a flat surface when using. Using a mat or other
covering material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes
that may catch any part of the equipment; remember to tighten the pedaling straps.
5. Do not attempt any maintenance or adjustments other than those described in this
manual. Should any problems arise, discontinue use and consult your local dealer.
6. Do not use the equipment outdoors.
7. This equipment is for household use only. It is not a commercial model.
8. Only one person at a time should use this equipment.
9. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop
exercising immediately and consult your physician before continuing.
10. Care should be taken in mounting or dismounting the equipment.
11. Do not allow children to use or play on the equipment. Keep children and pets away
from the equipment while in use. This machine is designed for adults use only. The
minimum free space required for safe operation is not less than two meters.
12. The maximum weight capacity for this product is 120 kg.
WARNING: Before beginning any exercise program consult your
physician. This is especially important for people who are over 35 years old or who
have pre-existing health problems. Read all instructions before using any fitness
equipment. Do not operate this exercise equipment without properly fitted guards,
as the moving parts can present a risk of serious injury if exposed.
CAUTION:Read all instructions carefully before operating this product.
Retain this Owner’s Manual for future reference.

3
PARTS LIST
No.
Description
Qty
No.
Description
Qty
001
Computer
1
023
Seat Cushion DD-353T
1
002
Computer Extension Wire I
(L=500 mm)
1
024
Seat Sliding Tube End Cap
38x38
2
003
Computer Extension Wire II
(L=1000 mm)
1
025
Nylon Nut M8
5
004
Handlebar Ø25x1.5t
1
026
Washer Ø16xØ8x1.5t
5
005
Handlebar Foam Grip
Ø27xØ33x730
2
027
Cross Recessed Pan Head
Tapping Screw ST2.9x16
5
006
Hand Pulse Sensor with Wire
L=750mm
2
028
Seat Sliding Tube Bolt
1
007
Cross Recessed Pan Head
Tapping Screw ST4.2x20
4
029
Big Washer Ø8xØ20x2.0t
1
008
Wire Grommet Ø12.1
1
030
Seat Adjustment Knob M8
1
009
Handlebar T-Knob M8x55
1
031
Seat Post
1
010
Spacer Ø12x1.5x20
1
032
Seat Post Cover
1
011
Cross Recessed Pan Head
Tapping Screw ST2.9x12
2
033
Seat Height Adjustment Knob
M16x1.5
1
012
Clamp Cover
1
034
Seat Post Bushing
1
013
Hexagon Nut M12x3t
1
035
Motor Tension Cable
1
014
Handlebar Post Ø76x2.0x946
1
036
Hexagon Socket Pan Head Cap
Bolt M8x18
1
015
Handlebar End Cap Ø25
2
037
Idle Wheel Bracket
1
016
Motor
1
038
Idle Wheel
1
017
Power Supply Wire
1
039
Transport Wheel Ø45x19
2
018
AC Adapter
1
040
Cross Recessed Pan Head Bolt
M6x40
2
019
Curve Washer Ø8xØ16x1.5t
6
041
Nylon Nut M6
6
020
Hexagon Socket Pan Head Cap
Bolt M8x15
6
042R
Front Right Stabilizer End Cap
1
021
Handlebar Post Cover
1
042L
Front Left Stabilizer End Cap
1
022R
Right Seat Sliding Tube Cover
1
043
Front Stabilizer Ø76x1.5tx430
1
022L
Left Seat Sliding Tube Cover
1
044
Carriage Bolt M8x90
2

4
PARTS LIST
No.
Description
Qty
No.
Description
Qty
045
Big Curve Washer Ø8xØ20x2.0t
4
060
Eyebolt M6x36
2
046
Cap Nut M8
2
061
Flywheel Ø250
1
047
Washer Ø6xØ12x1.0t
8
062
Spring Clip Ø17
2
048
Main Frame
1
063
Bearing 6003ZZ
2
049R
Right Foot Pedal YH-30X
1
064
Sensor with Wire L=750 mm
1
049L
Left Foot Pedal YH-30X
1
065
Belt Pulley 260J6
1
050
Crank Cover
2
066
Belt PJ 410 J6
1
051
Nut M10x1.25x10
2
067
Belt Pulley Shaft
1
052R
Right Crank
1
068
Cross Recessed Pan Head Bolt
M6x15
4
052L
Left Crank
1
069
Cross Recessed Pan Head
Tapping Screw ST4.2x25
8
053
Cover Cap Ø40xØ25x10
2
070
Hexagon Nut M10
2
054R
Right Shroud
1
071
Adjustable Leveler M10
2
054L
Left Shroud
1
072
Hexagon Socket Pan Head Cap
Bolt M8x90
2
055
Screw ST4.2x25
8
073
Rear Stabilizer End Cap Ø76
2
056
Nut M6
2
074
Rear Stabilizer Ø76x1.5tx480
1
057
Spring Washer Ø6
2
075
Spring Ø17x80xØ2.5
1
058
Tension Bracket
2
076
Seat Sliding Tube
1
059
Nut M10x1.0x10t
2
077
Cross Recessed Pan Head Bolt
M5x12
4

5
HARDWARE LIST
TOOLS
Allen Wrench S6
1 PC
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
1 PC
Multi Hex Tool
S10, S13, S17, S19
1 PC
(44) Carriage Bolt
2 PCS
(45) Big Curve Washer
4 PCS
(46) Cap Nut
2 PCS
(72) Hexagon Socket
Pan Head Cap Bolt
2 PCS
(7) Cross Recessed Pan
Head Tapping Screw
2 PCS
(27) Cross Recessed Pan
Head Tapping Screw
5 PCS

6
EXPLODED VIEW

7
ASSEMBLY INSTRUCTIONS
STEP 1
Position the Front Stabilizer (43) in front of the Main Frame (48) and align bolt holes.
Attach the Front Stabilizer (43) onto the front curve of theMain Frame (48) with two Carriage
Bolts (44), two Big Curve Washers (45), and two Cap Nuts (46). Tighten cap nuts with the
Multi Hex Tool with Phillips Screwdriver provided.
Hardware:
(44) Carriage Bolt
2 PCS
(45) Big Curve Washer
2 PCS
(46) Cap Nut
2 PCS

8

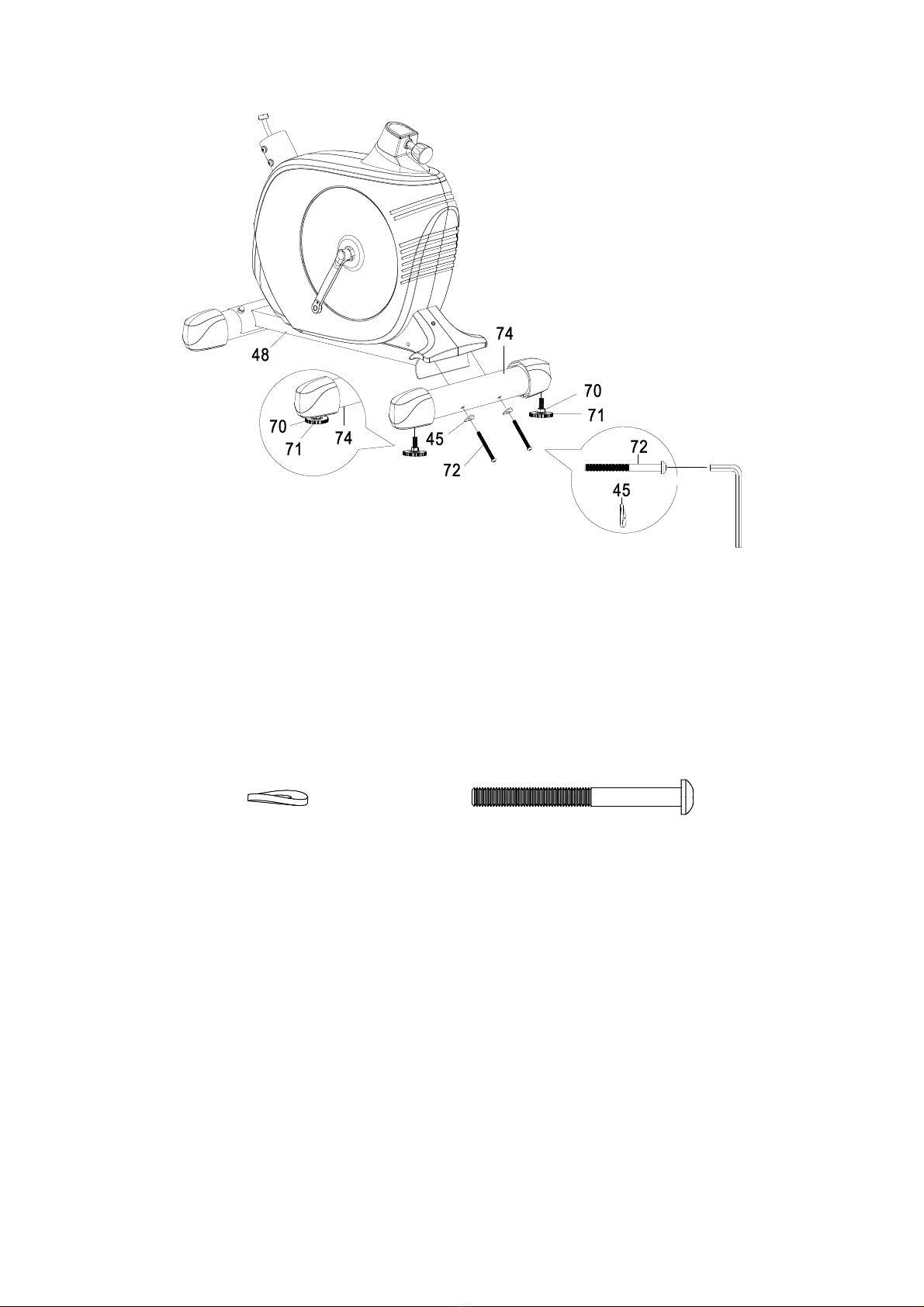

STEP 2
Install two Adjustable Levelers (71) with two Hexagon Nuts (70) onto the Rear Stabilizer
(74).
Position the Rear Stabilizer (74) behind the Main Frame (48) and align bolt holes.
Attach the Rear Stabilizer (74) onto the rear curve of the Main Frame (48) with two Hexagon
Socket Pan Head Cap Bolts (72) and two Big Curve Washers (45). Tighten bolts with the
Allen Wrench provided.
Hardware:
(45) Big Curve Washer
2 PCS
(72) Hexagon Socket
Pan Head Cap Bolt
2 PCS

9
STEP 3
The Foot Pedals and Pedal Straps are marked “R” for Right and “L” for Left.
Select the Left Foot Pedal Strap (49L) which has L marked on the side of the strap. Snap
the three hole end of the strap onto the inside edge of the Left Foot Pedal (49L). Snap the
other end of the strap onto the outside edge of the Left Foot Pedal (49L). Select
adjustment holes which allow your foot to be easily removed from the foot pedal.
Use the same procedure to snap the Right Foot Pedal Strap (49R) onto the Right Foot
Pedal (49R).
STEP 4
The Cranks, Pedal Shafts, and Foot Pedals are marked “R” for Right and “L” for Left.
Insert the pedal shaft of Left Foot Pedal (49L) into threaded hole in the Left Crank (52L).
Turn the pedal shaft by hand in the counter-clockwise direction until snug.
Note: DO NOT turn the pedal shaft in the clockwise direction, doing so will strip the
threads.
Tighten the pedal shaft of Left Foot Pedal (49L) with the Multi Hex Tool with Phillips
Screwdriver provided. Insert pedal shaft of Right Foot Pedal (49R) into threaded hole in
Right Crank (52R). Turn the pedal shaft by hand in the clockwise direction until snug.
Tighten pedal shaft of Right Foot Pedal (49R) with the Multi Hex Tool with Phillips
Screwdriver provided.

10
STEP 5
Remove three Nylon Nuts (25) and three Washers (26) from underside of the Seat Cushion
(23). Remove nylon nuts with the Multi Hex Tool with Phillips Screwdriver provided.
Guide bolts on underside of the Seat Cushion (23) through holes on top of the Seat Sliding
Tube (76), attach with three removed Nylon Nuts (25) and Washers (26). Tighten nylon
nuts with the Multi Hex Tool with Phillips Screwdriver provided.
STEP 6
Remove one Big Washer (29) and one Seat Adjustment Knob (30) from the Seat Sliding
Tube Bolt (28). Guide the Seat Sliding Tube Bolt (28) on underside of the Seat Sliding
Tube (76) through the hole on the top of Seat Post (31).

11
STEP 7
Attach the Left and Right Seat Sliding Tube Covers (22L, 22R) onto the Seat Sliding Tube
(76) and Seat Post (31) with five Cross Recessed Pan Head Tapping Screws (27) and two
Cross Recessed Pan Head Tapping Screws (7). Tighten screws with the Multi Hex Tool
with Phillips Screwdriver provided.
Attach with the Big Washer (29) and Seat Adjustment Knob (30) that were removed.
Hardware:
(7) Cross Recessed Pan
Head Tapping Screw
2 PCS
(27) Cross Recessed Pan
Head Tapping Screw
5 PCS

12
STEP 8
Turn the Seat Height Adjustment Knob (33) in a counterclockwise direction until it can be
pulled out. Pull out the Seat Height Adjustment Knob (33) and then insert the Seat Post (31)
into the seat post bushing of the Main Frame (48) and then slide the Seat Post (31) up or
down direction to the suitable position. Lock the Seat Post (31) in place by releasing the
Seat Height Adjustment Knob (33) and sliding the Seat Post (31) up or down slightly until the
Seat Height Adjustment Knob (33) "pops" down into the locked position. For added safety,
tighten the Seat Height Adjustment Knob (33) in a clockwise direction.

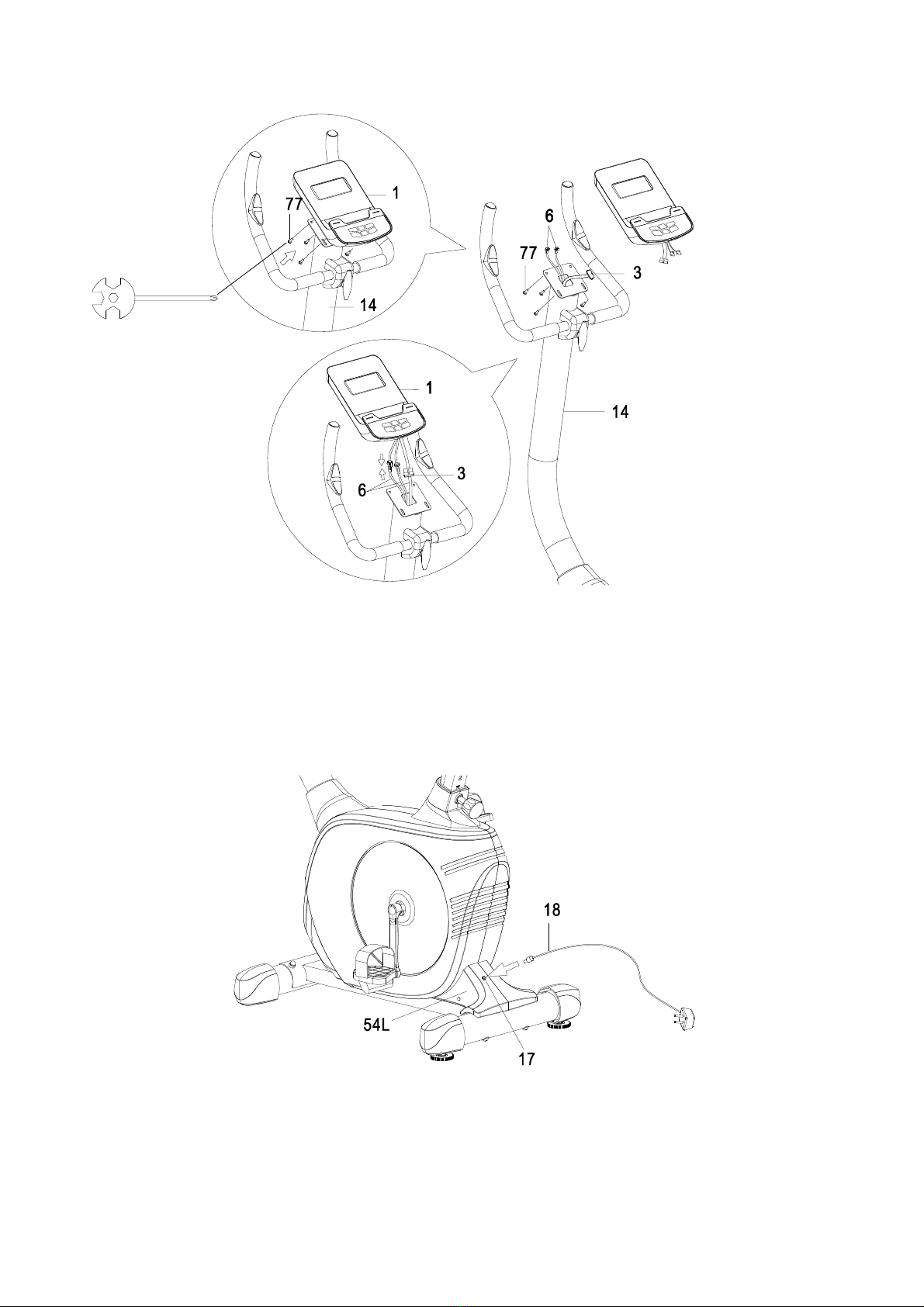

STEP 9
Remove six Curve Washers (19) and sixHexagon Socket Pan Head Cap Bolts (20) from the
Main Frame (48). Remove bolts with theAllen Wrench provided.

13
STEP 10
Slide the Handlebar Post Cover (21) up to the Handlebar Post (14).
STEP 11
Connect the Computer Extension Wire I (2) from the Main Frame (48) to the Computer
Extension Wire II (3) from the Handlebar Post (14).
Insert the Handlebar Post (14) onto the tube of the Main Frame (48) and align bolt holes.

14
STEP 12
Attach the Handlebar Post (14) onto the tube of the Main Frame (48) with six Curve
Washers (19) and six Hexagon Socket Pan Head Cap Bolts (20) that were removed.
Tighten bolts with the Allen Wrench provided.
Slide the Handlebar Post Cover (21) down to the Handlebar Post (14).

15

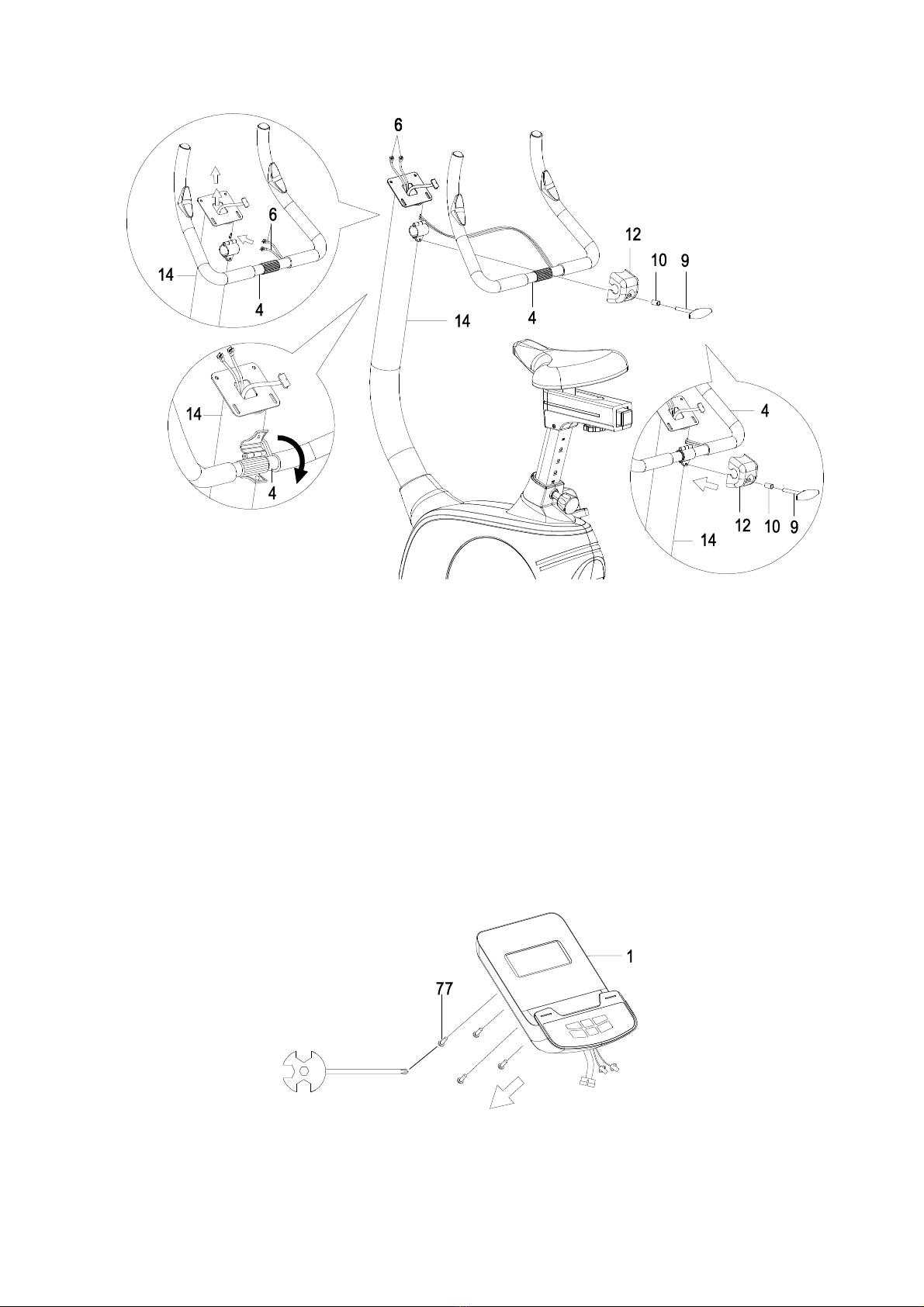

STEP 13
13-1
Insert the Hand Pulse Sensor with Wires (6) through into the hole on the Handlebar Post
(14) and pull them out from the top end of the Handlebar Post (14).
13-2
Place the Handlebar (4) through clamp on the Handlebar Post (14) with hand pulse sensors
facing the seat.
13-3
Hold the Handlebar (4) in desired position and fasten Clamp Cover (12), Spacer (10), and
Handlebar T-Knob (9) onto clamp. Tighten the Handlebar T-Knob (9) after adjustment.
STEP 14
Remove four Cross Recessed Pan Head Bolts (77) from the Computer (1). Remove bolts
with the Multi Hex Tool with Phillips Screwdriver provided.
13-1
13-2
13-3

16
STEP 15
Connect the Computer Extension Wire II (3) and Hand Pulse Sensor Wires (6) to the wires
that come from the Computer (1). Tuck wires into the Handlebar Post (14). Attach the
Computer (1) onto the top end of the Handlebar Post (14) with four Cross Recessed Pan
Head Bolts (77) that were removed. Tighten bolts with the Multi Hex Tool with Phillips
Screwdriver provided.
STEP 16
Plug one end of the AC Adapter (18) into the power jack of the Power Supply Wire (17) on
the rear of the Left Shroud (54L). Before plugging in, make sure to check carefully the
specifications on the Adapter. Plug the other end of the AC Adapter (18) into the
electrical wall outlet.

17
OPERATING THE COMPUTER
KEY FUNCTIONS:
ST/SP (START/STOP): Press the ST/SP key to start or stop training.
Start the body fat measurement and quit the body fat program.
Operates only when in stop mode, by holding the ST/SP key for three seconds to reset all
data values to zero except the ODO (ODOMETER) data values.
ENTER: To input desired value or work out mode.
MODE: Press the MODE button to alternate the functions of RPM /SPEED, ODO/DIST, and
WATT/CAL during workout.
＋:Increases value of selected workout parameter. Press the ＋key to increase the level
of resistance during workout.
－: Decrease value of selected workout parameter. Press the －key to decrease the level
of resistance during workout.
RECOVERY (PULSE RECOVERY):
The RECOVERY is for personal orientation and compares the approximate pulse rate before
and after training. You will notice that your fitness will improve with regular exercise. This
feature can help you on your way to a healthier you.
The RECOVERY feature is to be used directly after your workout. To use this function:
1) Press the RECOVERY key.
2) Hold both hands on Hand Pulse Sensors located on the Handlebar.
3) The time will countdown from 60 to 0 seconds.
Note: If there is no pulse reading within 4 seconds reposition your hands on the Hand
Pulse Sensors.
4) Your personal fitness Test level will appear on the display (F1 - F6). When countdown is
complete, the Pulse Recovery grade will be displayed.
Your ratings for Pulse Recovery are as follows:
F1 = Excellent F4 = Below Average
F2 = Good F5 = Not Good
F3 = Fair F6 = Poor

18
Things You Should Know Before Exercising
The values calculated or measured by the computer are for exercise purpose only, not for
medical purpose.
PROGRAMS SELECTION:
There are 13 programs including 1 Manual Program, 6 Pre-set Programs, 1 Body Fat Ratio
Program, 1 Target Heart Rate Program, 3 Heart Rate Control Programs, and 1 User Setting
Program.
PROGRAM OPERATION:
Manual Program (P1)
PROGRAM 1 is a manual program. Selecting the Manual Program (P1) by using the ＋or
－key then press the ENTER key to enter into the program. The first parameter "Time" will
flash so the value that can be adjusted by using the ＋or －key. Press the ENTER key
to save values and move to the next parameter which can be adjusted. Continue through
all desired parameters, then press the ST/SP key to start workout.
NOTE: When one of workout parameters counts down to zero, the computer will beep
to alert you and stop the workout automatically. Press the ST/SP key to continue the
workout to reach the unfinished workout parameter.
Pre-Programs (P2-P7)
PROGRAM 2 to PROGRAM 7 are the pre-set programs. All program profiles have 16
level of resistance.
Selecting one of the pre-setprograms by using the ＋or －key then press the ENTER key
to enter into the program. The first parameter "Time" will flash so the value that can be
adjusted by using the ＋or －key. Press theENTER key to save values and move to the
next parameter which can be adjusted. Continue through all desired parameters, then
press theST/SP key to start workout. User may exercise with different level of resistance in
different intervals as the profile show.
NOTE: When one of workout parameters counts down to zero, the computer will beep
to alert you and stop the workout automatically. Press the ST/SP key to continue the
workout to reach the unfinished workout parameter.
Body Fat Ratio Program (P8)
Program 8 is a special program designed to calculate user’s body fat ratio.
Selecting the Body Fat Program (P8) by using the ＋or －key then press the ENTER key
to enter into the program. The "Male" will flash so Gender can be adjusted by using the ＋
or －key, press the ENTER key to save gender and move to the next data. The "175" of
Height will flash so Height can be adjusted by using the ＋or －key, press the ENTER key
to save the height and move to next data. The "75"of Weight will flash so Weight can be
adjusted by using the ＋or －key, Press the ENTER key to save weight and move to the
next data. The "30"of age will flash so Age can be adjusted by using the ＋or －key,
press the ENTER key to save age. Press the ST/SP key to start measurement, please also
hold the hand pulse sensors on the handlebar. The calculation values of FAT%, BMR, BMI,
and BODYTYPE will show up shortly. You may press the ST/SP key to return to the main
display.

19
Body Types: There are 5 body types divided according to the FAT% calculated.
BMR: Basal Metabolism Ratio.
BMI: Body Mass Index.
Target Heart Rate Program (P9)
Setting Parameter for TARGET H.R.
Selecting the TARGET H.R. Program (P9) by using the ＋or －key then press the
ENTER key to enter into the program. The first parameter "Time" will flash so value that
can be adjusted by using the ＋or －key. Press the ENTER key to save values and
move to the next parameter which can be adjusted. Continue through all desired
parameters and setup a TARGET H.R., then press the ST/SP key to start workout, please
also hold the hand pulse sensors on the handlebar during exercise. The computer will
adjust the level of resistance automatically according to the heart rate detected per 20
seconds. For example, the level of resistance may increase while the heart ratedetected is
lower than TARGET H.R.. Also, the level of resistance may decrease while the heart rate
detected is higher than TARGET H.R.. As a result, the user’s heart rate will be adjusted to
close the TARGET H.R. in the range of TARGET H.R. –5 and TARGET H.R. +5.
NOTE: When one of workout parameters counts down to zero, the computer will beep
to alert you and stop the workout automatically. Press the ST/SP key to continue the
workout to reach the unfinished workout parameter.
Heart Rate Control Programs (P10-P12)
There are 3 Heart Rate Control Programs:
P10-60% TARGET H.R.=60% of (220-AGE)
P11-75% TARGET H.R.=75% of (220-AGE)
P12-85% TARGET H.R.=85% of (220-AGE)
Setting Parameters for HEART RATE CONTROL
Selecting one of the Heart Rate Control Programs by using the ＋or －key then press the
ENTER key to enter into the program. The first parameter "Time" will flash so the value that
can be adjusted by using the ＋or －key. Press the ENTER key to save values and
move to the next parameter which can be adjusted. Continue through all desired
parameters. Users may exercisein a period of time, a certain distance, or a certain calories
want to burn with 60% Max Heart Rate in Program10, 75% Max Heart Rate in Program 11,
and 85% Max Heart Rate in Program 12. After pressing ST/SP button to exercise, please
also hold the hand pulse sensors on the handlebar during exercise. In these programs, the
computer will adjust thelevel of resistance automatically according to the heart rate detected
per 20 seconds. For example, the level of resistance may increase while the heart rate
detected is lower than TARGET H.R.. Also, the level of resistance may decrease while the
heart rate detected is higher than TARGET H.R.. As a result, the user’s heart rate will be
adjusted to close the TARGET H.R. in the range of TARGET H.R. –5 and TARGET H.R. +5.
NOTE: When one of workout parameters counts down to zero, the computer will beep
to alert you and stop the workout automatically. Press the ST/SP key to continue the
workout to reach the unfinished workout parameter.
