SPRSUN HW Series User manual

Heat Pump User Manual
Comprehensive version

This manual is suitable for below heat pumps:
No.
Abbreviations
Details
Model
1
HW
Air source heat pump hot water
series
CGK/C-XX,
CGK/D-XX
2
HH
Air source heat pump heating + hot
water series
CGK/C-XX,
CGK/D-XX
3
HC
Air source heat pump heating +
cooling series
CGK/C-XX (HC),
CGK/D-XX(HC)
4
SP-H
Swimming pool heat pump heating
series
CGY/C-XX,
CGY/D-XX
5
SP-HC
Swimming pool heat pump heating
and cooling series
CGY/C-XX(HC),
CGY/D-XX(HC)
6
HT
Air source high temperature heat
pump
CGK/C-XX(H),
CGK/D-XX(H)
Note: Abbreviations name will be used in the below content, pls check the related
content for your heat pump referring to the form above.

1
Contents
Part 1. Before use.............................................................................3-8
1. Attentions.................................................................................3-4
2. Installation................................................................................5-8
Heat pump installation location and attentions........................... 5
Installation diagram and tips.....................................................6-7
Pre-start up...............................................................................7-8
Part 2. Use......................................................................................9-31
Operating panel display………………………………......................……9-12
Buttons function....................................................................13-14
Operating..............................................................................14-15
Parameters query and setting…………………………………….….......15-20
Error code……………………………………………………………….……..…...20-22
Working modes……………………………………………………….……..……25-26
Electrical component controlling…………………………….…..…...…27-31
Part 3.Maintenance and reparing..................................................32-37
Daily maintenance.......………………………………......................…...…32
Error code and repairing........................................................33-34
Other problem and repairing.................................................35-37
Warranty card...................................................................................38

2

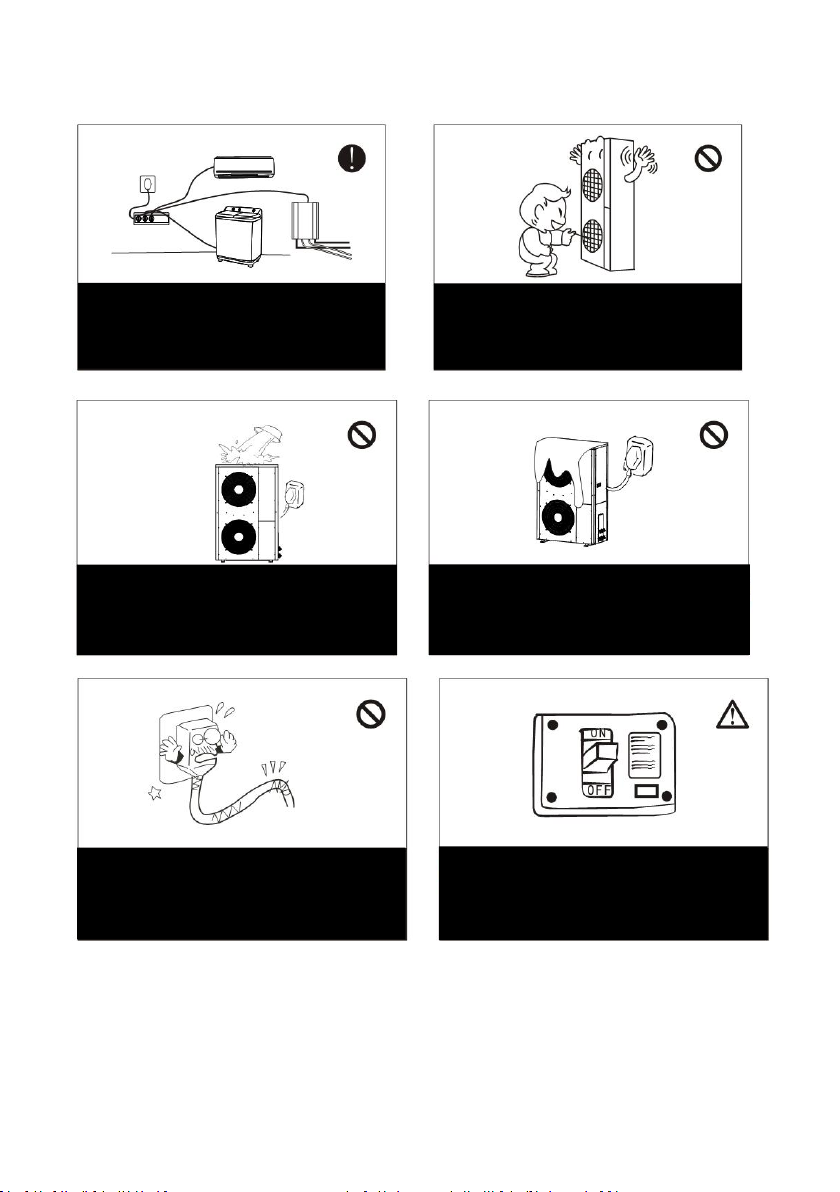

1. Attentions
Be sure to read this manual before use. The installation, dismantle
mentand maintenance of the unit must be performed by qualified
personnel. It is forbidden to do any changes to the structure of the
unit. Otherwise injury of personor unit damage might happen.
The power supply to the unit must be grounded.
Make sure the power supply to the heat pump unit is off
Before any operations are done on the unit.
When the power cord gets looser or is damaged, always get
a qualified person to fix it.
Keep the unit away from the combustible or corrosive
environment.
This appliance is not intended for use by persons, including
children, with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be super vised
to ensure that they do not play with the appliance.
Be sure to read this manual before use.

3
Use a dedicated socket for this unit, otherwise malfunction may
occur.
Do not touch the air outlet grill when fan motor is running.
Water or any kind of liquid is strictly forbidden to be poured into
the product, or may case creepage or breakdown of the product.
When running the unit, never cover clothes, plastic cloth or any
other material that block ventilation on the product which will
lead to low efficiency or even non-operation of this unit.
When the power cord gets loose or is damaged, always get a
qualified person to fix it.
It is mandatory to use a suitable circuit breaker for the heat pump
and make sure the power supply to the heater corresponds to the
specifications. Otherwise the unit might be damaged.

4
2. Installation

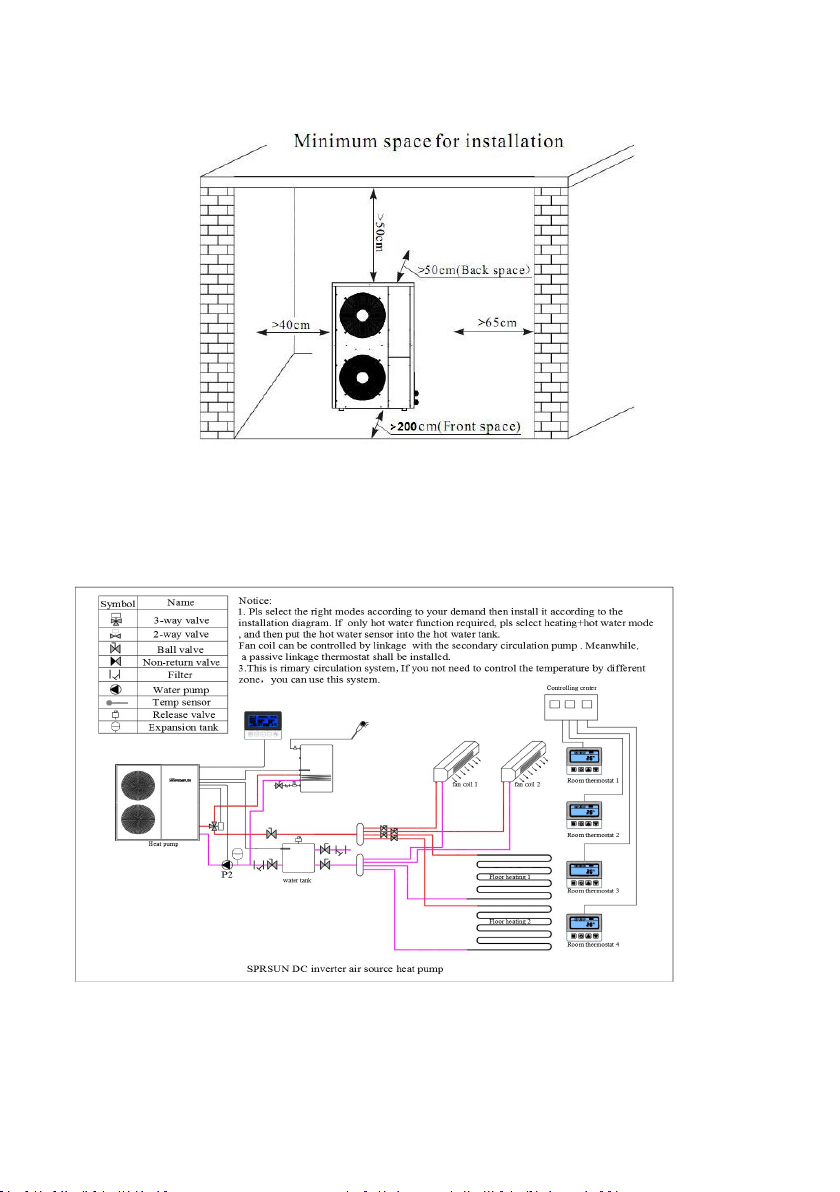

(1) Heat pump installation location and attentions
* Heat pump is not allowed to be installed in the place where combustible gas
may leaks.
* Heat pump is not allowed to be installed in the place where there is oil or
corrosion gas released.
* Heat pump should be installed in a open space, and good ventilating.
* Heat pump each side to wall or barrel should be keep certain distance, air outlet
to barrel distance should ≥2m, air inlet distance to wall or barrel≥0.5m, bottom
distance to ground ≥0.5m, other side distance should be enough for installation
or repairing.
* Heat pump should be installed on concrete basic or steel bracket, and anti-shock
pad should be put between heat pump and basic or bracket. Then use expansion
bolt to fix heat pump on bracket.
* Water drainage pipe and ditch should be set around heat pump and water pipes
and water tank. When testing or repairing, maybe need drain plenty of water,
and when heat pump is working, there are some condensed water flow down.

5
(2) Installation diagram and tips (for reference only, installation shall
be based on actual project demand)
*for hot water and floor heating

6
*for heating/cooling
Tips for installation related to the water pipe part:
*Install a valve at the highest point of each water circulations for
releasing air from water system.
* A Y filter is very important in front of circulating water pump of heat
pump.
* If more heat pumps installed in one water pipe system, the
connection of these heat pumps can’t be in series, only can be in
parallel or independent.

7
(3) Pre-start up
①Checking before pre-start up
●Check if the water pipe are connected well and if there is any
leakage. The water supply valve are open.
●Make sure the water flow is enough and meet the demand of the
heat pump selected and water flow smoothly without air . In cold area,
pls make sure that the water flow is without freezing
●Check if the power cable is connected well and properly grounded.
●Check if fan blade is blocked by the fixing plate of fan blade and fan
blade protecting grill.
●Check if the tank has been filled with water or enough water volume
that can meet the demand of heat pump running
②Pre-start up
●After check completely and confirm no problem for installation, the
unit can be power to start up .
●After connect power supply, heat pump delay 3mins to start. Check
carefully is there is some abnormal noise or vibration or if the
working current is normal or if water temp increasing is normal.
●After the unit is working properly for 10 minutes without any
problem, then the pre-start up is usefully completed. If not, pls refer to
Service and Maintenance Chapter to solve the problem.
If everything above is OK, the unit can start up. If any of them fails, please improve it.

8
Part 2. Use

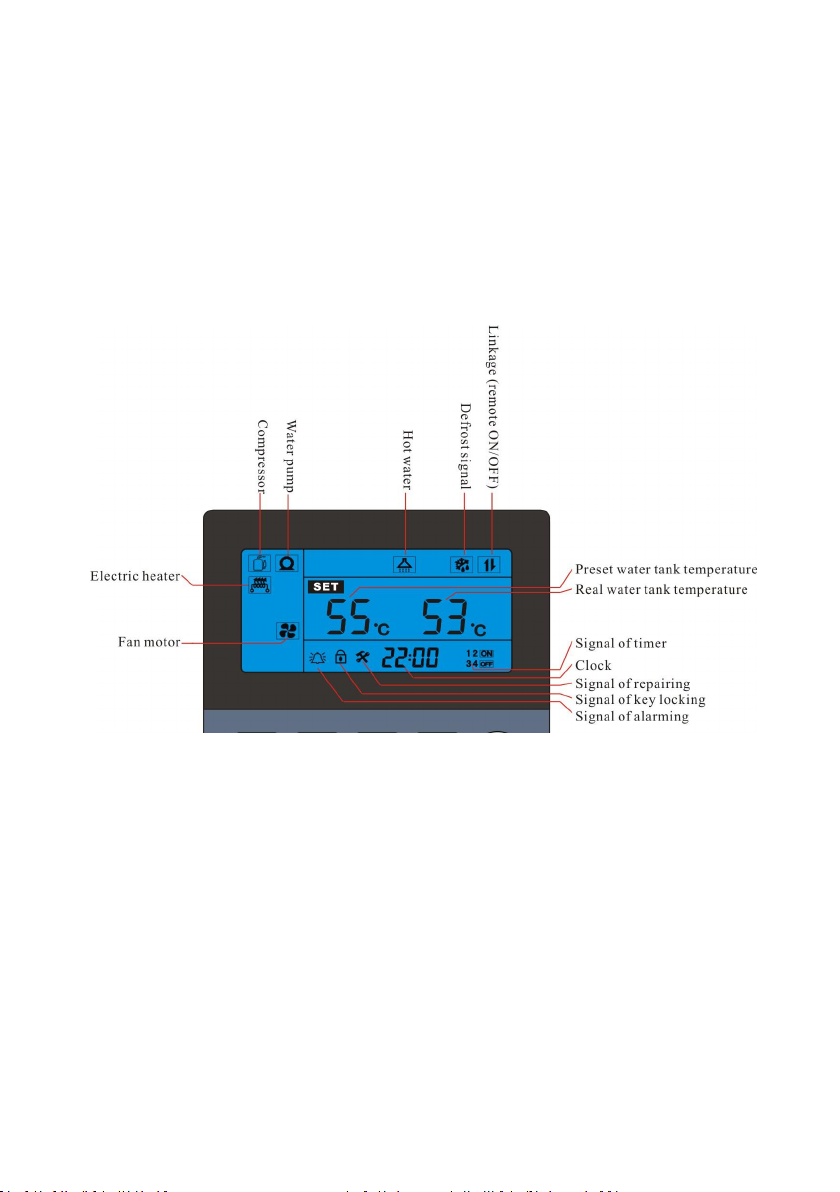

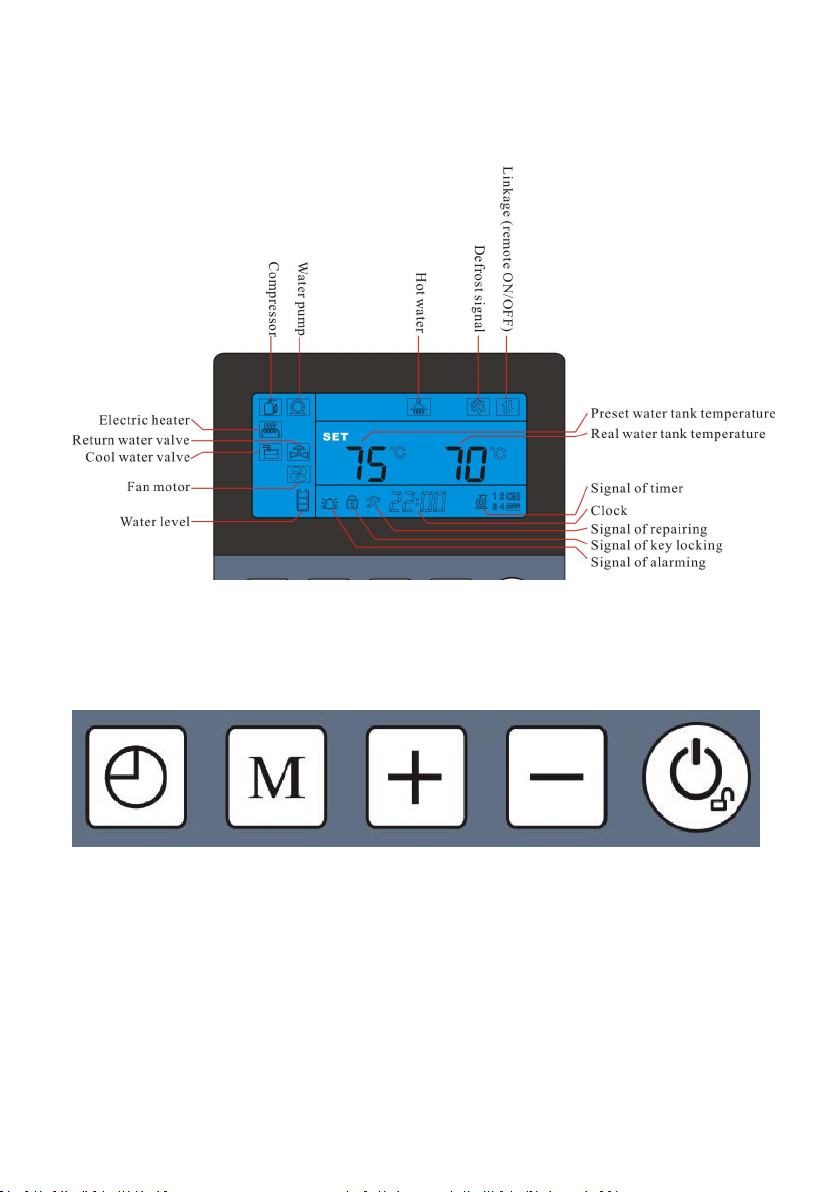

(1) Operating panel display

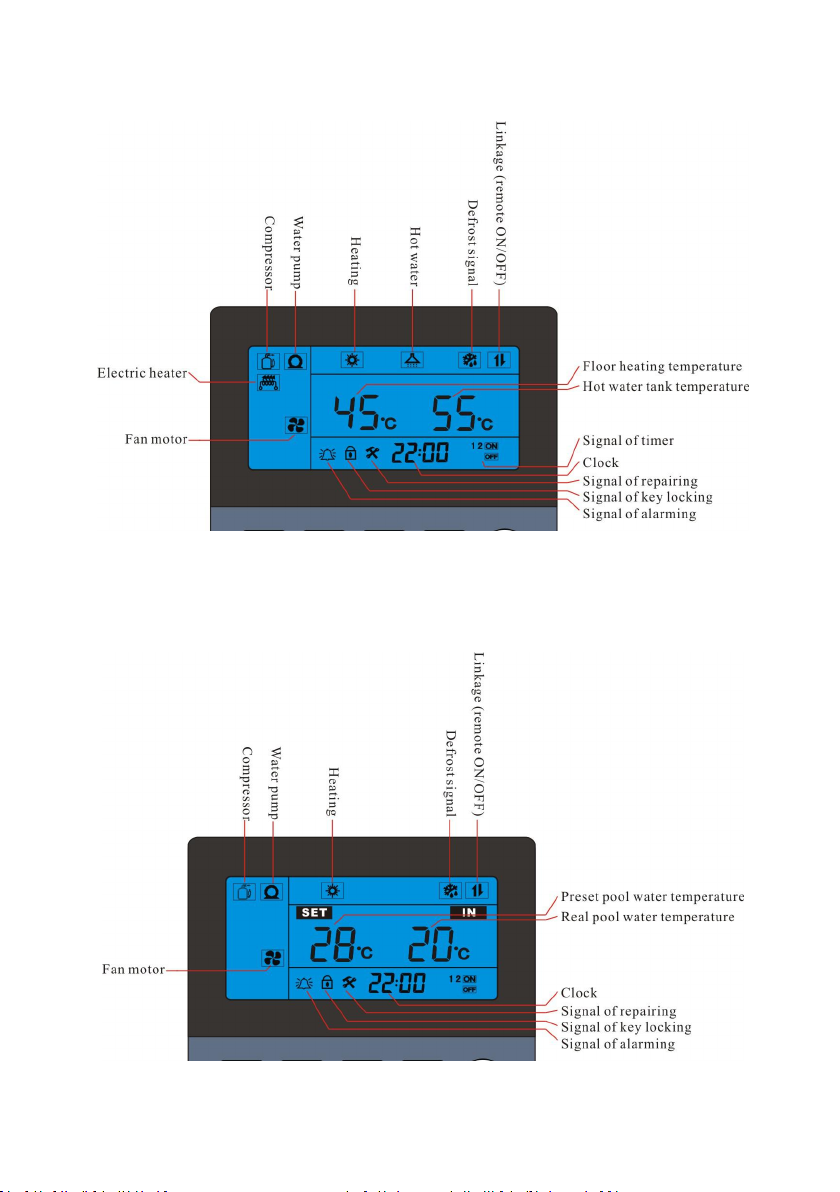

HH series
①Single hot water mode
②Heating + hot water mode

9
SP-H and SP-HC series
①Heating mode

10
②Cooling mode
HW series

11
HT series
(2) Buttons function
↓ ↓ ↓ ↓ ↓
Clock M + - power
“Power” button
(2)1.1 Under unlock state, press this button for 1second, can turn on
and turn off heat pump.

12
(2)1.2 Under other state, press this button, can return main
interface.
(2)1.3 Under locking state, press this button for 5 seconds, can
unlock buttons.
“M” button
Under main interface, press “M” button, can query the working
status parameters
“+”and “-“ button
(2)2.1 Turns page, change value.
(2)2.2 Combine with “M” button, can query and set parameter.
(2)2.3 Under power on state, press “+”and “-“button, can set
current working mode water temperature (except heating + hot water
mode).
“Clock” button
(2)3.1 Press this button for 10seconds, enter clock setting interface
(2)3.2 Press this button, can enter timer of ON/OFF setting, combine
“+”and “-“button, can set timers.
(3) Operating
Operating panel get electricity
When heat pump power supply is supplied, operating panel and PC
board will get electricity, then display panel displays, background

13
light is very weak, all buttons are locked now, any touching is
invalid.
Unlock buttons
Press “power” button for 3sec, when hear “Du” voice, move finger,
now background light is strong, all buttons are unlocked, the lock
symbol disappear. (if there is not operating on buttons for 60sec,
buttons will be locked automatically, and displays lock symbol)
Turn on/off heat pump.
Press “power” button, if operating panel shows off state, will turn
on heat pump.
If operating panel shows on state, will turn off heat pump.
Water tank temperature setting (L3 or L4)
Except HH series, other series have two way to set water tank
temperature:
Way 1:
Under on state and main interface, press “+” and “-“ button, can
adjust current working mode water tank preset temp. The preset
water tank temp is the left one temperature, the real water tank
temp is the right one temperature. When setting, the left temp will
change, and display L3 or L4 below it.

14
Way 2:
Refer to “Table 3: user parameters query and setting” in P15. All
user parameters can be set by the same way. Floor heating water
temperature only can be set by this way.
(4) Parameters query and setting operation
① Working status parameters and history error code query
How to enter? Under main interface, press ”M” button, can query
the working status parameters and history error codes.
Table 1: heat pump working status parameters query

15
Code
Meaning
Note
No
code
Water tank temp and
floor heating water temp
Displayed at the main interface
A1
Air heat exchanger 1
lowest tube temp
Same meaning for all series
A2
Inlet gas temperature of
compressor 1
Same meaning for all series
A3
Outlet gas temperature of
compressor 1
Same meaning for all series
A4
Ambient air temperature
Same meaning for all series
A5
Outlet water temperature
Same meaning for all series
A6
Return water temperature
of water tank
For HW and HT series
Inlet water temp
For HC and SP-H and SP-HC series
Floor heating water temp
For HH series (displayed on main
interface, the left one temperature)
A7
Reserved
Same meaning for all series
A8
Compressor 1 current
Same meaning for all series
A9
Electric expansion valve
1open degree
For HW and HH and SP-H series,
rated heating capacity less than
52KW models
Reserved
Other series and models
A10
Reserved
Same meaning for all series
b1
Air heat exchanger 2
Same meaning for all series

16
lowest tube temp
b2
Inlet gas temperature of
compressor 2
Same meaning for all series
b3
Outlet gas temperature of
compressor 2
Same meaning for all series
b8
Compressor 2 current
Same meaning for all series
b9
Electric expansion valve 2
open degree
For HW and HH and SP-H series,
rated heating capacity less than
52KW models
Reserved
Other series and models
C1
Reserved
Same meaning for all series
E1～
E6
History error code
Same meaning for all series
Note: about water tank temp sensor, installation position in each series
is different.
A. HW and HT series: should be installed in hot water tank by installer
B. HH series: hot water tank temp sensor should be installed in hot
water tank by installer. (Floor heating water temp sensor should be
installed in floor heating water tank or on floor heating system return
water pipe)
C. HC series: water tank temp sensor has been installed on inlet
water pipe by factory (if project has A/C water tank, installer can move
the sensor to tank from heat pump)

17
D. SP-H and SP-HC series: has been installed in titanium heat
exchanger by factory.
② User parameters query and setting (ON and OFF status can set)
How to enter?
A. Under main interface, press “M” for 3seconds, enter user
parameter query interface, then press “+”and “-“ button , can query L2
to L10 value.
B. Under user parameter query interface, press “M” button, enter
setting interface, press “+”and “-“ button, to set the value of current
parameter, press “M” button again, return query interface.
C. Under user parameters query interface and setting interface, if
there is not operation for 30seconds constantly, system will quit user
parameter query or setting interface automatically, and return to main
interface, press “power” button can return main interface too.
Table 2: user parameters query and setting

18
Code
Meaning
Setting
range
Factory setting
L2
Hot water tank temp drop
(or increase) for
compressor restart at
heating (or cooling) mode
2℃～
25℃
SP-H and SP-HC: 3℃
Other series: 5℃
L3
Preset water tank
temperature of hot water
(or heating) mode
30℃～
F1 value
1. SP-H and SP-HC:
35℃
2. HT series: 75℃
3. HC series: 45℃
4. Other series: 55℃
L4
Preset water tank
temperature of cooling
mode
8～32℃
12℃
Remarks: for HC, SP-HC
series
L5
Ambient air temperature
below which electric
heater is allowed to start
-25℃～
25℃
5℃
L6
Return water temperature
setting from building hot
water system
20℃～
65℃
45℃
Remarks: for HW, HT
series
L7
Water tank temperature
below which cool water
compensating is not
allowed at hot water mode
20℃～
60℃
20℃(20℃:
compensate cool water
is not limited by water
tank temperature)
Remark: for HW, HT
series
