SPRSUN CGKS3.5 User manual

Household Air to Water Heat Pump
User Manual
(Heating mode)
Controller version: PC board: CG248021 LCD: CG248024
Heat pump model: CGKS3.5, CGKS5.5, CGKS7, CGKS9
Thank you for choosing our product, we shall be more than glad to service you. For you to better operate this
product and to prevent accidents due to misoperation, please read carefully this user manual before carrying
out any installation or operation, also please pay special attention to the warning, prohibition and attention
instructions. We are continuously supplementing and upgrading this user manual to better service for you!
Attention

2
Part 1. Before Use

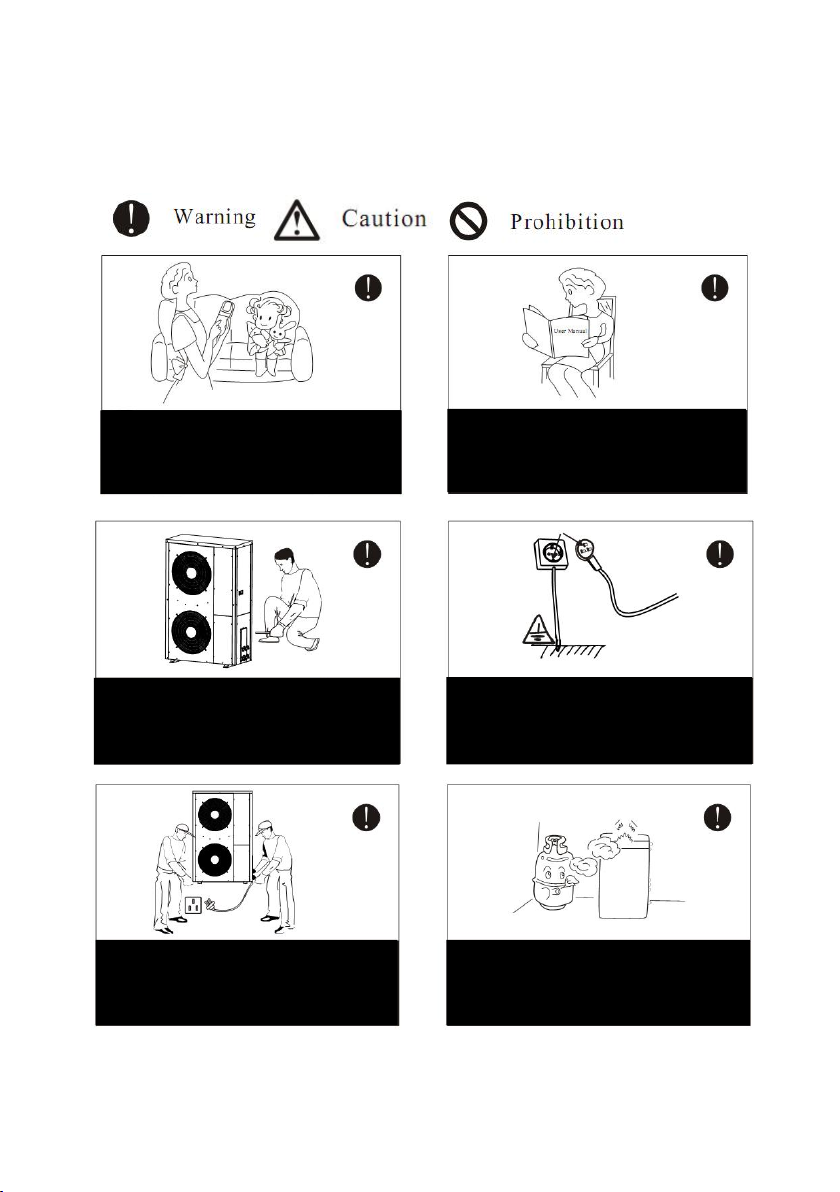

1. Attentions
Be sure to read this manual before use. The installation, dismantle
mentand maintenance of the unit must be performed by qualified
personnel. It is forbidden to do any changes to the structure of the
unit. Otherwise injury of personor unit damage might happen.
The power supply to the unit must be grounded.
Make sure the power supply to the heat pump unit is off
Before any operations are done on the unit.
When the power cord gets looser or is damaged, always get
a qualified person to fix it.
Keep the unit away from the combustible or corrosive
environment.
This appliance is not intended for use by persons, including
children, with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be super vised
to ensure that they do not play with the appliance.
Be sure to read this manual before use.

3

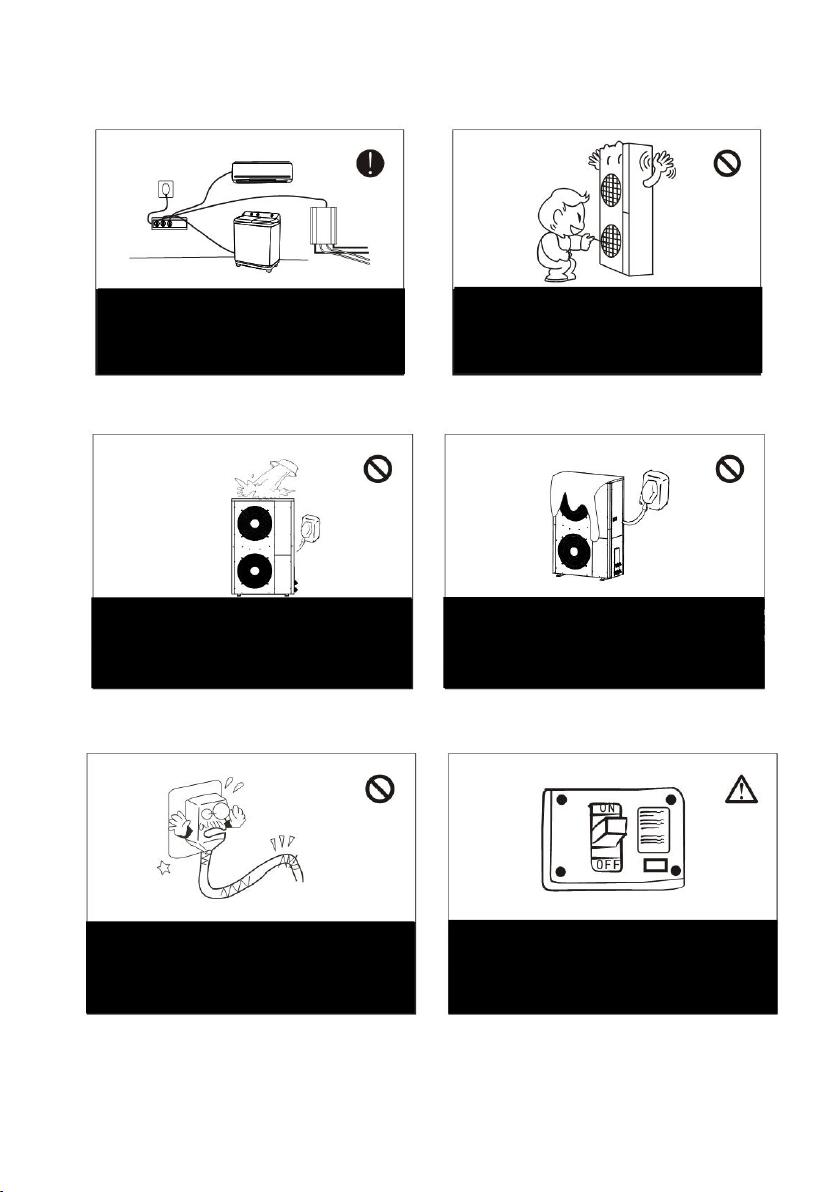

Use a dedicated socket for this unit, otherwise malfunction may
occur.
Do not touch the air outlet grill when fan motor is running.
Water or any kind of liquid is strictly forbidden to be poured into
the product, or may case creepage or breakdown of the product.
When running the unit, never cover clothes, plastic cloth or any other
material that block ventilation on the product which will
lead to low efficiency or even non-operation of this unit.
When the power cord gets loose or is damaged, always get a
qualified person to fix it.
It is mandatory to use a suitable circuit breaker for the heat pump and mak
e sure the power supply to the heater corresponds to the
specifications. Otherwise the unit might be damaged.

4
Part 2. Controller introduction

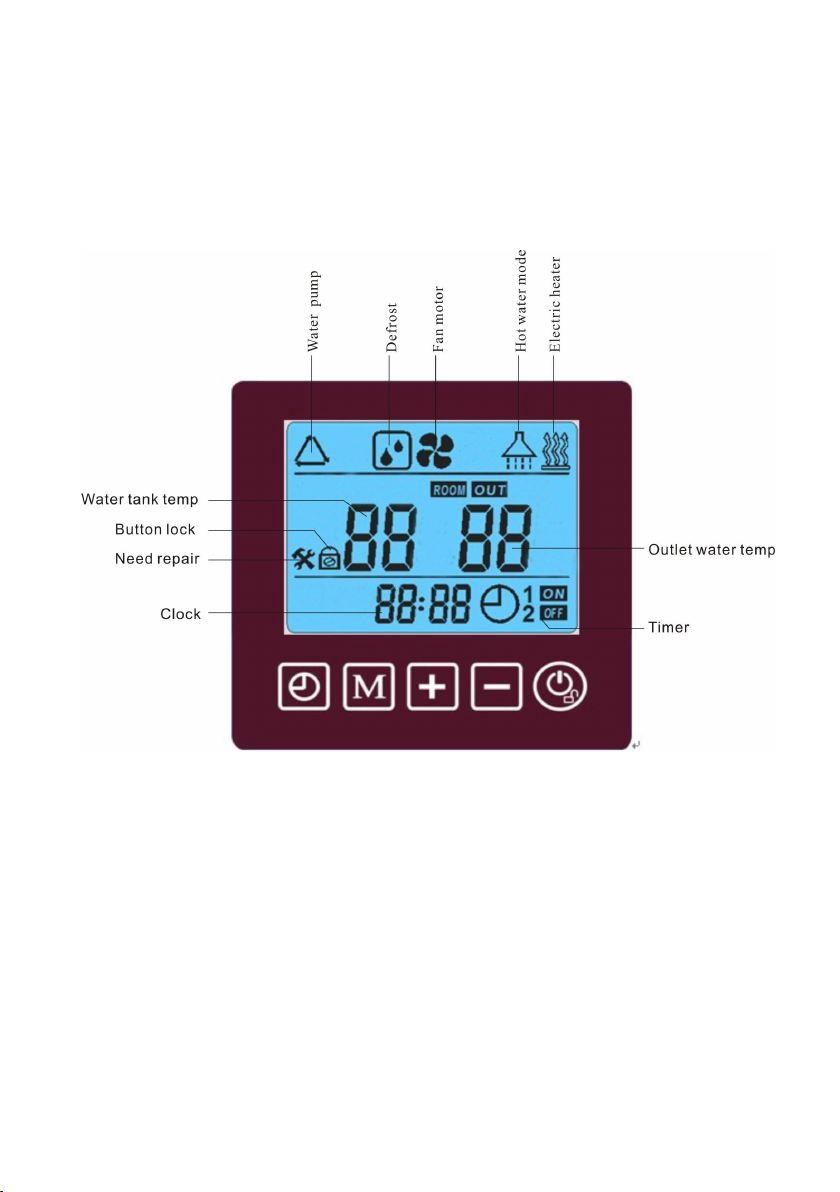

1. Operating panel display

5

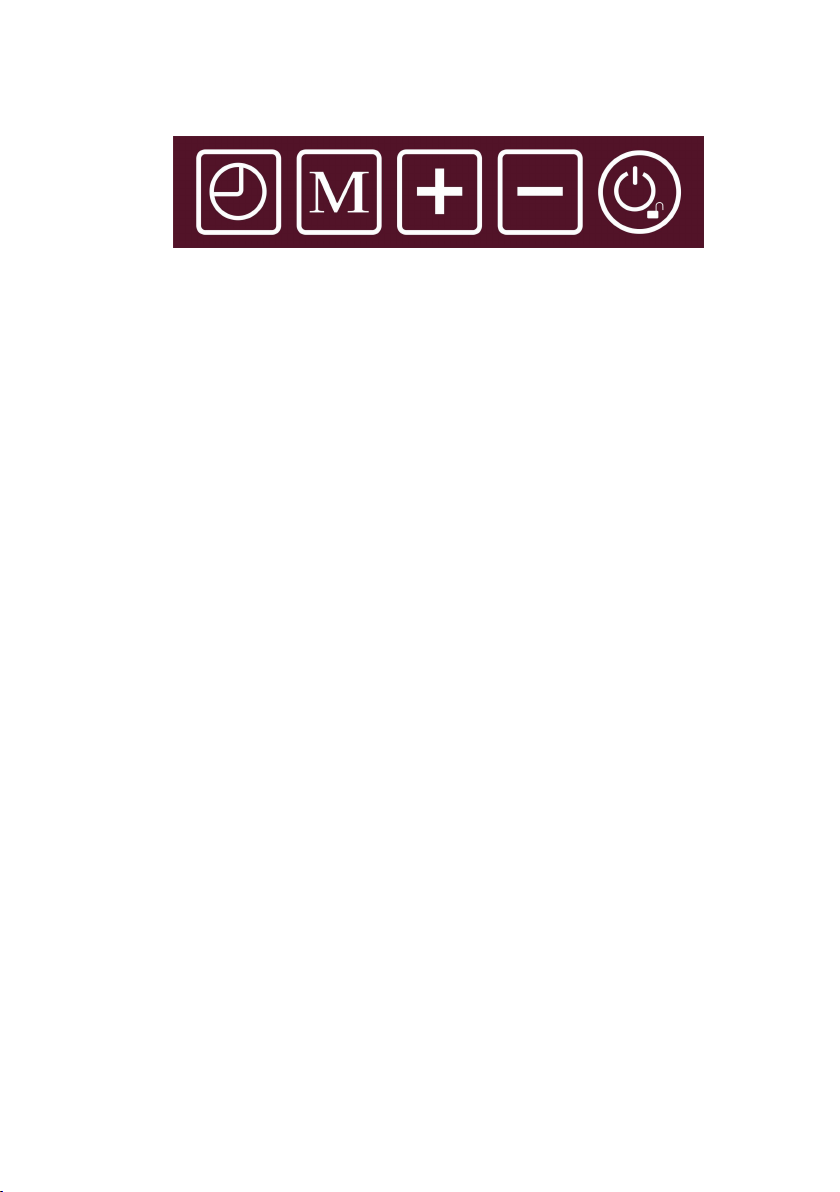

2. Buttons
↓ ↓ ↓ ↓ ↓
Clock M + - power
2.1 “Power”button
2.1.1 Under the unlocking state, press this button for 1s, can change heat
pump ON/OFF.
2.1.2 Under other setting state, press this button, will return main
interface.
2.1.3 Under locking state, press this button for 5s, will unlock keys.
2.2 “M”button
Under the main interface, press M button, can enter heat pump status
query.
2.3 “+”and “-”button
2.3.1 Page forward and backward query, amend parameters value.
2.3.2 Combines “M”button, can have a query on parameters and setting
parameters.
2.3.3 Under power on state, press “+”and“-”button，can operate current
working mode water tank temperature setting
2.4 “Clock”button
2.4.1 Press this button for 10s, enter clock setting status.
2.4.2 Press this button, enter fixed ON/OFF time setting status, combines
“+”and “-”button，can set the 1st and 2nd groups fixed time.

6
3. Wired panel operating
3.1 Parameters query and setting
3.1.1 Working status parameters query
How to enter? Under main interface, press “M”button, can enter
working status parameters query interface.
Table 1: Working status parameters
Query code
Meaning
Query code
Meaning
A0
Water tank
temperature
A4
Environment temp
A1
Air HE coil temp
A5
Water HE outlet
water temp
A2
Inlet gas temp
A9
EEV open degree
A3
Outlet gas temp
E1-E6
History error code
display
Table 2: Error code table
Code
Description
Code
Description
03E
Water flow switch
16E
Air HE coil temp sensor damage
05E
High pressure
18E
Outlet gas temp sensor
06E
Low pressure
21E
Air temp sensor
09E
Communication
27E
Water HE outlet temp sensor
damage
11E
Time limited
29E
Inlet gas temp sensor damage
12E
High outlet gas temp
44E
Air temp is too low protection
15E
Tank temp sensor
damage

7
3.1.2 User parameters query and setting （Can set at both ON and OFF
state）
a. Under main interface, press “M”button for 3s, enter user
parameters query interface. Press “+”and “-”button, can query each
parameter.
b. At users parameters query interface, press “M”button, can enter
current parameter setting interface, now press “+”and “-”button,
can modify current parameter value, press “M”button again, return
parameters query status.
c. At user parameter query or user parameter setting interface, if there
is not button operating constantly for 30s, then quit user parameter
query or user parameter setting interface automatically, and return
main interface. Press “Power”button can return main interface too.
User setting parameter
Code
Parameter name
Setting range
Initial value
L2
water tank temp drop
for compressor restart
2℃～18℃
5℃
L3
Water tank temp setting
at heating mode
30℃～ 60℃
55℃
L4
Reserved
L5
Air temp that electric
heater starting is allowed
0℃～35℃
5℃
L6
Electric heater setting
temperature
20℃～80℃
55℃
L7
Electric heater start
temperature difference
2℃～40℃
5℃

8
3.2 Other operation
3.2.1 Clock setting
◆At main interface, press “clock”button for 10 seconds, enter clock
setting interface
◆At clock interface, press “clock”button, then “hour”flash, press
“+”or “-”button，can set hour.
◆After finish setting hour, press “clock”button, then “minute”flash,
now press “+”or“-”button，can set minute.
◆After finish setting minute, press “clock”button, to confirm clock
setting, and back to main interface.
◆At clock setting interface, if there is not operation within 30seconds,
system will confirm clock setting and back to main interface
automatically.
◆At clock setting interface, press “power”button, can confirm current
clock setting and back to main interface.
3.2.2 Timer setting and cancelling (ON/OFF timer)
◆At main interface, press “clock”button, enter timer group 1 setting.
◆After enter group 1 fixed time setting interface, press “clock”button
again, group1 timer “hour”flash, then press “+”or“-”button，then can
set “hour”for group 1 ON timer.
◆After finish setting “hour”, press “clock”button, then “minute”flash,
then press “+”or“-”button，can set “minute”for group 1 timer ON.
◆After finish setting group 1 ON timer “minute”, press “clock”button,
enter group 1 OFF timer setting, same way like ON timer setting..

9
◆After finish setting group 1 ON/OFF timer, press “clock”button,
confirm group 1 setting, and enter group 2 ON/OFF timer setting, same
way like group 1 setting.
◆At timer interface, if there is not operation within 30seconds, then
confirm current timer setting, and back to main interface (this setting
can be remembered if electricity is cut off)
◆At timer interface, press “power”button, confirm current timer
setting, and back to main interface.
◆How to cancel timer? At timer setting interface, press “M”button
for 5s，then cancel current group timer setting.
◆At timer setting interface, if there is not button operating
constantly for 30s, then confirm current timer group setting, and
return main interface (after set timer, if there is power failure,
controller will memory the setting)
3.2.3 Lock keys and un-lock keys
◆Under locking keys status, after press “Power”button for 3s, when
controller gives a “beep”, key locking will be removed.
◆If there is not button operating constantly for 60s, key will be
locked automatically.

10
3.2.4 Forced defrost
◆Under power on status, press “-”button for 3s, enter forced defrost.
◆Press “power”button，after power off, quit from forced defrost
completely after 3min, or when defrosting time reach preset, quit
forced defrost too.
3.2.5 Forced electric heater function
Press “power”button and “clock”button at the same time for 3s,
start/stop forced electric heater.
3.2.6 Remove history error code
At the interface of query history error code, press “power”and “M”
button for 5s，remove history error code.

11
Part 3. Working mode
1. Heating mode running
1.1 When water tank temp ≤L3- L2, start to heat.
1.2 When water tank temp ≥L3, stop heating.
2. Defrost
2.1 Ambient air temperature is below 12℃, heat pump can defrost
2.2 When defrost, fan motor stop working, compressor and circulating
water pump work.
2.3 When defrost, operating panel display defrosting symbol.

12
Part 4. Each electrical load controlling
1. Compressor
Compressor start / stop safe time (when defrosting, refer defrosting
program)
1.1 After compressor stop, should need 3min at least, then it is allowed
restart again.
1.2 First time starting needn’t 3min protection.
1.3 If has circulating water pump, must let water pump work 90s first, then
check water tank temperature, to judge if need start compressor.
2. Circulating water pump (mono-block type heat pump)
2.1 When system request power on, circulating water pump start at once；
2.2 When system request power off，circulating water pump delay 30s to
stop after compressor stop；
2.3 Under defrosting state, water pump doesn’t stop.
3. Four - way valve
3.1 Under normal heating state, 4-way valve has not electricity；
3.2 When automatic defrosting and forced defrosting, 4-way valve
electrified, refer to defrosting process.
4. Fan motor
4.1 Before compressor start, fan motor should start first 5s in advance.
4.2 After compressor stop, fan motor should continue to work for 30s then
stop
4.3 When defrosting, fan motor doesn’t work, refer to defrosting process.

13
5. Auxiliary electric heater of water tank
When L5 set to 0, automatic auxiliary electric heater is invalid.
5.1 Automatic auxiliary electric heater
a. Start condition:
When power on, if air temperature≤L5，and water tank temperature
＜L3-L2，electric heater start.
b. Stop condition:
When water tank temperature≥L3-1℃，or air temperature≥L5+2℃,
electric heater stop.
5.2 Forced auxiliary electric heater
a. Any time, user can press the forced electric heater button to start
electric heater.
b. If hot water tank real temp hasn’t reached preset temp, electric
heater will heat the water to preset temp, then electric heater stop
automatically.
c. Before water temp reach preset temp, if use want to turn off the
electric heater, he can use the same as start the forced electric
heater.
d. Forced electric heater can’t heat water higher tan preset water tank
temp.
e. At automatic defrosting, manual defrosting and second grade anti-
freeze condition, electric heater is forced to start.
6. Electric expansion valve
The working of EEV is very complicated, we will not introduce here.

14
Part 5. Error and protections
1. Water flow switch error (Er 03)
1.1 One minute after circulating water pump start, if the water flow switch
disconnect constantly for 10sec, then operating panel will display Er 03
and alarm, heat pump will stop working to protect.
1.2 This error can recover automatically.
Solve: check if water flow switch cable connects well, if not, repair. If yes,
check if there is block in water circulating system. After repair, this error will
disappear.
2. Outlet gas pressure too high protection (Er05)
2.1 When outlet gas pressure switch disconnects when working, operating
panel will display Er05error and alarm, and heat pump stop working to
protect.
2.2 If this error happen 3times within 30minutes, system will not recover
normal working unless cut off electricity (the first two times can recover
automatically)
Solve: the error is caused by small water flow, check what lead to small
water flow and repair, will solve.
3. Inlet gas pressure too low protection (Er06)
3.1 When inlet gas pressure switch disconnects when working, operating
panel will display Er06 error and alarm, and heat pump stop working to
protect.
3.2 If this error happen 3times within 30minutes, system will not recover
normal working unless cut off electricity (the first two times can recover
automatically)

15
Solve: this error always caused by gas leakage, check if there is gas leak, and
repair, will solve.
4. Communication error and protection (Er09)
4.1 Within 20seconds at the first time power on heat pump, if PC board
can’t get signal from operating panel all the time, operating panel can’t
exit from full display. PCB will not instruct, system will work according to
“the last time working status parameters that operating panel input”only.
4.2 In the process of power on, if operating panel can’t get signal from PC
board constantly for 10seconds, system will judge this communication
error, and display Er:09, heat pump work according to former preset
temperature, when communication recover, Er:09 will disappear.
Solve: check the connecting of PC board and display panel, if any of them
damage, can change a new one, if not, can solve very easily.
5. Outlet gas temperature too high protection (Er12)
5.1 If outlet gas temperature ≥110℃constantly for 10sec, operating panel
will display Er12 and alarm, system will stop working to protect.
5.2 When detect outlet gas temperature ≤80℃, then system quit the
protection.
5.3 If this error happen 3times within 30minutes, system will not recover
normal working unless cut off electricity (the first two times can recover
automatically)
Solve: This error always is caused by too small water flow. Check what lead
to small water flow and repair, will solve.

16
6. Water tank temperature sensor error (Er15)
6.1 If detect hot water tank temperature sensor is short circuit or open
circuit, system will display Er15 and alarm, heat pump will stop working.
6.2 Change a new temp sensor, will solve.
7. Air heat exchanger lowest tube temperature sensor error (Er16 )
7.1 If detect air heat exchanger lowest tube temperature sensor is short
circuit or open circuit, system will display Er16 error and alarm, but heat
pump will continue to work.
7.2 Change a new temp sensor, will solve.
8. Outlet gas temperature sensor error (Er18 )
8.1 If detect outlet gas temperature sensor is short circuit or open circuit,
system will display Er18 error and alarm, heat pump will stop working.
8.2 Change a new temp sensor, will solve.
9. Ambient air temperature sensor error (Er21)
9.1 If detect ambient air temperature sensor is short circuit or open circuit,
system will display Er21 error and alarm, but heat pump will continue to
work.
9.2 Change a new temp sensor, will solve.
10. Outlet water temperature sensor error (Er27)
10.1 If detect outlet water temperature sensor is short circuit or open
circuit, system will display Er27 error and alarm, heat pump will stop
working to protect.
10.2 Change a new temp sensor, will solve.

17
11. Inlet gas temperature sensor error (Er29)
11.1 If detect inlet gas temperature sensor is short circuit or open circuit,
system will display Er29 error and alarm, but heat pump will continue to
work.
11.2 Change a new temp sensor, will solve.
12. Ambient air temperature is too low protection (Er44)
12.1 When ambient air temperature is lower -10℃, operating panel will
display Er44 code and alarm, heat pump stop working, electric heater
start automatically.
12.2 When ambient air temperature is higher than -8℃, heat pump start
work, electric heater working according to normal controlling.
13. Outlet water temperature too high protection (Er45)
13.1 At heating or hot water mode, after compressor has running for 5min,
if outlet water temperature ≥62℃, controller will display Er45 code and
alarm, , compressor and fan motor stop working, water pump continue to
work.
13.2 When outlet water temperature 57℃, then system quit the protection.
14. Anti-freeze protection
14.1 Under standby or power off state, when ambient temperature ≤2℃,
heat pump will enter anti-freeze protection state. When anti-freeze,
operating panel doesn’t display error code. Sometimes only water pump
work, sometimes the whole heat pump work. This error needn’t repair.
14.2 When ambient temperature >2℃, heat pump will quit anti-freeze
automatically.

18

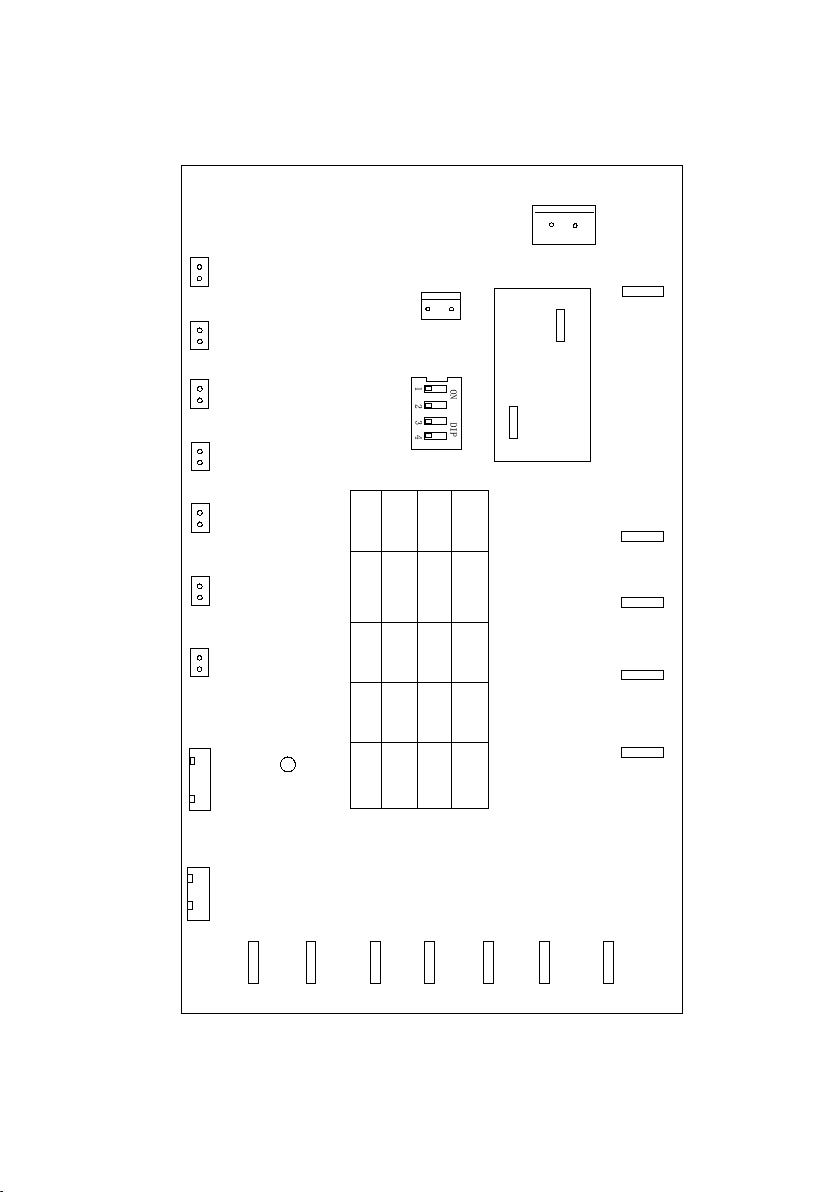

8: PC board
AC-N
CN2
CN1
EEV
COM
Primary
N input
3
OFF
ON
2
1
COM PW OFL FL LP HP
Communication
CN1
GND
Valid
Invalid
4
A0 Tank temp
L input
Compressor
high pressure
Low pressure
Emergency switch
Standby
CND
A6 Standby
A5 Outlet water temp
A4 Air temp
A3 Outlet gas temp
A2 Inlet gas
temp
A1 Air HE
coil temp
Secondary
water electric EEV Standby
Standby Standby
Switch
Usage
fan motor
4-way valve
water pump
electric heater
LED
working light
Water flow switch
Valid
Invalid
Valid
Invalid
heater
pump

CERTIFICATE
Product Model:
Bar code:
