DIRT BIKE OWNERS MANUAL SSR150
SSR USER MANUAL

DIRT BIKE OWNERS MANUAL SSR150
INTRODUCTION
Thank you and congratulations for having chosen. We hope you enjoy driving a SSR Motorsports bike now that is one of the proud owners
of a SSR Motorsports. We are sure you will give great satisfaction. This manual describes the features of the dirt bike, and provides
instructions for you to have a better understanding of the controls and operation. You are advised to READ THIS MANUAL CAREFULLY
BEFORE FIRST DRIVING THE VECHICLE. The proper operation and compliance with standards of care and maintenance, ensures
greater safety and driving in a notable minimization of malfunctions and accidents, which will help extend the life of your dirt bike and allow
your unit is always on condition ready to be driven. Remember that we are always ready to provide advice regarding the management or
service maintenance.

DIRT BIKE OWNERS MANUAL SSR150
The information, images, and specifications in the manual are
based on the most recent data product information available at
the time of publication. Since changes may have occurred or
improvements, there may be differences between vehicles and
this manual. SSR Motorsports reserves the right to make
changes any time, without having to notify.
INDEX OF ICONS
WARNING
Indicates those necessary actions must be
followed to avoid injury to the driver or people
who are inspecting dirt bike
CAUTION
Warns of the operation to be performed to avoid
any damage to your body or your dirt bike
Publication year 2015
Value Group Enterprises dba SSR Motorsports
12825 Alondra Blvd., Norwalk, CA 90650
www.ssrmotorsports.com

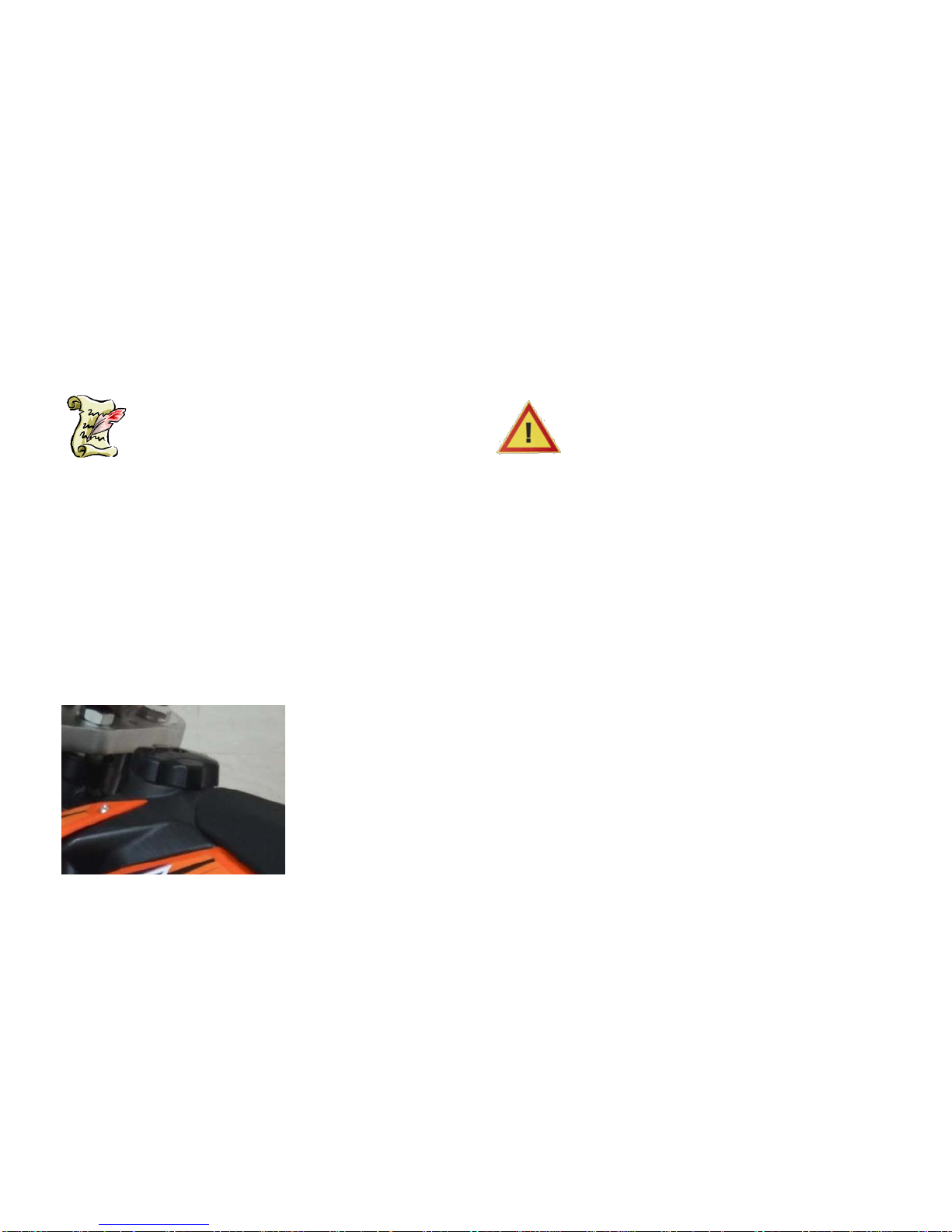

It is important to know that the VIN (vehicle identification
number) of chassis and engine, they are used to identify the
vehicle and for future consultations such as the purchase
of spare parts and warranty. Please carefully check the
details of vehicle you have purchased.
USEFUL INFORMATION
It provides useful information regarding the
actions that must be addressed clearly
Always wear a helmet
For your safety and that of your passengers
always wear a helmet when operating the dirt
bike。

DIRT BIKE OWNERS MANUAL SSR150
TABLE OF CONTENTS
INTRODUCTION
INDEX icons
TABLE OF CONTENTS
Technical specifications
Driving safety
1. Safety Tips
- Before driving
- When handling
2. Protection elements
3. Modifications or replacement of parts
4. Added load and accessories
1
2
3-4
5
6
6
6
6
6-7
7
7
7-8
Description of vehicle
1. components
2. VIN Record
3. refueling
User Guide
1. PSI line
2. Turning motor
3. Seated motor
4. driving
5. Braking: warning
6. Switching off the engine
9
9
10
11
12
12
12
12
13
13
13

DIRT BIKE OWNERS MANUAL SSR150
Checking, adjustment and maintenance
1. Motor oil
- Check engine oil
- Change engine oil
- Cleaning oil pan
2. Tires
3. Revision or replacement of spark plugs
4. Check and clean fuel filter
5. Checking and Cleaning the air filter
6. Adjusting the throttle cable
7. Carburetor Adjustment
8. Check and adjust valve clearances
9. Brake checking
- Brake Adjustment
10. Cleaning the dirt bike
11. Procedure for the storage
12. Commissioning after storage
14
14
15
15-16
16
16
16
17
17
17
18
18
19
14. suspensions
- Front suspension
- Rear Suspension
16. Periodic Maintenance Chart
WARRANTY
1. Terms of warranty
2. Requirements to the claim Warranty
3. Warranty Exclusions
4. Terms of nullity Warranty
5. Limitations of Warranty
6. Service Coupons
- Proof of delivery
- Statement warranty
19
20
21
22
22
23
23
24
25
25

DIRT BIKE OWNERS MANUAL SSR150
TECHNICAL SPECIFICATIONS
MOTOR
•Type:
•Displacement:
•Bore and stroke:
•Torque:
•Power:
•Ignition:
•Start:
Chassis and Suspension
•Tires: - Front:
- Rear:
•Brakes: - Front:
- Rear:
•Suspension: - Front:
-Rear:
DIMENSIONS
•Dimensions:
•Wheelbase:
•Weight:
•Transmission:
•Clutch:
Single-cylinder, vertical, air cooled,4-stroke
150cc
62x49.6mm
11.5N·m/7,000±500 rpm
10.0kw /8500±500 rpm
CDI.
Kick & Electric start
70/100-17"
90/100-14"
Hydraulic ventilated disc 2 piston.
Hydraulic ventilated disc 1 piston
Non-adjustable inverted fork
adjustable
(I / h / w): 1860mm*790mm*1120mm
1340 mm
96 kg
5 Speed Manual, 1-N-2-3-4-5
Manual oil bath multi

DIRT BIKE OWNERS MANUAL SSR150
Driving safety
-IN HANDLING
• Familiarize well with brake systems. use both front and rear
brakes, not to lose control vehicle.
• Take great care and drive at lower speeds in bad weather
(rain, wind, low visibility).
• Do not exceed speed limits that jeopardizes conductive
capacity and consider the conditions existing climate and
terrain to avoid accidents or injuries.
• Always both hands on the handlebars and both feet on the
footrest.
DO NOT ALLOW THE TRANSFER OF PASSENGERS.
CIRCULATION IS STRICTLY PROHIBITED
In public with this vehicle.
Meet the requirements listed below:
1. SAFETY TIPS
-Before driving:
• Make sure you are trained for driving dirt bike and know all its control
functions
• Know the capabilities and limitations of the vehicle.
• Always carry documentation proving the ownership the vehicle.
• Do not overload the vehicle: avoid exceeding the limit kilograms
established in this manual.
• This allows loads vehicle than the driver.
• Always perform safety checks. Inspect the dirt bike before starting the
engine, so you can avoid accidents or damaging vehicle. Check the
function of brakes before driving.
2. Protection elements
Always wear a helmet.

DIRT BIKE OWNERS MANUAL SSR150
• It is recommended to use gloves and face shield drive, if you wish.
• Wear clothing that covers the legs fully as the exhaust system
during use and remains for a while after stopping the engine.。
Avoid wearing loose-fitting clothing, which can be trapped in the drive
controllers, or wheels and cause an accident.
4. ADDED LOAD AND ACCESSORIES
• Remember that the performance of the dirt bike
may be reduced due to: access facility not
manufactured by the company loads
inappropriate, worn tires, overall condition dirt
bike, bad roads or bad weather. These general
guidelines will help you decide how equates your
dirt bike and as safely management.
3. MODIFICATION OR REPLACEMENTTS COMP PARONENTS
The dirt bike modification or elimination of the arbitrarily original
pieces can make the illegal or unsafe vehicle. The user must respect
all applicable national and local regulations regarding the vehicle as
IS STRICTLY PROHIBITED CIRCULATION IN THE STREET.
- LOAD
DO NOT LOAD THIS UNIT IS INTENDED ONLY
MOVE THE DRIVER.
SSR Motorsports is not responsible for replacing
unauthorized parts.
-ACCESSORIES
Our company has specifically selected genuine accessories for
dirt bike. You are responsible the choice, installation and use of
accessories not our company.
• Always follow detailed guidelines recommend in loading
• Carefully inspect the accessory to make sure it does not
attenuate any weight, reduces the ground clearance, the
steering angle rotation or limit suspension travel, the
displacement of the direction or operation controls.

DIRT BIKE OWNERS MANUAL SSR150
•Cooling the engine. The large fairings or windshield installed on the fork, poorly designed or inadequately placed, can produce forces
aerodynamic driving causing instability.
• Do not add electrical equipment that exceeds the capacity vehicle electrical system.
• Do not carry a "sidecar" or a trailer, this dirt bike is designed for it, and driving will be seriously affected when placed.
• Accessories may increase the time needed for hands or feet to operate the controls resulting in an increase in the time of reaction in an
emergency.
Make sure that the accessories do not interfere with the freedom of movement of the driver and their ability control.
Improper installation of accessories may create instability and undermine the functioning of the dirt bike.

DIRT BIKE OWNERS MANUAL SSR150
Description of vehicle
1. COMPONENTS
1. seat
2. plastics
3. muffler
4. exhaust pipe
5.chassis
6. rear shock
7. rear brake
8. swing arm
9. rear disc
10. linkage
11. rear wheel
12. fuel tank
13. throttle
14. front brake
15. handle bar
16. triple clamp
17. front fork
18. carburetor
19. engine
20. front wheel
21. front disc
22. front brake reservoir
23. foot rest
