READ THIS MANUAL CAREFULLY!
It contains important safety information.

INTRODUCTION
Thank you for purchasing the Regard vehicle, and welcome to our worldwide family of Regard owners. We proudly produce an exciting
line of utility and recreational products.
This manual has been prepared to help you understand the features and operation of your vehicle so that you may enjoy many miles of
driving pleasure. Please read this manual carefully before operating this vehicle.
Remember that your Regard dealer knows your vehicle best. When you require any service or have any questions, he will be glad to
assist you with the extensive resources available to him.
IMPORTANT MANUAL INFORMATION
The following signal words and symbols appear throughout this manual and on your RANGER. Your safety is involved when these
words and symbols are used. Become familiar with their meanings before reading the manual.
The safety alert symbol, on your vehicle or in this manual, alerts you to the
potential for personal injury.
WARNING The safety alert warning indicates a potential hazard that may result in serious
injury or death.
CAUTION: A CAUTION indicates special precautions that must be taken to avoid damage to
the vehicle.
NOTE: A NOTE provides key information to make procedures easier or clearer.
Product and specification are subject to change with notice.

IMPORTANT NOTICE
● This vehicle is designed and manufactured for off-road use only. Familiarize yourself with all laws and
regulations concerning the operation of this vehicle in your area.
● Check the laws and regulations in force before choosing where to operate this vehicle. It is illegal to
operate this vehicle on public lands where vehicles its size are prohibited.
● This vehicle complies with almost all state off-highway noise level and spark arrester laws and
regulations.
AFFIX DEALER
LABEL HERE

Contents
SAFETY INFORMATION.........................................................................................................6
LOCATION OF THE WARNING AND SPECIFICATION LABELS........................................10
DESCRIPTION AND VEHICLE IDENTIFICATION................................................................15
CONTROL FUNCTIONS .......................................................................................................19
PRE-OPERATION CHECKS.................................................................................................39
OPERATION..........................................................................................................................47
DRIVING YOUR VEHICLE....................................................................................................56
PERIODIC MAINTENANCE AND ADJUSTMENT ................................................................67
CLEANING AND STORAGE............................................................................................... 113
SPECIFICATIONS............................................................................................................... 116
Service guide .....................................................................................................................122

SAFETY INFORMATION
This off-highway utility vehicle handles differently from other vehicles including cars and ATVs.
SEVERE INJURY OR DEATH can result if you do not follow these instructions:
zRead this manual and all labels carefully and follow the operating procedures described.
zThis vehicle is designed to carry the driver and one passenger. Never carry passengers in the cargo
bed.
zAlways be sure the driver and passenger are wearing seat belts.
zNever give a ride to a passenger who is too small to reach and hold the handgrip on the enclosure.
zAlways avoid operating the vehicle on any paved surfaces, including sidewalks, driveways, parking lots,
and streets.
zNever operate this vehicle on any public street, road, or highway, even a dirt or gravel one.
zNever operate this vehicle without wearing an approved motorcycle helmet that fits properly. You
should also wear eye protection (goggles or a face shield), gloves, over-the-ankle boots, long-sleeved
shirt or jacket, and long pants.
zNever consume alcohol or drugs before or while operating this vehicle.
zNever operate at speeds too fast for your skills or the conditions. Always go at a speed that is proper
for the terrain, visibility, operating conditions, and your experience.
zNever attempt jumps or other stunts.
zAlways inspect your vehicle each time you use it to be sure it is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in this manual.
zAlways keep hands, arms, feet, and legs inside the vehicle at all times during operation. Keep your feet
on the floorboard. Never hold onto the enclosure except when using the handgrip inside the enclosure.

Otherwise, your hand could be injured if it is caught between the enclosure and an obstacle outside the
vehicle.
zAlways keep both hands on the steering wheel when driving.
zNever wrap your thumbs and fingers around the steering wheel. This is particularly important when
driving in rough terrain. The front wheels will move right and left as they respond to the terrain, and this
movement will be felt in the steering wheel. A sudden jolt could wrench the steering wheel around, and
your thumbs or fingers could be injured if they are in the way of the steering wheel spokes.
zAlways go slowly and be extra careful when operating on unfamiliar terrain. Always be alert to changing
terrain conditions when driving the vehicle.
zNever operate on excessively rough, slippery, or loose terrain until you have learned and practiced the
skills necessary to control the vehicle on such terrain. Always be especially cautious on these kinds of
terrain.
zNever turn at excessive speed. Practice turning at slow speeds before attempting to turn at faster
speeds. Do not attempt turns on steep inclines.
zNever operate the vehicle on hills that are too steep for it or for your abilities. Go straight up and down
hills where possible. Maximum slope angle: 15°.
zNever operate on hills that are slippery or ones where you will not be able to see far enough ahead of
you. Never go over the top of a hill at speed if you cannot see what is on the other side.
zAlways follow proper procedures for going uphill. If you lose momentum and cannot continue up a hill,
back down the hill with the engine in reverse gear. Use engine braking to help you go slowly. If
necessary, use the brakes gradually to help you go slowly.
zAlways check terrain carefully before going down hills. Go as slowly as possible. Never go down a hill
at high speed.

zAlways check for obstacles before operating in a new area.
zNever operate the vehicle in fast flowing water or water deeper than the floorboards on this model.
Remember that wet brakes may have reduced stopping ability. Test your brakes after leaving water. If
necessary, apply them several times to let friction dry out the linings.
zAlways be sure there are no obstacles or people behind you when you operate in reverse. When it is
safe to proceed in reverse, go slowly. Do not brake abruptly when carrying loads in the cargo bed.
zAlways use the size and type of tires specified in this manual.
zAlways maintain proper tire pressure as described in this manual.
zNever exceed the stated load capacity. Cargo should be as far forward in the bed as possible, and
distributed evenly from side to side. Be sure cargo is secured so that it cannot move around during
operation. Reduce speed and follow instructions in this manual for carrying cargo or pulling a trailer.
Allow greater distance for braking.

WARNING
POTENTIAL HAZARD
Improper handling of gasoline.
WHAT CAN HAPPEN
Gasoline can catch fire and you could be burned.
HOW TO AVOID THE HAZARD
Always turn off the engine when refueling. Do not
refuel right after the engine has been running and is
still very hot. Do not spill gasoline on the engine or
exhaust pipe/muffler when refueling. Never refuel
while smoking, or while in the vicinity of sparks,
open flames, or other sources of ignition such as
the pilot lights of water heaters and clothes dryers.
When transporting the vehicle in another vehicle,
be sure it is kept in an upright position. Otherwise,
fuel may leak out of the carburetor or fuel tank.
WHAT CAN HAPPEN
Gasoline is poisonous and can cause injuries.
HOW TO AVOID THE HAZARD
If you should swallow some gasoline or inhale a lot
of gasoline vapor, or get some gasoline in your
eyes, see your doctor immediately. If gasoline spills
on your skin, wash with soap and water. If gasoline
spills on your clothing, change your clothes.
WARNING
POTENTIAL HAZARD
Starting or running the engine in a closed area.
WHAT CAN HAPPEN
Exhaust fumes are poisonous and may cause loss
of consciousness and death within a short time.
HOW TO AVOID THE HAZARD
Always operate your vehicle in an area with
adequate ventilation.

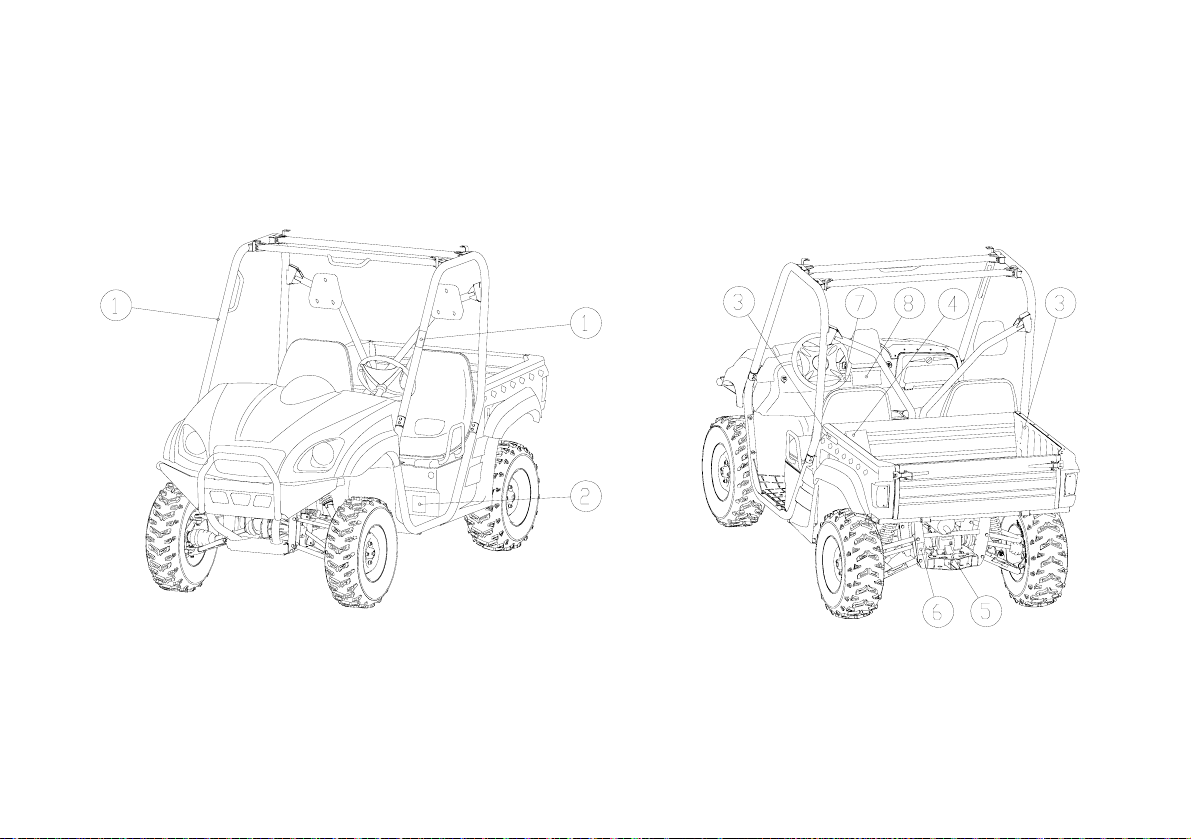

LOCATION OF THE WARNING AND SPECIFICATION LABELS

Read and understand all of the labels on your
vehicle. They contain important information for
safe and proper operation of your vehicle.
Never remove any labels from your vehicle. If a
label becomes difficult to read or comes off, a
replacement label is available from our company or
dealer.
①
②

③
④

⑤
⑥

Unless you are 16 years old or more, please do not
operate this vehicle

DESCRIPTION AND VEHICLE IDENTIFICATION

1.Headlights
2.Front shock absorber assembly adjusting ring
3.Brake fluid reservoir
4.Air filter element (Engine and air intake duct)
5.V-belt case
6.Driver seat
7. Driver seat belt
8.Spark plug
9.Cargo bed
10.Tail/brake lights
11.Rear shock absorber assembly adjusting ring
12.Cargo bed release lever
13.Spark arrester
14. Passenger seat belt
15. Passenger seat
16. Oil filter cartridge
17. Engine oil dipstick
18. Battery
19. Fuses
20. Coolant reservoir
21. Radiator cap
22. Fuel level check window
23. Fuel tank cap
24. Light switch
25. Steering wheel
26. -------------
27. Main switch
28. On-Command four-wheel drive and differential gear
lock switches
29.Indicator and warning lights 30. Multi-function
meter unit (special edition models) 31. Auxiliary DC
jack
32. Drive select lever
33. Parking brake lever
34. Accelerator pedal
35. Brake pedal

VEHICLE IDENTIFICATION NUMBERS
Record your vehicle’s identification numbers and model label information in the spaces provided. Remove the spare
key and store it in a safe place. Provided for assistance when ordering spare parts from our company or dealer or
for reference in case the vehicle is stolen.
Vehicle Model Number:
Frame VIN:
Engine Serial Number:

CONTROL FUNCTIONS
Main switch
1. Main switch
Functions of the respective switch positions are as
follows:
ON:
All electrical circuits are supplied with power, and the
headlights and taillights come on when the light switch
is on.
OFF:
All electrical circuits are switched off. The key can be
removed in this position.
START:
The electric starter is engaged by turning and holding
the key in this position. Release the key when the
engine starts.
CAUTION:
zDo not operate the electric starter
continuously for more than 5 seconds, or
starter damage could occur. Wait at least 5
seconds between each operation of the
electric starter to let it cool.
zDo not turn the key to the "START" position
with the engine running, or damage to the
electric starter can result.
zSee starting instructions prior to starting the
engine. (See pages 49-51 for details.)

1. Speedometer and Odometer
2. Low-range indicator light "L"
3. High-range indicator light "H"
4. Neutral indicator light "N"
5. Reverse indicator light "R"
6. Parking indicator light "P"
7. Tachometer
8.Headlight indicator light /Parking brake indicator light /battery indicator
light/
9.Two-wheel-drive/Four-wheel-drive/Differential-gear-lock indicator light
" "/ " "
10. fuel gauge
11.coolant temperature gauge
Coolant temperature gauge
Function meter
Coolant temperature Gauge
The gauge indicates the coolant temperature.
The coolant temperature will vary with the outside air
temperature and driving conditions.
CAUTION:
If the gauge indicates over the normal range, stop
the vehicle as soon as safely possible. If the
engine is overheated, continued operation of the
vehicle may seriously damage.
Multi-function meter unit

Speedometer and Odometer
Speedometer
The speedometer indicates vehicle
speed.
Odometer
The Odometer records the total
distance the vehicle
has been driven.
The gauge indicates the APPROXIMATE fuel level in the tank.
The gauge may move slightly during braking, turning,acceleration, or going up or down hill.
The gauge needle is designed to remain in
approximately the same position, even when the
ignition key is turned “OFF”.
CAUTION:
When gauge needle approaches the red zone when the fuel tank is
almost empty. Refuel at thenearest gas station.
Fuel gauge
