St George RHSGFOCUS User manual

Rangehood
Appliance Operation Manual
INCLUDING INSTALLATION AND CLEANING
RHSGFOCUS - 900mm Wall Mounted Canopy

WELCOME TO ST GEORGE
St George is a proud Australian
company with a heritage of
innovation and quality.
Our success extends to
domestic and overseas markets,
confirming our reputation at the
forefront of appliance excellence.
The elegant simplicity and high
performance features of
St George designs, will
remain contemporary in
many years to come.

1
2
3
3
4
4
44
5
6
7
Fig. 1 -
Fig. 2 - Abb. 2 - Afb. 2
Fig. 3 - Abb
j
i
g
h
Fig. 4 - Abb. 4 - Afb
a
b
c
a
b
c
Fig. 1
Fig. 2
Fig. 2
Fig. 4.1 Fig. 4.2

17a
3
5-6
5
7b
9
9
10
10
11
B
4
6a 6b
C
G
2
8a
8b
Fig. 5

13
13
12
12
C
G
B
Fig. 6

D
16a
15
14
14
16b
16b
G
C
B
F
A
A
A
A
B
B
B
B
Make sure that the connectors are
inserted in the correct direction,
indicated by the side foot.
During installation of the Rangehood, the metal straps
from the control panel must be connected as
indicated in the diagram.
FROMMOTORUNIT
FROMCONTROLPANEL
Ducting/Filter
Model Only!
Fig. 7

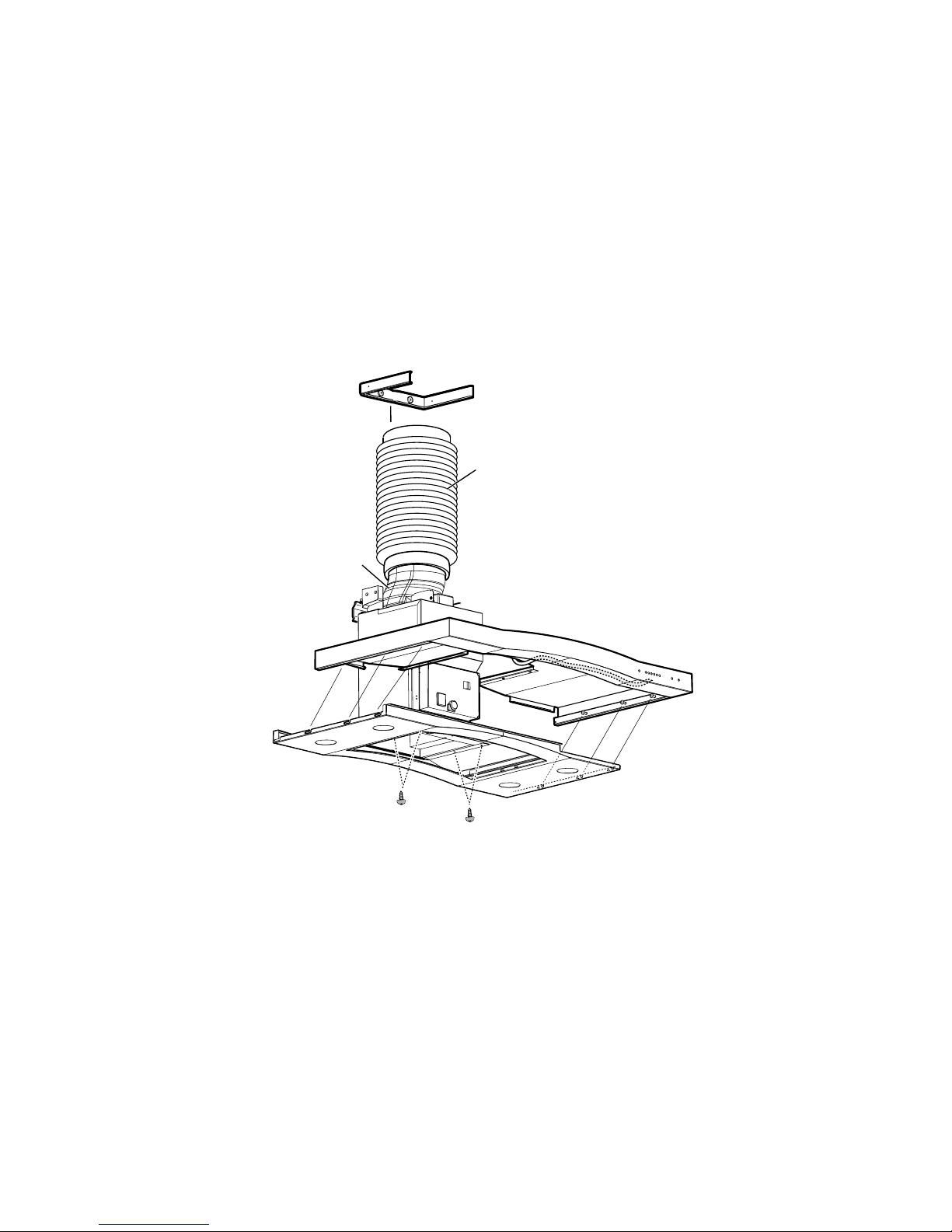

Installation - Fig. 5-6-7
The Rangehood must be placed at a minimum distance of
650mm from electric, gas or mixed cooktops. Please confirm
these measurements with your local Building Authority.
The Rangehood is equipped with a top air outlet B for
discharge of fumes to the outside ( Ducting version –
exhaust pipe and pipe fixing clamps not provided).
Ducting/Filter Model Only! : the Rangehood can be used
in the filter version , fitting an activated carbon filter
and the deflector F on the support (bracket) G , fumes and
vapours are recycled through the top grille H by means of an
exhaust pipe connected to the top air outlet B and the
connection ring mounted on the deflector F (exhaust pipe
and pipe fixing clamps not provided).
Preliminary information for installation of the Rangehood:
Disconnect the Rangehood during electrical connection, by
turning the home mains switch off.
Expansion wall plugs are provided to secure the Rangehood
to most types of walls/ceilings. However, a qualified technician
must verify suitability of the materials in accordance with the
type of wall/ceiling. The wall/ceiling must be strong enough
to take the weight of the Rangehood.
Do not tile, grout or silicone this appliance to the wall.
Surface mounting only.
Remove the grease filter/s.
1. Using a pencil, draw a line on the wall, extending up to
the ceiling, to mark the centre. This will facilitate
installation.
2. Rest the drilling template against the wall: the vertical
centre line printed on the drilling template must correspond
to the centre line drawn on the wall, and the bottom edge
of the drilling template must correspond to the bottom
edge of the Rangehood: bear in mind that, when
installation is complete, the underside of the hood must
be at least 650mm above the cooktop for electric, gas or
mixed cooktops. Please confirm this measurement
with your Local Building Authority.
3. Rest the support bracket on the drilling template so that
it coincides with the dotted rectangle. Mark the two outer
holes and drill them. Remove the drilling template, insert
2 wall plugs and fix the hood support bracket into place
using two 5x45mm screws.
4. Hang the motor housing on the bracket.
5. Rest the chimney support bracket G against the wall,
touching the ceiling. Use the support bracket as a drilling
template (the small slot formed on the support must
coincide with the line drawn on the wall as above –
operation 4) and mark 2 holes with a pencil, drill the holes
(Ø8mm), insert 2 wall plugs.
Fix the chimney support bracket to the wall using two
5x45mm screws.
6. Make the electrical connections.
Connect a pipe (pipe and pipe clamps not provided & can
be purchased separately) for discharge of fumes to the
connection ring located over the suction motor unit.
If the Rangehood is to be used in ducting version, the other
end of the pipe must be connected to a device expelling
the fumes to the outside. In filter version ( Ducting/
Filter Model Only! ), fix deflector F to the chimney
support bracket G using 2 screws, and connect the other
end of the pipe to the connection ring on deflector F .
7. Separate the two lower parts of the Rangehood, which
are supplied temporarily assembled to facilitate transport.
Insert the lower of the two parts (the one containing the
lamps) onto the lower guides of the Rangehood, and push it
until the back edge touches the wall.
8. Adjust the distance of the Rangehood from the wall
and the horizontal position of the Rangehood.
9. Use a pencil to mark the holes to be used for final fixing.
The fixing points are on the right and left hand sides of
the bottom section of the Rangehood. Drill two holes
(Ø8mm) and insert two wall plugs.
10. Fix the bottom section of the Rangehood to the wall using
two screws.
11. Connect the lamps to the motor unit.
12. Fix the bottom section of the Rangehood using 4 screws.
13. Insert the top section of the Rangehood and hook it onto
the bottom section.
14. Fix the motor unit using 4 screws.
15. Connect the control panel to the motor unit using the two
metal straps provided, which must be inserted in the
correct position on the terminal strip located on the bottom
outside edge of the motor unit. Two metal straps are
already inserted in this terminal strip, and connection
must be made by positioning the unconnected metal
straps in such a way that the coloured lines printed along
them correspond to the colours printed on the metal
straps that are already connected to the terminal strip
(e.g. red to red and black to black).
16. Fix the top section of the chimney to the support and slide
the bottom section down to cover the motor unit, until it
rests on the top of the Rangehood canopy.
Refit the grease filter and check that the Rangehood is
operating correctly.
Electrical connection
The electrical tension must correspond to the tension noted
on the label placed inside the Rangehood. Connect the
electrical plug, where provided, to the an easily accessible
outlet in conformity with local standards in force.
Where an electrical plug is not provided (for direct connection
to electrical network) place a standards approved bipolar
switch with an aperture distance of not less than 3mm
(accessible) from the contacts.
INSTRUCTION ON MOUNTING AND USE
Consult the designs in the front pages referenced in the text by alphabet letters. Closely follow the instructions set out in this
manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in
this manual is declined.
GB

Use the high suction speed in cases of concentrated kitchen
vapours. It is recommended that the Rangehood suction
is switched on for 5 minutes prior to cooking and to leave
in operation during cooking and for another 15 minutes
approximately after terminating cooking.

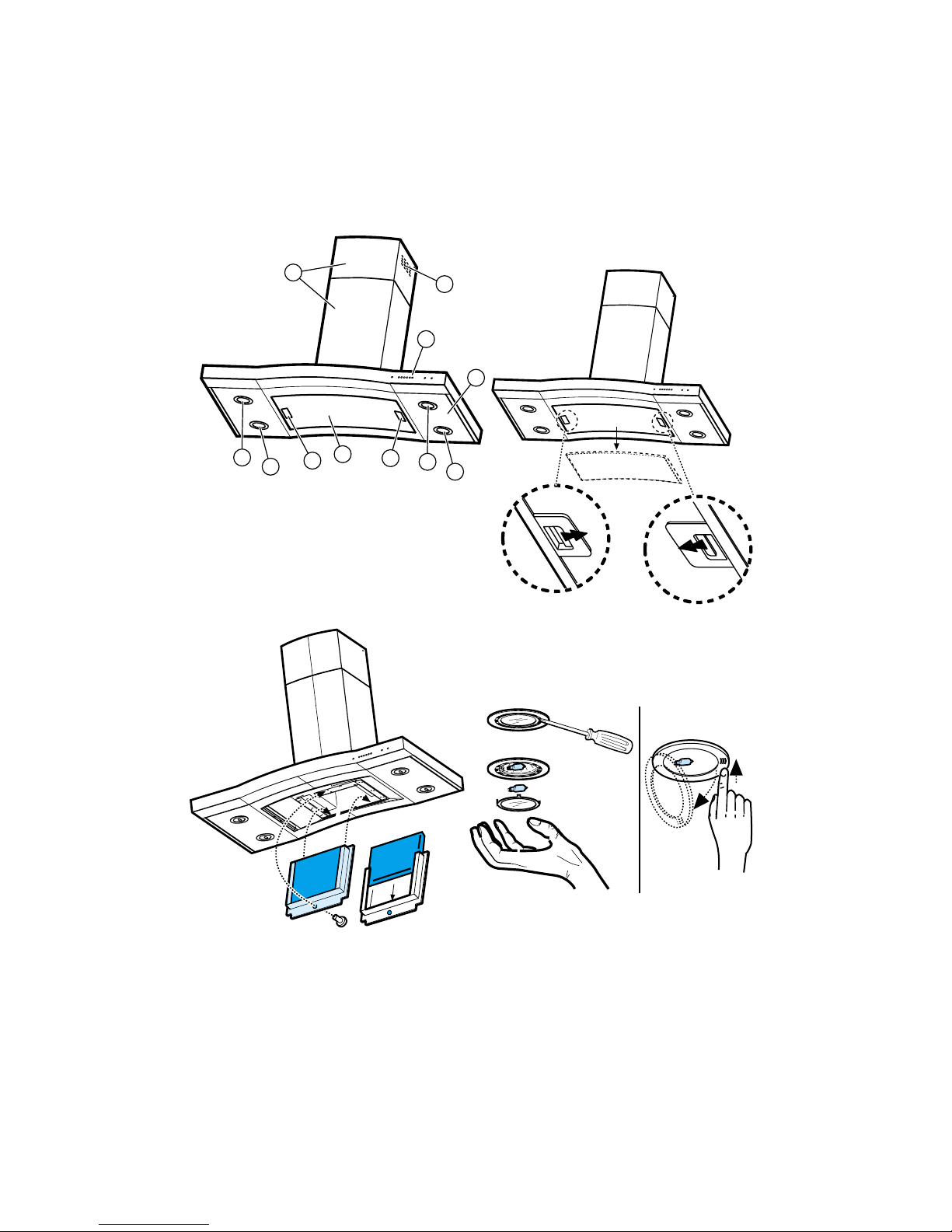

Description of the Rangehood - Fig. 1
1 Control panel
2 Grease filter
3 Grease filter release handle
4 Halogen lamp
5 Vapour screen
6 Telescopic chimney
7 Air outlet ( Ducting/Filter Model Only! )
Operation –
Model with electronic controls
1 - Motor OFF button
2 - ON button and motor speed selection button 1 - 2 - 3 -
1 - 2 - . . . .
3 - Speed 1 LED
4 - Speed 2 LED and metal grease filter saturation LED
(in this latter case, the LED will flash - See instructions
on grease filter cleaning).
5 - Speed 3 LED and active carbon filter saturation LED
( Ducting/Filter Model Only! - in this latter case, the
LED will flash - See instructions on active carbon filter
replacement).
Warning! The active carbon filter saturation LED is not
activated. In order to activate the active carbon filter
saturation indicator, press buttons 2 and 7 simultaneously
for 3 seconds. Initially, only LED 4 will flash, then after
the 3 seconds have passed, LED 5 will also start
flashing, indicating that the active carbon filter saturation
control system is active. To switch off the system, re-
press the same two buttons: after 3 seconds LED 5 will
stop flashing and the device will be switched off.
6 - Intensive speed LED
7 - Intensive speed ON switch
This speed should be used when the concentration of
cooking fumes or odours is particularly strong (for
example when frying, cooking fish etc.). The
fast speed will run for about 5 minutes and then return
to the speed previously set automatically (1, 2 or 3),
or switch off if no speed was selected. To turn off the
fast speed, before the end of the 5 minutes, press button
1 or button 2 (see page 13).
8 - OFF lamp button
9 - ON lamp button
If the Rangehood fails to operate correctly, briefly disconnect
it from the mains power supply for approx. 5 sec. by pulling
out the plug. Plug it in again and try once more
before contacting the Technical Assistance Service.
123 4 5 6 78 9
Consult the designs in the front pages referenced in the text by alphabet letters. Closely follow the instructions set out in this
manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in
this manual is declined.
Ducting/Filter
Model Only!
INSTRUCTION ON MOUNTING AND USE
GB

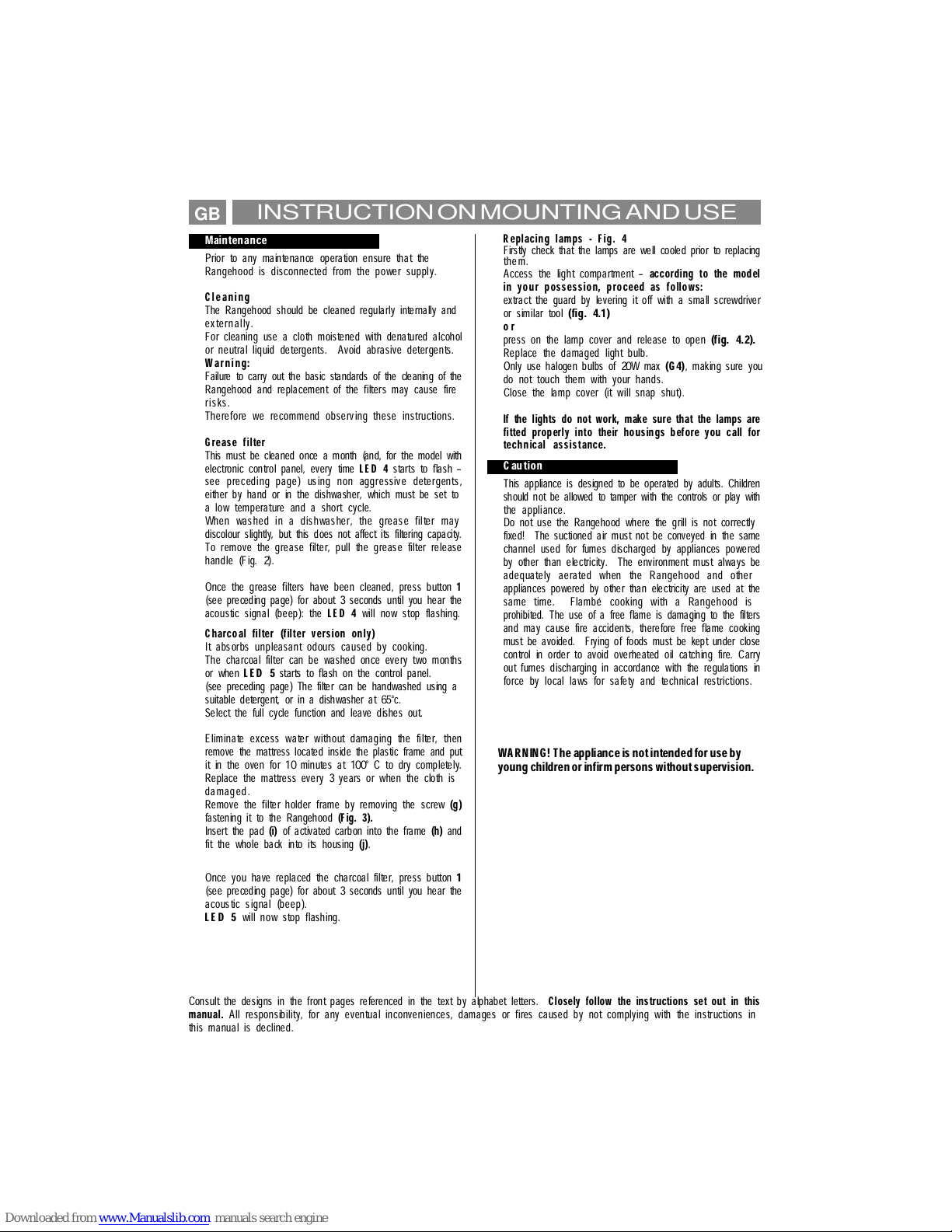

Maintenance
Prior to any maintenance operation ensure that the
Rangehood is disconnected from the power supply.
Cleaning
The Rangehood should be cleaned regularly internally and
externally.
For cleaning use a cloth moistened with denatured alcohol
or neutral liquid detergents. Avoid abrasive detergents.
Warning:
Failure to carry out the basic standards of the cleaning of the
Rangehood and replacement of the filters may cause fire
risks.
Therefore we recommend observing these instructions.
Grease filter
This must be cleaned once a month (and, for the model with
electronic control panel, every time LED 4 starts to flash –
see preceding page) using non aggressive detergents,
either by hand or in the dishwasher, which must be set to
a low temperature and a short cycle.
When washed in a dishwasher, the grease filter may
discolour slightly, but this does not affect its filtering capacity.
To remove the grease filter, pull the grease filter release
handle (Fig. 2).
Once the grease filters have been cleaned, press button 1
(see preceding page) for about 3 seconds until you hear the
acoustic signal (beep): the LED 4 will now stop flashing.
Charcoal filter (filter version only)
It absorbs unpleasant odours caused by cooking.
The charcoal filter can be washed once every two months
or when LED 5 starts to flash on the control panel.
(see preceding page) The filter can be handwashed using a
suitable detergent, or in a dishwasher at 65°c.
Select the full cycle function and leave dishes out.
Eliminate excess water without damaging the filter, then
remove the mattress located inside the plastic frame and put
it in the oven for 10 minutes at 100° C to dry completely.
Replace the mattress every 3 years or when the cloth is
damaged.
Remove the filter holder frame by removing the screw (g)
fastening it to the Rangehood (Fig. 3).
Insert the pad (i) of activated carbon into the frame (h) and
fit the whole back into its housing (j) .
Once you have replaced the charcoal filter, press button 1
(see preceding page) for about 3 seconds until you hear the
acoustic signal (beep).
LED 5 will now stop flashing.
Replacing lamps - Fig. 4
Firstly check that the lamps are well cooled prior to replacing
them.
Access the light compartment – according to the model
in your possession, proceed as follows:
extract the guard by levering it off with a small screwdriver
or similar tool (fig. 4.1)
o r
press on the lamp cover and release to open (fig. 4.2).
Replace the damaged light bulb.
Only use halogen bulbs of 20W max (G4) , making sure you
do not touch them with your hands.
Close the lamp cover (it will snap shut).
If the lights do not work, make sure that the lamps are
fitted properly into their housings before you call for
technical assistance.
Caution
This appliance is designed to be operated by adults. Children
should not be allowed to tamper with the controls or play with
the appliance.
Do not use the Rangehood where the grill is not correctly
fixed! The suctioned air must not be conveyed in the same
channel used for fumes discharged by appliances powered
by other than electricity. The environment must always be
adequately aerated when the Rangehood and other
appliances powered by other than electricity are used at the
same time. Flambé cooking with a Rangehood is
prohibited. The use of a free flame is damaging to the filters
and may cause fire accidents, therefore free flame cooking
must be avoided. Frying of foods must be kept under close
control in order to avoid overheated oil catching fire. Carry
out fumes discharging in accordance with the regulations in
force by local laws for safety and technical restrictions.
Consult the designs in the front pages referenced in the text by alphabet letters. Closely follow the instructions set out in this
manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in
this manual is declined.
INSTRUCTION ON MOUNTING AND USE
GB
WARNING!The applianceis notintended foruse by
youngchildren orinfirm personswithout supervision.

DOMESTIC WARRANTY - FULL FIVE YEAR WARRANTY
In addition to all statutory rights which you, the Consumer, have under the relevant laws in respect of this
appliance, during the first five years of ownership as the original purchaser of this St George appliance, we
guarantee that any fault caused by faulty material or workmanship becoming apparent will be rectified free of
charge for parts and labour, provided that all service is performed during normal working hours by St George
or their designated Agents. Where the appliance is installed outside the normal servicing area of the above,
the Purchaser must pay for the cost of transporting the appliance to and from the Agent or the Agent’s
travelling cost to and from the Purchaser’s home.
COMMERCIAL WARRANTY - ONE YEAR WARRANTY
When this appliance is installed in a commercial application, you, the Consumer, have under the relevant
laws in respect of this appliance, during your first one year of ownership as the original purchaser of this
St George appliance, we guarantee that any fault caused by faulty material or workmanship becoming
apparent, will be rectified free of charge for parts and labour, provided that all service is performed during
normal working hours by St George or their designated Agents. Where the appliance is installed outside the
normal servicing area of the above, the Purchaser must pay for the cost of transporting the appliance to and
from the Agent or the Agent’s travelling cost to and from the Purchaser’s home.
WHAT THESE WARRANTIES DO NOT COVER
We are not responsible for any damage or malfunctionunless caused by a defect in material or workmanship.
This includes but is not limited to abuse, misuse, improper installation and transportation damage. We are
not responsible for any consequential damages from any malfunction.
WARRANTY DOES NOT COVER REPLACEMENT OF LIGHT
GLOBES OR GLASS BREAKAGE DUE TO IMPACT
In case of fractured glass do not use your appliance.
WARRANTY REGISTRATION
Please complete warranty details below. Please retain together with your proof of purchase document.
SERVICE ASSISTANCE
WARRANTY AND SERVICE
service.
These documents will need to be viewed by our Service Representative should you request in warranty
To assist you when phoning our After Sales Service number to arrange a service call please
complete the following details and have them ready when you call.
Model Number ________________________________________Date of purchase_____________________________
St George Store purchased from__________________________Date of installation ____________________________
ST GEORGE AFTER SALES SERVICE
1300 305 366
The Consumer, must make the appliance available for servicing and shall bear any costs incurred for
any de-installation and/or re-installation required to make the appliance available for servicing.
St George are not liable for any consequential damage incurred during de-installation or re-installation.

A Tradition of Excellence
1300 305 366
