KOBE RA0230SQB-DC-5 Troubleshooting guide

KOBE Range Hoods
Deluxe Series
RA02 Series
Model No.
RA0230SQB-DC-5 / RA0230SQB-DC24-5 / RA0230SQB-DC48-5 (30”)
RA0236SQB-DC-5 / RA0236SQB-DC24-5 / RA0236SQB-DC48-5 (36”)
RA0242SQB-DC-5 / RA0242SQB-DC24-5 / RA0242SQB-DC48-5 (42”)
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

READ BEFORE INSTALLATION
1. Carefully check all contents of packages.
2. Thoroughly inspect the unit for any shipping damages, cosmetic
damages or defects.
3. Have a certified contractor/electrician test the unit before installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original invoice as proof of purchase and product serial
number ready.
3. Contact your merchant for product replacement due to shipping
damages, cosmetic damages or defects.
4. For other issues, email [e-mail] or
call 1-626-775-8880 ext. 103, toll free 1-877-289-5623.
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3. MISSING ORIGINAL PACKAGING MATERIAL
AND/OR PARTS
IMPORTANT
READ THIS FIRST

[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.....................................................................................1
COMPONENTS OF PACKAGE...................................................................................................3
INSTALLATION...........................................................................................................................4
OPERATION INSTRUCTIONS....................................................................................................8
MAINTENANCE..........................................................................................................................9
SPECIFICATIONS....................................................................................................................10
MEASUREMENTS & DIAGRAMS.............................................................................................12
PARTS LIST..............................................................................................................................12
CIRCUIT DIAGRAM..................................................................................................................16
TROUBLE SHOOTING.............................................................................................................17
WARRANTY.............................................................................................................................18
PRODUCT REGISTRATION.....................................................................................................20
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL W IRING MU S T BE DO NE BY A PRO F E SSI O N AL AND IN
AC CORDA N CE WITH NATIONAL AND LO C AL ELE C T RICA L CODES

1
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING : TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,
make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or
garages.
NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
- KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING : TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn hood ON when cooking.
3. Use high settings on cooking range ONLY when necessary.
4. Do not leave cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8. Clean ventilating fan frequently.

2
What to Do In The Event Of a Range Top Grease Fire
• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIALAWAY FROM FLAMES. If the flames do not go
out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.
• NEVER PICK UP A BURNING PAN – You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.
• Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those published
by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amounts of mercury, which must
be recycled or disposed of according to Local, State, and Federal Codes.

3
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
RA02
SQB
-
5
Series
RANGE HOOD BOX
{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Quick Reference Guide
{D} Oil Tunnel
{E} Baffle Filter x 2 (30” & 36”)
x 3 (42”)
{F} Spacer
{G} 8” Round Exhaust Plate (42” only)
{H} Screws Package
{I} Hood-Mounting Bracket
{J} Screws Package
{K} Duct Cover (Model No. RA02DC-1)
{L} Wire Cap
{M} Screws Package
{A}
{B} {C}
{D} {E}
{F} {G}
{H}
{I} {J}
{K} {L}
{M}
Inner Duct Extension
RA02DC
-
24
-
1
(Included in RA02 SQB-DC24-5 and SQB-DC48-5)
{N} Inner Duct Extension
(Model No. RA02DC-24-1)
{O} Duct Cover Mounting Bracket
{P} Screws Package
{N} {O} {P}
Outer Duct Extension
RA02DC
-
24
(Included in RA02 SQB-DC48-5 Only)
{Q} Outer Duct Extension
(Model No. RA02DC-24)
{Q}
- FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR
CONTACT KOBE RANGE HOODS AT [phone].
Wire caps (3)
M4 x 1-1/2” (4)
M4 x 1-1/2” (2)
30” & 36” 42”

4
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation before Installation
Calculate the length of the installation, before installing the hood. (All calculation is measure in inches.)
- FOR STAND ALONE -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to Hood
Bottom
30” & 36” Hood (Recommended 27” to 30”)
42” Hood (Recommended 30” to 36”)
[(A – B] – (D + E)]
D = Height of Hood
E = Height of Duct Cover
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS
NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD
MAY OCCUR.

5
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING
THE VENT OPENING.

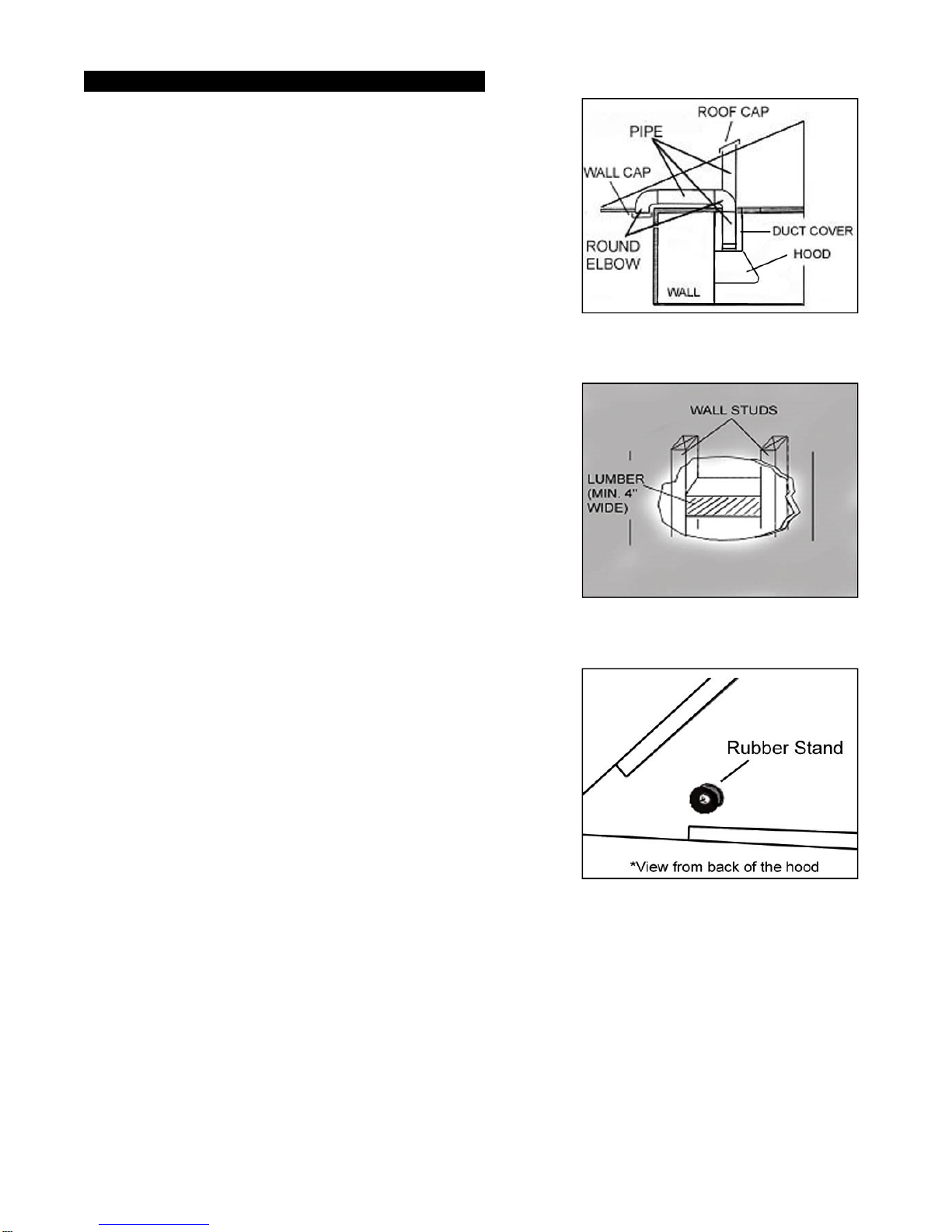

Decide the location of the venting pipe from the
hood to the outside. (Figure 1)
A straight, short venting run will allow the hood
to perform more efficiently.
Try to avoid as many transitions, elbows, and
long run as possible. This may reduce the
performance of the hood.
Temporarily wire the hood to test for proper
operation before installing
Important: Peel protective film off the hood
and the duct cover (if any).
If necessary, prepare back wall frame with cross
framing lumber for secure installation. Refer to
Table 2 and measurements on Page 12 to
decide the level of the lumber. (Figure 2)
Loosen hood-mounting brackets at the back of
the hood, adjust brackets and tighten screws.
If necessary, remove the rubber stand on the
back of the hood. (Figure 3)
Figure 1
Figure 2
Figure 3

6
Hood Installation
CAUTION: If required to move the cooking
range to install the hood, turn off the power
on an electric range at the main electrical
box. SHUT OFF THE GAS BEFORE
MOVING A GAS RANGE.
1. Using references in Table 1 and measurements
on Page 12, mark the leveling locations point for
hood-mounting bracket on the wall.
2. Secure two mounting screws (provided) to the
wall, leaving an 1/8” space from the wall.
3. Align the hood-mounting bracket to the
mounting screws on thewall and hang hood into
place.
4. Secure and tighten the mounting screws.
CAUTION: MAKE SURE HOOD IS SECURE
BEFORE RELEASING.
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE
HOOD MUST BE PROPERLY GROUNDED.
MAKE SURE THIS IS DONE BY SPECIALIZED
ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL
ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE
PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
5. Connect the electrical wires.
- Connect three wires (black, white and green)
to house wires and cap with wire connectors.
Connect according to color: black to black,
white to white, and green to green as shown
on Figure 4.
- If necessary to hide the electrical wire
connections, push wires back into the wiring
box. Access the wire connections
underneath the hood. To prevent any
damage, make sure wires do not slip
between motor or any moving parts.
Figure 4
Figure 5
Figure 6

7
Duct Cover Installation
6. Use 6” round steel pipe for 30” and 36” models
or 8” round steel pipe for 42” model (follow
building codes in your area) to connect the
exhaust on the hood to the ductwork above.
Use duct tape to make all joints secure and air
tight. Refer Figure 5.
7. Use four 4mm x 8mm screws (included) to attach
duct cover to hood. Refer to Figure 6.
Install Accessories
8. Attach oil tunnel. Refer to Figure 7.
9. Refer to Figure 23. Slide the baffle filter into
the hood. Push the baffle filter upward. 
Slide forward. Pull downward. Fit into
place.
10. Repeat until all baffle filters and spacers are
resting against oil tunnel. Refer to page 8.
Final Assembly
11. Turn power ON in control panel. Check all lights
and fan operation.
12. Make sure to leave this manual for the
homeowner.
Figure 7
Figure 8

8
OPERATION INSTRUCTIONS

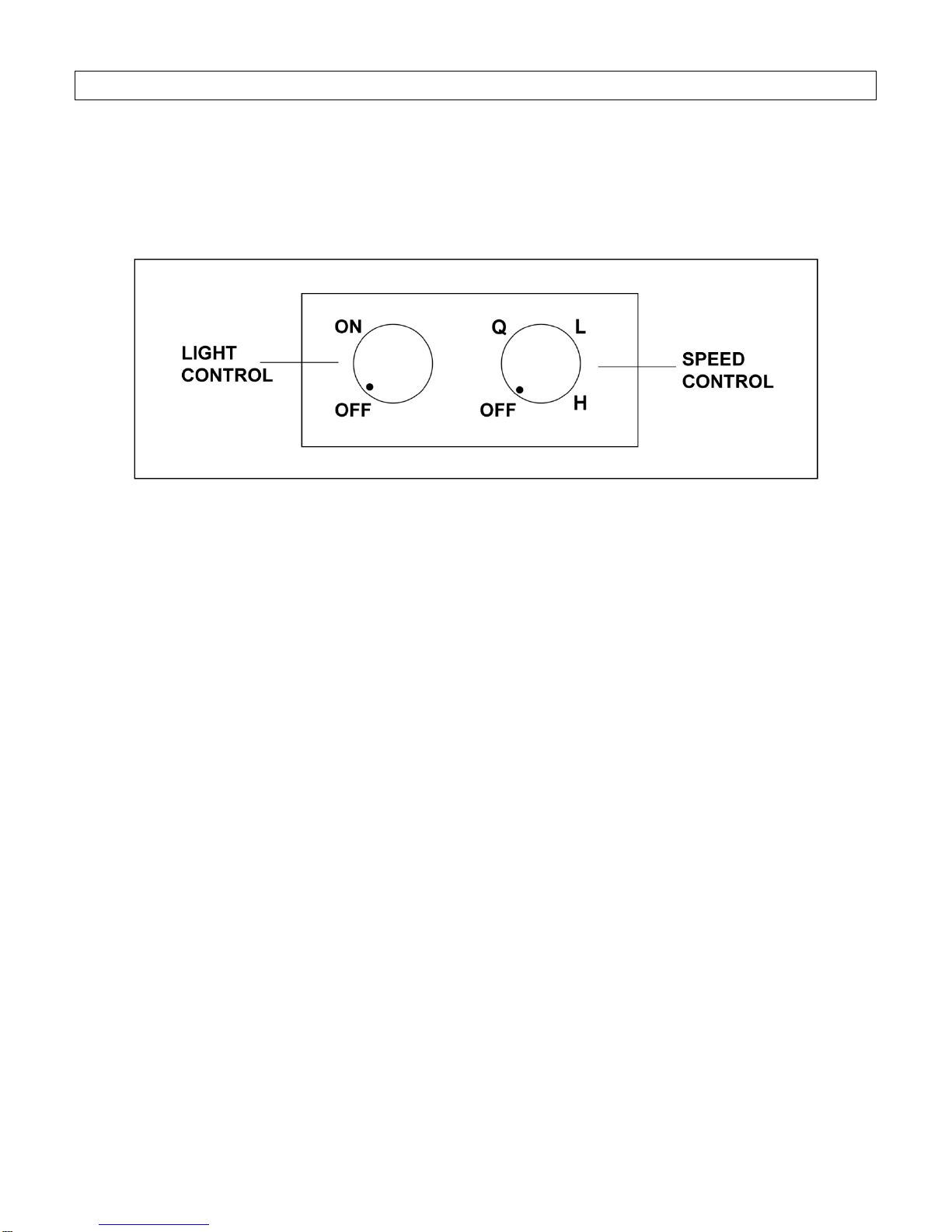

This KOBE hood is equipped with two rotary controls with powerful centrifugal squirrel cage, baffle filters,
and bright LED lights.
The two rotary controls are Light Control & Speed Control. Refer to Figure 9.
Figure 9
Note: For best results, turn hood to QuietMode™ prior to preparation or cooking to establish
airflow in the kitchen. Adjust speed as needed.
Rotate the Speed Control clockwise to cycle from QuietMode™, Low, High, and Off;
and rotate counterclockwise to cycle from High, Low, QuietMode™, and Off.
Rotate the Light Control clockwise to turn on the light.

9
MAINTENANCE
For the optimal level of operation, clean the range hood surface and baffles regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
*** Regular care will help preserve its fine appearance.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use an orange base cleaner to clean the surface of
the hood. Avoid cleaner to get on the control switches. Only spread a light coating over the
surface of the hood and leave on for a few minutes (do not leave on too long or this may cause
damage to hood finish). Use soft towel to wipe off the cleaning solution, gently rubs any stubborn
spots. Use a slightly damp towel to get rid of any cleaning solution. Use dry soft towel to dry the
hood.
3. To bring the glow back into a stainless steel finish, use a stainless steel cleaner.
4. DO NOT allow deposits to remain for long periods of time.
5. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
causing rust.
6. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact
with stainless steel for extended periods. Many of these compounds contain chemicals, which
may be harmful. Rinse with water after exposure and wipe dry with a clean cloth.
To Clean Baffle Filters & Oil Tunnel
CAUTION: DRAIN BAFFLE FILTERS AND OIL TUNNEL BEFORE OIL WILL OVERFLOW.
1. Remove the baffle filters and oil tunnel.
2. Using a sponge, wash with warm soapy water. Dry completely before returning into place.
(Note: Baffle Filters are top rack dishwasher safe.)

10
SPECIFICATIONS
MODEL / SIZE
RA0230SQB-DC-5 / 30” / Single Blower
RA0236SQB-DC-5 / 36” / Single Blower
RA0242SQB-DC-5 / 42” / Dual Blowers
RA0230SQB-DC24-5 / 30” / Single Blower
RA0236SQB-DC24-5 / 36” / Single Blower
RA0242SQB-DC24-5 / 42” / Dual Blowers
RA0230SQB-DC48-5 / 30” / Single Blower
RA0236SQB-DC48-5 / 36” / Single Blower
COLOR
Commercial Grade Stainless Steel
CONSUMPTION /
AMPERE
RA0230SQB-DC-5 – 320W / 2.86A
RA0236SQB-DC-5 – 320W / 2.86A
RA0242SQB-DC-5 – 350W / 3A
RA0230SQB-DC24-5 – 320W / 2.86A
RA0236SQB-DC24-5 – 320W / 2.86A
RA0242SQB-DC24-5 – 350W / 3A
RA0230SQB-DC48-5 – 320W / 2.86A
RA0236SQB-DC48-5 – 320W / 2.86A
RA0242SQB-DC48-5 – 350W / 3A
VOLTAGE
120V 60Hz
NUMBER OF
BLOWER
1 – 30”, 36”
2 – 42”
DESIGN
18-Gauge Seamless / Satin Finish
FAN TYPE: CENTRIFUGAL
Squirrel Cage
EXHAUST
Top 6” Round – 30”, 36”
Top 8” Round – 42”
CONTROLS
Rotary Switch
LIGHTS
3-Watt LED x 2 – 30”, 36”
3-Watt LED x 3 – 42”
HOOD DIMENSION
(W x D x H)
RA0230SQB
-
DC
-
5
29-3/4” x 24” x 18”
RA0236SQB-DC-5 35-3/4” x 24” x 18”
RA0242SQB-DC-5 41-3/4” x 24” x 18”
RA0230SQB-DC24-5 29-3/4” x 24” x 18”
RA0236SQB-DC24-5 35-3/4” x 24” x 18”
RA0242SQB-DC24-5 41-3/4” x 24” x 18”
RA0230SQB-DC48-5 29-3/4” x 24” x 18”
RA0236SQB-DC48-5 35-3/4” x 24” x 18”
RA0242SQB-DC48-5 41-3/4” x 24” x 18”

11
DUCT COVER DIMENSION
(W x D x H)
1)
RA02DC
-
1 (Original Duct Cover)
15” x 12” x 12”
2) RA02DC-24-1 (Inner Duct Extension)
15” x 12” x 24”
3) RA02DC-24 (Outer Duct Extension)
15” x 12” x 24”
OPTIONAL ACCESSORIES
(W x D x H)
1)
30”
Stainless Steel Back Panel
Model No.: SSP30 (30” x 32”)
2) 36” Stainless Steel Back Panel
Model No.: SSP36 (36” x 32”)
HOOD WEIGHT (lbs)
Net Gross
RA0230SQB-DC-5 55 67
RA0236SQB-DC-5 60 74
RA0242SQB-DC-5 75 91
RA02DC-1 5 7
SPEED
QuietMode™ Low High
SINGLE BLOWER
RA0230SQB-DC-5
RA0236SQB-DC-5
RA0230SQB-DC24-5
RA0236SQB-DC24-5
RA0230SQB-DC48-5
RA0236SQB-DC48-5
Air Capacity (cfm) 290 550 720
Sone* 1.8 4.7 5.4
DUAL BLOWERS
RA0242SQB-DC-5
RA0242SQB-DC24-5
RA0242SQB-DC48-5
Air Capacity (cfm) 450 700 1100
Sone* 2.5 6.0 8.0
*One sone is equivalent to the sound of a refrigerator at 40 decibels.
**Specifications subject to change without notice.

12

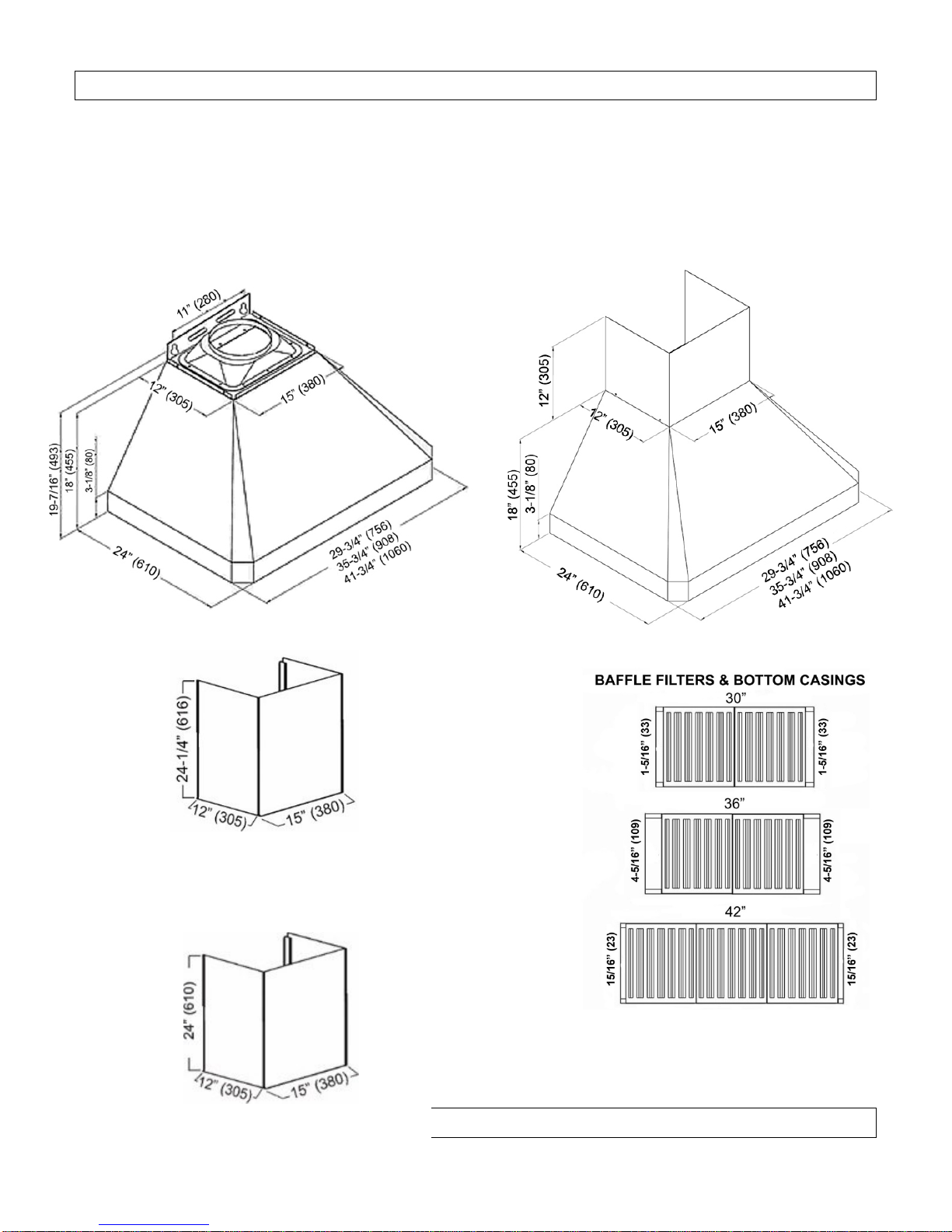

MEASUREMENTS & DIAGRAMS
*** All inch measurements are converted from millimeters. Inch measurements are estimated.
*** All measurements in ( ) are millimeters.

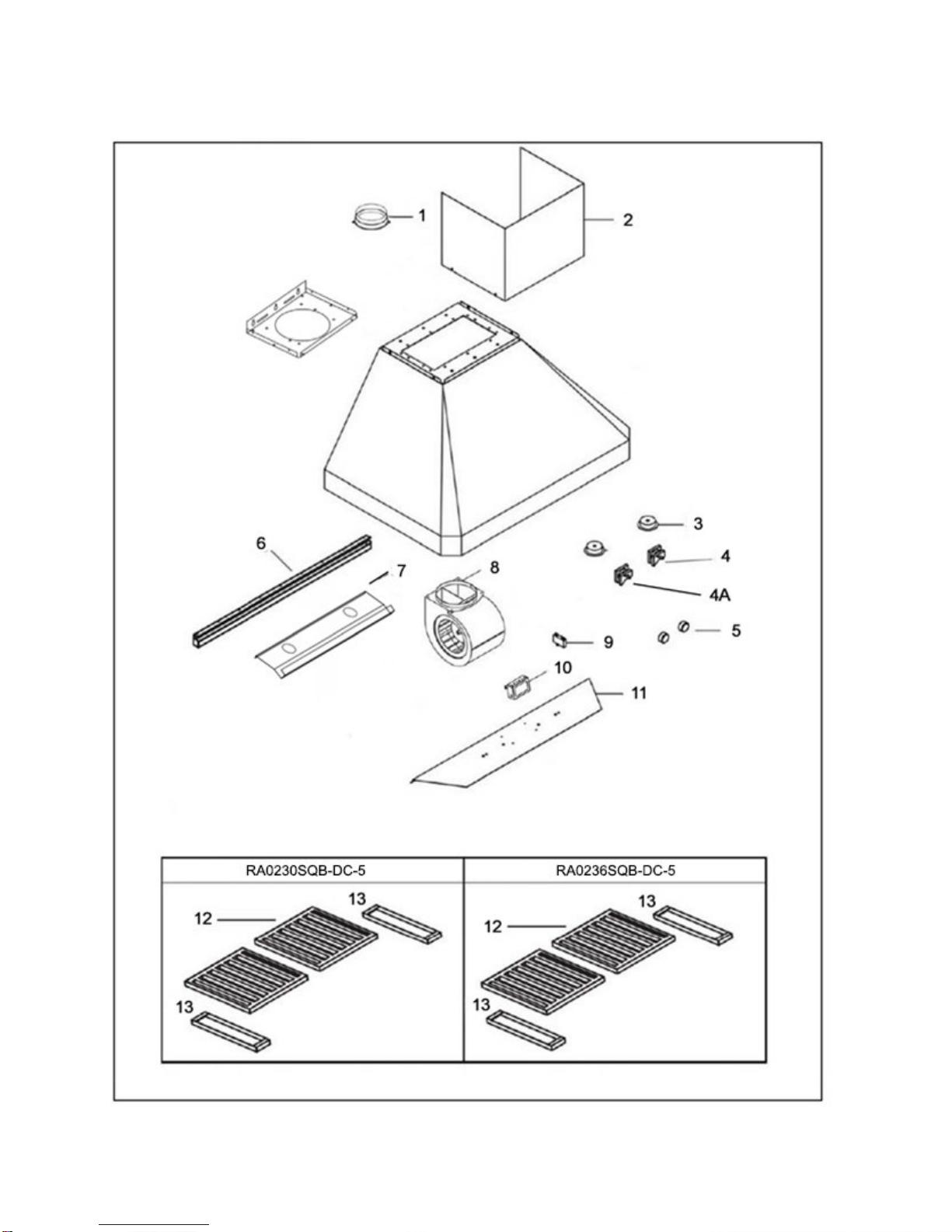

PARTS LIST
MODEL NO.:
RA0230SQB
-
DC
-
5
(30”)
RA0236SQB
-
DC
-
5
(36”)
RA0242SQB
-
DC
-
5
(42”)
Inner Duct Extension Model No.:
RA02DC
-
2
4
-
1
Baffle Filter for RA02
SQB
-
5
Series
Outer Duct Extension Model No.: RA02DC
-
24
*Included in RA02 SQB-DC24-5 and SQB-DC48-5
Series
*Included in RA02 SQB-DC48-5 Series only

13
MODEL NO.:
RA0230SQB
-
DC
-
5 / RA0230SQB
-
DC24
-
5
/ RA0230SQB
-
DC48
-
5
(30”)
RA0236SQB-DC-5 / RA0236SQB-DC24-5 / RA0236SQB-DC48-5 (36”)
RA0242SQB-DC-5 / RA0242SQB-DC24-5 / RA0242SQB-DC48-5 (42”)
NO. DESCRIPTION MODEL /SIZE PART NO.
1 6” Round Plastic Exhaust RA0230SQB-DC-5
RA0236SQB-DC-5 L1-0505-0003
8” Round Exhaust Plate RA0242SQB-DC-5 L1-0505-0004
2 Duct Cover RA02DC-1 12-0200-012-61
3 LED Light (3W) L1-0403-0301
4 Valve Stem(LIGHT) L1-0405-0404-B
4A Valve Stem(ON/OFF) L1-0405-0402-B
5 Knob L1-0405-0400-A
6 Metal Oil Tunnel RA0230SQB-DC-5 B101-9130-14A
Metal Oil Tunnel RA0236SQB-DC-5 B101-9136-14A
Metal Oil Tunnel RA0242SQB-DC-5 B101-9142-14A
7 Light Panel RA0230SQB-DC-5 B101-0230-06
RA0236SQB-DC-5 B101-0236-06
RA0242SQB-DC-5 B101-0242-06
8 Blower System RA0230SQB-DC-5
RA0236SQB-DC-5 X5-L1-0302-0120-802RO
RA0242SQB-DC-5 X5-L1-0302-0120-802RE
8A Motor Support RA0242SQB-DC-5 L1-0233-0242
9 Capacitor x 1PCS RA0230SQB-DC-5
RA0236SQB-DC-5 L1-0401-0120-24
Capacitor x 2PCS RA0242SQB-DC-5 L1-0401-0120-24
10 LED Driver L1-0402-D001
11 Capacitor Panel RA0230SQB-DC-5 L1-0201-0230
RA0236SQB-DC-5 L1-0201-0236
RA0242SQB-DC-5 L1-0201-0242
12 Baffle Filter L1-0214-0191
13 Stainless Steel Spacer {1-5/16”(33)x14-3/8”(365)} RA0230SQB-DC-5 B101-9130-15
Stainless Steel Spacer {4-5/16”(109)x14-3/8”(365)} RA0236SQB-DC-5 B101-9136-15
Stainless Steel Spacer {15/16”(23)x14-3/8”(365)} RA0242SQB-DC-5 B101-9142-15

14
Model No.: RA0230SQB-5 / RA0230SQB-DC24-5 / RA0230SQB-DC48-5 (30”)
RA0236SQB-5 / RA0236SQB-DC24-5 / RA0236SQB-DC48-5 (36”)

15

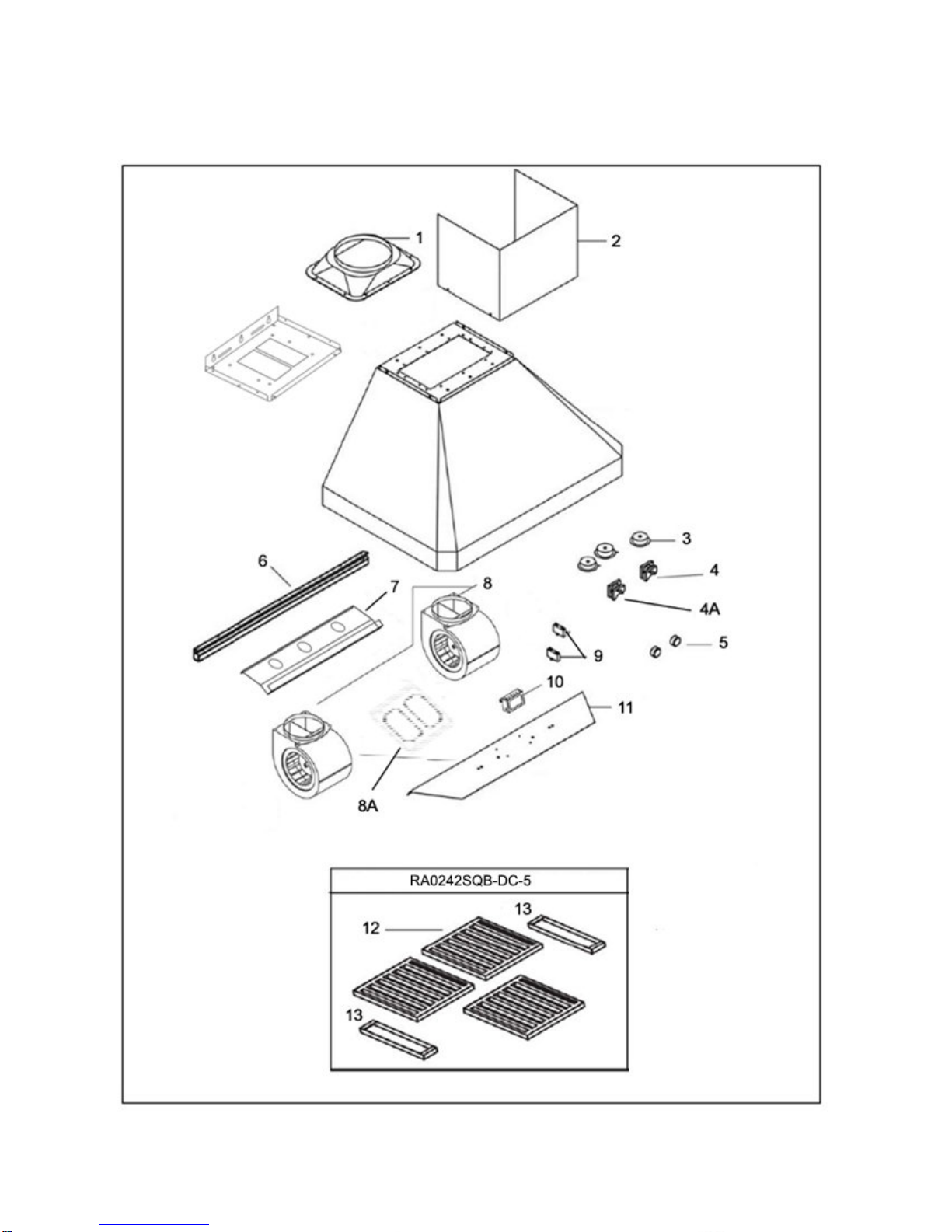

Model No.: RA0242SQB-5 / RA0242SQB-DC24-5 / RA0242SQB-DC48-5 (42”)

16
CIRCUIT DIAGRAM
MODEL NO.:
RA0230SQB
-
DC
-
5 / RA0230SQB
-
DC24
-
5
/ RA0230SQB
-
DC48
-
5
(30”)
RA0236SQB-DC-5 / RA0236SQB-DC24-5 / RA0236SQB-DC48-5 (36”)
MODEL NO.:
RA0242SQB
-
DC
-
5 / RA0242SQB
-
DC24
-
5
/ RA0242SQB
-
DC48
-
5
(42”)

17
TROUBLE SHOOTING
Issue
Possible Cause
Solution
After
Installation,
both motors
and lights are
not working.
The power is not on. Make sure the circuit breaker and the
unit’s power is ON. Use a voltage meter
to check the power supply.
The wire connection is not secure. Check and tighten wire connection.
The control panel is defective. Replace the control panel.
Lights are
working, but
motor(s) is
not.
The motor(s) is defective. Replace the motor.
The capacitor(s) is defective. Replace capacitor(s).
The control panel is defective. Replace the control panel.
The range
hood is
vibrating.
The blower system is not secure.
Tighten the turbine impeller/squirrel cage and air chamber.
The squirrel cage is not balanced. Replace the squirrel cage.
Hood is not secured in place. Check the installation of hood, tighten the
mounting bracket.
The motor is
working, but
the lights are
not working.
LED Light(s) is defective.
Replace the LED light.
The light wiring(s) is loose.
Check wire continuity from light transformer to LED light housing(s).
Light transformer is defective.
Check power input and power output on the light transformer. If it’s needed,
replace the light transformer.
The control panel is defective. Replace the control panel.
The range
hood is not
venting out
correctly.
The range hood is installed
outside of the manufacture
recommended clearance.
Adjust the clearance between the range
hoods and cook top to 27” to 30”. For
Island range hood, the clearance between
the range hoods and cook top is 30” to
36”.
There is no make-up air inside the
house. Open the window to enhance the performance of the range hood by
creating a sufficient make-up air.
Obstacle blocking the pipe work.
Remove all obstacles from the duct work.
The pipe size is smaller than the
suggested pipe size. Change the ducting according to the manufacture suggestion.
Cold air is
coming into
the home.
The pipe connection is not
properly sealed. Check the pipe installation.
The damper is not properly
installed or is missing from the
installation.
Check the damper installation.
The damper is not installed. By installing the damper, it will help to
eliminate air backflow.
