ST-Lab M-530 User manual

M-530 Bluetooth Stereo Speaker
User Manual
Ver. 1.00
All brand names and trademarks are properties of their
respective owners.

MN4000000072 Page 2
Contents:
Chapter 1: Introduction ......................................................3
1.1 Product Introduction ....................................................3
1.2 Features........................................................................3
1.3 Package Contents.........................................................3
1.4 Hardware Description..................................................4
Chapter 2: Getting Started .................................................7
2.1 Charging the speaker ...................................................7
2.2 Power up ......................................................................7
2.3 Get connected via Bluetooth........................................7
2.4 Plug & Play Non BT Device with Aux cable ..............9

MN4000000072 Page 3
Chapter 1: Introduction
1.1 Product Introduction
The Bluetooth speaker applies the latest Bluetooth wireless technology
that enables you to enjoy wireless music and audio wherever you want.
1.2 Features
Wireless Bluetooth link eliminates the need to dock or physically
connect your Bluetooth device
Easy to connect – pair once and then connect instantly every time
1.3 Package Contents
1 x M-530 Bluetooth Stereo Speaker
1 x User Manual
1 x 3.5 mm stereo audio cable
1 x USB charging cable
1 x Power adapter (optional)
Note: Contents may vary depending on country/market.

MN4000000072 Page 4

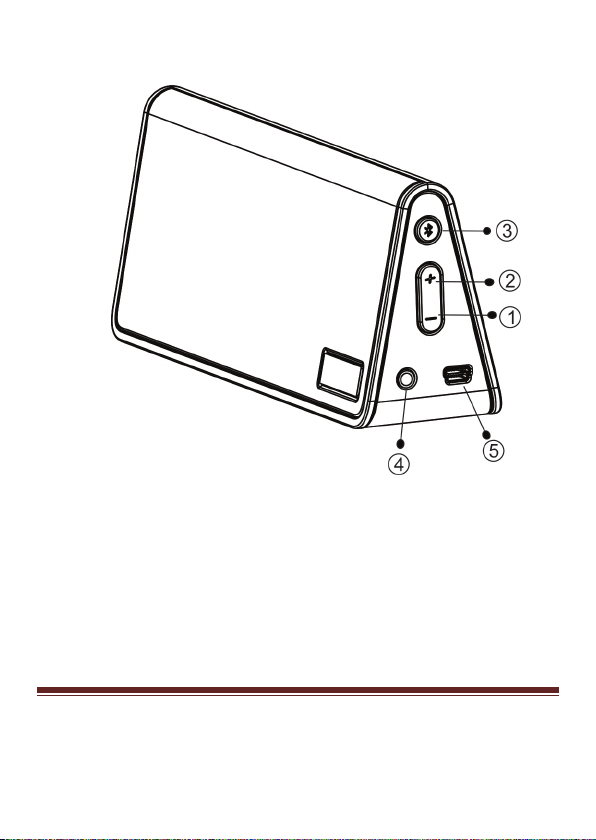

1.4 Hardware Description
1. Volume -
2. Volume +
3. Bluetooth Pair Button/LED
4. Line-In
5. DC Power Input

MN4000000072 Page 5

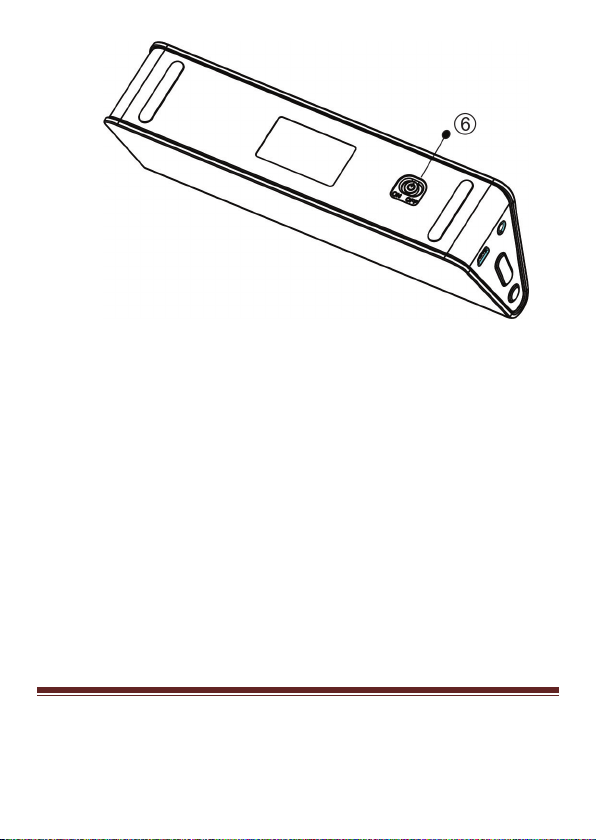

6. Power switch

MN4000000072 Page 6
Function Operation LED Indicator
Charging the
Speaker
Connect the speaker to
PC or Power Adapter
Red LED will stay
on
Waiting for
pairing
Turn on the power
switch from “Off” to
“On”
Green LED will
slow flash
Enter pairing
mode
Press and hold
“Power/Function”
button for
approximately 3
seconds
Green LED will
fast flash
Successfully
paired
Green LED will
stay on

MN4000000072 Page 7
Chapter 2: Getting Started
2.1 Charging the speaker
1. Make sure the speaker is fully charged before initial use.
2. Connect the speaker via the power input port to your PC or 5V
power adapter using USB charging cable.
3. The LED will illuminate in red while charging and will turn off
once fully charged.
2.2 Power up
1. Once the speaker is fully charged, locate the power switch.
2. Slide switch to “ON” position to power on. LED lights and sound
should further indicate that the speaker is on.
3. To power off, slide switch to “OFF” position.
2.3 Get connected via Bluetooth
1. Turn the power switch on the bottom of Speaker, the prompt tone
will appear “It is ready, waiting for device pairing”. The LED will
show flash once every 1 second.
2. Press and hold the Bluetooth pair button of the Bluetooth Speaker

MN4000000072 Page 8
for approximately 2-3 seconds and do not release it. The LED will
changes from slow flash to fast flash.
3. Go to the Bluetooth Manager of your Bluetooth device and then
select the Bluetooth Speaker from the list.
4. Enter “0000” if a password is required.
5. When the Bluetooth connection is made, the Green LED will keep
on.
6. Once connected, select your music or videos and see your sound
instantly amplified with Bluetooth Speaker.
Note: Once paired successfully, both the Speaker and your Bluetooth
device will store each other. Next time when you use the same device
to play music by the same Speaker, there is no need to re-pair and use
password.
7. Adjust the volume by press or hold the Volume +/- buttons on the
Speaker.
Note: If the Bluetooth Speaker does not have an active Bluetooth
connection and is left on, it will enter power saving mode after 3
minutes and LED will goes off. Press the Bluetooth pair button once to
wake the speaker, a tone will be generated and LED lit green.

MN4000000072 Page 9
2.4 Plug & Play Non BT Device with Aux cable
1. Connect the speaker with any audio device directly by using
supplied 3.5mm cable.
2. Connect one end of the 3.5mm cable to the Line-In port on the
Bluetooth Speaker and the other end of the cable to the 3.5’mm
audio output port on your music player.

MN4000000072 Page 10
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:

MN4000000072 Page 11
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly
approved by the part responsible for compliance could void the user’s
authority to operate the equipment.
