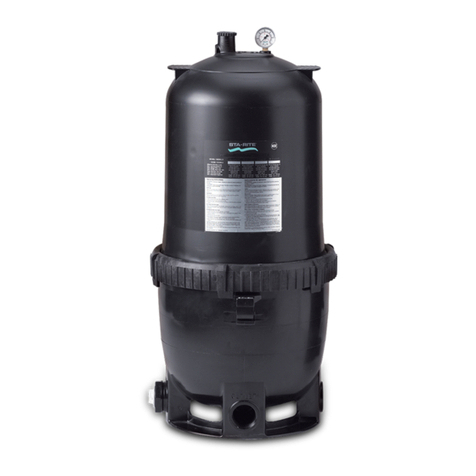

STA-RITE PLM100 Guide

INSTALLING DECALS: (Tank Upper Half Only):
1. Make sure replacement upper half is clean and dry. Apply decals as shown.
2. Read warning and operating instruction decals.
DISASSEMBLY:
1. STOP PUMP; CLOSE isolation valves. OPEN air release valve and
drain fitting. Drain all water from tank.
2. WAIT until all pressure is released and water drained from filter tank and
system before loosening Posi-Lok™ Ring.
3. Remove Posi-Lok™ ring as follows:
a. Press safety latch (below the ring) toward tank to release it (Figure 1).
b. Hold latch in the release position and rotate ring COUNTERCLOCKWISE
to remove. If ring is difficult to turn, tap gently with a rubber mallet.
NOTICE: DO NOT use a screwdriver or sharp blade to pry tank shells apart.
4. Separate upper and lower tank shell halves using tabs on bottom of
Posi-Lok™ ring. Insert tab into slot located at tank joint and twist ring to pry
shell halves apart (See Figures 2 and 3).
5. Remove O-ring from upper tank shell. Inspect for cuts, cracking,
deformation or signs of wear; replace if necessary.
NOTICE: To avoid strain or damage, allow filter module to drain before
lifting it out of the tank.
6. When replacing lower tank half, install internal tank parts in new tank.
Connect to plumbing as in original installation.
(Continued on back of sheet)
Sta-Rite Replacement Upper/Lower Half Filter Tank Kit Instructions
E
R
I
A
S
E
A
L
E
R
E
U
E
G
A
E
R
G
U
S
S
R
P
C
O
L
O
M
E
V
E
K
R
M
E
V
O
R
E
K
L
C
O
K
O
L
C
V
E
M
R
O
E
RELEASE
Sta-Rite Pool/Spa Group
293 Wright Street, Delavan, WI 53115
International: 262-728-5551, FAX: [phone]
www.starite.com
Union City, TN • Delavan, WI • Mississauga, Ont. • Murrieta, CA
©2004, Sta-Rite Industries Printed in U.S.A. S380 (Rev. 8/24/04)
Nameplate
Decal
Logo
Decal
Warning
Decal
Operation
Instructions
Decal
Hazardous pressure.
Can cause severe
injury from tank blow
up.
Release all pressure
and read instructions
before working on filter.
Figure 2 – Insert ring tab in slot
in filter body.
Figure 3 – Roll ring to one side to
loosen upper tank half.
Depress Safety Latch
to unscrew Posi
-
Lok
™
RELEASE
RELEASE
Figure 1 – Depress safety latch to
unscrew Posi-Lok™ Ring.

ASSEMBLY:
1. Inspect and clean the tank, ring threads and O-ring groove. Replace
damaged parts as necessary.
2. Install the filter module with the unplugged port over the tank outlet port.
Push down firmly to seal.
3. Ensure that the air bleed assembly on top of the module is clean and
properly mounted.
4. Lubricate O-ring only with the silicone grease provided or equivalent (Dow
Corning grade 111), as other lubricants may cause the ring to swell. DO
NOT lubricate Posi-Lok™ ring or threads on lower tank shell as this may
collect grit and make removal difficult.
5. Install the O-ring in the upper tank shell. Be sure that the O-ring is clean
and not twisted.
6. Push the upper tank shell into the lower tank shell to compress the O-ring.
7. Place the Posi-Lok™ ring squarely over the tank shell threads and rotate
COUNTERCLOCKWISE until the ring falls into the slots; then rotate
CLOCKWISE until securely latched (See Figure 4).
Safety Latch (See Figure 5)
NOTICE: The safety latch locks the Posi-Lok™ ring in position. DO NOT operate
the filter if the safety latch is damaged or will not hold the Posi-Lok™ ring in the
locked position. If the latch is damaged, replace it as follows:
1. Press down on the small catch behind the safety latch and press or tap the
latch out of the “Tee” slot in the tank (See Figure 5).
2. Snap the new latch into position.
START-UP
Be sure pump is OFF before starting procedure.
Do not operate this filter at more than 50 PSI (345 kPa) under any
circumstances!
1. Lock the Posi-Lok™ ring in place by rotating ring CLOCKWISE until one of
the ring tabs is captured by the safety latch. See Figure 4.
2. Fill trap on pump with water.
3. Open air release valve on top of filter; open isolation valves.
4. Start pump to purge air from system. When a steady stream of water comes
from air release valve, close the valve.
NOTICE: Leaking around the Posi-Lok™ ring may indicate that the ring is
not fully locked. In this case, make sure the O-Ring and seat are clean and
undamaged, and then again follow the instructions in this sheet under
“Disassembly” and “Assembly”.
See your owner’s manual for more information.
To request a copy of the owner’s manual,
call Sta-Rite customer service at 1-800-752-0183
2149 1195
Latch
Tab
Figure 4 – Rotate Posi-Lok™
Ring until tab locks behind
the safety latch.
Small
Catch
Figure 5 – Safety Latch
Part Model Numbers
Description Qty PLM100 PLM150 PLD50
Upper Tank Half Kits: Part Number
Nameplate Decal 1 27002-0042 27002-0045 27003-0045
Warning Decal 1 27001-0042 27001-0042 27001-0042
Operating Instructions Decal 1 27002-0043 27002-0043 27003-0043
System 3 Logo Decal 1 27001-0041 27001-0041 27001-0041
Tank Half with Air Vent Assembly (Installed) 1 27001-0020S 27001-0020S 27001-0020S
Lower Tank Half Kits:
Tank lower Half Assemby (includes Safety Latch). 1 27001-0009S 27001-0009S 27001-0009S
Does not include reducers, check valves,
drain caps, filter module, etc. Purchase separately).
